Orbital Sander XQ600. Orbital Sander Operation and Safety Notes

Μέγεθος: px
Εμφάνιση ξεκινά από τη σελίδα:

Download "Orbital Sander XQ600. Orbital Sander Operation and Safety Notes"

Transcript

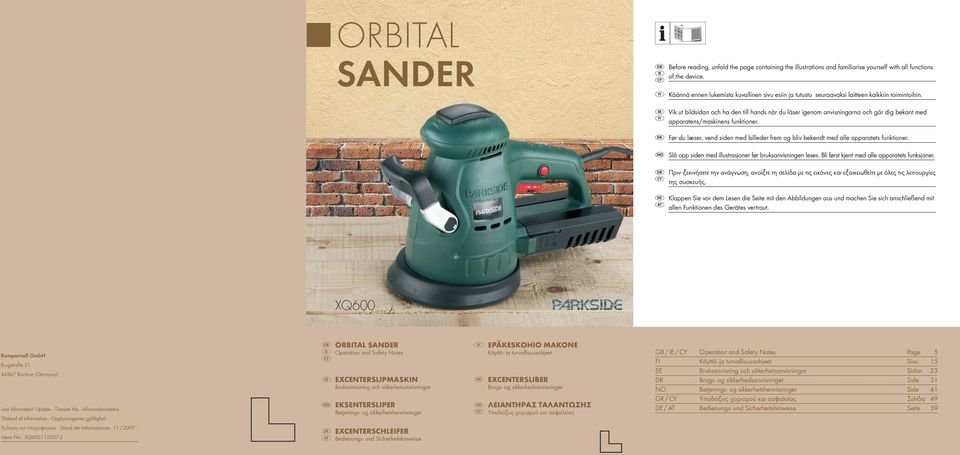

1 Orbital Sander Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device. Käännä ennen lukemista kuvallinen sivu esiin a tutustu seuraavaksi laitteen kaikkiin toimintoihin. Vik ut bildsidan och ha den till hands när du läser igenom anvisningarna och gör dig bekant med apparatens/maskinens funktioner. Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner. Slå opp siden med illustrasoner før bruksanvisningen leses. Bli først kent med alle apparatets funksoner. Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις λειτουργίες της συσκευής. Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut. XQ600 Kompernaß GmbH Burgstraße Bochum (Germany) Last Information Update Tietoen tila Informationsstatus Tilstand af information Opplysningenes gyldighet Έκδοση των πληροφοριών Stand der Informationen: 11 / 2007 Ident.-No.: XQ Orbital Sander Operation and Safety Notes Excenterslipmaskin Bruksanvisning och säkerhetsanvisningar Eksentersliper Betenings- og sikkerhetshenvisninger excenterschleifer Bedienungs- und Sicherheitshinweise Epäkeskohio makone Käyttö- a turvallisuusoheet GB / IE / CY Operation and Safety Notes Page 5 FI Käyttö- a turvallisuusoheet Sivu 15 Excentersliber Brugs- og sikkerhedsanvisninger Λειαντήρας ταλάντωσης Υποδείξεις χειρισμού και ασφαλείας SE Bruksanvisning och säkerhetsanvisningar Sidan 23 DK Brugs- og sikkerhedsanvisninger Side 31 NO Betenings- og sikkerhetshenvisninger Side 41 GR / CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 49 DE / AT Bedienungs- und Sicherheitshinweise Seite 59

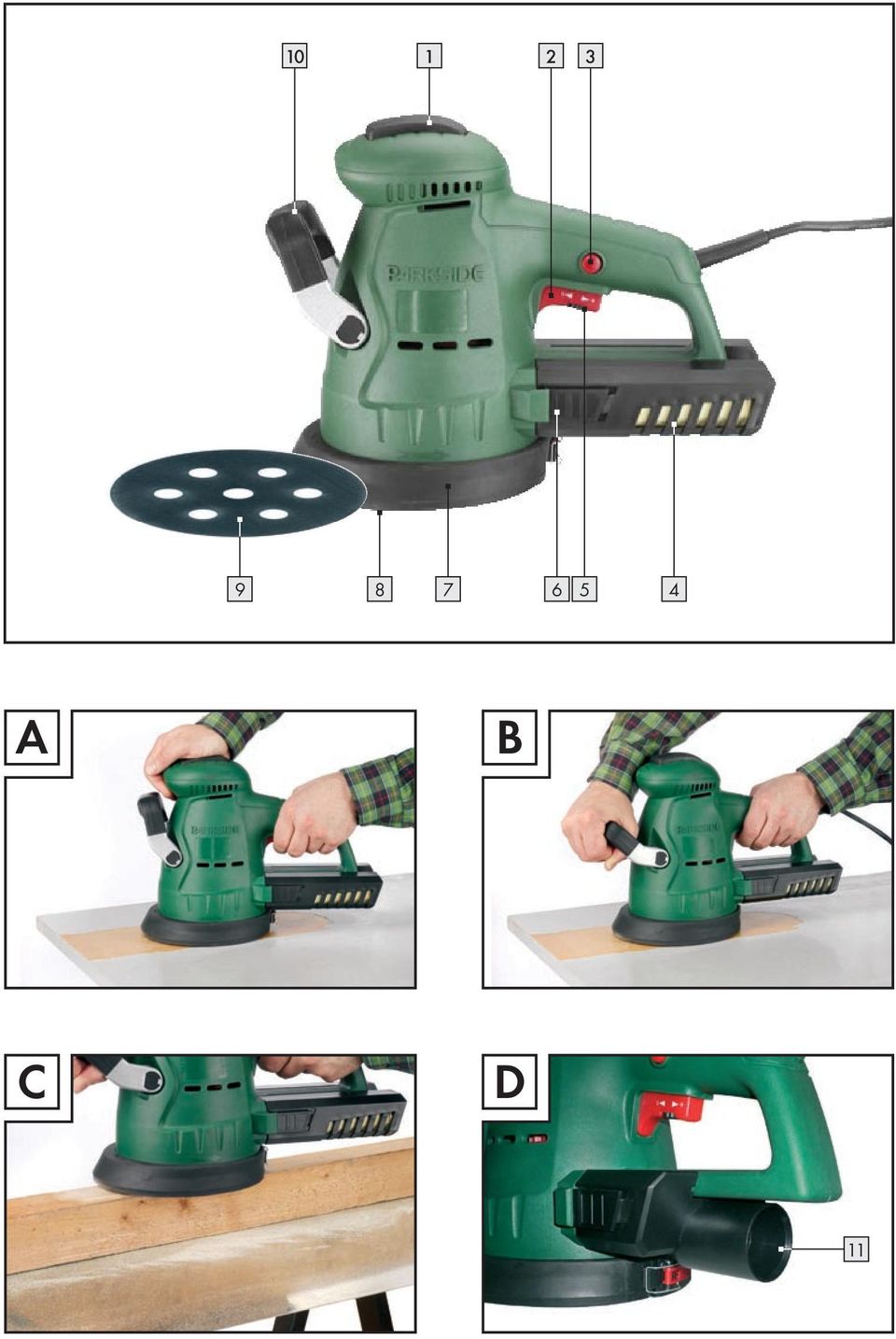

2 A B C D 11

3 Table of Content Introduction Intended utilisation... Page 6 Features and Fittings... Page 6 Items supplied... Page 6 Technical data... Page 7 General safety advice Your working area... Page 7 Electrical safety... Page 7 Personal safety... Page 8 Careful handling and use of electrical power tools... Page 8 Safety advice relating specifically to random orbital sanders... Page 9 Original accessories / tools... Page 9 Understood everything?... Page 10 Before use Changing sanding sheets... Page 10 Selecting rotation speeds and sanding sheets... Page 10 Commissioning Switching on and off... Page 10 Dust suction... Page 11 Advice about ways of working when sanding... Page 12 Maintenance and Cleaning... Page 12 Disposal... Page 12 Information Servicing... Page 12 Declaration of conformity / Manufacturer... Page 13 GB/IE/CY 5

4 Introduction The following icons / symbols are used in this instruction manual: Read instruction manual! Safety class II Observe caution and safety notes! Proper procedure and handling. Caution electric shock! Dangerous electric current danger to life! Wear hearing protection, dust protection mask, protective glasses and protective gloves. V ~ Voltage W Explosive material! Watts (Effective power) Keep children and other unauthorised personnel at a safe distance when using electrical tools. Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock. Damaged appliances, power cables and power plugs mean potentially fatal risks from electric shock. Regularly check the condition of the appliance, the power cables and the power plugs. n 0 Rated idle running speed Dispose packaging and appliance in an environmentally-friendly way! Rotary Sander XQ 600 Sanding of large areas. For wood, plastics and metal Q Introduction Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you understand how to handle electrical power tools correctly. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation. Q Intended utilisation The appliance is suitable for the dry sanding and buffing of wood, metal and paint. Any other uses, and modifications to the appliance, are deemed to be improper usage and may result in serious physical inury. The manufacturer will not accept liability for loss or damage arising from improper use. This appliance is not intended for commercial applications. Q Features and Fittings 1 Handswitch DUO-START 2 On / Off switch 3 Locking button 4 Dust collection box 5 Adusting wheel - rotation speed selector 6 Release button - dust collection box 7 Suction ring 8 Sanding plate 9 Sanding pad 10 Front switch DUO-START 11 Adaptor for external dust suction (Fig. D) Q Items supplied 1 Rotary Sander XQ Sanding sheets (1x Grit 80, 1x Grit 120) 1 Dust collection box 1 Suction adaptor 6 GB/IE/CY

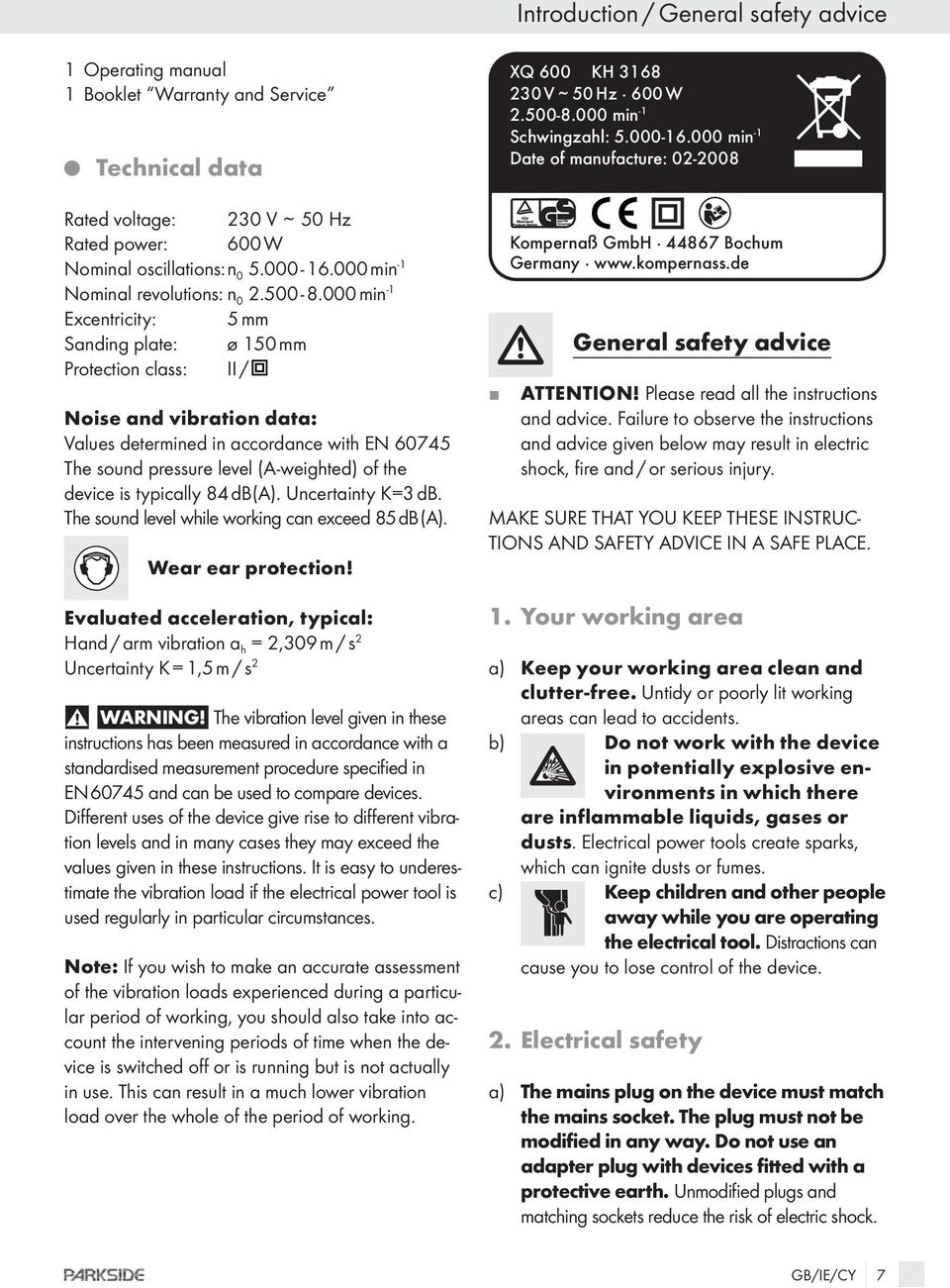

5 Introduction / General safety advice 1 Operating manual 1 Booklet Warranty and Service Q Technical data Rated voltage: 230 V ~ 50 Hz Rated power: 600 W Nominal oscillations: n min -1 Nominal revolutions: n min -1 Excentricity: 5 mm Sanding plate: ø 150 mm Protection class: II / Noise and vibration data: Values determined in accordance with EN The sound pressure level (A-weighted) of the device is typically 84 db(a). Uncertainty K=3 db. The sound level while working can exceed 85 db (A). Wear ear protection! Evaluated acceleration, typical: Hand / arm vibration a h = 2,309 m / s 2 Uncertainty K = 1,5 m / s 2 Warning! The vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN and can be used to compare devices. Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to underestimate the vibration load if the electrical power tool is used regularly in particular circumstances. Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working. XQ 600 KH V ~ 50 Hz 600 W min -1 Schwingzahl: min -1 Date of manufacture: Kompernaß GmbH Bochum Germany General safety advice Attention! Please read all the instructions and advice. Failure to observe the instructions and advice given below may result in electric shock, fire and / or serious inury. MAKE SURE THAT YOU KEEP THESE INSTRUC- TIONS AND SAFETY ADVICE IN A SAFE PLACE. 1. Your working area a) Keep your working area clean and clutter-free. Untidy or poorly lit working areas can lead to accidents. b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes. c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device. 2. Electrical safety a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock. GB/IE/CY 7

6 General safety advice b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed. c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock. d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock. e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock. f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock. 3. Personal safety a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious inury. b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of inury. c) Avoid unintentional operation of the device. Make sure that the switch is in the OFF position before you insert the mains plug into the mains socket. Accidents can happen if you carry the device with your finger on the switch or you have already switched the device on before you connect it to the mains. d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to inury. e) Do not overestimate your own abilities. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device, especially in unforeseen circumstances. f) Wear suitable clothing. Do not wear loose clothing or ewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, ewellery or long hair can become trapped in moving parts. g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust. 4. Careful handling and use of electrical power tools a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the ob you will work more safely and achieve a better result. b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired. c) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people. 8 GB/IE/CY

7 General safety advice d) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools. e) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to am and are easier to control. f) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations. Safety advice relating specifically to random orbital sanders When working in outside areas, protect yourself against leakage current by fitting an FI protection switch with a max. activation rating of 30 ma. Secure the workpiece firmly. Use clamps or a vice to firmly hold the workpiece. This results in a safer grip than with your hand. Under no circumstances should you place your hands next to or in front of the appliance or on the area to be worked, you could be seriously inured if you slip or stumble. In event of danger, immediately remove the power plug from the socket. Always run the power cable away from the appliance to the rear. Fire hazard due to flying sparks! When sanding metals, there is a risk of flying sparks. For this reason, always make certain that no one is at risk and that no flammable materials are located near the working area. Warning! Toxic vapours! The working of materials that can produce harmful / toxic dusts presents a health risk for the operator and for people located in the close vicinity. Wear safety glasses and a dust protection mask! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate external suction device. Provide for sufficient ventilation when working plastics, varnishes and paints. Do not soak materials or surfaces to be worked with liquids containing solvents. The heat generated during sanding can give rise to vapours that are toxic or hazardous to health. Avoid sanding lead-based paints or other materials that are hazardous to health. Material containing asbestos may not be worked. Asbestos is considered to be a carcinogen. Avoid contact with the moving sanding sheet. Use the appliance only with a sanding sheet in place. Never use the appliance for purposes other than those intended and only with original components / accessories. Introduce the appliance to the work piece with it switched on. On task completion, lift the appliance from the work piece and then switch it off. Permit the switched off appliance to come to a complete standstill before putting it down. The appliance must always be kept clean, dry and free of oil or grease. Q Original accessories / tools Use only the accessories detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an inury. GB/IE/CY 9

8 General safety advice / Before use / Commissioning Q Understood everything? You may begin to work with the appliance when you have familiarised yourself with the instructions, functions and handling of the appliance. The safest work is possible by heeding all information and instructions of the manufacturer. Q Before use Q Changing sanding sheets Warning! Before carrying out work on the appliance, always remove the plug from the power socket. The rotary sander is fitted with a velcro rapid attachment, making possible a quick and easy exchange of sanding sheets. Note: Before securing a new sanding sheet 9, remove all dust and dirt from the sander plate 8. Ensure that the openings in the sanding sheet 9 concur with the boreholes of the sanding plate 8. Q Selecting rotation speeds and sanding sheets Removal rate and surface quality The removal rate and the surface quality are determined by the rotation speed and the gritting of the sanding sheet. Please take note that, for working the various materials, you must select the appropriate sanding sheet, one with a suitable gritting, and match it to an appropriate rotation speed. Material / Working range Rough finish (Gritting) 60 Fine finish (Gritting) 240 Softwood Rotation speed preselection high (E +) Material / Working range Rough finish (Gritting) 60 Fine finish (Gritting) 180 Hardwood Rotation speed preselection high (E +) Material / Working range Rough finish (Gritting) 180 Fine finish (Gritting) 400 Abrade varnish Rotation speed preselection medium (- F) Material / Working range Rough finish (Gritting) 40 Fine finish (Gritting) 80 Rotation speed preselection Material / Working range Rough finish (Gritting) 80 Remove paint / varnish medium to high Metals Fine finish (Gritting) 240 Rotation speed preselection medium to high These are noncommittal declarations and recommendations. Q Commissioning The voltage of the power source must tally with the details given on the rating plate of the appliance. Appliances requiring 230 V can also be run on 220 V. Q Switching on and off Notice! Always switch the rotary sander on before applying it to the material to be worked, then make contact with it. When operating the device you can select between intermittent or continuous operation mode To switch on intermittent operation mode: Press the On / Off switch GB/IE/CY

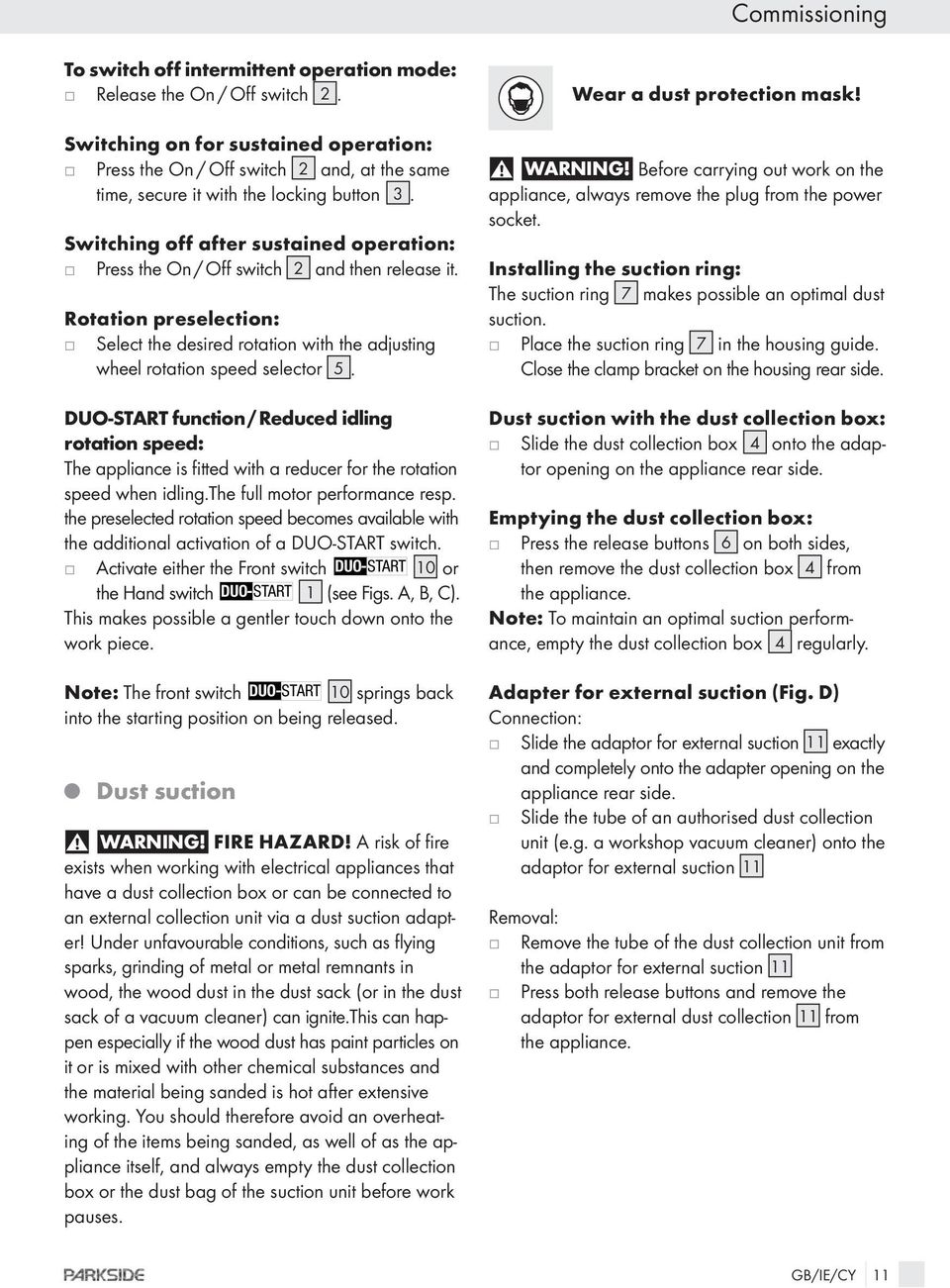

9 Commissioning To switch off intermittent operation mode: Release the On / Off switch 2. Switching on for sustained operation: Press the On / Off switch 2 and, at the same time, secure it with the locking button 3. Switching off after sustained operation: Press the On / Off switch 2 and then release it. Rotation preselection: Select the desired rotation with the adusting wheel rotation speed selector 5. DUO-START function / Reduced idling rotation speed: The appliance is fitted with a reducer for the rotation speed when idling.the full motor performance resp. the preselected rotation speed becomes available with the additional activation of a DUO-START switch. Activate either the Front switch DUO-START 10 or the Hand switch DUO-START 1 (see Figs. A, B, C). This makes possible a gentler touch down onto the work piece. Note: The front switch DUO-START 10 springs back into the starting position on being released. Q Dust suction Warning! Fire hazard! A risk of fire exists when working with electrical appliances that have a dust collection box or can be connected to an external collection unit via a dust suction adapter! Under unfavourable conditions, such as flying sparks, grinding of metal or metal remnants in wood, the wood dust in the dust sack (or in the dust sack of a vacuum cleaner) can ignite.this can happen especially if the wood dust has paint particles on it or is mixed with other chemical substances and the material being sanded is hot after extensive working. You should therefore avoid an overheating of the items being sanded, as well of as the appliance itself, and always empty the dust collection box or the dust bag of the suction unit before work pauses. Wear a dust protection mask! Warning! Before carrying out work on the appliance, always remove the plug from the power socket. Installing the suction ring: The suction ring 7 makes possible an optimal dust suction. Place the suction ring 7 in the housing guide. Close the clamp bracket on the housing rear side. Dust suction with the dust collection box: Slide the dust collection box 4 onto the adaptor opening on the appliance rear side. Emptying the dust collection box: Press the release buttons 6 on both sides, then remove the dust collection box 4 from the appliance. Note: To maintain an optimal suction performance, empty the dust collection box 4 regularly. Adapter for external suction (Fig. D) Connection: Slide the adaptor for external suction 11 exactly and completely onto the adapter opening on the appliance rear side. Slide the tube of an authorised dust collection unit (e.g. a workshop vacuum cleaner) onto the adaptor for external suction 11 Removal: Remove the tube of the dust collection unit from the adaptor for external suction 11 Press both release buttons and remove the adaptor for external dust collection 11 from the appliance. GB/IE/CY 11

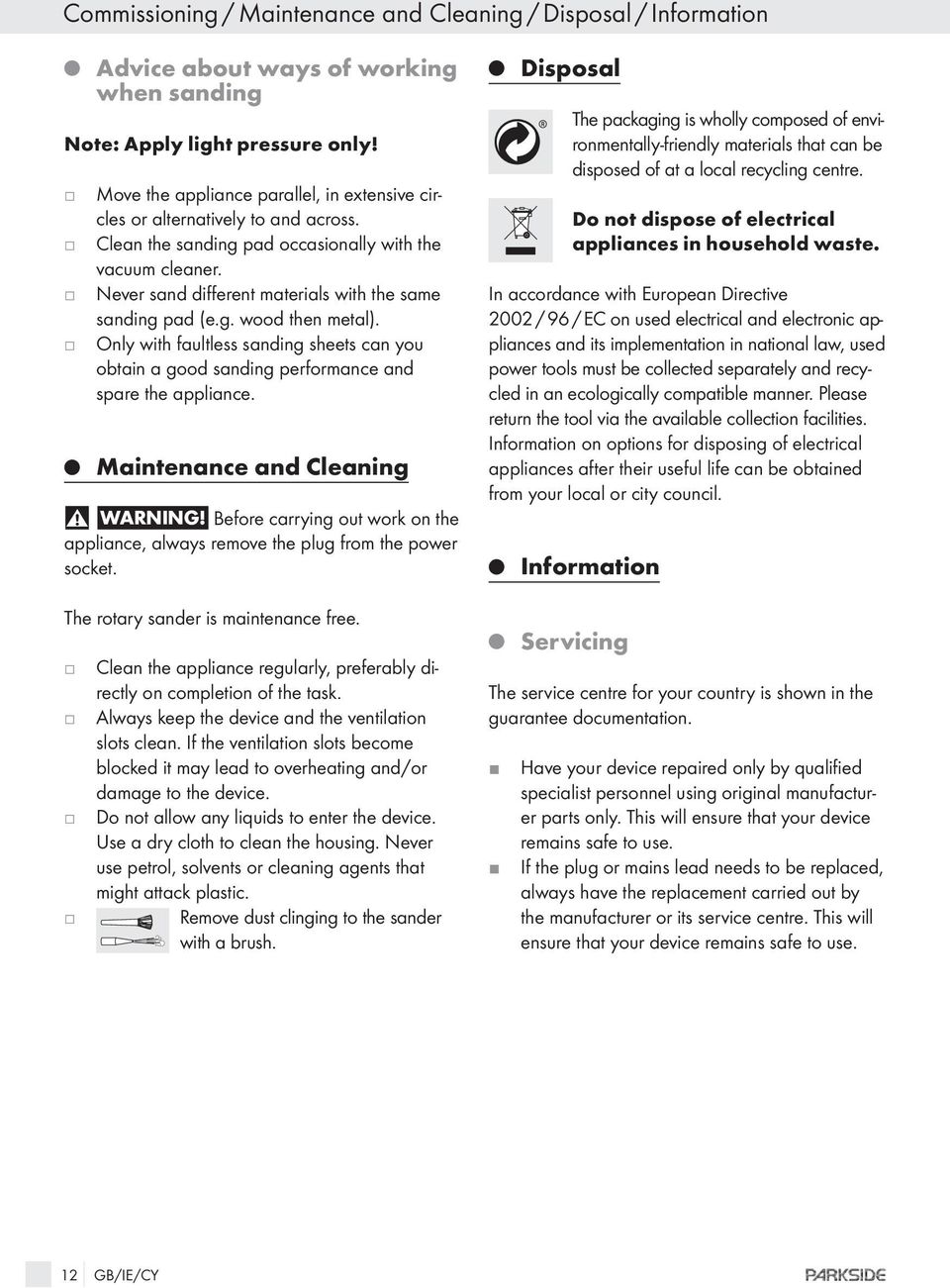

10 Commissioning / Maintenance and Cleaning / Disposal / Information Q Advice about ways of working when sanding Note: Apply light pressure only! Move the appliance parallel, in extensive circles or alternatively to and across. Clean the sanding pad occasionally with the vacuum cleaner. Never sand different materials with the same sanding pad (e.g. wood then metal). Only with faultless sanding sheets can you obtain a good sanding performance and spare the appliance. Q Maintenance and Cleaning Warning! Before carrying out work on the appliance, always remove the plug from the power socket. The rotary sander is maintenance free. Clean the appliance regularly, preferably directly on completion of the task. Always keep the device and the ventilation slots clean. If the ventilation slots become blocked it may lead to overheating and/or damage to the device. Do not allow any liquids to enter the device. Use a dry cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic. Remove dust clinging to the sander with a brush. Q Disposal The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre. Do not dispose of electrical appliances in household waste. In accordance with European Directive 2002 / 96 / EC on used electrical and electronic appliances and its implementation in national law, used power tools must be collected separately and recycled in an ecologically compatible manner. Please return the tool via the available collection facilities. Information on options for disposing of electrical appliances after their useful life can be obtained from your local or city council. Q Information Q Servicing The service centre for your country is shown in the guarantee documentation. Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use. If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use. 12 GB/IE/CY

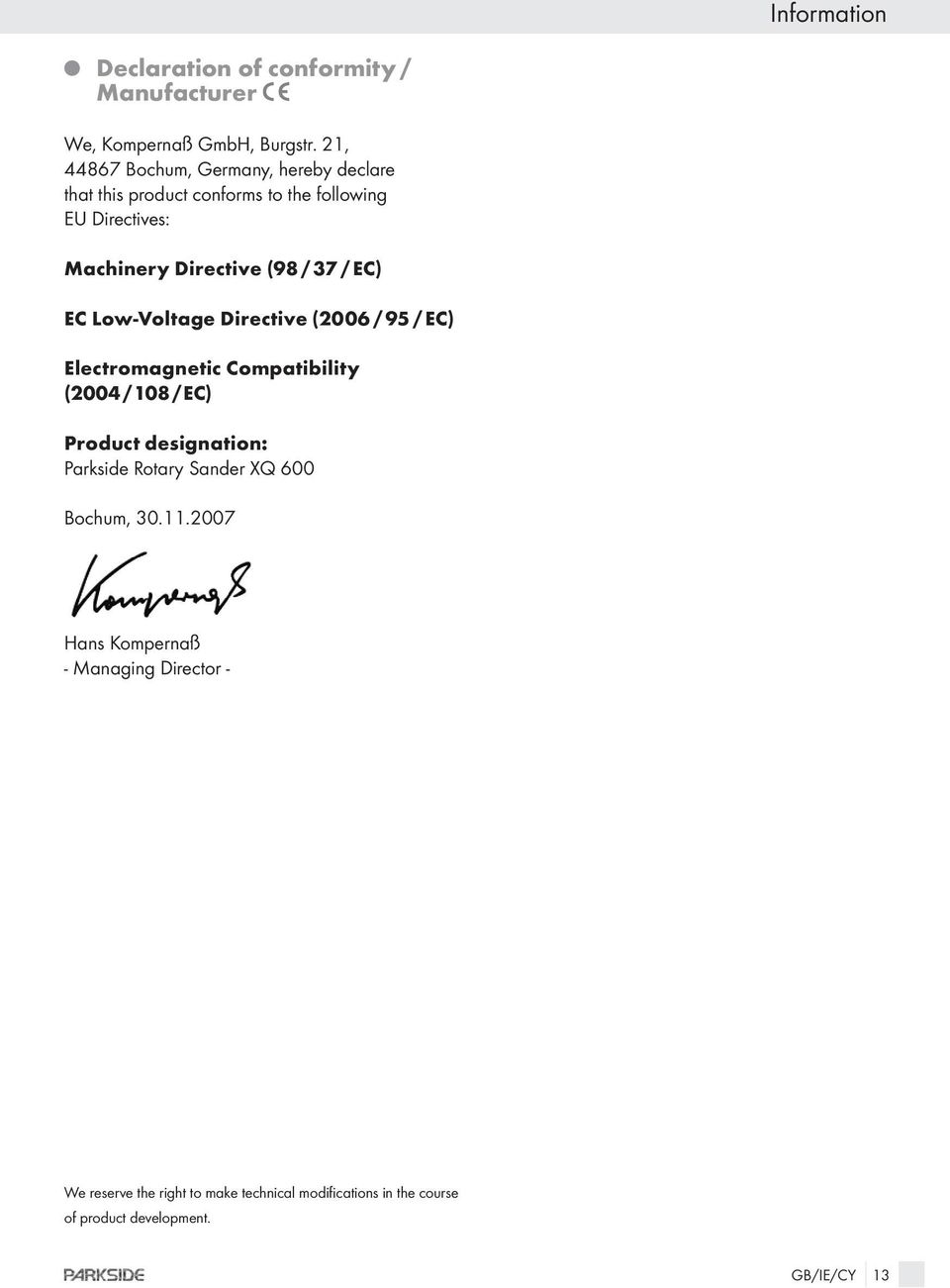

11 Information Q Declaration of conformity / Manufacturer We, Kompernaß GmbH, Burgstr. 21, Bochum, Germany, hereby declare that this product conforms to the following EU Directives: Machinery Directive (98 / 37 / EC) EC Low-Voltage Directive (2006 / 95 / EC) Electromagnetic Compatibility (2004 / 108 / EC) Product designation: Parkside Rotary Sander XQ 600 Bochum, Hans Kompernaß - Managing Director - We reserve the right to make technical modifications in the course of product development. GB/IE/CY 13

12 14

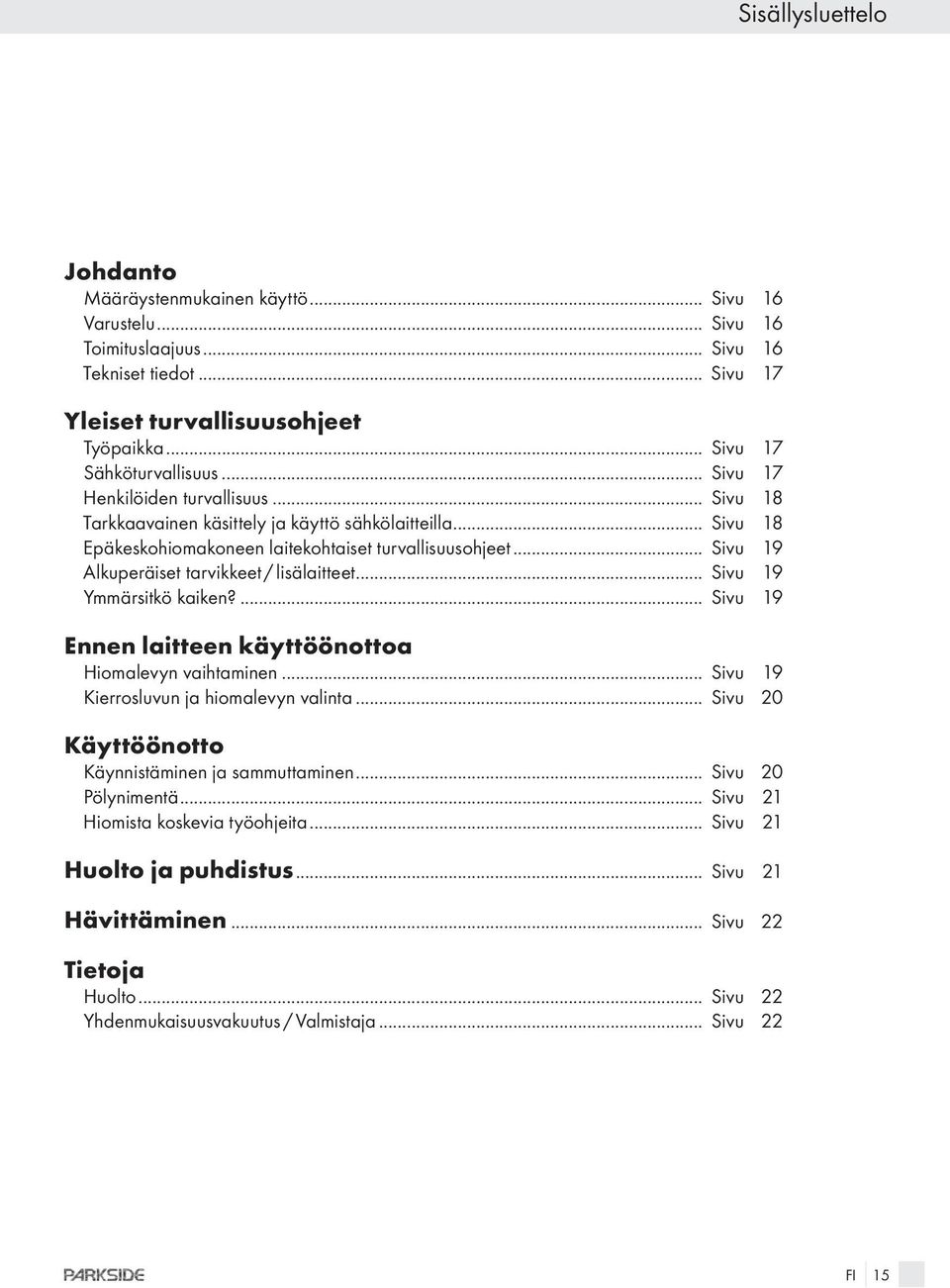

13 Sisällysluettelo ohdanto Määräystenmukainen käyttö... Sivu 16 Varustelu... Sivu 16 Toimituslaauus... Sivu 16 Tekniset tiedot... Sivu 17 Yleiset turvallisuusoheet Työpaikka... Sivu 17 Sähköturvallisuus... Sivu 17 Henkilöiden turvallisuus... Sivu 18 Tarkkaavainen käsittely a käyttö sähkölaitteilla... Sivu 18 Epäkeskohiomakoneen laitekohtaiset turvallisuusoheet... Sivu 19 Alkuperäiset tarvikkeet / lisälaitteet... Sivu 19 Ymmärsitkö kaiken?... Sivu 19 Ennen laitteen käyttöönottoa Hiomalevyn vaihtaminen... Sivu 19 Kierrosluvun a hiomalevyn valinta... Sivu 20 Käyttöönotto Käynnistäminen a sammuttaminen... Sivu 20 Pölynimentä... Sivu 21 Hiomista koskevia työoheita... Sivu 21 Huolto a puhdistus... Sivu 21 Hävittäminen... Sivu 22 Tietoa Huolto... Sivu 22 Yhdenmukaisuusvakuutus / Valmistaa... Sivu 22 FI 15

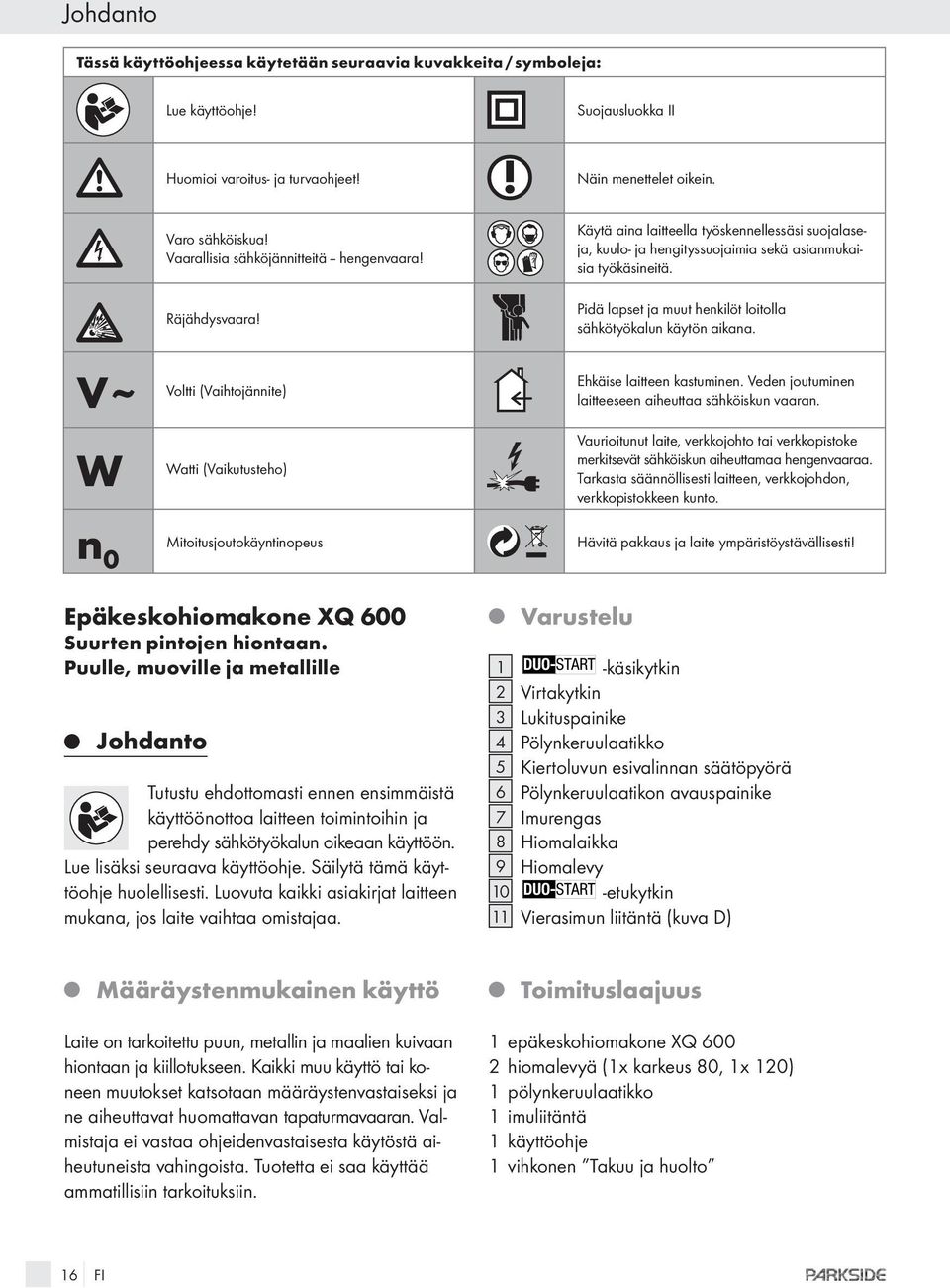

14 ohdanto Tässä käyttöoheessa käytetään seuraavia kuvakkeita / symbolea: Lue käyttöohe! Suoausluokka II Huomioi varoitus- a turvaoheet! Näin menettelet oikein. Varo sähköiskua! Vaarallisia sähköännitteitä hengenvaara! Räähdysvaara! Käytä aina laitteella työskennellessäsi suoalasea, kuulo- a hengityssuoaimia sekä asianmukaisia työkäsineitä. Pidä lapset a muut henkilöt loitolla sähkötyökalun käytön aikana. V ~ Voltti (Vaihtoännite) W Watti (Vaikutusteho) Ehkäise laitteen kastuminen. Veden outuminen laitteeseen aiheuttaa sähköiskun vaaran. Vaurioitunut laite, verkkoohto tai verkkopistoke merkitsevät sähköiskun aiheuttamaa hengenvaaraa. Tarkasta säännöllisesti laitteen, verkkoohdon, verkkopistokkeen kunto. n 0 Mitoitusoutokäyntinopeus Hävitä pakkaus a laite ympäristöystävällisesti! Epäkeskohiomakone XQ 600 Suurten pintoen hiontaan. Puulle, muoville a metallille Q ohdanto Tutustu ehdottomasti ennen ensimmäistä käyttöönottoa laitteen toimintoihin a perehdy sähkötyökalun oikeaan käyttöön. Lue lisäksi seuraava käyttöohe. Säilytä tämä käyttöohe huolellisesti. Luovuta kaikki asiakirat laitteen mukana, os laite vaihtaa omistaaa. Q Varustelu 1 DUO-START -käsikytkin 2 Virtakytkin 3 Lukituspainike 4 Pölynkeruulaatikko 5 Kiertoluvun esivalinnan säätöpyörä 6 Pölynkeruulaatikon avauspainike 7 Imurengas 8 Hiomalaikka 9 Hiomalevy 10 DUO-START -etukytkin 11 Vierasimun liitäntä (kuva D) Q Määräystenmukainen käyttö Laite on tarkoitettu puun, metallin a maalien kuivaan hiontaan a kiillotukseen. Kaikki muu käyttö tai koneen muutokset katsotaan määräystenvastaiseksi a ne aiheuttavat huomattavan tapaturmavaaran. Valmistaa ei vastaa oheidenvastaisesta käytöstä aiheutuneista vahingoista. Tuotetta ei saa käyttää ammatillisiin tarkoituksiin. Q Toimituslaauus 1 epäkeskohiomakone XQ hiomalevyä (1x karkeus 80, 1x 120) 1 pölynkeruulaatikko 1 imuliitäntä 1 käyttöohe 1 vihkonen Takuu a huolto 16 FI

15 ohdanto / Yleiset turvallisuusoheet Q Tekniset tiedot Nimellisännite: 230 V ~ 50 Hz Nimellisteho: 600 W Nimellisvärähtelytaauus: n min -1 Nimelliskierrosluku: n min -1 Epäkeskisyys: 5 mm Hiomalaikka: ø 150 mm Suoausluokka: II / Melu- a tärinätiedot: Mittausarvot määritetty normin EN mukaan. Laitteen A-painotettu äänenpainetaso on tyypillisesti 84 db (A). Epävarmuus K=3 db. Melutaso saattaa työn aikana ylittää 85 db (A). Käytä kuulosuoaimia! Arvioitu kiihtyvyys, tyypillisesti: Käteen a käsivarteen kohdistuva värinä a h = 2,309 m / s 2 Epävarmuus K = 1,5 m / s 2 Varoltus! Näissä oheissa ilmoitettu värähtelytaso on määritetty normissa EN standardoidulla mittausmenetelmällä a sitä voidaan käyttää laitevertailussa. Värähtelytaso muuttuu sähkötyökalun käytön mukaan a se saattaa monesti ylittää tässä oheessa mainitun arvon. Värähtelyrasitusta saatetaan aliarvioida, os sähkötyökalua säännöllisesti käytetään tällä tavalla. Huomio: Liikekuormituksen arvioimiseksi tietyn työaan kestäessä on huomioitava myös aat, olloin laite on sammutettuna, tai aat, olloin laite on käynnissä, mutta ei työkäytössä. Tämä saattaa vähentää merkittävästi liikerasitusta kokonaistyöskentelyaan kestäessä. XQ 600 KH V ~ 50 Hz 600 W min -1 Schwingzahl: min -1 Date of manufacture: Kompernaß GmbH Bochum Germany Yleiset turvallisuusoheet Huomio! Kaikki oheet on luettava. Oheiden noudattamattomuus voi aiheuttaa sähköiskun, tulipalon a / tai vaikeita tapaturmia. PIDÄ KÄYTTÖOHE HYVIN TALLESSA. 1. Työpaikka a) Pidä työpaikka puhtaana a siivottuna. Epäärestys a huono valaistus voivat ohtaa tapaturmiin. b) Älä käytä laitetta räähdysvaarallisessa ympäristössä, ossa säilytetään helposti syttyviä nesteitä, kaasua tai ossa kehittyy pölyä. Sähkötyökalut kehittävät kipinöintiä, oka voi sytyttää pölyn tai höyryn. c) Lapsien a asiattomien henkilöiden läsnäolo työpaikalla laitteen ollessa käynnissä ei ole sallittua. Voit helposti menettää kontrollin laitteeseen. 2. Sähköturvallisuus a) Laitteen pistokkeen pitää sopia pistorasiaan. Pistoketta ei saa muuttaa millään tavalla. Älä käytä adapteria yhdessä suoamaadoitettuen laitteiden kanssa. Alkuperäinen pistoke a sopivat pistorasia vähentävät sähköiskuvaaraa. b) Vältä kosketusta maadoitettuihin pintoihin, kuten putkiin, lämpöpattereihin, liesiin sekä ääkaappeihin. Vaarana on saada sähköisku, os kehosi on maadoitettu. c) Älä pidä laitetta sateessa tai muussa kosteudessa. Veden pääsy laitteeseen lisää sähköisku vaaraa. d) Älä kanna laitetta riiputtamalla sitä kaapelista a vedä kaapeli irti pistorasiasta pi- FI 17

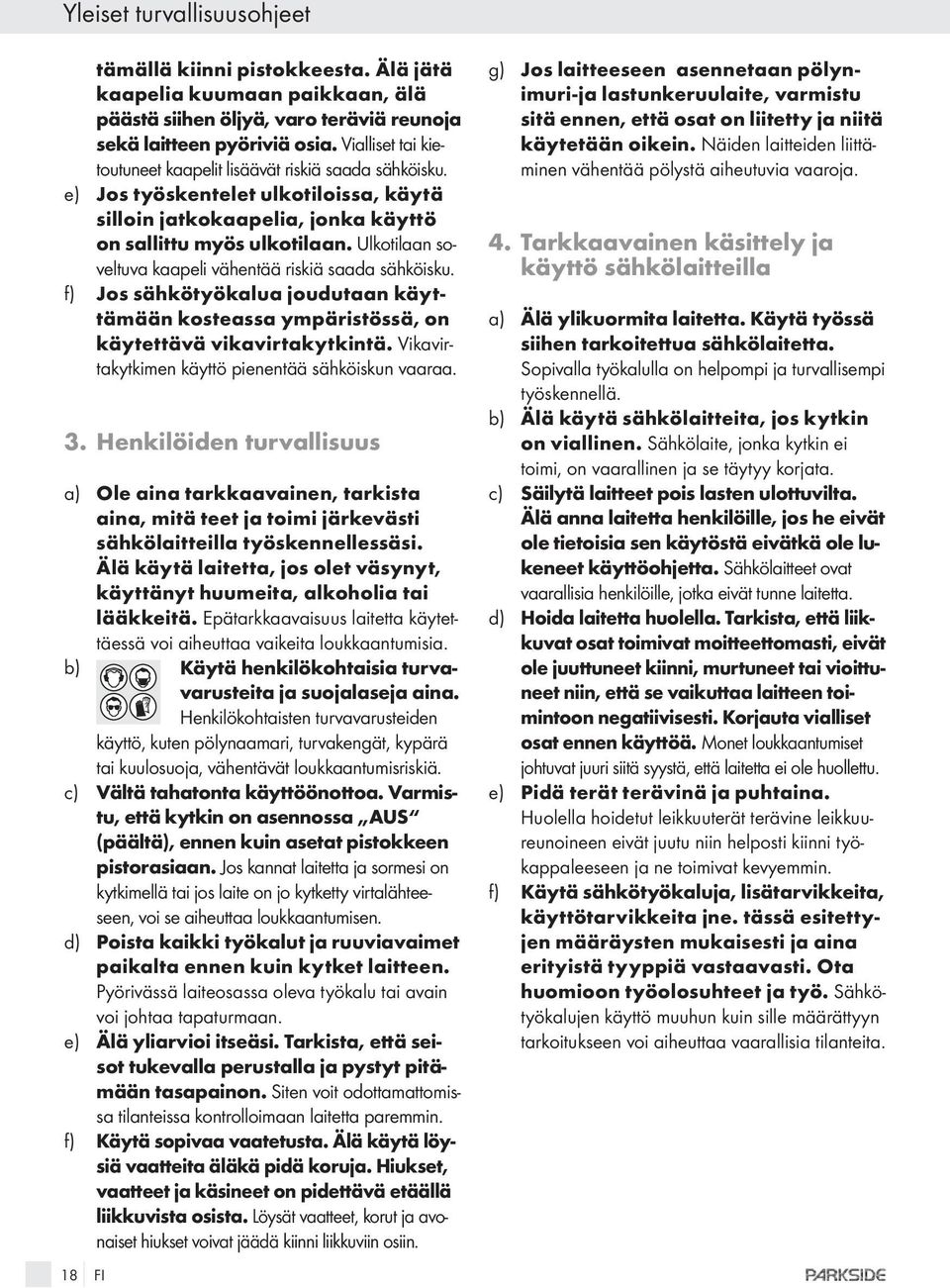

16 Yleiset turvallisuusoheet tämällä kiinni pistokkeesta. Älä ätä kaapelia kuumaan paikkaan, älä päästä siihen ölyä, varo teräviä reunoa sekä laitteen pyöriviä osia. Vialliset tai kietoutuneet kaapelit lisäävät riskiä saada sähköisku. e) os työskentelet ulkotiloissa, käytä silloin atkokaapelia, onka käyttö on sallittu myös ulkotilaan. Ulkotilaan soveltuva kaapeli vähentää riskiä saada sähköisku. f) os sähkötyökalua oudutaan käyttämään kosteassa ympäristössä, on käytettävä vikavirtakytkintä. Vikavirtakytkimen käyttö pienentää sähköiskun vaaraa. 3. Henkilöiden turvallisuus a) Ole aina tarkkaavainen, tarkista aina, mitä teet a toimi ärkevästi sähkölaitteilla työskennellessäsi. Älä käytä laitetta, os olet väsynyt, käyttänyt huumeita, alkoholia tai lääkkeitä. Epätarkkaavaisuus laitetta käytettäessä voi aiheuttaa vaikeita loukkaantumisia. b) Käytä henkilökohtaisia turvavarusteita a suoalasea aina. Henkilökohtaisten turvavarusteiden käyttö, kuten pölynaamari, turvakengät, kypärä tai kuulosuoa, vähentävät loukkaantumisriskiä. c) Vältä tahatonta käyttöönottoa. Varmistu, että kytkin on asennossa AUS (päältä), ennen kuin asetat pistokkeen pistorasiaan. os kannat laitetta a sormesi on kytkimellä tai os laite on o kytketty virtalähteeseen, voi se aiheuttaa loukkaantumisen. d) Poista kaikki työkalut a ruuviavaimet paikalta ennen kuin kytket laitteen. Pyörivässä laiteosassa oleva työkalu tai avain voi ohtaa tapaturmaan. e) Älä yliarvioi itseäsi. Tarkista, että seisot tukevalla perustalla a pystyt pitämään tasapainon. Siten voit odottamattomissa tilanteissa kontrolloimaan laitetta paremmin. f) Käytä sopivaa vaatetusta. Älä käytä löysiä vaatteita äläkä pidä korua. Hiukset, vaatteet a käsineet on pidettävä etäällä liikkuvista osista. Löysät vaatteet, korut a avonaiset hiukset voivat äädä kiinni liikkuviin osiin. 18 FI g) os laitteeseen asennetaan pölynimuri-a lastunkeruulaite, varmistu sitä ennen, että osat on liitetty a niitä käytetään oikein. Näiden laitteiden liittäminen vähentää pölystä aiheutuvia vaaroa. 4. Tarkkaavainen käsittely a käyttö sähkölaitteilla a) Älä ylikuormita laitetta. Käytä työssä siihen tarkoitettua sähkölaitetta. Sopivalla työkalulla on helpompi a turvallisempi työskennellä. b) Älä käytä sähkölaitteita, os kytkin on viallinen. Sähkölaite, onka kytkin ei toimi, on vaarallinen a se täytyy korata. c) Säilytä laitteet pois lasten ulottuvilta. Älä anna laitetta henkilöille, os he eivät ole tietoisia sen käytöstä eivätkä ole lukeneet käyttöohetta. Sähkölaitteet ovat vaarallisia henkilöille, otka eivät tunne laitetta. d) Hoida laitetta huolella. Tarkista, että liikkuvat osat toimivat moitteettomasti, eivät ole uuttuneet kiinni, murtuneet tai vioittuneet niin, että se vaikuttaa laitteen toimintoon negatiivisesti. Korauta vialliset osat ennen käyttöä. Monet loukkaantumiset ohtuvat uuri siitä syystä, että laitetta ei ole huollettu. e) Pidä terät terävinä a puhtaina. Huolella hoidetut leikkuuterät terävine leikkuureunoineen eivät uutu niin helposti kiinni työkappaleeseen a ne toimivat kevyemmin. f) Käytä sähkötyökalua, lisätarvikkeita, käyttötarvikkeita ne. tässä esitettyen määräysten mukaisesti a aina erityistä tyyppiä vastaavasti. Ota huomioon työolosuhteet a työ. Sähkötyökaluen käyttö muuhun kuin sille määrättyyn tarkoitukseen voi aiheuttaa vaarallisia tilanteita.

17 Yleiset turvallisuusoheet / Ennen laitteen käyttöönottoa Epäkeskohiomakoneen laitekohtaiset turvallisuusoheet Liitä laite ulkona työskennellessäsi korkeintaan 30 ma:n laukaisuvirralla varustetun vikavirta- (FI)-suoakytkimen kautta. Varmista työstettävä kappale. Käytä kiristyslaitteita / ruuvipenkkiä työstettävän kappaleen kiinnittämiseen. Se on turvallisempaa a tukevampaa kuin kädessä pitäminen. Älä missään tapauksessa noaa käsillä laitteen tai työstettävän pinnan viereen tai eteen, koska luiskahtaminen merkitsee loukkaantumisvaaraa. Irrota vaaratilanteessa pistoke välittömästi pistorasiasta. ohda virtaohto aina laitteen takaa. Kipinöiden aiheuttama palovaara! Kun hiot metallea, syntyy kipinöitä. Varmista siksi ehdottomasti, ettei ketään vaaranneta eikä työskentelyalueen lähellä siaitse palavia materiaalea. Varoltus! Myrkyllisiä höyryä! Vahingollisten / myrkyllisten pölyen työstäminen vaarantaa käyttävän henkilön tai lähellä siaitsevien henkilöiden terveyden. Käytä suoalasea a pölysuoanaamaria! Liitä laite soveltuvaan ulkoiseen pölynimulaitteeseen, kun työstät pidempään puuta, a erityisesti silloin, kun työstät materiaalea, oista syntyy terveyttä vaarantavia pölyä. Huolehdi muovea, maalea, lakkoa ne. työstettäessä riittävästä ilmastoinnista. Älä kostuta materiaalea tai työstettäviä pintoa liuotinainepitoisilla nesteillä. Kaavittaessa saattaa syntyä terveydelle haitallisia / myrkyllisiä höyryä. Vältä lyiypitoisten malien tai muiden terveydelle haitallisten materiaalien hiomista. Asbestipitoista materiaalia ei saa työstää. Asbestia pidetään syöpää aiheuttavana. Vältä kontaktia pyörivään hiomalevyyn. Käytä laitetta ainoastaan hiomalevyn ollessa kiinnitettynä. Älä koskaan käytä laitetta tarkoituksenvastaisesti a käytä aina ainoastaan alkuperäisiä osia / lisätarvikkeita. Vie laite päällekytkettynä työstettävälle kappaleelle. Nosta laitetta työstämisen älkeen työstettävältä kappaleelta a kytke se sitten pois päältä. Anna sammutetun laitteen pysähtyä, ennen kuin asetat sen pois. Laitteen tulee aina olla puhdas, kuiva a puhdas ölystä tai voitelurasvoista. Q Alkuperäiset tarvikkeet / lisälaitteet Käytä ainoastaan käyttöoppaassa mainittua varusteita. Muiden kuin käyttöoppaassa mainittuen työkaluen tai varusteiden käyttö saattaa heikentää laitteen käyttöturvallisuutta. Q Ymmärsitkö kaiken? Kun olet tutustunut oheisiin, laitteen toimintoihin a sen käsittelyyn, voit aloittaa työt. Noudattamalla kaikkia valmistaan antamia tietoa a oheita työskentelet turvallisimmin. Q Ennen laitteen käyttöönottoa Q Hiomalevyn vaihtaminen Varoltus! Irrota aina verkkopistoke pistorasiasta ennen laitteelle suoritettavia töitä. Epäkeskohiomakoneessa on tarrakiinnitys, oka mahdollistaa hiomalevyen nopean a helpon vaihdon. Ohe: Poista ennen uuden hiomalevyn 9 kiinnittämistä pöly a lika hiomalaikalta 8. Varmista, että hiomalevyn 9 reiät ovat samalla kohdalla hiomalaikan 8 reikien kanssa. FI 19

18 Ennen laitteen käyttöönottoa / Käyttöönotto Q Kierrosluvun a hiomalevyn valinta Poisto a pinta Poistotehon a pinnan sileyden määrittävät kierrosluku a hiomalevyn karkeus. Huomaa, että erilaisten materiaalien työstämiseen tulee käyttää vastaavia hiomalevyä eri karkeuksilla a että myös kierrosluku tulee sovittaa materiaaliin. Raaka-aine / Työskentelyalue Karkea hionta (karkeus) 60 Hieno hionta (karkeus) 240 Pehmeä puu Kierrosluvun esivalinta suuri (E +) Raaka-aine / Työskentelyalue Karkea hionta (karkeus) 60 Hieno hionta (karkeus) 180 Kova puu Kierrosluvun esivalinta suuri (E +) Raaka-aine / Työskentelyalue Karkea hionta (karkeus) 180 Hieno hionta (karkeus) 400 Maalin hionta Kierrosluvun esivalinta keski (- F) Raaka-aine / Työskentelyalue Maalin / lakan poistaminen Karkea hionta (karkeus) 40 Hieno hionta (karkeus) 80 Kierrosluvun esivalinta Raaka-aine / Työskentelyalue Karkea hionta (karkeus) 80 Hieno hionta (karkeus) 240 Kierrosluvun esivalinta keskitasosta korkeaan Metallit keskitasosta korkeaan Nämä ovat sitoutumattomia tietoa a suosituksia. Q Käyttöönotto Huomaa verkkoännite. Virtalähteen verkkoännitteen tulee vastata laitteen tyyppikilven tietoa. 230 V:llä merkittyä laitteita voidaan käyttää myös 220 V:lla. Q Käynnistäminen a sammuttaminen Ohe! Kytke epäkeskohiomakone päälle aina ennen materiaalikontaktia a vie laite vasta sitten työstettävälle kappaleelle. Voit valita hetkellisen a atkuvan käytön välillä Hetkellisen käytön kytkeminen päälle: Paina virtakytkintä 2. Hetkellisen käytön kytkeminen pois päältä: Vapauta virtakytkin 2 älleen. atkuvan käytön kytkeminen päälle: Paina virtakytkintä 2 a lukitse se painamalla samaan aikaan lukituspainiketta 3. atkuvan käytön kytkeminen pois päältä: Paina virtakytkintä 2 a päästä se irti. Kierrosluvun esivalinta: Halutun kierrosluvun voit esivalita kierrosluvun esivalinnan säätöpyörällä 5. DUO-START-käynnistystoiminto / alennettu tyhäkäynnin kierrosluku: Laitteessa on kierrosluvun tyhäkäynnin alentaminen. Vasta DUO-START-kytkimen lisäpainaminen aktivoi täyden moottoritehon tai esivalitun kierrosluvun. Käytä oko DUO-START -etukytkintä 10 tai DUO-START -käsikytkintä 1 (katso kuvat A, B, C). 20 FI

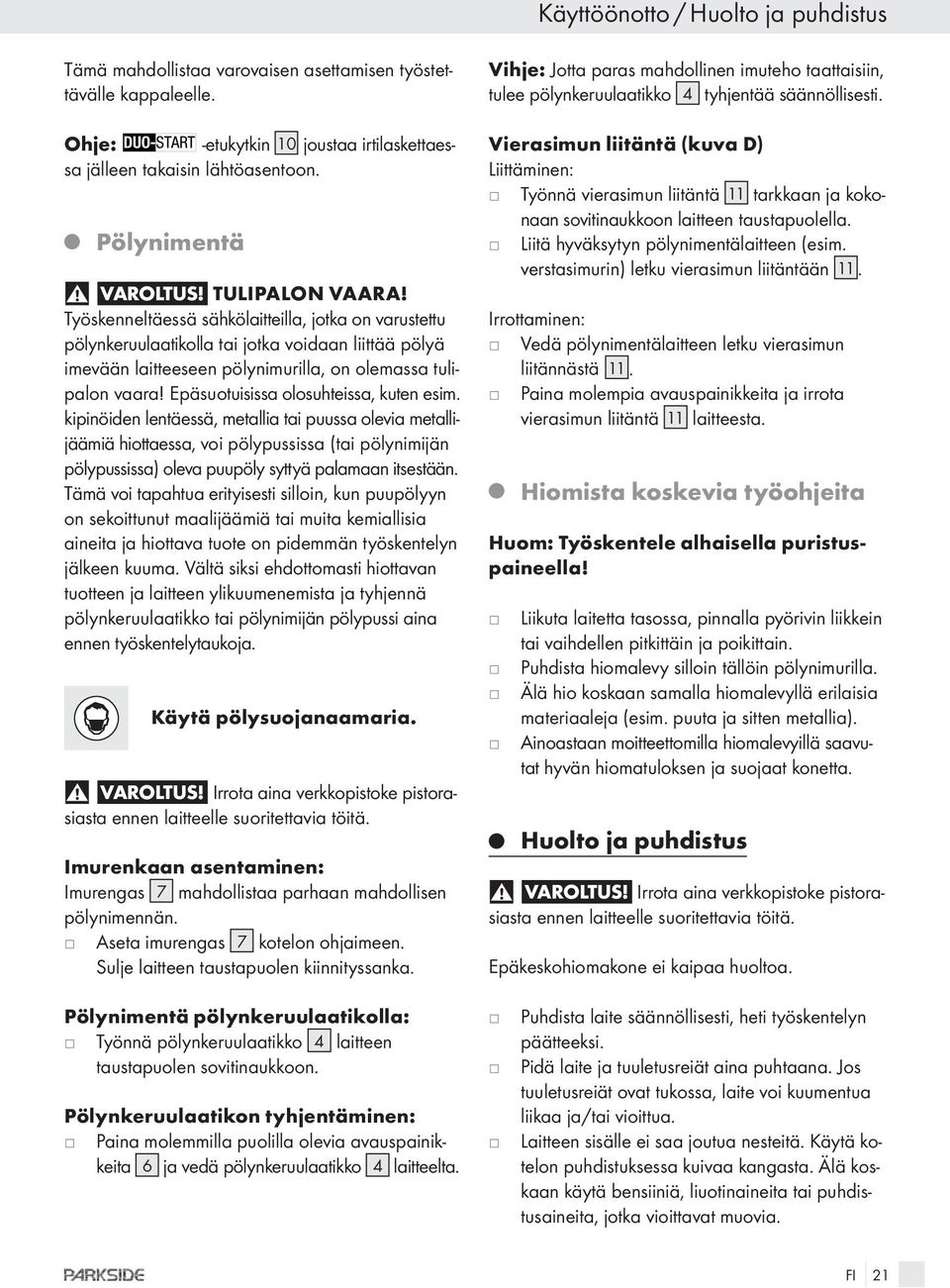

19 Käyttöönotto / Huolto a puhdistus Tämä mahdollistaa varovaisen asettamisen työstettävälle kappaleelle. Ohe: DUO-START -etukytkin 10 oustaa irtilaskettaessa älleen takaisin lähtöasentoon. Q Pölynimentä Varoltus! Tulipalon vaara! Työskenneltäessä sähkölaitteilla, otka on varustettu pölynkeruulaatikolla tai otka voidaan liittää pölyä imevään laitteeseen pölynimurilla, on olemassa tulipalon vaara! Epäsuotuisissa olosuhteissa, kuten esim. kipinöiden lentäessä, metallia tai puussa olevia metalliäämiä hiottaessa, voi pölypussissa (tai pölynimiän pölypussissa) oleva puupöly syttyä palamaan itsestään. Tämä voi tapahtua erityisesti silloin, kun puupölyyn on sekoittunut maaliäämiä tai muita kemiallisia aineita a hiottava tuote on pidemmän työskentelyn älkeen kuuma. Vältä siksi ehdottomasti hiottavan tuotteen a laitteen ylikuumenemista a tyhennä pölynkeruulaatikko tai pölynimiän pölypussi aina ennen työskentelytaukoa. Käytä pölysuoanaamaria. Varoltus! Irrota aina verkkopistoke pistorasiasta ennen laitteelle suoritettavia töitä. Imurenkaan asentaminen: Imurengas 7 mahdollistaa parhaan mahdollisen pölynimennän. Aseta imurengas 7 kotelon ohaimeen. Sule laitteen taustapuolen kiinnityssanka. Vihe: otta paras mahdollinen imuteho taattaisiin, tulee pölynkeruulaatikko 4 tyhentää säännöllisesti. Vierasimun liitäntä (kuva D) Liittäminen: Työnnä vierasimun liitäntä 11 tarkkaan a kokonaan sovitinaukkoon laitteen taustapuolella. Liitä hyväksytyn pölynimentälaitteen (esim. verstasimurin) letku vierasimun liitäntään 11. Irrottaminen: Vedä pölynimentälaitteen letku vierasimun liitännästä 11. Paina molempia avauspainikkeita a irrota vierasimun liitäntä 11 laitteesta. Q Hiomista koskevia työoheita Huom: Työskentele alhaisella puristuspaineella! Liikuta laitetta tasossa, pinnalla pyörivin liikkein tai vaihdellen pitkittäin a poikittain. Puhdista hiomalevy silloin tällöin pölynimurilla. Älä hio koskaan samalla hiomalevyllä erilaisia materiaalea (esim. puuta a sitten metallia). Ainoastaan moitteettomilla hiomalevyillä saavutat hyvän hiomatuloksen a suoaat konetta. Q Huolto a puhdistus Varoltus! Irrota aina verkkopistoke pistorasiasta ennen laitteelle suoritettavia töitä. Epäkeskohiomakone ei kaipaa huoltoa. Pölynimentä pölynkeruulaatikolla: Työnnä pölynkeruulaatikko 4 laitteen taustapuolen sovitinaukkoon. Pölynkeruulaatikon tyhentäminen: Paina molemmilla puolilla olevia avauspainikkeita 6 a vedä pölynkeruulaatikko 4 laitteelta. Puhdista laite säännöllisesti, heti työskentelyn päätteeksi. Pidä laite a tuuletusreiät aina puhtaana. os tuuletusreiät ovat tukossa, laite voi kuumentua liikaa a/tai vioittua. Laitteen sisälle ei saa outua nesteitä. Käytä kotelon puhdistuksessa kuivaa kangasta. Älä koskaan käytä bensiiniä, liuotinaineita tai puhdistusaineita, otka vioittavat muovia. FI 21

20 Huolto a puhdistus / Hävittäminen / Tietoa Poista kiinni tarttunut hiontapöly pensselillä. Q Yhdenmukaisuusvakuutus / Valmistaa Q Hävittäminen Pakkaus on valmistettu ympäristöystävällisistä kierrätettävistä materiaaleista. Älä heitä sähkötyökalua kotitalousätteen oukkoon! Eurooppalaisen direktiivin 2002 / 96 / EY mukaan, oka koskee vanhoa sähkö- a elektroniikkalaitteita sekä muutosta kansalliseen oikeuteen, käytetyt sähkötyökalut täytyy kerätä erilleen a toimittaa ympäristöllisesti oikeaan uudellenkäyttöön. Palauta laite ilmoitettuen keruulaitosten kautta. Me, Kompernaß GmbH, Burgstr. 21, Bochum, Saksa, vakuutamme täten, että tämä tuote on seuraavien EY-direktiivien mukainen: Konedirektiivi (98 / 37 / EC) EY-pienännitedirektiivi (2006 / 95 / EC) Sähkömagneettinen yhteensopivuus (2004 / 108 / EC) Tuotteen nimitys: Parkside Epäkeskohiomakone XQ 600 Bochum, Kysy mahdollisuuksia loppuunkäytetyn laitteen hävittämisestä kuntasi tai kaupunkisi virkailioilta. Q Tietoa Hans Kompernaß - Toimitusohtaa - Q Huolto Maassasi olevan toimivaltaisen huoltopaikan yhteystiedot löytyvät takuusiakirasta. Anna koulutettuen ammattihenkilöiden korata sähkötyökalusi a hyväksy korauksiin vain alkuperäisiä varaosia. Näin varmistat, että sähkötyökalu pysyy turvallisena. Anna virtaohdon a -pistokkeen vaihtaminen laitteen valmistaan tai valmistaan taroaman huoltopalvelun tehtäväksi. Näin varmistat, että sähkötyökalu pysyy turvallisena. Oikeudet teknisiin muutoksiin edelleenkehitysmielessä pidätetään. 22 FI

21 Innehållsförteckning Inledning Föreskriven användning... Sidan 24 Komponenter... Sidan 24 Leveransens omfattning... Sidan 24 Tekniska specifikationer... Sidan 25 Allmänna säkerhetsanvisningar Arbetsplats... Sidan 25 Elsäkerhet... Sidan 25 Personsäkerhet... Sidan 26 Omsorgsfull hantering och användning av elverktyg... Sidan 26 Verktygsspecifika säkerhetsanvisningar för excenterslip... Sidan 27 Originaltillbehör / Extrautrustning... Sidan 27 Har du förstått allt?... Sidan 27 Före första användning Byta slippapper... Sidan 27 Väla varvtal och slippapper... Sidan 28 Böra använda apparaten Sätta på och stänga av apparaten... Sidan 28 Dammutsug... Sidan 29 Arbetstips för slipning... Sidan 29 Service och rengöring... Sidan 29 Avfallshantering... Sidan 30 Information Service... Sidan 30 Konformitetsdeklaration / Tillverkarintyg... Sidan 30 SE 23

22 Inledning I den här bruksanvisningen används fölande piktogramsymboler : Läs bruksanvisningen! Skyddsklass II Observera varningar och säkerhetsanvisningarna! Säkert handhavande Varning för elektrisk chock! Livsfarlig elektrisk spänning! Använd skyddsglasögon, hörselskydd, skyddsmask och skyddshandskar. Explosionsrisk! V ~ Volt (Växelspänning) Håll barn och obehöriga personer på avstånd när du arbetar med elektriska verktyg. Använd aldrig verktyget i regn eller väta. Inträngande vatten i en elektrisk apparat ökar risken för elstötar. W Watt (Effekt) En skadad apparat, kabel eller kontakt innebär risk för livsfarliga elchocker. Kontrollera regelbundet apparatens, elkabelns och kontaktens skick. n 0 Tomgångsvarvtal Lämna in förpackningen och apparaten till milövänlig återvinning! Excenterslip XQ 600 Slipar stora ytor. För trä, plast och metall Q Inledning Innan du börar använda verktyget: Gör dig förtrogen med de olika funktionerna och informera dig om hur man hanterar med elverktyg. Läs nedanstående bruksanvisning. Förvara denna bruksanvisning på säker plats. Se till att bruksanvisningen alltid finns tillgänglig även vid vidare användning av trede man. Q Föreskriven användning Den här apparaten är avsedd att användas till torrslipning och polering av trä, metall och lack. Alla övriga användningssätt eller förändringar på maskinen räknas som e föreskrivna och innebär avsevärda olycksrisker. Tillverkaren ansvarar inte för skador vilka kan härledas ur felaktig hantering. Apparaten är inte avsedd för yrkesmässigt bruk. Q Komponenter 1 Handbrytare DUO-START 2 PÅ / AV-knapp 3 Arreteringsknapp 4 Dammuppsamlingsbox 5 Ratt för inställning av varvtal 6 Knapp för att lossa dammuppsamlingsboxen 7 Sugring 8 Slipskiva 9 Slippapper 10 Frontbrytare DUO-START 11 Adapter för externt dammutsug (Bild D) Q Leveransens omfattning 1 excenterslip XQ slippapper (1 st. med kornstorlek 80, 1 st. med kornstorlek 120) 1 dammuppsamlingsbox 1 sugadapter 1 bruksanvisning 1 häfte Garanti och service 24 SE

23 Inledning / Allmänna säkerhetsanvisningar Q Tekniska specifikationer Nominell spänning: 230 V ~ 50 Hz Nominell effekt: 600 W Nominellt svängningstal: n min -1 Nominellt varvtal: n min -1 Excentricitet: 5 mm Slipskiva: ø 150 mm Skyddsklass: II / Buller- och vibrationsinformation: Mätvärde bestämt enligt EN Bullernivån för verktyget är godkänd med A, nivån är vid normal användning lägre än 84 db(a). Osäkerhet K=3 db. Ludnivån kan överstiga 85 db (A) under pågående arbete. Använd hörselskydd! Vägd acceleration, typisk: Vibration hand och arm a h = 2,309 m / s 2 Osäkerhet = 1,5 m / s 2 Varning! Angiven vibrationsnivå i dessa anvisningar har uppmäts enligt en i EN standardiserad mätmetod och kan används som ämförelse för olika verktyg. Vibrationsnivån förändras beroende på elverktygets användning och kan i vissa fall överstiga angivna värden. Vibrationsbelastning kan missbedömas om elverktyget regelbundet används på sådant sätt. Obs: För att kunna bestämma svängningsbelastningen bör även tiden under en bestämd arbetstid beräknas under vilket verktyget är avstängt eller startats utan att verkligen användas. Detta kan reducera svängningsbelastningen väsentligt under den totala arbetstiden. XQ 600 KH V ~ 50 Hz 600 W min -1 Schwingzahl: min -1 Date of manufacture: Kompernaß GmbH Bochum Germany allmänna säkerhetsanvisningar Obs! Läs alla anvisningar. Felhantering vid tillämpning av nedan angivna anvisningar kan medföra elstötar, brand och / eller allvarliga skador. FÖRVARA DENNA BRUKSANVISNING PÅ SÄKER PLATS. 1. Arbetsplats a) Se till att arbetsplatsen är städad och i ordning. Oreda och dålig belysning kan medföra olycksfall. b) Använd inte verktyget i explosionsfarliga eller eldfarliga milöer, t.ex. i närheten av brännbar vätska, gas eller damm. Elverktyg genererar gnistor som kan antända damm eller ångor. c) Se till att barn och andra personer inte riskerar skador när elverktyget används. Låt dig inte störas under användningen, håll uppsikt hela tiden. 2. Elsäkerhet a) Apparatkontakten måste passa i uttaget. Kontakten får inte modifieras på något sätt. Använd inte adapterkontakter tillsammans med ordade verktyg. Originalkontakter och passande uttag minskar risken för elstötar. b) Undvik kroppskontakt med ordade ytor, t.ex. rör, värmeelement, spis och kylskåp. Ökad risk för elstötar föreligger om din kropp är ordad. c) Använd aldrig verktyget i regn eller väta. Inträngande vatten i en elektrisk apparat ökar risken för elstötar. d) Använd inte kabeln på annat sätt än den är avsedd för, t.ex. att bära apparaten, hänga upp den. Dra inte i kabeln för att dra ut kon- SE 25

24 Allmänna säkerhetsanvisningar takten, greppa tag i kontakten. Se till att kabeln inte utsätts för värme, ola, skarpa kanter eller rörliga apparatdelar. Skadad eller invecklad kabel eller kontakt ökar risken för elstötar. e) Använd endast förlängningskablar som är tillåtna för utomhusbruk om verktyget används utomhus. Användning av godkänd förlängningskabel för utomhusbruk reducerar risken för elstötar. f) använd ordfelsbrytare om elverktyget måste användas i fuktig omgivning. Användning av ordfelsbrytare minimerar risken för elstötar. 3. Personsäkerhet a) Var alltid medveten om vad du gör och använd sunt förnuft. Använd inte verktyget om ni är trött eller påverkad av droger, alkohol eller läkemedel. Ett ögonblick av ouppmärksamhet kan medföra skador under användningen. b) Använd personlig skyddsutrustning och alltid skyddsglasögon. Användning av personlig skyddsutrustning som dammskydd, halkfria säkerhetsskodon, skyddshälm eller hörselskydd, beroende på elverktygets typ och användning, reducerar risker för skador. c) Undvik att verktyget startar av misstag. Kontrollera att verktyget är avstängt och knappen i AV-läge innan du drar ur nätkontakten ur vägguttaget. Bär inte verktyget med fingret placerat på PÅ / AV-knappen eller se till att verktyget inte är anslutet till strömförsörningen. Detta kan medföra olyckor. d) Ta bort inställningsverktyg eller skruvnycklar innan du startar verktyget. Ett verktyg eller en nyckel som befinner sig vid en roterande maskindel kan medföra allvarliga skador. e) Överskatta inte din egen förmåga. Se till att du står stadigt. Därmed kan du kontrollera verktyget bättre om oförutsedda situationer skulle uppstå. f) använd alltid lämplig klädsel. Bär inte vida klädesplagg eller smycken. Håll håret, klädesplagg och handskar borta från roterande maskindelar. Löst sittande klädesplagg, smycken eller hår kan fastna i roterande maskindelar. g) Kontrollera att dammsugare eller uppsamlingsbehållare är korrekt anslutna och används på rätt sätt. nvänd sådan utrustning för att minska förekommande damm och därmed förbundna risker. 4. omsorgsfull hantering och användning av elverktyg a) Överbelasta inte maskinen! Använd rätt elverktyg för respektive arbete. Med passande elverktyg blir arbetsresultatet bättre och säkrare inom angivet effektområde. b) Använd inte elverktyg där strömknappen är skadad. Ett elverktyg som inte längre kan startas och stoppas är farligt och måste repareras. c) Placera ett elverktyg som inte används utom räckhåll för barn. Låt inte personer använda verktyget utan att de känner till användningen eller har läst användningsinstruktionerna. Elverktyg är farliga om oerfarna personer använder dem. d) Ta hand om verktyget väl. Kontrollera att rörliga delar fungerar utan problem och inte kärvar, kontrollera även om delar är brutna eller skadade eller påverkar verktygets funktion negativt på något sätt. Reparera skadade delar innan verktyget används. Många olyckor har förorsakats av dåligt omhändertagna elverktyg. e) Se till att arbetsplatsen är städad och i ordning. Välskötta skärverktyg med skarpa skärtrissor klämmer inte och är lättare att föra genom arbetsmaterialet. f) Använd elverktyg, tillbehör, extra verktyg osv. enligt dessa anvisningar på det sätt som är föreskrivet för denna speciella verktygstyp. Ta hänsyn till arbetsvillkoren och det arbete som skall utföras. Användning av elverktyg på annat sätt än föreskrivna anvisningar kan medföra farliga situationer. 26 SE

25 Allmänna säkerhetsanvisningar / Före första användning Verktygsspecifika säkerhetsanvisningar för excenterslip När du arbetar utomhus ska du ansluta apparaten via en skyddsbrytare för felström (FI-brytare) med max 30 ma utlösningsström. Spärra arbetsstycket. Spänn fast det med spännanordningar eller skruvstock. Då sitter det säkrare än om du håller i det med handen. Stötta aldrig händerna bredvid eller framför apparaten eller den yta som ska bearbetas, du kan skada dig om du skulle råka slinta. Dra genast ut kontakten ur uttaget vid nödsituationer. Dra alltid kabeln bakåt, i riktning från apparaten. Brandrisk p g a kringflygande gnistor! När man slipar metall uppstår gnistor som flyger omkring. Se därför noga till att inga personer kan skadas av gnistorna och att det inte finns brännbara material i närheten av arbetsområdet. Varning! Giftiga ångor! Den som arbetar med eller befinner sig i närheten av hälsovådligt / giftigt damm utsätter sig för hälsorisker. Använd skyddsglasögon och dammskyddsmask! Anslut apparaten till en lämplig, extern dammutsugningsanordning om du bearbetar trä under en lång tid och i synnerhet om materialet ger upphov till hälsofarligt damm. Sör för god ventilation när du bearbetar plast, färg, lack, etc. Dränk inte in material eller ytor som ska bearbetas med vätskor som innehåller lösningsmedel. Giftiga ångor kan uppstå när materialet värms upp av friktionen. Undvik att slipa på blyhaltig färg eller andra hälsovådliga material. Material som innehåller asbest får inte bearbetas. Asbestdamm kan orsaka cancer. Undvik att komma i kontakt med slippappret när du arbetar. Använd aldrig apparaten utan slippapper. Använd bara apparaten till det den är avsedd för och bara med originaldelar och -tillbehör. Koppla först på verktyget och för det sedan mot arbetsstycket. Lyft upp apparaten från arbetsstycket när du arbetat färdigt och stäng sedan av den. Låt det avstängda verktyget stanna helt innan du lägger ifrån dig det. Apparaten ska alltid hållas ren, torr och fri från ola och smörfett. Q Originaltillbehör / Extrautrustning Använd endast tillbehör som finns angivna i bruksanvisningen. Användning av andra extra verktyg eller tillbehör än de som finns angivna i bruksanvisningen kan medföra risk för personskador. Q Har du förstått allt? Om du nu tagit del av all information och satt dig in i apparatens funktioner och hur den används kan du böra arbeta. Du arbetar säkrast om du föler alla anvisningar och tips från tillverkaren. Q Före första användning Q Byta slippapper Varning! Dra alltid ut kontakten innan du gör några arbeten på apparaten. Excenterslipen är utrustad med ett kardborrefäste för att det ska gå snabbt och lätt att byta slippapper. Observera: Ta bort damm och smuts från slipskivan 8 innan du sätter på ett nytt slippapper 9. Se till att hålen på slippappret 9 stämmer överens med hålen i slipskivan 8. SE 27
