1 NGK S PA R K PLUG & DIESEL The World s No.1 Spark Plug Spark Plug & Diesel Glow Plug CATALOGUE 2013 GLOW PLUG C ATA L O G U E 2013 NGK Spark Plugs (UK) Limited Maylands Avenue Hemel Hempstead Hertfordshire HP2 4SD Tel: Fax: FOR PASSENGER CARS & LIGHT COMMERCIAL VEHICLES

2 You don t buy it Neither do we Engines are like people, they come in all shapes and sizes. They all have their idiosyncrasies. A slightly different way of working. So when someone tells you one size fits all, you know in your heart it doesn t make sense. Because if it did, all engines would be the same. Join us on facebook.com/ngksparkplugsuk or at twitter.com/ngk_uk for motorsport news, competitions and more, to fire us a question about NGK or a technical query about our products. We re waiting... NGK Spark Plugs (UK) Ltd, Maylands Avenue, Hemel Hempstead, Herts, HP2 4SD. Tel: Fax:

3 Now look at what NGK s superior copper core technology delivers. Perfect Ignition Better cold weather starting Better engine performance More complete combustion Better emissions and cleaner exhaust Wider heat range over all driving conditions CORRUGATIONS To prevent flash over SPECIAL PACKING Excellent air tightness. Robust construction INSULATOR Made of high purity alumina providing better heat dissipation, higher electrical insulation and stronger thermal shock resistance METAL SHELL Plated and chromated to guard against corrosion COPPER CORE Deeply inserted in the centre electrode for improved thermal conductivity. Providing an ultra wide heat range plug that gives maximum performance at both high and low speeds CENTRE & GROUND ELECTRODES Special nickel alloy ensures superior resistance and durability NGK. Pioneers of copper core spark plugs since 1958, and now undisputed leaders in spark plug technology.

4 CONTENTS Spark Plug Design 2 NGK s Copper Core Technology 3 Spark Plug Installation Tips 4 Design Symbols 5 Spark Plug New Additions and Part Numbers 6 Glow Plug New Additions and Part Numbers 7 Vehicle Registration Letters 8 Spark Plug Gap Settings 8 AC 9 Alfa Romeo 9-10 Alpina 10 Asia Motors 10 Aston Martin 11 Audi Austin Morris 14 Bedford 15 Bentley 15 BMW Cadillac 19 Caterham 19 Chevrolet (Daewoo) 19 Chevrolet (USA) 19 Chrysler Citroen Dacia 22 Daewoo Õ Daf 23 Daihatsu Daimler 24 Dodge 24 Ferrari Fiat Ford FSO 31 Honda Hyundai Infiniti 34 Isuzu 35 Iveco 35 Jaguar Jeep 36 Kia Lada 37 Lamborghini 37 NGK Glow Plug Types and Features 109 Glow Plug Design Symbols 110 Correct Use of Glow Plugs 111 Interpretation of Glow Plug Appearance 112 Glow Plug Interchange Chart 112 Glow Plug Specification Chart Glow Plug Supersessions 116 Alfa Romeo 117 Alpina 117 Asia Motors 117 Audi Bedford 118 BMW Cadillac 119 Chrysler 119 Citroen Dacia 120 Daewoo 120 Daihatsu 121 Fiat Ford Honda 123 Hyundai 124 Isuzu 124 Iveco 124 Jaguar 124 Jeep 124 Kia Land Rover 125 LDV (Leyland Daf) 125 SPARK PLUG APPLICATIONS GLOW PLUG APPLICATIONS Lancia Land Rover 38 Lexus 39 LDV (Leyland Daf) 39 Lotus 39 Maserati 40 Maybach 40 Mazda MCC Smart - see Smart (MCC) 42 Mercedes Benz MG 46 Mini (BMW) 46 Mitsubishi Morgan 49 Nissan Opel Perodua 52 Peugeot Piaggio 55 Porsche 55 Proton Reliant 56 Renault Rolls-Royce 60 Rover Saab Sao 62 Seat Skoda Smart (MCC) 65 Ssangyong 66 Subaru 66 Suzuki 67 Talbot (Chrysler) Taxi 68 Toyota Triumph TVR 71 Vauxhall/Opel Volkswagen Volvo Yugo 83 Conversion Chart (Spark Plugs) Lexus 125 Mazda 126 Mercedes Benz MG 129 Mini 129 Mitsubishi 129 Nissan Opel Õ Peugeot Porsche 132 Proton 132 Renault Rover 134 Saab 134 Seat Skoda Smart (MCC) 136 Ssangyong 136 Suzuki 136 Talbot (Chrysler) 136 Taxi 136 Toyota Vauxhall/Opel Volkswagen Volvo Conversion Chart (Glow Plugs) Cover Symbols Explanation Chart 149 NGK Resistor Plug Covers 149 Plug Cover Supersessions 150 Spark Plug Covers This catalogue lists only vehicles officially imported or manufactured in the UK and is effective from May 2013 and supersedes all previous catalogues. Whilst every care is taken in compiling these lists of applications, they are given for general guidance only, and they do not constitute any contractual term, representation or warranty and as such NGK do not accept any responsibility in respect of any claim whatsoever and howsoever caused arising from the publication of this catalogue. The appropriate NGK Spark Plugs are designed solely for use in automotive, motorcycle, marine, horticultural, agricultural, commercial, industrial, and all stationary engines. NGK Spark Plugs should not be used in aircraft engines. Resistor plugs should always be used where they are recommended by the manufacturers. The use of non-resistor plugs, could, in some cases, result in damage to electronic components. Applications listed in this catalogue do not apply to racing or modified engines, except where explicitly noted. Qui vult dare parva non debet magna rogare 1

5 SPARK PLUG DESIGN SPARK PLUG DESIGN Every year the range of NGK spark plugs grows to accommodate the ever increasing demands of modern engines. Spark plug design must take into consideration many features of an engine including physical dimensions, combustion chamber shape, cooling abilities, fuel and ignition systems. Spark plugs play a vital role in producing the maximum power from an engine whilst keeping fuel consumption and emissions to a minimum. Choosing the correct spark plug type will help a vehicle manufacturer meet legislated emission targets and assists the motorist in getting the best from their engine. Increases in the size and the requirement to improve the cooling of the inlet and exhaust valves have meant that the space available for the spark plug is severely restricted on some cylinder heads. A change in spark plug design, possibly the adoption of a taper seat and extended reach (threaded portion) or even the use of a smaller diameter is often the answer. Some engines require the use of two spark plugs per cylinder and again due to space restrictions these might be of different sizes. Changes in fuelling systems and the fuel itself have meant some special features being adopted at the firing end of the spark plug. Extra projected types push the spark position into the heart of the combustion chamber to promote better combustion of the fuel/air mixture, which is weaker than ever in an effort to improve economy. Modern engine manufacturers often require increased spark gaps to allow a longer spark duration, which again aids more efficient combustion. Wide gap BPR5ES-13 Three ground BCP6ET Extra projected and shielded ZFR6E-11 Twin ground BKR6EK Four ground BKR6EQUP Precious metal IZFR6B To combat the cold fouling effect that can occur in some engines using unleaded fuels specially arranged ground electrodes are sometimes used. These can force the spark to discharge across the insulator and thus burn away any built up carbon that could cause poor starting or misfires. It is not uncommon to find two, three or four ground electrode arrangements in new vehicles. The use of precious metals on the tips of the spark plug electrodes is not uncommon especially on higher performance engines. Whilst these spark plugs do have increased service life they are often specified because of their superior ignition qualities. Our engineering departments work very closely with the engine and vehicle manufacturers to produce the ideal spark plug type for each application. Any change in production is expensive for a manufacturer and therefore new spark plug types are only produced where necessary. NGK employ the very latest production technology to ensure that every aspect is catered for performance, economy and value. HEAT RANGE AND HEAT DISSIPATION Spark plugs do not produce heat in the combustion chamber. One of the functions of the spark plug is to dissipate some of the heat produced during combustion. This is mostly transferred into the cylinder head. The 'Heat Range' indicates the measure of the spark plug's ability to do this. A 'hot' spark plug is designed to maintain a sufficiently high temperature at the insulator nose to burn off carbon and oil deposits. A 'cold' spark plug is designed to allow a faster transfer of heat to the cylinder head thus preventing overheating and premature failure. The heat range selection is obviously a complex task with many factors to take into account. NGK engineers therefore make specific recommendations for each engine and the use to which it is put. 2

6 NGK S COPPER CORE TECHNOLOGY WIDE HEAT RANGE A wide range spark plug is more flexible and performs equally well in a hot or cold engine under stop and go city driving or fast motorway cruising. Engines that tend to run hot need cold type plugs. Those that run cold demand a hotter type. The specific plug for any engine is determined by the plug's heat range. That is the minimum and maximum temperatures between which the plug will offer optimum performance. The heat range of NGK Spark Plugs is wider than ordinary plugs therefore they are suitable for both high speed and low speed driving. Compared with conventional plugs of the same pre-ignition rating they have more resistance to fouling. Compared to ordinary plugs with equal anti-fouling resistance, NGK Spark Plugs have a higher pre-ignition rating. NGK'S HEART OF COPPER Copper wire used in place of the iron core in conventional plugs is the secret of NGK's Wide Heat Range. Copper's superior heat conductivity dissipates heat quicker. It cools the electrode tip and insulator tip which prevents hot spots that could cause pre-ignition. Increased heat resistance does not affect fouling resistance, which is primarily determined by the insulator nose length. The longer the nose, the more susceptible it is to heat and the more free from fouling. By raising the pre-ignition rating with the high conduction copper and leaving the insulator nose long, NGK produces the Wide Range Plug. One that meets the broad thermal requirements of engines under high and low RPM conditions. All the spark plugs in the Automotive Catalogue have a copper core. FIRING END APPEARANCE 3

7 SPARK PLUG INSTALLATION TIPS Refer to current NGK catalogue for correct spark plug selection Check condition and cleanliness of threads in cylinder head Ensure plug is gapped according to vehicle manufacturers specification (fig 1) Multi ground electrode and precious metal plugs should not be regapped - visual inspection only Install new spark plug by hand until it seats - (fig 2) a length of rubber tubing pushed over the insulator can be a useful aid for plug installation where access is difficult Tighten to specified torque setting as shown in the chart below (fig 3) If a torque wrench is unavailable then refer to vehicle/engine manufacturers installation instructions or the tightening angle advice which is displayed on current NGK packaging (excluding specialist race plugs). Note that this angle advice can differ between part numbers due to individual spark plug design (e.g. seating type, thread diameter and gasket material) It is important not to over or under tighten spark plugs during installation. Overtightening can lead to distortion of the spark plug. Under-tightening can cause overheating due to poor heat dissipation. In extreme cases incorrect tightening can cause spark plug breakage and/or engine damage NGK does not recommend the application of lubricant to spark plug threads as the resultant reduction of frictional forces at the thread faces will render the torque charts inaccurate and over tightening could occur If a gasket type spark plug is re-installed, it should only require a further 1/12 of a turn after it has been seated Always carefully use the correct tools for removal/installation to prevent damage to the spark plug or engine Inspect spark plug cover and renew if necessary FOR FLAT SEAT TYPE (WITH GASKET) TAPER SEAT TYPE Thread Ø 18mm 14mm 12mm 10mm 8mm 18mm 14mm Cast iron head 35-45Nm 25-35Nm 15-25Nm 10-15Nm Nm 15-25Nm ( kgm) ( kgm) ( kgm) ( kgm) ( kgm) ( kgm) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) Aluminium head 35-40Nm 25-30Nm 15-20Nm 10-12Nm 8-10Nm 20-30Nm 10-20Nm ( kgm) ( kgm) ( kgm) ( kgm) ( kgm) ( kgm) ( kgm) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) ( lbs ft) Important: Some spark plugs differ in gasket design or material, refer to tightening advice on specific spark plug packaging 4

8 DESIGN SYMBOLS B C P R 6 E S 11 Firing End Construction, etc CM Short, angled ground electrode, compact top CS Short, angled ground electrode F Taper seat (no gasket), 'V' - Grooved centre electrode FS Taper seat (no gasket) G Fine wire nickel centre electrode I Iridium tip IX Fine wire Iridium centre electrode- Ø 0.6mm K 2-ground electrodes, intermittent gap KC 2-ground electrodes KUB 2-ground electrodes semi-surface discharge -L Half heat range -LM Compact design, Insulator top mm high -LPG Specifically designed for use with LPG -N Strong ground electrode design P Platinum tip Q 4-ground electrodes S Standard super copper core centre electrode T 3-ground electrodes U Semi-surface discharge V Fine wire Gold Palladium centre electrode- Ø 1.0mm -VG V - Grooved centre electrode VX Fine wire Platinum centre electrode- Ø 0.8mm W Tungsten electrode X Booster gap (not applicable to 'VX'/'IX' type) Y V-Grooved centre electrode with extra projection Thread Reach E 19.0mm H 12.7mm L 11.2mm EH (Part Threaded) Total reach = 19.0mm Thread = 12.7mm BM_A, B_LM types 9.5mm CMR_A types 9.5mm Construction shape/feature Spark Plug Heat Rating Hotter Plug Temp. M Compact (Bantam) L Short type Projected centre electrode insulator R Resistor type P 'Softer' Surface or semi surface discharge Z Inductive suppressor U 85 (8.5) A_ type 12.0mm B_, BM_ type 9.5mm CM_ type 8.5mm G_ type 22.5mm LETTERS MAY BE COMBINED No Symbol Thread Ø Pitch Hex A 18mm 1.50mm 25.4mm B 14mm 1.25mm 20.8mm C 10mm 1.00mm 16.0mm D 12mm 1.25mm 18.0mm E 8mm 1.00mm 13.0mm G PF½" pipe mm AB 18mm 1.50mm 20.8mm BC 14mm 1.25mm 16.0mm BK 14mm 1.25mm 16.0mm DC 12mm 1.25mm 16.0mm Part nos. BM_A and BPM_A: 14mm 1.25mm 19.0mm Part no. CM-6: 10mm 1.00mm 14.0mm 'Harder' Colder Plug Temp (9.5) (10.5) Taper Seat Types F A_F type 10.9mm B_EF type 17.5mm B_F type 11.2mm BM_F type 7.8mm BPM_F type 7.8mm Spark Plug Heat Rating Projected Gap Types Example: B C R E Y Taper Seat Types Hex A_F type 20.8mm B_F type 16.0mm Heat rating Spark position: 7 = 7.0mm, 9 = 9.5mm Insulator projection: 2.5mm BK=BCP to ISO standard The height from the gasket to the top terminal is 50.5mm on BK type spark plugs, which is 2.5mm shorter than BCP type P F R 6 A 11 A Ø 2.9mm centre electrode (not applicable to DPR_Z or G-2Z) No Symbol: 'V' - Grooved centre electrode (14mm thread dia. 19mm reach plugs only, eg: BKR6E) Others: A,B,D etc, - special design Z Spark Gap (pre-set) 8 0.8mm 9 0.9mm mm mm mm mm mm No number = standard gap Spark Gap (pre-set) Resistor R Resistor LPG1-8 Special electrode design and plating specifically for LPG use. Numbers refer to design, not heat range Design Feature A, B, C... Design series G Copper core ground electrode S Special gasket This chart is applicable to spark plugs currently available via NGK Spark Plugs (UK) Ltd only. The dedicated range of NGK racing spark plugs is not included. This chart is not exhaustive. Other symbols exist which are not represented on the chart. Design Feature A, B, C... Design series _IX Iridium centre electrode Thread Ø Pitch Reach* Hex F 14.0mm 1.25mm 19.0mm* 16.0mm G 14.0mm 1.25mm 19.0mm 20.8mm J 12.0mm 1.25mm 19.0mm 18.0mm K 12.0mm 1.25mm 19.0mm* 16.0mm KA 12.0mm 1.25mm 26.5mm 14.0mm KB 12.0mm 1.25mm 26.5mm 14.0mm Bi-Hex M 10.0mm 1.00mm 19.0mm* 16.0mm MA 10.0mm 1.00mm 19.0mm* 14.0mm T Taper seat type (no gasket) 14.0mm 1.25mm 17.5mm* 16.0mm (Exception) PTR5A,TR5A & TR5B: 14.0mm 1.25mm 25.0mm 16.0mm Plug Type DI DFE - double fine electrode (spark discharges between fine platinum pin on ground and iridium pin on centre electrodes) I Iridium centre electrode and platinum ground P Platinum ground and centre electrode S SPE - special square platinum chip in ground electrode L Extra long reach thread. 26.5mm: gasket type or 25mm: taper seat type (not applicable to LR8B or all LPG numbers) Z Extended gap (extra projection) * Reach is increased if letter is preceded by L Hex measured across the flats LETTERS MAY BE COMBINED eg: IZ, PZ, PLZ, SIL etc., 5

9 SPARK PLUG NEW ADDITIONS AND PART NUMBERS These are new additions to this catalogue that have brand new part numbers not previously made or stocked by NGK. PART No. STOCK No. APPLICATION BKR7ESC SAAB 9-3 Mk2 (02Õ) 2.0 TURBO Bio-Power 9-5 (Õ10) 2.0 TURBO DF8H-11B 1305 INFINITI EX37, FX37, G37, M V6 NISSAN 370Z (09Õ) 3.7 V6 VQ37DE Engine DFH6B-11A 6858 LEXUS GS250 (12Õ) 2.5 4GR-FSE Engine GS GR-FSE Engine (Direct Injection) GS450h, GS460, IS250, ISF, LS460, LS600h DILKAR7E11HS NISSAN MICRA K13 (11Õ) 1.2 Supercharged HB6AIX-11P 5703 TOYOTA AVENSIS II 2.0 VVT-i (Direct Injection) HB6BIX-11P 5705 TOYOTA AVENSIS I 2.0 VVT-i (Direct Injection) AVENSIS II 2.4 VVT-i (Direct Injection) ILTR5D 5476 SAAB 9-5 (10Õ) 2.0 TURBO Incl. XWD VAUXHALL/OPEL INSIGNIA (08Õ) 2.0 TURBO LZKAR6AP NISSAN CUBE (09Õ) 1.6 HR16DE Engine MICRA K13 (11Õ) 1.2 HR12DE Engine PART No. STOCK No. APPLICATION LZKR6AI-10G CITROEN C3 (12Õ) 1.2 VTI 82, DS3 1.2 VTI 82 PEUGEOT 208 (12Õ) 1.0 VTI 68, 208 (12Õ) 1.2 VTI 82 ZFR6V-G 8894 VAUXHALL/OPEL ASTRA J (09Õ) Valve A14XEL/R Engine ASTRA J (09Õ) Valve A16XER Engine CORSA D (06Õ) Valve A10XEP Engine CORSA D (06Õ) Valve A12XEL/R Engine CORSA D (06Õ) Valve A14XEL/R Engine INSIGNIA (09Õ) Valve A16XER Engine MERIVA (10Õ) Valve A14XER Engine ZAFIRA (05Õ) Valve A16XER Engine ZAFIRA (05Õ) Valve A18XER Engine These Spark Plugs will become available during 2013 Listed below is a selection of the new applications for existing spark plugs MAKE MODEL PART No. STOCK No. ALFA ROMEO GIULIETTA 1.4 TURBO MULTIAIR IKR9F MITO 1.4 TURBO MULTIAIR 135 IKR9F ALPINA B7 (E65) 4.4 V8 Supercharged PFR7B 4853 AUDI A6 3.0 V6 TFSI (08Õ) PFR8S8EG A7 3.0 V6 TFSI (10Õ) PFR8S8EG A8 3.0 V6 TFSI (10Õ) PFR8S8EG A8 3.7 V8 (BFL) BKR6EQUA 6872 Q7 3.0 V6 TFSI (10Õ) PFR8S8EG BMW 320 (E90) Valve Si Model ZKBR7A-HTU CITROEN C Valve ET3J4 Engine LZKAR7A 6799 DS Valve VTI 95 PLZKBR7A-G 5843 DS Valve VTI 120 PLZKBR7A-G 5843 DS Valve HTP 150 PLZKBR7A-G 5843 FORD FOCUS III (11Õ) 1.6 Ti-VCT TR5B HONDA CIVIC AERODECK 1.6 VTEC ZFR5J HYUNDAI ix35 (10Õ) Valve LFR5A SONATA (05Õ) Valve BKR5E MERCEDES A160 (169 Series) Valve BKR6EZB 4293 B160 (245 Series) Valve BKR6EZB 4293 C350 (204 Series) 3.5 V6 24 Valve PLKR7A 4288 SLK200 (170 Series) Valve BKUR5ET 2789 MAKE MODEL PART No. STOCK No. MITSUBISHI SHOGUN PININ 1.8 MPI BKR5E NISSAN TIIDA Valve HR16DE Engine PLZKAR6A PORSCHE 911 (997) 3.6 TURBO PFR6B 3500 RENAULT GRAND SCENIC 1.4 Tce TURBO ILKAR7A MEGANE 3 (10/08Õ) 1.6 BKR6EZ 4619 TWINGO 2 Renaultsport 133 PFR7Z-TG 5768 SEAT IBIZA 5 (08Õ) 1.4 TSI 180bhp CUPRA PZFR6R 5758 IBIZA 5 (08Õ) Valve ZFR6T-11G 5960 SUBARU TRIBECA (B9) 3.0 ILFR6B 6481 SUZUKI GRAND VITARA (09/05Õ) 2.4 SILFR6A SWIFT (10Õ) 1.2 IKR6G TOYOTA AVENSIS II Valve BKR5EYA VOLKSWAGEN FOX 1.2 ZFR6T-11G 5960 SCIROCCO (08Õ) 2.0 R Model PFR7S8EG 1675 TOUAREG (10Õ) 3.0 (3.3 Hybrid) PFR8S8EG The above tables are intended as a stock purchase guide. Refer to the relevant model listing in the main application section for product selection. 6

10 GLOW PLUG NEW ADDITIONS AND PART NUMBERS These are new additions to this catalogue that have brand new part numbers not previously made or stocked by NGK. PART No. STOCK No. APPLICATION Y1013J TOYOTA HIACE 3.0 1KZ-TE Engine Y1030J ALFA ROMEO 147 (06Õ) 1.9 8V JTDM (07Õ) 1.9 8V JTDM FIAT BRAVO (07Õ) 1.9 JTD Multijet CROMA (05Õ) 1.9 JTD 8V DOBLO (Õ10) 1.9 JTD 8V MULTIPLA 1.9 JTD 8V PUNTO 3 (03Õ) 1.9 JTD 8V PUNTO (GRANDE) 1.9 JTD STILO (06Õ) 1.9 JTD 8V SAAB 9-3 (Mk2) 1.9 TiD 120 8V SUZUKI SX4 1.9 Diesel 8 Valve VAUXHALL/OPEL ASTRA H (Mk5) 1.9 CDTI 8V SIGNUM 1.9 CDTI 120 8V VECTRA C 1.9 CDTI 120 8V ZAFIRA (05Õ) 1.9 CDTI 120 8V Y1031J CHRYSLER GRAND VOYAGER 2.5, 2.8 CRD VOYAGER 2.5, 2.8 CRD JEEP CHEROKEE 2.5, 2.8 CRD LDV MAXUS 2.5, 2.8 Y1035AS RENAULT GRAND SCENIC II (09Õ) 1.5 Dci MEGANE 3 (10/08Õ) 1.5 Dci SCENIC 3 (09Õ) 1.5 Dci PART No. STOCK No. APPLICATION Y1036AS RENAULT GRAND SCENIC II (09Õ) 1.9 Dci 130 MEGANE 3 (10/08Õ) 1.9 Dci 130 SCENIC 3 (09Õ) 1.9 Dci 130 Y-526J FORD RANGER (06Õ) 2.5 TDCI MAZDA BT-50 (07Õ) 2.5 Y-537AS 9994 SSANGYONG REXTON (07Õ) 2.7 Y8008AS VOLVO C D5, C D3/D4, C S40 II 2.0 D4, S40 II 2.4 D5, S60 I 2.4 S60 II 2.0 D3, S60 II 2.4 D5, S80 II 2.0 D3 S80 II 2.4 D5, V D4, V D5 V D3, V D5, V70 II 2.4 D5 V70 III 2.0 D3, V70 III 2.4 D5, XC60 D5 XC70 I 2.4 D5, XC70 II 2.4 D5, XC Y9001AS ALFA ROMEO MITO (10Õ) 1.3 JTDM 2 CITROEN NEMO (10Õ) 1.3 Hdi FIAT 500 (10Õ) 1.3 MJET, FIORINO (08Õ) IDEA 1.3 MJET, PANDA (12Õ) MJET PUNTO EVO (10Õ) 1.3, QUBO 1.3 FORD KA (08Õ) 1.3 TDCi PEUGEOT BIPPER (10Õ) 1.3 Hdi Y9003AS VAUXHALL ASTRA J (09Õ) 2.0 CDTi INSIGNIA (08Õ) 2.0 CDTi MERIVA (09Õ) 2.0 CDTi These Glow Plugs will become available during 2013 Listed below is a selection of the new applications for existing glow plugs MAKE MODEL PART No. STOCK No. ALPINA D3 (E90) 2.0 BI-TURBO (07Õ) Y-547AS 6670 CITROEN DISPATCH 1.6 Hdi (07Õ) YE FIAT DUCATO 2.3 MJET (06Õ) Y8005J MULTIPLA 1.9 JTD (04Õ) Y-534J 5540 FORD FOCUS II (07Õ11) 1.8 TDCi Y-524J 5986 KA 1.3 CDTi (08Õ) Y8003J MONDEO IV 1.8 TDCi (07Õ) Y-524J 5986 LAND ROVER DEFENDER 90/110/ (07Õ) Y-548J MERCEDES BENZ C200 CDI (204) 2.1 CDi CZ C220 CDI (204) 2.1 CDi CZ SPRINTER 2.1 CDi (06Õ) Y-745U 4705 MAKE MODEL PART No. STOCK No. NISSAN QASHQAI 1.5 (07Õ) Y-732J 5909 X TRAIL 2.2 Di (04Õ) Y-519J 2500 RENAULT GRAND MODUS 1.5 dci (04Õ) Y-732J 5909 TRAFIC dci 80/100 (Õ10) Y-732J 5909 TRAFIC dci 135 (Õ10) Y-517J 3319 VOLKSWAGEN TOURAN 2.0 BMM Engine (06Õ) Y-607AS 9776 TOURAN 2.0 CFHC Engine (10Õ) Y1002AS 8926 VOLVO S40 II 2.0 D5 (04Õ) Y1005J 8939 Some existing glow plugs have been subject to supersession, see page 116 for a table of affected part numbers. The above tables are intended as a stock purchase guide. Refer to the relevant model listing in the main application section for product selection. 7

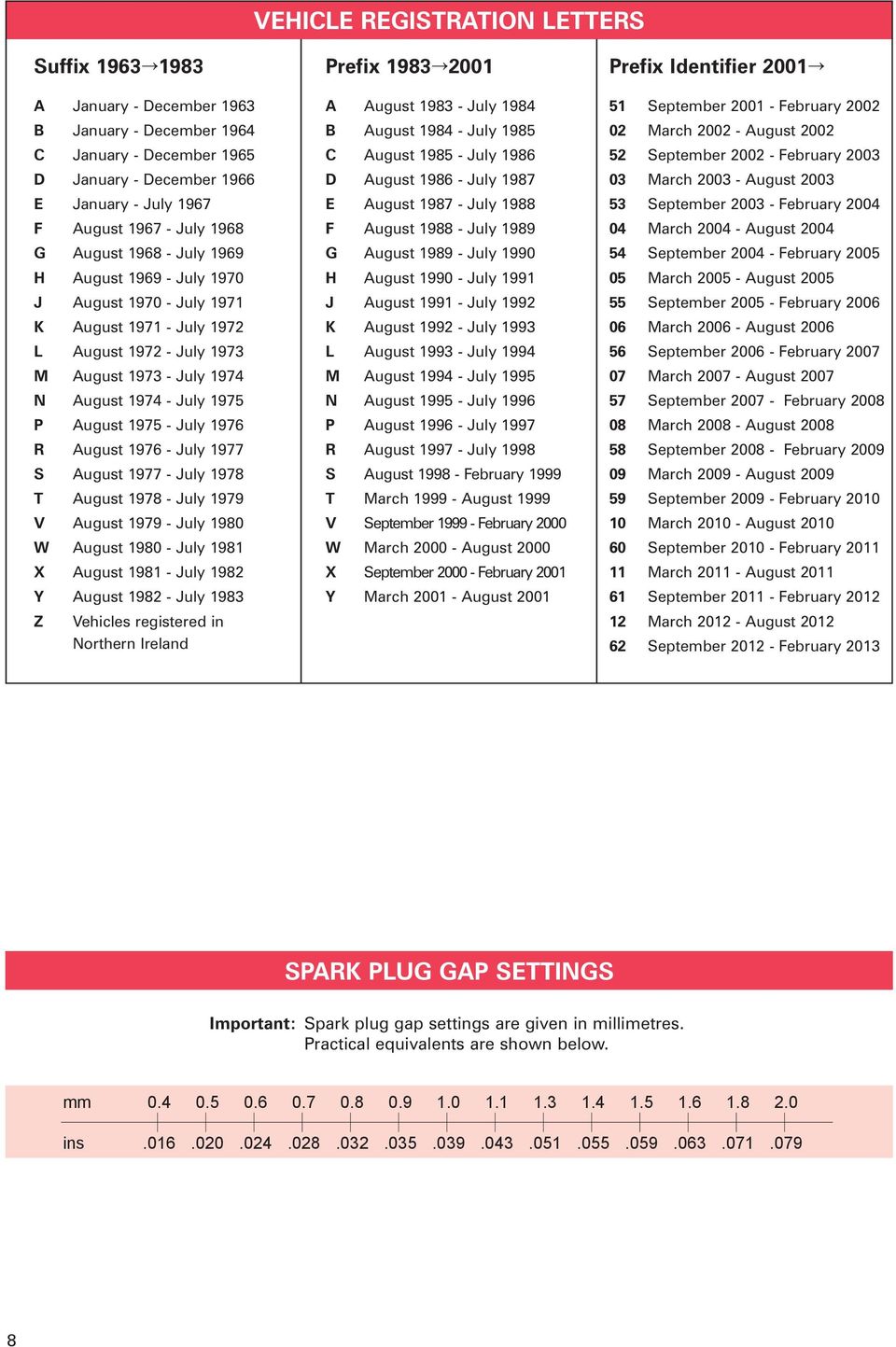

11 VEHICLE REGISTRATION LETTERS Suffix 1963Õ1983 A January - December 1963 B January - December 1964 C January - December 1965 D January - December 1966 E January - July 1967 F August July 1968 G August July 1969 H August July 1970 J August July 1971 K August July 1972 L August July 1973 M August July 1974 N August July 1975 P August July 1976 R August July 1977 S August July 1978 T August July 1979 V August July 1980 W August July 1981 X August July 1982 Y August July 1983 Z Vehicles registered in Northern Ireland Prefix 1983Õ2001 A August July 1984 B August July 1985 C August July 1986 D August July 1987 E August July 1988 F August July 1989 G August July 1990 H August July 1991 J August July 1992 K August July 1993 L August July 1994 M August July 1995 N August July 1996 P August July 1997 R August July 1998 S August February 1999 T March August 1999 V September February 2000 W March August 2000 X September February 2001 Y March August 2001 Prefix Identifier 2001Õ 51 September February March August September February March August September February March August September February March August September February March August September February March August September February March August September February March August September February March August September February March August September February March August September February 2013 SPARK PLUG GAP SETTINGS Important: Spark plug gap settings are given in millimetres. Practical equivalents are shown below. mm ins

12 MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM AC l RECOMMENDED ALTERNATIVE COBRA MK cu.in 65Õ67 AP6F-VG 2989 AP6FS COBRA MK STANDARD BPR5FS X SVO CONVERSION BP7ES SUPER BLOWER SUPERCHARGED 98Õ BPR4FS X CRS 302 cu.in 99Õ BPR5FS X COBRA 212 SC LOTUS V8 00Õ BKR6EKC 2848 X ALFA ROMEO ALFA 6 V6 OHC 09/80Õ03/86 BP6E 7529 BP6ES CARBURETTOR MODELS 06/83Õ05/90 B7ES CARBURETTOR MODELS 06/83Õ05/90 B7ES FUEL INJECTION 05/87Õ BP6E 7529 BP6ES CARBURETTOR MODELS 06/83Õ05/90 B7ES FUEL INJECTION 8 VALVE 05/87Õ BP6E 7529 BP6ES NON CAT 16 VALVE 06/90Õ BCPR6ET 2197 X CATALYST VALVE 01/93Õ PFR6B TWIN SPARK 2.0i 09/87Õ BCP6ET 4563 X INJECTION V6 06/86Õ05/90 BP7ES NON CATALYST 3.0 INJECTION V6 09/87Õ06/90 BP6E 7529 BP6ES CATALYST 3.0 INJECTION V6 06/90Õ PFR6B /85Õ10/87 BP6E 7529 BP6ES SINGLE OHC 10/94Õ03/97 BP6E 7529 BP6ES PLUG Ø 10mm AR (DOHC) 03/97Õ01/01 PMR7A PLUG Ø 14mm AR (DOHC) 03/97Õ01/01 BKR6EKPA 2513 X V DOUBLE OHC 10/94Õ03/97 PFR6B PLUG Ø 10mm AR (DOHC) 03/97Õ01/01 PMR7A PLUG Ø 14mm AR (DOHC) 03/97Õ01/01 BKR6EKPA 2513 X PLUG Ø 10mm 16V TWINSPARK 02/96Õ01/01 PMR7A PLUG Ø 14mm 16V TWINSPARK 02/96Õ01/01 BKR6EKPA 2513 X SINGLE OHC 06/95Õ03/97 BP6E 7529 BP6ES PLUG Ø 10mm AR (DOHC) 03/97Õ01/01 PMR7A PLUG Ø 14mm AR (DOHC) 03/97Õ01/01 BKR6EKPA 2513 X V DOUBLE OHC 06/95Õ03/97 PFR6B PLUG Ø 10mm AR (DOHC) 03/97Õ01/01 PMR7A PLUG Ø 14mm AR (DOHC) 03/97Õ01/01 BKR6EKPA 2513 X PLUG Ø 10mm AR (DOHC) 02/96Õ01/01 PMR7A PLUG Ø 14mm AR (DOHC) 02/96Õ01/01 BKR6EKPA 2513 X PLUG Ø 10mm AR /01Õ PMR7A PLUG Ø 14mm 02/01Õ BKR6EKPA 2513 X PLUG Ø 10mm AR /01Õ PMR7A PLUG Ø 14mm 02/01Õ BKR6EKPA 2513 X V6 24V GTA 03/03Õ PFR6B TWIN SPARK 1.8i 07/92Õ05/96 BCP6ET 4563 X PLUG Ø 10mm TWIN SPARK 1.8i 05/96Õ04/98 PMR7A PLUG Ø 14mm TWIN SPARK 1.8i 05/96Õ04/98 BKR6EKPA 2513 X ALL Ø14mm TWIN SPARK 2.0i 07/92Õ05/96 BCP6ET 4563 X TURBO 16V Q4 AR /92Õ09/96 BP6ET 1263 X PLUG Ø 10mm TWIN SPARK 2.0i 06/95Õ04/98 PMR7A PLUG Ø 14mm TWIN SPARK 2.0i 06/95Õ04/98 BKR6EKPA 2513 X V6 12V AR , , /92Õ09/96 BPR7E 1142 BPR7ES PLUG Ø 10mm AR /00Õ PMR7A PLUG Ø 14mm AR /00Õ BKR6EKPA 2513 X PLUG Ø 10mm 16V TWINSPARK 97Õ PMR7A PLUG Ø 14mm 16V TWINSPARK 97Õ BKR6EKPA 2513 X PLUG Ø 10mm 16V TWINSPARK 97Õ PMR7A PLUG Ø 14mm 16V TWINSPARK 97Õ BKR6EKPA 2513 X JTS Direct Injection 937 A /01Õ BKR6EKPA 2513 X V6 24V AR32.401, Õ PFR6B V6 24V GTA 932 A /02Õ PFR6B MPI A /07Õ ZFR5F JTS Direct Injection 939 A /06Õ FR5CP 6368 X JTS Direct Injection 939 A /06Õ FR5CP 6368 X X = Gap is already preset 9

13 ALFA ROMEO (CONTINUED) RECOMMENDED ALTERNATIVE MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM TWIN SPARK 2.0i 07/90Õ04/98 BCP6ET 4563 X V6 12V NON-CATALYST 3.0 V6 10/88Õ09/90 BP6E 7529 BP6ES V6 12V CATALYST 3.0 V6 09/90Õ93 PGR6A V6 24V CATALYST 3.0 V6 93Õ04/98 PFR6B PLUG Ø 10mm AR /99Õ PMR7A PLUG Ø 14mm AR /99Õ BKR6EKPA 2513 X V6 24V AR /99Õ PFR6B V6 24V AR34301, /99Õ PFR6B V6 24V 936 A /03Õ PFR6B ALFA V6 OHC 09/80Õ03/86 BP6E 7529 BP6ES ALFASUD /81Õ04/84 B7ES /81Õ04/84 B7ES ALFETTA /84Õ03/86 B7ES ARNA /84Õ05/86 B7ES /84Õ05/86 B7ES /84Õ05/86 B7ES BRERA JTS Direct Injection 939 A /06Õ FR5CP 6368 X GIULIETTA /78Õ03/86 B7ES (Õ86) /78Õ03/86 B7ES /78Õ03/86 B7ES GIULIETTA TB A /10Õ IKR9F X (10Õ) TB 170 Multiair 940 A /10Õ IKR9F X GT PLUG Ø 10mm AR /08Õ PMR7A PLUG Ø 14mm AR /08Õ BKR6EKPA 2513 X A /03Õ BKR6EKPA 2513 X A /03Õ PFR6B GTV (Õ87) DOHC 79Õ01/86 B7ES GTV V6 Õ02/87 BP6E 7529 BP6ES GTV (96Õ) PLUG Ø 10mm 16V TWINSPARK 96Õ PMR7A PLUG Ø 14mm 16V TWINSPARK 96Õ BKR6EKPA 2513 X JTS Direct Injection 03/03Õ BKR6EKPA 2513 X /98Õ PFR6B /03Õ PFR6B MITO /08Õ ZKR7A X Turbo 120bhp 198A /08Õ IKR9F X Turbo 155bhp 199A /08Õ IKR9F X MultiAir 135 & 170bhp 940A2.000,955A /08Õ IKR9F X SPIDER All models incl. Carb & Injection 01/71Õ04/93 B7ES PLUG Ø 10mm 16V TWINSPARK 04/96Õ PMR7A PLUG Ø 14mm 16V TWINSPARK 04/96Õ BKR6EKPA 2513 X JTS Direct Injection 06/03Õ BKR6EKPA 2513 X JTS Direct Injection 939 A /06Õ FR5CP 6368 X V 04/01Õ PFR6B /03Õ PFR6B SPRINT /79Õ12/89 B7ES /79Õ12/89 B7ES /79Õ12/89 B7ES SZ ZAGATO /90Õ01/92 PGR6A ALPINA B E46 S52B33 09/99Õ07/02 BKR6EQUP 3199 X E46 S Model S52B34 11/02Õ BKR6EQUP 3199 X B E60 Supercharged N62B44A19 03/05Õ PFR7B 4853 X B E65 Supercharged N62B44A19 12/03Õ06/08 PFR7B 4853 X B E39 S52B32 08/97Õ12/98 BKR6EQUP 3199 X E39 S52B33 01/99Õ12/03 BKR6EQUP 3199 X E39 M62B46 12/96Õ08/00 BKR6EQUP 3199 X ASIA MOTORS ROCSTA F8 03/94Õ12/97 BP5E 4669 BP5ES X = Gap is already preset

14 ASTON MARTIN RECOMMENDED ALTERNATIVE MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM DB bhp (NOT GT) 58Õ63 BP6E 7529 BP6ES DB Õ65 BP6E 7529 BP6ES DB Incl. VANTAGE 65Õ70 BP6E 7529 BP6ES DB Incl. VOLANTE 6 CYL DOHC 06/94Õ06/99 BCPR7E 1272 BCPR7ES Incl. VOLANTE V12 07/99Õ10/00 PTR6D X Incl. VOLANTE V12 10/00Õ PTR5D X GT/GTA & VANTAGE V12 04Õ PTR5D X DB V12 09/03Õ PTR6D X DBS / VOLANTE Õ72 BP6E 7529 BP6ES DBS V8 / AM V CARB/INJECTION 69Õ03/86 BPR5EIX LAGONDA V8 01/86Õ06/90 BPR6EY V Incl. VANTAGE/VOLANTE V8 01/87Õ12/89 BPR8ES Incl. VOLANTE V8 04/96Õ BCPR6E VANTAGE :1 COMP V8 03/86Õ12/89 BPR7EIX 4055 BP7EVX 7270 X :1 COMP (Zagato) 08/93Õ BCR8ES LE MANS SUPERCHARGED 01/99Õ BCR8ES VANQUISH BHP V12 06/01Õ PTR6D X VIRAGE Incl. VOLANTE 89Õ00 BCPR6E AUDI bhp models FS,WP,WT,WV 75Õ83 BP6E 7529 BP6ES bhp models YH,YP,YN,YT 75Õ83 BP6E 7529 BP6ES bhp / 81kW YS, YZ 76Õ82 BP7ES kW models DT,DTA,JU,RN,RNA,SA 08/83Õ10/91 BP5ET X bhp / 52kW ABM 11/91Õ BUR5ET 3377 X bhp / 74kW ABB,ADA 09/90Õ95 BUR6ET 3172 X kW models DS,DZ,JN,JV,MU 08/82Õ09/91 BUR6ET 3172 X kW models NE,PM,PV,SF 08/82Õ09/91 BUR6ET 3172 X bhp / 55kW RU 10/86Õ10/91 BP5ET X bhp / 85kW WN 10/80Õ08/83 BP7ES kW SD 09/86Õ07/88 BUR6ET 3172 X bhp / 85kW JS 11/81Õ07/83 BUR6ET 3172 X kW 3A,AAE,AAD,ABK,ABT 08/83Õ12/94 BUR6ET 3172 X kW ADW,JL,PS,SK 08/83Õ07/92 BUR6ET 3172 X bhp / 103kW (16V) 6A,ACE 03/90Õ07/95 BKUR7ET 7873 X bhp / 100kW KE,KL,KV,HY 11/82Õ07/83 BP6ET 1263 X bhp / 169kW S2 ABY,ADU 01/93Õ PFR7B bhp / 98kW NG 09/91Õ06/92 BPR5EKU 5685 X bhp / 110kW (V6) ABC,ACZ 07/92Õ BKUR6ET X bhp / 128kW (V6) AAH 09/91Õ08/93 BKUR6ET X kW AAD,ABK,HP,JL,JS 08/84Õ10/91 BUR6ET 3172 X bhp / 118kW (20 V) NM 08/88Õ10/91 BCP7ET 2078 X kW HY,JT,KV,KX 08/84Õ09/91 BP6ET 1263 X bhp / 125kW (20V) 7A 06/88Õ09/91 BKUR7ET 7873 X bhp / 98kW NG 04/87Õ09/91 BPR5EKU 5685 X kW YM,YV,WH 74Õ07/82 BP6E 7529 BP6ES bhp / 66kW 4B,DS,JW,NP,PH 08/82Õ08/86 BUR6ET 3172 X kW AAE,RT,SL 08/84Õ07/92 BP6ET 1263 X bhp / 85kW KP 08/84Õ07/92 BP6ET 1263 X bhp / 103kW (16V) ACE 02/92Õ06/94 BKUR7ET 7873 X bhp / 85kW ABK,ADW,AAD 08/92Õ06/94 BUR6ET 3172 X kW HX,KF,KU,KZ,MC,PX 08/82Õ12/90 BP6ET 1263 X bhp / 169kW S4 AAN 08/91Õ06/94 PFR7B bhp / 100kW NF 08/85Õ11/90 BPR5EKU 5685 X bhp / 98kW AAR 90Õ94 BPR5EKU 5685 X bhp / 110kW (V6) ABC,ACZ 04/92Õ06/94 BKUR6ET X bhp / 128kW (V6) AAH 12/90Õ06/94 BKUR6ET X kW KG,KH,KU,JY,MC,1B,2B 08/85Õ12/90 BP6ET 1263 X bhp / 162kW 3B 08/89Õ12/91 PFR7B A AUA,BBY 08/00Õ BKUR6ET X FSI BAD 07/02Õ ZFR6S-Q 6449 X X = Gap is already preset 11

15 AUDI (CONTINUED) RECOMMENDED ALTERNATIVE MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM A3 (Õ03) bhp / 74kW AEH,AKL,APF,AVU 09/96Õ BKUR6ET X bhp / 74kW BFQ,BGU,BSE 05/02Õ BKUR6ET X bhp / 92kW 20 VALVE AGN,APG 09/96Õ BKUR6ET X TURBO AGU,AJQ,AQA,ARZ 09/96Õ PFR6Q TURBO AMK,APP,ARY,ARX,AUM,AUQ 06/99Õ PFR6Q bhp / 154kW S3 AMK,APY,AUL 05/99Õ09/01 PFR6Q bhp / 165kW S3 BAM 10/01Õ06/03 PFR6Q A3 (03Õ) TFSI CBZB 02/10Õ IZFR6P X TFSI CAXC 05/07Õ PZFR6R 5758 X BGU,BSE 05/03Õ BKUR6ET X FSI BAG,BLF,BLP 08/03Õ ZFR6S-Q 6449 X TFSI BYT,BZB,CDAA 10/06Õ PFR7S8EG 1675 X FSI AXW,BLR,BLX,BLY 08/03Õ PZFR5N-11T 7742 X FSI BMB,BVY,BVZ 08/03Õ PZFR5N-11T 7742 X TFSI AXX,BWA,CAWB,CBFA,CCZA 07/04Õ PFR7S8EG 1675 X bhp / 195kW S3 BHZ,CDLA 10/06Õ PFR7S8EG 1675 X V6 FSI BDB,BMJ,BUB 05/03Õ IZKR7B 7563 X A4 (Õ04) bhp / 74kW ADP,AHL,ALZ,ARM,ANA,LEG 03/95Õ BKUR6ET X kW ADR,AFY,APT,ARG,AVV 06/94Õ BKUR6ET X AEB,AJL,ANB,APU,ARK 03/95Õ PFR6Q ATW,AVJ,AWT,BEX,BFB 08/99Õ PFR6Q bhp / 96kW ALT 12/00Õ BKUR5ET X bhp / 110kW FSI AWA,BGB 07/02Õ PZFR5N-11T 7742 X bhp / 110kW AFM 07/95Õ07/97 BKUR6ET X bhp / 121kW AGA,AJG,ALF,AML,AMM 08/97Õ BKR6EKUB 3584 X bhp / 121kW APS,APZ,ARJ,BDV 08/97Õ BKR6EKUB 3584 X bhp / 110kW ABC,ACZ 06/94Õ10/97 BKUR6ET X bhp / 195kW S4 AGB,AJK,APB,AZB 04/98Õ07/01 PFR6Q bhp / 280kW RS4 ASJ,AZR 04/00Õ09/01 PFR7Q bhp / 128kW AAH,AFC 11/94Õ07/97 BKUR6ET X bhp / 142kW ACK,ALG,AMX,APR,AQD 96Õ BKR6EKUB 3584 X bhp ASN,BBJ 12/00Õ BKR6EKUB 3584 X AVK 09/01Õ06/02 PFR6U-11G 5874 X BBK 02/04Õ BKR6EQUA 6872 X A4 (04Õ08) ALZ 09/04Õ BKUR6ET X TURBO BFB 09/04Õ PFR6Q ALT 09/04Õ BKUR5ET X FSI AWA 09/04Õ PZFR5N-11T 7742 X TFSI BGB,BPJ,BUL,BWE 09/04Õ PFR7S8EG 1675 X V6 FSI AUK 09/04Õ PFR7W-TG 5592 X V8 FSI S4 BBK 10/02Õ03/10 BKR6EQUA 6872 X A4 (08Õ) TFSI CABA,CABB,CDHA,CDHB 02/08Õ PFR7S8EG 1675 X TFSI CDNB,CDNC 05/08Õ PFR7S8EG 1675 X V6 TFSI S4 CAKA,CCBA 03/09Õ PFR8S8EG X V6 FSI CALA 02/08Õ PFR6X X A TFSI CABD,CDHB 09/07Õ PFR7S8EG 1675 X TFSI CAEB,CDNA,CDNB,CDNC 05/08Õ PFR7S8EG 1675 X V6 FSI CALA 02/07Õ PFR6X X V6 TFSI S5 CAKA,CCBA 04/09Õ PFR8S8EG X V8 FSI S5 CAUA 06/07Õ PFR6W-TG 5547 X A6 (Õ03/04) bhp / 92kW ADR,AFY,AJP 10/95Õ BKUR6ET X bhp / 92kW ANQ,AQE,ARH 10/95Õ BKUR6ET X AEB,AJL,ANB,APU 11/97Õ PFR6Q ARK,AWL,AWT 11/97Õ PFR6Q bhp / 74kW AAE,ABK,ADW 06/94Õ10/97 BUR6ET 3172 X bhp / 103kW ACE 06/94Õ98 BKUR7ET 7873 X ALT 06/01Õ BKUR5ET X AAR 06/94Õ06/96 BPR5EKU 5685 X bhp / 110kW AFM 07/95Õ10/97 BKUR6ET X AGA,AJG,ALF,ALW,AML 97Õ BKR6EKUB 3584 X AMM,APC,APS,APZ 97Õ BKR6EKUB 3584 X 12 X = Gap is already preset

16 AUDI (CONTINUED) RECOMMENDED ALTERNATIVE MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM A6 (Õ03/04) ARJ,ARN,ASM,BDV 97Õ BKR6EKUB 3584 X ABC,ACZ 06/94Õ98 BKUR6ET X BITURBO AJK,APB,ARE,AZA,BES 06/99Õ PFR6Q bhp / 128kW AAH,AFC 06/94Õ BKUR6ET X ACK,AGE,AHA,ALG,AMX 96Õ BKR6EKUB 3584 X APR,AQD,ATX,BBG 96Õ BKR6EKUB 3584 X bhp / 160kW ASN,BBJ 08/01Õ BKR6EKUB 3584 X bhp / 220kW ARS,ART,ASG 99Õ BKR6EQUP 3199 X bhp / 220kW BAS 04/03Õ BKR6EQUA 6872 X A6 (03/04Õ) TFSI BPJ 06/05Õ PFR7S8EG 1675 X BDW 03/04Õ PFR6X X V6 FSI BDX,CCDA,CCEA 12/06Õ PFR6X X V6 TFSI CAJA,CCAA,CGWB,CGXB 10/08Õ PFR8S8EG X V6 FSI BKH 03/04Õ PFR6X X V6 FSI AUK 03/04Õ PFR7W-TG 5592 X bhp / 246kW BAS,BAT 03/04Õ06/06 BKR6EQUA 6872 X bhp / 258kW BVJ 07/06Õ PFR6W-TG 5547 X bhp / 320kW V10 FSI S6 BXA 04/06Õ PFR6W-TG 5547 X A V6 TFSI CGWB,CGXB 09/10Õ PFR8S8EG X A8 (Õ02) bhp / 128kW AAH 06/94Õ03/96 BKUR6ET X bhp / 142kW ACK,ALG,AMX,APR,AQD 04/96Õ09/02 BKR6EKUB 3584 X bhp / 169kW AEW,AKJ 07/95Õ12/98 BUR6EFSZ AQG 10/98Õ09/02 BKR6EQUP 3199 X bhp / 191kW AKC 05/00Õ09/02 BKR6EKUB 3584 X bhp / 220kW ABZ,AEM,AGH,AKG 03/94Õ12/98 BUR6EFSZ bhp / 228kW AKB,AKD,AQF 08/98Õ09/02 BKR6EQUP 3199 X bhp / 228kW ARU,AUW,BFM 08/98Õ09/02 BKR6EQUP 3199 X Taper Seat Plugs S8 AHC,AKH 09/97Õ12/99 BUR6EFSZ bhp / 265kW S8 AQH,AVP,BCS 05/99Õ09/02 BKR6EQUP 3199 X A8 (02Õ) ASN,BBJ 01/04Õ BKR6EKUB 3584 X V6 TFSI CGWA,CGXA,CMDA,CGXC 06/10Õ PFR8S8EG X V6 FSI BPK 06/05Õ PFR7W-TG 5592 X BFL 04/03Õ BKR6EQUA 6872 X bhp / 258kW FSI BVJ 04/03Õ PFR6W-TG 5547 X bhp / 331kW S8 BSM 01/06Õ PFR6W-TG 5547 X W12 AZC,BHT,BTE 01/04Õ PZFR6J X ALLROAD (Õ06) BITURBO ARE,BES 04/00Õ04/06 PFR6Q ARS,ASG 04/99Õ01/05 BKR6EQUP 3199 X bhp / 220kW BAS,BAT 04/03Õ04/06 BKR6EQUA 6872 X CABRIOLET bhp / 92kW ADR 12/96Õ BKUR6ET X bhp / 85kW ABK 07/93Õ BUR6ET 3172 X bhp / 103kW ACE 05/95Õ07/96 BKUR7ET 7873 X bhp / 98kW NG 07/91Õ05/94 BP6ET 1263 X bhp / 110kW ABC,ACZ 06/94Õ BKUR6ET X bhp / 128kW AFC,AAH 96Õ BKUR6ET X COUPE DS,DZ,JN,JV,PV,SF 09/82Õ07/91 BP6ET 1263 X bhp / 85kW WN 01/83Õ08/83 BP7ES A,AAD,ABK,JL,JS,SK 08/83Õ96 BUR6ET 3172 X bhp / 103kW (16V) 6A,ACE 01/92Õ BKUR7ET 7873 X kW HY,KE,KL,KX,KV 08/81Õ07/91 BP6ET 1263 X Incl. S2 MODEL 3B,ABY 09/90Õ PFR7B bhp / 100kW NG 08/85Õ BPR5EKU 5685 X bhp / 125kW (20V) 7A 08/89Õ07/91 BKUR7ET 7873 X bhp / 110kW (V6) ABC 07/92Õ BKUR6ET X bhp / 128kW (V6) AAH 09/91Õ BKUR6ET X Q TFSI CDNA,CDNB,CDNC 09/08Õ PFR7S8EG 1675 X Q V6 TFSI CJTB,CJTC,CJWB,CJWC,CNAA 05/10Õ PFR8S8EG X bhp / 206kW BHK 06/06Õ ILZKR7A 1961 X bhp / 258kW V8 FSI BAR 11/05Õ PFR6W-TG 5547 X QUATTRO bhp / 147kW 10 VALVE GV,WR 07/80Õ07/87 PFR7B bhp / 147kW 10 VALVE MB 08/87Õ07/89 BP6ET 1263 X bhp / 162kW 20 VALVE RR,3B 08/89Õ07/91 PFR7B X = Gap is already preset 13

17 AUDI (CONTINUED) RECOMMENDED ALTERNATIVE MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM R bhp / 309kW FSI BYH 10/06Õ PFR7W-TG 5592 X RS bhp / 232kW ADU 03/94Õ05/95 PFR7B RS bhp / 280kW ASJ,AZR 04/00Õ09/01 PFR7Q bhp / 309kW FSI BNS 03/06Õ PFR7W-TG 5592 X RS bhp / 331kW FSI BCY,BRV 07/02Õ PFR7Q S bhp / 169kW ABY,ADU 01/93Õ PFR7B S bhp / 154kW AMK,APY,AUL 05/99Õ09/01 PFR6Q bhp / 165kW BAM 10/01Õ06/03 PFR6Q bhp / 195kW BHZ,CDLA 10/06Õ PFR7S8EG 1675 X S bhp / 195kW BITURBO AGB,AJK,APB,AZB 04/98Õ07/01 PFR6Q bhp / 244kW V6 TFSI CAKA,CCBA 03/09Õ PFR8S8EG X BBK 10/02Õ03/10 BKR6EQUA 6872 X S bhp / 244kW V6 TFSI CAKA,CCBA 04/09Õ PFR8S8EG X FSI 350bhp / 258kW CAUA 06/07Õ PFR6W-TG 5547 X S bhp / 169kW AAN 06/94Õ PFR7B Taper Seat Plugs AEC,AHK Õ98 BUR6EFSZ ANK,AQJ 09/99Õ BKR6EQUP 3199 X bhp / 320kW V10 FSI BXA 04/06Õ PFR6W-TG 5547 X S Taper Seat Plugs AHC,AKH 09/97Õ12/99 BUR6EFSZ bhp / 265kW AQH,AVP,BCS 05/99Õ09/02 BKR6EQUP 3199 X bhp / 331kW BSM 01/06Õ PFR6W-TG 5547 X SPORT QUATTRO bhp / 225kW SWB Model KW 05/84Õ07/87 PFR7B TT (Õ06) bhp / 180bhp AJQ,APP,ARY,BVP 02/99Õ12/06 PFR6Q bhp AUM,AUQ,AWP,BVR 02/99Õ12/06 PFR6Q bhp AMU,APX,BAM,BFV 02/99Õ12/06 PFR6Q bhp / 184kW BHE 06/03Õ IZKR7B 7563 X TT (06Õ) TFSI CDAA 03/09Õ PFR7S8EG 1675 X bhp / 147kW TFSI BWA,CCZA 10/06Õ PFR7S8EG 1675 X bhp / 200kW S Model CDLA,CDLB 01/08Õ PFR7S8EG 1675 X BHE,BUB 10/06Õ IZKR7B 7563 X bhp / 200kW CDLA,CDLB 01/08Õ PFR7S8EG 1675 X V bhp / 184kW PT 10/88Õ BUR6EFSZ bhp / 206kW ABH 10/91Õ BUR6EFSZ AUSTIN/MORRIS BP6E 7529 BP6ES BP6E 7529 BP6ES BP6E 7529 BP6ES O SERIES BP6EF 4666 BP6EFS BP6E 7529 BP6ES O SERIES BP6EF 4666 BP6EFS BP6E 7529 BP6ES LITRE BP6E 7529 BP6ES ALLEGRO ALL 4 BP6E 7529 BP6ES AMBASSADOR BP6EF 4666 BP6EFS BP6EF 4666 BP6EFS HEALEY BP5E 4669 BP5ES BP5E 4669 BP5ES BP6E 7529 BP6ES BP5E 4669 BP5ES ITAL Õ84 BP6E 7529 BP6ES Õ84 BP6EF 4666 BP6EFS Õ84 BP6EF 4666 BP6EFS MARINA Õ80 BP6E 7529 BP6ES Õ80 BP6EF 4666 BP6EFS Õ80 BP6E 7529 BP6ES METRO ALL 4 SEE ROVER MINI ALL 4 SEE ALSO ROVER Õ90 BP6E 7529 BP6ES MINOR BP6E 7529 BP6ES BP6E 7529 BP6ES X = Gap is already preset

18 MODEL ENG NO. ADDITIONAL ENG TYPE DATE RECOMMENDED STOCK COPPER STOCK GAP SIZE OF INFORMATION COPPER CORE NO. CORE NO. MM BEDFORD l RECOMMENDED ALTERNATIVE BRAVA Õ96 BPR6E 6464 BPR6ES CF Õ84 BPR6FS Õ84 BPR6FS Õ84 BPR6FS Õ BPR6H-VG BPR6HS Õ84 BPR6FS CHEVANNE Õ83 BP6E 7529 BP6ES HA Õ71 BP6E 7529 BP6ES Õ83 BP6E 7529 BP6ES KB PICK UP Õ BPR6E 6464 BPR6ES MIDI Õ90 BPR6E 6464 BPR6ES RASCAL Õ90 BPR5E 7075 BPR5ES TK TRUCK 1960Õ1985 B6S BENTLEY ARNAGE BMW 06/98Õ08/99 BKR6EK 2288 X BMW 09/99Õ01 BKR6EQUP 3199 X GREEN LABEL BMW 09/99Õ09/00 BKR6EQUP 3199 X RED LABEL - TURBO RR 09/99Õ BKR5EVX LE MANS RR 03/01Õ BKR4EVX R 03/02Õ BKR4EVX T 01/02Õ BKR4EVX AZURE /95Õ BKR5EVX MULLINER 03/99Õ BKR5EVX BROOKLANDS /92Õ BKR4EVX TURBO 02/97Õ09/99 BKR5EVX CONTINENTAL R 12/91Õ BKR5EVX R LE MANS 03/01Õ BKR5EVX R MULLINER 03/99Õ BKR5EVX SC / MULLINER 03/99Õ09/00 BKR5EVX T / MULLINER 02/97Õ BKR5EVX CONTINENTAL FLYING SPUR W12 05/05Õ PZFR6Q X CONTINENTAL GT W12 02/03Õ PZFR6Q X CORNICHE CARB 03/71Õ02/87 BPR5E 7075 BPR5ES (71Õ02) INJECTION 03/87Õ12/88 BPR5EIX /89Õ06/93 BPR4EVX /93Õ08/95 BKR4EVX /95Õ BKR5EVX MULSANNE/S/ CARB 10/80Õ11/86 BPR5E 7075 BPR5ES EIGHT INJECTION 12/86Õ12/88 BPR5EIX /89Õ06/93 BPR4EVX /93Õ BKR4EVX MULSANNE TURBO (Õ85) /82Õ09/85 BPR5E 7075 BPR5ES S TYPE S1 Incl. CONTINENTAL 55Õ59 B6ES S2 & S3 59Õ65 BP5E 4669 BP5ES T TYPE Õ69 BPR5E 7075 BPR5ES Õ76 BPR5E 7075 BPR5ES T2 76Õ80 BPR5E 7075 BPR5ES TURBO R CARB 03/85Õ09/86 BPR5E 7075 BPR5ES (85Õ96) INJECTION 01/87Õ12/88 BPR5EIX /89Õ09/96 BKR5EVX X = Gap is already preset 15
