2015 Effective Date 4/15

Transcript

1 2015 Effective Date 4/15

2 CONTENTS Section 1 INTRODUCTION 2 DEFINITIONS AND ABBREVIATIONS 3 DATA SECTION TIRES Three Part Name s Type I Type III Type VII Metric and Radial 4 DATA SECTION TUBES AND VALVES Tube and Valve Technical Data Tube Valve Types and Technical Data 5 APPLICATION CHARTS General Aviation/Business Aircraft Commercial Aircraft Military Aircraft Rotary Wing Aircraft 6 ENGINEERING AND TECHNICAL INFORMATION Section 1 INTRODUCTION The Goodyear Tire and Rubber Company, founded in 1898, has been producing aircraft tires since 1909 and retreading aircraft tires since Goodyear manufactures new aircraft tires in the United States, Brazil, and Thailand. Retreading facilities are located in the United States, Brazil, Thailand, and the Netherlands. Goodyear aircraft tires meet exacting specifications, are qualified to perform safely and economically, and help withstand the most stringent demands set forth by today s high performance aircraft. Specific data on the proper tire sizes for different aircraft main and auxiliary/nose gear, speed ratings, nominal inflation pressures, dimensions, and other data needed by users to obtain the maximum service from their aircraft tires are presented in this booklet. Data are included for reference purposes for some tires that are not in the Goodyear authorized line. The data presented supersedes previously published Goodyear data. The data and general notes for civil aircraft tires are in accordance with Tire & Rim Association Standards. The civil aircraft tire data also conform to Federal Aviation Agency (FAA) Technical Standard Order C-62e, and other applicable standards. The data for military aircraft are based on military specification MIL-PRF-5041K, unless otherwise indicated. s shown are the recommended maximum for the indicated inflation. For loads less than the maximum, the inflation pressure can be reduced proportionately. The physical tire data and applications herein are accurate to the best of our knowledge at the time of publication. For questions regarding specific applications, please contact your Goodyear aircraft tire distributor or the aircraft manufacturer for current information. Tire Selection Tubeless Tire in Place of Tube Type Tires Tire Measurement Procedure Operating Tire Temperatures Ratings Used for Helicopters of Gyration Aircraft Tire Dimensions and Deflection Growth and Minimum Clearance Allowance Bias Growth and Minimum Clearance Allowance Radial

3 Section 2 DEFINITIONS AND ABBREVIATIONS TIRE NAME SIZE CLASSIFICATION Ply Rating The term Ply Rating is used to identify a given tire with its maximum recommended load when used in a specific type of service. It is an index of tire strength and does not necessarily represent the number of carcass plies in the tire. TT or TL Designates whether the tire is tube-type or tubeless construction Three Part Type All new sizes being developed are in this classification. NOTE: Some sizes have a letter such as H in front of the diameter. This is to identify a tire that is designed for a higher percent deflection. Speed The maximum speed, normally in miles per hour, to which the tire is qualified. The maximum load rating in pounds. Radial Metric Type Radial size nomenclature is the same as Three Part Type except an R replaces the - (dash) before the wheel/rim diameter. This size designation is the same as Three Part except the diameter and section width. Dimensions are in millimeters, and the wheel/rim diameter is in inches. Type I Oldest type/description giving outside diameter only. Type III This type was one of the earliest size designations used for piston-propeller aircraft. Its characteristic is low pressure for cushioning and flotation. Inflation The inflation pressure required for the tire to support the rated load. Max Braking The maximum steady braking load which may be applied to a tire. Max Bottoming Approximate load required to bottom the tire on the rim at rated inflation pressure. Part Number The Goodyear part number assigned to the tire if applicable. Inflated Dimensions The dimensions of a new tire inflated to rated inflation pressure. Type VII This type covers most of the older sizes and was designed for today s jet aircraft with higher load capacity. Static ed The distance from the center of the axle to the deflected tread surface under normal load and inflation pressure. Tire Name Type Tire Example Nominal Nominal Section Nominal Wheel/Rim Diamter Three Part 49x Metric 670x mm 210 mm 12 inches Type I Type III Type VII 49x Radial 32x8.8R Flat Tire Aspect Ratio The distance from the center of the axle to the deflected tread surface when subjected to bottoming load. The ratio of tire section height to tire section width. Wheel The dimensions of the wheel on which the tire is to be used. LST, speed, and time curve. SCD Specification Control Document. T&RA The Tire and Rim Association U Universal LST Curve (TSO-C62e) DT Deflector Type. (Nosewheel chine) DDT Dual Deflector Type.

4 Section 3 DATA SECTION TIRES Three-Part Name s Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number Outside INFLATED DIMENSIONS Section Max Min Max Min Max Shoulder Max Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge 13.5x TL Aircraft Rib 461B-3470-TL x x TL Flight Eagle DT 145K x x TL Aircraft Rib 461B-3255-TL x x TL Aircraft Rib 145K x X TT Flight Special II 156E x TT Flight Custom II 156E x TT Flight Custom III 156E X TT Flight Special II 156E66B x TL Flight Custom II 156E x TL Flight Eagle LT DDT 156E06B X TT Flight Eagle LT DDT 156K23B x TL Flight Eagle 178K x x TL Flight Eagle 178K x x6.25-6/ TL Flight Special II 175K x TT Aircraft Rib DDT 175K x TL Flight Special II 175K88B x TL Flight Special II 175K x TL Flight Special II 175K08B x TL 139K Smooth 461B-2271-TL x x TL Flight Eagle DT 181K x x TL Aircraft Rib 461B-3563-TL x x TL Aircraft Rib 461B-3434-TL x x TL Flight Eagle DDT 186K x x TL 223K Aircraft Rib 461B-3325-TL x x TL Flight Leader DT 196K x TL Aircraft Rib 196K x TL Flight Leader DT 196K02B H19.5x TL Flight Eagle 197K H19.5x x TL Flight Leader DT 206K X x TL Flight Eagle LT 215K x x TL Flight Eagle DT 217K x x TL Flight Eagle 217K x x TL 195K Aircraft Rib DT 461B-2728-TL(DT) x x TL 139K Aircraft Rib 710G26B x254x x TL Flight Eagle 226K x x TL Flight Eagle 226K x x TL Aircraft Rib 222K x TL 200K Aircraft Rib 461B-3226-TL x x TL 244K Aircraft Rib 461B-3343-TL x x TL 190K Aircraft Rib 461B-2515-TL x x TL Aircraft Rib 461B-3903-TL x x TL Aircraft Rib 461B-3926-TL x x TL Flight Custom II 265F x TL Flight Custom III 265F x TL Flight Special II 265K x TL 210K Aircraft Rib 461B-3592-TL x x TL Aircraft Rib 277K x TL Aircraft Rib 277K

5 Three-Part Name s CONSTRUCTION SERVICE RATING INFLATED DIMENSIONS Static WHEEL Flat Tire Tread Design / ed Aspect Part Number Ply Trademark Outside Section Shoulder Ratio Specified Min Wheel (Rim) Flange TT or TL Speed Inflation Braking Bottoming Between Rim Ledge Rating Max Min Max Min (PSI) Max Height Flanges Max 22x TT Flight Special II 228K x x TL Flight Eagle 220K x x TL Flight Eagle 220K x H22x TL Flight Eagle 229K H22x H22x TL Flight Eagle 229K H22x x TL 217K Aircraft Rib 461B-2513-TL x x TL Flight Eagle 237K x x TL Flight Leader 247R x x TL 230K Aircraft Rib 461B-2506-TL x B24x TL RED STREAK K B24x H25x TL Flight Eagle LT 258K H25x x TL Aircraft Rib 461B-3233-TL x x TL 217K Aircraft Rib 461B-3529-TL x x TL Aircraft Rib 259K48G x x TL Aircraft Rib 256K x x TL Aircraft Rib 256K x x TL Aircraft Rib 256K x x TL Flight Eagle 265K x x TL 139K Aircraft Rib 461B-3251-TL x x TL Smooth 260K H26.5X TL Flight Leader 269K H26.5x x TL Flight Leader 275K x x TL Flight Leader 275K22T x x TL 225K Aircraft Rib 461B-3537-TL H27.75x x TL 185K Aircraft Rib 461B-3140-TL x H29x TL Flight Leader 299K H29x x TL Aircraft Rib 110T x x TL Aircraft Rib 110T x x TL Flight Leader 304K x H30x TL Flight Leader 302K62B H30x x TL 210K Aircraft Rib 301K45G x x TL 215K Aircraft Rib 461B-2573-TL 461B-3197-TL x x TL 215K Aircraft Rib 461B-3204-TL x x TL 220K Aircraft Rib 461B-3430-TL x H31x TL Flight Leader 319K x x TL Flight Leader 318K x H31x TL Flight Leader 313K H31x x TL Flight Leader DT 321K x x TL 210K Aircraft Rib 461B-3675-TL x x TL Aircraft Rib 321R26T x x TL Flight Leader 331K x x TL Flight Eagle 348F x H34x TL Flight Eagle 349K H34x x TL Flight Leader 347K28G x x / TL Flight Leader 347K08T x x / TL Flight Leader 347K28T x x TL 174K Aircraft Rib 461B-3518-TL x x TL 203K Aircraft Rib 461B-3440-TL x

6 Three-Part Name s CONSTRUCTION SERVICE RATING INFLATED DIMENSIONS WHEEL Ply Rating TT or TL Speed Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number Outside Section Max Min Max Min Max Shoulder Max Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges Specified Rim Flange Height Min Ledge 34.5x TL 225K Aircraft Rib 461B-3268-TL x H35x TL Flight Eagle 350K H35x x TL 222K Aircraft Rib 461B-3418-TL x x TL Aircraft Rib 461B-3912-TL x x TL 227K Aircraft Rib 461B-3477-TL x H36x TL Flight Leader 363K H36x H36x TL Flight Leader 362K H36x x TL Flight Leader 371K28G x x TL Flight Leader 374F x H37x TL Flight Leader 375K H37x H38x TL Flight Eagle 382K H38x H38x TL Flight Leader 383K H38x H40x TL Flight Leader 409K H40x H40x TL Flight Leader 419K H40x H40x TL Flight Leader 419K42T H40x H40x TL Flight Leader 419K H40x K62T1 H40x TL Flight Leader 419K62T H40x x TL Flight Leader 405K x x TL Flight Leader 415K42G x H41x TL Flight Leader 416K H41x H42x TL Flight Leader 426K H40x x TL 174K Aircraft Rib 461B-3517-TL x H43.5x TL Flight Leader 431K H44.5x x TL Flight Leader 456F x H44.5x TL Flight Leader 446K H44.5x H44.5x TL Flight Leader 441K K H44.5x H44.5x TL Flight Leader 441K82T H44.5x H44.5x TL Flight Leader 441K09T H44.5x B46x TL 240K Aircraft Rib 461B-3355-TL B46x H46x TL Flight Leader 468K H45x H46x TL Flight Leader 468K H45x x TL 217K Aircraft Rib 461B-2481-TL x x TL Flight Leader 498FL x x TL Flight Leader 498F x x TL Flight Leader 491K K29T x x TL Flight Leader 491K49T x x TL Flight Leader 491K45G x H49x TL Flight Leader 499K42T H49x H49x TL Flight Leader 499K K29T H49x x TL Flight Leader 500K x x TL Flight Leader 501K x x TL Flight Leader 521K x x TL Flight Leader 520K x x TL Flight Leader 542K x H54x TL Flight Leader ER 541K H54x x TL Flight Leader 560F

7 Type I Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number Max Min Max Min TL Aircraft Rib 270A01B Outside INFLATED DIMENSIONS Section Max Shoulder Max Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge Type III Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number Outside INFLATED DIMENSIONS Section Max Min Max Min Max Shoulder Max Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge TT Aircraft Rib 504C TL Aircraft Rib 504T TL 120K Twin Contact 545M6CB TT Flight Special II 505C TT Flight Custom III 505C TT Flight Special II 505C TT Flight Custom III 505C TT Flight Special II 505C TL Flight Eagle LT 505T TT Flight Special II 606C TT Flight Special II 606C41B TT Flight Custom III 606C TT Flight Special II 606C C61B TT Flight Custom III 606C TT Flight Special II 606C81B TL Aircraft Rib 461B-2297-TL TT Flight Special II 606C TT Flight Custom III 606C T /420x150 4 TT Aircraft Rib 607C TT Flight Custom III 658C TT Flight Special II 658C TL 139K Aircraft Rib 461B-2145-TL TT Flight Custom III 658C TL Flight Custom III 658T TL Flight Custom III 650T TT Flight Special II 650C TT Flight Custom III 650C TT Flight Custom III 650C TL Aircraft Rib 650Y0A-1 461B-2058-TL TL Flight Special II 650T TL 160K Aircraft Rib 650G4KG TL 174K Aircraft Rib 650G4EG TT Flight Special II 706C C61B

8 Type III Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Max Min Max Min TT Flight Custom III 706C TT Flight Custom III 706C TL Flight Custom II 706T TL Rib All Weather 708C TL 130K Aircraft Rib 461B-3294-TL TL Aircraft Rib 754C TT Aircraft Rib 804C TT Flight Special II TT Flight Special II Max Max 806C C61B C C81B TL Aircraft Rib 856T TT Flight Custom III 850C TL Flight Custom III 850T Both Aircraft Rib Part Number 850H0A-1 461B-3332-TL TL Flight Custom III 850T TL 139K Aircraft Rib 461B-3388-TL TL Aircraft Rib 850G4A TL 104K Flight Custom II 850G6A TL Rib All Weather 892C61B TL Aircraft Rib 892C66B TL Aircraft Rib 906T TL Flight Leader 922C86T /28x TL Aircraft Rib 982T26G x TL Aircraft Rib 112T TL Aircraft Rib 126G06G TL Aircraft Rib 461B-1876-TL TL Aircraft Rib 152T TL Aircraft Rib 156G06G TL Aircraft Rib 156T66G TT Aircraft Rib 176C26B TL 174K Aircraft Rib 461B-2598-TL Outside INFLATED DIMENSIONS Section Shoulder Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge

9 Type VII Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number Outside INFLATED DIMENSIONS Section Max Min Max Min Max Shoulder Max Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge 16x4.4 4 TL Flight Eagle 164F x x4.4 6 TT Aircraft Rib 164F B x x4.4 6 TL Flight Eagle 164F x x4.4 6 TL Flight Eagle DT 164F x x TL Flight Eagle DDT 164F x x TL Flight Eagle DT 164F x x TL Flight Eagle DT 164F x x TL Flight Eagle 164F x x4.4 6 TL 174K Aircraft Rib 461B-2741-TL x x4.4 6 TL Aircraft Rib DDT 184F x x TL Aircraft Rib DDT 184F x x TL Flight Eagle DT 184F x X TL Aircraft Rib DDT 184F x x TL Aircraft Rib DDT 184F x x TL Flight Eagle DT 184F x x TL Aircraft Rib DT 184F x x5.5 8 TT Flight Special II 185F x x5.5 8 TL 139K Aircraft Rib 461B-3075-TL x X5.5 8 TL Flight Eagle 185F x x5.5 8 TL Flight Leader 185F83G x X TL Flight Eagle 185F x x TL Flight Leader DT 185K x x TL 239K Aircraft Rib 185P4HG x x TL Aircraft Rib 461B-3779-TL x x TL 174K Rib All Weather 461B-3247-TL x x TL 139K Rib All Weather 461B-3246-TL x x TT 174K Rib All Weather 461B-2482-AS x x TL Flight Leader DT 266F x x TL Flight Leader 266F x x TL Flight Eagle 266F x x7.7 6 TL Flight Leader 247F68G x x7.7 8 TL Flight Leader 247F86T x x TL Flight Leader 247F03G x x TL Flight Leader DT 247F02G x x TL Flight Leader 247F x x TL Flight Leader DT 247F22T x x TL Flight Leader 247F x x TL 217K Aircraft Rib 461B-2681-TL x x TL Flight Leader 247F F63T x x TL Flight Leader 247F x x TL 174K Aircraft Rib 461B-3356-TL x x TL Flight Leader DT 248F03T x TL Flight Leader 248P26G x TL Flight Leader 309F62G x x TL Flight Leader 328F43G x x11 22 TL Flight Leader 341F x x11 22 TL Aircraft Rib 461B-3383-TL x x11 22 TL Flight Leader 361F F22T x x11 24 TL Aircraft Rib 461B-3219-TL x

10 Type VII Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Max Min Max Min 39x13 14 TL Flight Leader 393F x13 16 TL 195K Aircraft Rib 461B-2787-TL x13 16 TL Flight Leader Max Max 393F62G5 393F62T x13 18 TL Flight Leader 393F x13 24 TL Flight Leader 393F x14 16 TL Flight Leader 404F63T x x14 24 TL Flight Leader 404F F42T x X14 28 TL 174K Aircraft Rib 461B-3208-TL x x16 28 TL 174K Aircraft Rib 461B-2886-TL x x16 30 TL Flight Leader 446F x x16 28 TL 195K Flight Leader ER 461B-3562-TL x x16 28 TL Flight Leader 466F82T x x16 30 TL Flight Leader 466F B-3393-TL 466F02T x x16 32 TL Flight Leader 466F22G x x17 26 TL 174K Aircraft Rib 461B-3505-TL x x17 26 TL 195K Aircraft Rib 461B-2688-TL x x17 30 TL Flight Leader 497F F02T5 497F02T x x17 32 TL Flight Leader Part Number INFLATED DIMENSIONS 497F F29T x x16 38 TL 217K Aircraft Rib 461B-2403-TL x Outside Section Shoulder Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge Metric Ply Rating CONSTRUCTION TT or TL Speed SERVICE RATING Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number INFLATED DIMENSIONS Max Min Max Min 380x150/15x TT Aircraft Rib 385M x x TL Flight Leader 459M x x TL Aircraft Rib 459M09B1 461B-2987-TL x x TL Aircraft Rib 459M23B1 461B-3836-TL x x TL Aircraft Rib 605M09G x x TL Aircraft Rib 612M2GG x x TL Aircraft Rib 670M x x TL 200K Aircraft Rib 670M8FB x x TL Aircraft Rib 753M47G x x TL Aircraft Rib 753M25G x Outside Section Max Shoulder Max Static ed Flat Tire Aspect Ratio Wheel (Rim) Between Flanges WHEEL Specified Rim Flange Height Min Ledge

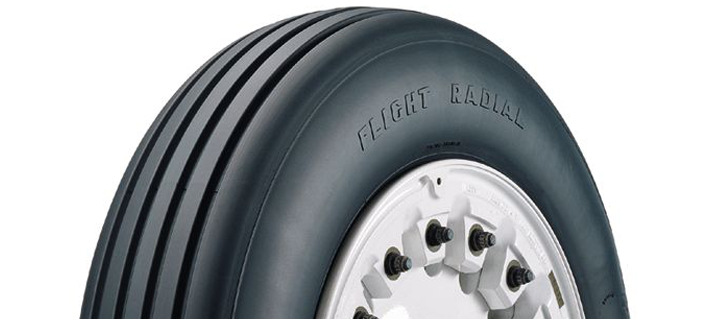

11 Radial CONSTRUCTION SERVICE RATING INFLATED DIMENSIONS (IN) STATIC LOADED RADIUS (IN) WHEEL (IN) Speed Ply Rating TT or TL Rating Inflation (PSI) Braking Bottoming Tread Design / Trademark Part Number OUTSIDE DIAMETER SECTION WIDTH SHOULDER New Min New Max Grown Max New Min New Max Grown Max Dia Max Max Grown Min Grown Max Wheel (Rim) Between Flanges Specified Flange Min Ledge Rim Height 20x4.4R12 14 TL 255 6, ,750 14,000 Flight Radial 461B-3946-TL x x8.0R12 14 TL 190 9, ,150 28,275 Flight Radial 235Q B-3917-TL 25.5x8.0R14 20 TL 217K 16, ,500 36,500 Flight Radial AP M1 25.5x8.0R14 20 TL , ,500 36,500 Flight Radial 461B-3833-TL 26x6.6R14 14 TL , ,000 30,000 Flight Radial 266Q x6.6R14 14 TL , ,000 30,000 Flight Radial 266Q x x x x x x7.75R13 10 TL 230 8, ,150 21,200 Flight Radial 461B-3598-TL x x7.75R15 12 TL 225 9, ,475 28,950 Flight Radial 275Q x7.75R15 12 TL 235 9, ,475 28,950 Flight Radial 275Q B-3790-TL 27.75x8.75R TL , ,175 58,050 Flight Radial 461B-3792-TL 27.75x8.75R TL 225K 22, ,175 58,050 Flight Radial 461B-3568-TL 27.75x8.75R TL 250K 22, ,175 58,050 Flight Radial 461B-3816-TL x x H27.75x H27.75x H27.75x x8.8R15 16 TL , ,300 42,680 Flight Radial 309Q x x11.50R TL 205K 27, ,400 74,525 Flight Radial HH 461B-3708-TL 30x11.50R TL 205K 25, ,250 67,500 Flight Radial 461B-3924-TL 32x8.8R16 12 TL , ,500 29,700 Flight Radial 328Q Q48-1 H34x10.0R16 14 TL , ,100 36,180 Flight Radial 346Q x11.0R18 30 TL , ,700 96,660 Flight Radial 461B-3607-TL x x x x x H37.5x12.0R19 20 TL , ,400 69,120 Flight Radial 379Q H37.5x12.0R x17.0R18 26 TL , , ,300 Flight Radial 427Q x x17.0R20 30 TL , , ,000 Flight Radial 467Q x x20.0R22 32 TL , , ,300 Flight Radial 502Q x20.0R x20.0R22 34 TL , , ,600 Flight Radial 502Q x20.0R x21.0R22 36 TL , , ,500 Flight Radial 522Q x21.0R22 36 TL , , ,500 Flight Radial 522Q x21.0R x21.0R x395R16 28 TL , , ,600 Flight Radial 109Q x

12 Section 4 DATA SECTION TUBES TUBES AND VALVES Tube Valve Types and Technical Data GOODYEAR AIRPLANE INNTERTUBES ARE MANUFACTURED TO RIGID STANDARDS Meets or exceeds all commercial and military performance requirements. o Meets MIL-I-5014 military specification except for packaging. All tubes are individually wrapped in.005mm gauge clear plastic and cardboard boxed in various quantities. Made from natural al rubber which offers long life and meets cold temperature performance requirements. Factory balanced. The heavy spot is marked with a yellow stripe. If it does not have a stripe the valve is considered the heavy spot. The valve stem, core and cap are manufactured by Schrader International for aircraft use. o Designed for high and low pressure requirements High Pressure Cap=Metal (MS ) Low Pressure Cap=Plastic Tube Corresponding Tire (s) Valve Type(s) NOMINAL TUBE SIZE OD Wheel Dia Gross Weight Shape VALVE Location TR 67, 21AC , G380x150-5, x TR 67, 21AC TR / , TR TR / , TR x TR TR G15/ x TR G15/ , 15x TR B90 0 B90 0 STR.75" STR 1.0" STR 1.12" STR.8" STR 1.7" STR 1.8" B90 1.0" STR 1.0" TR B " , 19.5x6.75-8, G19.5x x8.0-8 TR STR.6" Note: 1. For multiple tire sizes listed, the tube is designed to fit correctly in all identified sizes. Some tube stretch is required for maximum performance. 2. The nominal tube size reflects the minimum inflated outside tire dimensions and wheel diameter in which the tube will properly operate. (O.D. =outside diameter at center line, width = overall tire width at the widest point, wheel dia = nominal diameter of wheel, tire bead, and tube opening). 3. Valve Shape: B = Bent, STR = Straight. 4. Valve location is the distance the centerline of the valve is located from the centerline of the tube Aircraft Yearbook REPRINTED WITH PERMISSION FROM THE TIRE AND RIM ASSOCIATION

13 Section 5 APPLICATION CHARTS The application information presented within this manual is based on the most current information available and is intended for use as a GENERAL REFERENCE ONLY. Any inquiries regarding specific model aircraft should be directed to the applicable airframe manufacturer. Your requirements may vary depending upon the actual configuration of your aircraft. All Goodyear tires are manufactured in accordance with TSO-C62, MIL-T-5041, AIR8505A and/or applicable airframe manufacturer specifications. Additionally, all tire sizes included in this manual may not necessarily be available from Goodyear. Contact your Goodyear Representative for specific tire information and availability. FAILURE TO MAKE VERIFICATION WITH THE AIRCRAFT MANUFACTURER AND INSTALLING UNAPPROVED TIRES ON AN AIRCRAFT MAY RESULT IN TIRE FAILURE CAUSING PROPERTY DAMAGE, SERIOUS INJURY, OR LOSS OF LIFE. GENERAL AVIATION/BUSINESS AIRCRAFT LEGEND o Tires are low speed unless designated. o Tires are tube-type unless otherwise indicated. o Consult aircraft manual for individual tire pressure. CODE: TL=Tubeless DT = Deflector Type SC=Smooth Contour DDT=Dual Deflector Type MANUFACTURER MODEL NAME Aerospatiale SN-600 Corvette 26x TL 17.5x6.25-6DDT 8 TL Airbus ACJ318/319/320 46x17.0R20 30 TL 30x8.8R15 16 TL ACJ321 49x TL 30x8.8R15 16 TL AirTractor AT-300 thru 401A American Champion Aircraft AT-401B AT-401B (optional) 29x AT-402, A, B 29x AT-502A, B, x AT x x TL AT-802/ 802A TL 17.5x TL 8GCBC Scout /6 2.80/ ECA, 7GCAA, 7GCBC, 7KCAB 8KCAB Citabria Decathlon/Super Dec. Aviat A-1, 1A, 1B Husky MAIN TIRE 4/6 2.80/ /6 2.80/ AUXILIARY TIRE Solid A-1C-180, /6 Solid BAe HS x TL 18x DT 6 TL Bellanca 17-30A Viking x / A Super Viking x / ATC Turbo Viking x /8 260A Bellanca

14 MANUFACTURER MODEL NAME MAIN TIRE AUXILIARY TIRE MANUFACTURER MODEL NAME MAIN TIRE AUXILIARY TIRE Beechcraft 17 Staggerwing SC Hawker Twin Beech TL 14.50SC 8 TL 18H Twin Beech TL TL 19 Musketeer Sport Musketeer C, A24 Sundowner Super Sierra A Debonair , 36 Bonanza Twin Bonanza B55, C55, E55 Baron Baron Duke 19.5x TL 15x , 80 Queen Air 8.50x10 8 TL TL 90B King Air TL TL Airliner 18x5.5 8 TL TL 200 Super King Air 18x TL 22x TL 200T Super King Air 22x TL 22x TL 300, 350 Super King Air 19.5x TL 22x TL x TL 19.5x TL 1900D 22x TL 19.5x TL 2000 Starship 1 H19.5x TL 19.5x TL Beechjet, Hawker 400 XP 24x TL 18x4.4 DDT 10 TL Hawker Premier 1A H22x TL 18x4.4 6 TL Hawker 450, 750, 800, 850XP, 900XP, 950XP, x TL 18x DT 6 TL Hawker 4000 Horizon 26x6.6R14 14 TL 18x4.4 DT 12 TL Boeing BBJ, BBJ2, BBJ3 H44.5x TL 27x (R15) 12 TL Bombardier Global Express H38x TL 21x DT 12 TL CL-300 Challenger H26.5x TL 18x5.5 DT 10 TL CL-600/601 Challenger 26x TL 18x4.4 DT 12 TL CL-600/601 Challenger 25.75x TL 18x4.4 DT 12 TL CL604/605 Challenger H27x TL 18x4.4 DT 12 TL CL-800/850 Challenger H29x TL 18x4.4 DT 12 TL Bombardier (Learjet) LR-23/24/25 Learjet 18x TL 18x4.4 DDT 10 TL LR-31/35/35A/36/36A Learjet 17.5x TL 18x4.4 DDT 10 TL LR-40/45 Learjet 22x TL 18x4.4 DDT 10 TL LR-54/55/56/60 Learjet 17.5x TL 18x4.4 DDT 10 TL LR-70/75 Learjet 22x TL 18x4.4 DDT 10 TL Cessna 120, , 152 Commuter, Aerobat Skycatcher x Q, S Cutlass, Skyhawk SP RG Cutlass RG 15x Skyhawk Skylark Cardinal RG Cardinal RG 15x Skywagon " SC 6 182, T182 Skylane RG, T182RG Skylane 15x Skywagon SC AG Wagon 22x SC AG Wagon (optional) SC Station Air , 207 Optional Skywagon (FLO) Caravan x Caravan B Grand Caravan 29x TL Centurion T210, P210 Turbo, Centurion , 350, 400, T240 Corvalis 15x T303 Crusader T303 Optional , T , x Super Skymaster 18x x , Titan 22x TL Cessna 406 Caravan II x Chancellor Golden Eagle Conquest I Conquest II 22x TL Citation I 22x TL 18x4.4 DDT 10 TL 510 Mustang 22x TL 16x4.4 8 TL 525 CJ, CJ1 22x TL 18x4.4 DDT 6 TL 525A CJ2 22x TL 18x4.4 DDT 6 TL 525B CJ3 H22x TL 18x4.4 DDT 10 TL 525C CJ4 H22x TL 16x4.4 DDT 10 TL 550 Bravo H22x TL 18x4.4 DDT 10 TL 550 Citation II (SN 2-626) 22x TL 18x4.4 DDT 10 TL 550 Citation II (SN 627-), S/II 22x TL 18x4.4 DDT 10 TL 560 Citation V, Ultra 22x TL 18x4.4 DDT 10 TL 560XL Excel 23.5x8.0R12 12 TL 18x4.4 DDT 10 TL BPC 560 Encore H22x TL 18x4.4 DDT 10 TL 650 Citation III, VI, VII 22x TL 18x4.4 DDT 10 TL 680 Sovereign 26x6.6R14 12 TL 16x4.4 DT 10 TL 750 Citation X 26x6.6R14 10 TL 16x4.4 DT 10 TL Cirrus Design SR20 15x / 10 (TL) / 10 (TL) SR22 15x / 10 (TL) / 10 (TL) Commander Aircraft 112 Commander B TC, TCA A, B Dassault 7X Falcon H R TL R6 12 TL 20 Falcon 26x6.6 / 26x6.6R14 10 TL 14.5x5.5-6 DT 14 TL 100 Falcon 22x TL 18x TL 50/200 Falcon 26x6.6 / 26x6.6R14 14 TL 14.5x5.5-6 DT 14 TL 900 Falcon 29x7.7R15 TL 17.5x5.75R8 DT TL 2000, 2000EX Falcon 26x6.6R14 14 TL 14x5.5R6 DT Diamond DA20 Katana Eclipse 500 DA20 Katana (opt oversize) 15x DA20-C1 Eclipse DA40 Diamond Star DA40 DS Optional 15x DA42 Twin Star 15x x5.5 18x5.5R8 8 TL TL Embraer EMB-200 Ipanema / EMB-201 Ipanema /10 10x EMB-202 Ipanemao /10 10x EMB-202A Ipanemao 22x x Phenom 21x TL 15X DDT 300 Phenom H25x TL 15X DDT 450/500 Legacy H26.5x TL 17.5x DT 600 Legacy H30x TL 19.5x DT 10 TL 1000 Lineage H41x16.0R20 22 TL 24X7.7R10 16 TL Epic LT 18x TL 15x Extra Solid x / x Gulfstream G100 23x TL 16x4.4 DT 6 TL G150 23x TL 16x4.4R8 DT 10 TL G200 26x6.6R14 14 TL 18x4.4 DT 10 TL G280 26x6.6R14 14 TL 18x4.4 DT 12 TL G300, G350, GIV-SP, G400, G450 H34x TL 21x DT 12 TL GV, G500, G550 H35x TL 21x DT 12 TL G650 H37.5x12.0R19 20 TL 21x DT 14 TL II, III, IV 34x TL 21x DT 12 TL GA-7 Cougar x Gulfstream (Grumman) AG-5B Tiger AA-5 Traveler AA-5A Cheetah AA-1B Trainer AA-5B Tiger G-158 AG-CAT

15 MAIN TIRE AUXILIARY TIRE MANUFACTURER MODEL NAME Helio H-250 Courier H-250 Courier (XWD) H-250 Courier II H-295 Super Courier H-295 Super Courier (XWD) H-550A Stallion H634 Twin Stallion Israel Aircraft Industries 1123 Westwind 24x TL 16x4.4 4 TL 1124 Westwind B24x TL 16x4.4 4 TL 1121, AE Jet Commander 24x7.7 14/16/18 TL 16x4.4 4 TL 1125 Astra 23x TL 16x4.4 DT 6 Lake Aircraft LA-250 Renegade/Seafury LA-4 Buccaneer LA4-200 Amphibian Lockheed Jet Star 26x TL 18x4.4 DT 10 TL Jet Star II 26x TL 18x4.4 DT 12 TL SA-60 Azacarte Maule Air M /6 280/ MX /6 280/ MX /6 280/ MXT /6 280/ Mitsubishi MU-2B-10 thru , MU-2B-26 thru MU-300 Diamond I 24x TL 18x4.4 DDT 10 TL Mooney MO-20 Ranger /6 MO-20E Chapparal MO-20F Executive MO-20J M-20K TSE M-20M, R, S E Bravo, Ovation, Eagle MO-20K Turbo MO-21C Super /6 MO-22 Mustang x Partenavia P68C Piaggio P180 Avanti, Avanti II TL TL Pilatus PC TL 17.5x DT Piper J3 Cub ''SC Solid PA Super Cub ''SC Solid PA Super Cub x2.00 Solid PA22 Tri Pacer PA23, Apache PA Aztec PA24-250, 260, 400 Commanche /6 PA Commanche PA25, 236, 260 Pawnee x PA Pawnee x PA28 Cherokee PA28-151, 161 Warrior MANUFACTURER MODEL NAME PZL-MIELIC I-22 Iryda 6.70x TL 6.70x TL M-20 Mewa M-26 Iskierka M-28 Skytruck 720 x TL Quest Kodiak Kodiak (flotation) 29x x Sabreliner 40, 60 Sabreliner 26x TL 18x4.4 DT 10 TL 40, 60 Sabreliner 26x TL 18x4.4 DT 10 TL 60A, 65 Sabreliner 26x TL 18x4.4 DT 10 TL 75, 75A Sabreliner 22x TL 18x4.4 DT 10 TL Sino Swearingen SJ x TL 16x4.4 6 DT Socata Rallye TB 10/ TB9/20/21/30 15x TBM700 18x5.5 8 TL TL TBM700C2/800/850/900 18x TL TL Symphony SA Taylorcraft A, B, BC, D (L2M), BC12-D x2 F-19, F-21, F-21A x2 F F-22A, C F-22B Tecnam P92 JS P2002 JF P2006T Thrush Aircraft S2R Thrush x /2x4-1/2 10 S2R-660 Turbo Thrush 29x /2x4-1/2 10 Twin Commander AC-200 Commander AC-500 Commander AC-560 Commander /8 TL TL AC-680 T Turbo Commander TL 16x4.4 4 TL AC-680 E, F, V, W Commander TL TL AC-680FL, FP, FLP Grand Commander TL TL AC-681, TL TL AC-690, A, B TL TL AC-690C, 695 JetProp 840, TL 15x AC-690D, 695A JetProp 900, x7.7 MAIN TIRE 10 TL 16 TL 15x Vans RV-3,4,6,7,8, /6 11x RV-10 15x /6 5.00x5-6 4/6 RV-12, /6 5.00x5-6 4/6 Goodyear Blimp 26x TL AUXILIARY TIRE PA Archer PA Archer III / PA28R-201 Arrow PA30 Twin Commanche PA31 Chieftain, Navajo PA31P Pressurized Navajo PA31P-350 Mojave x PA31T Navajo PA31T-500 Cheyenne 1A PA32 Cherokee Six PA32R-301 Saratoga II HP PA32R-301T Saratoga II TC PA32RT300 Lance PA Seneca PA34-270T Seneca V PA36 Brave x PA38 Tomahawk PA42 Cheyenne IIIA TL 17.5x PA Seminole PA46-310/350P Malibu Mirage PA46-500TP Malibu Meridian PA46R-350T Matrix PA60 series Aerostar TL

16 COMMERCIAL AIRCRAFT LEGEND o Tires are low speed unless designated. o Tires are tubeless unless otherwise indicated. CODE: TT=Tube-type DT = Deflector Type DDT=Dual Deflector Type MANUFACTURER MODEL IDENTIFYING INFO SPEED MAIN GEAR NOSE GEAR Aerospatiale Caravelle x x DT Caravelle x x DT Caravelle 58 tonne x x DT Nord Alenia/Aerospatiale ATR x8.8R x ATR H34x10.0R x Airbus A300 B x16 28/30/32 40x14 24 A300 B x16 28/30/32 40x14 24 A300 B , 165 tonne x17 30/32/34 40x14 24 A300 B x /34 40x14 24 A x17 30/32/34 40x14 24 A x /34 40x14 24 A x16 28/30/32 40x14 24 A x17 26/28/30/32/34 40x14 24 A x16 28/30/32 40x14 24 A x17 26/28/30/32/34 40x14 24 A318/ x16 or 46x17.0R x8.8 or 30x8.8R15 16 A x16 or 46x17.0R20 28/30/32 30x8.8 or 30x8.8R15 16 A x17 or 46x17.0R20 28/30/32/34 30x8.8 or 30x8.8R15 16 A x or 46x17.0R20 32/34 30x8.8 or 30x8.8R15 16 A320 4MLG/SIDE x x8.8 or 30x8.8R15 16 A x or 1270x455R x8.8 or 30x8.8R15 16 A x or 1400x530R23 32/ x395R16 28 A / x or 1400x530R23 32/ x or 1050x395R10 28 A x530R x18.0R17 36 A350XWB-800/ x530R x395R16 28 A x530R x455R22 or 50x20.0R22 32/34 Ayres master 28x x BAe x13 18/22/24 24x x15 16/ BAC x x DT BAC x x DT BAC x12 16/18 24x DT BAC / x x DT Trident IC x x Trident 1E,2E,3B x x Vanguard x VC x x13 16 VC-10 (SUPER) x x13 16 Viscount 36x TT/TL 24x British Aerospace (BAe) 748 Intercity 32x Jetstream 31 28x Jetstream 41 22x MANUFACTURER MODEL IDENTIFYING INFO SPEED MAIN GEAR NOSE GEAR Boeing x x x x B x16 26/28 39x C x x H41x x B x x /QC x17 or 50x x DT /C 210/225 49x x DT /C x x DT , /225 40x14 24/28 24x7.7 14/ /235 H40x /26 24x (Float) x x /4/ /235 H40x /26 27x or R /4/ H42x x or R / H43.5x x or R / /235 H44.5x /30 27x or R IGW/ER 225/235 H44.5x /30 27x or R /900/900ER 225/235 H44.5x /30 27x or R x21.0R x20.0R22 26/32/ x16 28/ x16 28/30/ / /235 49x17 30/32 49x17 30/ / /245 49x /34 49x / H49x /32 49x /245 H49x /32 49x / /235 H49x /32 H49x / ER x20.0R x20.0R SF 225/235 49x17 30/32 49x17 30/ SP x16 28/30/32 49x17 30/ SP 225/235 49x17 30/32 49x17 30/ SR 225/235 49x17 28/30/32 49x17 28/30/ , /235 H40x /24/26 H31x /235 H45x H37x / , /235 H46x /28/32 H37x / ER x20.0R22 32 H37x / x20.0R x17.0R x20.0R22 26/32 42x17.0R x20.0R x17.0R LR/300ER, 777F x21.0R x17.5R , Dreamliner x20.0R x16.0R x20.0R x16.0R x21.0R x16.0R16 26 Canadair (Bombardier) CL-215/415 Water Bomber TT CRJ H36x x DT 12 CRJ H36x x DT 12 Regional Jet 210 H29x x4.4DT 12 CRJ H36x x CASA 212 Commuter x7.7 8 Convair x TT 26x6 10 TT 340/ TT/TL 7.50x14 8 TT/TL TT/TL 7.50x14 8 TT/TL 580/ TT/TL 7.50x14 8 TT/TL 580/600 39x x14 8 TT/TL 880M x x x x /225 41x /24 29x Curtiss C-46 Commando Smooth de Havilland (Bombardier) DHC-6 Twin Otter TT DHC-6 Twin Otter (Flotation) TT DHC-7 Dash 7 30x DHC-7 Dash 7 (Flotation) 33.5x x7.7 8 DHC Dash x x DHC Dash 8 (Flotation) H31x x DHC Dash 8 Series H31x x DHC Dash 8 Series H31x x DHC Dash 8 Series x x DHC Dash 8 Series x x

17 MANUFACTURER MODEL IDENTIFYING INFO SPEED MAIN GEAR NOSE GEAR Dornier DO x TT DO x TT DO x x DO-328 (Flotation) x x DO-328 Jet x x Douglas DC-3 LS TT/TL TT DC-4 LS /16 TT 44'' SC 12 TT DC-6B & 7 LS TT 44'' SC 14 TT DC-7C LS /22/ MANUFACTURER MODEL IDENTIFYING INFO SPEED MAIN GEAR NOSE GEAR Nihon YS , x YS-11 39x x Nord 262 Airliner 39x Pilatus BN 2A Islander Britten-Norman BN 2A MKIII Trislander Saab Saab 340 Airliner x x Saab x Short Bros (Bombardier) SD x SD x Tupolev Tu H40X x DC x x11 22 DC x16 30/32 34x11 22 DC x x11 22 DC x x11 22 DC x x11 18 DC-8 62H x x11 22 DC-8 HV/50F x x11 20/22 DC x /24 26x DT DC-9 (Flotation) x x DT DC-9 10 ( ) 210/225 40x x DT DC-9 30 (31) 210/225 40x x DT DC-9 30 (32) x x DT DC-9 30 (33-41) x14 22/24 26x DT DC x /34 37x DC-10 30/ x /30 40x /28 MD H54x x MD-80/82/88 (DC-9-80) 225 H44.5x /26 26x MD H44.5x x MD H44.5x x Embraer EMB-110 Bandeirante x TT EMB-120 Brasilia 190/210 24x x EMB-121 Xingu 160/ x x4.4 6 TT ERJ-135/140/145ER Regional Jet x x DT ERJ-145 LR Regional Jet 225 H30x x DT ERJ-145 XR Regional Jet 225 H30x x DT ERJ-170/175 Airliner 225 H38x x ERJ-190/195 Airliner 225 H41x /R x7.7 /(R10) 16 Fairchild Aircraft Corp. SA226H Merlin IV x x4.4 4/6 SA227 Metro III x x DT Fairchild-Hiller F-27(J)/ FH227 (Optional) 39x x Fokker F-27 Friendship x F-27 (Flotation) Friendship x /14/ DDT F-28 Fellowship x13 14/ DT F-28 (Flotation) Fellowship x x DT F x x7.7 6 F H40x x DT F H40x x DT Hawker-Siddeley 1C Trident x x TT 1E/2E/3B Trident x x TT HS 748 Avro 32x TT Ilyushin IL96M/T 235 H49X H49X Let x /420 29x Lockheed L-18 Lodestar L-188 Electra x x7.7 10/14 L-382 Herc x x /1049 Constellation TT/TL 34x Constellation x L x x11 22 L TRI-STAR x x11 20/22 L , x /36 37x

18 MILITARY AIRCRAFT CODE: TT=Tube-type TL=Tubeless SC=Smooth Contour MAIN TIRE AUXILIARY TIRE MANUFACTURER MODEL NAME AIDC F-CK-1 Ching-Kuo 24x TL 18x TL Alenia C-27J Spartan 39x13 18 TL 29x TL G222/C-27A Spartan 39x13 14/16 TL 27.5x TL AMX 670x TL 18x TL Aermacchi MB x TL 380x TL MB x TL 380x TL Beech (Raytheon) T-1A Jayhawk 24x TL 18x4.4 DDT 10 TL T-6A Texan II 20x TL 16x4.4 8 TL T-34B Mentor TT TT T-42A Cochise TL TL U-87 Seminole TT TT VC-6A/C-12 King Air TL TL TT Boeing E-3A AWACS 46x16 28 TL 39x13 16 TL E-4A AACP 49x17 30 TL 49x17 30 TL E-6 Mercury 46x16 28 TL 39x13 16 TL B-52 G, H Buff 56x16 38 TL 32x TT KC-135 Stratotanker 49x17 26 TL 38x11 14 TL VC-137C 46x16 28 TL 39x13 16 TL KC-767 H46x TL H37x /24 TL British Aerospace GR-5 Harrier 26x TL 26x TL Harrier Outrigger 13.5x TL Hawk TL Jaguar 615x TL 550x TL Strikemaster 21x TL TT CASA CN x TL 24x TL MAIN TIRE AUXILIARY TIRE MANUFACTURER MODEL NAME McDonnell-Douglas F-4E, RF-4E Phantom II 30x /26 TL 18x TL AV-8B Harrier II 26x TL/TT 26x TL Outrigger 13.5x TL C-9A Nightingale 40x14 24 TL CH 10 TL KC-10A Extender 52x TL 40x TL F-15A, B, C, D Eagle 34.5x TL 22x TL C-17 Globemaster II 50x TL 40x16 26 TL Northrop F-5A, B Freedom Fighter 22x TL 1 8x TL F-5E Tiger II 24x TL 18x TL T-38A Talon 20x4.4R14 14 TL 18x4.4 6 TL Northrop/Grumman E-8C JSTARS 46x16 28 TL 39x13 16 TL Panavia Tornado 30x or R TL 18x TL Pilatus PC-6 Turbo Porter TL PC TL TL PC-9 20x4.4 8 TL 16x4.4 8 TL PC-9, PC-9M (low pressure) TL TL PC-21 20x4.4R12 14 TL 16x4.4R8 12 TL Piper U-7A TT TAILSKID U-11A Aztec TT TT Plaggio P TL TL Rockwell T-2D/E Buckeye 24x TL 20x TL U-4A Aero Commander TT TT OV-10A Bronco 29x TL CT 12 TL T-39 Sabreliner 26x TL 18x4.4 6 TL Saab JAS 39 Gripen 25.5x TL 14.5x TL SIAI Marchetti S TL DDT 10 TL Vought A-7A, B, E Corsair II 28x TL 22x TL A-7D Corsair II 28x TL 22x TL CN-235 (flotation) TL TL C-295M 34x TL 24x7.7 8 TL Cessna O-1E Bird Dog / TL 3x TT O-2A, B Skymaster TL 15x TT U-3B Blue Canoe TT TT U-17A Skywagon TT 10" SC 8 TT A-37 Dragon Fly TL TT T-41A Strike Mescalero TL TL Dassault Alpha Jet 615x TL TL Mirage F1 605x TL TL Mirage III 750x TL 450x TL Mirage V 750x TL 450x TL De Havilland (Bombardier) U-1A Otter TT TT CV-2B Caribou TL TL U-6A Beaver TT TT CV-7A Buffalo TL TL Embraer AM-X 670x TL 18x TL EMB-110 Bandeirante 670x TL TT EMB-111 Patrulha 670x TL TT EMB-121 Xingu 670x TL 16x4.4 6 TT EMB-312 Tucano TT /10 TT EMB-314 Super Tucano TL TL EMB-326 Xavante 21.5x TL TL KC-390 H43x TL 31x TL Fairchild Republic A-10 Thunderbolt II 36x11 22 TL 24x TL GAF Nomad TT TT Grumman C-1A Trader 34x TT 18x TT E-1B Tracer 34x TT 18x TT OV-1C Mohawk TL TL C-2A Greyhound 36x11 24 TL 20x TL E-2A Hawkeye 36x11 24 TL 20x TL S-2D Tracker 34x TT 18x TL EA-6B Prowler 36x11 24 TL 20x TL HU-16E Albatross 40x12 14 TT 26x6 10 TT Helio U-10A Courier TT 10" SC 8 TT IAI Arava TL TL Kfir TL 450x TL Lockheed P-2H Neptune 56" SC 20 TL 34x TL P-3A Orion 40x14 26 TL 28x TL P-3B, C Orion 40x14 28 TL 28x TL C-5A, B Galaxy "FRED" 49x17 26 TL 49x17 26 TL F-16A, B Viper 25.5x TL 18x TL F-16C, D Viper 25.5x TL 18x TL C-130E Hercules TT TT C-130H Hercules TL TT/TL C-130J Super Hercules TL TL C-140A Jetstar 26x TL 18x4.4 DT 10 TL

19 ROTARY WING AIRCRAFT CODE: TT=Tube-type TL=Tubeless SC=Smooth Contour MAIN TIRE AUXILIARY TIRE MANUFACTURER MODEL NAME Agusta EH TL TL 109A 380x TL SOLID 109A 14.5x TL SOLID A TL SOLID AgustaWestland AW x TL TL Eurocopter EC x TL 15x TL EC225 Super Puma 615x TL TL EC725 Caracal 615x TL TL SA321 Super Frelon TL TL 330 Puma TL TL 332 MKI/II Superpuma 615x TL TL SA 360C/365C Dauphin 260x80 4 TT 15x TL SA 365N Dauphin 2 380x TT 13x TL AS 366G Dauphin N 15x TL TT AS 532 Cougar 615x TL TL 665 Tiger 23x TL TL Bell x TT TT TT TT XVI TL TT Boeing V-22 Osprey TL 18x TL CH-46F Sea Knight 18x5.5 8 TL 18x5.5 8 TL CH-47A Chinook 22x TL 16x4.4 8 TT CH-47B Chinook TT TT CH-47C Chinook TT TT 234 Chinook /12 RTL /12 TL Section 6 ENGINEERING AND TECHNICAL INFORMATION Whether designing aircraft tires or simply talking about them, standardization of terms is important to ensure a common understanding between user, supplier, and manufacturer. Tire Selection MAIN WHEEL TIRES In the selecting tires for a newly designed aircraft, allowances should be made for increases in load bearing capability. Aircraft size generally grows during the life cycle of the airframe from prototype to first production units and eventually to heavier weight versions to meet operator requirements. Selecting a tire that permits an increased load capability will help avoid the costly necessity of changing tire size or wheel details required to support heavier aircraft versions. The main wheel tire requirements should be based upon the most aft center of gravity location and the ground operational load-speed-time history considered to be the most severe during normal service operations. Consideration should be given to operations at high density altitudes. NOSE WHEEL TIRES It is important that selection of a nose wheel tire be reviewed from both a static load requirement and a dynamic braking condition. Care should be taken during initial selection to allow for loading growth to avoid possible future retrofitting. Kamen AH-64A Apache TL TL HH-2D, SH-2D SH-2F, UH-2C SeaSprite 17.5x TL TT HH-43B, 43F Huskie TT TT Nose wheel tire selection should be based on the most forward center of gravity load. Sikorsky H-33D, E SeaKing TL TT H34 Choctaw TL TT HH-52A TL TT CH/HH-53 Sea Stallion TL TL CH-53E Super Stallion TL TL H-54A Skycrane TL TL H-54B Skycrane TL TL S TT TT SH60B Seahawk 26x TL TT UH-60A Blackhawk 26x TL 15x TT S TL TT S70 26x TL 15x TT S76A 14.5x TL TL S76B 14.5x TL TL Westland W TL TT To enable tire manufacturers to offer technical assistance in the selection of main/nose gear tires, the forms on following pages are provided listing essential requirements for an engineering review to be conducted. Tubeless Tires in Place of Tube Type Tires A Goodyear tubeless tire (with a tube) of the same size can be used in place of a tube type tire if the tubeless tire has an equal or higher speed and ply rating than the tube type tire it is being used to replace. IMPORTANT Ensure any manufacturing stickers on the innerliner of a tubeless tire are removed prior to mounting to prevent damage to the tube. Tire Measurement Procedure Before a tire can be measured, it must be mounted on its proper rim, inflated to the pressure given in the applicable table of the Tire Data section, allowed to stand at least 12 hours at ambient room temperature, and the pressure checked. The outside diameter of the tire should be determined by measuring circumferentially and calculating: OD=Circumference Π Operating Tire Temperatures Aircraft tires shown in this handbook are not recommended for use where surface temperatures exceed 225 F (107 C), or where brake heat results in temperatures that exceed 300 F (149 C) at wheel surfaces adjacent to the tire and tube. Consult Goodyear for operation outside these limits.

20 Ratings Used for Helicopters Helicopter tires have special load ratings. When used on helicopters, standard aircraft tires may be rated up to a factor of 1.50 for both load and inflation. In limited cases, maximum inflation of 1.8 times normal inflation may be permissible. These factors are to be applied to ratings shown in the tables for standard aircraft tires. Aircraft Tire Dimensions and Deflection allowable dimensions for new tires used on helicopters are 4 percent larger than maximum aircraft tire dimensions. (In calculating maximum outside and shoulder diameters, rim diameters are deducted before applying the 4 %) of Gyration TIRE ASSEMBLIES The approximate value for the radius of gyration for tire assemblies is calculated by the formula: of gyration=max O.D. + Min O.D WHEEL ASSEMBLIES The approximate (+/- 20 %) value for the radius of gyration for wheel assemblies is calculated by the formula: of gyration (Incl. rotating brake parts) = 0.40 x D ( D =rim ledge diameter)

21 Growth and Minimum Clearance Allowance Bias Growth and Minimum Clearance Allowance Bias 2013 Aircraft Yearbook REPRINTED WITH PERMISSION FROM THE TIRE AND RIM ASSOCIATION

22 Growth and Minimum Clearance Allowance Radial Growth and Minimum Clearance Allowance Radial REPRINTED WITH PERMISSION FROM THE 2013 TIRE AND RIM ASSOCIATION AIRCRAFT YEARBOOK
