WYECO. Automatic Control Valves. How to select control valve. 4. Valve Body Type D 0 2 GS FC O S0 P 1 50 FA. Valve Action.

Transcript

1 MODEL NUMBERS WYECO Automatic Control Valves How to select control valve When ordering, please specify by following procedure : 1. Actuator Type 6. Valve Action 2. Bonnet Type 7. Trim Material 3. Plug Characteristics 8. Packing Material 4. Valve Body Type 9. Connection Rating 5. Body Material 10. Body Size 11. Service Condition 1). Flow Medium 2). Flow Rate and Unit (Max. / Nor.) 3). Inlet and Outlet Pressure (Max. / Nor) 4). Differential Pressure (Shut-off pressure / for sizing) 5). Temperature and Specific Gravity 6). Viscosity of flow medium 12. Accessory 1). Positioner 2). Air Set 3). Limit Switch 4). Booster Relay 5). Lock-up Valve 6). Solenoid Valve D 0 2 GS FC O S0 P 1 50 FA Actuator Bonnet type Plug Form Body type Body material Valve action Trim material Gland packing Gasket Body size Connection rating Code D C M Actuator Diaphragm Cylinder Motor Code Bonnet 0 Standard 1 Extension 2 Radiator Fin 3 Bellows Seal Code Plug Form 2 P-port Percentage 4 P-port Linear 6 Cage Guide 8 On-off Code GS GD TM TD BL BT YT DP Body Type Globe Single Seat Globe Double Seat 3 Way Mixing Type 3 Way Diverting Type Ball Butterfly Y-type Diaphragm (Saunders) Code FC SC S3 S4 S6 FP HC Code O C Code S0 S1 SL S4 HC Code T G A Body Material Cast Iron FC250 Cast Carbon Steel SCPH2 304 Stainless steel, Cast SCS13A 316 Stainless steel, Cast SCS14A 316L Stainless steel, Cast SCS16A Cast Iron FC200 with Porcelain Cast Hastelloy C Valve Action Air to Open Air to Close Trim Material Forged SUS304 Forged SUS316 Forged SUS316L Forged SUS440C Forged Hastelloy C Gland Packing V-teflon Grafoil Asbestos Yarn and Carbon Graphite

2 Code P Y N S W Gasket PTFE Gylon Non asbestos SUS316 / Grafoil Spiralwound Code Body Size 15 1/2 20 3/ / / / Code SC SW BW F1 F2 F3 FA FB FC Connection Rating Screwed end Socket Welded Butt Welded JIS10K JIS20K JIS30K ANSI150lb ANSI300lb ANSI600lb WYECO Single Seated Control Valve * The actuator are designed compactly as multi-spring diaphragm operated type, ease of adjustment and permit high trust. * Provide compact design and high performance in conformity with general fluid service, i.e., steam, water, oil, gases. * Provide lower seat leakage. Diaphragm (RA) Actuated Control Valve * Produce high operational economy and saving of space. * Molded in packing ring which are spring loaded and self-adjust ing in the packing box. Specification Body Type : Single seated, direct or reverse type, globe valve. Material : Cast iron (FC250), Carbon steel (SCPH2) Stainless steel (SCS13A, SCS14A, SCS16A) Cast hastelloy C,B, End connections : Flanged end (FF,RF) or Butt-welded type Pressure rating : JIS10K, 20K, 30K, 40K, ANSI Class150, 300, 600 DIN PN10, PN16, PN25, PN40 Bonnet : Standard (-17 o C ~ +210 o C) Radiator fin (-20 o C ~ +300 o C) Extension (-196 o C ~ +280 o C) Bellows seal (-196 o C ~ +350 o C) Gland packing : V-teflon, Grafoil Gaskets : Non-asbestos, Teflon, Gylon, SUS304/Grafoil, SUS316/Grafoil Guiding : Top guide, Top and bottom guide Trim Stem : SUS304, SUS316, SUS316L Valve plug : Single seated Plug characteristics : Equal percentage, linear and on-off Plug action : Push-down close Materials : SUS304, SUS316, SUS316L, SUS440C, Hastelloy C,B MODEL : D02GS

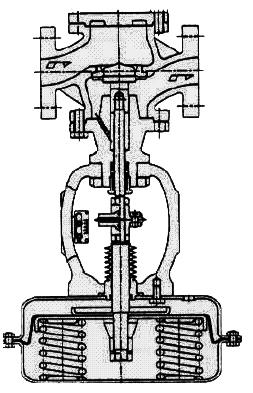

3 MODEL : D02GS Actuator Type : Multi-spring type single diaphragm actuated, direct or reverse. Diaphragm material : Neoprene with fabric insert. Air supply : 1.4, 2.4, 2.8, 3.2 kg/cm 2 Spring range : 0.2 ~ 1.0 kg/cm 2, 0.4 ~ 2.0 kg/cm ~ 2.2 kg/cm 2, 0.8 ~ 2.4 kg/cm 2 Pneumatic tubing connection : 1/4 female tap. Ambient temperature : -20 o C ~ +70 o C Valve action Air to open or air to close by using direct or reverse actuator Accessory Handwheel, Positioner, Solenoid Valve, Limit Switch, Air Set or Others. Performance Rangeability : 1/2 through 1 30:1, 1-1/2 through 6 50:1 Allowable seat leakage : Matal seat : Less than 0.01% of rated Cv (ANSI B ClassIV) Soft seat : ANSI ClassVI Type of Bonnets Standard Temperature : -17 o C ~ +210 o C Radiator Fin Temperature : -20 o C ~ +300 o C Extension Temperature : -196 o C ~ +280 o C Bellows Seal Temperature : -196 o C ~ +350 o C

4 Materials & Temperature Typical Combination of Materials Trim Parts Name Materials Body, Bonnet FC250 SCPH2 SCS13A SCS14A Seat Ring SUS304 SUS316 Valve Plug SUS304 SUS316 Valve Stem SUS316 SUS316 Guide Bushing SUS304 SUS316 Stud Bolt & Nut SS400 S45C (H) SUS304 SUS304 Combination of Materials for Valve Body, Plug, and Operating Temperature limit. Body material Plug material Operating Temp. limit Cast iron FC250 Stainless steel SUS304 0 o C ~ +230 o C Ductile iron FCD450 Stainless steel SUS304 0 o C ~ +300 o C Carbon steel SCPH2 Stainless steel SUS o C ~ +350 o C Stainless steel SCS13A Stainless steel SUS o C ~ +500 o C Stainless steel SCS14A Stainless steel SUS o C ~ +500 o C Cast Hastelloy C Hastelloy C -200 o C ~ +530 o C Operating Temperature & Pressure Differential Limit of Soft Seat 30 Max. P kgf / cm Fluid Temp. ( o C)

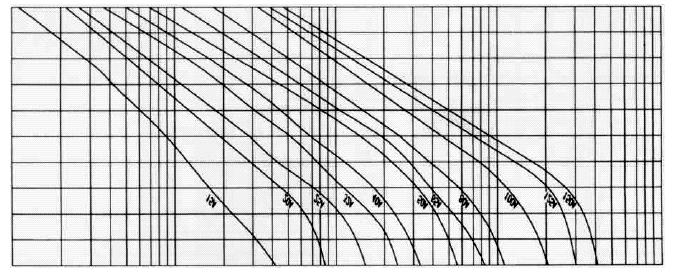

5 Flow Characteristic Flow Characteristics Rated Cv Value Body mm size inch 1/2 3/ /4 1-1/ / Stroke Rated Cv Flow Rate Characteristics Curve 80 Flow Rate % Quick Opening Linear Modi. EQ % % 20% 30% 40% 50% 60% 70% 80% 90% 100% Lift% Graph of Cv for Single Seat P-port Plug 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0% 15A A 25A 32A 40A 50A 65A 80A A 125A 150A

6 Flow Coefficients EQ% Metal Seat. Countoured Plug (P) Body Port Lift 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% size size (mm) 15A / A / A A / A / A A / A A A A

7 Allowable Shut-off Pressure Allowable Shut-off Pressure Metal Seat.Contoured Plug Allowable Shut-off Pressure Metal Seat.Quick Opening

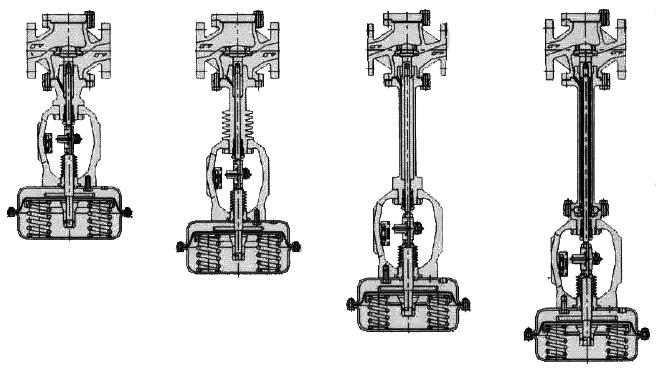

8 Dimensions Main Dimensions Plain Radiator Fin Extension Bellows Seal

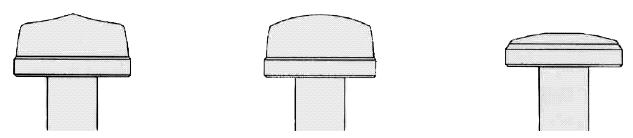

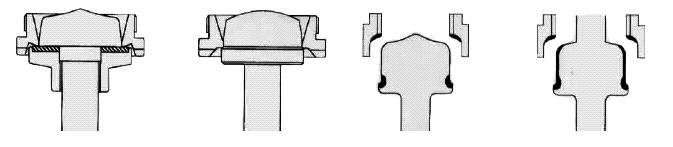

9 Plug Form & Actuator Flow Characteristic of Plug EQ% LINEAR ON-OFF Treament of Plug Soft Seat Metal Seat Seat Face Full Bore Multi - Spring Type Diaphragm Actuators Direct Action (DA) (Air to Steam down) Reverse Action (RA) (Air to stem up)

10 Accessory Accessory for Control Valve E/P Positioner SMC IP6000 Input signal : 4-20 ma Supply : 1.4 ~ 7.0 kg/cm 2 Stroke : 10 ~ 85 mm Ambient Temperature : -20 o C ~ 70 o C Explosion-proof : d2g4 Connection : Rc (PT) 1/4 female E/P Positioner SMC IP5000 Input signal : 0.2 ~ 1.0 kg/cm 2 Supply : 1.4 ~ 7.0 kg/cm 2 Stroke : 10 ~ 85 mm Connection : Rc (PT) 1/4 female Filter Regulator Supply : Max. 9.9 kg/cm 2 Filtration : 5 µm Port size : 1/4 Booster Relay Supply : 9.9 kg/cm 2 Signal pressure : Max. 7 kg/cm 2 Output pressure : Max. 7 kg/cm 2 Pressure ratio : 1:1 Port size : 1/4 Lock-up Valve (single acting) Proof pressure : Max. 9.9 kg/cm 2 Signal pressure : Max. 9.9 kg/cm 2 Line pressure : Max. 7 kg/cm 2 Connection : 1/4 Lock-up Valve (Double acting) Proof pressure : Max. 9.9 kg/cm 2 Signal pressure : Max. 9.9 kg/cm 2 Line pressure : Max. 7 kg/cm 2 Connection : 1/4

11 Calculation Formula Cv = WATER CAPACITY IN GPM WITH A PRESSURE DROP OF 1 P.S.I The formulas for sizing control valves are based on fluid controls Standard FCI The Cv number of a valve is its flow coefficient and used to determine the maximum valve capacity for any condition using the formulas below. Cv = Valve Coefficient Q = Flow in Gallons per Minute P = Pressure Drop Q 1 = Flow Cubic Feet per Hour P 1 = Inlet pressure Absolute (PSIA) G = Specific Gravity (Water = 1) P 2 = Outlet pressure Absolute G 1 = Specific Gracity (Air = o F) W = 1bs. per hour satuated steam T = Absolute Temperature of Flowing Medium (F 460) STEAM) - When P < P 1 /2 When P > P 1 /2 W = 2.1 x Cv P P 1 + P 2 W = 1.82 x Cv X P 1 Cv = W 1 Cv = W 2.1 P(P 1 + P 2 ) 1.82 x P 1 AIR) - When P < P 1 /2 When P > P 1 /2 Q 1 = 963 x Cv P(P 1 + P 2 ) Cv = 832 x Cv x P 1 G 1 x T G 1 x T Cv = Q1 G 1 x T Cv = Q1 G1 x T 963 P (P 1 +P 2 ) 832 x P 1 WATER) Q = Cv P Cv = Q G G P W = Max flow capacity of steam Q = Max flow capacity of gas (NM3/hr) P 1 = Inlet pressure (kgf/cm 2 abs) P 2 = Outlet pressure (kgf/cm 2 ) P = P 1 - P 2 (kgf/cm 2 abs) K = x [(Super heated steam) temp. ( o C) - Satuated steam temp. ( o C)] G = Specific gravity (water = 1), (air = 1) STEAM) - When P 2 > P 1 /2 When P 2 <= P 1 /2 Cv = WK Cv = WK 13.5 P (P 1 + P 2 ) 11.7 x P 1 AIR) - When P2 > P1/2 When P2 <= P1/2 Cv = Q ( G) Cv = Q ( G) 287 P (P 1 + P 2 ) 249P 1 WATER) Cv = 1.167V G P

12 Saturated Steam Table Steam press. (abs.) (kgf /cm2) (lb /in2) Steam temperature (C) (F) Volume of water 1 kg before avaporation (l) Volume of steam 1 kg (m 3 ) weight of steam 1 m 2 (kg) Calory of steam 1 kg (kcal) calory of water h latent heat L Total H = h + L Steam press. (abs.) (kgf/ cm2) (lb/in2) Steam temperature (C) (F) Volume of water 1 kg before avaporation (l) Volume of steam 1 kg (m 3 ) weight of steam 1 m 2 (kg) Calory of steam 1 kg (kcal) calory of water h latent heat L Total H = h + L
