RDN-250i Application / Benefits Model No. Servo Motor Maker SPECIFICATIONS Table Dia. Horizontal [kg] Center Height Resister Dia.
|
|
|
- ÔΠοσειδῶν Μπότσαρης
- 5 χρόνια πριν
- Προβολές:
Transcript

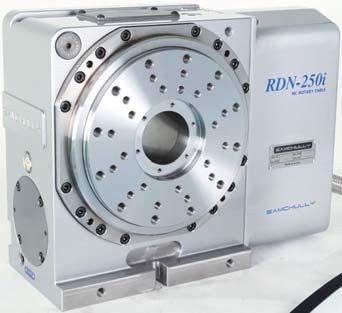

1 RDN-250i Zero Backlash High-Definition Split System with ROLLER CAM DRIVE Zero Backlash with ROLLER CAM DRIVE Table Dia. 232 Center Height Spindle Through Hole Dia. 70 Pneumatic Allowable Work Inertia - Clamp Torque - Max. Spindle Speed 30 Gear Ratio 1/60 Repeatabillity Accuracy - Indexing Accuracy - Weight 115 Vertical [kg] [N m] NC ROTARY TABLE 159

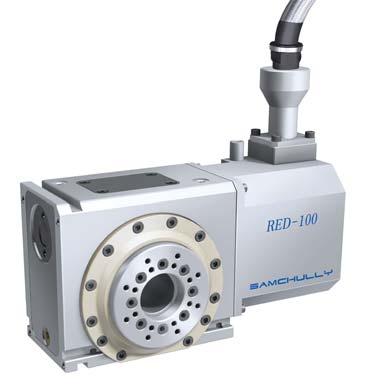

2 RED-100 Electric Discharge Special Alloy With Lightweight Design Long Workpieces(Ø40mm) Dampproof, Dustproof Design(Ip 68) Table Dia. Ø100 Center Height 65 Ø45 Spindle Through Hole Dia. Ø40.4 Pneumatic Allowable Work Inertia - Clamp Torque - Max. Spindle Speed - Min. Spindle Speed - Gear Ratio 1/45 Repeatabillity Accuracy 30 Indexing Accuracy 5 Weight 25 Max. Machine Current Less than 20A Vertical [kg] NC ROTARY TABLE

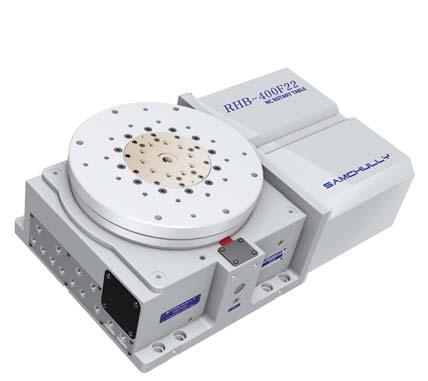

3 samchully samchully RHB-400F22 Horizontal Built-in Parallel Rotary Table, Internal Rotary Joint (10+1 Port.) Table Dia. Ø400 Table Height Spindle Through Hole Dia. - Hydraulic Max. 35 bar Allowable Work Inertia - Clamp Torque 3000 Max. Spindle Speed 44.4 Gear Ratio 1/45 Repeatabillity Accuracy ±10 Indexing Accuracy 5 Weight 650 Servo Motor αif22 / 3000 Rotary Joint Port Port. (10 Port Hydraulic Max. 300bar) [N m] 1700 NC ROTARY TABLE 161
4 RTM-250i Manual Tilting Easy Manual Adjustment for Inclination Inclination Adjustable with a Wrench without any other controller Spindle Dia. Ø164.5 Center Height 235 Ø95 Spindle Through Hole Dia. Ø70 Pneumatic Allowable Work Inertia 1.95 Clamp Torque 750 Max. Spindle Speed 33.3 Gear Ratio Tilt Axis 1/90 Gear Ratio Rotate Axis 1/72 Repeatabillity Accuracy 20 Indexing Accuracy 4 Weight 125 Servo Motor SGMPS-15A2A6S 200 Vertical [kg] [N m] NC ROTARY TABLE
5 MTR1-324FF 4th axis Trunnion Tilting Work Piece handling up to Ø800, Single Spindle Tilting Series Easy Jig Design with Strong Clamp Power Spindle Dia. Ø220 Table Height 449 Ø100 Spindle Through Hole Dia. Ø35 Hydraulic Max. 35 bar Allowable Work Inertia - Weight 900 Rotating Axis Tilting Axis Clamp Torque Max. Spindle Speed Gear Ratio 1/120 1/120 Repeatabillity Accuracy ±10 ±10 Indexing Accuracy 5 5 Servo Motor αif4 / 4000 αif8 / 3000 Vertical [kg] [N m] NC ROTARY TABLE 163

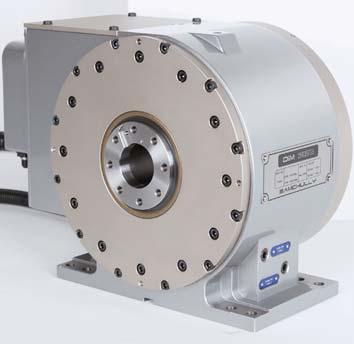

6 DiM-260F Direct Drive Motor High-Definition Split System with DD Motor Zero Backlash Table Dia. Ø90 Center Height 150 Ø46 Spindle Through Hole Dia. Ø46 Pneumatic Allowable Work Inertia Clamp Torque 500 Max. Spindle Speed 150 Gear Ratio - Repeatabillity Accuracy - Indexing Accuracy ±10 Weight 75 Vertical [kg] [N m] NC ROTARY TABLE

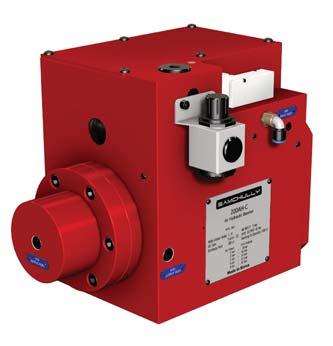

7 200AH-C Air Booster High-Volume Air Buster (200cc), Oil Pressured Pneumatic Clamp. Exclusively for S-430, S-515, S-650 Open Center Chuck and TR-320. samchully Input Air Pressure 0.4 ~ 0.45 Recommended Oil Turbine Oil #32 Output Hydraulic Pressure 3.2 ~ 3.6 Solenoid Voltage DC 24 V Discharge Rate 200cc Multiplication Ratio 1 : 8 Weight [kg] 23 NC ROTARY TABLE 165

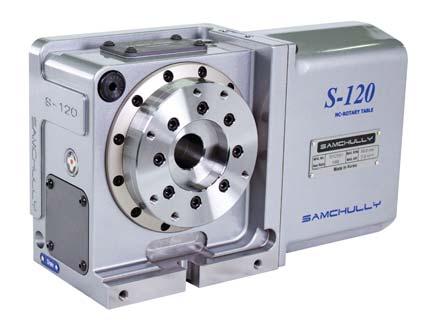

8 S-120F2 4th axis, High Clamping power Table Dia. Ø124 Center Height 120 Ø60H7 Spindle Through Hole Dia. Ø30H8 Pneumatic Allowable Work Inertia 0.22 Clamp Torque 150 Max. Spindle Speed 50 Gear Ratio 1/60 Repeatabillity Accuracy 4 Indexing Accuracy 30 Weight 35 Servo Motor αif2 / 5000 Vertical [kg] [N m] NC ROTARY TABLE

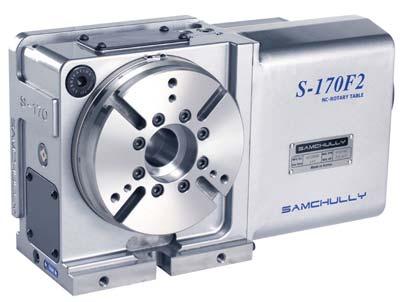

9 S-170F2 4th axis Realize High Clamping Force by applying Double Piston Table Dia. Ø175 Center Height 140 Ø60H7 Spindle Through Hole Dia. Ø40H8 Pneumatic Allowable Work Inertia 0.51 Clamp Torque 380 Max. Spindle Speed 41.6 Gear Ratio 1/72 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 52 Servo Motor αif2 / 5000 Vertical [kg] [N m] 220 NC ROTARY TABLE 167

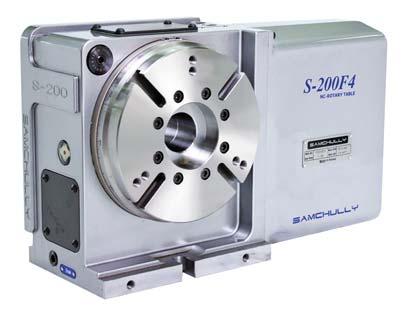

10 S-200F4 4th axis Realize High Clamping Force by applying Double Piston Table Dia. Ø210 Center Height 170 Ø75H7 Spindle Through Hole Dia. Ø45H8 Pneumatic Allowable Work Inertia 0.8 Clamp Torque 480 Max. Spindle Speed 33.3 Gear Ratio 1/90 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 79 Servo Motor αif4 / 4000 Vertical [kg] [N m] NC ROTARY TABLE
11 S-250F4 4th axis Realize High Clamping Force by applying Double Piston Table Dia. Ø240 Center Height 185 Ø105H7 Spindle Through Hole Dia. Ø70H8 Pneumatic Allowable Work Inertia 1.95 Clamp Torque 750 Max. Spindle Speed 33.3 Gear Ratio 1/90 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 100 Servo Motor αif4 / 4000 Vertical [kg] [N m] 480 NC ROTARY TABLE 169
12 S-250F8 4th axis Realize High Clamping Force by applying Double Piston Table Dia. Ø240 Center Height 185 Ø105H7 Spindle Through Hole Dia. Ø70H8 Pneumatic Allowable Work Inertia 3.12 Clamp Torque 750 Max. Spindle Speed 33.3 Gear Ratio 1/90 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 106 Servo Motor αif8 / 3000 Vertical [kg] [N m] NC ROTARY TABLE

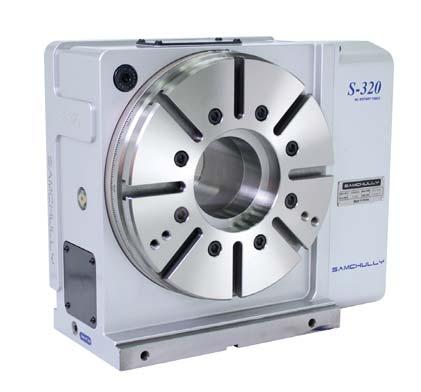

13 S-320F8 4th axis Realize High Clamping Force by applying Double Piston Table Dia. Ø310 Center Height 225 Ø130H7 Spindle Through Hole Dia. Ø105H8 Pneumatic Allowable Work Inertia 4.49 Clamp Torque 1440 Max. Spindle Speed 25 Gear Ratio 1/120 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 170 Servo Motor αif8 / 3000 Vertical [kg] [N m] 800 NC ROTARY TABLE 171

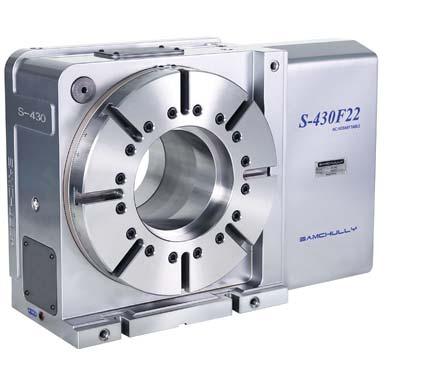

14 S-430F22 4th axis (Big Bore Type), Large Through Hole High Clamping power (Hydraulic) Table Dia. Ø432 Center Height 283 Ø220H7 Spindle Through Hole Dia. Ø194H8 Hydraulic Max. 35bar Allowable Work Inertia Clamp Torque 2500 Max. Spindle Speed 25 Gear Ratio 1/120 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 350 Servo Motor αif22 / 3000 Vertical [kg] [N m] NC ROTARY TABLE

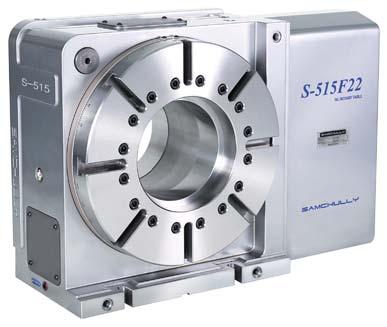

15 S-515F22 4th axis (Big Bore Type), Large Through Hole High Clamping power (Hydraulic) Table Dia. Ø518 Center Height 335 Ø290H7 Spindle Through Hole Dia. Ø264H8 Hydraulic Max. 35bar Allowable Work Inertia Clamp Torque 3200 Max. Spindle Speed 25 Gear Ratio 1/120 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 430 Servo Motor αif22 / 3000 Vertical [kg] [N m] 2600 NC ROTARY TABLE 173

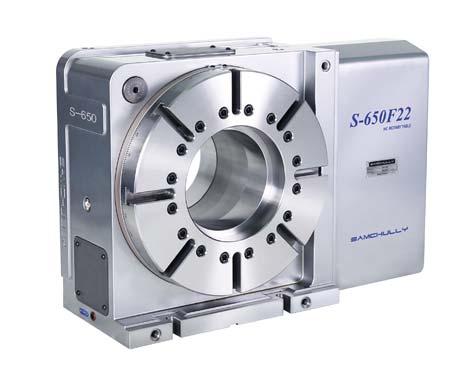

16 S-650F22 4th axis (Big Bore Type), Large Through Hole High Clamping power (Hydraulic) Table Dia. Ø656 Center Height 410 Ø400H7 Spindle Through Hole Dia. Ø372H8 Hydraulic Max. 35bar Allowable Work Inertia Clamp Torque 4000 Max. Spindle Speed 25 Gear Ratio 1/120 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 750 Servo Motor αif22 / 3000 Vertical [kg] [N m] NC ROTARY TABLE
17 S-120,120L Controller type for Realize High Clamping Force by applying Double Piston Ă Ă Ă Ă Ă Ă Ă Ă Ă NC ROTARY TABLE 175

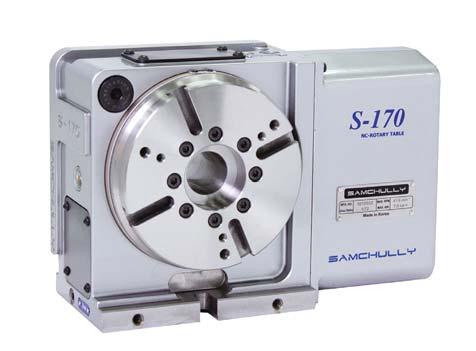

18 S-170,170L Controller type for Realize High Clamping Force by applying Double Piston 176 NC ROTARY TABLE
19 S-200,200L Controller type for Realize High Clamping Force by applying Double Piston NC ROTARY TABLE 177
20 S-250i, 250Li Controller type for Realize High Clamping Force by applying Double Piston 178 NC ROTARY TABLE
21 S-320i, 320Li Controller type for Realize High Clamping Force by applying Double Piston NC ROTARY TABLE 179
22 HRS-174F2 4th axis Hydraulic High Precision&High Speed Systems, Vertical & Horizontal application High Clamping power (Hydraulic) Table Dia. Ø175 Center Height 140 Ø60H7 Spindle Through Hole Dia. Ø40H8 Hydraulic MAX. 35bar Allowable Work Inertia 0.51 Clamp Torque - Max. Spindle Speed 69.4 Gear Ratio 1/72 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 62 Servo Motor αif2 / 5000 Vertical [kg] [N m] NC ROTARY TABLE
23 HRS-204F4 4th axis Hydraulic High Clamping power (Hydraulic) Table Dia. Ø210 Center Height 170 Ø75H7 Spindle Through Hole Dia. Ø45H8 Hydraulic MAX. 35bar Allowable Work Inertia 0.8 Clamp Torque 720 Max. Spindle Speed 33.3 Gear Ratio 1/90 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 79 Servo Motor αif4 / 4000 Vertical [kg] [N m] 270 NC ROTARY TABLE 181
24 HRS-254F4 4th axis Hydraulic High Clamping power (Hydraulic) Table Dia. Ø240 Center Height 185 Ø105H7 Spindle Through Hole Dia. Ø70H8 Hydraulic MAX. 35bar Allowable Work Inertia 1.95 Clamp Torque 1500 Max. Spindle Speed 33.3 Gear Ratio 1/90 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 116 Servo Motor αif4 / 4000 Vertical [kg] [N m] NC ROTARY TABLE

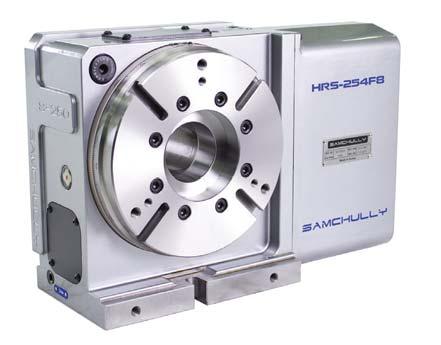

25 HRS-254F8 4th axis Hydraulic High Clamping power (Hydraulic) Table Dia. Ø240 Center Height 185 Ø105H7 Spindle Through Hole Dia. Ø70H8 Hydraulic MAX. 35 bar Allowable Work Inertia 3.12 Clamp Torque 1500 Max. Spindle Speed 33.3 Gear Ratio 1/90 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 116 Servo Motor αif8 / 3000 Vertical [kg] [N m] 600 NC ROTARY TABLE 183
26 HRS-324F8 4th axis Hydraulic High Clamping power (Hydraulic) Table Dia. Ø310 Center Height 225 Ø130H7 Spindle Through Hole Dia. Ø105H8 Hydraulic MAX. 35 bar Allowable Work Inertia 4.49 Clamp Torque 2300 Max. Spindle Speed 25 Gear Ratio 1/120 Repeatabillity Accuracy 4 Indexing Accuracy 20 Weight 180 Servo Motor αif8 / 3000 Vertical [kg] [N m] NC ROTARY TABLE
27 HRS-204, 254i Controller type Hydraulic High Clamping power (Hydraulic) NC ROTARY TABLE 185
28 HRS-324i Controller type Hydraulic High Clamping power (Hydraulic) 186 NC ROTARY TABLE
TR-120FF. 4th, 5th axis for Tilting NC Rotary Table
TR-120FF 4th, 5th axis for Tilting Compact Tilting Series, High Precision&High Speed Systems Convenient JIG Design, Compact Design, Extremely Rigid Body High Clamping power (Hydraulic) Table Dia. Ø130
