1 * * DB_EN_ME12 Rev.B 06/1 * * d e v e l o p i n g s o l u t i o n s ME12 Datasheet Remotely Configurable Digital Pressure Transmitter Application Pressure transmitter with a ceramic measuring cell is designed for measuring positive and negative pressures. Gauge pressure range from -1 0 bar to 0 60 bar. Absolute pressure range from 0 1 bar to 0 16 bar Pressure transmitters from this series are suitable for a wide variety of measuring tasks in the fields of: Process engineering Process technology Environmental engineering Construction and mode of operation The pressure being measured acts directly on the ceramic diaphragm, causing it to distort. That in turn alters the resistance of the strain gauge on the rear of the diaphragm in proportion to the level of distortion. Electronics in the pressure transmitter housing convert the change in resistance into standard electrical signals. Function diagram Features Configurable Robust housing design High accuracy Low hysteresis Parameterisation The device is supplied as defined in the ordering code. Nevertheless, to optimise performance in line with prevailing process conditions it is also possible to configure the pressure transmitter on-site via the connection cables. To do so you will require a PC as well as the programming adapter EU13, available as an accessory. Pos Description 1 Ceramic sensor 2 Electronics 3 Power Supply Output signal

2 , , , , , , , Technical data Relative pressure measuring range [bar] Overload pressure safety [bar] Absolute pressure measuring range [bar] Overload pressure safety [bar] General: Linearity Hysteresis < 1.0 % FS (optionally < 0.5 %FS) < 0.5 % FS Permissible ambient temperature -10 C C Permissible continuous media temperature Pressure connection Electrical connection -10 C C See order code Line socket DIN EN A or M12 plug connector DIN EN Protection class IP 65 according to DIN EN Materials in contact with media Chromium nickel steel 1.0, ceramic Al 2O 3, see order code for seal Casing materials Chromium nickel steel Electrical Data: 2-wire current output 3-wire voltage output 3-wire current output Rated voltage 2 VDC 2 VAC/DC 2 VAC/DC Permissible supply voltage U b VDC VAC/DC VAC/DC Output signal...20 ma VDC ma...20 ma Limit of the output signal ca. 26 ma ca VDC ca. 23 ma Apparent ohmic resistance (U b - 6V) / 0.02A 5 kω ab 15 VDC 2 kω ab 20 VDC Zero-point temperature drift 0.07 % FS/K 0.07 % FS/K 0.07 % FS/K Measuring range temperature drift 0.05 % FS/K 0.05 % FS/K 0.05 % FS/K [(U b - 10V) / 0.02A] Ω Configuration: Characteristic curve inversion Attenuation Adjustable signal limits Offset correction Span correction Increasing / decreasing s Uppers current limit ma Lower current limit ma Error signal ma +/-25 %FS +/-25 %FS 2 S e i t e

3 Dimensioned drawings Possible electrical connections: (Al units in mm else stated otherwise) Line socket DIN EN A M12 Connector DIN EN Screwed cable gland Possible Pressure Connections: Line socket DIN EN A Near flush-mounted front sensor HEX 1mm A/F HEX 32mm A/F HEX 27mm A/F 3 S e i t e

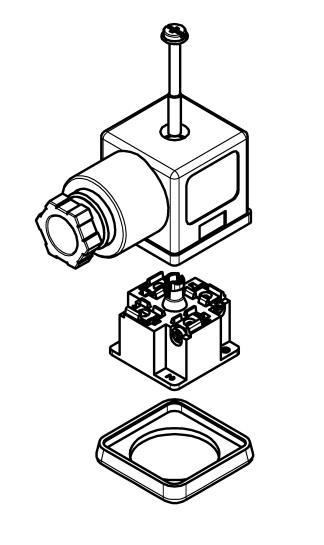

4 Field housing: Screwed cable gland M16 x 1.5 M12 Connector M12 x 1 Electrical connection Rectangular connector according to DIN EN A Male socket on unit side Line socket 2-wire circuit 1 Power Supply/Output +U b +Sig brown 2 Power Supply/Output - U b - Sig blue 3 not connected black not connected green/yellow 3-wire circuit 1 Output +Sig brown 2 Power Supply/Output - U b - Sig blue 3 Power Supply +U b black not connected green/yellow S e i t e

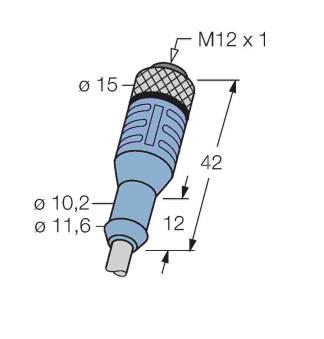

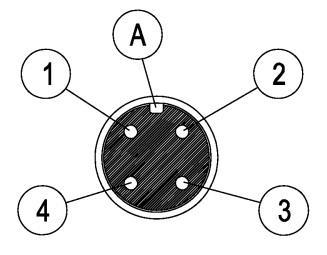

5 Round shell connector M12 according to DIN EN Male socket on unit side Cable with M12 female cable plug 2-wire circuit 1 Power Supply/Output +U b +Sig brown 2 not connected white 3 Power Supply/Output - U b - Sig blue not connected black 3-wire circuit 1 Power Supply +U b brown 2 not connected white 3 Power Supply/Output - U b - Sig blue Output +Sig black Screwed cable gland Mini COMBICON terminal block 2-wire circuit 1 Power Supply/Output +U b +Sig brown 2 not connected white 3 Power Supply/Output - U b - Sig blue not connected black 3-wire circuit 1 Power Supply +U b brown 2 Output +Sig white 3 Power Supply/Output - U b - Sig blue not connected black 5 S e i t e

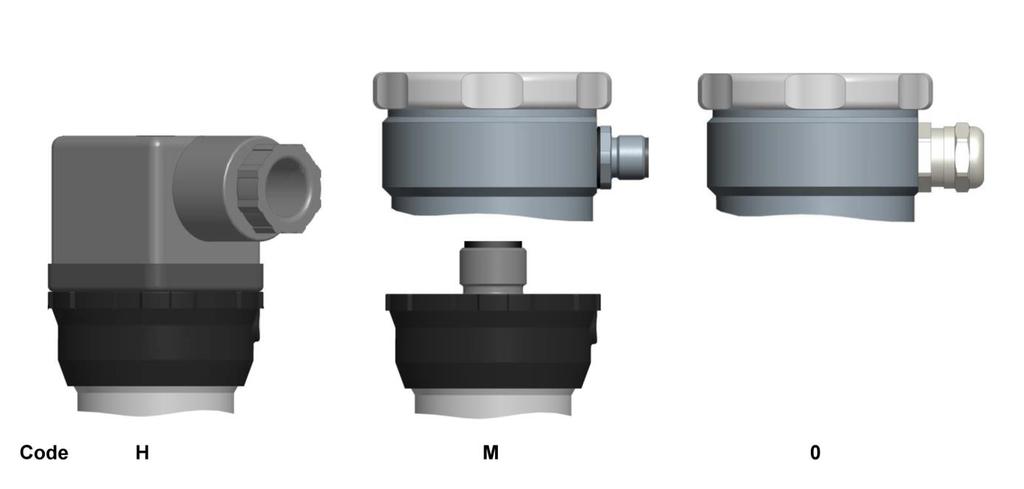

6 Ordering code Remotely Configurable Digital Pressure Transmitter ME12 0 Measuring Ranges ,6 bar... > bar... > ,6 bar... > ,5 bar... > bar... > bar... > bar... > bar... > bar... > bar... > bar... > bar... > ,6 bar... > ,5 bar... > bar... > bar... > bar... > bar... > bar... > bar... > 3 9 Measuring Accuracy Characteristic curve deviation relative pressure 1.0%... > M Characteristic curve deviation relative pressure 0.5%... > 0 Characteristic curve deviation absolute pressure 1.0%... > S Characteristic curve deviation absolute pressure 0.5%... > T Pressure Connection Connection shanks G¼ B; material > 8 5 Connection shanks G½ B; material > 8 7 Connection shanks with external thread ¼ -18 NPT EXT, > 8 8 Connection for Schrader fitting, > S 1 G 1 B with near flush-mounted front pressure sensor, > A 3 G ¾ B with near flush-mounted front pressure sensor, > A 8 Electrical Output Signal ma Three-wire... > A ma Three-wire... > P V Three-wire... > C V Three-wire... > D ma Two-wire... > B Electrical Connection -pole Line socket DIN EN A... > H -pole circular plug connector M12 DIN EN > M Cable gland M16x1.5 (only with field housing possible)... > 0 Operating Voltage 2 VDC (with two-wire only)... > 9 2 VAC/VDC (with three-wire only)... > L Casing IP65 as per DIN EN > 0 IP65 as per DIN EN ; encapsulated model... > V IP65 as per DIN EN ; encapsulated model; Field Housing... > F Media-Contact Seal FKM (Fluororubber, Viton )... > V CR (Chloroprene rubber, Neoprene )... > C EPDM (Ethylene propylene diene rubber)... > E H-NBR (Hydrogenated nitrile rubber),deployable to -25 C... > H FFPM (Perfluororubber, Kalrez )... > K Measuring System / Type Standard... > 0 Suitable for O 2 measurement (FKM seal only)... > 3 Silicone-free model... > A Accessories For the marked measuring range only Order Code Description No. of Poles Application Length EU13.F200 USB transmitter PC interface incl. PC software for 2-wire transmitter EU03.F300 USB transmitter PC interface incl. PC software for 3-wire transmitter Connection cable with M12 connector -pole for supply / signal 2 m Connection cable with M12 connector -pole for supply / signal 5 m 6 S e i t e

7 7 S e i t e
