Whirlpool Europe Customer Services. Service Information integratable Dishwasher KDFX Last Modification: 04/10/09

Transcript

1 KDFX 6040 Service Information integratable Dishwasher KDFX Last Modification: 04/10/09 Spare Part List 2 Exploded View 5 Technical Data 7 Circuit Diagram 10 Program Chart 11 Testprogram 12 Error Codes 15 This document is only intended for qualified technicans who are aware of the respective safety regulations. Subject to modifications

2 page 2 of 19 Spare Part List Pos 12NC Description Crossbar Drip tray assy Holder Foot long Shaft flexible Slide disc f.foot Gear Roll f.foot Side panel left Side panel right Kit Hinge Variable Spring f.door Brake f.door Band,brake Hook Plinth w/o hole sheet Insulation without outcut Door outer long door Template FD n.sh Spring element ass Door inner Tilt lock Hook lock Batten Gasket door Gasket door lower (TCP) Basket upper str. EBL gr Holder cups EBL Bearing holder cups EBL Wheel basket upper pcs Holder glasses wiring EBL d.grey Spacer upper basket EBL10809/2pc Basket lower rack cpl.greyebltz Wheel basket lower pcs Bearing Support plate TZ Holder Support plate kit left TZ/EBL Support plate kit right TZ/EBL Cutlery basket gr Cutlery basket Grille cutlery EBL Rail telescope, inner Cap rail rear Cap rail front swinging Ball cage cpl Service kit balls plastic Basket adjustm. cpl. EBL gr Grip basket adj. EBLgr.10809

3 page 3 of 19 Pos 12NC Description Grip Control panel DFD-IC grey Insert panel DFD KA Cap ON/OFF Motor KD-Set VSM BClass Interf.filter 1,00 µf Pump,draining cpl Gasket Heating element +pump housing V Kit Outlethose (VSM-MPH) Kit Suction bow (VSM) Cable harness DFD Protector f.wiring Cable mains 2m SA Strain relief Control board (CB) Control board SAM BASIC Regen.valve kit Switch diaphragm (OWI) Contact reed rinsing agent Contact reed kit flowmeter User board (UB) Switch on/off Microswitch Microswitch door Combidosage cpl.w.ksm Gasket Lever,fastener combidos Gasket Flap Gasket Hose inlet aqua stop Hose inlet aqua stop 4m Sieve Gasket Yoke clamp set Monoblock Threaded ring gr Seal set Threaded cap gr Reg.dosage with flowmeter Gasket Cover reg.dos. gr Valve diverter valve cpl.tz Valve disk diverter (TZ) Gasket diverter valve Spray arm lower. cpl.gr Spray arm manifold TZ Spray arm 2nd level cpl.ebl Douche ceiling grey Spray arm ceiling grey 10809

4 page 4 of 19 Pos 12NC Description Tube assembly cpl.gr Nut Hose inlet Water collector Tray leak Floater Sieve fine Cover sieve TZ grey Cover TZ O-Ring Sieve coarse gr Hose draining Flap non-return Hose 10x3x Gasket Gasket Gasket Fastener set (not shown) Clamp hose S10-16/9-C7W Strap 050, Strap 033, Strap 028, Clamp hose Holder Screw 3,5x17-H Screw 4,0x12-H Screw 4x15 T Screw M3,5x8-T15M Screw 3,5x8 Tx Screw INOX A2 M 5X Screw 5x20 T Gasket housing upper Foil protection Key foot Funnel salt

5 page 5 of 19 Exploded View

6 page 6 of 19 Exploded View

7 page 7 of 19 Technical Data Dimensions + Weight Product dimensions Height cm Width cm Depth cm Weight kg Wooden door for Full Door appliances Thickness mm Height mm Width mm Weight max kg siehe auch Bohschablone Programs see program diagram Alternating washing system OT 7F Succession of programs A1a - A2a - A3a - A5h - A11a - A12 - A15a Reference program a5h Water Level in normal program Measuring the level Grobfilter entnehmen, stattdessen Meterstab auf tiefsten Punkt einstellen, Wasserhöhe ablesen! Remove the coarse sieve, put in a measuring meter into the sump, measure the hight of the water level. Water Volume Level Regeneration 0.3 l 15 mm Back rinse 3x 1.0 l 60 mm Prewash 4.8 l 120 mm Main wash 4.2 l 118 mm Intermediate rinse l 118 mm Intermediate rinse l 118 mm Clear rinse 4.2 l 118 mm Safety/ overflow 8.5 l 141 mm Spray arm Rotations Spray arm lower rpm Spray arm upper rpm

8 page 8 of 19 Motor pump heater Spray pump motor Voltage V / 50 Hz Power Consumption W Heating und Pumpengehäuse Voltage V / 50Hz Heating resistances (T=20 C) Ω Power Consumption / 2.04 kw Heating speed ~2.0 C/min Temperature on surface ~115 C Safety thermostat self reset (Temperature of water) C Fuse C Electrical base data Voltage V / 50 Hz Total power kw Fuse A Drain pump motor Voltage V / 50 Hz Power Consumption W Resistance Ω Single electric water inlet valve Voltage / 240 V Frequency / 60 Hz Resistance kω Inlet pressure bar Motor Diverter Valve Voltage / 240 V Frequency / 60 Hz Resistance kω Signal (2x within ~13 sec.) V Coil of dispenser Voltage / 240 V Frequency / 60 Hz Resistance kω

9 page 9 of 19 NTC 20 C 58.1 kω 25 C 47.1 kω 30 C 38.2 kω 40 C 25.4 kω 50 C 17.2 kω 60 C 11.8 kω 70 C 8.3 kω 80 C 6 kω 85 C 4 kω Regeneration valve Voltage / 240 V Frequency / 60 Hz Resistance kω

10 page 10 of 19 Circuit Diagram

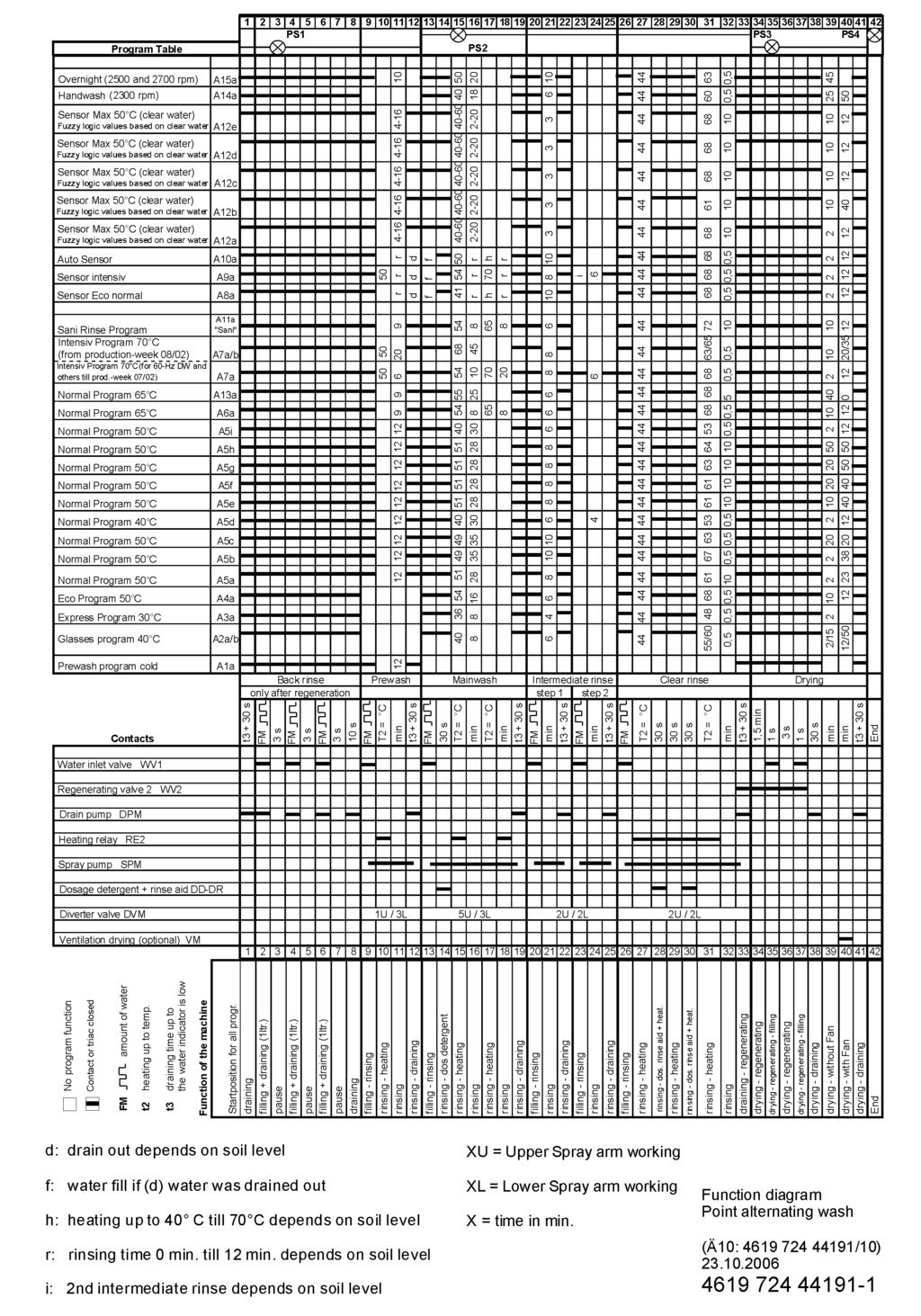

11 page 11 of 19 Program Chart

12 page 12 of 19 Testprogram

13 page 13 of 19

14 page 14 of 19

15 page 15 of 19 Error Codes

16 page 16 of 19

17 page 17 of 19

18 page 18 of 19

19 page 19 of 19
