Transcript
1 PCB Tantalum Capacitors EIA Standard Low Inductance MLCs Chip Film Capacitors SuperCaps Filters TVS Diodes Couplers Crossovers Inductors Timing Devices Resistive Products
2 Tantalum Capacitors Note: These recommendations (also in compliance with EIA are guidelines only. With care and control, smaller footprints may be considered for reflow soldering. PAD DIMENSIONS: millimeters (inches) Case Size PSL PL PS PW PWw Series A 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 1.80 (0.071) 0.90 (0.035) B 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 2.80 (0.110) 1.60 C 6.50 (0.256) 2.00 (0.079) 2.50 (0.098) 2.80 (0.110) 1.60 D 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.00 (0.119) 1.70 E 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.00 (0.119) 1.70 F 6.50 (0.256) 2.00 (0.079) 2.50 (0.098) 2.80 (0.110) 1.60 G 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 1.80 (0.071) 0.90 (0.035) H 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 2.80 (0.110) 1.60 SMD 'J' Lead & OxiCap (excluding F-series) TLN, TCN & J-CAP Undertab TACmicrochip Series K 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 1.80 (0.071) 0.90 (0.035) L 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 2.80 (0.110) 1.60 N 2.70 (0.100) 0.95 (0.037) 0.80 (0.030) 1.60 (0.060) 0.80 (0.030) P 2.70 (0.100) 0.95 (0.037) 0.80 (0.030) 1.60 (0.060) 0.80 (0.030) R 2.70 (0.100) 0.95 (0.037) 0.80 (0.030) 1.60 (0.060) 0.80 (0.030) S 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 1.80 (0.071) 0.90 (0.035) T 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 2.80 (0.110) 1.60 U 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.70 (0.145) 1.80 (0.071) V 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.70 (0.145) 1.80 (0.071) W 6.50 (0.256) 2.00 (0.079) 2.50 (0.098) 2.80 (0.110) 1.60 X 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.00 (0.119) 1.70 Y 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.00 (0.119) 1.70 Z 8.00 (0.315) 2.00 (0.079) 4.00 (0.157) 3.70 (0.145) 1.80 (0.071) H 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 2.80 (0.110) N/A K 4.00 (0.157) 1.40 (0.054) 1.20 (0.047) 1.80 (0.071) N/A L 3.50 (0.138) 1.15 (0.045) 1.20 (0.047) 2.40 (0.047) N/A M 2.30 (0.091) 0.90 (0.035) 0.50 (0.020) 1.10 (0.043) N/A N 2.00 (0.079) 0.70 (0.028) 0.60 (0.024) 1.10 (0.043) N/A S 3.50 (0.138) 1.15 (0.045) 1.20 (0.047) 1.20 (0.047) N/A Y 7.20 (0.283) 1.50 (0.059) 4.20 (0.165) 2.50 (0.098) N/A (0.598) 3.00 (0.120) 9.20 (0.360) 5.50 (0.217) N/A A 4.40 (0.173) (0.047) 1.80 (0.071) 0.90 (0.035) B 4.70 (0.185) 1.70 (0.070) 1.30 (0.051) 3.00 (0.118) 1.50 (0.059) C 4.40 (0.173) (0.047) 1.80 (0.071) 0.90 (0.035) D 4.40 (0.173) (0.047) 1.80 (0.071) 0.90 (0.035) E 0.90 (0.035) 0.30 (0.012) 0.30 (0.012) 0.30 (0.012) N/A H 3.20 (0.126) 1.30 (0.051) 0.60 (0.024) 1.50 (0.059) (0.003) J 2.80 (0.110) 1.10 (0.043) 0.60 (0.024) 1.00 (0.039) 0.50 (0.020) K 2.20 (0.087) 0.90 (0.035) 0.40 (0.016) 0.70 (0.028) 0.35 (0.014) L 2.80 (0.110) 1.10 (0.043) 0.60 (0.024) 1.00 (0.039) 0.50 (0.020) M 3.20 (0.126) 1.30 (0.051) 0.60 (0.024) 1.00 (0.039) 0.50 (0.020) Q 3.20 (0.126) 1.30 (0.051) 0.60 (0.024) 1.50 (0.059) (0.003) R 3.20 (0.126) 1.30 (0.051) 0.60 (0.024) 1.50 (0.059) (0.003) S 4.40 (0.173) (0.047) 1.80 (0.071) 0.90 (0.035) T 4.70 (0.185) 1.70 (0.070) 1.30 (0.051) 3.00 (0.118) 1.50 (0.059) U 3.20 (0.126) 1.30 (0.051) 0.60 (0.024) 1.50 (0.059) (0.003) V 4.40 (0.173) (0.047) 1.80 (0.071) 0.90 (0.035) Z 2.80 (0.110) 1.10 (0.043) 0.60 (0.024) 0.70 (0.028) 0.35 (0.014) Note: SMD 'J' Lead = TAJ, TMJ, TPS, TPM, TRJ, TRM, THJ, TLJ, TCJ, TCM, TCR

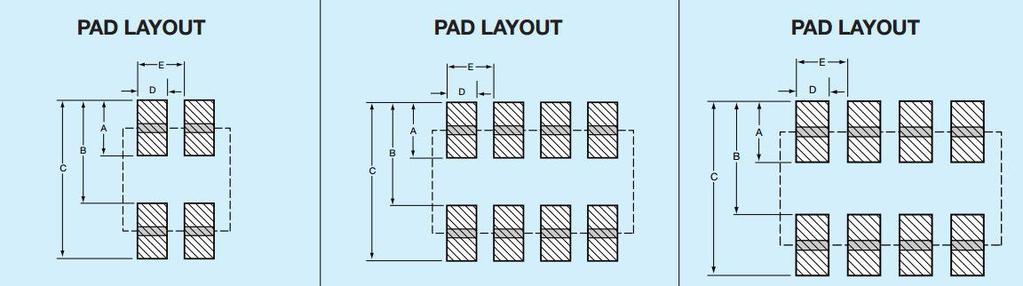

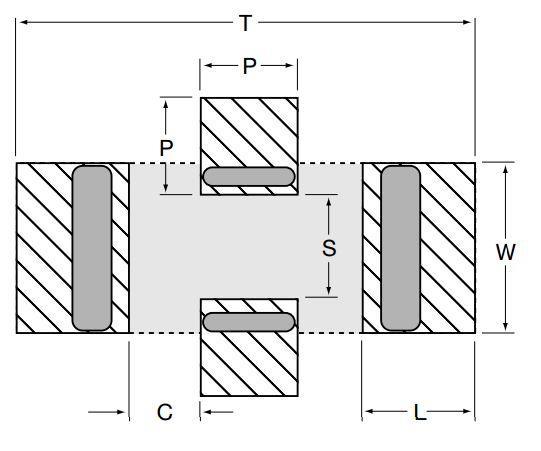

3 Tantalum Capacitors Case Size Series TLN, TCN & J-CAP Undertab PSL PL P PL N PS PW T 9.60 (0.378) 1.10 (0.043) 1.30 (0.051) 1.20 (0.047) 2.50 (0.098) X 7.30 (0.287) 2.00 (0.079) 3.20 (0.126) 2.10 (0.083) 3.30 (0.130) (0.299) 2.20 (0.087) 3.40 (0.134) 2.00 (0.079) 4.80 (0.190) (0.299) 2.20 (0.087) 3.40 (0.134) 2.00 (0.079) 4.80 (0.190) F-SERIES: millimeters (inches) Case Size a b b' c Δc* Series U 0.35 (0.014) 0.40 (0.016) 0.40 (0.016) 0.40 (0.016) 0.00 M 0.65 (0.026) 0.70 (0.028) 0.70 (0.028) 0.60 (0.024) 0.00 F38, F91, F92, F93, F97, F98 F95, AUDIO F95 Conformal F72 Conformal F75 Conformal S 0.90 (0.035) 0.70 (0.028) 0.70 (0.028) 0.80 (0.032) 0.00 P 1.00 (0.039) 1.10 (0.043) 1.10 (0.043) 0.40 (0.016) 0.00 A 1.30 (0.051) 1.40 (0.060) 1.40 (0.060) 1.00 (0.039) 0.00 B 2.30 (0.091) 1.40 (0.060) 1.40 (0.060) 1.30 (0.051) 0.00 C 2.30 (0.091) 2.00 (0.079) 2.00 (0.079) 2.70 (0.106) 0.00 N 2.50 (0.091) 2.00 (0.079) 2.00 (0.079) 4.00 (0.158) 0.00 R-P 1.40 (0.055) 0.60 (0.024) 0.50 (0.020) 0.70 (0.028) 0.20 (0.008) Q-S 1.70 (0.067) 0.70 (0.028) 0.60 (0.024) 1.10 (0.043) 0.20 (0.008) A 1.80 (0.071) 0.70 (0.028) 0.60 (0.024) 1.10 (0.043) 0.20 (0.008) T 2.60 (0.102) 0.70 (0.028) 0.60 (0.024) 1.20 (0.047) 0.20 (0.008) B 2.60 (0.102) 0.80 (0.032) 0.70 (0.028) 1.10 (0.043) 0.20 (0.008) R-M 5.80 (0.228) 1.20 (0.047) 1.20 (0.047) 3.90 (0.154) 0.50 (0.020) U-C 3.00 (0.118) 1.20 (0.047) 1.20 (0.047) 3.30 (0.130) 0.50 (0.020) D 4.10 (0.161) 1.20 (0.047) 1.20 (0.047) 3.90 (0.154) 0.50 (0.020) R 5.80 (0.228) 1.20 (0.047) 1.20 (0.047) 3.90 (0.154) 0.50 (0.020) *In the case of mouting conformal coated capacitors, offcentering (Δc) is needed to accept anode tab [ ]
4 Tantalum Capacitors THH & TCH: millimeters (inches) Type D1 D2 D3 D4 D5 9 Case (0.559) (0.130) (0.299) (0.130) (0.433) I Case (0.535) (0.165) (0.205) (0.165) (0.240) Type A B C D (0.433) (0.559) (0.142) Alternative CTC21-D 3.30 (0.130)
5 EIA Standard REFLOW SOLDER: millimeters (inches) Case Size D1 D2 D3 D4 D (0.020) 0.18 (0.007) 0.15 (0.006) 0.18 (0.007) 0.20 (0.008) (0.033) 0.30 (0.012) 0.25 (0.010) 0.30 (0.012) 0.35 (0.014) (0.067) 0.60 (0.024) 0.50 (0.020) 0.60 (0.024) 0.50 (0.020) (0.091) 0.80 (0.031) 0.70 (0.028) 0.80 (0.031) 0.75 (0.030) (0.177) 1.30 (0.051) 1.88 (0.074) 1.30 (0.051) 3.33 (0.131) (0.118) 1.00 (0.039) 1.00 (0.039) 1.00 (0.039) 1.25 (0.049) (0.157) 1.00 (0.039) 2.00 (0.079) 1.00 (0.039) (0.157) 1.00 (0.039) 2.00 (0.079) 1.00 (0.039) 2.50 (0.098) (0.220) 1.00 (0.039) 3.60 (0.142) 1.00 (0.039) 2.00 (0.079) (0.220) 1.00 (0.039) 3.60 (0.142) 1.00 (0.039) 3.00 (0.118) (0.220) 1.00 (0.039) 3.60 (0.142) 1.00 (0.039) 6.35 (0.250) (0.202) 1.27 (0.050) 2.60 (0.102) 1.27 (0.050) 1.47 (0.058) (0.262) 2.00 (0.079) 2.65 (0.104) 2.00 (0.079) 3.00 (0.118) (0.260) 1.00 (0.039) 4.60 (0.181) 1.00 (0.039) 5.00 (0.197) (0.260) 1.00 (0.039) 4.60 (0.181) 1.00 (0.039) 6.35 (0.250) (0.469) 3.90 (0.154) 4.10 (0.161) 3.90 (0.154) 3.90 (0.154) WAVE SOLDER: millimeters (inches) Case Size D1 D2 D3 D4 D (0.12) 1.20 (0.05) 0.70 (0.03) 1.20 (0.05) 0.75 (0.03) (0.15) 1.50 (0.06) 1.00 (0.04) 1.50 (0.06) 1.25 (0.05) (0.19) 1.50 (0.06) 2.00 (0.09) 1.50 (0.06) 1.60 (0.06) FEEDTHRU: millimeters (inches) Case Size T P S W L C W2F/W2H 3.45 (0.136) 0.51 (0.020) 0.76 (0.030) 1.27 (0.050) 1.02 (0.040) 0.46 (0.018) W3F 4.54 (0.179) 0.94 (0.037) 1.02 (0.040) 1.65 (0.065) 1.09 (0.043) 0.71 (0.028)
6 EIA Standard ARRAYS: millimeters (inches) Element Element Element Case Size A B C D E Element 0.68 (0.027) 1.32 (0.052) 2.00 (0.079) 0.46 (0.018) 1.00 (0.039) Element 0.56 (0.022) 1.32 (0.052) 1.88 (0.074) 0.30 (0.012) 0.50 (0.020) Element 0.89 (0.035) 1.65 (0.065) 2.54 (0.100) 0.46 (0.018) 0.76 (0.030) FEEDTHRU ARRAYS: millimeters (inches) A B C D E F 0.60 (0.024) 1.60 (0.064) 2.20 (0.088) 0.35 (0.014) 0.76 (0.030) 2.60 (0.104)

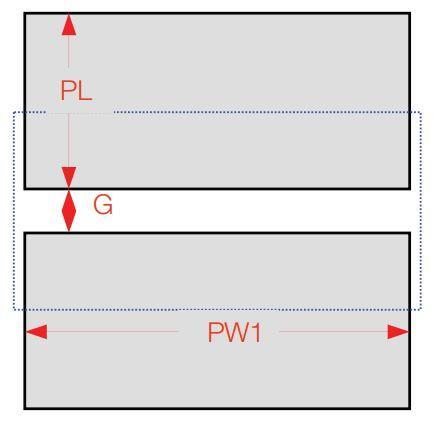

7 Low Inductance MLCs LICC: millimeters (inches) Case Size A B C (0.030) 3.05 (0.120) (0.025) (0.020) 2.03 (0.080) 0.76 (0.030) (0.012) 1.52 (0.060) 0.51 (0.020) (0.006) 0.75 (0.030) 1.20 (0.047) IDC: millimeters (inches) Case Size A B C D E (0.015) 0.89 (0.035) 1.27 (0.050) 0.20 (0.008) 0.40 (0.015) (0.025) 1.27 (0.050) 1.91 (0.075) 0.28 (0.011) 0.50 (0.020) (0.035) 1.65 (0.065) 2.54 (0.100) 0.45 (0.018) 0.80 (0.031) LGA: millimeters (inches) Case Size PL PW1 G LG12 (0204) 0.50 (0.020) 1.00 (0.039) 0.20 (0.008) LG22 (0306) 0.65 (0.026) 1.50 (0.059) 0.20 (0.008) LGC2 (0805) 1.25 (0.049) 1.40 (0.055) 0.20 (0.008)
8 Low Inductance MLCs LICA: millimeters (inches)
9 Chip Film Capacitors CHIP FILM: millimeters (inches) Size Code Case Size A B C (0.051) 1.30 (0.051) 2.20 (0.087) (0.079) 1.30 (0.051) 2.20 (0.087) (0.118) 1.50 (0.059) 3.50 (0.137) (0.195) 1.90 (0.075) 4.50 (0.178) (0.234) 2.50 (0.098) 5.70 (0.224) (0.295) 3.00 (0.118) 8.00 (0.315) (0.441) 3.50 (0.137) 10.3 (0.406) (0.575) 3.60 (0.147) 12.6 (0.496) (0.440) 2.50 (0.098) 5.70 (0.224)
10 BestCap Supercapacitors A- AND H-LEAD: millimeters (inches) Case Size A B C D ±0.05 (0.002) ±0.05 (0.002) ±0.05 (0.002) ±0.10 (0.004) BZ (0.679) 8.90 (0.350) (1.102) Ø1.40 (0.055) BZ (1.191) 8.90 (0.350) (1.890) Ø1.40 (0.055) BZ (0.600) 8.90 (0.350) (0.748) Ø1.40 (0.055) L-LEAD: millimeters (inches) Case Size A B C PL PW ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) ±0.20 (0.008) ±0.20 (0.008) BZ (0.776) (0.425) (1.102) 3.00 (0.118) 3.70 (0.146) BZ (1.268) (0.425) (1.890) 3.20 (0.126) 3.70 (0.146)
11 BestCap Supercapacitors N-LEAD: millimeters (inches) Case Size A B PW LPL RPL ±0.50 (0.020) ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) BZ (0.020) 9.50 (0.374) 3.20 (0.126) 3.50 (0.138) 3.50 (0.138) BZ (0.039) 5.90 (0.232) 4.10 (0.161) 2.50 (0.098) 3.50 (0.138) BZ (0.039) 5.90 (0.232) 4.10 (0.161) 2.50 (0.098) 3.50 (0.138) S-LEAD: millimeters (inches) Case Size A B EPL EPW LPL LPW ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) ±0.10 (0.004) BZ (0.512) (1.382) 4.50 (0.177) 6.00 (0.236) 5.80 (0.228) 3.50 (0.138) BZ (0.394) (0.984) 3.00 (0.118) 4.50 (0.177) 2.90 (0.114) 4.50 (0.177) BZ (0.394) (0.886) 3.00 (0.118) 4.50 (0.177) 2.90 (0.114) 4.50 (0.177)
12 TVS Diodes TVS DIODES: millimeters (inches) Case Size D1 D2 D3 D4 D5 DO-214AC (SMA) 5.49 (0.216) 1.27 (0.050) 2.10 (0.083) 1.27 (0.050) 1.47 (0.058) DO-214AA (SMB) 5.59 (0.220) 1.27 (0.050) 2.65 (0.104) 1.27 (0.050) 2.10 (0.083) DO-214AB (SMC) 8.12 (0.320) 1.52 (0.060) 4.69 (0.185) 1.52 (0.060) 3.07 (0.121)

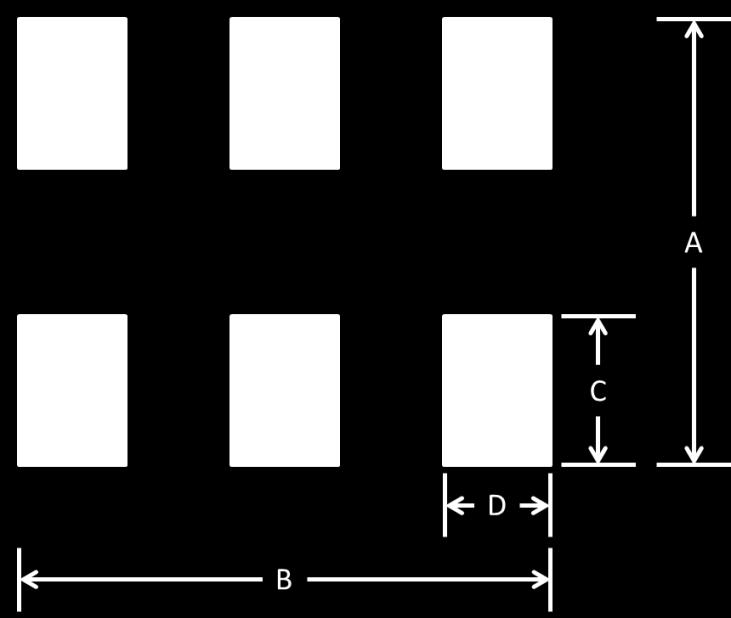

13 Filters MLO DIPLEXERS: millimeters (inches) Size A B C D (0.030) (0.058) (0.006) (0.018) (0.047) (0.068) (0.010) (0.017)

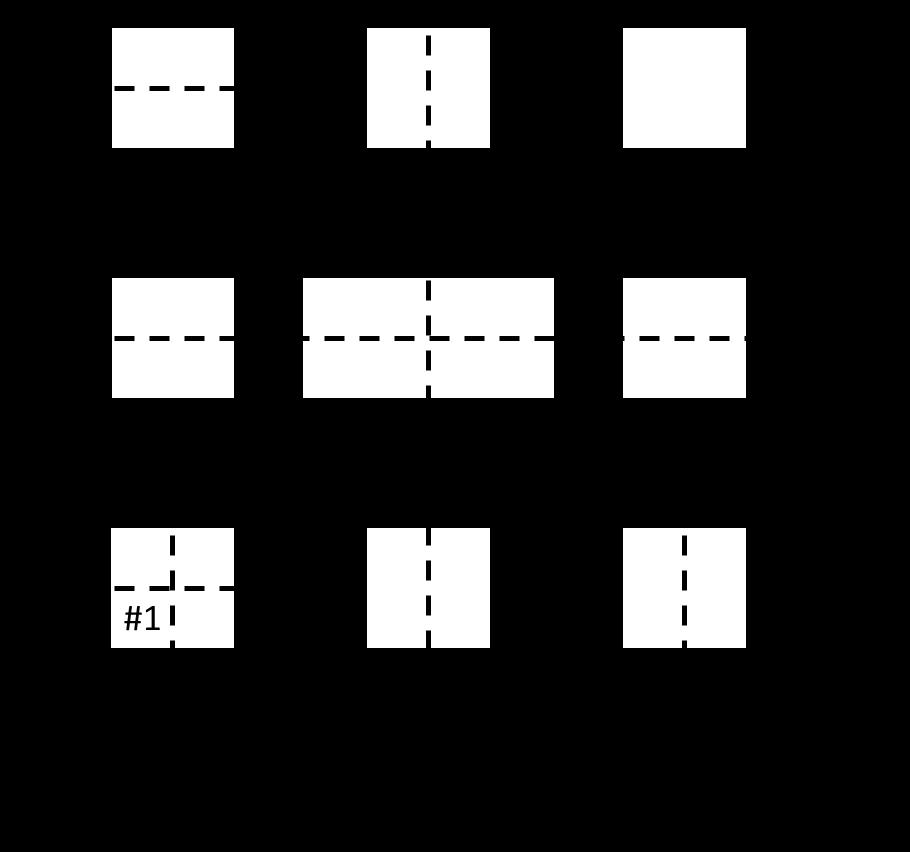

14 Filters SAW DUPLEXERS: SD18, mm (in.) Case Style A B C D SD (0.020) 0.65 (0.026) 0.25 (0.010) 0.35 (0.014) SAW DUPLEXERS: SD20, SD25, mm (in.) Case Style A B C D E SD (0.023) 0.75 (0.030) 0.33 (0.013) 0.29 (0.011) 0.72 (0.028) SD (0.028) 0.95 (0.037) 0.40 (0.016) 0.40 (0.016) 0.90 (0.035)

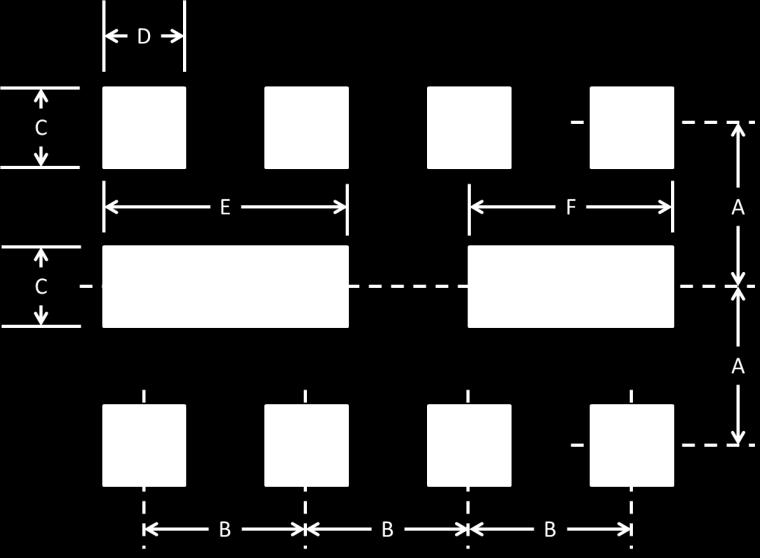

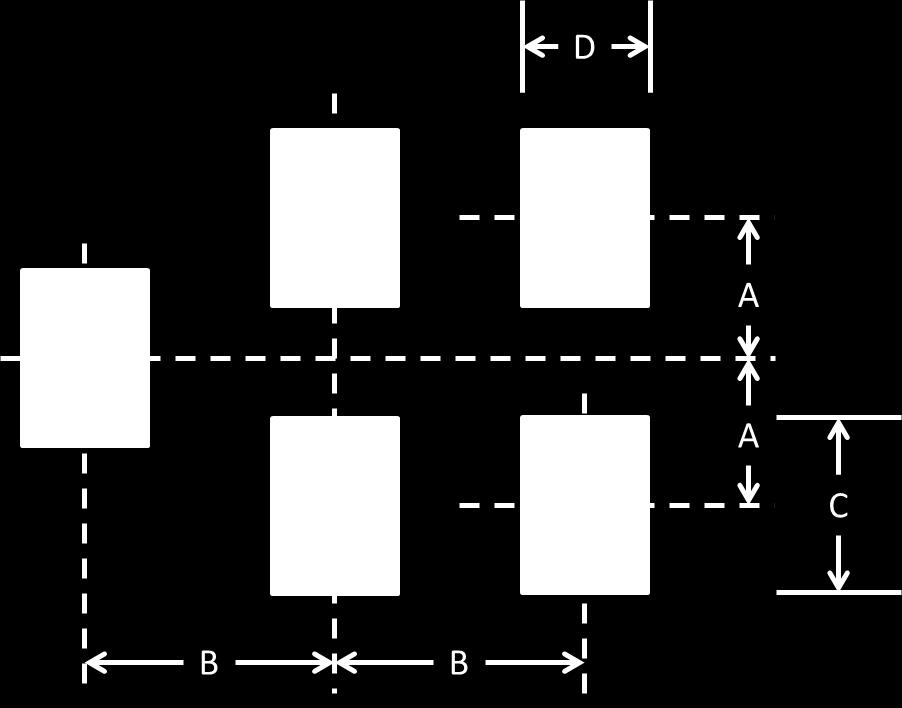

15 Filters SAW FILTERS: SF14, mm (in.) Case Style A B C D SF (0.011) 0.50 (0.020) (0.013) 0.25 (0.010) SAW FILTERS: SF15, mm (in.) Case Style A B C D E F SF (0.015) 0.39 (0.015) 0.18 (0.007) 0.18 (0.007) 0.49 (0.019) 0.39 (0.015)

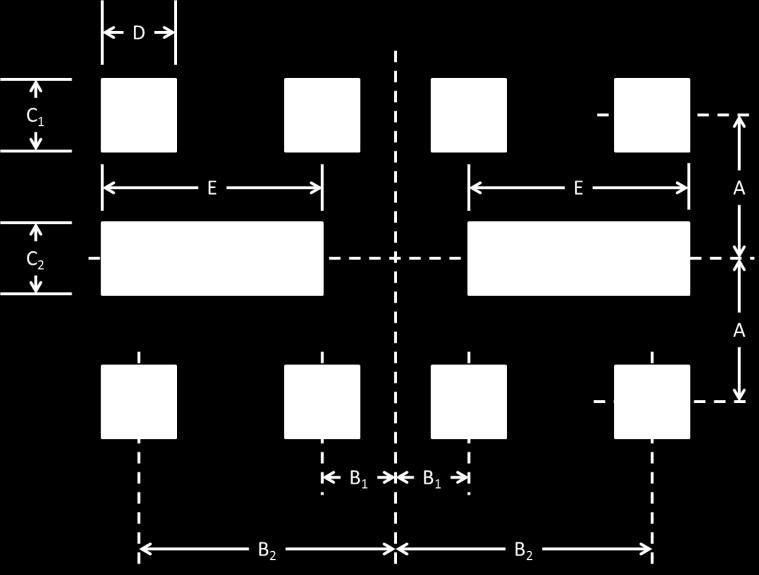

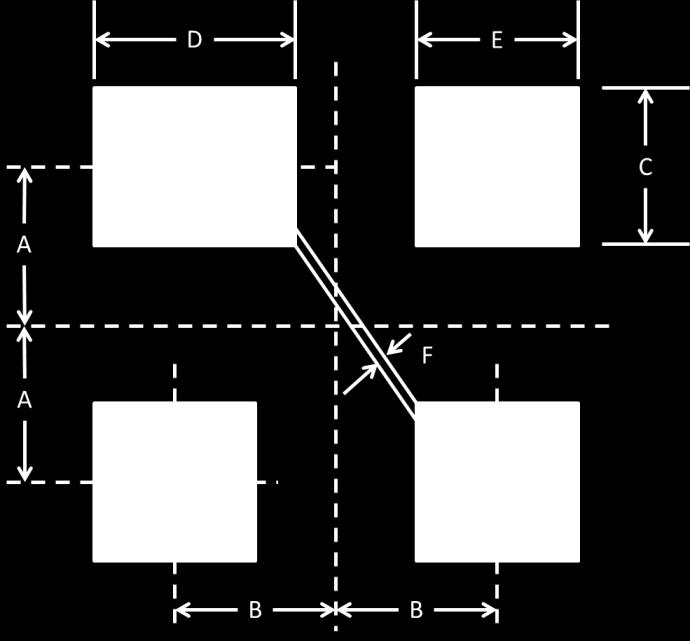

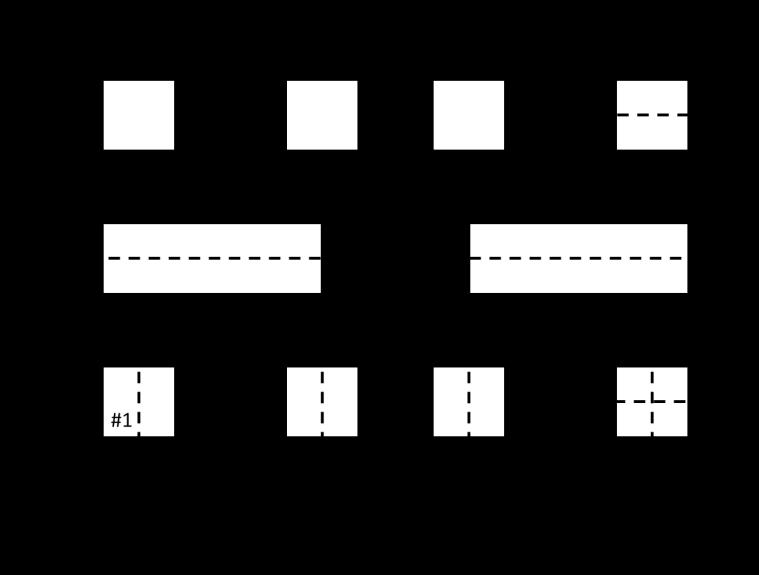

16 Filters SAW FILTERS: SF16, mm (in.) Case Style A B C D E F SF (0.016) 0.50 (0.020) 0.40 (0.016) 0.60 (0.024) 0.40 (0.016) 0.25 (0.010) SAW FILTERS: SF18, mm (in.) Case Style A B 1 B 2 C 1 C 2 D E SF (0.019) (0.009) (0.028) 0.24 (0.009) 0.25 (0.010) (0.009) 0.60 (0.024)
17 Filters SAW FILTERS: SF20, mm (in.) Case Style A A 1 A 2 B B 1 B 2 C 1 C 2 SF (0.055) 0.30 (0.012) 0.90 (0.035) 1.80 (0.071) 0.30 (0.012) 1.20 (0.047) 0.10 (0.004) 0.20 (0.008)
18 Filters THIN FILM LOW PASS FILTERS: mm (in.) Case Size A B C D LP (0.022) 1.11 (0.044) 0.20 (0.008) 0.30 (0.012) LP (0.043) 1.75 (0.069) 0.40 (0.016) 0.50 (0.020) LP (0.089) 2.33 (0.092) 0.80 (0.031) 0.87 (0.034)

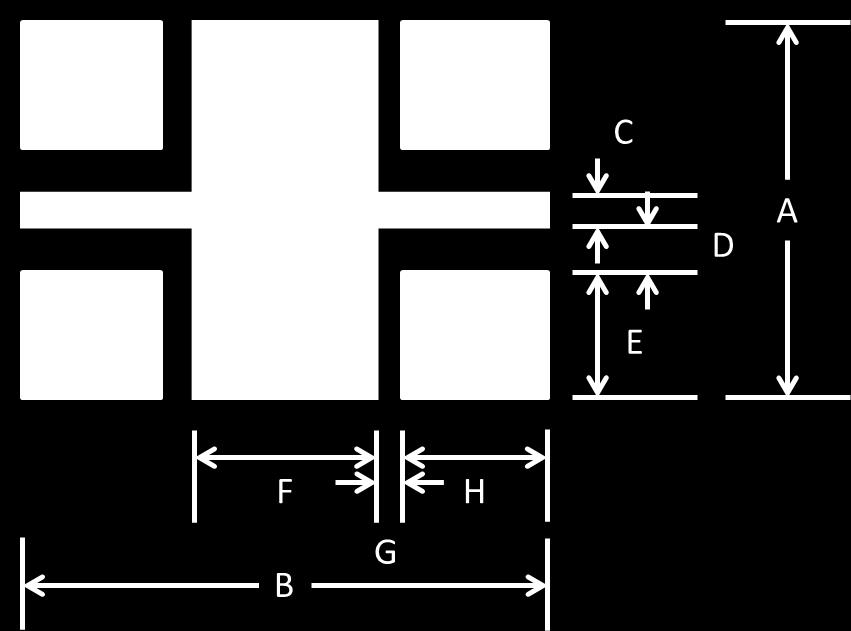

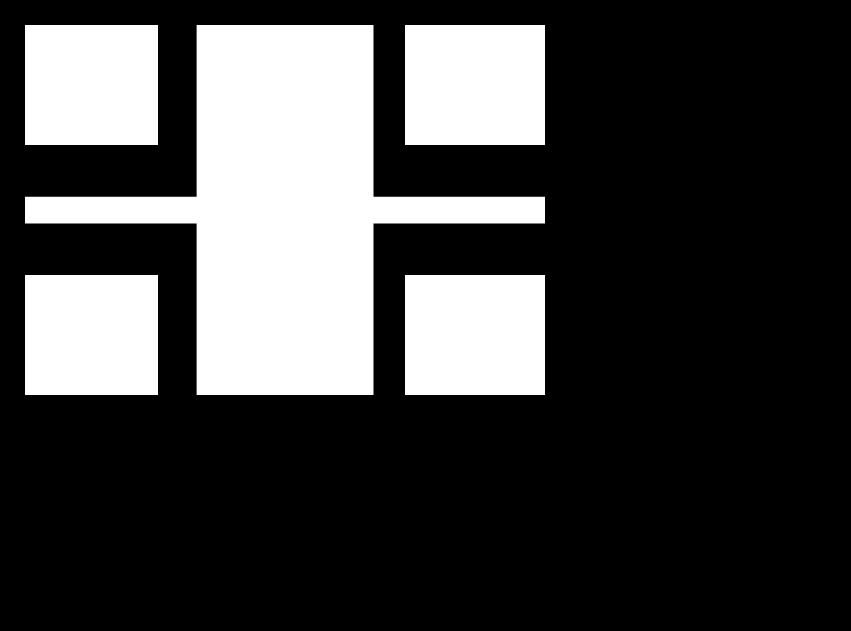

19 Couplers DIRECTIONAL COUPLERS: mm (in.) Case Size A B C D CP (0.026) 0.80 (0.031) 0.20 (0.008) 0.30 (0.012) CP (0.022) 1.15 (0.045) 0.20 (0.008) 0.31 (0.012) CP (0.043) 1.85 (0.073) 0.40 (0.016) 0.70 (0.028) CP (0.089) 2.33 (0.092) 0.80 (0.031) 0.87 (0.034) 3DB COUPLERS: mm (in.) Case Size A B C D E F G H DB (0.069) (0.088) (0.014) (0.006) (0.022) (0.016) (0.006) (0.030) PC (0.214) (0.264) (0.076) (0.024) (0.045) (0.126) (0.024) (0.045)
20 Crossovers RF-DC CROSSOVER: mm (in.) RF-RF CROSSOVER: mm (in.)

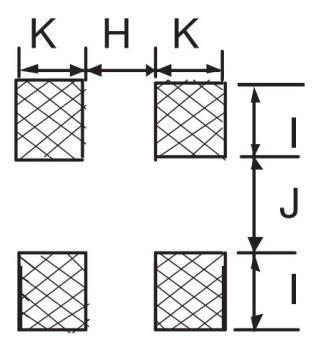

21 Inductors AL SERIES AIR CORE INDUCTORS: mm (in.) Part Number A B C D E AL05A (0.103) (0.097) (0.041) (0.040) (0.031) AL05B (0.175) (0.097) (0.113) (0.040) (0.031) AL12A (0.165) (0.130) (0.065) (0.110) (0.050) AL12B (0.285) (0.130) (0.185) (0.110) (0.050) AL (0.228) (0.203) (0.112) (0.103) (0.058) AL (0.394) (0.185) (0.234) (0.095) (0.080) AS SERIES AIR CORE INDUCTORS: mm (in.) Part Number D E F AS0605N5*TR (0.038) 2.60 (0.102) 0.51 (0.020) AS0606N0*TR 0.99 (0.390) 2.60 (0.102) 0.51 (0.020) AS0608N9*TR 1.27 (0.050) 2.60 (0.102) 0.51 (0.020) AS0612N3*TR 1.63 (0.064) 2.60 (0.102) 0.51 (0.020) AS0615N7*TR 1.96 (0.070) 2.60 (0.102) 0.51 (0.020) AS0619N4*TR 2.29 (0.090) 2.60 (0.102) 0.51 (0.020) AS0706N9*TR 1.02 (0.040) 2.60 (0.102) 0.51 (0.020) AS0710N2*TR 1.32 (0.052) 2.60 (0.102) 0.51 (0.020) AS0711N2*TR 1.24 (0.049) 2.60 (0.102) 0.51 (0.020) AS0713N7*TR 1.57 (0.062) 2.60 (0.102) 0.51 (0.020) AS0717N0*TR 1.93 (0.076) 2.60 (0.102) 0.51 (0.020) AS0722N0*TR 2.29 (0.090) 2.60 (0.102) 0.51 (0.020) AS0808N1*TR 1.12 (0.044) 2.80 (0.110) 0.64 (0.025) AS0812N0*TR 1.45 (0.570) 2.80 (0.110) 0.64 (0.025) AS0814N7*TR 1.24 (0.049) 2.80 (0.110) 0.64 (0.025) AS0816N6*TR 1.83 (0.072) 2.80 (0.110) 0.64 (0.025) AS0821N5*TR 2.18 (0.086) 2.80 (0.110) 0.64 (0.025) AS0823N0*TR 1.90 (0.075) 2.80 (0.110) 0.64 (0.025) AS0825N0*TR 2.57 (0.101) 2.80 (0.110) 0.64 (0.025) AS0827N3*TR 2.57 (0.101) 2.80 (0.110) 0.64 (0.025) COMMON MODE CHOKE INDUCTORS: mm (in.) Type H I J K LCCM (0.031) 0.40 (0.016) 0.40 (0.016) 0.90 (0.035) LCCM (0.024) 0.40 (0.016) 1.05 (0.041)
22 Inductors SMD POWER INDUCTORS: mm (in.) Type D1 D2 D3 D4 D (0.085) 0.70 (0.028) 0.75 (0.030) 0.70 (0.028) 2.00 (0.079) 02A (0.102) 0.90 (0.035) 0.80 (0.031) 0.90 (0.035) 2.00 (0.079) 02B (0.126) 1.20 (0.047) 0.80 (0.031) 1.20 (0.047) 2.50 (0.098) (0.157) 1.50 (0.059) 1.00 (0.039) 1.50 (0.059) 2.00 (0.079) 03A (0.157) 1.50 (0.059) 1.00 (0.039) 1.50 (0.059) 2.00 (0.079) (0.118) 0.80 (0.032) 1.40 (0.055) 0.80 (0.032) 2.70 (0.106) 03A (0.118) 0.80 (0.032) 1.40 (0.055) 0.80 (0.032) 2.70 (0.106) 03B (0.118) 0.80 (0.032) 1.40 (0.055) 0.80 (0.032) 2.70 (0.106) (0.205) 2.00 (0.079) 1.20 (0.047) 2.00 (0.079) 3.00 (0.118) (0.157) 1.20 (0.047) (0.047) 3.70 (0.146) 04A (0.157) 1.20 (0.047) (0.047) 3.70 (0.146) 04B (0.157) 1.20 (0.047) (0.047) 3.70 (0.146) 04C (0.179) (0.031) 3.00 (0.118) (0.031) 1.90 (0.075) (0.217) 1.50 (0.059) 2.50 (0.098) 1.50 (0.059) 2.20 (0.087) (0.197) 1.75 (0.069) 1.50 (0.059) 1.75 (0.069) 4.50 (0.177) (0.213) (0.087) (0.185) 05B (0.213) (0.087) (0.185) 05C (0.224) 0.90 (0.035) 3.90 (0.154) 0.90 (0.035) 1.90 (0.075) 05D (0.213) (0.087) (0.185) 05A (0.276) 2.00 (0.079) 3.00 (0.118) 2.00 (0.079) 2.50 (0.098) (0.276) 2.00 (0.079) 3.00 (0.118) 2.00 (0.079) 2.50 (0.098) (0.236) 2.00 (0.079) 2.00 (0.079) 2.00 (0.079) 5.00 (0.197) (0.248) (0.122) (0.224) 06A (0.248) (0.122) (0.224) 06B (0.248) (0.122) (0.224) 06C (0.248) (0.122) (0.224) 06D (0.248) (0.122) (0.224) (0.270) 1.40 (0.055) 4.06 (0.160) 1.40 (0.055) 3.56 (0.140) (0.315) 2.00 (0.079) 4.00 (0.157) 2.00 (0.079) 4.00 (0.157) (0.343) 2.50 (0.098) 3.70 (0.146) 2.50 (0.098) 3.50 (0.138) 07B (0.343) 2.50 (0.098) 3.70 (0.146) 2.50 (0.098) 3.50 (0.138) 07A (0.343) 2.50 (0.098) 3.70 (0.146) 2.50 (0.098) 3.50 (0.138) 07C (0.343) 2.50 (0.098) 3.70 (0.146) 2.50 (0.098) 3.50 (0.138) 07D (0.315) 3.20 (0.126) (0.126) 8.00 (0.315) 07E (0.299) 2.00 (0.079) 3.60 (0.142) 2.00 (0.079) 2.20 (0.087) (0.291) 1.80 (0.071) 3.80 (0.150) 1.80 (0.071) 7.50 (0.188) 08D (0.398) 2.00 (0.079) 6.10 (0.240) 2.00 (0.079) 2.80 (0.110) 08E (0.398) 2.00 (0.079) 6.10 (0.240) 2.00 (0.079) 2.80 (0.110) 08G (0.315) 3.00 (0.118) 2.00 (0.079) 3.00 (0.118) 7.50 (0.295) (0.357) 2.00 (0.079) 5.08 (0.200) 2.00 (0.079) 4.06 (0.160) (0.394) 3.75 (0.148) 2.50 (0.098) 3.75 (0.148) 9.50 (0.374) 10F (0.394) 3.75 (0.148) 2.50 (0.098) 3.75 (0.148) 9.50 (0.374) (0.417) 2.50 (0.099) 5.60 (0.220) 2.50 (0.099) 3.20 (0.125) (0.512) 3.50 (0.138) 6.00 (0.236) 3.50 (0.138) 4.00 (0.157) 101D (0.413) (0.287) (0.126) 101E (0.413) (0.287) (0.126) (0.512) 3.00 (0.118) 7.00 (0.276) 3.00 (0.118) 6.00 (0.236) 121G (0.512) 3.00 (0.118) 7.00 (0.276) 3.00 (0.118) 6.00 (0.236) 121J (0.512) 3.00 (0.118) 7.00 (0.276) 3.00 (0.118) 6.00 (0.236) (0.520) 2.92 (0.115) 7.37 (0.290) 2.92 (0.115) 2.79 (0.110) (0.535) 2.30 (0.091) 9.00 (0.344) 2.30 (0.091) 6.50 (0.256) 13A (0.539) 2.90 (0.114) 7.90 (0.311) 2.90 (0.114) 5.00 (0.197) (0.539) 2.90 (0.114) 7.90 (0.311) 2.90 (0.114) 5.00 (0.197) 131H (0.520) 2.50 (0.099) 8.20 (0.322) 2.50 (0.099) 3.20 (0.126) 131J (0.520) 2.50 (0.099) 8.20 (0.322) 2.50 (0.099) 3.20 (0.126) 13B (0.539) 2.90 (0.114) 7.90 (0.311) 2.90 (0.114) 5.00 (0.197) (0.760) 3.80 (0.150) (0.460) 3.80 (0.150) 8.00 (0.315) (0.720) 2.92 (0.115) (0.490) 2.92 (0.115) 2.79 (0.110) (0.904) 4.30 (0.169) (0.565) 4.30 (0.169) 8.64 (0.340)
23 Timing Devices KHZ RANGE TUNING FORK CRYSTAL UNITS: mm (in.) Type D1 D2 D3 D4 D5 ST (0.087) (0.028) (0.031) (0.028) (0.055) ST (0.142) (0.039) (0.039) (0.061) KHZ RANGE AT-CUT TYPE CLOCK CRYSTAL OSCILLATOR: mm (in.) Type A B C D KC2520 (0.094) (0.114) (0.037) (0.041)
24 Timing Devices KHZ RANGE TUNING FORK CRYSTAL OSCILLATOR: mm (in.) Type A B C D KC3215 (0.075) (0.142) (0.031) (0.024) KHZ RANGE TUNING FORK TYPE DTCXO: mm (in.) Type A B C D E F G H KT3225 (0.110) (0.138) (0.043) (0.033) (0.020) (0.024) (0.016) (0.022)

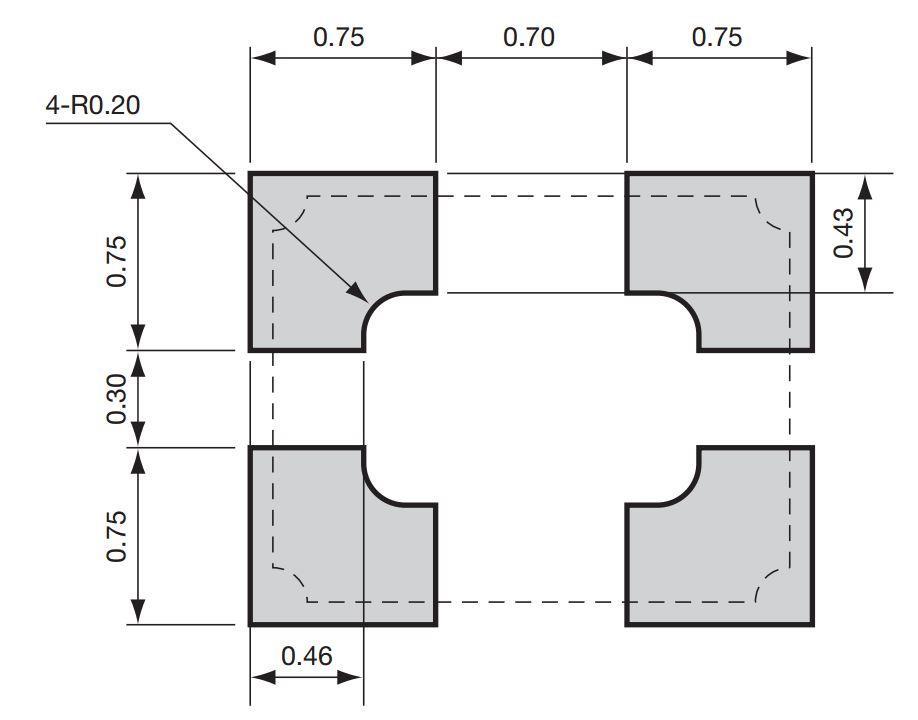

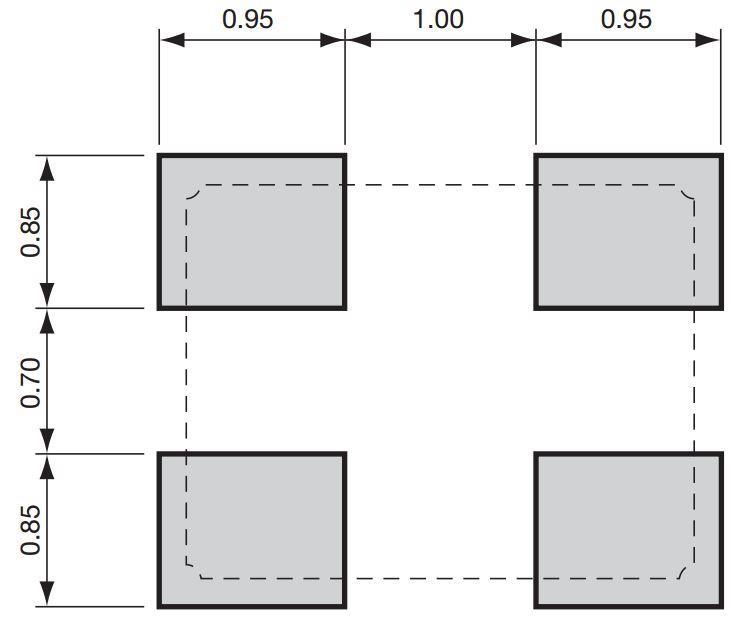

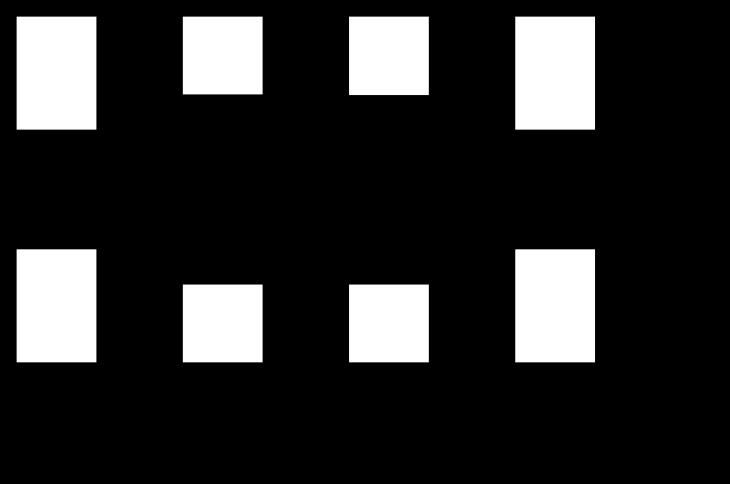

25 Timing Devices REAL TIME CLOCK MODULE: mm (in.) Type A B C D E F G H KR3225 (0.110) (0.138) (0.043) (0.033) (0.020) (0.024) (0.016) (0.022) REAL TIME CLOCK MODULE: mm CT2016 CT2520
26 Timing Devices MHZ RANGE CRYSTAL UNITS (4 TERMINAL): mm (in.) Type A B C D CX (0.045) (0.053) (0.018) (0.020) CX (0.055) (0.071) (0.022) (0.026) CX (0.075) (0.091) (0.031) (0.035) CX (0.091) (0.114) (0.039) (0.047) CX (0.114) (0.142) (0.041) (0.051) CX (0.134) (0.201) (0.051) MHZ RANGE CRYSTAL UNITS (2 TERMINAL): mm (in.) Type D1 D2 D3 D4 D5 CX (0.142) (0.016) (0.102) CX (0.236) (0.075) (0.087) (0.075) (0.094) CX (0.354) (0.094) (0.165) (0.094) (0.110)
27 Timing Devices CMOS OUTPUT CLOCK OSCILLATOR: mm (in.) Type A B C D KC (0.079) (0.094) (0.031) (0.024) KC (0.094) (0.114) (0.037) (0.041) KC (0.106) (0.134) (0.037) (0.047) KC (0.142) (0.161) (0.055) KC (0.244) (0.271) (0.079) (0.071) LV-PECL/LVDS/HCSL OUTPUT CLOCK OSCILLATOR: mm (in.) Type A B C D KC (0.165) (0.138) (0.035) KC (0.205) (0.263)
28 Timing Devices RF/GPS TCXO: mm (in.) Type A B C D KT (0.055) (0.071) (0.020) (0.012) KT (0.079) (0.094) (0.031) (0.024) KT (0.110) (0.135) (0.047) (0.031) KT2520 mm
29 Timing Devices FEMTOCELL/STRATUM3 TCXO: mm KT5032 KT7050 VOLTAGE CONTROLLED CRYSTAL OSCILLATOR: mm (in.) Type A B C D KV (0.165) (0.138) (0.035) KV (0.205) (0.263)
30 Timing Devices CERAMIC RESONATORS: mm

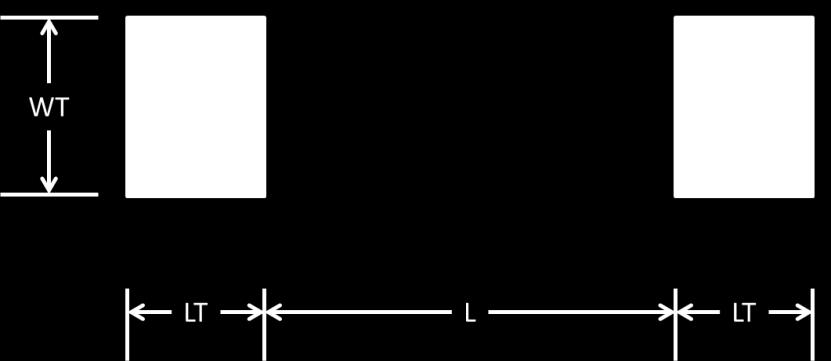

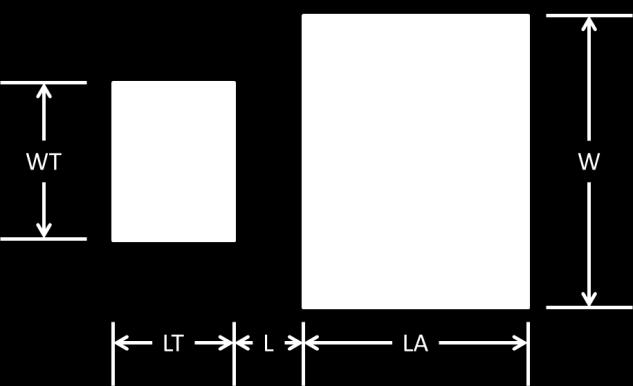

31 Resistive Products Surface Mount Terminations: mm (in.) Part Number WT W LT L LA RP92010T0050GTTR (0.090) (0.100) (0.050) (0.045) (0.144) RP92525T0050GTTR (0.125) (0.245) (0.037) (0.045) (0.213) RP93725T0050GTTR (0.125) (0.250) (0.065) (0.325) RP93737T0050GTTR (0.125) (0.370) (0.045) (0.344) SURFACE MOUNT CHIP RESISTORS: mm (in.) RP4 RP5 Part Number WT W LT L LA RP42010RxxxxGTTR (0.090) (0.125) (0.037) (0.041) (0.095) RP42525RxxxxGTTR (0.120) (0.306) (0.050) (0.027) (0.110) RP43725RxxxxGTTR (0.120) (0.313) (0.040) (0.195) RP43737RxxxxGTTR (0.360) (0.463) (0.038) (0.195) RP52010RxxxxGTTR N/A (0.090) (0.037) (0.140) N/A RP52525RxxxxGTTR N/A (0.120) (0.050) (0.165) N/A RP53725RxxxxGTTR N/A (0.120) (0.275) N/A RP53737RxxxxGTTR N/A (0.360) (0.270) N/A For all resistive products see High Power Resistive Products Catalog, pages 28 to 31, for further mounting suggestions.
YJM-L Series Chip Varistor
Features 1. RoHS & Halogen Free (HF) compliant 2. EIA size: 0402 ~ 2220 3. Operating voltage: 5.5Vdc ~ 85Vdc 4. High surge suppress capability 5. Bidirectional and symmetrical V/I characteristics 6. Multilayer
Multilayer Ceramic Chip Capacitors
FEATURES X7R, X6S, X5R AND Y5V DIELECTRICS HIGH CAPACITANCE DENSITY ULTRA LOW ESR & ESL EXCELLENT MECHANICAL STRENGTH NICKEL BARRIER TERMINATIONS RoHS COMPLIANT SAC SOLDER COMPATIBLE* PART NUMBER SYSTEM
Multilayer Ceramic Chip Capacitors
FEATURES X7R, X6S, X5R AND Y5V DIELECTRICS HIGH CAPACITANCE DENSITY ULTRA LOW ESR & ESL EXCELLENT MECHANICAL STRENGTH NICKEL BARRIER TERMINATIONS RoHS COMPLIANT SAC SOLDER COMPATIBLE* Temperature Coefficient
Data sheet Thin Film Chip Inductor AL Series
Data sheet Thin Film Chip Inductor AL Series Scope - 0201 and 0402 and 0603 series inductor is a photo lithographically etched single layer ceramic chip. This design provides high SRF, excellent Q, and
YAGEO CORPORATION SMD INDUCTOR / BEADS. CLH Series. Lead-free / For High Frequency Applications. CLH1005-H series CLH1608-H series ~1.4 0.
YAGEO CORPORATION SMD INDUCTOR / BEADS CLH Series Multilayer Chip Inductors High Frequency Lead-free / For High Frequency Applications APPLICATIONS RF Resonance and Impedance Matching Circuit RF and Wireless
B37631 K K 0 60
Multilayer Ceramic acitors High; X5R and X7R Chip Ordering code system B37631 K 7 5 K 6 Packaging 6 ^ cardboard tape, 18-mm reel 62 ^ blister tape, 18-mm reel Internal coding acitance tolerance K ^ ± %
IWCSeries FEATURES APPLICATION ORDERING CODE TRIGON COMPONENTS. Configurations: Dimension (mm) IWC C G 1608 K 22N T (1) (2) (3) (4) (5) (6) (7)
Configurations: FEATURES High frequency. Highest possible SRFs as well as excellent Q values. The wire is wound directed on the core at a precision pitch. RoHS Compliant. APPLICATION Pagers, Cordless phones
INDEX HOESUNG COIL PARTS
1. Metal Molding High Current SMD Power Inductor PART NO DEMINSION(mm) Inductance Range Rated DC Current Page MMI 06518 SERIES 6.5 7.1 1.8 1.0uH ~ 4.7uH 9.8A ~ 5.0A 5 MMI 06524 SERIES 6.5 7.1 2.4 0.47uH
NPI Unshielded Power Inductors
FEATURES NON-SHIELDED MAGNETIC CIRCUIT DESIGN SMALL SIZE WITH CURRENT RATINGS TO 16.5 AMPS SURFACE MOUNTABLE CONSTRUCTION TAKES UP LESS PCB REAL ESTATE AND SAVES MORE POWER TAPED AND REELED FOR AUTOMATIC
Aluminum Electrolytic Capacitors
Aluminum Electrolytic Capacitors Snap-In, Mini., 105 C, High Ripple APS TS-NH ECE-S (G) Series: TS-NH Features Long life: 105 C 2,000 hours; high ripple current handling ability Wide CV value range (47
SMD Power Inductor-VLH
SMD Power Inductor-VH PAD AYOUT Dimensions Unit: mm Type A B C E F H I J 252010 2.5±0.2 2.0±0.2 1.0max. 0.4±0.2 1.0min. 2.1 0.90 0.8 252012 2.5±0.2 2.0±0.2 1.2max. 0.4±0.2 1.0min. 2.1 0.90 0.8 252510 2.5±0.2
Aluminum Electrolytic Capacitors (Large Can Type)
Aluminum Electrolytic Capacitors (Large Can Type) Snap-In, 85 C TS-U ECE-S (U) Series: TS-U Features General purpose Wide CV value range (33 ~ 47,000 µf/16 4V) Various case sizes Top vent construction
SMD Power Inductor-VLH
SMD Power Inductor-VH Dimensions Unit: mm Type A B C E F H I J 252010 2.5±0.2 2.0±0.2 1.0max. 0.4±0.2 1.0min. 2.1 0.90 0.8 252012 2.5±0.2 2.0±0.2 1.2max. 0.4±0.2 1.0min. 2.1 0.90 0.8 321618C 3.2±0.3 1.6±0.2
NPIS Shielded Power Inductors
FEATURES SHIELDED POWER INDUCTOR ULTRA LOW PROFILE (1.0 ~ 4.5mm MAX. HEIGHT) SURFACE MOUNTABLE CONSTRUCTION INDUCTANCE VALUES UP TO 220µH TAPED AND REELED FOR AUTOMATIC INSERTION CHARACTERISTICS Case Size
SMD Wire Wound Ferrite Chip Inductors - SQC Series. SQC Series. Product Identification. Shapes and Dimensions
SMD Wire Wound Ferrite Chip Inductors - SQC Series SQC Series These miniature chip inductors, SQC Series, wound on a special ferrite core and are excellent to be used as choke coil in DC power supply circuits.
SAW FILTER - RF RF SAW FILTER
FEATURES - Frequencies from 0MHz to 700MHz - Custom specifications available - Industry standard package configurations - Low-loss saw component - Low amplitude ripple - RoHS compliance - Electrostatic
Multilayer Chip Capacitors C0G/NP0/CH
Multilayer Chip Capacitors C0G/NP0/CH Features Good thermal stability High insulation resistance Low dissipation factor Low inductance Applications Resonant circuits Filter circuits Timing elements Coupling
Thin Film Chip Inductor
Scope -Viking s 0201 and 0402 series inductor is a photo lithographically etched single layer ceramic chip. Viking s design provides high, excellent Q, and superior temperature stability. This highly stable
Configurations: Dimension (mm) B (max) A (max) 0.20 IWCCG1005. Inductance Range IWCCG ~ IWCCG ~ 1000 IWCCG
Configurations: FEATURES High frequency. Highest possible SRFs as well as excellent Q values. The wire is wound directed on the core at a precision pitch. RoHS Compliant. APPLICATION Pagers, Cordless phones
+85 C Snap-Mount Aluminum Electrolytic Capacitors. High Voltage Lead free Leads Rugged Design. -40 C to +85 C
+85 C Snap-Mount Capacitors FEATURES High ripple Current Ratings Large Case Size Selection Extended Life High Voltage Lead free Leads Rugged Design SPECIFICATIONS Tolerance ±20% at 120Hz, 20 C Operating
AVX SMD Power Inductors
AVX SMD Power Inductors www.avx.com Version 14.7 Table of Contents LMax SMD Non-Shield Power Inductor LMXN Series Non-Shielded Style B 2-3 Inductance Range: 0.47-470 μh Rated Current: 0.53-30 A LMXN Series
RoHS 555 Pb Chip Ferrite Inductor (MFI Series) Engineering Spec.
RoHS 555 Pb Chip Ferrite Inductor (MFI Series) Engineering Spec. PRODUCT DETAIL Electrical Characteristics μh L (Min) Q MHz (Min) SRF Ω DCR IDC ma TEST FREQ: MHz TEST LEVEL: 100 mv Test Instruments HP4291
SMD Transient Voltage Suppressors
SMD Transient Suppressors Feature Full range from 0 to 22 series. form 4 to 60V RMS ; 5.5 to 85Vdc High surge current ability Bidirectional clamping, high energy Fast response time
THICK FILM LEAD FREE CHIP RESISTORS
Features Suitable for lead free soldering. Compatible with flow and reflow soldering Applications Consumer Electronics Automotive industry Computer Measurement instrument Electronic watch and camera Configuration
4. Construction. 5. Dimensions Unit mm
1. Scope This specification applies to all sizes of rectangular-type fixed chip resistors with Ni/Cr as material. 2. Features Tolerance from 0.01%1% Thin film & Ni/Cr Resistor TCR from 5ppm 50ppm for thin
Thin Film Chip Resistors
FEATURES PRECISE TOLERANCE AND TEMPERATURE COEFFICIENT EIA STANDARD CASE SIZES (0201 ~ 2512) LOW NOISE, THIN FILM (NiCr) CONSTRUCTION REFLOW SOLDERABLE (Pb FREE TERMINATION FINISH) Type Size EIA PowerRating
Surface Mount Multilayer Chip Capacitors for Commodity Solutions
Surface Mount Multilayer Chip Capacitors for Commodity Solutions Below tables are test procedures and requirements unless specified in detail datasheet. 1) Visual and mechanical 2) Capacitance 3) Q/DF
Thin Film Chip Inductor
Scope -Calchip s 0201 and 0402 series inductor is a photo lithographically etched single layer ceramic chip. Calchip s design provides high, excellent Q, and superior temperature stability. This highly
2R2. 2 (L W H) [mm] Wire Wound SMD Power Inductor. Nominal Inductance Packing Tape & Reel. Design Code M ±20%
![2R2. 2 (L W H) [mm] Wire Wound SMD Power Inductor. Nominal Inductance Packing Tape & Reel. Design Code M ±20%](/thumbs/78/78109689.jpg "2R2. 2 (L W H) [mm] Wire Wound SMD Power Inductor. Nominal Inductance Packing Tape & Reel. Design Code M ±20%")
Wire Wound SMD Power Inductors WPN Series Operating temperature range : -40 ~+125 (Including self-heating) FEATURES Fe base metal material core provides large saturation current Metallization on ferrite
High Performance Voltage Controlled Amplifiers Typical and Guaranteed Specifications 50 Ω System
High Performance Voltage Controlled Amplifiers Typical and Guaranteed Specifications 50 Ω System Typical and guaranteed specifications vary versus frequency; see detailed data sheets for specification
1000 VDC 1250 VDC 125 VAC 250 VAC J K 125 VAC, 250 VAC
Metallized Polyester Film Capacitor Type: ECQE(F) Non-inductive construction using metallized Polyester film with flame retardant epoxy resin coating Features Self-healing property Excellent electrical
± 20% (rated cap. [µf] ) 1000 Leakage Current: For capacitance values > 33000µF, add the value of:
![± 20% (rated cap. [µf] ) 1000 Leakage Current: For capacitance values > 33000µF, add the value of:](/thumbs/85/91419422.jpg "± 20% (rated cap. [µf] ) 1000 Leakage Current: For capacitance values > 33000µF, add the value of:")
TS-UP Series 85 C, 3000 hours Compact size for general purpose and industrial applications 2 and 3 pin versions available 20mm lengths for low profile applications RoHS Compliant Rated Working Voltage:
Ceramic PTC Thermistor Overload Protection
FEATURES compliant CPTD type are bare disc type CPTL type are leaded Low, medium and high voltage ratings Low resistance; Small size No need to reset supply after overload No noise generated Stable over
E62-TAB AC Series Features
NEW! E62-TAB AC Series Features Perfect for non-sinusoidal voltages and pulsed s. Housed in a hermetically sealed aluminum can which is filled with environmentally friendly plant oil as standard. The integrated
Operating Temperature Range ( C) ±1% (F) ± ~ 1M E-24 NRC /20 (0.05) W 25V 50V ±5% (J) Resistance Tolerance (Code)
FEATURES EIA STANDARD SIZING 0201(1/20), 0402(1/16), 0603(1/10), 0805(1/8), 1206(1/4), 1210(1/3), 2010(3/4) AND 2512(1) METAL GLAZED THICK FILM ON HIGH PURITY ALUMINA SUBSTRATE..(CERMET) PROVIDES UNIFORM
Metal thin film chip resistor networks
Metal thin film chip resistor networks AEC-Q200 Compliant Features Relative resistance and relative TCR definable among multiple resistors within package. Relative resistance : ±%, relative TCR: ±1ppm/
SERIES DATASHEET INDUCTORS RF INDUCTORS (MRFI SERIES)
SERIES DATASHEET INDUCTORS RF INDUCTORS (MRFI SERIES) (8) 95-8365 venkel.com Features: RoHS Compliant and Halogen Free Good Q values High SRF range: 1nH to 47uH Tolerance: ±.2nH, ±.3nH, ±2%, ±5%, ±1% High
Chip Ferrite Bead MCB-S/B Series
Chip Ferrite Bead MCB-S/B Series Features Monolithic inorganic material construction Closed magnetic circuit avoids crosstalk SMD Type & suitable for reflow and wave soldering Available in various sizes
RC series Thick Film Chip Resistor
RC series Thick Film Chip Resistor Features» Small size and light weight» Compatible with wave and reflow soldering» Suitable for lead free soldering» RoHS compliant & Halogen Free Applications Configuration»
INPAQ Global RF/Component Solutions
MCB & MHC W Series Specification Product Name Series Multilayer Chip Ferrite Bead MCB & MHC W Series Size EIAJ 1005/1608/2012/3216/4516 MCB and MHC Series Chip Ferrite Bead for Automotive Applications
SMD Power chokes- SPD Series SPD series chokes For High Current Use
SMD Power chokes- SPD Series SPD series chokes For High Current Use Features 1.Shielded construction. 2.High current rating up to DC Amp 3.High frequency range up to 5.MHz 4.Ultra low buzz noise, due to
PRODUCT IDENTIFICATION SWPA 3012 S 1R0 N T
Wire Wound SMD Power Inductors SWPA Series Operating temperature range: -4 ~+25 (Including self-heating) FEATURES Magnetic-resin shielded conruction reduces buzz noise to ultra-low levels Metallization
MCB and MHC Series Chip Ferrite Bead for Automotive Applications Qualified based on AEC-Q200
RoHS MC and MHC Series Chip Ferrite ead for Automotive Applications Qualified based on AEC-Q200 Explanation of Part Number MC 1608 W 12 1 H P - 1 2 3 4 5 6 7 8 9 1. Series Name 2. Size Code: the first
Distributed by: www.jameco.com -800-83-4242 The content and copyrights of the attached material are the property of its owner. Single-Chip Voice Record/Playback Devices 60-, 75-, 90-, and 20-Second Durations
! " # $ &,-" " (.* & -" " ( /* 0 (1 1* 0 - (* 0 #! - (#* 2 3( 4* 2 (* 2 5!! 3 ( * (7 4* 2 #8 (# * 9 : (* 9
"# " # $ "%%" & '" (' )' * & + (' )' * &,-" " (.* & -" " ( /* 0 (1 1* 0 - (* 0 # - (#* 2 # - (#* 2 3( 4* 2 (* 2 5 3 ( * 2 6 3 (7 4* 2 #8 (# * 9 : (* 9 #" " 5,1 < = " = #+ +# 9 ' :> # &? + # & ISD i " @
TODA-ISU Corporation. SMD Power Inductor. SPI series. SMD Team
SMD Power Inductor SPI series TODA-ISU Corporation Advantages & Applications Advantages Low profile High current capability & Low DCR Low temperature rise Increased thermal efficiency Patent (Coil Integrated
Current Sensing Chip Resistor SMDL Series Size: 0201/0402/0603/0805/1206/1010/2010/2512/1225/3720/7520. official distributor of
Product: Current Sensing Chip Resistor SMDL Series Size: 0201/0402/0603/0805/1206/1010/2010/2512/1225/3720/7520 official distributor of Current Sensing Chip Resistor (SMDL Series) 1. Features -3 Watts
SMD Shielded Power Inductor HPCRHF2D /3D /4D Series
SMD Shielded Power Inductor HPCRHF2D /3D /4D Series Features: l SMD type power inductors by the electrode is attached to the ferrite core directly. l Magnetically shielded to prevent noise radiation. Applications:
NTC Thermistor:TSM type
Features. RoHS compliant 2. EIA size 0402, 0603, 0805, 206 3. Highly reliable structure 4. -40 ~ +25 operating temperature range 5. Wide resistance range 6. Cost effective 7. Agency recognition: UL Recommended
RSDW08 & RDDW08 series
/,, MODEL SELECTION TABLE INPUT ORDER NO. INPUT VOLTAGE (RANGE) NO LOAD INPUT CURRENT FULL LOAD VOLTAGE CURRENT EFFICIENCY (Typ.) CAPACITOR LOAD (MAX.) RSDW08F-03 344mA 3.3V 2000mA 80% 2000μF RSDW08F-05
Transient Voltage Suppressor
Transient Suppressor Features Glass passivated junction Low incremental surge resistance, excellent clamping capability Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop
Low Value Multilayer Inductors (LMCI Series)
Structure Features: RoHS Compliant and Halogen Free Closed magnetic circuit configuration avoids crosstalk and is suitable for high density PCBs Size range: 0201, 05, 1608 Perfect shape for automatic mounting
Sunlord. Wire Wound SMD Power Inductors SWCS Series SWCS XXXX -XXX T. Operating Temperature: -25 ~ +105 FEATURES APPLICATIONS PRODUCT IDENTIFICATION
Wire Wound SMD Power Inductors SWCS Series Operating Temperature: -25 ~ +105 FEATURES Various high power inductors are superior to be high saturation Suitable for surface mounting equipment APPLICATIONS
Long 3000 hour life at 105 C with high ripple current capability 2 and 3 pin versions available Can vent construction
TS-HA/HB Series 105 C, 3000 hours Long 3000 hour life at 105 C with high ripple current capability 2 and 3 pin versions available Can vent construction RoHS Compliant Rated Working Voltage: Operating Temperature:
CSK series. Current Sensing Chip Resistor. Features. Applications. Construction FAITHFUL LINK
CSK series Current Sensing Chip Resistor Features» 3 Watts power rating in 1 Watt size, 1225 Package» Low TCR of ±100 PPM/ C» Resistance values from 1m to 1 ohm» High purity alumina substrate for high
FEATURES APPLICATION PRODUCT T IDENTIFICATION PRODUCT T DIMENSION MAG.LAYERS
FEATURES RoHS compliant. Super low resistance, ultra high current rating. High performance (I sat) realized by metal dust core. Frequency Range: up to 1MHz. APPLICATION PDA, notebook, desktop, and server
E62 AC Series Features
E62 AC Features Perfect for non-sinusoidal s and pulsed s. Housed in a hermetically sealed aluminum can which is filled with environmentally friendly plant oil as standard. The integrated overpressure
NTC thermistors for temperature measurement
NTC thermistors for temperature measurement SMD NTC thermistors with nickel barrier termination, case size 0603 Series/Type: Date: June 2008 EPCOS AG 2008. Reproduction, publication and dissemination of
NMBTC.COM /
Common Common Vibration Test:... Conforms to JIS C 60068-2-6, Amplitude: 1.5mm, Frequency 10 to 55 Hz, 1 hour in each of the X, Y and Z directions. Shock Test:...Conforms to JIS C 60068-2-27, Acceleration
Aluminum Capacitors C, Tubular, Radial Lead
Aluminum Capacitors + 105 C, Tubular, Radial Lead FEATURES Wide temperature range Radial design in two and three lead configuration Ideal SMPS output filter PERFORMANCE CHARACTERISTICS Operating Temperature:
1.575 GHz GPS Ceramic Chip Antenna Ground cleared under antenna, clearance area 4.00 x 4.25 mm / 6.25 mm. Pulse Part Number: W3011 / W3011A
W0 Datasheet version. ceramic antenna. (09/08).575 GHz Ceramic Chip Antenna Ground cleared under antenna, clearance area x 4.5 mm / 6.5 mm. Pulse Part Number: W0 / W0A Features - Omni directional radiation
HIGH CURRENT POWER INDUCTORS / AMPI ED Type Series
ARLITECH ELECTRONIC CORP. TEL:886-2-2999-8313 FAX:886-2-2995-7520 E-mail:sales@arlitech.com.tw HIGH CURRENT POWER INDUCTORS / AMPI ED Type Series Features High performance realized by metal core Compact
HFC SERIES High Freq. Wound Ceramic Chip Inductors
FEATURES High frequency applications. Low DC resistance and high allowable DC current. Close tolerance application.2% tolerence is available for particular inductance values. Small footprint as well as
AL Series - Thin Film Chip Inductor
Features A Photo Lithographic Single Layer Ceramic Chip High SRF, Excellent, Superior Temperature Stability Tight Tolerance of ± % or ±.nh Self Resonant Frequency Controlled within % Stable Inductance
Surface Mount Aluminum Electrolytic Capacitors
FEATURES CYLINDRICAL V-CHIP CONSTRUCTION LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85 O C NEW EXPANDED CV RANGE (up to 6800µF) ANTI-SOLVENT (2 MINUTES) DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
Pb Chip Ferrite Inductor (MFI Series) Engineering Spec.
RoHS Pb Chip Ferrite Inductor (MFI Series) Engineering Spec. FEATURES The monolithic construction performs high reliability and ensures a closed magnetic flux in a component avoids magnetic and interference
Product Selection Tables. 2005 SMD Resistors. Yageo brand
eo.com Product Selection Tables 2005 SMD Resistors Yageo brand Table of Contents www.yageo.com Table of contents Resistor chips, General purpose / Yageo brand 2 General purpose, 0201-0805 2 General purpose,
Terminal Contact UL Insulation Designation (provided with) style form system approval Flux tight
eatures A miniature PCB Power Relay. form A contact configuration with quick terminal type. 5KV dielectric strength, K surge voltage between coils to contact. Ideal for high rating Home Appliances of heating
Data sheet Thick Film Chip Resistor 5% - RS Series 0201/0402/0603/0805/1206
Data sheet Thick Film Chip Resistor 5% - RS Series 0201/0402/0603/0805/1206 Scope -This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material. Features
XIX INDUCTORS XXX XXX XXX. Shielded SMD Power Inductor ORDER INFORMATION FIG1: FIG2: FIG3: Dimensions( unit: mm)
Features *High power, High saturation inductors *With magnetically shielded against radiation *Directly connected electrode on ferrite core *Highly accurate dimensions for surface mounting Applications
SLD Series. SMD Type Shielded Power Inductors. Features. Applications. Lead Free Part Numbering. Dimensions
SMD Type Shielded Power Inductors Features 1. Magnetically shielded Version. 2. High inductance /High Power Inductor. 3. The products contain no lead and also support lead-free soldering. Pb Applications
NPN SILICON OSCILLATOR AND MIXER TRANSISTOR
FEATURES NPN SILICON OSCILLATOR AND MIXER TRANSISTOR LOW COST HIGH GAIN BANDWIDTH PRODUCT: ft = MHz TYP LOW COLLECTOR TO BASE TIME CONSTANT: CC r b'b = 5 ps TYP LOW FEEDBACK CAPACITANCE: CRE=.55 pf TYP
No Item Code Description Series Reference (1) Meritek Series CRA Thick Film Chip Resistor AEC-Q200 Qualified Type
Qualified FEATURE Excellent Mechanical Strength and Electrical Stability Ideal for Pick and Place Machinery Stable High Frequency Characteristics Miniature, High Board Density Equivalent Specification
DATA SHEET Surface mount NTC thermistors. BCcomponents
DATA SHEET 2322 615 1... Surface mount N thermistors Supersedes data of 17th May 1999 File under BCcomponents, BC02 2001 Mar 27 FEATURES High sensitivity High accuracy over a wide temperature range Taped
NTC Thermistor:SCK Series
Features. RoHS & HF compliant 2. Body size: Ф5mm ~ Ф 30mm 3. Radial lead resin coated 4. High power rating 5. Wide resistance range 6. Cost effective 7. Operating temperature range: Φ5mm:-40~+50 Φ8~Φ0mm:-40~+70
MAX-QUALITY ELECTRIC CO; LTD Thin Film Precision Chip Resistors. Data Sheet
Data Sheet Customer: Product: Size: Current Sensing Chip Resistor CS Series 0201/0402/0603/0805/1206/1010/2010/2512 1225/3720/7520 Issued Date: Edition : 12-Nov-10 REV.C5 Current Sensing Chip Resistor
AT Surface Mount Package SOT-363 (SC-70) I I Y. Pin Connections B 1 C 1 E 1 E 2 C 2 B , 7:56 PM
AT-3263 Surface Mount Package SOT-363 (SC-7) I I Y Pin Connections B 1 C 1 E 1 E 2 C 2 B 2 Page 1 21.4., 7:6 PM Absolute Maximum Ratings [1] Absolute Thermal Resistance [2] : Symbol Parameter Units Maximum
CSR series. Thick Film Chip Resistor Current Sensing Type FEATURE PART NUMBERING SYSTEM ELECTRICAL CHARACTERISTICS
FEATURE Operating Temperature: -55 ~ +155 C 3 Watts power rating in 1 Watt size, 1225 package High purity alumina substrate for high power dissipation Long side terminations with higher power rating PART
High Current Chip Ferrite Bead MHC Series
High Current Chip Ferrite Bead MHC Series Features Combination of high frequency noise suppression with capability of handing high current. The current rating up to 6 Amps with low DC. Applications High
LR Series Metal Alloy Low-Resistance Resistor
LR Series Metal Alloy LowResistance Resistor This specification is applicable to lead free, halogen free of RoHS directive for metal alloy lowresistance resistor. The product is for general purpose. The
Current Sensing Thick Film Chip Resistor-SMDB Series Size: 0402/0603/0805/1206/1210/2010/2512. official distributor of
Product: Current Sensing Thick Film Chip Resistor-SMDB Series Size: 0402/0603/0805/1206/1210/2010/2512 official distributor of Current Sensing Thick Film Chip Resistor-SMDB Series 1. Scope -This specification
SMBJ SERIES. SMBG Plastic-Encapsulate Diodes. Transient Voltage Suppressor Diodes. Peak pulse current I PPM A with a 10/1000us waveform See Next Table
SMBJ SERIES SMBG Plastic-Encapsulate Diodes HD BK 7 Transient Suppressor Diodes Features P PP 6W V RWM 5.V- 44V Glass passivated chip Applications Clamping Marking SMBJ XXCA/XXA/XX XX : From 5. To 44 SMBG
High Frequency Chip Inductor / CF TYPE
High Frequency Chip Inductor / CF TYPE.Features: 1.Closed magnetic circuit avoids crosstalk. 2.S.M.T. type. 3.Excellent solderability and heat resistance. 4.High realiability. 5.The products contain no
Multilayer Chip Inductor / CL TYPE
Multilayer Chip Inductor / CL TYPE.Features: 1.Closed magnetic circuit avoids crosstalk. 2.S.M.T. type. 3.Excellent solderability and heat resistance. 4.High realiability. 5.The products contain no lead
Summary of Specifications
Snap Mount Large High CV High Ripple 85 C Temperature The series capacitors are the standard 85 C, large capacitance, snap-in capacitors from United Chemi-Con. The load life for the series is 2,000 hours
Electrical Specifications at T AMB =25 C DC VOLTS (V) MAXIMUM POWER (dbm) DYNAMIC RANGE IP3 (dbm) (db) Output (1 db Comp.) at 2 f U. Typ.
Surface Mount Monolithic Amplifiers High Directivity, 50Ω, 0.5 to 5.9 GHz Features 3V & 5V operation micro-miniature size.1"x.1" no external biasing circuit required internal DC blocking at RF input &
± 20% ± 5% ± 10% RENCO ELECTRONICS, INC.
RL15 RL16, RL17, RL18 MINIINDUCTORS CONFORMALLY COATED MARKING The nominal inductance is marked by a color code as listed in the table below. Color Black Brown Red Orange Yellow Green Blue Purple Grey
Aerovox Corp. Type H High Voltage AC & DC Capacitors. Film Capacitors for Power Electronics Applications. RoHS Compliant. Highlights.
H Aerovox Corp. Film Capacitors for Power Electronics Applications Specifications Outline Drawing Capacitance Range: AC Voltage Range: DC Voltage Range: Temperature Range: Capacitance Tolerance: Dissipation
SPECIFICATION OF CD SERIES
FEATURES 1. Open Magnetic circuit construction 2. Low cost and high reliability SPECIFICATION OF CD SERIES APPLICATIONS Notebook, Inkjet printer, Copying machine, ADSL modem, Cellular phone, Display monitor,
FP series Anti-Bend (Soft termination) capacitor series
FP series Anti-Bend (Soft termination) capacitor series Features Applications» High performance to withstanding 5mm of substrate» For general digital circuit bending test guarantee» For power supply bypass
Monolithic Crystal Filters (M.C.F.)
Monolithic Crystal Filters (M.C.F.) MCF (MONOLITHIC CRYSTAL FILTER) features high quality quartz resonators such as sharp cutoff characteristics, low loss, good inter-modulation and high stability over
Ferrite Chip Bead(Lead Free)
Ferrite Chip Bead(Lead Free) YCM-Series 1.Features 1. Monolithic inorganic material construction. 2. Closed magnetic circuit avoids crosstalk. 3. S.M.T. type. 4. Suitable for reflow soldering. 5. Shapes
Polymer PTC Resettable Fuse: KMC Series
Features 1. RoHS & Halogen-Free (HF) compliant 2. IA size: 0603, 0805, 1206, 1812 3. Hold current ratings from 0.05 to 3A 4. Voltage ratings from 6V computer and electronic applications to 60V 5. Small
38BXCS STANDARD RACK MODEL. DCS Input/Output Relay Card Series MODEL & SUFFIX CODE SELECTION 38BXCS INSTALLATION ORDERING INFORMATION RELATED PRODUCTS
DCS Input/Output Relay Card Series STANDARD RACK MODEL 38BXCS MODEL & SUFFIX CODE SELECTION 38BXCS MODEL CONNECTOR Y1 :Yokogawa KS2 cable use Y2 :Yokogawa KS9 cable use Y6 :Yokogawa FA-M3/F3XD32-3N use
Cal-Chip Electronics, Incorporated Multilayer Chip Inductors For High Frequency
Cal-Chip Electronics, Incorporated Multilayer Chip Inductors For High GHF SERIES FEATURES Multilayer inductor made of advanced ceramics with low-resistivity silver used as internal conductors provides
Feature. shock and pressure. -Tighter tolerance down to ±2% -Smaller size of 0402 (1005) -CATV Filter, Tuner. -Cable Modem/ XDSL Tuner.
Wire Wound Chip Inductor-WL Series Feature -Wire wound ceramic construction provide high SRF -Ultra-compact inductors provide exceptional Q values -Low profile, high current are available -Miniature SMD
WIRE WOUND CHIP INDUCTORS
FEATURES High Self-Resonance Frequency Stable inductance at high frequency Tight inductance tolerance High Q factory High current Low DCR APPLICATIONS Antenna amplifiers Mobile phone Key entry GPS (Global
LR Series Metal Alloy Low-Resistance Resistor
Tel : 881745 Fax : 881749 LR Series Metal Alloy LowResistance Resistor This specification is applicable to lead free, halogen free of RoHS directive for metal alloy lowresistance resistor. The product
SCL Series. Multilayer Chip Ferrite Inductor
Multilayer Chip Ferrite Inductor Features 1 Monolithic structure for high reliability 2 Compact size inductor possible 3 No cross coupling due to magnetic shield 4 Perfect shape for mounting with no directionality
No item Digit Description Series Reference (1) Meritek Series SI Signal Inductor LI: Leaded Inductor PI: Power Inductor
PART NUMBERING SYSTEM SI F 0805 K 780 F (1) (2) (3) (4) (5) (6) No item Digit Description Series Reference (1) Meritek Series SI Signal Inductor LI: Leaded Inductor PI: Power Inductor (2) Type F Ferrite
