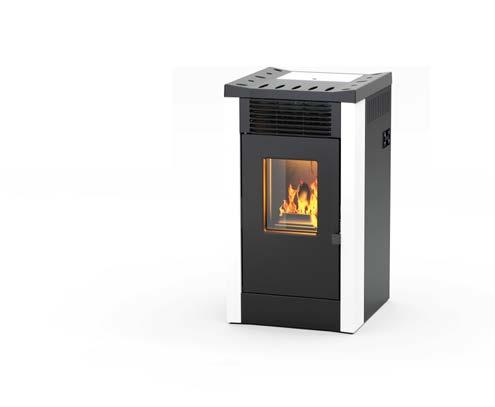

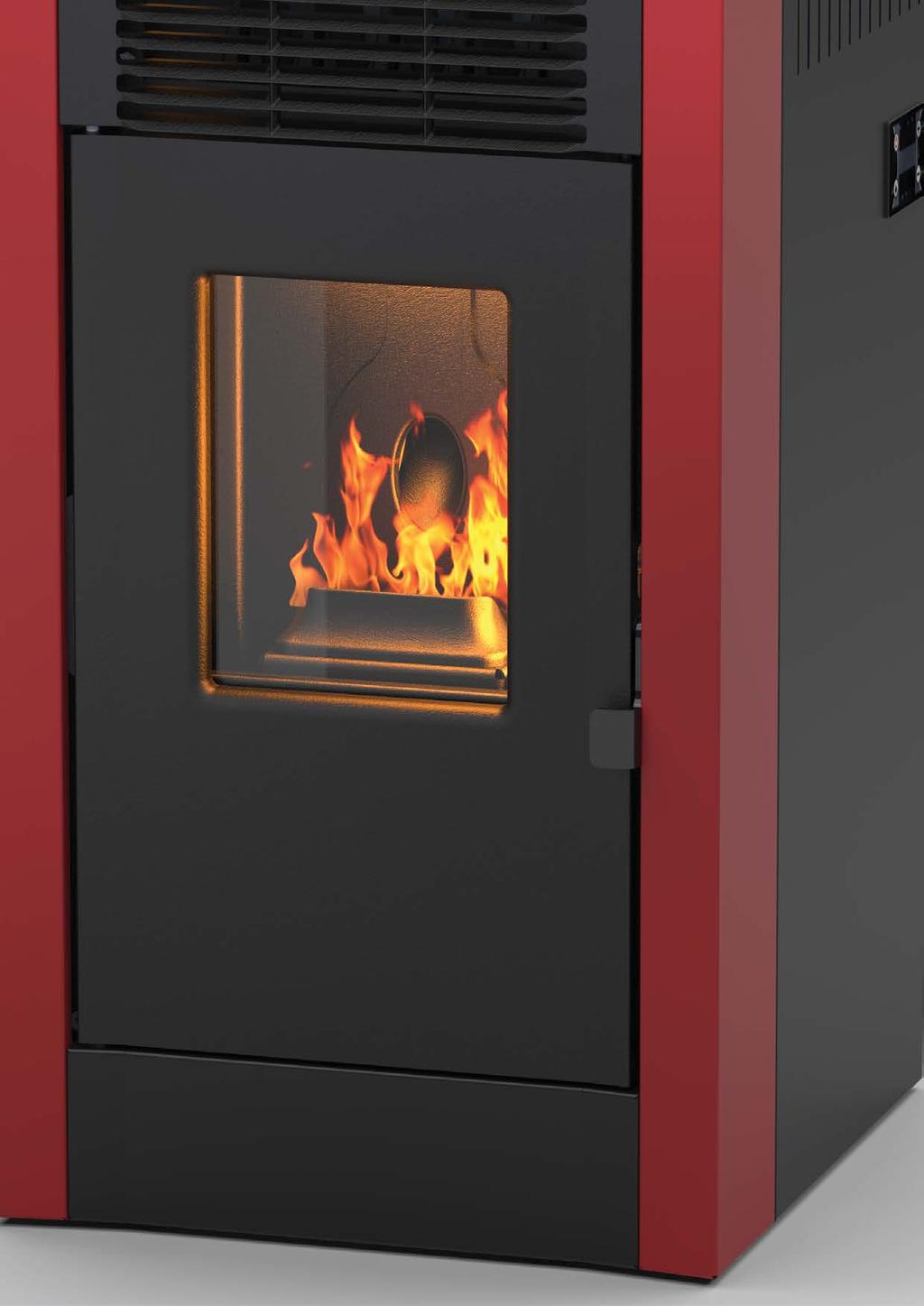

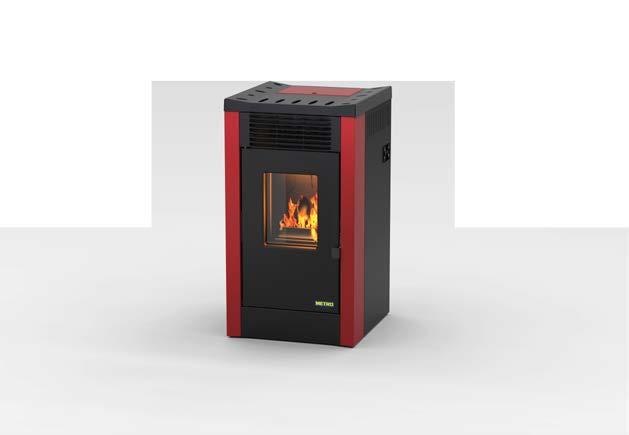

Pellet P50 FAN HEATER STOVE. NEW Fan heater Pellet stove P50.
|
|
- Χρυσόστο&m Παλαιολό
- 4 χρόνια πριν
- Προβολές:
Transcript
1 Pellet FAN HEATER STOVE P50 NEW Fan heater Pellet stove P50

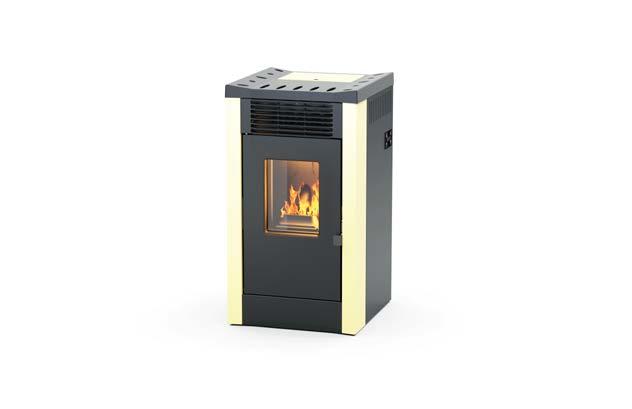

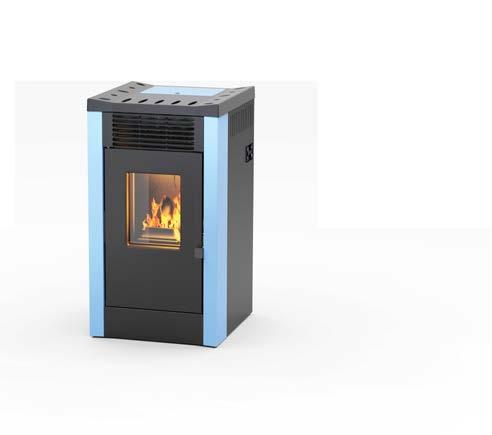

2 Pellet P50 FAN HEATER STOVE 6,6 kw FAN HEATER PELLET STOVE Fan heater stove Pellet P50 is a stove with unique design, sloping lid and hot air through specially arranged air grilles that is equable distributed to the environment. It is a stove designed for hot air production with automatic wood pellet combustion. All operation faces are being managed through an electronic board with a special program, that aims high performances and low emissions with maximum safety. The hot air that is being produced is assigned to the operating space through air grilles to the stoves frontage. Main operating phases can be managed with a remote control. A connection with special equipment is also available, allowing ignition from a distance.
3 Benefits: Low 8 Combustion chamber made of steel with high thermal resistance, lined with cast iron (GG-20) for protection from the corossive effects of combustion Great autonomy (24 hrs) Friendly and ease to use operation menu Burner entirely manufactured by certified steel Remote control capability with key fobs consumption, with high efficiency up to 92% Automatic operation Remote control capability with mobile phone
4 TECHNOLOGY Negative pressure combustion fan controlled by the digital controller. Hot air fan of 220 m3/h with adjustable intensity. Exhaust output to Ø 100. Pellet supply, to the combustion chamber, system with electric reducer and auger electronically adjusted by the controller with block protection. Electrical resistance of direct incandescent for automatic ignition of the pellet. Adjustable legs with plastic pad for easy adjustment of the flatness. Hot air output louvers to the room. Cast iron burner for pellet combustion with special air flow fissures for perfect combustion quality. Ash collector. GG-20 certified cast iron lining at the burner and the combustion chamber, with high thermal radiation reflection while in parallel protects the water chamber from thermal and chemical stresses by increasing dramatically the stove s life cycle. Airtight door with cast iron frame. Large panoramic view ceramic with glass high resistance to temperature (750 ). Room heat thermostat which controls the combustion power depending on the desired temperature that the user has set. Hot air route from the fan to the heat exchanger. Large pellet tank capacity (15Kg) with pellet level sensor with acoustic signal for pellet refilling.
5 31,05 13,05 15,67 24,68 26,00 19,40 82,95 28,40 58,79 33,30 50,00 8,20 51,58 TECHNICAL SPECIFICATIONS kw 50 DIMENSIONS Nominal Power kw 6,6 Heating Ability m 2 70 Efficiency % 82 Pellet Consumption kg/h 0,7-2 Power Consumption W <100 W during operation Electrical Connection V-Hz Exhaust Pipe Diameter mm 100 Combustion Air Supply Diameter mm 60 Pellet Tank Capacity kg 15 Exhaust Gas Outlet Temperature o C 170 Weight kg 100 Standards ELOT ΕΝ CO (Σε 13% Ο 2 ) mg/nm 3 mg/nm 3
6 HEAD QUARTERS - SHOWROOM 7th km Kozani - Ptolemaida Tel Fax BRANCH OFFICE 7th km Ioannina - Athens Τel./ Fax TECHNICAL SUPPORT DEPARTMENT info@caminodesign.gr support@caminodesign.gr SALES DEPARTMENT sales@caminodesign.gr AUTHORIZED DISTRIBUTOR CAMINODESIGN SAMOUKATSIDIS BROS The present document is ownership of CAMINODESIGN. It is forbidden the overall reprint and distribution to third parties without the prior written permit of CAMINODESIGN. CAMINODESIGN holds all legal rights.
