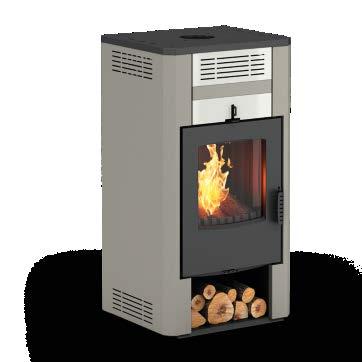

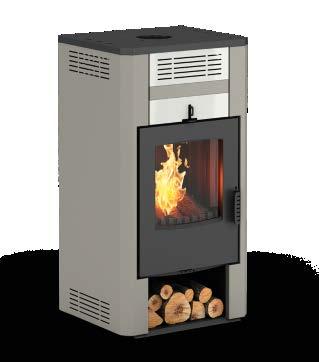

1 HYDRO 30 WOOD BURNING STOVE

2 HYDRO 30 WOOD BURNING STOVE 30 kw Benefits 1 2 Low consumption 4 5 Easy High Efficiency 3 Cast iron combustion chamber with great endurance Safe use 6 High Constructioning Quality Installation

3 ΤΕCHNOLOGY

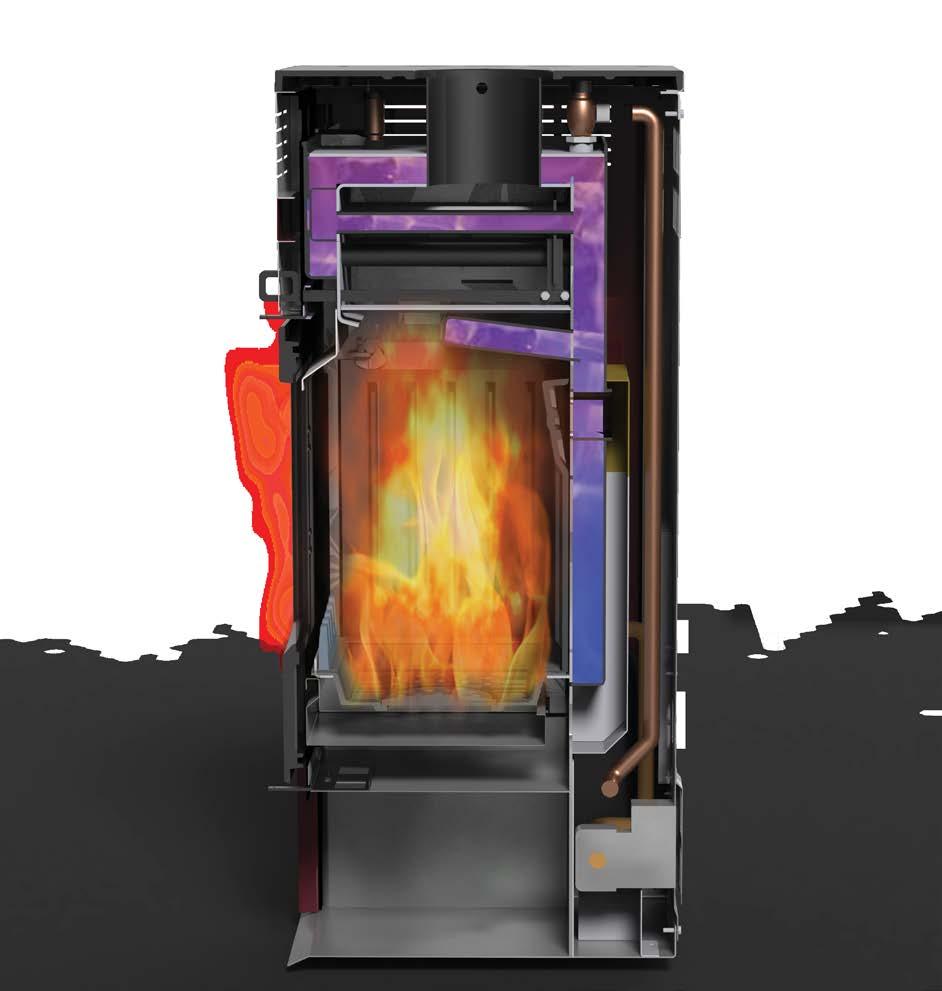

4 The double walled combustion chamber is made of sheet steel, with thick water jacket reinforced with internal refractory certified iron GG-20, with great thermal resistance and excellent thermal radiance. The extra cast iron wall contributes to the protection of the steel plates that surround the eater from chemical and thermal corrosion dramatically increasing the duration compared to common cast iron boilers. Secondary combustion system with regulated air supply to the unburned gases that are produced during the combustion, which adds more oxygen to the fire. The carbon monoxide (CO) converts into carbon dioxide (CO2) reducing this way the harmfull pollutants produced causing ptimum combustion and high efficiency. Hot water circulation chamber (water jacket) with innovate design which increases at maximum the surfaces that come in contact with the combustion chamber for direct and proper heat exchange. Main and secondary combustion air intake regulator with which optimum combustion and fuel consumption control is achieved. Airtight cast iron door with high thermal shock resistance 750 C and auto cleaned ceramic glass. Air curtain system with adjustable air supply of crystal and prevent smut adhesion. Hot water s flow pipe cleaning scraper for removing the tar and smut deposits and assuring the continually high heat transfer to the water. External decorative metallic coating (powder coating) with high corrosion resistance in a variety of colors. Adjustable rubber feet for proper flatness setting and to avoid damaging the floor. 10 Built in hot water supply and return piping from and to the network on the rear of the stove with the option of the compact version with pump circulator, expansion vessel and water thermostate. 11 Double heat exchanger hot water flow pipes for excellent heat exchange from the exhaust fumes and the combustion chamber to the water. 12 Built in thermostatic safety valve 95 C 3 Bar and bleeder. 13 Fire wood storage. 14 Ash collector. 15 Main and secondary combustion air flow. 16 Air curtain s air flow.

5 TECHNICAL SPECIFICATION NOMINAL OUTPUT kw 30 Water Heat Power (max) kw 22 Efficiency % 83,8 Continues Operation Cycle h Consumption kg/h 2,2-6,5 Fuel Wood/ Biomass Briquettes Heating Ability m 2 >150 m 2 Exhaust gas diameter mm 150 Operating pressure bar 1,5 Maximum operating pressure bar 3 Water tank capacity l 40 Recommended operating temperature o C Weight kg 220 Standards ΕΝ13229, ΕΝ303.05, ΕΝ304
