2 / Wood log burning boilers CAMINODESIGN INTRODUCES HYDROWOOD 40/70 WOOD BURNING BOILERS. Individual heating units ideal for apartments or houses with low energy consumption. Hydrowood operation is based on the mechanical draught of the ﬂue gas, through an electronically controlled vacuum fan, to ensure maximum heat transfer to the water.

3 83 Application: Domestic Heating Fuel: Log wood with moisture content w 25 %, according to EN Benefits at a glance: 1 High efficiency up to 89% Low consumption with long wood refueling time down to once or twice a day Smooth operation without blockings, even with improper humidity woods Minimum maintenance Heavy duty bimetallic boiler with long lifetime Safe use with fire extinguishing operation in case of blackout

Wood log burning boilers 4 FUEL Wood/ Biomass Briquettes

efficiency Electronic controller for boiler s combustion

gas extraction fan Electrically controlled combustion air

4 Wood log burning boilers 4 FUEL Wood/ Biomass Briquettes Four turns steel heat exchanger which ensures maximum efficiency Electronic controller for boiler s combustion and eﬃciency settings adjustment Automatic controlled ﬂue gas extraction fan Electrically controlled combustion air supply mechanish with automatic throttling device in case of blackout

5 Wood log burning boilers 5 TECHNOLOGY

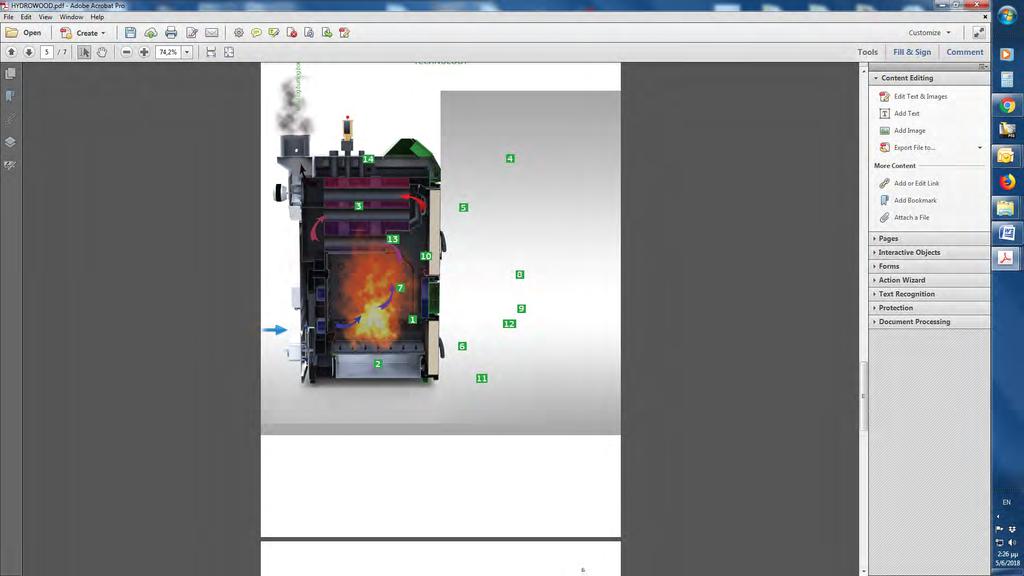

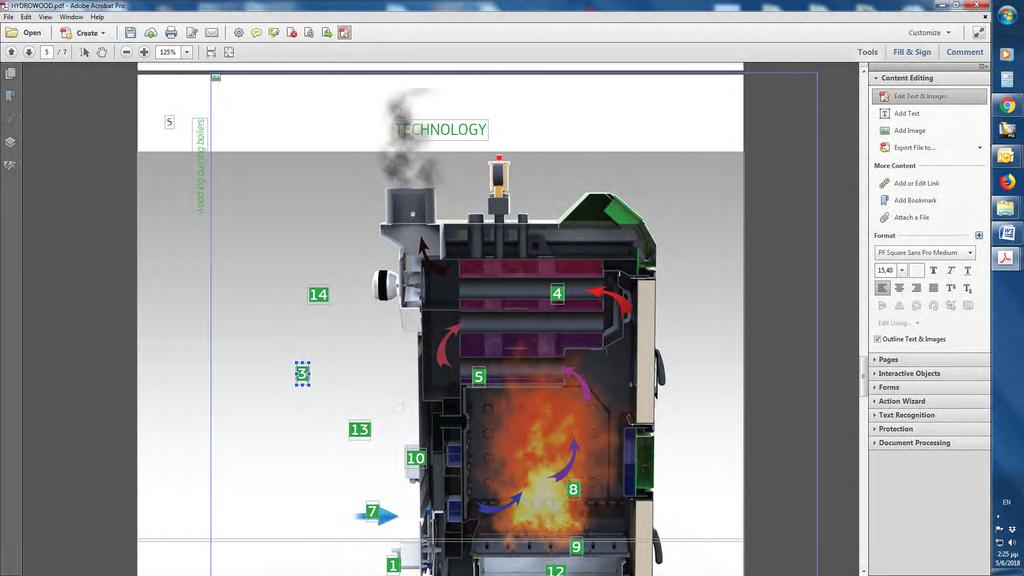

6 GG-20 certified cast iron lining at the burner and the combustion chamber, with high thermal radiation reflection while in parallel protects the water chamber from thermal and chemical stresses. This feauture increases dramatically the boiler s life cycle compared to other common steel boilers. Another major advantage is that the cast iron can be replaced with new in case of normal wear from use, by converting the boiler to new with minimum cost Electrical moving diaphragm with return spring for controlling the combustion air supply. The motor is electronically controlled by the controller depending on the boiler s state. Its main advantage is that in case of power failure the diaphragm automatically closes interrupting the air supply extinguishing the fire this way, this function contributes to the maximum safety use Electronically controlled flue gas fan with speed sensor (hall sensor) for the correct adjustment of the intensity of combustion and exhaust through the chimney preventing the accumulation of smut and the unwanted blockage in the heat exchanger. The boiler is equipped with a system that is interconnected between the flue gas motor an the door, which during the feeding, prevents the flue to exit from the burning chamber, by increasing the motors RPM at maximum User friendly boiler s electronic controller with which control and programming of every function of the boiler can be achieved Carbon steel heat exchanger with horizontal four-way tubes. The tubes arrangement in conjunction with the draught fan does not require special maintenance for the reason that the solid residues are driﬅed along with the flue, and are stored to a separate chamber Special steel perimetric construction for proper air flow to the combustion chamber, which distributes the incoming air evenly to the wood logs ensuring the ideal combustion without unburned residues Combustion system with regulated air supply to the unburned gases that are produced during the combustion, by adding more oxygen to the fire. The carbon monoxide turns into carbon dioxide reducing the harmful gases produced causing optimum combustion and high efficiency Special refractory door coating that is reducing to minimum the heat losses and maintaining the heat inside the boiler Fire inspection window with ceramic glass Four turns flue gas tubes, taking advantage of the total heat produced by the burning process and transferring it to the water Ash collecting canister Large area of wetted surfaces in contact with the fire even in the front of the boiler thus ensuring maximum heat absorption by the water Storage chamber of the solid residues (ashes) escaping from the combustion chamber to the heat exchanger Flue gas sensor for controlling and regulating the mode of the boiler controller

7 TECHNICAL SPECIFICATIONS 7 C 100,00 87,32 252, ,08, ,55 35,0 0,00 49 A 706,89 559,18 338,60 218,60 386, , ,50 B 663,00 525,00 903,69 HYDROWOOD ,78 100,00 87,29 C Ø , , ,53 35,00 644,63 766,75 218,60 A 756,89 338,60 49,00 386, , ,77 B 628,75 949,09 HYDROWOOD 70 DIMENSIONS Nominal Power Eﬃciency Fuel Wood Length Weight Exhaust Diameter Operation Pressure Maximum Operation Pressure Water Capacity Operating Temperature Electrical Connection Power Consumption kw % cm kg mm bar bar kg oc V/Hz W HYDROWOOD 40 HYDROWOOD , ,5 WOOD/ BRIQUETTES WOOD/ BRIQUETTES , V, 50/60Hz , V, 50/60Hz 80

HEAD QUARTERS - SHOWROOM 7th km Kozani - Ptolemaida Tel. +30 24610 45446 Fax.

+30 26510 91413 TECHNICAL SUPPORT DEPARTMENT info@caminodesign.gr support@caminodesign.

gr AUTHORIZED DISTRIBUTOR CAMINODESIGN SAMOUKATSIDIS BROS The present document is ownership

8 HEAD QUARTERS - SHOWROOM 7th km Kozani - Ptolemaida Tel Fax BRANCH OFFICE 7th km Ioannina - Athens Τel./ Fax TECHNICAL SUPPORT DEPARTMENT info@caminodesign.gr support@caminodesign.gr SALES DEPARTMENT sales@caminodesign.gr AUTHORIZED DISTRIBUTOR CAMINODESIGN SAMOUKATSIDIS BROS The present document is ownership of CAMINODESIGN. It is forbidden the overall reprint and distribution to third parties without the prior written permit of CAMINODESIGN. CAMINODESIGN holds all legal rights.
