PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL
|
|
|
- Κύνθια Κορωναίος
- 6 χρόνια πριν
- Προβολές:
Transcript
1 R PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL S-M SW MOD OPEN RX PWR PUSH SEL DVD/CD/MP3 PLAYER REG ENT MUT PTY TA AF SCN 3 RPT 4 SHF 5 6 AMS/ BND MENU
2 CONTENTS Page Disassembly Instructions... 3 Disassembly Diagram... 4 Operation Check... 5 Block Diagram... 6 Alignment Locations... 7 Alignment Procedures... 8 Printed Circuit Boards... 0 Exploded Views (Panel)... 0 Exploded View Parts Lists (Panel)... Exploded Views (Cabinet)... Exploded View Parts Lists (Cabinet)... 3 Schematic Diagram... 5 Electrical Parts List Specifications... 37
3 DISASSEMBLY INSTRUCTIONS. Using the unlock key that came with the unit or a similar tool, unlock the Mounting Box and remove toward the rear of the unit.. Remove two screws (A) located on the rear of the top cabinet then remove the Top Cabinet. 3. Remove two screw (B) located on the rear of the bottom cabinet then remove the Bottom Cabinet. 4. Remove the screw (C) and (D) from on the left side of the U bracket. Remove the screw (E) and (F) from on the right side of the U bracket. 5. Take out the Panel and remove the Ring. 6. Remove the screw (G) from on the front side of the base and remove two screws (H) from under the front deck bracket then remove the Front Deck Bracket. Remove two screws (I) from under the rear deck bracket then remove the Rear Deck Bracket. 7. Remove two screws (J) from on the Heat Sink then remove the Spring Sheet. 8. Remove five screws (K) from on the Heat Sink then remove the Heat Sink. 9. Remove two screws (L) from each side of the base then remove the Base. 0. Remove two screws (M) from on the back of the U bracket then remove the DC FAN V. Remove two screws (N) from on the back of the U bracket then remove the Wire Clip.. Remove three screws (O) from under the main board then remove the Main Board. 3
4 DISASSEMBLY DIAGRAM 4
5 GENERAL SPECIFICATIONS OF SIGNAL OPERATION CHECK Standard frequency Signal output FM MW LW FM MW LW 98. MHz (87.5, 08 MHz) 000 khz (5, 60 khz) 00 khz (44, 88 khz) mv 5 mv 5 mv Modulation MW 400 Hz 30% MOD. FM Stereo khz 75 khz DEV. 90% for L only or R only pilot level 0% AF output level FM/MW/LW Power source voltage DC 4.0V (Backup voltage is the same as this) AF load impedance 4 ohm pure resistance Balance Center position of level Tone Center position The signal strength read in this section is voltage on the antenna. Test Diagram FRONT SPK. -SPEAKER RL. SPR. FL. SPK. 4-SPEAKER 4-SPEAKER RR. SPK. FR. SPE. -SPEAKER FRONT SPK. ACC (DV4.4V) BACK UP (4.4V) GROUND POWER ANTANNA MAIN UNIT ANT DISTORTION METER VTVM VTVM DUMMY ANTANNA MPX STEREOS MODULATOR AM SG FM SG 5
6 BLOCK DIAGRAM (RADIO SECTION) 6
7 BLOCK DIAGRAM (DVD SECTION) 7
8 ALIGNMENT LOCATIONS MITSUMI TUNER 8
9 ALIGNMENT PROCEDURES FM ADJUSTMENT Equipment Required AM IF/RF signal generator Solid-state voltmeter (SSVM) Regulated DC power supply -CH voltmeter Distortion meter FM Alignment Using FM Signal Generator Note: Press the radio power switch to on the radio. Signal generator output must be kept as low as possible to avoid overload and clipping. Step Generator Coupling Generator Display Setting Adjustment Remarks Stereo Separation Signal Generator to antenna receptacle 98. MHz Int. khz Dev. 75 khz L+R = 90 % pilot = 0 % 98. MHz VR Adjust AF output power at maximum separating more than 30 db FM SNC Adjustment 98. MHz Dev. 75 khz L+R=90 % Int. khz 60dBµV output dbµ 98. MHz VR Stereo Separation 5 db (±5 db) Stop SENS. Signal Generator to antenna receptacle 98. MHz Mod. khz Dev 75kHz 98. MHz VR3 Adjust AF to stop station. Note: The tuner module is well-adjust and adjustment is not recommended. 9

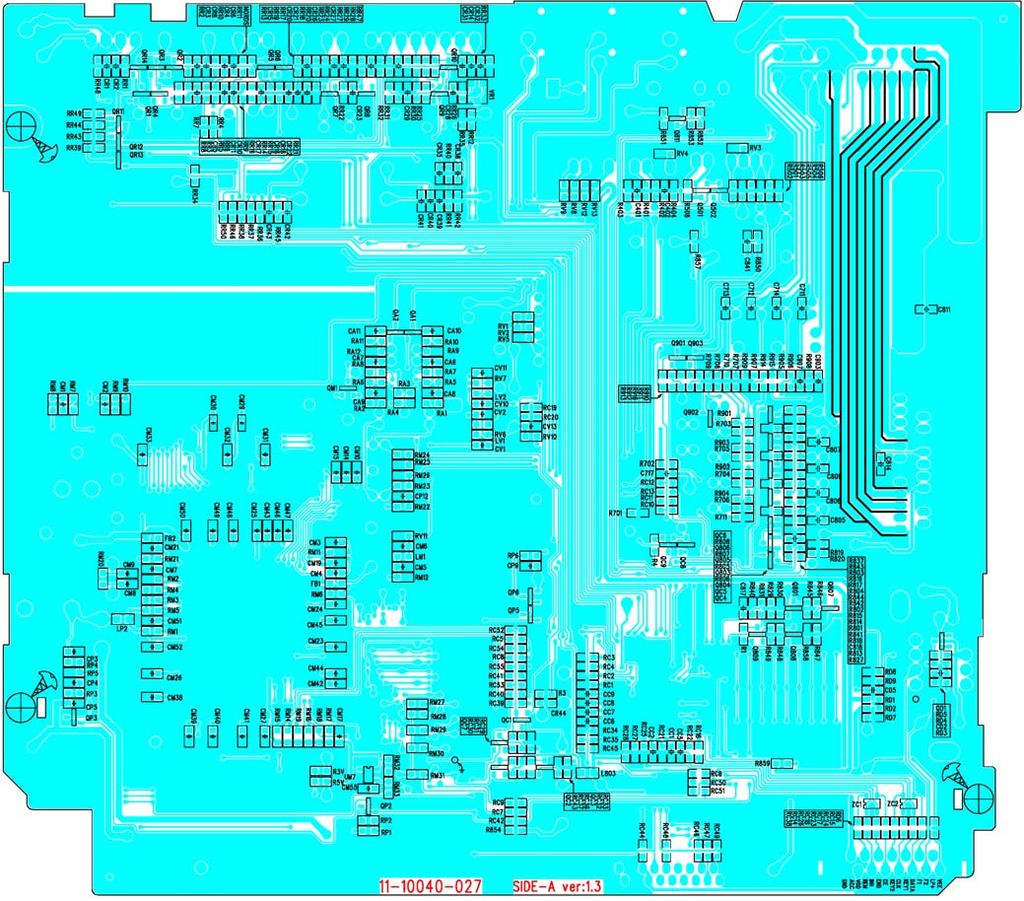

10 PRINTED CIRCUIT BOARDS MAIN BOARD TOP VIEW 0

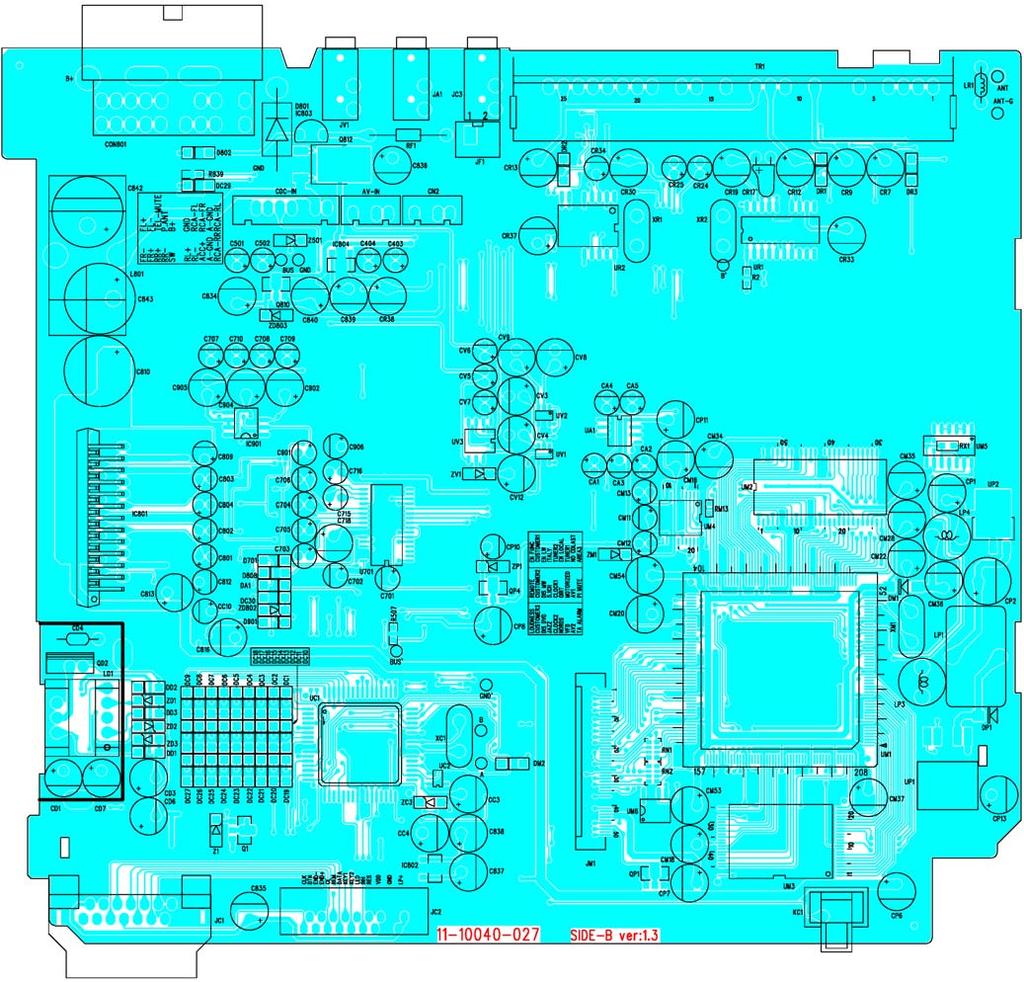

11 MAIN BOARD BOTTOM VIEW

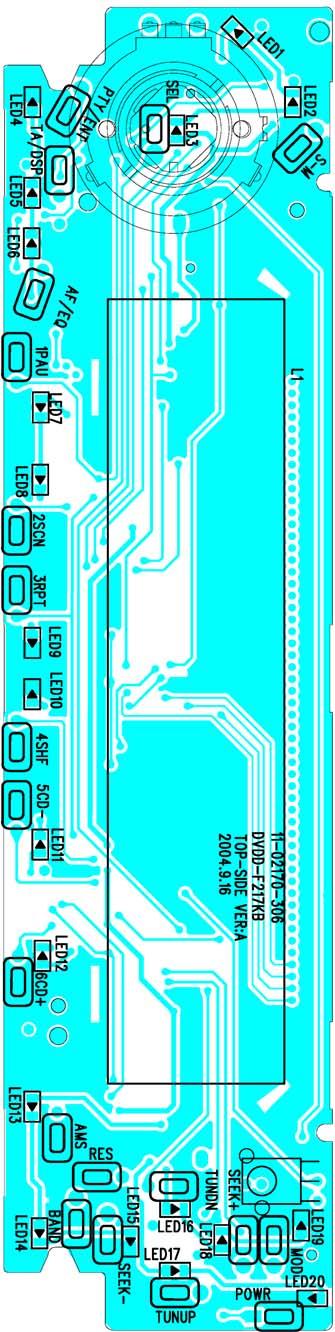

12 KEY BOARD TOP VIEW

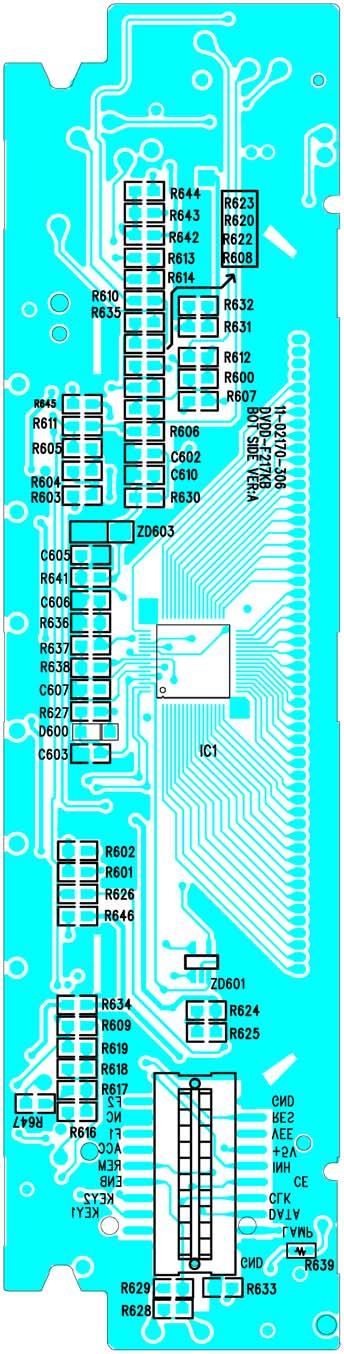

13 KEY BOARD BOTTOM VIEW 3

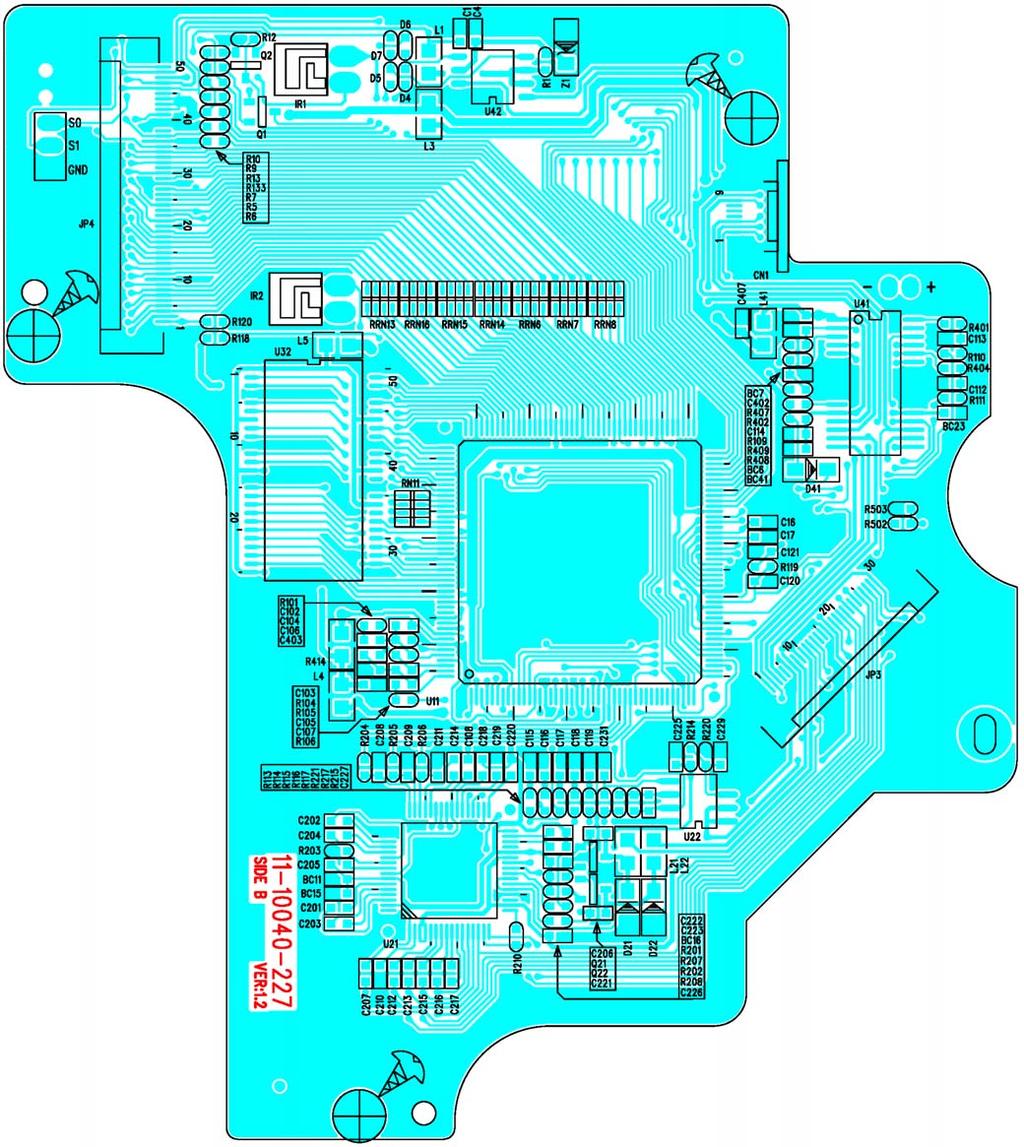

14 CD SERVO BOARD TOP VIEW 4

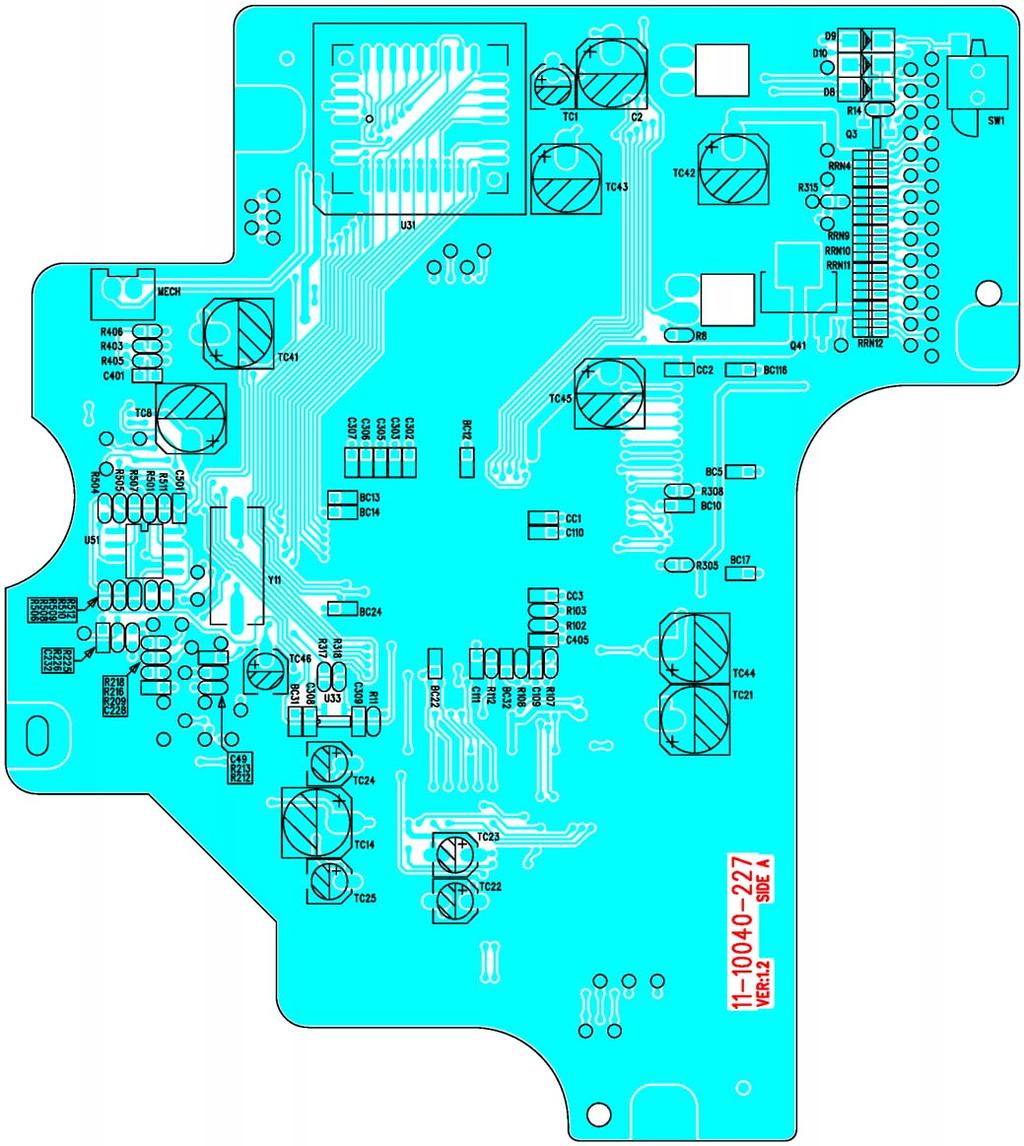

15 CD SERVO BOARD BOTTOM VIEW 5
16 REMOTE BOARD TOP VIEW 6

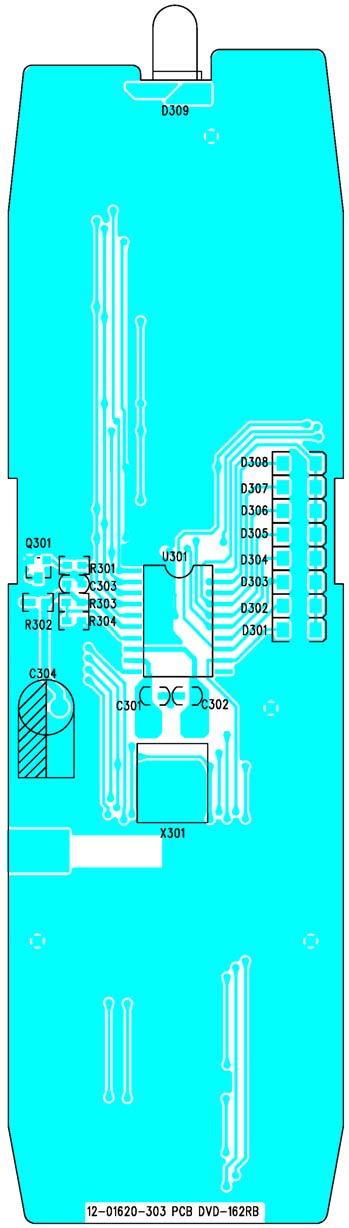

17 REMOTE BOARD BOTTOM VIEW 7
18 FRONT BOARD TOP VIEW 8

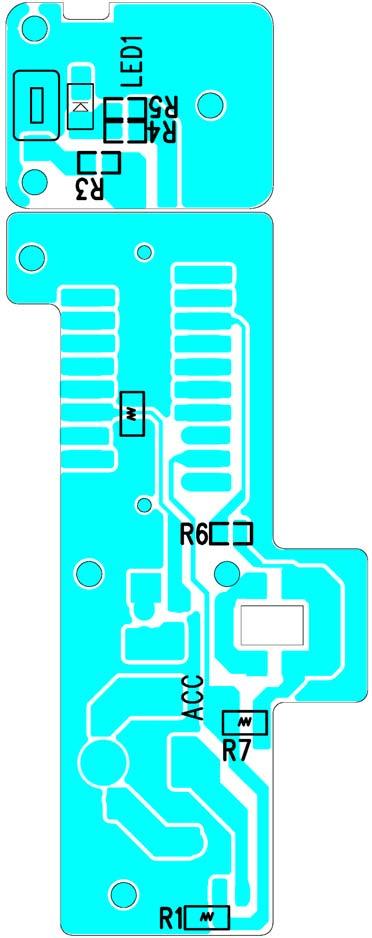

19 FRONT BOARD BOTTOM VIEW 9
20 PANEL EXPLODED VIEW 0
21 EXPLODED VIEW PARTS LIST PANEL Ref. No. Description RS Part No. Mfr s Part No Lens; (S. OPC0000) DVD W/O RDS T. Panel (S. OPC0) F W/RDS Panel Bottom (F) PC Open Knob (S. OP0) Reset Spring VOL Knob (S. OP0) Push SEL Knob (L-Up) (S. OP0) Push SEL Knob Backlight Part (SPY/Blue) S-M Knob (L-Up) (S. OP0) SCN/DSP/EQ Knob (L-Up) (S. OP0) ~6 (L-Up) (S. OP0) MOD/AMS/Stop (L-Up) (S. OP0) PREV/Next Knob (L-Up) (S. OP0) Menu Control Knob (L-Up) (S. OP0) MOD/PWR Knob (L-Up) (S. OP0) Key Board ENCODER SRGP0000 (ALPS) LCD Cover DVD7 LCD TN Color Black Mask 99X5.3MM PIN LED B.L. QB X99 WHT Axis Post Right Side Block Contact Spring Left Side Block E-Ring Ø.5X4X0.4MM Screw ØX8 BH/ST Black 53-D D-87B 5-D D C D D D D D6-8 5-D D D D D D E Y 0-A E E
22 CABINET EXPLODED VIEW
23 EXPLODED VIEW PARTS LIST CABINET Ref. No. Description RS Part No. Mfr s Part No. Panel Ring (S. OPC0) D 3 Base 5-E U Bracket (DVD/Wire) 6-D DVD MECH. Slot Type (HPD-60) Heat Sink (For Wire) 6-E Top Cabinet 6-B Bottom Cabinet (For Wire) 6-B Main Fiber 35-B Main Board Mounting Box (07) Shade CD Windows Sheet 43-A Hook Shaft 34-D Hook Spring 36-E Hook 5-E Push Out Spring 36-E Panel Pole 5-E Base Back Light (F) 5-D Front Board PIN Socket 5-F07-0 EJ Knob (L-Up) (S. OPC0000) 5-E Eject Board Right Bracket 39-E0-0 5 Damper Gear Ass y /9-4 T/Q Middle Gear (F) 5-E Left Bracket 39-E0-0 8 Deck Front Bracket (DVD) 39-D Deck Rear Bracket 39-B FM Cover 39-D MITSUMI Tuner FAE-347-A Spring Sheet 39-B DC FAN V 30X30X Hexagon Nut M Wire Clip.0MM 39-B Screw Ø5X8 HH Spring Washer M Hexagon Nut M Screw ØX3 CH/MS Black H 40 Screw ØX4 BH/MS Black
24 Ref. No. Description RS Part No. Mfr s Part No Screw ØX6 PA/ST Black Screw Ø.6X4 BH/MS Screw Ø.6X5 BH/TAPTITE Screw Ø.6X6 BH/MS Screw Ø.6X6 PH/MS Black Screw Ø.6X0 BH/MS Screw M.6X0 PH/MS
25 SCHEMATIC DIAGRAM (MAIN BOARD) 5
26 SCHEMATIC DIAGRAM (MPEG BOARD) 6
27 SCHEMATIC DIAGRAM (KEY BOARD) 7
28 SCHEMATIC DIAGRAM (CD SERVO BOARD) 8
29 D309 SIR56B S8 ANGLE BT BATTERY.5Vx D S5 7 C303 0.UF C304 47uF S6 8 S 3 S7 9 S8 SMART/MODE R309 0 S 4 S3 5 S4 6 S7 SEL S8 0 S9 S0 S3 SUBTITLE S4 BAND/MENU S5 TITLE S6 SETUP S9 AUDIO U30 upd6g KI0 KI KI KI3 REM VDD SEL OSCO OSCI VSS CCS K/IO0 K/IO K/IO K/IO3 K/IO4 K/IO5 K/IO6 K/IO7 LMP S0 DISPLAY S ENTER X30 CSB455E S PLAY/PAUSE S POWER/ILL R30 S9 VOL+ S5 SKIP-/DOWN S ZOOM/SLOD C30 0P(NP0) S30 VOL- S6 FF S3 STOP C30 0P(NP0) S3 SOURCE S7 REW S4 SKIP+ Q30 C785 9 SCHEMATIC DIAGRAM (REMOTE BOARD)
30 ELECTRICAL PARTS LIST Ref. No. Part No. Description Q ty PC BOARD ASSY, MAIN BOARD QC,5,7,9,QP6,QM QC4,6,8,QP,3,5,QR,3/4 QA,,Q803~6 QP Q807/9,QC,QR Q8 Q80,QR Q808,8,90~3,QC3,QR~6 Q,80,QP4 ZC, DM D70,80/8,90,DA,DC4,9,,6/7/9,30, DR DP ZC3 ZD80 ZM,ZV Z ZD803 ZP UP UP UV3 UM6 UV, U70 UA,IC90 UC UM UM IC80 IC80/4 IC803 UM4 UC UR UM3 XC,XR KRA06S (SOT-3) KRC06S (SOT-3) KRC3S (SOT-3) TR. CHIP SB3Q ROHM KTA98 (SOT-3) KTA385D (DPAK) TR. KTC365-Y TRANSISTOR SC3875G TR. KTC4375-Y (SOT-89) E.S.D. DIODE NNCD6.G (5PIN) CHIP IN400 (SOD-06) DIODE CHIP RLS ROHM CHIP IN589 (SOD-6) 3.3V ZENER DIODE SMD06 CHIP ZENER DIODE 3.6V ±5% (LL-34) CHIP ZENER DIODE 5.V ±5% (LL-34) CHIP ZENER DIODE 9.V ±5% (LL-34) CHIP ZENER DIODE 0V ±5% (LL-34) V ZENER DIODE (SMD-06) FIX 3.3V VOLTAGE REGVLATER AMS7-3.3 SWITCH POWER IC 5V (AP50-5.0K) IC CHIP NJM35M JRC EEPROM (FLAT PACK) 4C0 IC NJM575F (MTP6) IC BD380FS (SSOP-A3) NJM4580M (SOP-8PIN) IC BD4735G (SMP5) ES6008 (FQFP-08PIN) W98646DH-6 (TSOP II-54PIN) IC TDA7384A (4X40W) Y KIA 78L05F (SOT-89) REGULATOR LC-78L8 WM878 (SSOP-0PIN) MCU RS (RDS+DVD) IC TC957F AM9 LV800BT-90 (TS048) DVD004 CRYSTAL HC-49/US 7.MHZ
31 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Part No. Description Q ty XM XR CR7 C805~8,CA8,9,CC,,CR3,6 CR5,,6, S CRYSTAL 7MHZ (HC-49/US) ±5PPM CRYSTAL 4.33MHZ (HC-49/µS) TAN CAP.µF 6V CHIP 000PF ±5% NPO 0603 SMT CHIP 0.0µF ±0% X7R 0603 SMT 4 C77,903/7,CR7,3,CV,,0//3,CC5,7, CM~4,0/4/5/7/9,/3~7/9~33/8~5,CP 3~5, CHIP CAP 0.µF ±0% Y5V 0603 SMT 55 CA6,7,CM6 C40/ CR0/ CR0 CA0/ C87,CC6,CR,8,4/6/8,35/9 CR4 CC9,CM8,9 CM5 CR/3 CC8,CR4/3 CR40 CR4 C84 CR36 C70~6,8,838,906,CA~5,CM~3,CP,7,0,CV6,7 C78,83,834~7/9,840,90/4/5,CP6,8,/ 3,CR9,/3,30,CV3,8, CP CV4,9 C80,843 C809,CC0 CR7 C403/4,70/7~0,80~4,90,CR4/5 C75/6,CR F L J M M CHIP 50PF ±5% NPO 0603 SMT CHIP500PF ±0% X7R 0603 SMT CHIP 0.05µF ±0% X7R 0603 SMT CHIP CAP PF ±5% NPO 0603 SMT CHIP 00PF ±0% X7R 0603 SMT CHIP 0.0µF ±0% X7R 0603 SMT CHIP 0.µF ±0% X7R 0603 SMT CHIP CAP 7PF ±5% NPO 0603 SMT CHIP 70PF ±5% NPO 0603 SMT CHIP 700PF ±0% X7R 0603 SMT CHIP CAP 30PF ±5% NPO 0603 SMT CHIP CAP 33PF ±5% NPO 0603 SMT CHIP CAP 47PF ±5% NPO 0603 SMT CHIP CAP 0.47µF 6V ±80% 0603 CHIP CAP 560PF ±5% NPO 0603 SMT E CAP. 0µF 6V (4X5) E CAP. 00µF 6V Ø8MM E CAP. 000µF 6V (Ø6X5MM) E CAP. 33µF 6V Ø5X5MM LELON E CAP. 3300µF/6V 05 C Ø3X5MM E CAP. 4.7µF 6V Ø4X5MM E CAP. 47µF 6V (6X5) E CAP. µf/50v (Ø4X5MM) E CAP..µF 50V (4X5) CC3,4,CM6/8,0//8,34~7,53/4,CR33/7/ E CAP. 0µF 6.3V (Ø6X5MM) 6 R70,854/7,RR, CHIP RES. 0Ω /0W 5 R40/,RC5,8,9,9,0,38~4/7,RP4,RR ,3,47,R3V,RX,RV3 CHIP RES 0Ω ±5% 0603 SMT 8 RR4,0,40/,RM CHIP RES 0Ω ±5% 0603 SMT 5 3
32 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Part No. Description Q ty RC4/5/7/8,6,44,RR7,9,4 RN, R703~0,80~4,85,93,RR,,8,4/5,36 ~9,43,RA0/,RC6,RP R403/4,7,83,837/9,845/8,85/3,RR6,RM7~9,3,RP,RA9,,RC/3,33/6,5 0 R89,RP3,RM0,3 RC~4,/5 RA,,RM3/4 RM9 RR6 R88,RR5 R40/ R830 R84~7,RR33 RC3/4 RV0,RM,RC45 R4,87,83,90//5 R805~8,89,858,RV6,7,RA7,8 R90~4,RC34 RM RM7, RR3 RA3~6,RR9,0 R70,905 RC7/9 RC3 R907/9 R850/9,RR3,RC3,48,RP CHIP RES 00Ω ±5% 0603 SMT CHIP CN34J RES 00Ω (0603X4 SMT) CHIP RES kω ±5% 0603 SMT CHIP RES 0kΩ ±5% 0603 SMT CHIP RES 00kΩ ±5% 0603 SMT CHIP RES MΩ ±5% 0603 SMT CHIP RES kω ±5% 0603 SMT CHIP RES 0Ω ±5% 0603 SMT CHIP RES 50Ω ±5% 0603 SMT CHIP RES.5kΩ ±5% 0603 SMT CHIP RES 5kΩ ±5% 0603 SMT CHIP RES.8kΩ ±5% 0603 SMT CHIP RES 80kΩ ±5% 0603 SMT CHIP RES Ω ±5% 0603 SMT CHIP RES 0Ω ±5% 0603 SMT CHIP RES.kΩ ±5% 0603 SMT CHIP RES kω ±5% 0603 SMT CHIP RES 0kΩ ±5% 0603 SMT CHIP RES 70Ω ±5% 0603 SMT CHIP RES 33Ω ±5% 0603 SMT CHIP RES 330Ω ±5% 0603 SMT CHIP RES 3.3kΩ ±5% 0603 SMT CHIP RES 33kΩ ±5% 0603 SMT CHIP RES 330kΩ ±5% 0603 SMT CHIP RES 3.9kΩ ±5% 0603 SMT CHIP RES 39kΩ ±5% 0603 SMT CHIP RES 470Ω ±5% 0603 SMT R840,RR9,50,RC6,0/,,35,49,RM~ ,4/5/7~9 CHIP RES 4.7kΩ ±5% 0603 SMT R80,846/7/9,9/6,RC8,37,RR3/4 R94 RR44 RV,,4,5,8,9,,RM0/ LM FB,,LV,,LP,L803 LP3, CHIP RES 47kΩ ±5% 0603 SMT CHIP RES 68Ω ±5% 0603 SMT CHIP RES 680Ω ±5% 0603 SMT CHIP RES 75Ω ±5% 0603 SMT INDUCTOR.UH SMD 0603 CHIP BGH0B60LB SL0805-3R3MR
33 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Part No. Description Q ty LR MB LP JC3 JA JV JM TR F AX TYPE 4.7µH CHOKE COIL W/TC DVD004 RDS MB D/S 8.4X5.3X. TRANS XDN-457A-T50-6B Ø3.5MM JACK (4PIN) W/SW Ø3.5MM JACK 4PIN BLACK Ø3.5MM JACK 4PIN YELLOW 50PIN P=0.5MM L=80MM WIRE FFC DC CONVERT PLUG WITH WIRE 340MM 50P SOCKET 5000A-50T-B SUYIN PIN SOCKET JENSEN MCC856 MITSUMI TUNER FAE-47-A9 PC BOARD ASSY, KEY BOARD ZD60 ZED~0 D600 ZD603 IC C605 C603/6/7,60(RC) C60 (RC) R66 R630(RC) R67 R633/4,64/3/5/6 R647 R639 R60/9,64/9,63 R635 R600,6 R60,60 R607 R6/3 R64 R603,644 R6 R67 604,60 R608,636~ f A F E.S.D. DIODE NNCD6.G (5PIN) SMD SMD LED BRH RED STANLEY DIO CHIP RLS ROHM ZENER DIODE SMD 6.V (LLDS) 06 LED B.L QB X99 WHT IC PT654LQFP CHIP CAP CMCH0K5AT CHIP CAP 0.µF 5V Z5U ±0% CHIP CAP CMX7R3K5AT CHIP RES 0Ω /0W CHIP RES 00Ω /0W CHIP RES 00kΩ /0W CHIP RES 0Ω /0W CHIP RES.5kΩ /0W CHIP RES 5kΩ /0W CHIP RES 80Ω /0W CHIP RES.8kΩ /0W CHIP RES 8kΩ /0W CHIP RES 0Ω /0W CHIP RES.kΩ /0W CHIP RES.7kΩ /0W CHIP RES 70kΩ /0W CHIP RES 330Ω /0W CHIP RES 3.9kΩ /0W CHIP RES 39kΩ /0W CHIP RES 470Ω /0W CHIP RES 4.7kΩ /0W
34 ELECTRICAL PARTS LIST - CONTINUED R69 R68,64/5,63/ R605 R606 R68 KB POWER Q Q,/ IR, D~3,9,/,4 Z Q4 U3 U U33 U U4 U4 U,5 U3 Y C3,5~7,30 C7 C08,7/8,8,/3 Ref. No. Part No. Description Q ty C,4,49,04/6/7,0/5/6/9,50~3/5/7,55/ 6/8/9,53,BC5~7,0~7,~4,3/,4,6 C0/ C0 C308 C08/9,,7 C05 C3/4 C,40 C0,, A A M07-0 CHIP RES 47kΩ /0W CHIP RES 560Ω /0W CHIP RES 680Ω /0W CHIP RES 6.8kΩ /0W CHIP RES 8kΩ /0W DVDD-F7 KB LCD/LED D/S.X83X4 ALPS TACT SW. 60GF P H=4.3 TACT SW KPS-07SW TAPPING ENCODER SRGP0000 (ALPS) 0PIN PLUG 5 9 PC BOARD ASSY, SDK/CD SERVO BOARD W KRA06S (SOT-3) KTA98 (SOT-3) 3 IR LED MIE 44AMC DIO CHIP RLS ROHM 7 CHIP ZENER DIODE 4.3V (LL-34) FIX 3.3V VOLTAGE REGVLATER AMS7-3.3 W9866BH-7 (TSOP II-50PIN) SP37A (PQFP-64PIN) IC BD4743G (SMP5) ROHM IC M5706 (PQFP-76PIN) BA598FP-Y HSOP-5PIN IC BA689F (SOP8) IC MC3407 (SOP8) IC W39F00P-70B (PLCC-3PIN) CRYSTAL MHZ HC-49USM (SMD) CHIP CAP 0PF ±5% NPO 0603 SMT 5 CHIP CAP 00PF ±5% NPO 0603 SMT CHIP 000PF ±5% NPO 0603 SMT 7 CHIP 0.µF ±0% X7R 0603 SMT 48 CHIP PF ±5% NPO 0603 SMT CHIP 50PF ±5% NPO 0603 SMT CHIP 0.µF ±0% X7R 0603 SMT CHIP CAP 33PF ±5% NPO 0603 SMT 4 CHIP CAP 47PF ±5% NPO 0603 SMT CHIP CAP 470PF ±5% NPO 0603 SMT CHIP 4700PF ±0% X7R 0603 SMT CHIP 0.047µF ±0% X7R 0603 SMT 3 34
35 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Part No. Description Q ty C,3,309 C03 C07,/3/5/6 C09 TC,~5,46 C,TC8,4,,4~5 TC R44 R33,40/,5,D4,5 R0,07 R5,6 RRN6~8,3~6 R3, CHIP CAP 0.47µF Y5V +80% CHIP 560PF ±5% NPO 0603 SMT CHIP 680PF ±5% NPO 0603 SMT CHIP 6800PF ±0% X7R 0603 SMT E. CAP CHIP 0µF/6V 0V Ø4X5.5 E. CAP CHIP 00µF/6V Ø6.3X5.5 E. CAP CHIP µf/50v Ø4X5.5 CHIP RES. 3.3Ω SMD 0805 CHIP RES 0Ω 0603 SMT CHIP RES 0Ω ±5% 0603 SMT CHIP RES 00Ω ±5% 0603 SMT CHIP CN34JT 00Ω (0603X4 SMT) CHIP RES kω ±5% 0603 SMT R3,7,3,04,/8,09,0/7,305,35, ,50/7 CHIP RES 0kΩ ±5% 0603 SMT 4 RRN4,9~ R0,9,5 R504,50 R0 R08,406 R4,50/8 R07 R8 R9,0 R409,503/9 R6/8,5/6 R4,0/4~6,308,407 RN R09~/5,405 R403/8 R R3 R/,06,6,38,505,5 R3 R R05,7,0 R08 R03 R03, CHIP CN34JT 0kΩ (0603X4 SMT) CHIP RES 00kΩ ±5% 0603 SMT CHIP RES MΩ ±5% 0603 SMT CHIP RES.kΩ ±5% 0603 SMT CHIP RES kω ±5% 0603 SMT CHIP RES.5kΩ ±5% 0603 SMT CHIP RES 0kΩ ±5% 0603 SMT CHIP RES 0Ω ±5% 0603 SMT CHIP RES..kΩ ±5% 0603 SMT CHIP RES kω ±5% 0603 SMT CHIP RES..4kΩ ±5% 0603 SMT CHIP RES. 33Ω ±5% 0603 SMT CHIP CN34JT 33Ω (0603X4 SMT) CHIP RES 3.3kΩ ±5% 0603 SMT CHIP RES 33kΩ ±5% 0603 SMT CHIP RES 3.9kΩ ±5% 0603 SMT CHIP RES 470Ω ±5% 0603 SMT CHIP RES 4.7kΩ ±5% 0603 SMT CHIP RES. 47kΩ ±5% 0603 SMT CHIP RES 470kΩ ±5% 0603 SMT CHIP RES 5.kΩ ±5% 0603 SMT CHIP RES. 5kΩ ±5% 0603 SMT CHIP RES. 56kΩ ±5% 0603 SMT CHIP RES 8.kΩ ±5% 0603 SMT
36 ELECTRICAL PARTS LIST - CONTINUED L/ L,3,4,5,4 SW Q30 D309 D305 U30 C303 C30/ C304 R30 R309 X30 D90 C97 C98 T90 Q R R R7 R R3 R6 R4,5 EJ Ref. No. Part No. Description Q ty INDUCTOR 0µH SMD CHIP BGH0B60LB DVD004 SB D/S 07X88.3X.MM HICRO SW. SW- (CHIN MEI) PC BOARD ASSY, REMOTE BOARD C TRANSISTOR SC785 NEC IR EMITIER DIODE MIE-544A A DIODE IN-448 AT. (TAPPING) IC S00 (SGNEC) F CHIP CAP 0.µF 5V Z5U ±0% CHIP CAP 0P 50V J CH TA E. CAP 47µF 6.3V (Ø5X5MM) CHIP RES Ω /0W CHIP RES 0Ω /0W J CER RESONATOR ZTB455E PCB DVD-6 RB D/S 33X38X.0MM PC BOARD ASSY, CHOKE BOX BOARD DIODE IN CER CAP 0.µF 5V E. CAP 000µF 6V (Ø0X5MM) EI-8 TRANSFORMER PCB W/O FUSE C TRANSFORMER RC-6880 (COREL) EI-8 PC BOARD ASSY, FRONT BOARD TR. 8050C TO-9-B M SMD LED S7DNB BLUE LED Ø3MM RED (WIDE ANGLE) J PLAMP 3V 40MM 3X7 K.T RES 0Ω /4W CHIP RES 0Ω ±5% 0603 SMT CHIP RES 0kΩ ±5% 0603 SMT CHIP RES 00kΩ ±5% 0603 SMT CHIP RES 39kΩ ±5% 0603 SMT CHIP RES 4.7kΩ ±5% 0603 SMT CHIP RES 80Ω ±5% 0603 SMT CD-F7 F/EJB PCB.X8.4X A TACT SW KPS-07SW TAPPING A PUSH SW SPPB5 ALPS 36
37 SPECIFICATIONS T. H. D... Less than 0.35% Signal to Noise Radio...More than 60 db Channel Separation...More than 60 db Frequency Response... 0Hz - 0kHz Stereo Separating (FM) db (at khz) Signal to Noise Ratio (FM)... Better than 50 db Output Power... 4 X 40W Speaker Output Impedance... 4 To 8 ohm Power Source... DC V, Negative Ground. Frequency Range... FM MHz... MW 5-60 khz... LW khz Sensitivity...FM 3 µv (S/N=30dB)... MW 30 dbµ (S/N=0 db)... LW 3 dbµ (S/N=0 db) Specifications are subject to change without notice. 37
