D-Sub Connectors. Catalog E /08 Edition 2

Transcript

1 Catalog E /08 Edition 2

2 Catalog E /08 Edition 2

3 Table of Contents General Available Designs Mating and Installation Conditions Signal Connectors with ERNIPRESS Technology Cable Versions Special Contact Versions Accessories for PCB Versions Connector Cable Housings Short Overview Electrical and Mechanical Characteristics Right Angle Female Connectors Right Angle Female High Current Stamped Contacts Right Angle Female High Current Machined Contacts Right Angle Male Connectors Right Angle Male High Current Stamped Contacts Right Angle Male High Current Machined Contacts Vertical Female Connectors Vertical Female High Current Vertical Male Connectors Vertical Male High Current Female and Male Connectors with Solder Cups Female and Male Connectors for Flat Ribbon Cables Female and Male Connectors for Discrete Wire IDC Female and Male Connectors for Crimp Snap-in Technique Housings for Female High Current Contacts Housings for Male High Current Contacts Part Number Index Catalog E /08 Edition 2 1

4 General Designed according to IEC (DIN ) and Mil-C D-Sub connectors are known worldwide as standardized I/O interfaces for several applications such as serial bus connection for RS232, RS485 used for Profibus, CanBus and others Indirect mating system International approvals such as UL and CSA available Integrated acccessories 3 different connector types available: vertical, angled and cable connectors Approvals: UL E 84703, CSA LR and LR UL = Underwriters Laboratories Inc. CSA = Canadian Standards Association Cable connector versions: Wire-wrap technology Solder cup type for hand soldering Crimp Snap-In (CSI) technique IDC (Insulation Displacement Connection) for flat ribbon cables or flat/round cables IDC / crimp technique for discrete wires ESD and EMI features: The metal connector shells are completely plated and the male shells have several contact points for a conductive and low resistance connection between male and female shell. The contact points do not require any apertures around the shell. Available termination technologies: PCB connector versions: THT (Through Hole Technology) for standard wave soldering ERNIPRESS Technology (solderless pressfit connection) THR (Through Hole Reflow) Technology for standard wave and reflow soldering (convection or vapour phase oven) SMT (Surface Mount Technology) for reflow soldering (convection or vapour phase oven) 2 Catalog E /08 Edition 2

5 Available Designs In principal there are three main different designs available: PCB connectors as angled or vertical versions and cable connectors for cable assemblies (used with cable housings). For each design there are also different styles designed according to customer needs. A key requirement for PCB connectors is the assembly height. For the cable connectors the termination technique is essential for the "design in" decision. PCB Angled Versions Standard assembly height 7.3 mm according to IEC (DIN ) Standard assembly height 6.3 mm (called US-Style) 5,6 6,0 6,3 9,0 11,0 3,6 7,3 6,3 Standard assembly height 3.6 mm (called Eurostyle) according to IEC (DIN ) PCB Vertical Versions ERNI provides various assembly heights within and in addition to the IEC-standard. Cable Connector Versions For more information, please refer to page 6. Catalog E /08 Edition 2 3

6 Mating and Installation Conditions Mating Face of D-Sub Connectors Standard Density High Density (not shown) DA Shell 15 position HD DA Shell 26 position DB Shell 25 position HD DB Shell 44 position DC Shell 37 position HD DC Shell 62 position DD Shell 50 position DE Shell 9 position HD DE Shell 15 position Mating Condition 6,4 bis 7,5 Panel Mount Recommendations B A 1 0 0, 3 11, 4 3, 1 R 4 0, 3 5, 9 No. of Contacts A +0, 2 B +0, 2 C ±0, 1 D ±0, , 5 1 0,2 5 25, 0 1 2, , 8 1 4, 4 33, 3 1 6, , 5 2 1,2 5 47, 0 23, 5 D , 1 29, , 5 31,7 5 C 4 Catalog E /08 Edition 2

7 Signal Connectors with ERNIPRESS Technology Features Following shell sizes are supported: 9, 15, 25 and 37 pins ERNIPRESS solderless pressfit technology is a cost-effec tive and reliable connecting technique for connectors and printed circuit boards Elastic standard pressfit zone (EE) and eye of the needle zone (EN). The elastic EE zone and the EN zone protect the PCB hole from high forces to prevent damage to the copper layers or delamination of multi-layers. Gas-tight, corrosion proof and robust mechanical and electrical connection No solder failures, no flux problems, no cleaning process, no thermal stress in case of having pure pressfit PCBs Easy handling, low cost press-in tooling Allows two-sided assembly of connectors International approvals such as UL and CSA available PCB requirements for ERNIPRESS Technology Hole specification is essential and have to be acc. to DIN as well as to DIN IEC 352. The PCB has to have the minimum requirements for long-term press-in connections: - Base material UL approved, Hgw to DIN 7735, FR 4 - Drill hole and Plated through hole (PTH) diameter tolerances - Quality of the hole surface in terms of roughness - Plating thickness tolerances - Hole position tolerances - Minimal restring width of 0.1 mm Measurement of insertion and retention forces for quality assurance - Typical values for retention forces with an EE Zone are between N per contact For more details test reports are available on request. ERNIPRESS Advantages Contact is made in the copper-layer, not in the tin-layer of the PCB The high elasticity is able to compensate large hole tolerances or dimension changes over life time The pressfit zone design ensures a high edge pressure on the copper layer of the PCB hole resulting in a long-term gas-tight connection For detailed hole specification refer to ERNI drawing Durchmesser des metallisierten Loches Diameter of finished plated-through hole 1 +0,09-0,06 1,15 0,025 min Bohrungsdurchmesser des Loches Diameter of drilled hole Restringbreite Restring width min. 25 μm Cu max. 15 μm Sn Catalog E /08 Edition 2 5

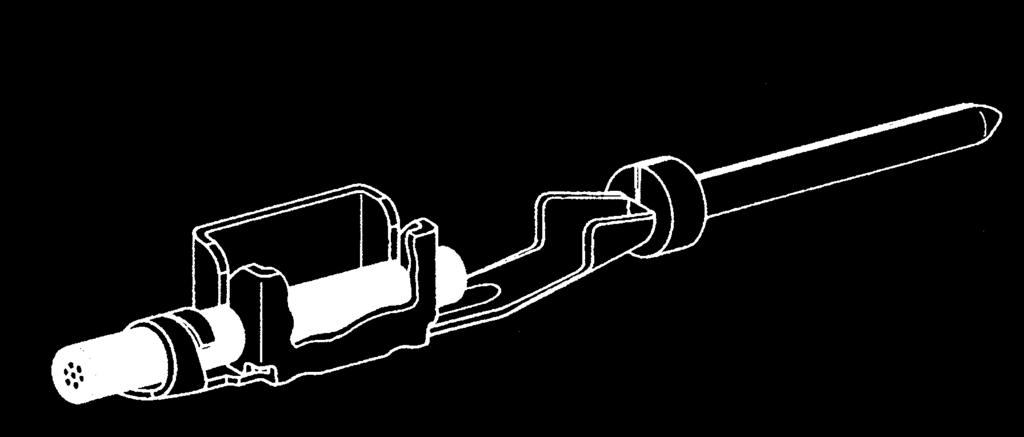

8 Cable Versions Crimp Snap-in (CSI) Technology ERNI supplies CSI versions for 9, 15, 25 and 37 pins CSI contacts are available for different wire cross sections CSI contacts are available in various packaging units depending on the crimp tools used or required assembly process. Please see ordering information ERNI provides several crimp tools Individual contact assignment or partial loading of contacts possible Suitable for the different ERNI cable housings KSG 183, KSG 185 and KSG 200, see separate catalog Wide range of accessories on request (MOQ required) - Integral riveting nuts for rear front-plate fixation - Threaded bolts with internal thread for assembly Special housing locking variants, see cable housing catalog IDC Flat Cable Connection ERNI supplies IDC versions for 9, 15, 25 and 37 pins Contacting of all (max. 37) conductors in one assembly step No dismantling of cables required Suitable for standard flat cables with a pitch of 1.27 mm Optional with standard accessories (panel mount versions) Suitable for the different ERNI cable housings (KSG 183, KSG 185 and KSG 200) Optional strain relief bracket enables cable direction of 90 and 180 IDC Discrete Wire Connection ERNI supplies versions for 9, 15, 25 and 37 pins Easy and quick termination of discrete wires via Insulation Displacement Connection (IDC) and insulation crimp technique Accepts stranded or solid wires The tooling (hand or semi-automatic) provides high speed wire attachment and also allows partial loading of contacts Contacts are removable and replaceable Suitable for cable connector housing series KSG 200 with high EMI and ESD protection 6 Catalog E /08 Edition 2

9 Special Contact Versions Connectors With High Current Contacts 3W3 and 3WK3, shell size DA (15 pins) 5W5, shell size DB (25 pins) 8W8, shell size DC (37 pins) 7W2, shell size DA (15 pins) Cost effective ERNIPRESS technology for integrated pres sfit backplanes, no soldering process is needed, no thermal stress on the PCB, gas-tight, corrosion-proof and robust mechanical and electrical connection Pressfit has the second lowest failure rate, only wire wrap technology is better New generation with stamped high current contacts Several machined contacts for crimping, soldering and pressfit connection Suitable for cable connector housing series KSG 183, KSG 185 and KSG 200, see separate catalog Partial loadings of power and signal contacts A1 A2 A3 A1 A2 A3 A1 A2 A3 A4 3W3 A1 A2 A3 A4 A5 A6 A7 A8 A A2 A5 7W2 5W5 8W8 3WK3 Connectors With Coaxial Contacts The connector housings for high current contacts can be assembled with also coax contacs. The coax contact accepts the same contact cavity. Several machined contacts for crimping and soldering Suitable for cable connector housing series KSG 183, KSG 185 and KSG 200, see separate catalog Catalog E /08 Edition 2 7

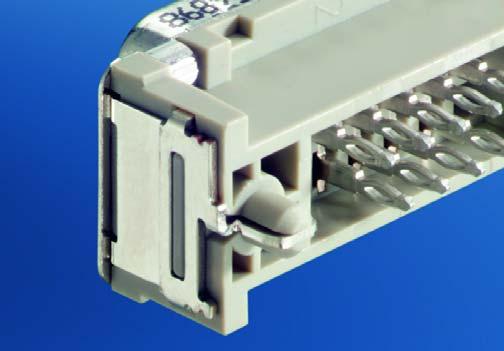

10 Accessories for PCB Versions Threaded nut, 4#40 UNC thread, integrated in connector front shell Torque protected against impact from housing screws or bolts Rear panel mounting application in conjunction with threaded bolts or standard screws Threaded bolts available as spare parts Threaded bolt (picture without metal shell), 4#40 UNC thread Necessary for screw locking of cable housings Torque protection against impact from housing screws or bolts Bolts with circular contour, no manipulation with tools possible Screw fixation on PCB Available for pressfit and THR versions High retention force regarding handling in conjunction with cable housings or front panel mounting No is needed; in conjunction with THR soldering there is also solder joint For EMI and ESD protection the bolts have low resistance connection (front shell and shielded cable housing) THR version should be screwed on before soldering Retention and ground clip for fixation on PCB Available for pressfit and THR versions Handling forces will be absorbed THR versions with/without For EMI and ESD protection the clips have low resistance connection (front shell and shielded cable housing) 8 Catalog E /08 Edition 2

11 Connector Cable Housings Short Overview ERNI is offering a broad range of different housings for D-Sub connectors. Those are split in several series: KSG 183 Available for D-Sub 9, 15, 25 and 37 pin versions Unshielded economic solution Special design for space saving "Snap-In" interlocking Max. three cable outlets possible with secure strain relief Suitable for front assembly and rear assembly of D-Sub connectors Suitable also for cable-to-cable connections KSG 185 Available for D-Sub 9, 15, 25 and 37 pin versions Housing for screw and / or "Snap-In" interlocking Unshielded economic solution and shielded version Integrated coding system Max. two cable outlets possible with secure strain relief Suitable also for cable-to-cable connections KSG 200 Available for D-Sub 9, 15, 25 and 37 pin versions Delivered as spare parts or as complete kit including locking screws High shield attenuation of 66db at 100 MHz Shielded and unshielded versions Secure strain relief Two housing parts with easy "Snap-In" assembly For more details and ordering information see separate cable housing catalog. Catalog E /08 Edition 2 9

12 Electrical and Mechanical Characteristics Standard SMT, THR Male and Female Connectors Pressfit Male and Female Connectors Number of pins 9, 15, 25 and 37 9, 15, 25 and 37 Technical Data Climate category Temperature range Current rating per contact Air and creepage distance Operating voltage Dielectric strength Contact resistance Insulation resistance Vibration, sine Contact disturbance (during vibration test) Shock, halfsine Contact disturbance (during shock test) Mechanical operation (mating cycles) Insertion and withdrawal force Gauge retention force DIN EN test b IEC60512 test 5b IEC IEC test 4a IEC test 2a IEC test 3a IEC test 6d IEC test 2e IEC test 6c IEC test 2e IEC test 9a IEC test 13b IEC test 16e -55/125/56-55/125 C 20 C 70 C 100 C 9pins 5.7 A 3.7 A 2.6 A 15pins 4.8 A 3.5 A 2.3 A 25pins 4.4 A 3.3 A 2.1 A 37pins 3.9 A 2.8 A 1.8 A 1.2 mm The permissible operating voltages depend on the customer application and on the applicable or specified safety requirements. Insulation coordination according to IEC has to be regarded for the complete electrical device. Therefore, the maximum creepage and clearance distances of the mated connectors are specified for consideration as a part of the whole current path. In practice, reductions in creepage or clearance distances may occur due to the conductive pattern of the printed board or the wiring used, and have to be taken into account separately. As a result the creepage and clearance distances for the application may be reduced compared to those of the connector. contact - contact 1000 V rms contact - ground 1200 V rms < 25 mω > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 mating cycles Insertion force Withrawal force max. min. max. 9pins 30 N 3.3 N 20 N 15pins 50 N 4.5 N 50 N 25pins 83 N 7.8 N 56 N 37pins 123 N 11.0 N 82 N > 0.2 N -55/125/56-55/125 C 1.2 mm contact - contact 1000 V rms contact - ground 1200 V rms < 25 mω > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 mating cycles > 0.2 N 10 Catalog E /08 Edition 2

13 Electrical and Mechanical Characteristics Standard SMT, THR Male and Female Connectors Pressfit Male and Female Connectors Number of pins 9, 15, 25 and 37 9, 15, 25 and 37 Process-conditions Soldering temperature max. IEC Hand soldering temperature max. 3.5 s at 350 C - Dip soldering temperature max. 10 s at 260 C - Reflow soldering temperature max. JEDEC J-STD-020C s at 260 C - Coplanarity < 0.1 mm (SMT) - Warning - Soldering of pressfit connectors not to be recommended. Housing Material Housing: Plastic material LCP PBT CTI value IEC 112 CTI 175 CTI 200 UL flame rating UL 94 V-0 UL 94 V-0 UL file (material) E83005 E47960 Contact Material Base material Cu alloy Cu alloy Mating area gold plated gold plated Termination area Sn Sn Metal Shell Material Base material St St Plating Sn Sn Metal Bracket Material Base material Cu alloy Cu alloy Plating Sn Sn Environment Compatibility Recycling no flame-retardent additives, no toxic additives allow easy recycling Product-approval UL E84703 E84703 Catalog E /08 Edition

14 Electrical and Mechanical Characteristics Pin configurations Technical Data Climate Category Temperature range Current rating per contact Air and creepage distance Operating voltage Dielectric strength Contact resistance Insulation resistance Vibration, sine Contact disturbance (during vibration test) Shock, halfsine Contact disturbance (during shock test) Mechanical operation (mating cycles) Insertion and withdrawal force Gauge retention force Standard DIN EN test b IEC test 5b IEC IEC test 4a IEC test 2a IEC test 3a IEC test 6d IEC test 2e IEC test 6c IEC test 2e IEC test 9a IEC test 13b IEC test 16e High Current Male and Female Connectors SMT / THR / Solder stamped / machined contacts 3W3, 3WK3, 5W5, 8W8, 7W2-55/125/56-55/125 C See derating curves. 1.0 mm The permissible operating voltages depend on the customer application and on the applicable or specified safety requirements. Insulation coordination according to IEC has to be regarded for the complete electrical device. Therefore, the maximum creepage and clearance distances of the mated connectors are specified for consideration as a part of the whole current path. In practice, reductions in creepage or clearance distances may occur due to the conductive pattern of the printed board or the wiring used, and have to be taken into account separately. As a result the creepage and clearance distances for the application may be reduced compared to those of the connector. contact - contact 1000 V contact - ground 1000 V Signal contacts Power contacts > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 / 400 mating cycles < 30 N / 10 N max. per contact Signal contacts Power contacts < 25 mω < 1 mω 0.2 N min. 1.6 N min. High Current Male and Female Connectors Pressfit stamped / machined contacts 3W3, 3WK3, 5W5, 8W8, 7W2-55/125/56-55/125 C 1.0 mm contact - contact 1000 V contact - ground 1000 V Signal contacts Power contacts > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 / 400 mating cycles < 30 N / 10 N max. per contact Signal contacts Power contacts < 25 mω < 1 mω 0.2 N min. 1.6 N min. 12 Catalog E /08 Edition 2

15 Electrical and Mechanical Characteristics Standard High Current Male and Female Connectors SMT / THR / Solder stamped / machined contacts High Current Male and Female Connectors Pressfit stamped / machined contacts Pin configurations 3W3, 3WK3, 5W5, 8W8, 7W2 3W3, 3WK3, 5W5, 8W8, 7W2 Process-conditions Solder temperature max. IEC Hand soldering temperature max. 3.5 s at 350 C - Dip soldering temperature max. 10 s at 260 C - Reflow soldering temperature max. JEDEC J-STD-020C s at 260 C / wave soldering machined contacts - Warning - Soldering of pressfit connectors not to be recommended. Housing Material Plastic material PA 46 / PBT PA 46 / PBT CTI value IEC 112 CTI 250 / CTI 200 CTI 250 / CTI 200 UL flame rating UL 94 V-0 UL 94 V-0 UL file E47960 / - E47960 / - Contact Material Base material Cu alloy Cu alloy Mating area Signal contact: gold plated Stamped contact: silver plated Machined contact: gold plated Signal contact: gold plated Stamped contact: silver plated Machined contact: gold plated Termination area Signal contact: Sn Stamped contact: silver plated Machined contact: gold plated Signal contact: Sn Stamped contact: silver plated Machined contact: gold plated Metall Shell Material Base material St St Plating Sn Sn Metal Bracket Material Base material Cu alloy Cu alloy Plating Sn Sn Environment Compatibility Recycling no flame-retardent additives, no toxic additives allow easy recycling Product-approval UL E84703 (stamped contacts) E84703 (stamped contacts) Catalog E /08 Edition

16 Electrical and Mechanical Characteristics Standard IDC flat cable/discrete wire Crimp Hand solder Number of pins 9, 15, 25 and 37 9, 15, 25 and 37 9, 15, 25 and 37 Wire cross section Flat cable: AWG 26 (solid wire) AWG 28 (stranded wire) Discrete wire: AWG AWG AWG 18 Technical Data Climate category Temperature range Current rating per contact Air and creepage distance Operating voltage Dielectric strength Contact resistance Insulation resistance Vibration, sine Contact disturbance (during vibration test) Shock, halfsine Contact disturbance (during shock test) Mechanical operation (mating cycles) Insertion and withdrawal force Gauge retention force DIN EN test b IEC test 5b IEC IEC test 4a IEC test 2a IEC test 3a IEC test 6d IEC test 2e IEC test 6c IEC test 2e IEC test 9a IEC test 13b IEC test 16e -55/125/56-55/125 C Depending on used cable, see also derating curve of the connector. 0.9 mm The permissible operating voltages depend on the customer application and on the applicable or specified safety requirements. Insulation coordination according to IEC has to be regarded for the complete electrical device. Therefore, the maximum creepage and clearance distances of the mated connectors are specified for consideration as a part of the whole current path. In practice, reductions in creepage or clearance distances may occur due to the conductive pattern of the printed board or the wiring used, and have to be taken into account separately. As a result the creepage and clearance distances for the application may be reduced compared to those of the connector. contact-contact 750 V rms (flat cable) 1000 V rms (discrete wire) contact-ground 1200 V rms < 25 mω > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 mating cycles Insertion force Withrawal force max. min. max. 9pin 30 N 3.3 N 20 N 15pin 50 N 4.5 N 50 N 25pin 83 N 7.8 N 56 N 37pin 123 N 11.0 N 82 N > 0.2 N -55/125/56-55/125 C 1.2 mm contact-contact 1000 V rms contact-ground 1200 V rms < 25 mω > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 mating cycles > 0.2 N -55/125/56-55/125 C 1.0 mm contact-contact 1000 V rms contact-ground 1200 V rms < 25 mω > 5x10 9 Ω Hz 20 g < 1 µs 50 g 11 ms < 1 µs > 250 mating cycles > 0.2 N 14 Catalog E /08 Edition 2

17 Electrical and Mechanical Characteristics Standard IDC flat cable/discrete wire Crimp Hand solder Number of pins 9, 15, 25 and 37 9, 15, 25 and 37 9, 15, 25 and 37 Process-conditions Processing temperature 0/55 C 0/55 C - Hand soldering temperature max s at 350 C Housing Material Housing: Plastic material PBT PBT PBT CTI value IEC 112 CTI 275 CTI 275 CTI 200 UL flame rating UL 94 V-0 UL 94 V-0 UL 94 V-0 UL file (material) E47960 Contact Material Base material Cu alloy Cu alloy Cu alloy Mating area gold plated gold plated gold plated Termination area Sn Sn Sn Metal Shell Material Base material St St St Plating Sn Sn Sn Environment Compatibility Recycling no flame-retardent additives, no toxic additives allow easy recycling Attention The electrical and thermal variables may be influenced by whichever cable is used. Catalog E /08 Edition

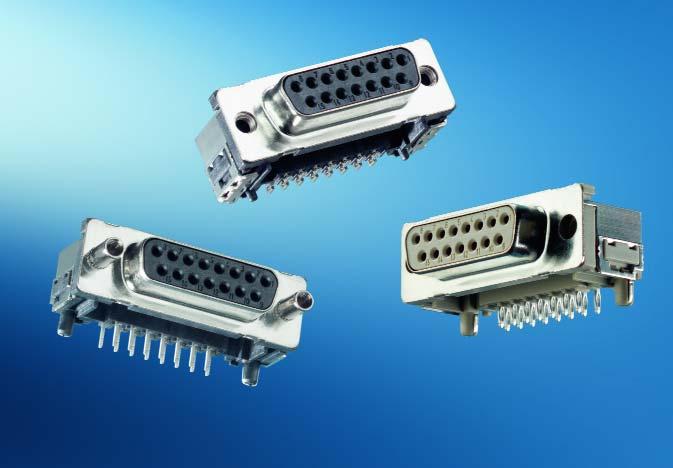

18 Right Angle Female Dimensional Drawing SMT, Assembly Height 7.3 mm Pohlzahl No. of contacts A B C D E F G 61.7 H Einbauhöhe / mounting height Gewinde / thread / #4-40 Bolzen/ bolt : thread LP / PCB LP / PCB All dimensions in mm 16 Catalog E /08 Edition 2

19 Right Angle Female Dimensional Drawing SMT, Assembly Height 3.6 mm Pohlzahl No. of contacts A B C D E F G H Layout mounting height Einbauhöhe / 8 1 Gewinde / thread / #4-40 x 5,6 Bolzen/ bolt : Gewinde / thread / #4-40 x LP / PCB LP / PCB Leiterplattenkante PCB edge Dimensional Drawing THR, Assembly Height 7.3 mm Version 1 Bestückung kraftlos without Pohlzahl No. of contacts A B C D E F G Version 2 Layout / Version 1 A Bestückung mit Kraft with 0.1 B Einbauhöhe mounting height Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Leiterplattenkante PCB edge Layout / Version 2 A 0.1 A 0.1 B LP/ PCB LP/ PCB All dimensions in mm Leiterplattenkante PCB edge 0.1 A Catalog E /08 Edition

20 Right Angle Female Dimensional Drawing THR, Assembly Height 3.6 mm Ansicht X Version 1 Bestückung kraftlos without Version 2 Bestückung mit Kraft with Pohlzahl No. of contacts A B C D E F G Layout / Version1 0.1 B A Einbauhöhe mounting height Gewinde / thread / #4-40 Ansicht X Bolzen / bolt : Gewinde / thread / #4-40 Leiterplattenkante PCB edge Layout / Version B A 0.1 A L P / P C B L P / P C B Leiterplattenkante PCB edge 0.1 A Dimensional Drawing Pressfit, Assembly Height 7.3 mm Pohlzahl No. of contacts A B C D E F G Metal plating of plated-through hole see drawing No Einbauhöhe mounting height Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 A Layout 0.1 B LP/ PCB LP/ PCB Leiterplattenkante PCB edge 0.1 A All dimensions in mm 18 Catalog E /08 Edition 2

21 Right Angle Female Dimensional Drawing Pressfit (Clip), Assembly Height 3.6 mm Pohlzahl No. of contacts A B C D E F G Metal plating of plated-through hole see drawing No Einbauhöhe mounting height Gewinde / thread / #4-40 Bolzen / bolt: Gewinde / thread / # B A Layout LP/ PCB LP/PCB Leiterplattenkante PCB edge 0.1 A Dimensional Drawing Pressfit (Screw), Assembly Height 7.3 mm +0,2 A -0,4 ±0,3 12,6 8-0,2 0,6 B -0,2 C ±0,1 13,3 14,8 9 31,00 16,40 25,00 10,96 8,22 2,74 1, ,30 24,75 33,30 19,18 16,44 2,74 1, ,00 38,50 47,00 33,12 30,36 2,76 1, ,50 54,95 63,50 49,68 46,92 2,76 1,38 Pohlzahl A B C D E F G No. of contacts Metal plating of plated-through hole see drawing No ,3-0,25 Mutter / nut Bolzen / bolt 3,7 Anwendungsbeispiel / example of use ±0,1 Gewinde / thread Layoutvorschlag recommended layout 0,1 B F D +0,09 1-0,06 Pin 1 0,1 7,3 11,2 1, ±0,1 6,4 2 LP / PCB Gewinde / thread ( Schraube / Screw DIN 7984 ) 3,2 ±0,1 G F E C ±0,05 5 0,1 A empfohlene Gewindelänge / recommended thread length All dimensions in mm Catalog E /08 Edition

22 Right Angle Female Dimensional Drawing Pressfit (Screw), Assembly Height 3.6 mm ±0,3 12,6 13,3 13,8 6,3-0,25-0,2 8 0,6 +0,2 A -0,4 B -0,2 C ±0,1 9 31,00 16,40 25,00 10,96 8,22 2,74 1, ,3 24,75 33,30 19,18 16,44 2,74 1, ,00 38,50 47,00 33,12 30,36 2,76 1, ,50 54,95 63,50 49,68 46,92 2,76 1,38 Pohlzahl A B C D E F G No. of contacts Metal plating of plated-through hole see drawing No Mutter / nut Bolzen / bolt 3,7 Anwendungsbeispiel / example of use Gewinde / thread A Layoutvorschlag recommended layout D +0,09 1-0,06 0,1 7,5 ±0,1 8 0,1 B F Pin 1 1,27 6,4 ±0,1 3,6 2 8,9 LP / PCB Gewinde / thread 3,2 ±0,1 G F E 5 ( Schraube / Screw DIN 7984 ) empfohlene Gewindelänge / recommended thread length C ±0,05 0,1 A All dimensions in mm 20 Catalog E /08 Edition 2

23 Right Angle Female 9 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 SMT 3.6 mm None Tray (32 pcs) SMT 3.6 mm None (125 pcs) SMT 3.6 mm Thread Tray (32 pcs) SMT 3.6 mm Thread Tray (32 pcs) SMT 3.6 mm Thread (125 pcs) SMT 3.6 mm Threaded bolt Tray (32 pcs) SMT 3.6 mm Threaded bolt Tray (32 pcs) SMT 7.3 mm None Tray (32 pcs) SMT 7.3 mm None SMT 7.3 mm Thread Tray (32 pcs) SMT 7.3 mm Thread Tray (32 pcs) SMT 7.3 mm Thread SMT 7.3 mm Threaded bolt Tray (32 pcs) SMT 7.3 mm Threaded bolt Tray (32 pcs) SMT 7.3 mm Threaded bolt Catalog E /08 Edition

24 Right Angle Female 9 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 THR 3.6 mm 3.0 mm None Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip without (125 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) Catalog E /08 Edition 2

25 Right Angle Female 9 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 THR 7.3 mm 3.0 mm None Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm None Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip without THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) Catalog E /08 Edition

26 Right Angle Female 9 Pin Pressfit Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 Pressfit 3.6 mm 3.0 mm None Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm None Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Screw Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Thread Screw Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (32 pcs) Catalog E /08 Edition 2

27 Right Angle Female 15 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 SMT 3.6 mm None Tray (24 pcs) SMT 3.6 mm Thread Tray (24 pcs) SMT 3.6 mm Thread Tray (24 pcs) SMT 3.6 mm Threaded bolt Tray (24 pcs) SMT 3.6 mm Threaded bolt Tray (24 pcs) SMT 7.3 mm None Tray (24 pcs) SMT 7.3 mm Thread Tray (24 pcs) SMT 7.3 mm Thread Tray (24 pcs) SMT 7.3 mm Threaded bolt Tray (24 pcs) SMT 7.3 mm Threaded bolt Tray (24 pcs) Catalog E /08 Edition

28 Right Angle Female 15 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 THR 3.6 mm 3.0 mm None Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with (125 pcs) Catalog E /08 Edition 2

29 Right Angle Female 15 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 THR 7.3 mm 3.0 mm None Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm None Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) Catalog E /08 Edition

31 Right Angle Female 25 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 SMT 3.6 mm None Tray (20 pcs) SMT 3.6 mm Thread Tray (20 pcs) SMT 3.6 mm Thread Tray (20 pcs) SMT 3.6 mm Threaded bolt Tray (20 pcs) SMT 3.6 mm Threaded bolt (125 pcs) SMT 3.6 mm Threaded bolt Tray (20 pcs) SMT 7.3 mm None Tray (20 pcs) SMT 7.3 mm None SMT 7.3 mm Thread Tray (20 pcs) SMT 7.3 mm Thread Tray (20 pcs) SMT 7.3 mm Threaded bolt Tray (20 pcs) SMT 7.3 mm Threaded bolt Tray (20 pcs) Catalog E /08 Edition

32 Right Angle Female 25 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 THR 3.6 mm 3.0 mm None Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Thread 4-40 Clip without Tray (20 pcs) UNC 25 THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (20 pcs) Catalog E /08 Edition 2

35 Right Angle Female 37 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 37 SMT 3.6 mm None Tray (16 pcs) SMT 3.6 mm Thread Tray (16 pcs) SMT 3.6 mm Thread Tray (16 pcs) SMT 3.6 mm Threaded bolt Tray (16 pcs) SMT 3.6 mm Threaded bolt Tray (16 pcs) SMT 7.3 mm None Tray (16 pcs) SMT 7.3 mm Thread Tray (16 pcs) SMT 7.3 mm Thread Tray (16 pcs) SMT 7.3 mm Threaded bolt Tray (16 pcs) SMT 7.3 mm Threaded bolt Tray (16 pcs) Catalog E /08 Edition

36 Right Angle Female 37 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 37 THR 3.6 mm 3.0 mm None Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (16 pcs) Catalog E /08 Edition 2

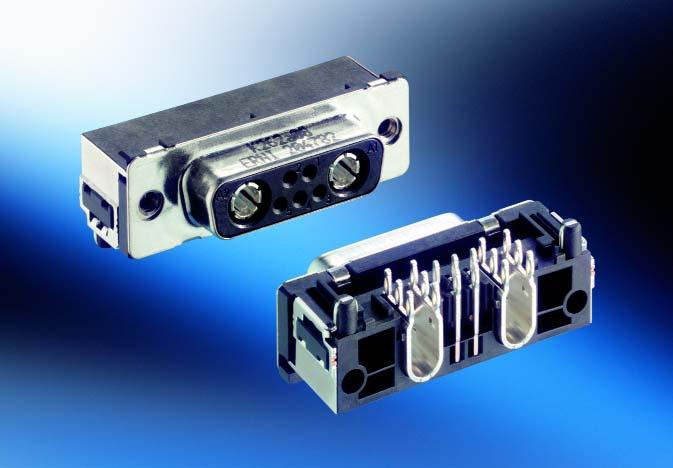

39 Right Angle Female High Current 7W2, 3W3, 3WK3 Versions with stamped high current contacts Dimensional Drawing 7W2 SMT, THR and Pressfit Versions, Assembly Height 7.3 mm 39,3 +0,2-0,4 24,75-0,2 A2 A1 12,6 0,3-0, ,3 0,1 Einbauhöhe / mounting height 6,3-0,25 14,7 ohne / without Durchgangsloch ø3,2 through hole ø 3,2 Mutter / nut Gewinde / thread / #4-40 Bolzen / bolt Gewinde / thread / # ,2 0,1 7,3 0,1 3,7 6,4 LP / PCB 11,7 0,2 All dimensions in mm Catalog E /08 Edition

40 Right Angle Female High Current 7W2, 3W3, 3WK3 Dimensional Drawing 7W2 SMT 39,1 13,72 2,74 3,8 1,7-0,05 5,8 Dimensional Drawing 7W2 THR Layout 0.1 B A 17,44 8,72 3,72 3,72 2,54 2,74 1,27 2,54 11,7max. 2,54 15,35 10,45-0,2 7,9 2,8 9,2 3, ,2 0,05 Leiterplattenkante PCB edge 3,2 0,1 2,74 2,74 B 1 0,1 (17x) Leiterplattenkante PCB edge 33,3 0,05 Sonstige Angaben siehe / Additional indications please see Dimensional Drawing 7W2 Pressfit 0.1 B 3 +0,04-0,06 A 8,72 17,44 3,72 3,72 2,54 2,74 1,27 2,54 11,7max. 2,54 2,74 2,74 Leiterplattenkante PCB edge 1 +0,09-0,06 (17x) 33,3 0,05 ø A All dimensions in mm 38 Catalog E /08 Edition 2

41 Right Angle Female High Current 7W2, 3W3, 3WK3 Dimensional Drawing 3W3, 3WK3 SMT All dimensions in mm Catalog E /08 Edition

42 Right Angle Female High Current 7W2 SMT Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 7W2 SMT 25 A 7.3 mm None W2 SMT 25 A 7.3 mm Thread W2 SMT 25 A 7.3 mm Thread W2 SMT 25 A 7.3 mm Threaded bolt W2 SMT 25 A 7.3 mm Threaded bolt Catalog E /08 Edition 2

43 Right Angle Female High Current 7W2 THR Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 7W2 THR 25 A 7.3 mm 3.0 mm None Clip with Tray (24 pcs) W2 THR 25 A 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) W2 THR 25 A 7.3 mm 3.0 mm Thread 7W2 THR 25 A 7.3 mm 3.0 mm Threaded bolt 7W2 THR 25 A 7.3 mm 3.0 mm Threaded bolt Clip with Clip with Clip with Tray (24 pcs) Tray (24 pcs) Tray (24 pcs) Catalog E /08 Edition

44 Right Angle Female High Current 7W2 Pressfit Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 7W2 Pressfit 25 A 7.3 mm 3.0 mm None Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Thread Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Thread Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Catalog E /08 Edition 2

45 Right Angle Female High Current 3W3, 3WK3 SMT Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3W3 SMT 7.3 mm None W3 SMT 7.3 mm Thread W3 SMT 7.3 mm Thread W3 SMT 7.3 mm Threaded bolt W3 SMT 7.3 mm Threaded bolt WK3 SMT 7.3 mm None 3WK3 SMT 7.3 mm Thread WK3 SMT 7.3 mm Thread WK3 SMT 7.3 mm Threaded bolt WK3 SMT 7.3 mm Threaded bolt Catalog E /08 Edition

46 Right Angle Female High Current 3W3, 3WK3, 5W5, 8W8 Versions with machined high current contacts Dimensional Drawing 3W3/3WK3, 5W5 and 8W8, Assembly Height 7.3 mm All dimensions in mm 44 Catalog E /08 Edition 2

47 Right Angle Female High Current 3W3, 3WK3, 5W5, 8W8 Dimensional Drawing 3W3/3WK3, 5W5 and 8W8 Leiterplatten-Bohrbild S 3W3, 3WK3 PC Board Hole Pattern S 3W3, 3WK ,8 10,67 3,2 0,1 2x 4,05 0,1 3x Leiterplatten-Bohrbild S 5W5 PC Board Hole Pattern S 5W ,8 10,67 3,2 0,1 2x 4,05 0,1 5x Leiterplatten-Bohrbild S 8W8 PC Board Hole Pattern S 8W ,8 10,67 2x 8x 3,2 0,1 4,05 0, All dimensions in mm Catalog E /08 Edition

48 Right Angle Female High Current 3W3, 3WK3, 5W5, 8W8 3W3 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3W3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) WK3 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3WK3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) WK3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W5 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 5W5 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W5 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W8 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 8W8 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W8 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) Catalog E /08 Edition 2

49 Right Angle Male Dimensional Drawing SMT, Assembly Height 7.3 mm Pohlzahl No. of contacts A B C D E F G H Layout 8 1 Einbauhöhe / mounting height Gewinde / thread / #4-40 Bolzen/ bolt : Gewinde / thread / # Leiterplattenkante PCB edge LP / PCB LP / PCB All dimensions in mm Catalog E /08 Edition

50 Right Angle Male Dimensional Drawing SMT, Assembly Height 3.6 mm Pohlzahl No. of contacts A B C D E F G H Layout Einbauhöhe / mounting height Gewinde / thread / #4-40 x 5,6 Bolzen/ bolt : 8 1 Gewinde / thread / #4-40 x LP / PCB LP / PCB Leiterplattenkante PCB edge Dimensional Drawing THR, Assembly Height 7.3 mm Version 1 Bestückung kraftlos without Ansicht X Version Pohlzahl No. of contacts A B C D E F G Bestückung mit Kraft with Layout / Version 1 A 0.1 B Einbauhöhe Bolzen /bolt : mounting height Gewinde / thread / #4-40 Gewinde / thread / #4-40 Leiterplattenkante PCB edge 0.1 A Layout / Version 2 A 0.1 B LP/ PCB LP/ PCB All dimensions in mm Leiterplattenkante PCB edge 0.1 A 48 Catalog E /08 Edition 2

51 Right Angle Male Dimensional Drawing THR, Assembly Height 3.6 mm Version 1 Bestückung kraftlos without Ansicht X Version 2 Bestückung mit Kraft with Layout / Version 1 A 0.1 B 1 8 Einbauhöhe mounting height Gewinde / thread / #4-40 Bolzen /bolt : Gewinde / thread / #4-40 Leiterplattenkante PCB edge A Layout / Version 2 A 0.1 B LP / PCB LP / PCB Leiterplattenkante PCB edge 0.1 A Dimensional Drawing Pressfit (Clip), Assembly Height 7.3 mm Pohlzahl No. of contacts A B C D E F G Metal plating of plated-through hole see drawing No Einbauhöhe mounting height Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Layout A 0.1 B LP/ PCB All dimensions in mm LP/ PCB Leiterplattenkante PCB edge 0.1 A Catalog E /08 Edition

52 Right Angle Male Dimensional Drawing Pressfit (Clip), Assembly Height 3.6 mm Pohlzahl No. of contacts A B C D E F G Metal plating of plated-through hole see drawing No mounting height Einbauhöhe / Gewinde / thread / #4-40 Bolzen/ bolt : Layout A Gewinde / thread / # B LP / PCB LP / PCB Leiterplattenkante PCB edge 0.1 A Dimensional Drawing Pressfit (Screw), Assembly Height 3.6 mm 12,6 ±0,3 +0,2 8,25 0,6 A +0,2-0,4 B +0,2 C ±0,1 13,3 13,8 9 31,00 16,80 25,00 10,96 8,22 2,74 1, ,30 25,10 33,30 19,18 16,44 2,74 1, ,00 38,90 47,00 33,12 30,36 2,76 1, ,50 55,30 63,50 49,68 46,92 2,76 1,38 Pohlzahl A B C D E F G No. of contacts Metal plating of plated-through hole see drawing No Mutter / nut Bolzen / bolt 3,7 5,8 +0,3 Anwendungsbeispiel / example of use Gewinde / thread 0,1 B A F Pin 1 Layoutvorschlag recommended layout D +0,09 1-0,06 0,1 7,5 8 ±0,1 1,27 3 All dimensions in mm 6,4 3,6 ±0,1 2 8,9 LP / PCB Gewinde / thread ( Schraube / Screw DIN 7984 ) empfohlene Gewindelänge / recommended thread length ±0,1 3,2 G F E C ±0,05 5 0,1 A 50 Catalog E /08 Edition 2

53 Right Angle Male Dimensional Drawing Pressfit (Screw), Assembly Height 7.3 mm 12,6 ±0,3 8,25 +0,2 0,6 +0,2 A -0,4 +0,2 B C ±0,1 13,3 14,8 9 31,00 16,80 25,00 10,96 8,22 2,74 1, ,30 25,10 33,30 19,18 16,44 2,74 1, ,00 38,90 47,00 33,12 30,36 2,76 1, ,50 55,30 63,50 49,68 46,92 2,76 1,38 Pohlzahl A B C D E F G No. of contacts Metal plating of plated-through hole see drawing No ,8 +0,3 Mutter / nut Bolzen / bolt 3,7 Anwendungsbeispiel / example of use Gewinde / thread 0,1 B A Pin 1 F D +0,09 1-0,06 0,1 ±0,1 1,27 3 6,4 11,2 12 7,3 ±0,1 2 LP / PCB Gewinde / thread ( Schraube / Screw DIN 7984 ) ±0,1 3,2 G F E 33,3 ±0,05 5 0,1 A empfohlene Gewindelänge / recommended thread length All dimensions in mm Catalog E /08 Edition

54 Right Angle Male 9 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 SMT 3.6 mm None Tray (32 pcs) SMT 3.6 mm None (125 pcs) SMT 3.6 mm Thread Tray (32 pcs) SMT 3.6 mm Thread Tray (32 pcs) SMT 3.6 mm Thread (125 pcs) SMT 3.6 mm Threaded bolt Tray (32 pcs) SMT 3.6 mm Threaded bolt Tray (32 pcs) SMT 7.3 mm None Tray (32 pcs) SMT 7.3 mm None SMT 7.3 mm Thread Tray (32 pcs) SMT 7.3 mm Thread Tray (32 pcs) SMT 7.3 mm Thread SMT 7.3 mm Threaded bolt Tray (32 pcs) SMT 7.3 mm Threaded bolt Tray (32 pcs) Catalog E /08 Edition 2

55 Right Angle Male 9 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 THR 3.6 mm 3.0 mm None Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without (125 pcs) Catalog E /08 Edition

56 Right Angle Male 9 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 THR 7.3 mm 3.0 mm None Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm None Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Thread Clip without THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (32 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (32 pcs) Catalog E /08 Edition 2

57 Right Angle Male 9 Pin Pressfit Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 Pressfit 3.6 mm 3.0 mm None Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm None Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (32 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Screw Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Thread Screw Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (32 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (32 pcs) Catalog E /08 Edition

58 Right Angle Male 15 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 SMT 3.6 mm None Tray (24 pcs) SMT 3.6 mm Thread Tray (24 pcs) SMT 3.6 mm Thread Tray (24 pcs) SMT 3.6 mm Threaded bolt Tray (24 pcs) SMT 3.6 mm Threaded bolt Tray (24 pcs) SMT 7.3 mm None Tray (24 pcs) SMT 7.3 mm Thread Tray (24 pcs) SMT 7.3 mm Thread 4-40 Tray (24 pcs) UNC 15 SMT 7.3 mm Threaded bolt Tray (24 pcs) SMT 7.3 mm Threaded bolt Tray (24 pcs) SMT 7.3 mm Threaded bolt Catalog E /08 Edition 2

59 Right Angle Male 15 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 THR 3.6 mm 3.0 mm None Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) Catalog E /08 Edition

60 Right Angle Male 15 Pin No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 THR 7.3 mm 3.0 mm None Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm None Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (24 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (24 pcs) Catalog E /08 Edition 2

61 Right Angle Male 15 Pin Pressfit Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 15 Pressfit 3.6 mm 3.0 mm None Clip Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 7.3 mm 3.0 mm None Clip Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (24 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Thread Screw Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Catalog E /08 Edition

62 Right Angle Male 25 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 SMT 3.6 mm None Tray (20 pcs) SMT 3.6 mm Thread Tray (20 pcs) SMT 3.6 mm Thread Tray (20 pcs) SMT 3.6 mm Threaded bolt Tray (20 pcs) SMT 3.6 mm Threaded bolt Tray (20 pcs) SMT 7.3 mm None Tray (20 pcs) SMT 7.3 mm None SMT 7.3 mm Thread Tray (20 pcs) SMT 7.3 mm Thread Tray (20 pcs) SMT 7.3 mm Threaded bolt Tray (20 pcs) SMT 7.3 mm Threaded bolt Tray (20 pcs) Catalog E /08 Edition 2

63 Right Angle Male 25 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 THR 3.6 mm 3.0 mm None Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (20 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (20 pcs) Catalog E /08 Edition

64 Right Angle Male 25 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 THR 7.3 mm 3.0 mm None Clip with Tray (20 pcs) THR 7.3 mm 3.0 mm None Clip without Tray (20 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (20 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (20 pcs) THR 7.3 mm 3.0 mm Thread Clip without THR 7.3 mm 3.0 mm Thread Clip with Tray (20 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (20 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (20 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (20 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (20 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (20 pcs) Catalog E /08 Edition 2

65 Right Angle Male 25 Pin Pressfit Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 Pressfit 3.6 mm 3.0 mm None Clip Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (20 pcs) Pressfit 7.3 mm 3.0 mm None Clip Tray (20 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (20 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (20 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (20 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (20 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Screw Tray (20 pcs) Pressfit 7.3 mm 3.0 mm Thread Screw Tray (20 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw 4-40 Tray (20 pcs) UNC 25 Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (20 pcs) Catalog E /08 Edition

66 Right Angel Male 37 Pin SMT Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 37 SMT 3.6 mm None Tray (16 pcs) SMT 3.6 mm Thread Tray (16 pcs) SMT 3.6 mm Thread Tray (16 pcs) SMT 3.6 mm Threaded bolt Tray (16 pcs) SMT 3.6 mm Threaded bolt Tray (16 pcs) SMT 7.3 mm None Tray (16 pcs) SMT 7.3 mm Thread Tray (16 pcs) SMT 7.3 mm Thread Tray (16 pcs) SMT 7.3 mm Threaded bolt Tray (16 pcs) SMT 7.3 mm Threaded bolt Tray (16 pcs) Catalog E /08 Edition 2

67 Right Angel Male 37 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 37 THR 3.6 mm 3.0 mm None Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm None Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Thread Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip with Tray (16 pcs) THR 3.6 mm 3.0 mm Threaded bolt Clip without Tray (16 pcs) Catalog E /08 Edition

68 Right Angel Male 37 Pin THR Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 37 THR 7.3 mm 3.0 mm None Clip with Tray (16 pcs) THR 7.3 mm 3.0 mm None Clip without Tray (16 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (16 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (16 pcs) THR 7.3 mm 3.0 mm Thread Clip with Tray (16 pcs) THR 7.3 mm 3.0 mm Thread Clip without Tray (16 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (16 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (16 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip with Tray (16 pcs) THR 7.3 mm 3.0 mm Threaded bolt Clip without Tray (16 pcs) Catalog E /08 Edition 2

69 Right Angel Male 37 Pin Pressfit Versions No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 37 Pressfit 3.6 mm 3.0 mm None Clip Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Thread Clip Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Clip Tray (16 pcs) Pressfit 7.3 mm 3.0 mm None Clip Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Thread Clip Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Clip Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Thread Screw Tray (16 pcs) Pressfit 3.6 mm 3.0 mm Threaded bolt Screw Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Thread Screw Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (16 pcs) Pressfit 7.3 mm 3.0 mm Threaded bolt Screw Tray (16 pcs) Catalog E /08 Edition

70 Right Angle Male High Current 7W2, 3W3, 3WK3 Versions with stamped high current contacts Dimensional Drawing 7W2 SMT, THR and Pressfit Versions, Assembly Height 7.3 mm +0,2 39,3-0,4 25,1 +0,2 A1 A2 12,6 0,3 8,25 +0, ,3 0,1 11,2 0,1 7,3 0,1 3,7 14,7 Einbauhöhe / mounting height 5,8 +0,3 Durchgangsloch ø 3,2 through hole ø 3,2 Gewinde / thread / #4-40 Gewinde / thread / #4-40 LP / PCB 11,2 0,2 6,4 ohne / without Mutter / nut Bolzen / bolt All dimensions in mm 68 Catalog E /08 Edition 2

71 Right Angle Male High Current 7W2, 3W3, 3WK3 Dimensional Drawing 7W2 SMT 39,1 13,72 2,74 3,8 1,7-0,05 5,8 Dimensional Drawing 7W2 Pressfit A 8,72 17, B 15,35 10,45-0,2 7,9 2,8 9,2 3, ,2 0,05 Dimensional Drawing 7W2 THR Leiterplattenkante PCB edge 0.1 B 3 +0,04-0,06 A 8,72 17,44 3,72 3,72 2,54 2,74 1,27 2,54 11,7max. 2,54 2,74 2,74 Leiterplattenkante 1 +0,09-0,06 (17x) ø0.1 PCB edge 33,3 0, A 3,2 0,1 3,72 3,72 2,54 2,74 1,27 2,54 11,7max. 2,54 2,74 2,74 Leiterplattenkante 1 0,1 (17x) ø0.1 PCB edge 33,3 0, A All dimensions in mm Catalog E /08 Edition

72 Right Angle Male High Current 7W2, 3W3, 3WK3 Dimensional Drawing 3W3, 3WK3 SMT All dimensions in mm 70 Catalog E /08 Edition 2

73 Right Angle Male High Current 7W2, 3W3, 3WK3 Dimensional Drawing 3W3, 3WK3 THR All dimensions in mm Catalog E /08 Edition

74 Right Angle Male High Current 7W2 SMT Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 7W2 SMT 25 A 7.3 mm None W2 SMT 25 A 7.3 mm Thread W2 SMT 25 A 7.3 mm Thread W2 SMT 25 A 7.3 mm Threaded bolt W2 SMT 25 A 7.3 mm Threaded bolt Catalog E /08 Edition 2

75 Right Angle Male High Current 7W2 THR Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 7W2 THR 25 A 7.3 mm 3.0 mm None Clip with Tray (24 pcs) W2 THR 25 A 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) W2 THR 25 A 7.3 mm 3.0 mm Thread 7W2 THR 25 A 7.3 mm 3.0 mm Threaded bolt 7W2 THR 25 A 7.3 mm 3.0 mm Threaded bolt Clip with Clip with Clip with Tray (24 pcs) Tray (24 pcs) Tray (24 pcs) Catalog E /08 Edition

76 Right Angle Male High Current 7W2 Pressfit Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 7W2 Pressfit 25 A 7.3 mm 3.0 mm None Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Thread Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Thread Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) W2 Pressfit 25 A 7.3 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Catalog E /08 Edition 2

77 Right Angle Male High Current 3W3, 3WK3 SMT Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3W3 SMT 7.3 mm None W3 SMT 7.3 mm Thread W3 SMT 7.3 mm Thread W3 SMT 7.3 mm Threaded bolt W3 SMT 7.3 mm Threaded bolt WK3 SMT 7.3 mm None 3WK3 SMT 7.3 mm Thread WK3 SMT 7.3 mm Thread WK3 SMT 7.3 mm Threaded bolt WK3 SMT 7.3 mm Threaded bolt Catalog E /08 Edition

78 Right Angle Male High Current 3W3, 3WK3 THR Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3W3 THR 7.3 mm 3.0 mm Through Hole 3.2 mm Clip with Tray (24 pcs) W3 THR 7.3 mm 3.0 mm Thread Clip with Tray (24 pcs) W3 THR 7.3 mm 3.0 mm Thread 3W3 THR 7.3 mm 3.0 mm Threaded bolt 3W3 THR 7.3 mm 3.0 mm Threaded bolt Clip with Clip with Clip with Tray (24 pcs) Tray (24 pcs) Tray (24 pcs) Catalog E /08 Edition 2

79 Right Angle Male High Current 3W3, 3WK3, 5W5, 8W8 Versions with machined high current contacts Dimensional Drawing 3W3, 3WK3, 5W5 and 8W8, Assembly Height 7.3 mm All dimensions in mm Catalog E /08 Edition

80 Right Angle Male High Current 3W3, 3WK3, 5W5, 8W8 Dimensional Drawing 3W3/3WK3 Solder Leiterplatten-Bohrbild P 3W3, 3WK3 PC Board Hole Pattern P 3W3, 3WK ,8 10,67 3,2 0,1 2x 4,05 0,1 3x Dimensional Drawing 5W5 Solder Leiterplatten-Bohrbild P 5W5 PC Board Hole Pattern P 5W Dimensional Drawing 8W8 Solder Leiterplatten-Bohrbild P 8W8 PC Board Hole Pattern P 8W ,8 10,67 11,8 10,67 3,2 0,1 2x 4,05 0,1 5x All dimensions in mm 3,2 0,1 2x 4,05 0,1 8x Catalog E /08 Edition 2

81 Right Angle Male High Current 3W3, 3WK3, 5W5, 8W8 3W3 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3W3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) WK3 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3WK3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) WK3 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W5 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 5W5 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W5 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W8 Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 8W8 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) W8 Solder 30 A 7.3 mm 3.7 mm Riveted nut Clip Cardboard (25 pcs) Catalog E /08 Edition

82 Vertical Female Dimensional Drawing SMT Leiterplatte pcb Ansaughaube hood Pohlzahl No. of contacts A B C D E F G H ohne/ without Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Bohrung hole A Layout: B B A 0.1 A All dimensions in mm 80 Catalog E /08 Edition 2

83 Vertical Female Dimensional Drawing THR Leiterplatte pcb Variante 1 version 1 Bestückung kraftlos with Pohlzahl No. of contacts A B C D E F G Ansaughaube nur bei Version 1 hood only on version 1 Variante 2 version 2 Layout: Version 1 / 2 ohne / without : Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Bestückung mit Kraft without 0.1 B A 1 B 0.1 A Dimensional Drawing Solder Leiterplatte pcb Pohlzahl No. of contacts A B C D E F G Layout: 0.1 B A ohne / without Durchgangsloch ø 3,5 through hole ø 3.5 Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread - #4-40 / # B All dimensions in mm 0.1 A Catalog E /08 Edition

84 Vertical Female Dimensional Drawing Pressfit (Clip) Leiterplatte pcb Pohlzahl No. of A B C D E F G contacts Metal plating of plated-through hole see drawing No Layout: A 0.05 B ohne / without Durchgangsloch ø 3,2 through hole ø 3.2 Mutter / nut : Gewinde / thread / #4-40 Bolze n / bolt : Gewinde / thread / # B 0.05 A Dimensional Drawing Pressfit (Screw) Leiterplatte pcb Pohlzahl No. of contacts A , ,95 B C D E F G Metal plating of plated-through hole see drawing No Layout: 0.1 B A 15x ohne/ without Durchgangsloch ø 3,5 through hole ø 3.5 Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread - #4-40 # B 0.1 A All dimensions in mm 82 Catalog E /08 Edition 2

85 Vertical Female 9 Pin SMT Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 SMT 6.3 mm None Tray (48 pcs) SMT 6.3 mm None (120 pcs) SMT 6.3 mm Thread Tray (48 pcs) SMT 6.3 mm Thread (120 pcs) SMT 6.3 mm Thread Tray (48 pcs) SMT 6.3 mm Thread (120 pcs) SMT 6.3 mm Threaded bolt Tray (48 pcs) SMT 6.3 mm Threaded bolt (120 pcs) SMT 6.3 mm Threaded bolt Tray (48 pcs) SMT 6.3 mm Threaded bolt (120 pcs) Catalog E /08 Edition

86 Vertical Female 9 Pin SMT Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 SMT 9.0 mm None Tray (48 pcs) SMT 9.0 mm None SMT 9.0 mm Thread Tray (48 pcs) SMT 9.0 mm Thread SMT 9.0 mm Thread Tray (48 pcs) SMT 9.0 mm Thread SMT 9.0 mm Threaded bolt Tray (48 pcs) SMT 9.0 mm Threaded bolt SMT 9.0 mm Threaded bolt Tray (48 pcs) SMT 9.0 mm Threaded bolt Catalog E /08 Edition 2

87 Vertical Female 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 5.6 mm 2.4 mm None Clip without Tray (48 pcs) THR 5.6 mm 2.4 mm Thread Clip without Tray (48 pcs) THR 5.6 mm 2.4 mm Thread Clip without Tray (48 pcs) THR 5.6 mm 2.4 mm Threaded bolt Clip without Tray (48 pcs) THR 5.6 mm 2.4 mm Threaded bolt Clip without Tray (48 pcs) THR 6.0 mm 3.0 mm None Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm None Clip without Tray (48 pcs) THR 6.0 mm 3.0 mm None Clip without THR 6.0 mm 3.0 mm Thread Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Thread Clip without Tray (48 pcs) THR 6.0 mm 3.0 mm Thread Clip without THR 6.0 mm 3.0 mm Thread Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Thread Clip without Tray (48 pcs) THR 6.0 mm 3.0 mm Thread Clip without THR 6.0 mm 3.0 mm Threaded bolt Clip with Tray (48 pcs) Catalog E /08 Edition

88 Vertical Female 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 6.0 mm 3.0 mm Threaded bolt Clip without Tray (48 pcs) THR 6.0 mm 3.0 mm Threaded bolt Clip without THR 6.0 mm 3.0 mm Threaded bolt Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Threaded bolt Clip without Tray (48 pcs) THR 6.0 mm 3.0 mm Threaded bolt Clip without THR 6.3 mm 1.7 mm None Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm None Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm None Clip without THR 6.3 mm 1.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without THR 6.3 mm 1.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without THR 6.3 mm 1.7 mm Threaded bolt Clip with Tray (48 pcs) Catalog E /08 Edition 2

89 Vertical Female 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 6.3 mm 1.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without THR 6.3 mm 1.7 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without THR 6.3 mm 2.7 mm None Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm None Clip without THR 6.3 mm 2.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without THR 6.3 mm 2.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (48 pcs) Catalog E /08 Edition

90 Vertical Female 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without THR 6.3 mm 5.3 mm None Clip with Tray (48 pcs) THR 6.3 mm 5.3 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 5.3 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip without Catalog E /08 Edition 2

91 Vertical Female 9 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 Solder 6.3 mm 2.7 mm None Tray (48 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (48 pcs) Solder 6.3 mm 5.3 mm None Tray (48 pcs) Solder 6.3 mm 5.3 mm Thread Screw Tray (48 pcs) Solder 6.3 mm 5.3 mm Thread Screw Tray (48 pcs) Solder 6.3 mm 5.3 mm Threaded bolt Screw Tray (48 pcs) Solder 6.3 mm 5.3 mm Threaded bolt Screw Tray (48 pcs) Solder 6.3 mm 5.3 mm Threaded bolt Screw Tray (48 pcs) Catalog E /08 Edition

92 Vertical Female 9 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 Pressfit 6.3 mm 3.0 mm None Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Through Hole Clip Tray (48 pcs) mm 9 Pressfit 9.0 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm None Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (48 pcs) Catalog E /08 Edition 2

95 Vertical Female 15 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 THR 6.3 mm 1.7 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm None Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (36 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip with Tray (36 pcs) Catalog E /08 Edition

96 Vertical Female 15 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 Solder 6.3 mm 2.7 mm None Tray (36 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (36 pcs) Solder 6.3 mm 5.3 mm None Tray (36 pcs) Solder 6.3 mm 5.3 mm Thread Screw Tray (36 pcs) Solder 6.3 mm 5.3 mm Thread Screw Tray (36 pcs) Solder 6.3 mm 5.3 mm Threaded bolt Screw Tray (36 pcs) Solder 6.3 mm 5.3 mm Threaded bolt Screw Tray (36 pcs) Solder 6.3 mm 5.3 mm Threaded bolt Screw Tray (36 pcs) Catalog E /08 Edition 2

97 Vertical Female 15 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 Pressfit 6.0 mm 3.3 mm None Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Thread Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Thread Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm None Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Catalog E /08 Edition

98 Vertical Female 15 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 Pressfit 9.0 mm 3.0 mm None Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm None Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (36 pcs) Catalog E /08 Edition 2

101 Vertical Female 25 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 25 THR 6.3 mm 2.7 mm None Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (30 pcs) Catalog E /08 Edition

102 Vertical Female 25 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 25 Solder 6.3 mm 2.7 mm None Tray (30 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (30 pcs) Catalog E /08 Edition 2

104 Vertical Female 25 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 25 Pressfit 9.0 mm 3.0 mm None Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (30 pcs) Pressfit 6.3 mm 3.0 mm None Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw 4-40 Tray (30 pcs) UNC 25 Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (30 pcs) Catalog E /08 Edition 2

105 Vertical Female 37 Pin SMT Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 SMT 6.3 mm None Tray (24 pcs) SMT 6.3 mm None (120 pcs) SMT 6.3 mm Thread Tray (24 pcs) SMT 6.3 mm Thread (120 pcs) SMT 6.3 mm Thread Tray (24 pcs) SMT 6.3 mm Thread (120 pcs) SMT 6.3 mm Threaded bolt Tray (24 pcs) SMT 6.3 mm Threaded bolt (120 pcs) SMT 6.3 mm Threaded bolt Tray SMT 6.3 mm Threaded bolt (120 pcs) Catalog E /08 Edition

107 Vertical Female 37 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 THR 6.3 mm 2.7 mm None Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (24 pcs) Catalog E /08 Edition

108 Vertical Female 37 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 Solder 6.3 mm 2.7 mm None Tray (24 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (24 pcs) Catalog E /08 Edition 2

110 Vertical Female 37 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 Pressfit 9.0 mm 3.0 mm None Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 6.3 mm 3.0 mm None Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Catalog E /08 Edition 2

111 Vertical Female High Current Versions with machined high current contacts Dimensional Drawing 3W3, 3WK3, 5W5 and 8W8 All dimensions in mm Catalog E /08 Edition

112 Vertical Female High Current 3W3 Pressfit Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3W3 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt 3W3 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) W3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition 2

113 Vertical Female High Current 3WK3 Pressfit Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 3WK3 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt 3WK3 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt 4-40 UNC Cardboard (35 pcs) Cardboard (35 pcs) WK3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition

114 Vertical Female High Current 5W5 Pressfit Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 5W5 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt 5W5 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) W5 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition 2

115 Vertical Female High Current 8W8 Pressfit Versions No. of Pins Termination Current Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 8W8 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 6.3 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt 8W8 Pressfit 30 A 9.0 mm 3.2 mm - Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) W8 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition

116 Vertical Male Dimensional Drawing SMT Leiterplatte pcb Ansaughaube hood Pohlzahl No. of contacts A B C D E F G H ohne/ without Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Layout: Bohrung hole A B B A 0.1 A All dimensions in mm 114 Catalog E /08 Edition 2

117 Vertical Male Dimensional Drawing THR Leiterplatte pcb Version 1 Bestückung kraftlos without Pohlzahl No. of contacts A B C D E F G Ansaughaube nur bei Version 1 hood only on version 1 Version 2 Layout: Version 1 / 2 Bestückung mit Kraft with A ohne / without Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / # B 1 B 0.1 A Dimensional Drawing Solder Leiterplatte pcb Pohlzahl No. of contacts A B C D E F G Layout: 0.1 B A ohne / without Durchgangsloch ø 3,5 through hole ø 3.5 Mutter / nut : Gewinde / thread / #4-40 Bolze n / bolt : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread - #4-40 / # B All dimensions in mm 0.1 A Catalog E /08 Edition

118 Vertical Male Dimensional Drawing Pressfit (Clip) Leiterplatte pcb Pohlzahl No. of contacts A B C D E F G Metal plating of plated-through hole see drawing No Layout: A 0.05 B ohne / without Durchgangsloch ø 3,2 through hole ø 3.2 Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / # B A Dimensional Drawing Pressfit (Screw) Leiterplatte pcb Pohlzahl No. of contacts A B C D E F G Metal plating of plated-through hole see drawing No Layout: 0.1 B A 15x ohne/ without Durchgangsloch ø 3,5 through hole ø 3.5 Mutter / nut : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread / #4-40 Bolzen / bolt : Gewinde / thread - #4-40 # B 0.1 A All dimensions in mm 116 Catalog E /08 Edition 2

119 Vertical Male 9 Pin SMT Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 SMT 6.3 mm None Tray (48 pcs) SMT 6.3 mm None (120 pcs) SMT 6.3 mm Thread Tray (48 pcs) SMT 6.3 mm Thread (120 pcs) SMT 6.3 mm Thread Tray (48 pcs) SMT 6.3 mm Thread (120 pcs) SMT 6.3 mm Threaded bolt Tray (48 pcs) SMT 6.3 mm Threaded bolt (120 pcs) SMT 6.3 mm Threaded bolt Tray (48 pcs) SMT 6.3 mm Threaded bolt (120 pcs) Catalog E /08 Edition

120 Vertical Male 9 Pin SMT Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 SMT 9.0 mm None Tray (48 pcs) SMT 9.0 mm None SMT 9.0 mm Thread Tray (48 pcs) SMT 9.0 mm Thread SMT 9.0 mm Thread Tray (48 pcs) SMT 9.0 mm Thread SMT 9.0 mm Threaded bolt Tray (48 pcs) SMT 9.0 mm Threaded bolt SMT 9.0 mm Threaded bolt Tray (48 pcs) SMT 9.0 mm Threaded bolt Catalog E /08 Edition 2

121 Vertical Male 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 6.0 mm 3.0 mm None Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Thread Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Threaded bolt Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Threaded bolt Clip with Tray (48 pcs) THR 6.0 mm 3.0 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm None Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm None Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm None Clip without THR 6.3 mm 1.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without THR 6.3 mm 1.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Thread 4-40 UNC Clip without THR 6.3 mm 1.7 mm Threaded bolt Clip with Tray (48 pcs) Catalog E /08 Edition

122 Vertical Male 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 6.3 mm 1.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without THR 6.3 mm 1.7 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 1.7 mm Threaded bolt Clip without THR 6.3 mm 2.7 mm None Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm None Clip without THR 6.3 mm 2.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without THR 6.3 mm 2.7 mm Thread Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Thread Clip without THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (48 pcs) Catalog E /08 Edition 2

123 Vertical Male 9 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without THR 6.3 mm 5.3 mm Threaded bolt Clip with Tray (48 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip without Tray (48 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip without THR 7.0 mm 4.6 mm None Clip with Tray (48 pcs) THR 7.0 mm 4.6 mm Thread Clip with Tray (48 pcs) THR 7.0 mm 4.6 mm Thread Clip with Tray (48 pcs) THR 7.0 mm 4.6 mm Threaded bolt Clip with Tray (48 pcs) THR 7.0 mm 4.6 mm Threaded bolt Clip with Tray (48 pcs) Catalog E /08 Edition

124 Vertical Male 9 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 Solder 6.3 mm 2.7 mm Threaded bolt Clip Tray (48 pcs) Solder 11.0 mm 3.1 mm None Clip Tray (48 pcs) Solder 11.0 mm 3.1 mm Thread Clip Tray (48 pcs) Solder 11.0 mm 3.1 mm Thread Clip Tray (48 pcs) Solder 11.0 mm 3.1 mm Threaded bolt Clip Tray (48 pcs) Solder 11.0 mm 3.1 mm Threaded bolt Clip Tray (48 pcs) Solder 6.3 mm 2.7 mm None Tray (48 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (48 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw 4-40 Tray (48 pcs) UNC 9 Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (48 pcs) Catalog E /08 Edition 2

125 Vertical Male 9 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 9 Pressfit 6.0 mm 3.3 mm None Clip Tray (48 pcs) Pressfit 6.0 mm 3.3 mm Thread Clip Tray (48 pcs) Pressfit 6.0 mm 3.3 mm Thread Clip Tray (48 pcs) Pressfit 6.0 mm 3.3 mm Threaded bolt Clip Tray (48 pcs) Pressfit 6.0 mm 3.3 mm Threaded bolt Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm None Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Catalog E /08 Edition

126 Vertical Male 9 Pin Pressfit Versions Y L No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 9 Pressfit 9.0 mm 3.0 mm None Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (48 pcs) Pressfit 6.3 mm 3.0 mm None Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (48 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw 4-40 Tray (48 pcs) UNC 9 Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (48 pcs) Catalog E /08 Edition 2

129 Vertical Male 15 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 THR 6.3 mm 2.7 mm None Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (36 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (36 pcs) THR 6.3 mm 5.3 mm None Clip without Tray (36 pcs) THR 6.3 mm 5.3 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 5.3 mm Thread Clip without Tray (36 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip without Tray (36 pcs) THR 6.3 mm 5.3 mm Threaded bolt Clip without Tray (36 pcs) Catalog E /08 Edition

130 Vertical Male 15 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 Solder 6.3 mm 2.7 mm None Tray (36 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (36 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (36 pcs) Catalog E /08 Edition 2

131 Vertical Male 15 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 Pressfit 5.6 mm 3.7 mm None Clip Tray (36 pcs) Pressfit 5.6 mm 3.7 mm Thread Clip Tray (36 pcs) Pressfit 5.6 mm 3.7 mm Thread Clip Tray (36 pcs) Pressfit 5.6 mm 3.7 mm Threaded bolt Clip Tray (36 pcs) Pressfit 5.6 mm 3.7 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm None Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Thread Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Thread Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.0 mm 3.3 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm None Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Catalog E /08 Edition

132 Vertical Male 15 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 15 Pressfit 9.0 mm 3.0 mm None Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (36 pcs) Pressfit 6.3 mm 3.0 mm None Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (36 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (36 pcs) Catalog E /08 Edition 2

135 Vertical Male 25 Pin THR Versions Y L No. of Pins Termination Assembly Termination Packaging Part Number Height Length Mating Side Terminal Side 25 THR 6.3 mm 2.7 mm None Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (30 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (30 pcs) THR 9.0 mm 2.6 mm None Clip without Tray (30 pcs) THR 9.0 mm 2.6 mm Thread Clip without Tray (30 pcs) THR 9.0 mm 2.6 mm Thread 4-40 Clip without Tray (30 pcs) UNC 25 THR 9.0 mm 2.6 mm Threaded bolt Clip without Tray (30 pcs) THR 9.0 mm 2.6 mm Threaded bolt Clip without Tray (30 pcs) Catalog E /08 Edition

136 Vertical Male 25 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 25 Solder 6.3 mm 2.7 mm None Tray (30 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (30 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw 4-40 Tray (30 pcs) UNC 25 Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (30 pcs) Catalog E /08 Edition 2

138 Vertical Male 25 Pin Pressfit versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 25 Pressfit 9.0 mm 3.0 mm None Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (30 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (30 pcs) Pressfit 6.3 mm 3.0 mm None Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (30 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (30 pcs) Catalog E /08 Edition 2

141 Vertical Male 37 Pin THR Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 THR 6.3 mm 2.7 mm None Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm None Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Thread Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip with Tray (24 pcs) THR 6.3 mm 2.7 mm Threaded bolt Clip without Tray (24 pcs) Catalog E /08 Edition

142 Vertical Male 37 Pin Solder Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 Solder 6.3 mm 2.7 mm None Tray (24 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Thread Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (24 pcs) Solder 6.3 mm 2.7 mm Threaded bolt Screw Tray (24 pcs) Catalog E /08 Edition 2

144 Vertical Male 37 Pin Pressfit Versions Y L No. of Pins Termination Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 37 Pressfit 9.0 mm 3.0 mm None Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Thread Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 9.0 mm 3.0 mm Threaded bolt Clip Tray (24 pcs) Pressfit 6.3 mm 3.0 mm None Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Thread Screw 4-40 Tray (24 pcs) UNC 37 Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Pressfit 6.3 mm 3.0 mm Threaded bolt Screw Tray (24 pcs) Catalog E /08 Edition 2

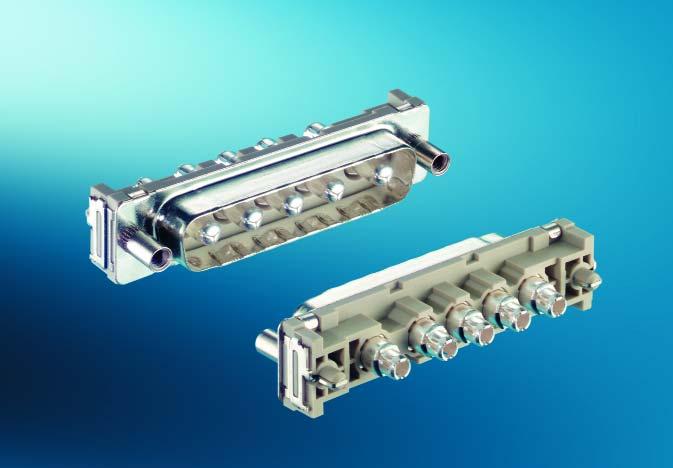

145 Vertical Male High Current Versions with stamped high current contacts Dimensional Drawing 5W5 All dimensions in mm Catalog E /08 Edition

146 Verticall Male High Current Dimensional Drawing 8W8 All dimensions in mm 144 Catalog E /08 Edition 2

147 Vertical Male High Current 5W5, 8W8 Y L No. of Pins Termination Current Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 5W5 Pressfit 6.9 mm 3.2 mm Threaded bolt Clip Tray (30 pcs) W8 Pressfit 6.9 mm 3.2 mm Threaded bolt Clip Tray (24 pcs) Catalog E /08 Edition

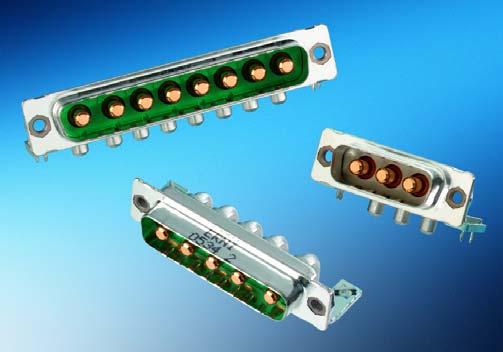

148 Vertical Male High Current Versions with machined high current contacts Dimensional Drawing 3W3, 3WK3, 5W5 and 8W8 All dimensions in mm 146 Catalog E /08 Edition 2

149 Vertical Male High Current 3W3 Y L No. of Pins Termination Current Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 3W3 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt 3W3 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) W3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition

150 Vertical Male High Current 3WK3 Y L No. of Pins Termination Current Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 3WK3 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt 3WK3 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) WK3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) WK3 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition 2

151 Vertical Male High Current 5W5 Y L No. of Pins Termination Current Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 5W5 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt 5W5 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) W5 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W5 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition

152 Vertical Male High Current 8W8 Y L No. of Pins Termination Current Assembly Height Termination Length Mating Side Terminal Side Packaging Part Number 8W8 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 6.3 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 6.3 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt 8W8 Pressfit 30 A 9.0 mm 3.2 mm Pressfit bolt Cardboard (35 pcs) Cardboard (35 pcs) W8 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) W8 Pressfit 30 A 9.0 mm 3.2 mm Threaded bolt Pressfit bolt Cardboard (35 pcs) Catalog E /08 Edition 2

153 Female and Male Connectors with Solder Cups Dimensional Drawing Female Connectors All dimensions in mm Catalog E /08 Edition

154 Female and Male Connectors with Solder Cups Dimensional Drawing Male Connectors All dimensions in mm 152 Catalog E /08 Edition 2

155 Female and Male Connectors with Solder Cups Female Connectors No. of Pins Termination Termination Packaging Part Number Length Mating Side Terminal Side 9 Hand solder* 2.5 mm None Cardboard (45 pcs) Hand solder* 2.5 mm None Cardboard (45 pcs) Hand solder* 2.5 mm None Cardboard (45 pcs) Hand solder* 2.5 mm None Cardboard (45 pcs) Male Connectors No. of Pins Termination Termination Packaging Part Number Length Mating Side Terminal Side 9 Hand solder* 3.2 mm None Cardboard (45 pcs) Hand solder* 3.2 mm None Cardboard (45 pcs) Hand solder* 3.2 mm None Cardboard (45 pcs) Hand solder* 3.2 mm None Cardboard (45 pcs) * for max. AWG 18 solid or stranded wire Catalog E /08 Edition

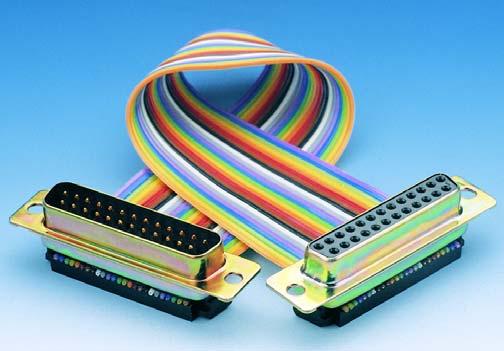

156 Female and Male Connectors for Flat Ribbon Cables Dimensional Drawing Female Connectors Dimensional Drawing Male Connectors All dimensions in mm 154 Catalog E /08 Edition 2

157 Female and Male Connectors for Flat Ribbon Cables Female Connectors No. of Pins Termination Packaging Part Number Mating Side Terminal Side 9 IDC* None Cardboard (84 pcs) IDC* None Cardboard ( 70 pcs) IDC* None Cardboard (56 pcs) IDC* None Cardboard (42 pcs) Male Connectors No. of Pins Termination Packaging Part Number Mating Side Terminal Side 9 IDC* None Cardboard (84 pcs) IDC* None Cardboard ( 70 pcs) IDC* None Cardboard (56 pcs) IDC* None Cardboard (42 pcs) * for AWG 28 stranded wire or AWG 26 solid wire Accessories for Male and Female Connectors No. of Pins Configuration Part Number 9 Strain Relief for D-Sub Male and Female Connectors Strain Relief for D-Sub Male and Female Connectors Strain Relief for D-Sub Male and Female Connectors Strain Relief for D-Sub Male and Female Connectors Application Tooling Configuration Part Number Hand tool with various accessories (complete set in a case) Catalog E /08 Edition

158 Female and Male Connectors for Discrete Wire IDC Dimensinal Drawing Female Connectors Dimensional Drawing Male Connectors All dimensions in mm 156 Catalog E /08 Edition 2

159 Female and Male Connectors for Discrete Wire IDC Female Connectors No. of Pins Termination/ Packaging Part Number Cable Diameter Mating Side Terminal Side 9 IDC / AWG None Tray (60 pcs) IDC / AWG None Tray (50 pcs) IDC / AWG None Tray (40 pcs) IDC / AWG None Tray (30 pcs) Male Connectors No. of Pins Termination/ Packaging Part Number Cable Diameter Mating Side Terminal Side 9 IDC / AWG None Tray (60 pcs) IDC / AWG None Tray (50 pcs) IDC / AWG None Tray (40 pcs) IDC / AWG None Tray (30 pcs) Application Tooling No. of Pins Part Number Standard Hand Crimp Tool Automatic Hand Crimp Tool Tool support (for mounting on table) Extraction Tool Catalog E /08 Edition

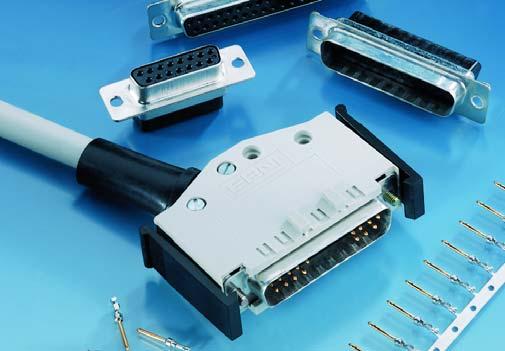

160 Female and Male Connectors for Crimp Snap-in Technique Dimensional Drawing Female Connectors Dimensional Drawing Male Connectors All dimensions in mm 158 Catalog E /08 Edition 2

161 Female and Male Connectors for Crimp Snap-in Technique Female Connector Housings No. of Pins Termination Mating Side Terminal Side Part Number 9 Crimp Snap-In None Crimp Snap-In None Crimp Snap-In None Crimp Snap-In None Male Connector Housings No. of Pins Termination Mating Side Terminal Side Part Number 9 Crimp Snap-In None Crimp Snap-In None Crimp Snap-In None Crimp Snap-In None Catalog E /08 Edition

162 Female and Male Connectors for Crimp Snap-in Technique Crimp Contacts for Female Connectors Cable Diameter Configuration Packaging Part Number AWG AWG AWG AWG AWG AWG Crimp Contact Bag (100 pcs) Crimp Contact Bag (100 pcs) Crimp Contact Reel (500 pcs) Crimp Contact Reel (500 pcs) Crimp Contact Reel ( pcs) Crimp Contact Reel ( pcs) Crimp Contacts for Male Connectors Cable Diameter Configuration Packaging Part Number AWG AWG AWG AWG AWG AWG Crimp Contact Bag (100 pcs) Crimp Contact Bag (100 pcs) Crimp Contact Reel (500 pcs) Crimp Contact Reel (500 pcs) Crimp Contact Reel ( pcs) Crimp Contact Reel ( pcs) Application Tooling Configuration Part Number Hand Crimp Tool for Loose Contacts AWG Hand Crimp Tool for Reels with 500 Contacts (incl. reel holder and adjustable feed) AWG Mounting and Dismounting Tool for AWG Catalog E /08 Edition 2

163 Housings for Female High Current Contacts Dimensional Drawing 3W3 Dimensional Drawing 3WK3 All dimensions in mm Catalog E /08 Edition

164 Housings for Female High Current Contacts Dimensional Drawing 5W5 Dimensional Drawing 8W8 Alle dimensions in mm 162 Catalog E /08 Edition 2

165 Housings for Female High Current Contacts No. of Pins Mating Side Terminal Side Part Number 3W3 None WK3 None W5 None W8 None Female High Current Contacts for Handsolder No. of Pins Termination Cable Diameter Current Part Number Hand solder AWG A Hand solder AWG A Hand solder AWG A Female High Current Crimp Contacts No. of Pins Termination Cable Diameter Current Part Number Crimp AWG A Crimp AWG A Crimp AWG A Application Tooling Configuration Part Number Hand Crimp tool Extraction tool Jacket if needed for replacement (for extraction tool) Catalog E /08 Edition

166 Housings for Male High Current Contacts Dimensional Drawing 3W3 Dimensional Drawing 3WK3 All dimensions in mm 164 Catalog E /08 Edition 2
