1 Catalog EA E ib /12 12/08 05/13 Edition Edition Sec11

2 Sec12 Catalog E Catalog 12/08 EA ib001 Edition 05/ Edition 4

3 Table of Contents General and Features...2 Electrical and Mechanical Characteristics...3 Ordering Information...5 Male Connectors Vertical Male - SMT Vertical Male - DIP... 7 Right Angle Male - SMT...8 Right Angle Male - DIP...9 Female Cable Assembly Order Form...10 Female Cable Assembly...11 Part Number Index...12 Catalog EA ib001 05/13 Edition

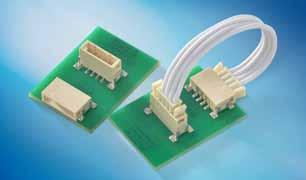

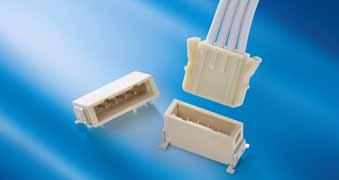

4 General and Features The ibridge product family is a comprehensive interconnect solution that is designed for board-to-cable connections in all applications. It is especially suitable for use in highly demanding systems that require reliability and robust connections. It is well suited for automotive, LED, telecommunications and data-transmission devices. The single row ibridge connectors could be used in a wide application temperature range (-55 C to +125 C). Engineer can select between two termination options depending on the application: SMT for maximum PCB real estate usage or DIP solder for extra mechanical strain relief. To take advantage of maximum PCB real estate usage while not compromising on the PCB retention force, the SMT version features solder brackets on both sides. In addition, SMT termination coplanarity is 100% guaranteed, less than 0.10 mm on all contacts. The ibridge connectors are engineered for every application concern, including severe vibration. The ibridge connectors have natural insulator housings to minimize light energy absorption. The male connectors are delivered in tube packaging. Tape and reel packaging with pick and place cap for fully automatic SMT assembly is also available. Features Number of positions: 2, 3, 4, 5, 6, 8 Current carrying capacity: up to 5 A per contact Crimp contact accepts stranded wires of AWG 22, AWG 24 For rugged applications Blanked contacts to ensure robustness and coplanarity Polarized contacts and housing for fool-proof mating Latches on both sides of female connectors to provide positive locking and audible feedback Solder brackets for higher PCB retention force High temperature and Halogen-free insulator material (UL94 V-0) Dual Latches Provide audible feedback and reliable locking Rectangle Contact and Housing Cavity Ensure fool-proof assembly Solder Brackets for SMT Ensure high PCB retention force Blanked Terminals Ensure robustness and precise coplanarity Locking Tang Provides secure retention between contact and housing Reverse Bellow Design Eliminates contact stubbing during mating 2 Catalog EA ib001 05/13 Edition 4

5 Electrical and Mechanical Characteristics Standard Male Connectors Female Connectors Number of Pins 2, 3, 4, 5, 6, 8 2, 3, 4, 5, 6, 8 Technical Data Climate Category DIN EN Test b -55/125/56-55/125/56 Temperature Range -55/125 C -55/125 C Current Rating per Contact IEC Test 5b C C Air and Creepage Distance Contact - Contact 1.6 mm Contact - Contact 1.5 mm Operating Voltage IEC The permissible operating voltages depend on the customer application and on the applicable or specified safety requirements. Insulation coordination according to IEC has to be regarded for the complete electrical device. Therefore, the maximum creepage and clearance distances of the mated connectors are specified for consideration as a part of the whole current path Dielectric Strength IEC Test 4a Contact Resistance IEC Test 2a Insulation Resistance IEC Test 3a Vibration, Sine IEC Test 6d Contact Disturbance (During Vibration Test) IEC Test 2e Shock, Halfsine IEC Test 6c Contact Disturbance (During Vibration Test) Mechanical Operation (Mating Cycle) IEC Test 2e IEC Test 9a Insertion and Withdrawal Force IEC Test 13b Gauge Retention Force IEC Test 16e Process Conditions Contact - Contact 500 V rms < 20 mω < 20 mω > 1000 MΩ > 1000 MΩ Hz 20 g < 1 µs < 1 µs 50 g 11 ms Contact - Contact 500 V rms Hz 20 g 50 g 11 ms < 1 µs < 1 µs > 100 Mating Cycles for Au > 30 Mating Cycles for Sn 2 N max. 2 N max N min. > 100 Mating Cycles for Au > 30 Mating Cycles for Sn Solder Temperature (max.) IEC Hand Soldering Temperature (max.) Dip Soldering Temperature (max.) Reflow Soldering Temperature (max.) Processing Temperature (Crimp Connection) JEDEC J-STD-020C 3.5 s at 350 C 3.5 s at 350 C 10 s at 260 C 10 s at 260 C s at 260 C s at 260 C 0/55 C 0/55 C Coplanarity < 0.1 mm < 0.1 mm Catalog EA ib001 05/13 Edition

6 Electrical and Mechanical Characteristics Standard Male Connectors Female Connectors Number of Pins 2, 3, 4, 5, 6, 8 2, 3, 4, 5, 6, 8 Housing Materials Plastic Material LCP Natural PA 6T Natural UL Flame Rating UL 94 V-0 UL 94 V-0 UL File E41797 E52579 Contact Materials Base Material Cu Alloy Cu Alloy Mating Area Au or Sn Plating over Au or Sn Plating over Ni Underplating Ni Underplating Termination Area Sn Plating over Ni Underplating Sn Plating over Ni Underplating PCB Clip and SMT Bracket Materials Base Material Cu Alloy Cu Alloy Plating Sn over Ni Sn over Ni Standard Standard Cable (AWG 22) Standard Cable (AWG 24) Number of Pins 2, 3, 4, 5, 6, 8 2, 3, 4, 5, 6, 8 Cable Assembly Cross Section AWG 22 / 17 x 0.16 mm AWG 24 / 11 x 0.16 mm Conductor Cu wire tin-plated Cu wire tin-plated Conductor Diameter 0.76 mm 0.61 mm Marking Magenta Magenta Insulation PVC PVC Insulation Thickness (Nominal) 0.43 mm 0.43 mm Outer Diameter 1.58 mm 1.43 mm Technical Data Temperature Range 105 C max. 105 C max. Voltage Rating 300 V max. 300 V max. Dielectric Strength 1500 V rms 1500 V rms UL Flammability UL 94 VW-1 UL 94 VW-1 4 Catalog EA ib001 05/13 Edition 4

7 Ordering Information No. of Positions Standard: 02, 03, 04, 05, 06, 08 (00: for Female Crimp Contact) Configuration / Termination Standard: Right Angle Male - SMT Right Angle Male - DIP Vertical Male - SMT Vertical Male - DIP Vertical Female Cable Assembly - Crimp Plating / Performance Standard: Tin (min. 30 mating cycles) No Plating (for Female Housing only) Non-standard: Gold (min. 100 mating cycles) Packaging Standard: Non-standard: Tube (for all Male - SMT & DIP) Tape and Reel (for Right Angle Male - SMT) Tape and Reel with Film (for Vertical Male - SMT) Box (for Female Cable Assembly) Tube with Film (for Vertical Male - SMT & DIP) Catalog EA ib001 05/13 Edition

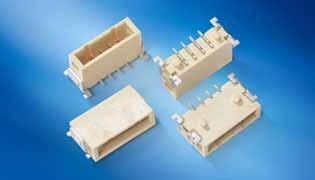

8 Vertical Male - SMT Dimensional Drawings All dimensions in mm. Ordering Information No. of Positions Mating Cycles Packaging Part Number System 2 30 min. Tube Tape and Reel with Film min. Tube Tape and Reel with Film min. Tube Tape and Reel with Film min. Tube Tape and Reel with Film min. Tube Tape and Reel with Film min. Tube Tape and Reel with Film Catalog EA ib001 05/13 Edition 4

9 Vertical Male - DIP Dimensional Drawings All dimensions in mm. Ordering Information No. of Positions Mating Cycles Packaging Part Number System 2 30 min. Tube min. Tube min. Tube min. Tube min. Tube min. Tube Catalog EA ib001 05/13 Edition

10 Right Angle Male - SMT Dimensional Drawings All dimensions in mm. Ordering Information No. of Positions Mating Cycles Packaging Part Number System 2 30 min. Tube Tape and Reel min. Tube Tape and Reel min. Tube Tape and Reel min. Tube Tape and Reel min. Tube Tape and Reel min. Tube Tape and Reel Catalog EA ib001 05/13 Edition 4

11 Right Angle Male - DIP Dimensional Drawings All dimensions in mm. Ordering Information No. of Positions Mating Cycles Packaging Part Number System 2 30 min. Tube min. Tube min. Tube min. Tube min. Tube min. Tube Catalog EA ib001 05/13 Edition

12 Female Cable Assemblies Order Form (Please fill in the blank / choose your options ) Pin Count: Plating / Performance: Standard: 02, 03, 04, 05, 06, 08 Standard: Tin (min. 30 mating cycles) Non-standard: Au (min. 100 mating cycles) Cable Size: AWG 22 AWG 24 Cable Type: Cable Configuration: PVC (Standard) High Temperature & Halogen-Free (Upon Request) Single-Ended (Only One Side with Connector) Double-Ended (Both Sides with Connector) Cable Length: mm Connector (Left) PIN#1 facing reader Connector (Right) Requestor Name: Customer Name: Project Name: Quantity Required: Estimated EAU: Request Date: pcs pcs 10 Catalog EA ib001 05/13 Edition 4

13 Female Cable Assemblies Dimensional Drawings Female Cable Assemblies Length (mm) Connector (Left) PIN#1 facing reader Connector (Right) Ordering Information No. of Positions Cable Type Mating Cycles Cable Size Length (mm) Part Number 2 PVC 30 min. AWG AWG PVC 30 min. AWG AWG PVC 30 min. AWG AWG PVC 30 min. AWG AWG PVC 30 min. AWG AWG PVC 30 min. AWG AWG Catalog EA ib001 05/13 Edition

14 Part Number Index Part Number Page Part Number Page Catalog EA ib001 05/13 Edition 4

15 Member Catalog EA E ib /12 12/08 05/13 Edition Edition
