TRACTION MRL LIFTS TYPE: ECO 2i. Version: 1.0 Page: 1/11 Date:1-Jul-10. Range of Application

Transcript

1 Page: 1/11 Range of Application

2 Page: 2/11 Index 3D LAYOUT... 3 TECHNICAL SPECIFICATION 450KG... 4 TECHNICAL SPECIFICATION 630KG... 5 TECHNICAL SPECIFICATION 1000KG... 6 TECHNICAL SPECIFICATION 1200KG... 7 TECHNICAL SPECIFICATION 1600KG... 8 LAYOUT ARRANGEMENT:... 9 SINGLE ENTRANCE... 9 Plan view... 9 LAYOUT ARRANGEMENT: THROUGH CAR Plan view ΠΙΣΤΟΠΟΙΗΣΗ ΔΗΛΩΣΗ ΚΑΤΑΣΚΕΥΑΣΤΗ... 11

3 Page: 3/11 3D Layout 1. SHAFT WALL 2. LANDING DOOR 3. MOTOR SUPPORT BASE 4. MOTOR 5 STEEL ROPES 6. COUNTERWEIGHT FRAME 7. CAR FRAME 8. GUIDE RAIL BRACKETS 9. CAR GUIDE RAILS

4 Page: 4/11 Technical Specification 450kg Type TRACTION MRL ECO2i (Acting 2:1) Rated Load: 450 kg (6 Persons) Nominal Speed: 1 m/s 1,6 m/s Shaft requirements: EN81 1 Min. requirements EN81 1 Min. requirements Minimum Headroom: 3350mm 2900mm 3400mm 2900mm Minimum Pit: 1060mm 800mm 1060mm 800mm Maximum Supported Load (P + Q): 1250 kg Car Guide rails: T70x65x9 Counterweight Guide rails: Car frame type: T50x50x5 TFS 302 H Motor type: 1 m/s 1,6 m/s Doppler F GETM1,9D 100 Ø240 3kW GETM1,9D 160 Ø240 4,8kW

5 Page: 5/11 Technical Specification 630kg Type TRACTION MRL ECO2i (Acting 2:1) Rated Load: 630 kg (8 Persons) Nominal Speed: 1 m/s 1,6 m/s Shaft requirements: EN81 1 Min. requirements EN81 1 Min. requirements Minimum Headroom: 3350mm 2900mm 3400mm 2900mm Minimum Pit: 1060mm 800mm 1060mm 800mm Maximum Supported Load (P + Q): 1420 kg Car Guide rails: T70x65x9 Counterweight Guide rails: Car frame type: T50x50x5 TFS 302 H Motor type: 1 m/s 1,6 m/s Doppler F GETM1,9D 100 Ø240 4,1kW GETM1,9D 160 Ø240 6,6kW

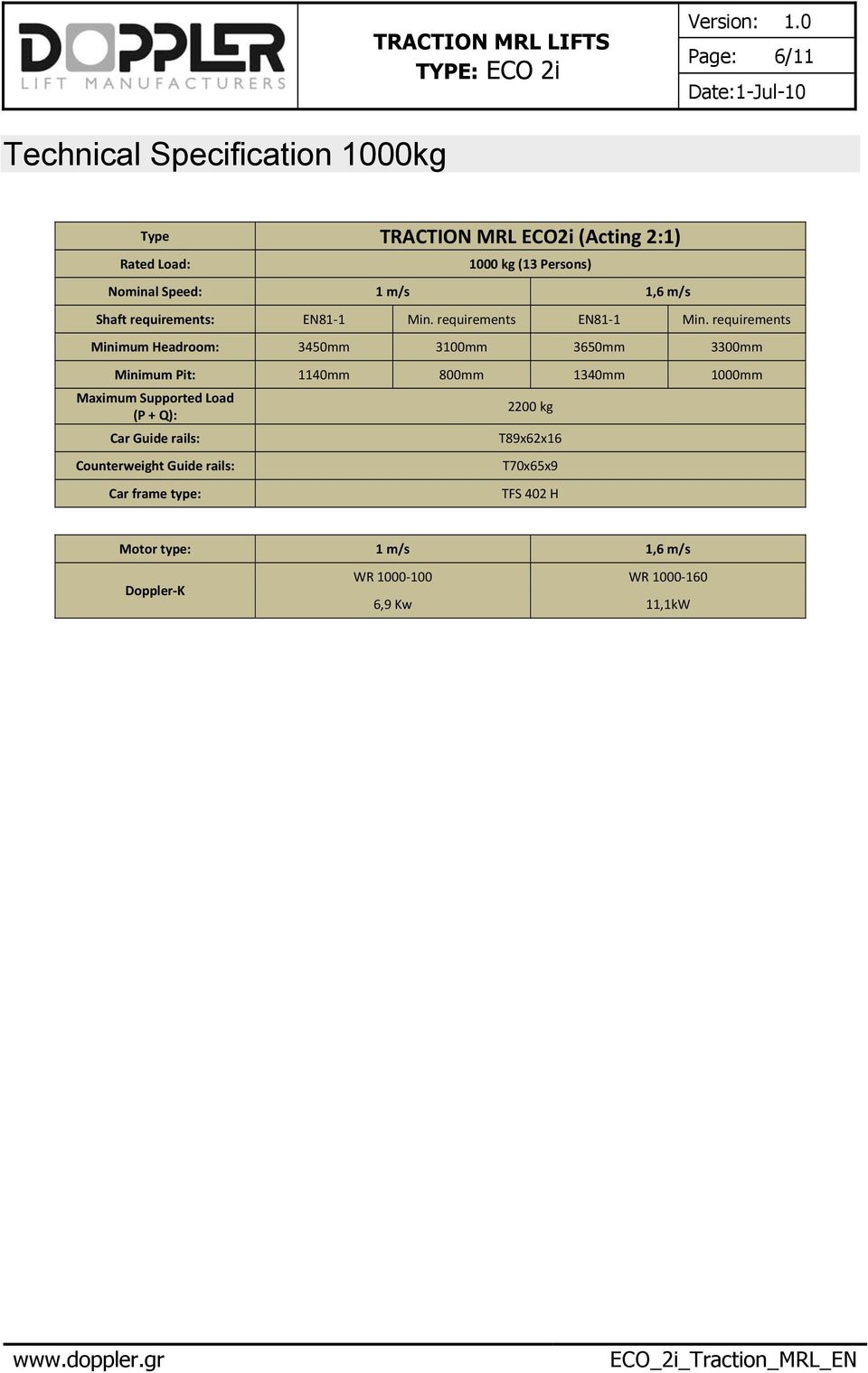

6 Page: 6/11 Technical Specification 1000kg Type TRACTION MRL ECO2i (Acting 2:1) Rated Load: 1000 kg (13 Persons) Nominal Speed: 1 m/s 1,6 m/s Shaft requirements: EN81 1 Min. requirements EN81 1 Min. requirements Minimum Headroom: 3450mm 3100mm 3650mm 3300mm Minimum Pit: 1140mm 800mm 1340mm 1000mm Maximum Supported Load (P + Q): 2200 kg Car Guide rails: T89x62x16 Counterweight Guide rails: Car frame type: T70x65x9 TFS 402 H Motor type: 1 m/s 1,6 m/s Doppler K WR WR ,9 Kw 11,1kW

7 Page: 7/11 Technical Specification 1200kg Type TRACTION MRL ECO2i (Acting 2:1) Rated Load: 1200 kg (16 Persons) Nominal Speed: 1 m/s 1,6 m/s Shaft requirements: EN81 1 Min. requirements EN81 1 Min. requirements Minimum Headroom: 3450mm 3100mm 3650mm 3300mm Minimum Pit: 1140mm 800mm 1340mm 1000mm Maximum Supported Load (P + Q): mm Car Guide rails: 2550 kg Counterweight Guide rails: Car frame type: Type T114x89x16 T70x65x9 TFS 402 H Motor type: 1 m/s 1,6 m/s Doppler K WR WR ,6 Kw 13,8 Kw

8 Page: 8/11 Technical Specification 1600kg Type TRACTION MRL ECO2i (Acting 2:1) Rated Load: 1600 kg (21 Persons) Nominal Speed: 1 m/s 1,6 m/s Shaft requirements: EN81 1 Min. requirements EN81 1 Min. requirements Minimum Headroom: 3450mm 3100mm 3650mm 3300mm Minimum Pit: 1200mm 800mm 1400mm 1000mm Maximum Supported Load (P + Q): 3100 kg Car Guide rails: T114x89x16 Counterweight Guide rails: Car frame type: T70x65x9 TFS 502 H Motor type: 1 m/s 1,6 m/s Doppler K WR WR ,1kW 17,7kW

9 Page: 9/11 Layout arrangement: Single entrance Plan view PERSONS RATED LOAD (kg) CAR WIDTH CW (mm) CAR DEPTH CD (mm) SHAFT WIDTH SW (mm) SHAFT DEPTH SD (mm) DOOR TYPE *2PT: 2 panel telescopic PT 800x PT 800x PT 1000x PT 1000x PT 1000x2000

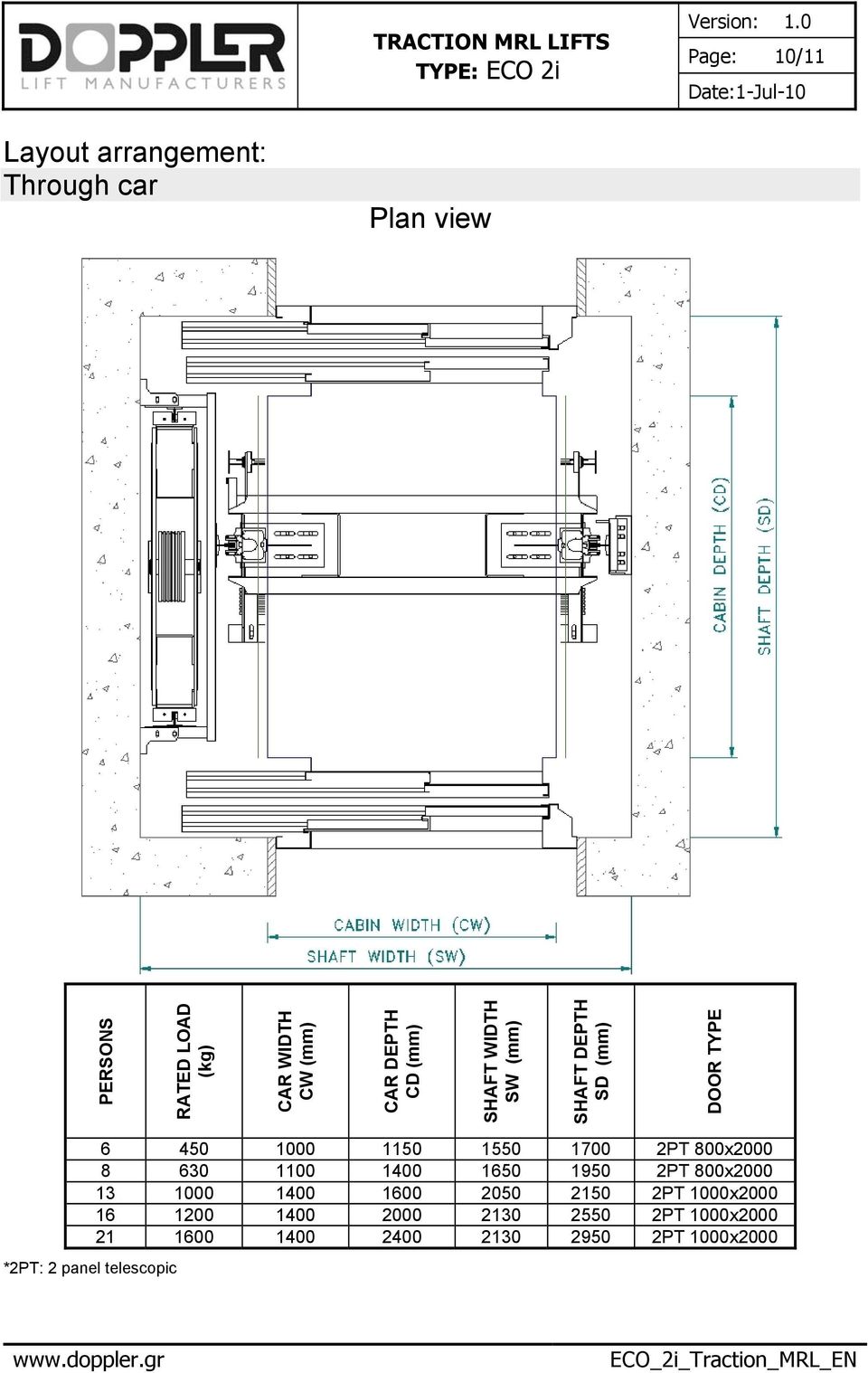

10 Page: 10/11 Layout arrangement: Through car Plan view PERSONS RATED LOAD (kg) CAR WIDTH CW (mm) CAR DEPTH CD (mm) SHAFT WIDTH SW (mm) SHAFT DEPTH SD (mm) DOOR TYPE *2PT: 2 panel telescopic PT 800x PT 800x PT 1000x PT 1000x PT 1000x2000

11 Page: 11/11 Πιστοποίηση ΔΗΛΩΣΗ ΚΑΤΑΣΚΕΥΑΣΤΗ MANUFACTURER S DECLARATION Με το παρόν δηλώνεται ότι η εταιρεία: This is to declare that the company: DOPPLER S.A. ΒΙO.ΠΕ. Πολυκάστρου Πολύκαστρο, DOPPLER S.A. Industrial Park of Polikastro GR 61200, Polikastro Greece έχει εγκαταστήσει και εφαρμόζει ένα πλήρες Σύστημα Διασφάλισης Ποιότητας σύμφωνα με την οδηγία για τους ανελκυστήρες (95/16/ΕΚ, Παράρτημα ΧΙΙΙ, Ενότητα Η) και το πρότυπο ΕΝ ISO 9001:2000, για τo has established and operates a Quality Assurance System pursuant to the Lift Directive (95/16/EC, Annex XIII, Module H) and the EN ISO 9001:2000, for the Σχεδιασμό, Κατασκευή, Συναρμολόγηση, Μελέτες εγκατάστασης, Μέθοδοι για τον Τελικό Έλεγχο των Ανελκυστήρων Design, Manufacture, Assembly, Studies of Installation, Methods of final inspection and Testing of lifts. Το σύστημα αυτό εξασφαλίζει ότι ο ανελκυστήρας, Νο σχεδιάστηκε σύμφωνα με ένα ανελκυστήρα που ικανοποιεί όλες τις απαιτήσεις της οδηγίας των ανελκυστήρων και ο εγκαταστάτης μπορεί να τοποθετήσει τη σήμανση CE στον ανελκυστήρα ακολουθώντας μία από τις διαδικασίες που αναφέρονται στο άρθρο 8.2iii της οδηγίας. This system ensures that the lift, Nr was designed in accordance with a lift that satisfies all the requirements of the Lift Directive, and the installer may affix a CE marking on the Lift following the procedure drawn up to article 8.2.iii of the Directive. DOPPLER S.A. Βιομηχανία Ανελκυστήρων DOPPLER S.A. Lift Manufacturers Σταύρος Σταυρόπουλος Πρόεδρος & Διευθύνων Σύμβουλος Stavros Stavropoulos President & Managing Director
