Temperature Sensors Production Program and Sensor Types

Transcript

1 Temperature Sensors Production Program and Sensor Types

2 Contents Page VTT 02 ATEX Q 001 and ISO 9001:2008 Certifcate...2 Production Program...3 Pt100 Probes: General...4 Pt100 Cables Colour Code...4 Pt100 Probes: Tolerances...5 Order Codes (Pt100)...6, 7 Pt100 Probes (Well + Sensing Element)...8, 9 Pt100 Probes: Sheath Construction, with Cable...10 Pt100 Probes: Cable Probes...10 Pt100 Probes: Surface Probes...10 Pt100 Probes: Food Probes...10 Pt100 Probes: Bayonet Probes...10 Pt100 Probes: Sensing Elements...11, 12 Thermocouples: General...13 Thermocouples: Tolerances...13 Order Codes...14 Thermocouples: (Well + Sensing Element)...15, 16 Thermocouples: Sheath Construction, with Cable...16 Thermocouples: Surface Probes...16 Thermocouples: Bayonet Probes...16 Ceramic Probes...16 Thermocouples: Sensing Elements...17 Wells, Welded Wells...18, 19 Root Sleeves, Welded Well Materials...19 Thermocouples: Connectors...20 Gland couplings...20 Gas-tight couplings...20 Flanges...20 Thermocouple Cable Stock Types...21 Thermocouple Cable Standards...22, 23 Terms of sale of the Association of Finnish Technical Traders (TKL 04). SKS Sensors is a registered trade mark of SKS Automaatio Oy

3 Sensor Workshop Production Program Vibration-Proof Resistance Sensing Elements, Sheath Construction standard sheath material AISI 316L length according to specification diameter mm as Pt100 probes (1xPt100, 2xPt100, other norms on request) 2-, 3- and 4-wire connection precision classes: Class A, B, 1/3 DIN and 1/10 DIN. Vibration-Proof Thermocouples, Sheath Construction diameter mm standard sheath material Inconel 600 or AISI 316 precision class 1 length according to specification. Wells with threaded fitting with flange ceramic welded D1...D6 and their assemblies diameter and length according to specification materials include acid-proof steels, heat-resistant steels, titanium, Hastelloy epoxy-coated connection heads (RAL 5005). Cable Probes diameter and length according to specification (AISI 316) various cable options as thermocouples as Pt100 probes (1xPt100, 2xPt100, other norms on request) 2-, 3- and 4-wire connection (Pt100) precision classes: Class A, B, 1/3 DIN, 1/10 DIN (Pt100) and Class 1 (TC) various coupling options. Bayonet Probes diameter 6 and 8mm (AISI 316) various cable options as thermocouples as Pt100 probes (1xPt100, 2xPt100, other norms on request) 2-, 3- and 4-wire connection (Pt100) precision classes: Class A, B, 1/3 DIN, 1/10 DIN (Pt100) and Class 1 (TC) various coupling options. Approvals SKS Group Oy has an ATEX certificate - VTT 02 ATEX Q according to EU directive 94/9 EC. Our manufacturing processes are also IECEx Quality Assessment Reported according to EN ISO/IEC Inspector for the certificates is VTT Expert Services Ltd. The certificates give the rights to produce Ex e, Ex t and Ex d construction based temperature sensors, which are permissible to be installed to explosion risk environments. Sensor manufacturing also has: Certification of ISO 9001:2008 for production and purchasing. GOST-certificate and Russian language documentation for sensors. The very latest production technics, as four laser welding machines are used in the sensor manufacturing. 3

4 PT100 Probes Based on resistance measurement. The temperature coefficient of platinum s resistance is positive it increases with the increasing of temperature. Resistance changes as a function of temperature, 0.39/1 C. The long-term stability differs most from other methods of temperature measurement better than 0.2/0 C in one year. Colour Code 2-wire 3-wire 4-wire 2-wire, with compensation Pt100 White Red Red Red White White White Red Red White Red Blue Blue 2 x Pt100 White Red Blue Yellow Red Red White Blue Blue Yellow Red Red White White Blue Blue Yellow Yellow White 3 x Pt100 Red Blue Yellow Black Green 4

5 PT100 Probes Probe Options 1 x Pt100 2 x Pt100 (3 x Pt100) 2-wire connection 3-wire connection 4-wire connection + compensation loop Precision Classes Class A Class B Class B 1/3 DIN Class B 1/10 DIN Tolerance classes for Pt100 thermometers acc. to standard IEC Tolerance class Temperature range of validity C Wire wound resistors Film resistors Tolerance values a C AA ± ( t ) A ± ( t ) B ± ( t ) C ± ( t ) a t = modulus of temperature in C without regard to sign. Vibration Resistance Vibration-proof Extra vibration-proof Examples of Precision Classes, Wire Wound Resistors Class B - valid range C, - precision at point 0 C = ± 0.3 C, - precision at point 100 C = ± 0.8 C, - precision at point 450 C = ± 2.55 C, - precision at point 600 C = ± 3.30 C, Class A - valid range C, - w precision at point 0 C = ± 0.15 C, - w precision at point 100 C = ±0.35 C, - w precision at point 450 C = ±1.05 C, If the required precision exceeds the values given in the precision class A, then class AA will be used or the fractions will be based on class B, for instance: 1/3 1/10 DIN ±0.3 ±0.3 0 C 3 10 ±0.1 ± C The fractional values are not valid for the total measurement range, only at point 0 C. SKS Sensors Pt100 sensors are usually manufactured with wire wound resistors of tolerance class A. Other classes and resistor types on request. 5

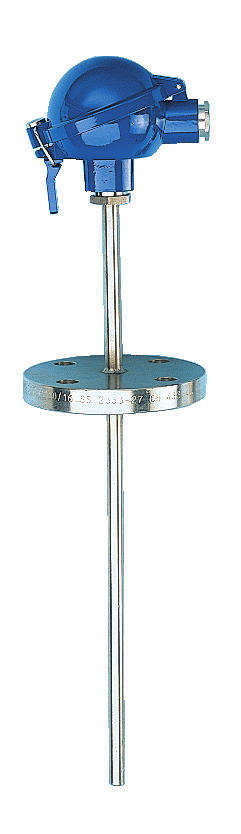

6 Well B = coupling thread F = flange C = coupling thread 1 D = welded well A = without thread K = ceramic well H = cooling neck (165mm) thread M18 B - 9 K - D / W / H G½ Well diameter (mm) or Welded well DIN D1...D6 K = without cooling neck [blank] = cooling neck (145mm) D N EEXD HST B = connection head DAN = connection head NA = connection head ATEX = acid proof connection head = connection head BL W = connection head high [blank] = standard H = quick-release fastener [blank] = screw fastening Immersion depth (mm) Thread size Well + Pt100 Sensing Element W = Pt100 resistance sensor 2xW = 2xPt100 resistance sensor Number of wires W - B D / W / H well G½ A - TR A CB TR = precision class A (STANDARD) = with ceramic terminal block = free wires for transmitter For Example: W-B-11-D/H-250-G½-4-A-TR W-B-9-D-100-G½-4-A-CB W-B-6K-N-50-NPT½ -4-A-CB Pt100 Sensing Element W - M - 6 / / A - TR W 2xW = Pt100 resistance sensor = 2xPt100 resistance sensor Sheath construction Sheath diameter SV = strenghened [blank] = standard Element length (mm) Number of wires A CB TR = precision class A (STANDARD) = with ceramic terminal block = free wires for transmitter For Example: W-M-3/145-4-A-CB W-M-6/205-4-A-TR W-M-8/SV/ A-CB 6

7 Resistance Sensor, Sheath Construction W - M / / SIL A W 2xW = Pt100 resistance sensor = 2xPt100 resistance sensor Sheath construction 303 = with cable SV = strenghened [blank] = standard MI diameter (mm) MI length (mm) Cable length (mm) SIL = silicone cable max. 180 C TDT = PTFE insulated cable max. 250 C FEP = PTFE cable max. 205 C GGD = glass silk/metal braid cable max. 350 C Number of wires A = precision class A (STANDARD) For Example: W-M-303-1,6/ /SIL-4-A W-M-303-3/ /TDT-4-A W-M-303-6/ /GGD-4-A Cable Probe (Surface Probe) W = Pt100 resistance sensor 2xW = 2xPt100 resistance sensor W - CABLE - 6 / / SIL A CABLE = cable probe P = surface probe Sleeve diameter (mm) or height x width (mm x mm) Sleeve length (mm) Cable length (mm) SIL = silicone cable max. 180 C TDT = PTFE insulated cable max. 250 C FEP = PTFE cable max. 205 C GGD = glass silk/metal braid cable max. 350 C Number of wires A = precision class A (STANDARD) For Example: W-CABLE-4/ /FEP-4-A W-CABLE-6/ /SIL-2-A W-CABLE-6/ /SIL-4-A 7

8 Resistance Sensors Code SKS Type Element Threaded, without cooling neck, DIN Form 2 Product sheet W-B-6K-N-50-G½-4-A-CB 3/ W-B-6K-N-50-G½-4-A-TR 3/ W-B-6K-N-100-G½-4-A-CB 3/ W-B-6K-N-100-G½-4-A-TR 3/ W-B-9K-D/H-100-G½-4-A-CB 6/ W-B-9K-D/H-100-G½-4-A-TR 6/ W-B-9K-D/H-160-G½-4-A-CB 6/ W-B-9K-D/H-160-G½-4-A-TR 6/205 Sheet 1 Threaded, with cooling neck, DIN Form 2G Product sheet W-B-9-D/H-100-G½-4-A-CB 6/ W-B-9-D/H-100-G½-4-A-TR 6/ W-B-9-D/H-160-G½-4-A-CB 6/ W-B-9-D/H-160-G½-4-A-TR 6/ W-B-9-D/H-250-G½-4-A-CB 6/ W-B-9-D/H-250-G½-4-A-TR 6/ W-B-9-D/H-400-G½-4-A-CB 6/ W-B-9-D/H-400-G½-4-A-TR 6/ W-B-11-D/H-160-G½-4-A-CB 6/ W-B-11-D/H-160-G½-4-A-TR 6/ W-B-11-D/H-250-G½-4-A-CB 6/ W-B-11-D/H-250-G½-4-A-TR 6/ W-B-11-D/H-400-G½-4-A-CB 6/ W-B-11-D/H-400-G½-4-A-TR 6/555 Sheet 2 Threaded, with cooling neck, DIN Form 2G Product sheet W-C-11-D/H-160-G1-4-A-CB 6/ W-C-11-D/H-160-G1-4-A-TR 6/ W-C-11-D/H-250-G1-4-A-CB 6/ W-C-11-D/H-250-G1-4-A-TR 6/ W-C-11-D/H-400-G1-4-A-CB 6/ W-C-11-D/H-400-G1-4-A-TR 6/555 Sheet 3 With flange, DIN Form 2F Product sheet W-F-11-D/H-160-DN25/PN40-4-A-CB 6/ W-F-11-D/H-160-DN25/PN40-4-A-TR 6/ W-F-11-D/H-250-DN25/PN40-4-A-CB 6/ W-F-11-D/H-250-DN25/PN40-4-A-TR 6/ W-F-11-D/H-400-DN25/PN40-4-A-CB 6/ W-F-11-D/H-400-DN25/PN40-4-A-TR 6/555 With welded wells, DIN Form 4 Product sheet W-D-D1/K-D/H-4-A-CB 6/ W-D-D1/K-D/H-4-A-TR 6/ W-D-D4/K-D/H-4-A-CB 6/ W-D-D4/K-D/H-4-A-TR 6/ W-D-D4/S/K-D/H-4-A-CB 3/ W-D-D4/S/K-D/H-4-A-TR 3/ W-D-D5/K-D/H-4-A-CB 6/ W-D-D5/K-D/H-4-A-TR 6/ W-D-D1/L-D/H-4-A-CB 6/ W-D-D1/L-D/H-4-A-TR 6/ W-D-D4/L-D/H-4-A-CB 6/ W-D-D4/L-D/H-4-A-TR 6/ W-D-D4/S/L-D/H-4-A-CB 3/ W-D-D4/S/L-D/H-4-A-TR 3/ W-D-D5/L-D/H-4-A-CB 6/ W-D-D5/L-D/H-4-A-TR 6/ W-D-D1/M-D/H-4-A-CB 6/ W-D-D1/M-D/H-4-A-TR 6/ W-D-D4/M-D/H-4-A-CB 6/ W-D-D4/M-D/H-4-A-TR 6/ W-D-D4/S/M-D/H-4-A-CB 3/ W-D-D4/S/M-D/H-4-A-TR 3/ W-D-D5/M-D/H-4-A-CB 6/ W-D-D5/M-D/H-4-A-TR 6/435 Sheet 4 8

9 Resistance Sensors Code SKS Type Element With welded wells, DIN Form 4 Product sheet W-D-D1/O-D/H-4-A-CB 6/ W-D-D1/O-D/H-4-A-TR 6/ W-D-D4/O-D/H-4-A-CB 6/ W-D-D4/O-D/H-4-A-TR 6/ W-D-D4/S/O-D/H-4-A-CB 3/ W-D-D4/S/O-D/H-4-A-TR 3/ W-D-D5/O-D/H-4-A-CB 6/ W-D-D5/O-D/H-4-A-TR 6/435 Sheets 5 Welded, without well Product sheet W-H-12-D/H A-CB 6/ W-H-12-D/H A-TR 6/ W-H-12-D/H A-CB 6/ W-H-12-D/H A-TR 6/ W-H-12-D/H A-CB 6/ W-H-12-D/H A-TR 6/ W-H-12-D/H-315/S-4-A-CB 3/ W-H-12-D/H-315/S-4-A-TR 3/ W-H-12-D/H-375/S-4-A-CB 3/ W-H-12-D/H-375/S-4-A-TR 3/ W-H-12-D/H-435/S-4-A-CB 3/ W-H-12-D/H-435/S-4-A-TR 3/435 Sheet 8 Immersible sensors, DIN Form 1 Product sheet W-A-15-D/H A-CB 8/ W-A-15-D/H A-TR 8/ W-A-15-D/H A-CB 8/ W-A-15-D/H A-TR 8/ W-A-15-D/H A-CB 8/ W-A-15-D/H A-TR 8/ W-A-15-D/H A-CB 8/ W-A-15-D/H A-TR 8/ W-A-22-D/H A-CB 8/ W-A-22-D/H A-TR 8/ W-A-22-D/H A-CB 8/ W-A-22-D/H A-TR 8/ W-A-22-D/H A-CB 8/ W-A-22-D/H A-TR 8/1425 Sheet 6 Air sensor Product sheet W-K-F-4-A W-K-F-4-A-TR Adjustable immersion depth Product sheet W-M-N-G½-L/6/210-4-A-CB 6/ W-M-N-G½-L/6/210-4-A-TR 6/ W-M-N-G½-L/6/270-4-A-CB 6/ W-M-N-G½-L/6/270-4-A-TR 6/ W-M-N-G½-L/6/390-4-A-CB 6/ W-M-N-G½-L/6/390-4-A-TR 6/ W-M-N-G½-L/6/510-4-A-CB 6/ W-M-N-G½-L/6/510-4-A-TR 6/555 Optional couplings: G¼ or Ø 50mm flange. Sheets 12 Welded well and sleeve materials L = 13CrMo44/1.7335/550 C M = 10CrMo910/1.7380/580 C O = 16Mo3/1.5415/480 C K = AISI 316L/800 C 9

10 Resistance Sensors Code SKS Type Element Resistance element with cable, sheath construction Product sheet W-M-303-1,6/ /SIL-4-A W-M-303-2/ /SIL-4-A W-M-303-3/ /SIL-4-A W-M-303-3/ /SIL-4-A W-M-303-3/ /SIL-4-A W-M-303-3/ /SIL-4-A W-M-303-6/ /SIL-4-A Sheet 10 Cable probe Product sheet W-CABLE-6/ /SIL-4-A W-CABLE-6/ /GGD-4-A W-CABLE-6/ /SIL-4-A W-CABLE-6/ /GGD-4-A W-CABLE-6/ /SIL-4-A W-CABLE-6/ /GGD-4-A W-CABLE-5/50/FEP-5000/FEP-4-A Surface probe Product sheets Sheet 16 Sheet W-P-5X9X /FEP-4-A W-P-5X9X /GGD-4-A W-M-P-5X9X45-3/ A W-M-P-5X9X45-3/ A W-M-P-5X9X45-3/ A W-M-P-5X9X45-3/ A W-RO-6/ /SIL-4-A D=26-44MM W-RO-6/ /GGD-4-A W-RO-6/ /SIL-4-A+BOX (plastic) W-RO-M-3/ /SIL-4-A D< W-RO-M-3/ /GGD-4-A Field connection box for transmitter, plastic Field connection box for transmitter, silumin Sheet 13 Product sheet W-MAGN.D25/5,5x7-2000/GGD-4-A W-MAGN.D25/5,5x7-5000/PTFE-4-A Food probe Product sheet W-E-6-HST-30-4-CB W-E-6-HST-55-4-CB W-E-6-HST CB W-3/25-38-R1/ /3DIN (tetra) W-106-4/ /FS-4-A (flesh/fish probe) Bearing sensor Product sheet 20 Sheets W-BTD-Pt100B-L95-4MFS W-BTD-2Pt100B-L106-5MSIL Bayonet probe Product sheet W-BAJO-6/ /GGD-4-A Bayonet adaptors Sheet Bayonet coupling M12x Bayonet coupling M12x Bayonet coupling M10x Bayonet coupling G1/ Sheets

11 Resistance Sensors Code SKS Type Threaded cable temperature sensor Product sheet W-SCREW-M6X7-5000/FEP-4-A W-SCREW-M8X /SIL-4-A T-SCREW-M10X25-100/GGD-K+MINI/MALE Multi-point sensors Product sheet XT-MP-3/1000/2000/3000-DN50/PN16/E-K-1-TR-BOX-X XW-MP-3/500/1000/1500-DN50/PN16/E-4-A-TR-BOX-X Pt100 Sensing Elements Code SKS Type Sheet 21 3mm Product sheet W-M-3/95-4-A-TR W-M-3/95-4-A-CB XW-M-3/95-2-A-CB Sheet W-M-3/145-4-A-TR W-M-3/145-4-A-CB XW-M-3/145-2-A-CB W-M-3/315-4-A-TR W-M-3/315-4-A-CB XW-M-3/315-2-A-CB W-M-3/375-4-A-TR W-M-3/375-4-A-CB XW-M-3/375-2-A-CB W-M-3/405-4-A-TR W-M-3/405-4-A-CB XW-M-3/405-2-A-CB 6mm Product sheets W-M-6/145-4-A-TR W-M-6/145-4-A-CB XW-M-6/145-3-A-CB W-M-6/205-4-A-TR W-M-6/205-4-A-CB XW-M-6/205-3-A-CB W-M-6/255-4-A-TR W-M-6/255-4-A-CB XW-M-6/255-3-A-CB W-M-6/315-4-A-TR W-M-6/315-4-A-CB XW-M-6/315-3-A-CB W-M-6/375-4-A-TR W-M-6/375-4-A-CB XW-M-6/375-3-A-CB W-M-6/405-4-A-TR W-M-6/405-4-A-CB XW-M-6/405-3-A-CB W-M-6/435-4-A-TR W-M-6/435-4-A-CB XW-M-6/435-3-A-CB W-M-6/555-4-A-TR W-M-6/555-4-A-CB XW-M-6/555-3-A-CB Sheet 7 Sheet

12 Pt100 Sensing elements Code SKS Type 8mm Product sheets W-M-8/SV/405-4-A-TR W-M-8/SV/405-4-A-CB XW-M-8/SV/405-3-A-CB W-M-8/SV/525-4-A-TR W-M-8/SV/525-4-A-CB XW-M-8/SV/525-3-A-CB W-M-8/SV/655-4-A-TR W-M-8/SV/655-4-A-CB XW-M-8/SV/655-3-A-CB W-M-8/SV/735-4-A-TR W-M-8/SV/735-4-A-CB XW-M-8/SV/735-3-A-CB W-M-8/SV/780-4-A-TR W-M-8/SV/780-4-A-CB XW-M-8/SV/780-3-A-CB W-M-8/SV/825-4-A-TR W-M-8/SV/825-4-A-CB XW-M-8/SV/825-3-A-CB W-M-8/SV/ A-TR W-M-8/SV/ A-CB XW-M-8/SV/ A-CB W-M-8/SV/ A-TR W-M-8/SV/ A-CB XW-M-8/SV/ A-CB W-M-8/SV/ A-TR W-M-8/SV/ A-CB XW-M-8/SV/ A-CB W-M-8/SV/ A-TR W-M-8/SV/ A-CB XW-M-8/SV/ A-CB W-M-8/SV/ A-TR W-M-8/SV/ A-CB XW-M-8/SV/ A-CB W-M-8/SV/ A-TR W-M-8/SV/ A-CB XW-M-8/SV/ A-CB Sheet 7 Sheet

13 Thermocouples A thermocouple is formed when two wires (so-called thermo wires), made of different metals or alloys, are welded together (hot junction). The free ends of the wires form a reference junction (cold junction). If there is a temperature difference between the welded and the reference junctions, thermal electromotive force (voltage) will appear in the thermocouple. The force is proportional only to the temperature difference and is depending on the materials of the thermocouple (the Seebeck phenomenon). It is important that the reference junction is as constant as possible. This can be achieved by taking it to constant temperature conditions (reference temperature), using an extension cable or insulated thermo wire. Tolerances, according according to EN to EN Type Precision class Temperature range Fixed value Permissible tolerances C C ±0,5 ±0,004 [t] T ±1,0 ±0,0075 [t] ±1,0 ±0,015 [t] ±1,5 ±0,004 [t] E ±2,5 ±0,0075 [t] ±40 ±2,5 ±0,015 [t] J ±1,5 ±0,004 [t] ±2,5 ±0,0075 [t] ±1,5 ±0,004 [t] K ±2,5 ±0,0075 [t] ±2,5 ±0,015 [t] ±1,5 ±0,004 [t] N ±2,5 ±0,0075 [t] ±2,5 ±0,015 [t] R and S ±1,0 ±[1+(t-1100).0,003] C ±1,5 ±0,0025 [t] Tolerances, according to DIN to DIN Type Temperature range C Permissible tolerances L ±3,0 C ±0,75% 13

14 Examples for Order Codes T - A D / H - U / 2300 / K - 1 T 2xT = thermocouple = 2 x thermocouple Without thread Well diameter (mm) Connection head DAN (D) with quick-release fastener (H) Closed tip (U) Length (mm) Material (Grade number) Thermocouple type (K, J, T, L ) 1 = precision class, class 1 (STANDARD) T - D - D1 / M - D / H - K - 1 T 2xT = thermocouple = 2 x thermocouple Welded well (D) Well type, length and shape (D1 D6) Material (K,L,M,O) Connection head DAN (D) with quick-release fastener (H) Thermocouple type (K, J, T, L ) 1 = precision class, class 1 (STANDARD) T - F D / H / DN25 / PN40 - K - 1 T 2xT = thermocouple = 2 x thermocouple With flange (F) Well diameter (mm) Connection head DAN (D) with quick-release fastener (H) Well length (mm) Flange size Flange pressure class Thermocouple type (K, J, T, L ) 1 = precision class, class 1 (STANDARD) T - CABLE - 6/ / SIL - J - 1 T 2xT = thermocouple = 2 x thermocouple CABLE = cable probe Sleeve diameter (mm) Sleeve length (mm) Cable length (mm) Cable type Thermocouple type (K, J, T, L ) 1 = precision class, class 1 (STANDARD) 14

15 Thermocouple Probes Code SKS Type Element Threaded, with cooling neck, DIN Form 2g Product sheet T-B-9-D/H-100-G½-K-1-CB 6/ T-B-9-D/H-160-G½-K-1-CB 6/ T-B-9-D/H-250-G½-K-1-CB 6/ T-B-9-D/H-400-G½-K-1-CB 6/ T-B-11-D/H-160-G½-K-1-CB 6/ T-B-11-D/H-250-G½-K-1-CB 6/ T-B-11-D/H-400-G½-K-1-CB 6/555 Sheet 2 Sheet 3 Threaded, with cooling neck, DIN Form 2g Product sheet T-B-11-D/H-160-G1-K-1-CB 6/ T-B-11-D/H-250-G1-K-1-CB 6/ T-B-11-D/H-400-G1-K-1-CB 6/555 With flange Product sheet T-F-11-D/H-160-DN25/PN40-K-1-CB 6/ T-F-11-D/H-250-DN25/PN40-K-1-CB 6/ T-F-11-D/H-400-DN25/PN40-K-1-CB 6/555 Welded, without well Product sheet T-H-12-D/H-315-K-1-CB 6/ T-H-12-D/H-315/S-K-1-CB 3/ T-H-12-D/H-375-K-1-CB 6/ T-H-12-D/H-375/S-K-1-CB 3/ T-H-12-D/H-435-K-1-CB 6/435 Sheet 5 With welded wells, DIN Form 4 Product sheet T-D-D1/K-D/H-K-1-CB 6/ T-D-D4/K-D/H-K-1-CB 6/ T-D-D5/K-D/H-K-1-CB 6/ T-D-D1/L-D/H-K-1-CB 6/ T-D-D4/L-D/H-K-1-CB 6/ T-D-D5/L-D/H-K-1-CB 6/ T-D-D1/M-D/H-K-1-CB 6/ T-D-D4/M-D/H-K-1-CB 6/ T-D-D5/M-D/H-K-1-CB 6/ T-D-D1/O-D/H-K-1-CB 6/ T-D-D4/O-D/H-K-1-CB 6/ T-D-D5/O-D/H-K-1-CB 6/435 Channel sensor Products sheet T-A-15-D/H-500-K-1-CB 8/ T-A-15-D/H-710-K-1-CB 8/ T-A-15-D/H-1000-K-1-CB 8/ T-A-15-D/H-1400-K-1-CB 8/ T-A-15-D/H-500/ K-1-CB 8/ T-A-15-D/H-710/ K-1-CB 8/ T-A-15-D/H-1000/ K-1-CB 8/ T-A-15-D/H-1400/ K-1-CB 8/ T-A-22-D/H-500-K-1-CB 8/ T-A-22-D/H-710-K-1-CB 8/ T-A-22-D/H-1000-K-1-CB 8/ T-A-22-D/H-1400-K-1-CB 8/ T-A-22-D/H-500/ K-1-CB 8/ T-A-22-D/H-710/ K-1-CB 8/ T-A-22-D/H-1000/ K-1-CB 8/ T-A-22-D/H-1400/ K-1-CB 8/ T-A-22-D/H-U/710/ K-CB 6/ T-A-22-D/H-U/1000/ K-CB 6/ T-A-22-D/H-U/1400/ K-CB 6/ T-A-22-D/H-U/1000/253MA-K-CB 6/ T-A-22-D/H-U/1200/253MA-K-CB 6/1225 Other thermocouples like J, N or T on request. Sheet 8 Sheet

16 Thermocouple Probes Code SKS Type Mineral insulated, sheath construction, with cable Product sheet T-M-303-0,5/ /SIL-K T-M-303-1/ /SIL-K T-M-303-1,5/ /SIL-K T-M-303-2/ /SIL-K T-M-303-3/ /SIL-K T-M-303-3/ /SIL-K T-M-303-3/ /SIL-K T-M-303-3/ /SIL-K T-M-303-6/ /SIL-K-1 Sheet 10 Surface probe Product sheets 14, T-P-5X9X /SIL-K T-P-5X9X /GGD-K T-M-P-5X9X45-3/10000-K T-M-P-5X9X45-3/5000-K T-M-P-5X9X45-3/3000-K T-M-P-5X9X45-3/1000-K T-RO-M /SIL-K T-RO-M /GGD-K-1 Other thermocouples like J, N or T on request. Sheet 15 Bayonet probe Product sheet T-BAJO-6/ /GGD-K T-BAJO-6/2-3000/GGD-J Bayonet coupling M12X Bayonet coupling M12X Bayonet coupling M10X Bayonet coupling G1/ Sheet 17 Ceramic Sensors Code SKS Type Ceramic sensors Product sheet T-K-10-D/H-355-S-1-CB T-K-10-D/H-500-S-1-CB T-K-10-D/H-710-S-1-CB T-K-15-D/H-500-S-1-CB T-K-15-D/H-710-S-1-CB T-K-15-D/H-1000-S-1-CB TE-AKK-26-D-500-S-1-CB TE-AKK-26-D-710-S-1-CB TE-AKK-26-D-1000-S-1-CB TE-AKK-26-D-1400-S-1-CB Sheet 9 We produce platinum thermocouple sensors (types R, S, B) with ceramic sheath (Ceramic 530, 610, 799) on request. We sell platinum wire at prices of the day. Also, we buy scrap platinum wire. 16

17 TC Sensing Elements Code SKS Type 3mm T-M-3/95-K-1-CB XT-M-3/95-K-1-CB T-M-3/145-K-1-CB XT-M-3/145-K-1-CB T-M-3/315-K-1-CB XT-M-3/315-K-1-CB T-M-3/375-K-1-CB XT-M-3/375-K-1-CB T-M-3/405-K-1-CB XT-M-3/405-K-1-CB T-M-3/435-K-1-CB XT-M-3/435-K-1-CB 6mm T-M-6/145-K-1-CB XT-M-6/145-K-1-CB T-M-6/205-K-1-CB XT-M-6/205-K-1-CB T-M-6/225-K-1-CB XT-M-6/255-K-1-CB T-M-6/315-K-1-CB XT-M-6/315-K-1-CB T-M-6/375-K-1-CB XT-M-6/375-K-1-CB T-M-6/405-K-1-CB XT-M-6/405-K-1-CB T-M-6/435-K-1-CB XT-M-6/435-K-1-CB T-M-6/525-K-1-CB XT-M-6/525-K-1-CB T-M-6/555-K-1-CB XT-M-6/555-K-1-CB T-M-6/735-K-1-CB XT-M-6/735-K-1-CB T-M-6/1025-K-1-CB XT-M-6/1025-K-1-CB T-M-6/1425-K-1-CB XT-M-6/1425-K-1-CB Product sheet 7 Product sheet 7 Sheet 7 Sheet 7 8mm T-M-8/405-K-1-CB XT-M-8/405-K-1-CB T-M-8/430-K-1-CB XT-M-8/430-K-1-CB T-M-8/525-K-1-CB XT-M-8/525-K-1-CB T-M-8/580-K-1-CB XT-M-8/580-K-1-CB T-M-8/655-K-1-CB XT-M-8/655-K-1-CB T-M-8/735-K-1-CB XT-M-8/735-K-1-CB T-M-8/825-K-1-CB XT-M-8/825-K-1-CB T-M-8/1025-K-1-CB XT-M-8/1025-K-1-CB T-M-8/1275-K-1-CB XT-M-8/1275-K-1-CB T-M-8/1425-K-1-CB XT-M-8/1425-K-1-CB T-M-8/1625-K-1-CB XT-M-8/1625-K-1-CB T-M-8/2025-K-1-CB XT-M-8/2025-K-1-CB Other thermocouples like J, N or T on request. Product sheet

18 Wells Code SKS Type Element Threaded, without cooling neck, DIN Form 2 Product sheet B-6K-N-50-G½ 3/ B-6K-N-100-G½ 3/ B-9K-D/H-100-G½ 6/ B-9K-D/H-160-G½ 6/205 Threaded, with cooling neck, DIN Form 2 Product sheets B-9-D/H-100-G½ 6/ B-9-D/H-160-G½ 6/ B-9-D/H-250-G½ 6/ B-9-D/H-400-G½ 6/ B-9/6-D/H-160-G½ 3/ B-9/6-D/H-250-G½ 3/ B-11-D/H-160-G½ 6/ B-11-D/H-250-G½ 6/ B-11-D/H-400-G½ 6/ C-11-D/H-160-R1 6/ C-11-D/H-250-R1 6/ C-11-D/H-400-R1 6/555 Sheet 1 Sheet 2 With flange, DIN Form 2F Product sheet F-11-D/H-160-DN25/PN40 6/ F-11-D/H-250-DN25/PN40 6/ F-11-D/H-400-DN25/PN40 6/555 Wells for thermocouples Product sheet A-15-D/H-500 8/ A-15-D/H-710 8/ A-15-D/H / A-15-D/H / A-15-D/H-500/ / A-15-D/H-710/ / A-15-D/H-1000/ / A-15-D/H-1400/ / A-22-D/H-500 8/ A-22-D/H-710 8/ A-22-D/H / A-22-D/H / A-22-D/H-500/ / A-22-D/H-710/ / A-22-D/H-1000/ / A-22-D/H-1400/ / A-22-D/H-U/710/A304 6/ A-22-D/H-U/1000/A304 6/ A-22-D/H-U/1400/A304 6/ A-22-D/H-U/710/ / A-22-D/H-U/1000/ / A-22-D/H-U/1400/ / A-22-D/H-U/710/253MA 6/ A-22-D/H-U/1000/253MA 6/ A-22-D/H-U/1400/253MA 6/1425 Sheets 3 Sheet

19 Well and Sleeves Code SKS Type Element Terminal head and cooling neck for welded wells H-12-D/H-165/M18X1, H-12-D/H-165/M14X1,5 Welded wells E-6/30, without connection head 3/ E-6/55, without connection head 3/ E-6/115, without connection head 3/ D1-L 6/ D4-L 6/ D5-L 6/ D1-M 6/ D4-M 6/ D5-M 6/ D1-K 6/ D4-K 6/ D5-K 6/ D1-O 6/ D4-O 6/ D5-O 6/ D1S-L 3/ D4S-L 3/ D1S-M 3/ D4S-M 3/ D1S-K 3/ D4S-K 3/ D1S-O 3/ D4S-O 3/375 Other sizes and materials on request. Root sleeves for welded wells K L M O K L M O Welded sleeves G1/2 L= G1/2 L= G1/2 L= G1 L=70 Welded well and sleeve materials L = 13CrMo44/1.7335/550 C M = 10CrMo910/1.7380/580 C O = 16Mo3/1.5415/480 C K = AISI 316L/800 C 19

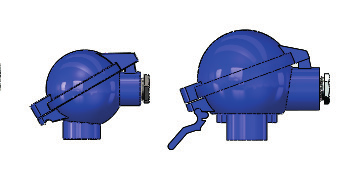

20 Connectors Code SKS Type TE couplings J-STD-Female J-STD-Male J-MINI-Female J-MINI-Male K-STD-Female K-STD-Male K-MINI-Female K-MINI-Male N-STD-Female N-STD-Male S-STD-Female S-STD-Female 350 C S-STD-Male S-STD-Male 350 C Cable clamps for STD connectors Gland couplings AISI Gland coupling G½-6mm Gland coupling G½-12mm Gland coupling G½-15mm Gland coupling G¼-1.5mm Gland coupling G¼-3mm Gland coupling G¼-4.5mm Gland coupling G¼-6mm Gland coupling G1/8-1.5mm Gland coupling G1/8-3mm Gland coupling G1/8-1mm Gland coupling M8x1-1.5mm Gland coupling M8x1-3mm Gland coupling MI8x1.5-6mm Gland coupling NPT1/4-3mm Gland coupling NPT1/4-6mm Gland coupling NPT1/8-3mm Gland coupling NPT1/8-6mm Gas-tight threaded couplings Gas-tight threaded coupling G1-15mm Gas-tight threaded coupling G1-22mm Flanges Adjustable flange 6mm, Ø 50mm Adjustable flange 15mm Adjustable flange 22mm Adjustable flange 32mm Welded flange 15mm Welded flange 22mm Welded flange 32mm Connection heads DAN/H M24 Epoxy NA M24 Epoxy BL M SS316 M XD-AD M20x1,5 ATEX 20

21 Thermocouple Cables Code SKS Type Compensation cables according to IEC NiCr/Ni 2G ST 2G K 2x NiCr/Ni 2G ST 2G K 3x(2x1.5) NiCr/Ni 2G ST 2G K 6x(2x1.5) NiCr/Ni 2G ST 2G K 8x(2x1.5) PtRh/Pt 2G ST 2G S 2x PtRh/Pt 2G ST 2G S 2x(2x1.5) Fe/ 2G ST 2G J 2x1.5 SIL On Request - multicore - based on other norms - special configuration 21
