STAINLESS STEEL WIRE &BAR
|
|
- Μέγαιρα Νικολαΐδης
- 5 χρόνια πριν
- Προβολές:
Transcript
1 STAINLESS STEEL WIRE &BAR
2
3 History
4
5 Superb Quality Diverse Products Quick Delivery Competitive Price

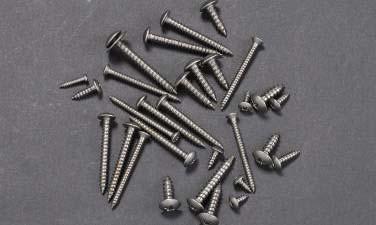

6 COLD HEADING SeAH Metal Co,. Ltd. is endeavoring to develop better cold heading quality of stainless steel wire through strict quality control and technical services. Characteristics of SeAH Cold Heading Quality Wire - Strict control of chemical composition according to final application - Uniform physical quality by continuously even heat-treatment processing - Superb surface condition and accurate diameter by strict process control - Stable and uniform coating through in-line processing (S-Co, R-Co, E-Co) - Newly developed E-Co provides higher cold headability and longer tool life. Available Specification AUSTENITE MARTENSITE FERRITE - Available size range: 0.8~11.5mm for WSA, 0.8~34.0mm for WSB - Please consult with us for sizes and specifications not listed above.
7 Characteristics of SeAH CHQ Stainless Steel Wire Low strain hardening rate during cold heading Prolonged tool life by excellent forming quality. Analysis Progress of mechanical property by cold drawing Analysis of Anti-Corrosion and Cold Heading Quality Diameter tolerance, Ovality, Defect-depth Tolerance Packing Standard(Water and Moisture-Proof) Coil - Carrier : 16", 20", 24" Packing available

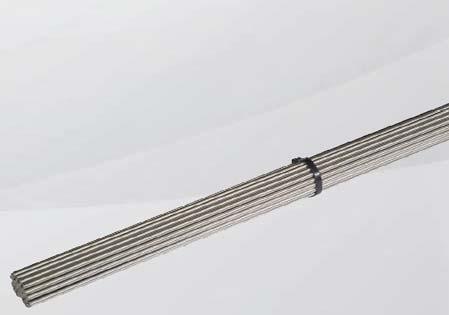

8 SHAFT, FREE-CUTTING Characteristics of SeAH Free-Cutting Wire - Strict control in chemical composition for better machinability - Stabilized surface hardness - Good straightness and roundness in cut-length One side can be chamfered upon request. (3.0mm ~ 7.0mm) - Dimensional accuracy can be obtained by centerless grinding.

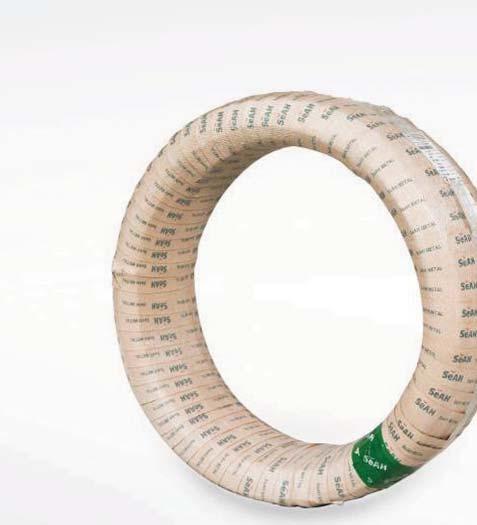

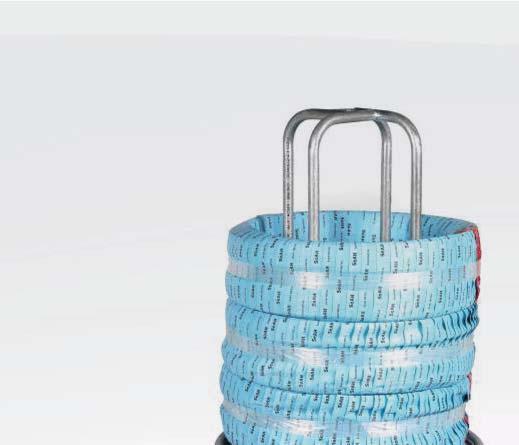

9 Available Size Range Packing Standard - Produce CG, CD BAR and rolling products - Reelless Coil : 500kg, 1000kg - Please consult with us for packing requirements not listed above.
10 SPRING Characteristics of SeAH Spring Wire - High elasticity and high fatigue limits - Extra coating is not required due to excellent corrosion resistance - High tensile strength at high temperature and excellent heat-resisting - Uniform coiling condition and suitable for various electric applications of non or low magnetic substances Types of SeAH Spring wire Available Specification and Grade - Austenitic stainless steel wire can be used for high quality of spring manufacturing as it obtains high tensile by extremely hard drawing. Wires Cast and Helix
11 Tensile Strength for Spring Stainless Steel Wire(KS D 3535) Heat-Treatment at Low Temperature - Excellent spring can obtain elasticity and fatigue limit increase by low temperature heat treatment (400 X 30minutes) after cold forming. Packing standard - Coil - Spool & Carrier

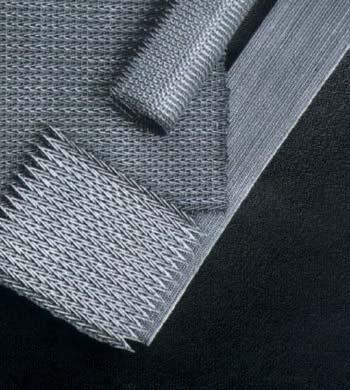

12 WEAVING, KNITTING, BRAIDING WEAVING (safety net, mosquito net, fine filter, screen etc.), KNITTING (water filter etc.), BRAIDING (bellows etc.) wires are applicable for automotive, construction and chemical equipment industry etc. Characteristics of SeAH Weaving, Knitting, Braiding Wire - Shiny surface condition - Strict quality control based on technical skills according to the final application - Excellent workability at high speed unspooling Grades of wires Mechanical Properties - Based on Austenite
13 Diameter Tolerance and Ovality - Diameter and length are strictly controlled. - Please consult with us for sizes and specifications not listed above. Packing Standard Other Packing Standard
14 HEAT RESISTING Right to working condition with excellent life, applicable for heat-treating furnace, desalination equipment and food industry etc. Heat-Resistance & Corrosion-Resistance Alloy Steel Wire - Please consult with us for sizes and specifications not listed above. - Available Size : 0.15mm ~ 6.00mm - Packing : Coil, Spool

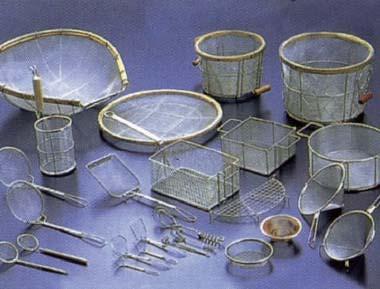

15 FORMING & EPQ Characteristics of SeAH EPQ Wire - Various exterior appliances & kitchen utensils(aisi304, AISI316) - Brilliant surface condition by wet drawing - Uniform brightness and outstanding forming workability Available Sizes - Please consult with us for your any requirements in packing such as unit coil weight and Coil I/D & O/D. - Available Cut-lengths Range : 350mm ~ 4,000mm

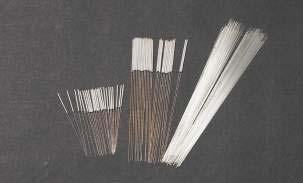

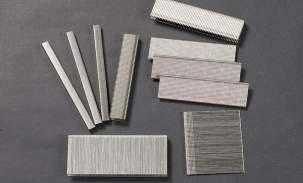

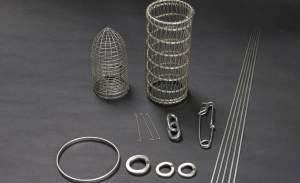

16 OTHER APPLICATIONS - Tensile strength of wire(jis, ASTM) - W1(SOFT), H/8, H/4, H/2, 3H/4, H, H2 - Please consult with us for special grade and specification.
17 RACK BAR (Manual, HPS, EPS, R/EPS) RACK BAR is one of the most important parts in automobile, being consisted of steering assembly. As it transfers the steering wheel rotary motion to straight-line motion, the safety and quality should be highly guaranteed. SeAH Rack bar proves its safety and quality, by being used at the various vehicles of the wellknown automobile companies, including the US big 3(GM, FORD, CHRYSLER) and Korean big 3. Production Standard
18 Certificates
19 - Spec and Grade : KS, AISI, JIS, etc. (Ex. AISI304, SUS316) - Diameter : mm, inch, SWG, BWG, etc. - Usage : Final Application (Ex. Heat resistant conveyor belt) - Tensile Strength (Ex. W1, 1/4H etc.) - Surface Condition & Coating (Ex. Bright or Dull Finish) - Packing : Coil, Spool Type, Carrier (Coil ID, OD) - Unit Weight (Ex. 100kg coils) - Delivery (Ex. Date/Month/Year) - Remark : Other requirements that may be significant in producing the ordered goods.
20
