Aρ. Μοντέλου: DW - 100

Save this PDF as:
 WORD  PNG  TXT  JPG

Μέγεθος: px
Εμφάνιση ξεκινά από τη σελίδα:

Download "Aρ. Μοντέλου: DW - 100"

Transcript

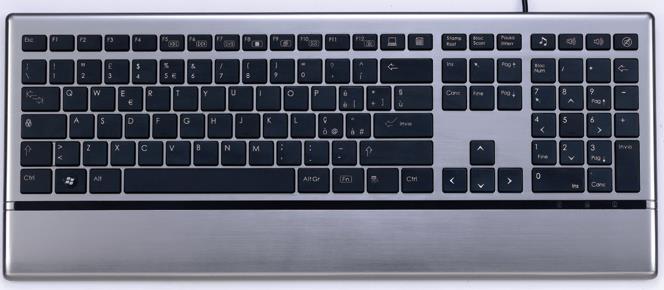

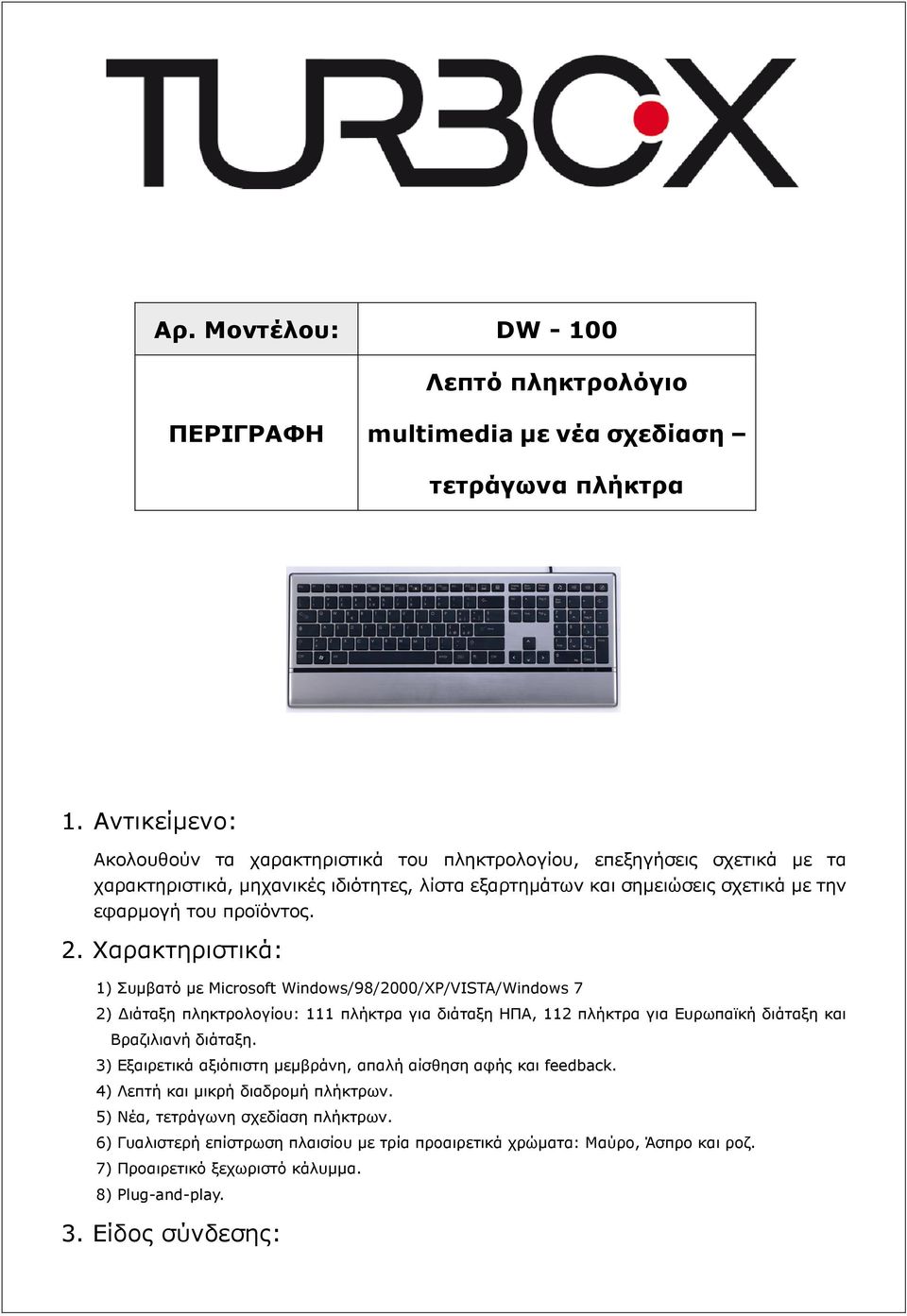

1 Aρ. Μοντέλου: DW Λεπτό πληκτρολόγιο ΠΕΡΙΓΡΑΦΗ multimedia με νέα σχεδίαση τετράγωνα πλήκτρα 1. Αντικείμενο: Ακολουθούν τα χαρακτηριστικά του πληκτρολογίου, επεξηγήσεις σχετικά με τα χαρακτηριστικά, μηχανικές ιδιότητες, λίστα εξαρτημάτων και σημειώσεις σχετικά με την εφαρμογή του προϊόντος. 2. Χαρακτηριστικά: 1) Συμβατό με Microsoft Windows/98/2000/XP/VISTA/Windows 7 2) Διάταξη πληκτρολογίου: 111 πλήκτρα για διάταξη ΗΠΑ, 112 πλήκτρα για Ευρωπαϊκή διάταξη και Βραζιλιανή διάταξη. 3) Εξαιρετικά αξιόπιστη μεμβράνη, απαλή αίσθηση αφής και feedback. 4) Λεπτή και μικρή διαδρομή πλήκτρων. 5) Νέα, τετράγωνη σχεδίαση πλήκτρων. 6) Γυαλιστερή επίστρωση πλαισίου με τρία προαιρετικά χρώματα: Μαύρο, Άσπρο και ροζ. 7) Προαιρετικό ξεχωριστό κάλυμμα. 8) Plug-and-play. 3. Είδος σύνδεσης:

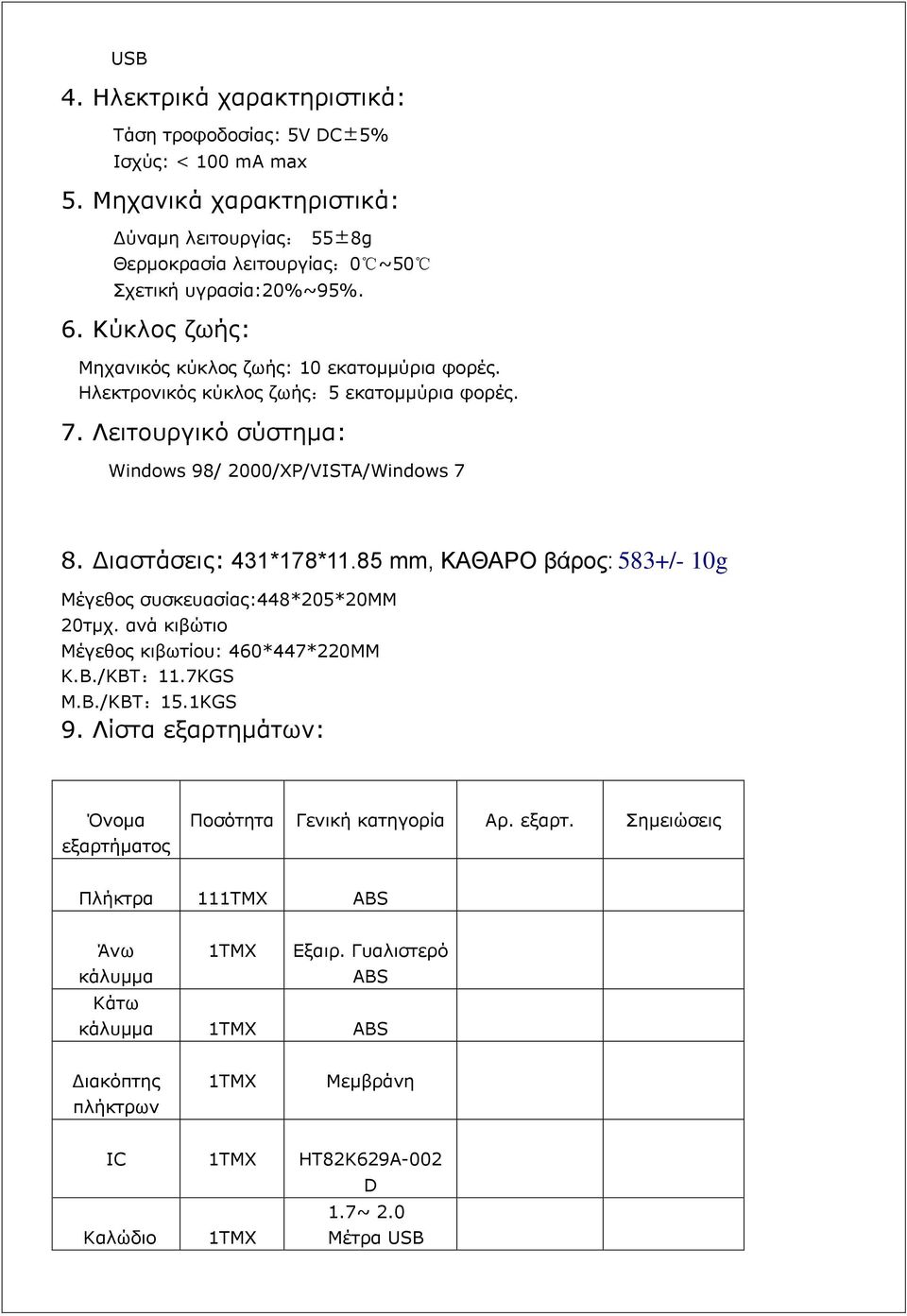

2 USB 4. Ηλεκτρικά χαρακτηριστικά: Τάση τροφοδοσίας: 5V DC±5% Ισχύς: < 100 ma max 5. Μηχανικά χαρακτηριστικά: Δύναμη λειτουργίας: 55±8g Θερμοκρασία λειτουργίας:0 ~50 Σχετική υγρασία:20%~95%. 6. Κύκλος ζωής: Μηχανικός κύκλος ζωής: 10 εκατομμύρια φορές. Ηλεκτρονικός κύκλος ζωής:5 εκατομμύρια φορές. 7. Λειτουργικό σύστημα: Windows 98/ 2000/XP/VISTA/Windows 7 8. Διαστάσεις: 431*178*11.85 mm, ΚΑΘΑΡΟ βάρος: 583+/- 10g Μέγεθος συσκευασίας:448*205*20mm 20τμχ. ανά κιβώτιο Μέγεθος κιβωτίου: 460*447*220MM Κ.Β./ΚΒΤ:11.7KGS Μ.Β./ΚΒΤ:15.1KGS 9. Λίστα εξαρτημάτων: Όνομα εξαρτήματος Ποσότητα Γενική κατηγορία Αρ. εξαρτ. Σημειώσεις Πλήκτρα 111ΤΜΧ ABS Άνω κάλυμμα 1ΤΜΧ Εξαιρ. Γυαλιστερό ABS Κάτω κάλυμμα 1ΤΜΧ ABS Διακόπτης πλήκτρων 1ΤΜΧ Μεμβράνη IC 1ΤΜΧ HT82K629A-002 D Καλώδιο 1ΤΜΧ 1.7~ 2.0 Μέτρα USB

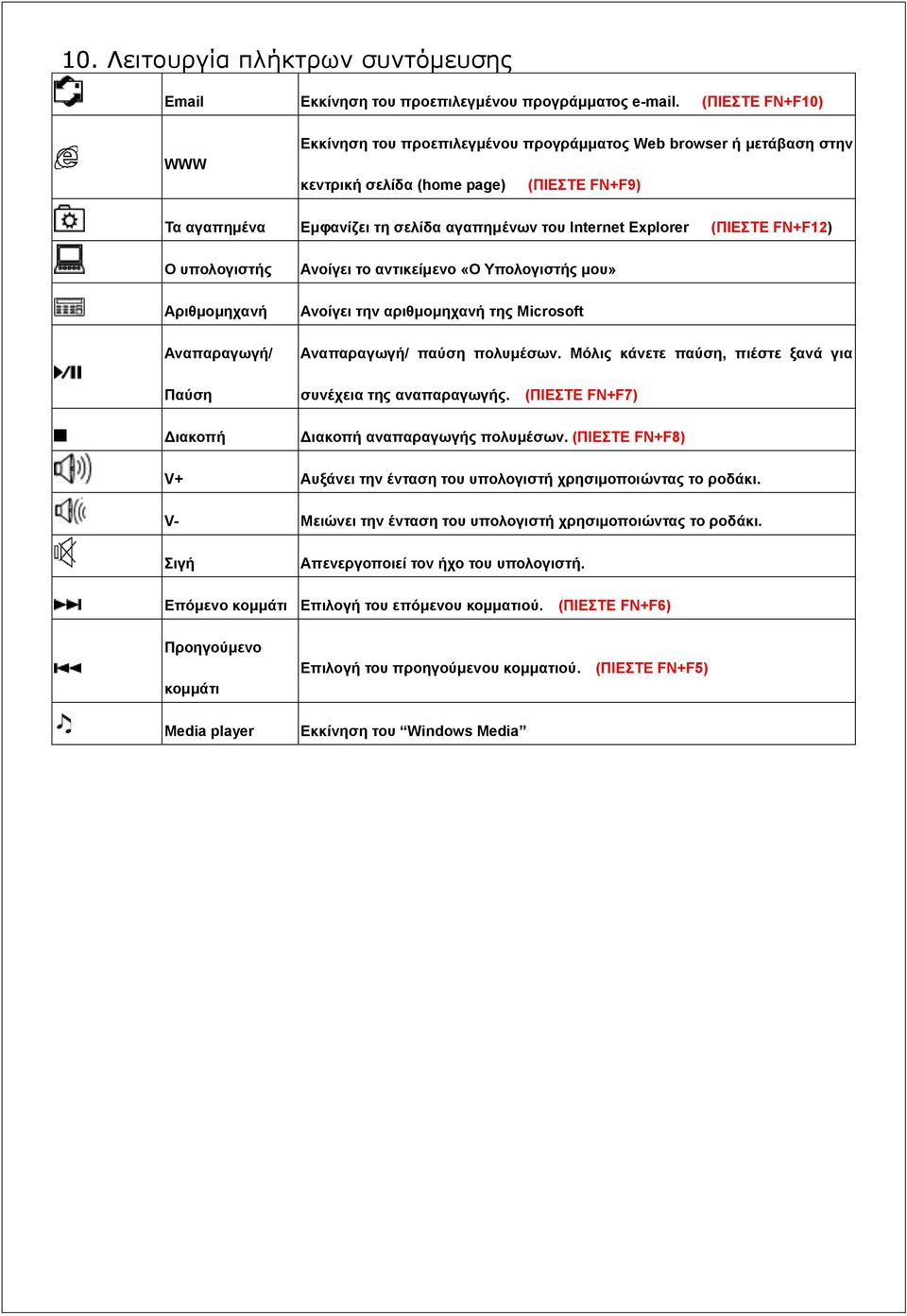

3 10. Λειτουργία πλήκτρων συντόμευσης Εκκίνηση του προεπιλεγμένου προγράμματος . (ΠΙΕΣΤΕ FN+F10) WWW Εκκίνηση του προεπιλεγμένου προγράμματος Web browser ή μετάβαση στην κεντρική σελίδα (home page) (ΠΙΕΣΤΕ FN+F9) Τα αγαπημένα Εμφανίζει τη σελίδα αγαπημένων του Internet Explorer (ΠΙΕΣΤΕ FN+F12) Ο υπολογιστής Αριθμομηχανή Αναπαραγωγή/ Παύση Διακοπή Ανοίγει το αντικείμενο «Ο Υπολογιστής μου» Ανοίγει την αριθμομηχανή της Microsoft Αναπαραγωγή/ παύση πολυμέσων. Μόλις κάνετε παύση, πιέστε ξανά για συνέχεια της αναπαραγωγής. (ΠΙΕΣΤΕ FN+F7) Διακοπή αναπαραγωγής πολυμέσων. (ΠΙΕΣΤΕ FN+F8) V+ Αυξάνει την ένταση του υπολογιστή χρησιμοποιώντας το ροδάκι. V- Μειώνει την ένταση του υπολογιστή χρησιμοποιώντας το ροδάκι. Σιγή Απενεργοποιεί τον ήχο του υπολογιστή. Επόμενο κομμάτι Επιλογή του επόμενου κομματιού. (ΠΙΕΣΤΕ FN+F6) Προηγούμενο κομμάτι Media player Επιλογή του προηγούμενου κομματιού. (ΠΙΕΣΤΕ FN+F5) Εκκίνηση του Windows Media

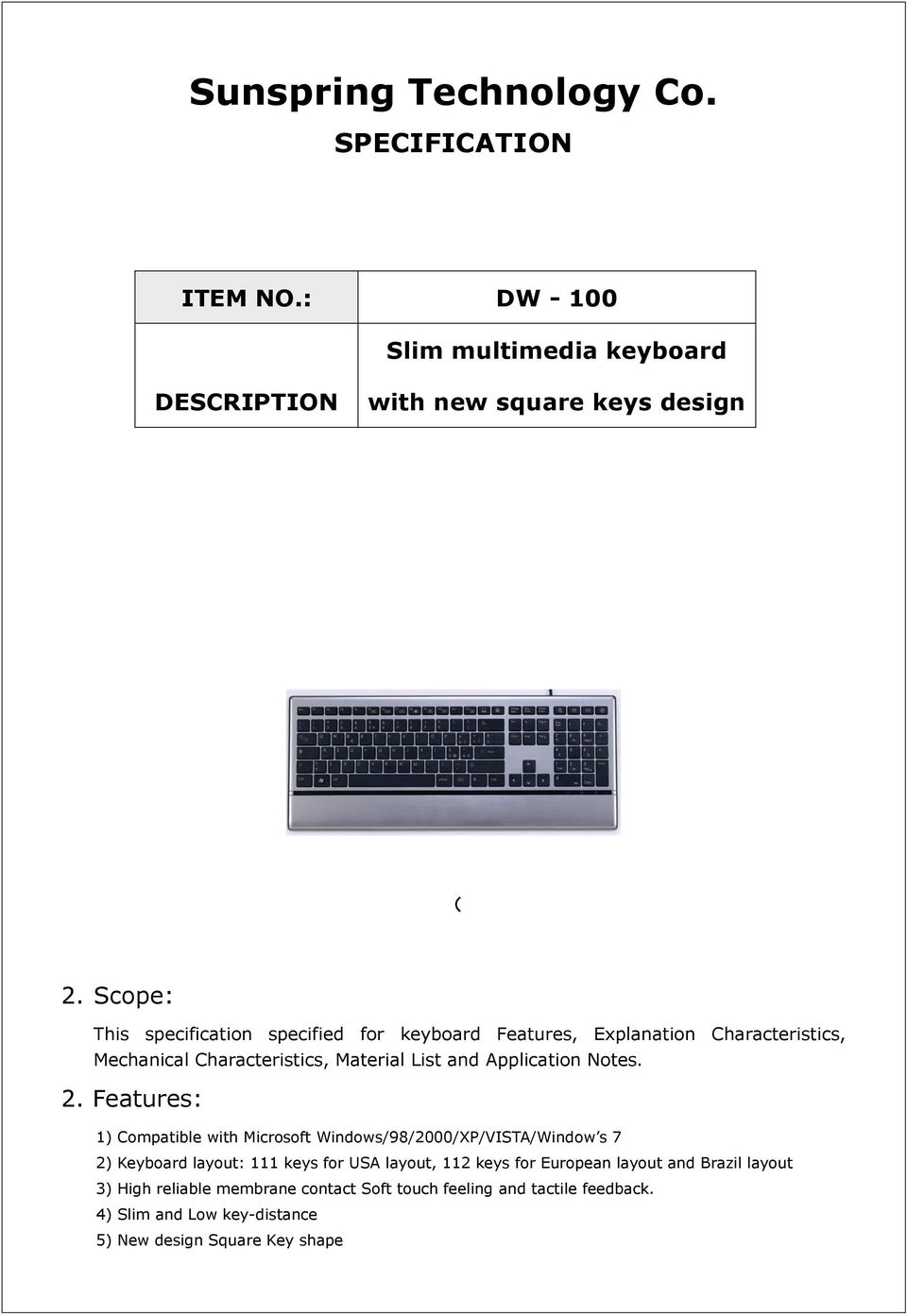

4 Sunspring Technology Co. SPECIFICATION ITEM NO.: DW Slim multimedia keyboard DESCRIPTION with new square keys design ( 2. Scope: This specification specified for keyboard Features, Explanation Characteristics, Mechanical Characteristics, Material List and Application Notes. 2. Features: 1) Compatible with Microsoft Windows/98/2000/XP/VISTA/Window s 7 2) Keyboard layout: 111 keys for USA layout, 112 keys for European layout and Brazil layout 3) High reliable membrane contact Soft touch feeling and tactile feedback. 4) Slim and Low key-distance 5) New design Square Key shape

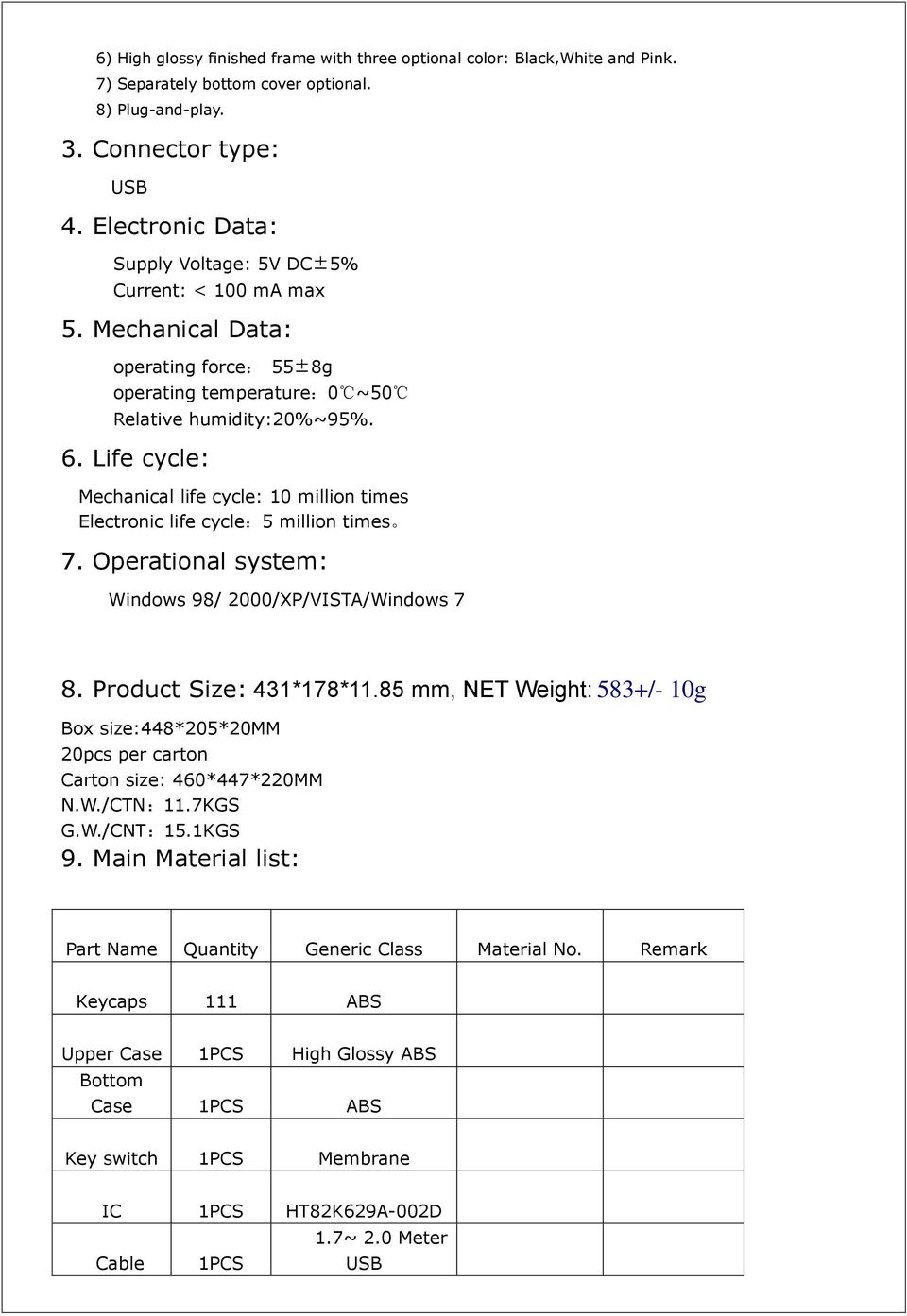

5 6) High glossy finished frame with three optional color: Black,White and Pink. 7) Separately bottom cover optional. 8) Plug-and-play. 3. Connector type: USB 4. Electronic Data: Supply Voltage: 5V DC±5% Current: < 100 ma max 5. Mechanical Data: operating force: 55±8g operating temperature:0 ~50 Relative humidity:20%~95%. 6. Life cycle: Mechanical life cycle: 10 million times Electronic life cycle:5 million times 7. Operational system: Windows 98/ 2000/XP/VISTA/Windows 7 8. Product Size: 431*178*11.85 mm, NET Weight: 583+/- 10g Box size:448*205*20mm 20pcs per carton Carton size: 460*447*220MM N.W./CTN:11.7KGS G.W./CNT:15.1KGS 9. Main Material list: Part Name Quantity Generic Class Material No. Remark Keycaps 111 ABS Upper Case 1PCS High Glossy ABS Bottom Case 1PCS ABS Key switch 1PCS Membrane IC 1PCS HT82K629A-002D 1.7~ 2.0 Meter Cable 1PCS USB

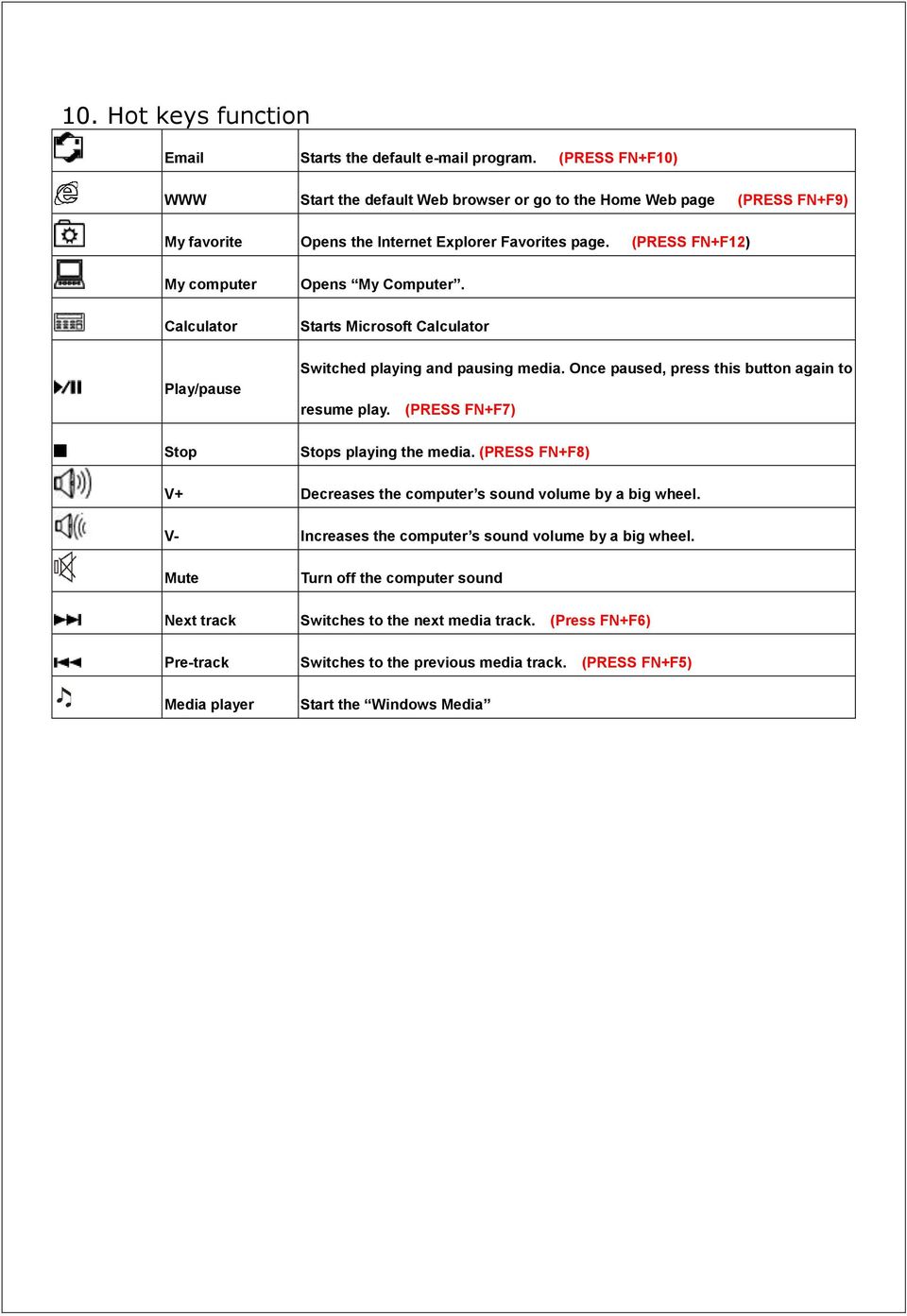

6 10. Hot keys function Starts the default program. (PRESS FN+F10) WWW Start the default Web browser or go to the Home Web page (PRESS FN+F9) My favorite Opens the Internet Explorer Favorites page. (PRESS FN+F12) My computer Calculator Play/pause Stop Opens My Computer. Starts Microsoft Calculator Switched playing and pausing media. Once paused, press this button again to resume play. (PRESS FN+F7) Stops playing the media. (PRESS FN+F8) V+ Decreases the computer s sound volume by a big wheel. V- Increases the computer s sound volume by a big wheel. Mute Next track Pre-track Media player Turn off the computer sound Switches to the next media track. (Press FN+F6) Switches to the previous media track. (PRESS FN+F5) Start the Windows Media
