Version: 1.0 Page: 1/15 TYPE: HYDRO SUPERIOR MRL HYDRAULIC LIFTS. Date: Range of Application

Μέγεθος: px
Εμφάνιση ξεκινά από τη σελίδα:

Download "Version: 1.0 Page: 1/15 TYPE: HYDRO SUPERIOR MRL HYDRAULIC LIFTS. Date: Range of Application"

Transcript

1 Page: 1/15 Range of Application

2 Page: 2/15 Contents 3D LAYOUT... 3 TECHNICAL SPECIFICATION... 4 HYDRO SUPERIOR - LAYOUT ARRANGEMENT:... 5 SINGLE ENTRANCE GUIDE RAILS AT THE SIDE SINGLE ENTRANCE GUIDE RAILS AT REAR ADJACENT ENTRANCES GUIDE RAILS AT THE SIDE THROUGH CAR GUIDE RAILS AT THE SIDE GENERAL SECTION VIEW... 9 Section view... 9 HYDRO SUPERIOR PANORAMIC - LAYOUT ARRANGEMENT: SINGLE ENTRANCE GUIDE RAILS AT THE SIDE SINGLE ENTRANCE GUIDE RAILS AT REAR ADJACENT ENTRANCES GUIDE RAILS AT THE SIDE THROUGH CAR GUIDE RAILS AT THE SIDE GENERAL SECTION VIEW Section view CERTIFICATES MANUFACTURER S DECLARATION... 15

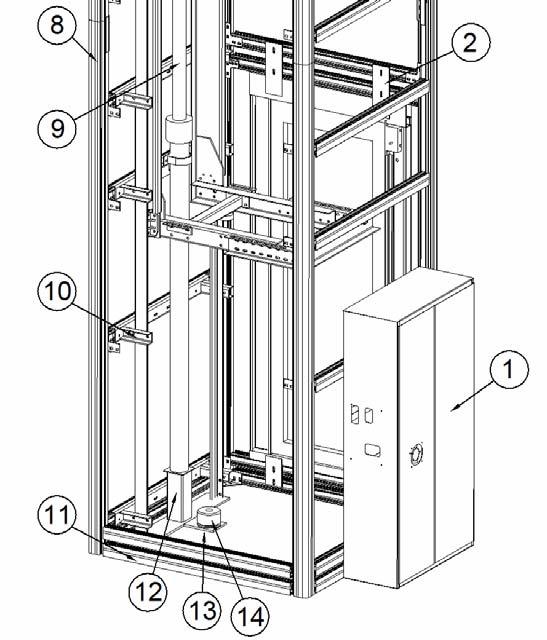

3 Page: 3/15 3D layout 1. MRL CABINET (controller and power unit) 2. LANDING DOOR BRACKETS 3. MANUAL LANDING DOOR 4. STRUCTURE JOINTS 5 GUIDE RAILS 6. CAR TOP BRACKETS ALUMINIUM SHAFT STRUCTURE UPRIGHT 9. TELESCOPIC JACK 10. GUIDE RAIL BRACKETS 11. ALUMINIUM SHAFT STRUCTURE LATERAL PROFILE 12. JACK SUPPORT BASE 13. BUFFER SUPPORT BASE 14. ELASTIC BUFFER

4 Page: 4/15 Technical specification Type: HYDRO SUPERIOR Rated Load: 300 Kg 300 Kg 450 Kg 450 Kg No of Persons: Acting: 1:1 1:1 1:1 1:1 No of Stops: Max Travel: 4000m 7000m 4000m 7000m Nomimal Speed: 0.30 m/s 0.50 m/s 0.30 m/s 0.50 m/s Min Headroom: 2650 mm 3050 mm 2750 mm 3000 mm Min Pit Depth: 200 mm 200 mm 340 mm 340 mm Guide Rails: T70x65x09 T70x65x09 T89x62x16 T89x62x16 Piston: Viofial Y2.80 Viofial Y3.130 Viofial Y2.100 Viofial Y3.150 Buffer: ACLA 125x80 ACLA 125x80 ACLA 125x80 ACLA 125x80 Oil Quantity: 60 lt 144 lt 100 lt 180 lt Pump flow rate: 35 lt/min 150 lt/min 75 lt/min 180 lt/min Motor Power: 2.9 kw 5.8 kw 5.8 kw 7.7 kw

5 Page: 5/15 HYDRO SUPERIOR - Layout arrangement: Single entrance guide rails at the side x2000 BUS x2000 BUS

6 Page: 6/15 HYDRO SUPERIOR - Layout arrangement: Single entrance guide rails at rear x2000 BUS x2000 BUS

7 Page: 7/15 HYDRO SUPERIOR - Layout arrangement: Adjacent entrances guide rails at the side x2000 BUS 800x2000 BUS 700x2000 BUS 800x2000 BUS

8 Page: 8/15 HYDRO SUPERIOR - Layout arrangement: Through car guide rails at the side x2000 BUS x2000 BUS

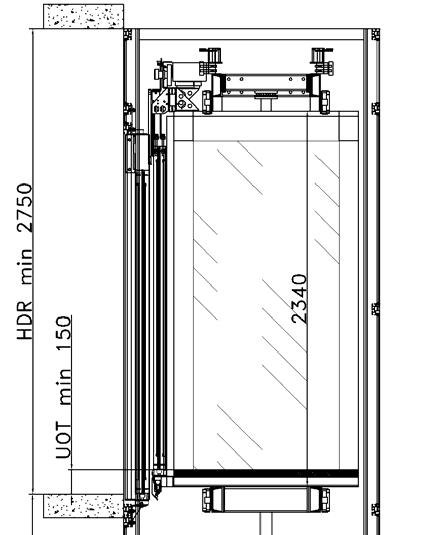

9 Page: 9/15 HYDRO SUPERIOR - Layout arrangement: General section view Section view 2 3 HDR UOT T PD DOT HEADROOM UP OVERTRAVEL TRAVEL PIT DEPTH DOWN OVERTRAVEL

10 Page: 10/15 HYDRO SUPERIOR PANORAMIC - Layout arrangement: Single entrance guide rails at the side PT 800x PT 800x2000

11 Page: 11/15 HYDRO SUPERIOR PANORAMIC - Layout arrangement: Single entrance guide rails at rear PT 800x PT 800x2000

12 Page: 12/15 HYDRO SUPERIOR PANORAMIC - Layout arrangement: Adjacent entrances guide rails at the side PT 800x PT 800x2000

13 Page: 13/15 HYDRO SUPERIOR PANORAMIC - Layout arrangement: Through car guide rails at the side PT 800x PT 800x2000

14 Page: 14/15 HYDRO SUPERIOR PANORAMIC - Layout arrangement: General section view Section view 2 3 HDR UOT T PD DOT HEADROOM UP OVERTRAVEL TRAVEL PIT DEPTH DOWN OVERTRAVEL

15 Page: 15/15 Certificates ΔΗΛΩΣΗ ΚΑΤΑΣΚΕΥΑΣΤΗ MANUFACTURER S DECLARATION Με το παρόν δηλώνεται ότι η εταιρεία: This is to declare that the company: DOPPLER S.A. ΒΙO.ΠΕ. Πολυκάστρου Πολύκαστρο, DOPPLER S.A. Industrial Park of Polikastro GR 61200, Polikastro Greece έχει εγκαταστήσει και εφαρμόζει ένα πλήρες Σύστημα Διασφάλισης Ποιότητας σύμφωνα με την οδηγία για τους ανελκυστήρες (95/16/ΕΚ, Παράρτημα ΧΙΙΙ, Ενότητα Η) και το πρότυπο ΕΝ ISO 9001:1994, για τo has established and operates a Quality Assurance System pursuant to the Lift Directive (95/16/EC, Annex XIII, Module H) and the EN ISO 9001:2000, for the Σχεδιασμό, Κατασκευή, Συναρμολόγηση, Μελέτες εγκατάστασης, Μέθοδοι για τον Τελικό Έλεγχο των Ανελκυστήρων Design, Manufacture, Assembly, Studies of Installation, Methods of final inspection and Testing of lifts. Το σύστημα αυτό εξασφαλίζει ότι ο ανελκυστήρας, Νο σχεδιάστηκε σύμφωνα με ένα ανελκυστήρα που ικανοποιεί όλες τις απαιτήσεις της οδηγίας των ανελκυστήρων και ο εγκαταστάτης μπορεί να τοποθετήσει τη σήμανση CE στον ανελκυστήρα ακολουθώντας μία από τις διαδικασίες που αναφέρονται στο άρθρο 8.2iii της οδηγίας. This system ensures that the lift, Nr was designed in accordance with a lift that satisfies all the requirements of the Lift Directive, and the installer may affix a CE marking on the Lift following the procedure drawn up to article 8.2.iii of the Directive. DOPPLER S.A. Βιομηχανία Ανελκυστήρων DOPPLER S.A. Lift Manufacturers Σταύρος Σταυρόπουλος Πρόεδρος & Διευθύνων Σύμβουλος Stavros Stavropoulos President & Managing Director
