IESNA LM MEASURING LUMEN MAINTENANCE OF LED LIGHT SOURCES MEASUREMENT AND TEST REPORT. For

Transcript

1 IESNA LM MEASURING LUMEN MAINTENANCE OF LED LIGHT SOURCES MEASUREMENT AND TEST REPORT For JiangxiLianrong Green Lighting Collaborative Innovation CO.,Ltd. Lianovation Technology Park,NO.168 Jingdong Avenue High-tech development District, Nanchang City, Model:2835 White SMD LED(LC-2835BWW1-S-R80) Report Type: 6000 Hours Test Report Product Type: LED Package Test Engineer: Daniel Duan Report Number: R2DG Test Date: to Report Date: Reviewed By: Prepared By: Jeanne Han /EE Manager Bay Area Compliance Laboratories Corp. (Dongguan). Pu Long Cun 69, Puxinghu Industrial Area, Tangxia Town, Dongguan, Guangdong, P.R.China. Tel: Fax: Note: The test data was only valid for the test sample(s). This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0.

2 TABLE OF CONTENTS 1 - GENERAL INFORMATION DESCRIPTION OF LED LIGHT SOURCES STANDARDS USED: TEST FACILITY DESCRIPTION OF AUXILIARY EQUIPMENT OPERATING CYCLE AMBIENT CONDITIONS PHOTOMETRY MEASUREMENT UNCERTAINTY SAMPLE SET SUMMARY OF TEST RESULT TEST DATA DATA SET 1, 55 C, 150MA (LUMEN MAINTENANCE) DATA SET 1, 55 C, 150MA (CHROMATICITY SHIFT) DATA SET 2, 85 C, 150MA (LUMEN MAINTENANCE) DATA SET 2, 85 C, 150MA (CHROMATICITY SHIFT) DATA SET 3, 105 C, 150MA (LUMEN MAINTENANCE) DATA SET 3, 105 C, 150MA (CHROMATICITY SHIFT) ATTACHMENT A EUT PHOTO A.1 MECHANICAL DIMENSIONS (TA = 25 C) A.2 EUT PHOTO ATTACHMENT B FAMILY DECLARATION LETTER Report No. R2DG Page 2 of 15 IESNA LM Test Report

3 1 - GENERAL INFORMATION 1.1 Description of LED Light Sources Devices tested Part Number: Part Type: Nominal CCT: 2835 White SMD LED(LC-2835BWW1-S-R80) LED Package 2700K Family products covered by this report: According to ENERGY STAR Program Guidance Regarding LED Package, LED Array and LED Module Lumen Maintenance Performance Data Supporting Qualification of Lighting Products, the following products can be covered by this report base on the declaration letter of manufacturer (see attachment B for more information). The information of these models shows that the covered products meet all section 3 item 7 requirements of ENERGY STAR Program Guidance Regarding LED Package, LED Array and LED Module Lumen Maintenance Performance Data Supporting Qualification of Lighting Products (September 9, 2011) Test model Covered Models Variations Detail 2835 White SMD LED(LC- 2835BWW1-S- R80) (CCT:2700K) 2835 White SMD LED(LC-2835BXXX- SR80) CCT XXX representative CCT, XXX could be WW1, WW2, NW2, AW1, AW4;which denotes color temperature of LED 2700K, 3000K, 4000K, 5000K, 6500K Disclaimer: The truthfulness and accuracy of all the technical information above for the covered LED products is ensured by manufacturer of LED light source. Bay Area Compliance Laboratories Corp. (Dongguan) isn t responsible or gives any guarantees for the truthfulness of the technical information. Report No. R2DG Page 3 of 15 IESNA LM Test Report

4 1.2 Standards Used: IESNA LM-80-08: IES Approved Method for Measuring Lumen Maintenance of LED Light Sources. ENERGY STAR Program Guidance Regarding LED Package, LED Array and LED Module Lumen Maintenance Performance Data Supporting Qualification of Lighting Products(This test method was not accredited by IAS) 1.3 Test Facility The testing facility used by Bay Area Compliance Laboratories Corp. (Dongguan). is located at Pu Long Cun 69, Puxinghu Industrial Area, Tangxia Town, Dongguan, Guangdong, P.R.China. 1.4 Description of Auxiliary Equipment Device Manufacture Model No Serial No Test Range Integral Sphere Programmable Test Power for LEDs EVERFINE Diameter 0.3m nm, Diameter:0.3m,0-1999Lumen Calibration date Calibration due date EVERFINE LED300E V/2000mA High accuracy array spectroradiometer EVERFINE HAAS T nm Standard Light Source EVERFINE D N/A Precision digital stabilized DC power supply Multilayer aging machine Digital CC&CV DC Power Supply Digital CC&CV DC Power Supply Digital CC&CV DC Power Supply EVERFINE WY605 G115987C J VA BACL B ~ EVERFINE WY (50V/15A) EVERFINE WY (50V/15A) EVERFINE WY (50V/15A) Operating Cycle Samples are driven with a constant direct current (DC) Report No. R2DG Page 4 of 15 IESNA LM Test Report

5 1.6 Ambient Conditions For lumen maintenance test, samples were operated in thermal chambers with minimal ambient airflow. For long term reliability test, the case temperature was controlled by mounting several thermocouples on a sample reliability stress board at the designated thermal measurement point, as shown in APPENDIX. The ambient temperature T A was measured by several thermocouples at a distance of 5 mm above the reliability test board. The relative humidity within chamber was less than 65%. For photometry measurement, temperature was set to 25 C ± 2 C, RH <65%. 1.7 Photometry Measurement Uncertainty The uncertainty of the light output measurements is U=1.59% (K=2), at the 95% confidence level. The uncertainty of the correlated color temperature measurements is U=21K (K=2), at the 95% confidence level. This calibration results traceable to the NATIONAL INSTITUTE OF METROLOGY (NIM). Report No. R2DG Page 5 of 15 IESNA LM Test Report

6 1.8 Sample Set Sampling Method: LED samples for IESNA LM-80 testing consist of units built from a minimum of three manufacturing lots with each manufacturing lot built from different wafer lots built on non-consecutive days. These manufacturing lots are picked to represent a wide parametric distribution. Each Sample is soldered to all of the reliability stress boards for a given set of IESNA LM-80 tests. Sample Size: Total 75Pcs; Each Ts test condition 25Pcs The samples tested at TS 55 C, Ts 85 C and TS 105 C were received at and tested during to The samples were numbered from 1 to 25, 26 to 50 and 51 to 75 Data Set 1: 55 C, 150mA Part Number: Number of Units: 25 Actual Case Temperature(T S ): Actual Ambient Temperature(T A ): Life Test Drive Current: Measurement Current: Data Set 2: 85 C,150mA Part Number: Number of Units: 25 Actual Case Temperature(T S ): Actual Ambient Temperature(T A ): Life Test Drive Current: Measurement Current: Data Set 3: 105 C, 150mA Part Number: Number of Units: 25 Actual Case Temperature(T S ): Actual Ambient Temperature(T A ): Life Test Drive Current: Measurement Current: 2835 White SMD LED(LC-2835BWW1-S-R80) T S =53.9 C T A =52.4 C I F = 150mA I F = 150mA 2835 White SMD LED(LC-2835BWW1-S-R80) T S =83.2 C T A =82.7 C I F =150mA I F = 150mA 2835 White SMD LED(LC-2835BWW1-S-R80) T S =104.6 C T A =102.9 C I F = 150mA I F = 150mA Report No. R2DG Page 6 of 15 IESNA LM Test Report

7 2 - SUMMARY OF TEST RESULT Data Set: Data Set 1, 55 C, 150mA Number of Units: 25 Failures Observed: 0 Test Interval and Test Duration: 0h,1000h,2000h,3000h,4000h,5000h,6000h Average. Lumen Maintenance at 6000 hours: 98.02% Average Chromaticity Shift at 6000 hours ( u v ): Reported TM-21 L 70 Lifetime: >36,000 hours Data Set: Data Set 2, 85 C, 150mA Number of Units: 25 Failures Observed: 0 Test Interval and Test Duration: 0h,1000h,2000h,3000h,4000h,5000h,6000h Average. Lumen Maintenance at 6000 hours: 96.86% Average Chromaticity Shift at 6000 hours( u v ): Reported TM-21 L 70 Lifetime: >36,000 hours Data Set: Data Set 3, 105 C, 150mA Number of Units: 25 Failures Observed: 0 Test Interval and Test Duration: 0h,1000h,2000h,3000h,4000h,5000h,6000h Average. Lumen Maintenance at 6000 hours: 96.08% Average Chromaticity Shift at 6000 hours( u v ): Reported TM-21 L 70 Lifetime: >36,000 hours Report No. R2DG Page 7 of 15 IESNA LM Test Report

8 3 - Test Data 3.1 Data Set 1, 55 C, 150mA (Lumen Maintenance) V F(V) Φ(lm) Lumen Maintenance (%) No. 0hr(Initial) 1000hrs 2000hrs 3000hrs 4000hrs 5000hrs 6000hrs Ave Med st dev Min Max TM-21 Projection: Test Duration: 6000 hours Failures Observed: 0 α: 4.500E-06 β: Calculated L 70 : 81,000 hours Reported L 70 : >36,000 hours Report No. R2DG Page 8 of 15 IESNA LM Test Report

9 % Luminous Flux JiangxiLianrong Green Lighting Collaborative Innovation CO.,Ltd. 3.2 Data Set 1, 55 C, 150mA (Chromaticity Shift) u v CCT(K) Chromaticity Shift ( u v ) No. 0hr(Initial) 1000hrs 2000hrs 3000hrs 4000hrs 5000hrs 6000hrs Ave Med st dev Min Max % % 100% 95% 90% 85% 80% 75% 70% Flux u'v' Chromaticity Shift (Du'v') Time (hours) Report No. R2DG Page 9 of 15 IESNA LM Test Report

10 3.3 Data Set 2, 85 C, 150mA (Lumen Maintenance) V F(V) Φ(lm) Lumen Maintenance (%) No. 0hr(Initial) 1000hrs 2000hrs 3000hrs 4000hrs 5000hrs 6000hrs Ave Med st dev Min Max TM-21 Projection: Test Duration: 6000 hours Failures Observed: 0 α: 6.632E-06 β: Calculated L 70 : 55,000 hours Reported L 70 : >36,000 hours Report No. R2DG Page 10 of 15 IESNA LM Test Report

11 % Luminous Flux JiangxiLianrong Green Lighting Collaborative Innovation CO.,Ltd. 3.4 Data Set 2, 85 C, 150mA (Chromaticity Shift) No. u v CCT(K) Chromaticity Shift ( u v ) 0hr(Initial) 1000hrs 2000hrs 3000hrs 4000hrs 5000hrs 6000hrs Ave Med st dev Min Max % % 100% 95% 90% 85% 80% 75% 70% Flux u'v' Chromaticity Shift (Du'v') Time (hours) Report No. R2DG Page 11 of 15 IESNA LM Test Report

12 3.5 Data Set 3, 105 C, 150mA (Lumen Maintenance) V F(V) Φ(lm) Lumen Maintenance (%) No. 0hr(Initial) 1000hrs 2000hrs 3000hrs 4000hrs 5000hrs 6000hrs Ave Med st dev Min Max TM-21 Projection: Test Duration: 6000 hours Failures Observed: 0 α: 7.912E-06 β: Calculated L 70 : 46,000 hours Reported L 70 : >36,000 hours Report No. R2DG Page 12 of 15 IESNA LM Test Report

13 % Luminous Flux JiangxiLianrong Green Lighting Collaborative Innovation CO.,Ltd. 3.6 Data Set 3, 105 C, 150mA (Chromaticity Shift) u v CCT(K) Chromaticity Shift ( u v ) No. 0hr(Initial) 1000hrs 2000hrs 3000hrs 4000hrs 5000hrs 6000hrs Ave Med st dev Min Max % % 100% 95% 90% 85% 80% 75% 70% Flux u'v' Chromaticity Shift (Du'v') Time (hours) Report No. R2DG Page 13 of 15 IESNA LM Test Report

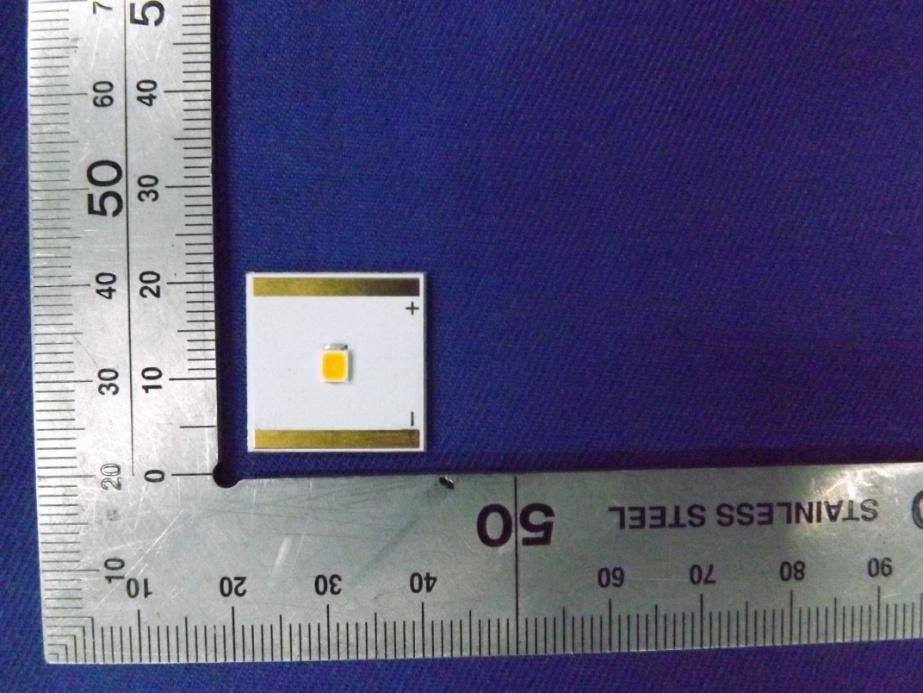

14 Attachment A EUT PHOTO A.1 Mechanical Dimensions (Ta = 25 C) All dimensions are in millimeter A.2 EUT Photo TMP LED Report No. R2DG Page 14 of 15 IESNA LM Test Report

15 Attachment B Family declaration Letter ***********END OF REPORT*********** Report No. R2DG Page 15 of 15 IESNA LM Test Report
