Aeolus50 PassportZ Parts Manual (Last Update on 3/27/2013)
|
|
|
- ÍΑἰνείας Παπανικολάου
- 5 χρόνια πριν
- Προβολές:
Transcript
1 Aeolus50 PassportZ Parts Manual (Last Update on 3/27/2013) 1. CYLINDER HEAD COVER (FOR USA) Ref# Par# Description Qty Linhai Code Control Code COVER COMP HEAD 1 139FM.1 1 1A GASKET HEAD COVER 1 139FM.1 8 1A TUBE BREATHER 1 139FM.1 7 1A BOLT FLANGE SH 6X25 4 GB B TIE IN 1 139FM.1.3 1A AERATION HEAD COVER 1 139FM.1 3 1A AERATION CAP 1 139FM.1 4 1A
2 2. HOLDER CAM SHAFT Ref# Par# Description Qty Linhai Code Control Code HOLDER CAM SHAFT 1 139FM.2 1 1A SHAFT COMP IN ROCKER ARM 1 139FM.2.1 1A SHAFT EXH ROCKER ARM 1 139FM.2 2 1A ARM VALVE ROCKER 2 139FM.2 3 1A NUT,ADJUST VALVE 2 153FM.3 4 1H SCREW,ADJUST VALVE 2 153FM.3 5 1H HOLDER CAM SHAFT ASSY 1 139FM.2 1A

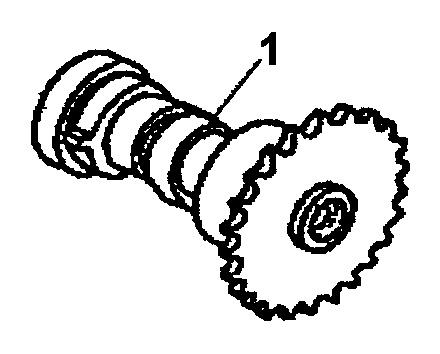

3 3. SHAFT COMP CAM Ref# Par# Description Qty Linhai Code Control Code SHAFT COMP CAM 1 139FM.3 1A
4 4. CYLINDER HEAD Ref# Par# Description Qty Linhai Code Control Code COTTER VALVE 4 153FM.4 3 1H RETAINER VALVE SPRING 2 153FM.4 2 1H SPRING VALVE LNNER 2 139FM.4 4 1A SPRING VALVE OUTER 2 139FM.4 3 1A SEAT VALVE SPRING OUTER 2 153FM.4 7 1H SEAT VALVE STEM 2 153FM.4.2 1H PIN DOWEL SPECIAL 8X FM A HEAD COMP CYLINDER 1 139FM.4.1 1A BOLT STUD 6X48 2 GB900 B VALVE EXHAUST 1 139FM.4 1 1A VALVE INLET 1 139FM.4 2 1A GASKET CYLINDER HEAD 1 139FM.4 9 1A INSULATOR CARB ASSY 1 139FM.4 6 1A PIPE ASSY INLET 1 139FM.4.2 1A NUT FLANGE 2 139FM.4a 13 1A004a SPARK PLUG (CR7HSA) 1 CR7HSA B BOLT STUD 6X FM A BOLT SFLANGE 6X FM A
5 5. CARBURETOR Ref# Par# Description Qty Linhai Code Control Code CARBURETOR ASSY FOR USA (Made in Taiwan) 1 139FM.5 1A G CARBURETOR ASSY FOR USA (Made in China) 1 139FM.5 1A NEEDLE (Made in Taiwan) 1 139FM.5 1 1A G NEEDLE (Made in China) 1 139FM.5 1 1A SET FLOAT(Made in Taiwan) 1 139FM.5.1 1A G SET FLOAT (Made in China) 1 139FM.5.1 1A JET SLOW (Made in Taiwan) 1 139FM.5 2 1A G JET SLOW (Made in China) 1 139FM.5 2 1A JET MAIN (Made in Taiwan) 1 139FM.5 3 1A G JET MAIN (Made in China) 1 139FM.5 3 1A HOLDER NEEDLE JET (Made in Taiwan) 1 139FM.5 4 1A G HOLDER NEEDLE JET (Made in China) 1 139FM.5 4 1A VALVE SET STARTER (Made in Taiwan) 1 139FM.5.2 1A G VALVE SET STARTER (Made in China) 1 139FM.5.2 1A BOWL GASKET (Made in Taiwan) 1 139FM.5 5 1A G BOWL GASKET (Made in China) 1 139FM.5 5 1A VALVE SET FLOAT (Made in Taiwan) 1 139FM.5.3 1A G VALVE SET FLOAT (Made in China) 1 139FM.5.3 1A
6 6. COVER COMP L SIDE,ARM ASSY KICK STARTER Ref# Par# Description Qty Linhai Code Control Code SPINDLE COMP KICK STARTER 1 139FM.6.1 1A GEAR COMP KICK DRIVEN 1 139FM.6.2 1A GASTER L COVER 1 139FM.6 8 1A COVER COMP L SIDE 1 139FM.6 6 1A BOLT FLANGE 6X22 1 GB5781 B ARM ASSY KICK STARTER 1 139FM.6.3 1A BOLT FLANGE SH6X35 8 GB5787 B CLAMPER THROTTLE CABLE 1 139FM A CLAMPER BRAKE CABLE 1 139FM A RECOIL SPRING 1 139FM.6 4 1A NYLON CALLAR 1 139FM.6 3 1A CALLAR 1 139FM.6 2 1A WASHER FM.6 1 1A CIRCLIP 14 1 GB894.1 B WASHER FM.6 5 1A CLIP 1 139FM.6 7 1A BUSHING 2 139FM A SPINDLE COMP KICK STARTER ASSY 1 1A
7 7. STARTING MOTOR Ref# Par# Description Qty Linhai Code Control Code PINION ASSY STARTER 1 139FM.7.1 1A MOTOR ASSY START 1 139FM.7.2 1A BOLT FLANGE SH 6X25 2 GB5787 B
8 8. AIR CLEANER Ref# Par# Description Qty Linhai Code Control Code AIR CLEANER ASSY 1 139FM.8 (E) 1A008E HOSE CLAMP FM.7.2 1H HOSE FM.8 5 1A HOSE CLAMP FM.8 7 1A HOSE FM.8 2 1A ELEMENT AIR CLEANER 1 139FM.8.2 1A
9 9. DRIVEN PULLEY Ref# Par# Description Qty Linhai Code Control Code CVT COMPLETE 1 139FM.9 1A DRIVE BELT 1 139FM.9 7 1A WASHER SPECIAL 12mm 1 139FM.9 5 1A NUT HEX 12mm 1 GB6177 B015212A NUT FLANGE 10mm 1 139FM.9 6 1A DRIVER ASSY 1 139FM.9.1 1A DRIVEN ASSY 1 139FM.9.2 1A
10 10. EXHAUST MUFFLER (FOR USA) Ref# Par# Description Qty Linhai Code Control Code MUFFLER ASSY EXHAUST 1 139FM.10 1A BOLT FLANGE M8X FM A BOLT FLANGE M8X FM A GASKET EXHAUST PIPE 1 139FM A NUT (HEX)CAP M FM A

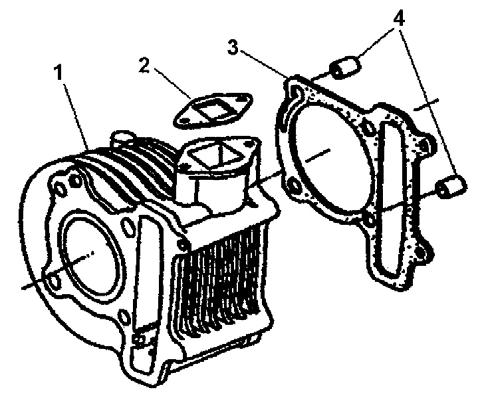

11 11. CYLINDER Ref# Par# Description Qty Linhai Code Control Code CYLINDER COMP (FOR LH50QT 2) 1 139FM A GASKET CAM CHAIN ADJUSTER (FOR LH50QT 2) 1 139FM A GASKET CYLINDER (FOR LH50QT 2) 1 139FM A PIN DOWEL SPECIAL 8X FM A

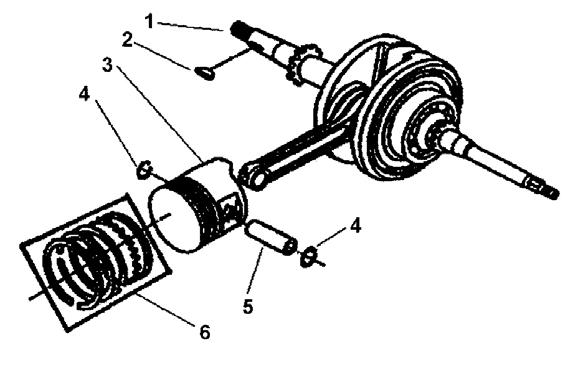

12 12. CRANKSHAFT AND PISTON Ref# Par# Description Qty Linhai Code Control Code CRANK SHAFT COMP (FOR LH50QT 2) 1 139FM A KEY WOODRUFF 1 139FM A PISTON (FOR LH50QT 2) 1 139FM A PISTON PIN CLIP 2 139FM A PIN PISTON (FOR LH50QT 2) 1 139FM A RING SET PISTON (FOR LH50QT 2) 1 139FM FM FM A A A

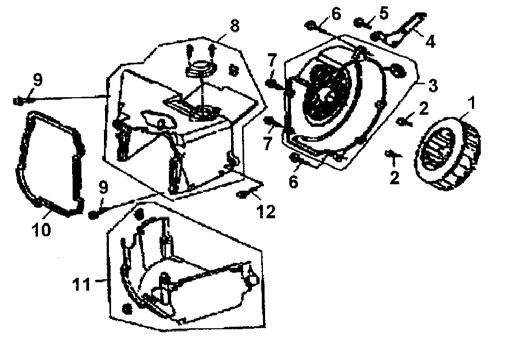

13 13. FAN COVER Ref# Par# Description Qty Linhai Code Control Code FAN COMP COOLING 1 139FM A BOLT FLANGE SH 6X16 4 GB5787 B COVER ASSY FAN 1 139FM A STAY FENDER 1 139FM A BOLT FLANGE SH 6X12 1 GB5787 B BOLT FLANGE SH 6X25 2 GB5787 B SCREW TAPPING 2 GB845 B SHROUD ASSY A 1 139FM A BOLT FLANGE SH 6X16 2 GB5787 B SEAL SHROUD 1 139FM A SHROUD ASSY B 1 139FM A BOLT FLANGE SH 6X18 1 GB5787 B
14 14. GENERATOR Ref# Par# Description Qty Linhai Code Control Code AC GEN ASSY 1 139FM A ROTOR 1 139FM A STATOR 1 139FM A IGNITION COIL 1 139FM A CDI 1 139FM A NUT FLANGE 10mm 1 GB6177 B015210A BOLT FLANGE SH 6X FM A BOLT FLANGE SH 5X12 2 GB5787 B
15 15. RIGHT CRANK CASE COVER Ref# Par# Description Qty Linhai Code Control Code DOWEL PIN 8X FM H OIL SEAL 16.4X30X FM A GASKET R A 1 139FM A COVER R CRANK CASE 1 139FM A SCREEN OIL FILTER 1 153FM H SPG OIL FILTER SCREEN 1 153FM H O RING 30X FM H HOLE CAP TAPPET ADJUSTING 1 153FM H GAUDE OIL LEVER 1 139FM A O RING 18X3 1 GB B BOLT FLANGE SH 6X85 4 GB B BOLT FLANGE SH 6X100 4 GB B

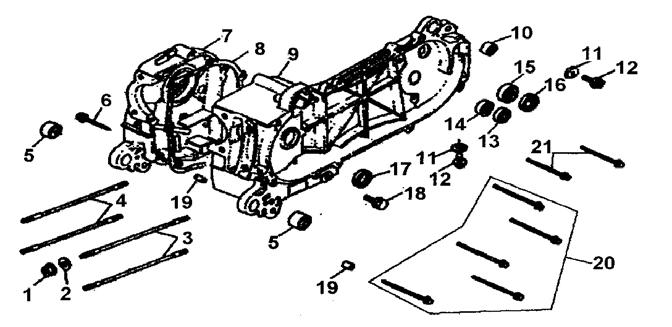

16 16. CRANKCASE Ref# Par# Description Qty Linhai Code Control Code NUT FLANGE 7mm 4 GB/T6187 B WASHER SEALING 7mm 4 139FM A BOLT STUD 7X FM A BOLT STUD 7X FM A RUB BUSH ENG HANGER 2 153FM H BOLT FLANGE SH 6X45 1 GB5787 B CASE SET R CRANK 1 139FM A GASKET CRANK A 1 139FM A CASE SET L CRANK 1 139FM16.3 1A UNDER RUB BUSH RR CUSHION 1 157FM2A K WASHER 8mm 2 153FM H BOLT OIL DRAIN 2 153FM H BEARING BALL RADIAL 6203SPC 1 139FM A BEARING BALL RADIAL GB276 B BEARING BALL RADIAL GB276 B OIL SEAL 17X30X FM A OIL SEAL 19.8X30X FM H BOLT ASSY DRAIN PLUG 1 153FM H DOWEL PIN 8X FM H BOLT FLANGE SH 8X40 5 GB5787 B BOLT FLANGE SH 8X35 2 GB5787 B
17 17. TRANSMISSION Ref# Par# Description Qty Linhai Code Control Code DOWEL PIN 10X FM J MISSION CASE BODY 1 139FM A PIN BRAKE SHOE ANCHOR 1 157FM2A K O RING 7.5X FM H NUT FLANGE 8mm 1 GB B BEARING BALL RADIAL GB B BEARING BALL RADIAL GB B GASKET MISSION A 1 139FM A SHAFT DRIVE 1 139FM A WASHER SIDE 12mm 1 139FM A SHAFT COMP COUNTER 1 139FM A OIL SEAL 27X42X FM A SHAFT FINAL 1 139FM A GEAR FINAL 1 139FM A CIRCLIP EX 20 1 GB894.1 B036220
18 18. OIL PUMP Ref# Par# Description Qty Linhai Code Control Code PIN DOWEL 8X FM A O RING 9X FM A PUMP ASSY OIL 1 139FM.18 1A BOLT FLANGE SH 6X20 2 GB B BOLT FLANGE SH 6X25 1 GB B GEAR OIL PUMP DRIVEN 1 139FM A NUT FLANGE 6mm 1 GB B015506
19 19. CAM CHAIN AND TENSIONER Ref# Par# Description Qty Linhai Code Control Code BOLT FLANGE 6X18 2 GB B ADJUSTER CAM CHAIN 1 139FM A PIVOT CAM CHAIN TENSIONER 1 153FM H O RING 15.2X FM H TENSIONER CAM CHAIN 1 139FM A GUIDE COMP CAM CHAIN 1 139FM A CHAIN CAM 1 139FM A
20 20. HEADLIGHT ASSY Ref# Part# Description Qty Linhai Code Control Code HEADLIGHT ASSY 1 LH50QT 2A.4.1 2CE BULB,HEADLIGHT 1 12v 35w/35w S2 B31135B WASHER 5mm 1 GB B BOLT ADJUST 1 LH50QT 2A CE TURN INDICATOR LIGHT R 1 LH50QT 2A.4.2 2CE TURN INDICATOR LIGHT L 1 LH50QT 2A.4.3 2CE BOLT M5X35 2 GB/T818 B WASHER 2 GB B COLLAR,LEFT INDICATOR LIGHT(SELECT)(OLD MODEL) 1 LH50QT C COLLAR,RIGHT INDICATOR LIGHT(SELECT)(OLD MODEL) 1 LH50QT C BRACKET,LEFT INDICATOR LIGHT(SELECT)(NEW MODEL) 1 LH50QT 2A.4.9 2CE BRACKET,RIGHT INDICATOR LIGHT(SELECT)(NEW MODEL) 1 LH50QT 2A CE

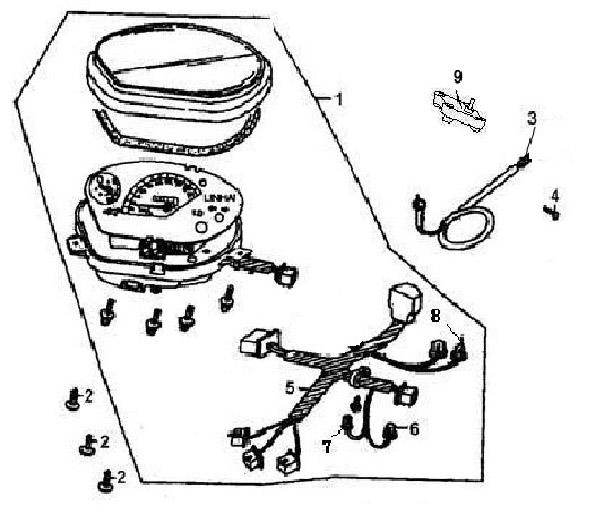

21 21. SPEEDOMETER ASSY. Ref# Part# Description Qty Linhai Code Control Code B SPEEDMETER ASSY(KILOMETER/MILE) 1 LH50QT 2A.5.3 2CE SPEEDMETER ASSY(MILE) 1 LH50QT 2A.5.3a 2CE0503a SCREW TAPPING ST4.8X16 3 GB B A CABLE COMP SPEEDMETER (NEW MODEL)(SEE PICTURE) 1 LH50QT 2A.5.1.9A 2CE050109A SCREW OVAL 5X18 1 GB818 B ASSISTANT HARNESS 1 LH50QT 2.13a.1.2 2C013a BULB,TURN INDICATOR LIGHT 1 12V 3W B BULB,HIGH BASE INDICATOR LIGHT 1 12V 1.7W B311B BULB,SPEED METER LIGHT 2 12V 1.7W B311B CONVERSION FOR SPEEDOMETER OF KILOMETER AND MILE 1 LH50QT 2A.5.4 2CE
22 22. HANDLE COMP STRG. COVER HANDLE Ref# Part# Description Qty Linhai Code Control Code THROTTLE CABLE COMP 1 LH50QT C HANDLE COMP STRG(STYLE B)(ONLY FOR STYLE B STEM COMP STRG) 1 LH50QT 2.5.2a 2C00502a BOLT FLANGE M10X1.25X47 1 GB B A NUT U M10X GB B015510A GRIP R HANDLE 1 T001002R GRIP L HANDLE 1 T001002L MIRROR ASSY R BACK 1 T000301R MIRROR ASSY L BACK 1 T000301L 50372RE COVER FR METER (RED) 1 LH50QT 2A.3 1 2CE BU COVER FR METER (DARK BLUE) 1 LH50QT 2A.3 1 2CE YBU COVER FR METER (LIGHT BLUE) 1 LH50QT 2A.3 1 2CE YE COVER FR METER (YELLOW) 1 LH50QT 2A.3 1 2CE BK COVER FR METER (BLACK) 1 LH50QT 2A.3 1 2CE SL COVER FR METER (SILVER) 1 LH50QT 2A.3 1 2CE PK COVER FR METER (PINK) 1 LH50QT 2A.3 1 2CE SCREW WASHER M5X20 1 GB/T B SCREW TAPPING ST4.8X13 2 GB B COVER METER 1 LH50QT C BOLT PANM 5X10 1 GB/T818 B SCREW TAPPING ST4.2X13 2 GB B SW ASSY RIGHT HANDLE COMP 1 LH50QT A 2C A IMSTRUMENT COVER PLUG 1 LH50QT C SW ASSY LEFT HANDLE COMP (WITH BRAKE HANDLE) 1 LH50QT A 2C A REAR STOP SWITCH 1 LH50QT A 5 2C A05
23 23. CABLE COMP. SW ASSY. LEVER STRG HNDL Ref# Part# Description Qty Linhai Code Control Code CABLE COMP Rr BRK 1 LH50QT C JOINT A BRAKE ARM 1 LH50QT C NUT A ADJUST 1 LH50QT C
24 24. FORK ASSY FR Ref# Part# Description Qty Linhai Code Control Code STEM COMP STRG (STYLE B)(ONLY FOR STYLE B HANDLE COMP STRG) 1 LH50QT 2.2.1a 2C00201a BOLT FLANGE M8X40 4 GB B NUT STRG STEM LOCK 1 LH50QT C RACE STRG TOP CONE 1 LH50QT C UPPER BALL STEEL 5/32 WITH STAND and BALL STEEL 5/32 1 LH50QT C RACE UPPER STRG BALL 1 LH50QT C RACE UNDER STRG BALL 1 LH50QT C UNDER BALL STEEL 5/32 WITH STAND and BALL STEEL 5/32 1 LH50QT C RACE STRG BOT CONE 1 LH50QT C FORK ASSY R FR 1 LH50QT 2A CE FORK ASSY L FR 1 LH50QT 2A CE STAY FR FENDER 1 LH50QT 2.2.3A 2C00203A SCREW WASHER M5X16 2 GB B RUBBER LID STOPPER 2 LH50QT C RE FENDER FR A (RED) 1 LH50QT C BU FENDER FR A (DARK BLUE) 1 LH50QT C YBU FENDER FR A (LIGHT BLUE) 1 LH50QT C YE FENDER FR A (YELLOW) 1 LH50QT C BK FENDER FR A (BLACK) 1 LH50QT C SL FENDER FR A (SILVER) 1 LH50QT C PK FENDER FR A (PINK) 1 LH50QT C FENDER FR B 1 LH50QT C SCREW WASHER M6X16 2 GB B WASHER 2 GB/T97.1 B WASHER SPRING 2 GB/T93 B025105
25 25. FRONT BRAKE CALIPER (DISK BRAKE) Ref# Part# Description Qty Linhai Code Control Code MASTER CYLINDER ASSY 1 LH50QT 2A CE BOLT M10X GB/T6187 B015510A BOLT (ONLY FOR IRON WHEEL) 3 LYM100T AY DISC BRAKE (ONLY FOR IRON WHEEL) 1 LH50QT 2A CE CALIPER ASSY 1 LH50AT 2A CE WASHER PLATE 4 LH50QT 2A CE BOLT SOCKET HEAD 2 LH50QT 2A CE BRAKE HOSE 1 LH50QT 2A CE FIXED COVER 1 LH50QT 2A CE BOLT WASHER BASED 2 GB/T5787 B BOLT UNION 2 LH50QT 2A CE BRAKE HANDLE RIGHT 1 LH50QT 2A CE FRONT BRAKE PADS,SET OF 1 T CLIP 1 LH50QT 2A.5 2 2CE BOLT M6X14 1 GB/T B FRONT STOP SWITCH 1 LH50QT 2A CE FRONT STOP SWITCH WIRE 1 LH50QT 2A CE
26 26. AXLE FRONT WHEEL Ref# Part# Description Qty Linhai Code Control Code AXLE FRONT WHEEL 1 LH50QT C A SPEED DRIVE ASSY (NEW MODEL)(SEE PICTURE) 1 LH50QT 2A.1.2A 2CE0102A FRONT WHEEL ASSY 1 2C BEARING GB/T276 B SPACER 1 LH50QT 2A.1 3 2CE FTONT WHEEL COMP NO TIRE (IRON) 1 T TIRE (3.0 10) 1 GB/T2983 B b TUBE, INNER (3.0 10) 1 GB/T B OIL SEAL 1 LH50QT C COLLOR FRONT WHEEL SIDE 1 LH50QT 2A.1 2 2CE NUT FLANGE M12X GB/T6187 B015512A
27 27. REAR WHEEL Ref# Part# Description Qty Linhai Code Control Code RIM COMP WHEEL(IRON) 1 T TIRE (3.0 10) 1 GB/T2983 B b TUBE INNER (3.0 10) 1 GB/T B CAM FR BRAKE 1 LH50QT C ROCKER 1 LH50QT C BOLT FLANGE M6X32 1 GB B REAR BRAKE SHOES 2 T SPRING 2 LH50QT C NUT M16X GB B015416A O RING 1 LH50QT C
28 28. SEAT COMPLETE Ref# Part# Description Qty Linhai Code Control Code SEAT COMP 1 LH50QT 2A.8 2CE BRKT SEAT CATCH 1 LH50QT C NUT FLANGE M6 2 GB B BOLT FLANGE M6X14 2 GB B SEAT LOCK CATCH 1 LH50QT C
29 29. TANK COMP FUEL Ref# Part# Description Qty Linhai Code Control Code TANK COMP FUEL 1 LH50QT C SENDER UNIT ASSY FUEL METER 1 LH50QT C BAND COMP FUEL 1 LH50QT C BOLT FLANGE M6X14 2 GB5787 B NUT FLANGE M6 2 GB6177 B AUTO COCK ASSY 1 LH50QT C TUBE FUEL COCK STR 1 LH50QT C VACUUM TUBE 1 LH50QT C TRAY FUEL CAP 1 LH50QT C JOINT COCK CARB TUBE 1 LH50QT C TUBE, FUEL CAP 1 LH50QT C CAP COMP FILIER 1 LH50QT C BOLT FLANGE M6X14 4 GB/T5787 B FUEL FILTER 1 LH50QT C TUBE FUEL 1 LH50QT C CLIP 2 LH50QT C CLIP 2 LH50QT C
30 30. BATTERY Ref# Part# Description Qty Linhai Code Control Code BATTERY 1 B BAND BATTERY 1 LH50QT C BOX BATTERY 1 LH50QT C SCREW TAPPING ST4.8X16 8 GB B COVER BATTERY 1 LH50QT C
31 31. COVER BODY, BOX LUGGAGE Ref# Part# Description Qty Linhai Code Control Code BOX LUGGAGE 1 LH50QT C COVER CARB MAINT 1 LH50QT C SCREW WASHER ST4.2X19 1 GB B BOLT M6X12 1 GB/T B NUT FLANGE 6mm 4 GB B RE COVER R BODY (RED) 1 LH50QT C BU COVER R BODY (DARK BLUE) 1 LH50QT C YBU COVER R BODY (LIGHT BLUE) 1 LH50QT C YE COVER R BODY (YELLOW) 1 LH50QT C BK COVER R BODY (BLACK) 1 LH50QT C SL COVER R BODY (SILVER) 1 LH50QT C PK COVER R BODY (PINK) 1 LH50QT C SCREW TAPPING ST 4.2X19 2 GB B SCREW TAPPING ST4.2X19 2 GB B RE COVER L BODY (RED) 1 LH50QT C BU COVER L BODY (DARK BLUE) 1 LH50QT C YBU COVER L BODY (LIGHT BLUE) 1 LH50QT C YE COVER L BODY (YELLOW) 1 LH50QT C BK COVER L BODY (BLACK) 1 LH50QT C SL COVER L BODY (SILVER) 1 LH50QT C PK COVER L BODY (PINK) 1 LH50QT C M SIDE MOLD R (MATTE FINISH) 1 LH50QT 2A.3 6 2CE G SIDE MOLD R (GLOSSY FINISH) 1 LH50QT 2A.3 6 2CE SCREW TAPPING ST4.8X19 4 GB B
32 31. COVER BODY, BOX LUGGAGE Ref# Part# Description Qty Linhai Code Control Code SCREW TAPPING ST4.2X13 2 GB B BOLT M6X14 2 GB B M SIDE MOLD L (MATTE FINISH) 1 LH50QT 2A.3 5 2CE G SIDE MOLD L (GLOSSY FINISH) 1 LH50QT 2A.3 5 2CE SET SPG SEAT LOCK 1 LH50QT C RE COVER REAR BODY (RED) 1 LH50QT C BU COVER REAR BODY (DARK BLUE) 1 LH50QT C YBU COVER REAR BODY (LIGHT BLUE) 1 LH50QT C YE COVER REAR BODY (YELLOW) 1 LH50QT C BK COVER REAR BODY (BLACK) 1 LH50QT C SL COVER REAR BODY (SILVER) 1 LH50QT C PK COVER REAR BODY (PINK) 1 LH50QT C SCREW TAPPING ST4.2X13 4 GB B M MOLD REAR CENTER (MATTE FINISH) 1 LH50QT 2A.3 7 2CE G MOLD REAR CENTER (GLOSSY FINISH) 1 LH50QT 2A.3 7 2CE SCREW TAPPING ST4.2X13 2 GB B COVER CENTER 1 LH50QT C NUT CLIP 1 LH50QT CE STAY LUGGAGE HOOK 1 LH50QT C HOOK LUGGAGE 1 LH50QT C A SCREW WASHER FLANGE M6X16 1 GB B SCREW TAPPING ST4.2X19 2 GB B CABLE SEAT LOCK 1 LH50QT C KEY SEAT LOCK 1 LH50QT C

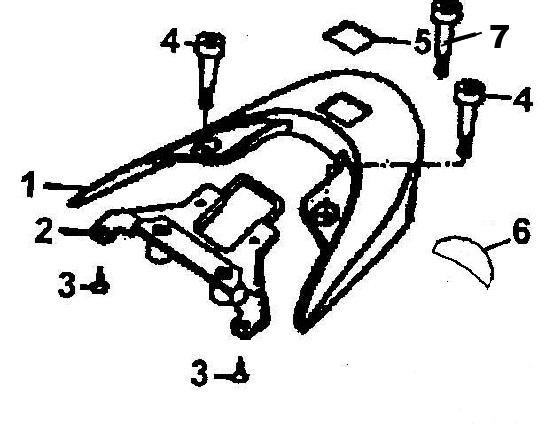

33 32.RACK Ref# Part# Description Qty Linhai Code Control Code 50255RE COVER CARRIER (RED) 1 LH50QT C BU COVER CARRIER (DARK BLUE) 1 LH50QT C YBU COVER CARRIER (LIGHT BLUE) 1 LH50QT C YE COVER CARRIER (YELLOW) 1 LH50QT C BK COVER CARRIER (BLACK) 1 LH50QT C SL COVER CARRIER (SILVER) 1 LH50QT C PK COVER CARRIER (PINK) 1 LH50QT C BRAKT CARIER 1 LH50QT C ACREW TAPPING ST4.2X13 4 GB/T B BOLT M8X40 2 GB/T70 85 B LID CARRIER COVER 1 LH50QT C SMALL REAR COVER 1 LH50QT C BOLT M8X65 1 GB/T B
34 33. CUSHION ASSY REAR Ref# Part# Description Qty Linhai Code Control Code CUSHION ASSY REAR 1 LH50QT C BOLT FLANGE M10X1.25X75 1 GB B A BOLT HEX M8X32 1 GB B
35 34. REAR LIGHT ASSY Ref# Part# Description Qty Linhai Code Control Code TAIL/BRACK LIGHT COMP 1 LH50QT 2A.4.5 2CE BULB,TAIL LIGHT12V 21W/5W 1 12V 21W/5W B31121W BULB,REAR INDICATOR LIGHT 12V 10W 2 12V 10W B NUT M6 2 GB/T6177 B FENDER B REAR ASSY 1 LH50QT C SCREW WASHER M5X16 2 GB B PLATE SPLASH GUARD 1 LH50QT C FENDER REAR 1 LH50QT C NUT FLANGE M6 2 GB B NUT CUP ST4.2 2 LH50QT C BRACKET REFLECTER 1 LH50QT C SIDE REFLECTER (ORANGE) 2 T REAR BRACKET 2 LH50QT 2A CE

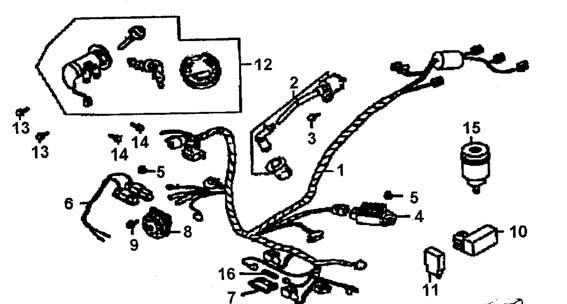

36 35. WIRING HARNESS Ref# Part# Description Qty Linhai Code Control Code MAIN HARNESS 1 LH50QT C IGNITION COIL 1 139FM A BOLT HEX M5X20 1 GB B RECTIFIER REGULATER 1 LH125T S NUT FLANGE M6 2 GB B RESISTOR COMP 1 LH50QT C CASE FUSE 1 LH50QT C HORN COMP 1 T BOLT FLANGE M6X12 1 GB B CDI 1 139FM A START RELAY 1 LH50QT C KEY SET 1 LH50QT C BOLT FLANGE M6X16 2 GB B BOLT FLANGE M6X16 2 GB B FLASHER RELAY 1 LYM100T AY FUSE 10A 1 B SPEED LIMITER (SELECTABLE UNIT) 1 LH50QT C KEY 50 KEY BLANK 1 LH50QT C
37 36. BODY COMP FRAME Ref# Part# Description Qty Linhai Code Control Code BODY COMP FRAME 1 LH50QT 2A.9.1 2CE LINK ASSY ENG HANGER 1 LH50QT C BOLT FLANGE M10X1.25X75 2 GB B A NUT M10X GB B015510A FIXED AXILE HANGER M10X1.25X245 1 LH50QT C DUCT COOLING 1 LH50QT C SHIELD, HORN 1 LH50QT 2A.9.2 2CE BOLT FLANGE M6X30 2 GB B COVER UNDER 1 LH50QT C NUT FLANGE M6 4 GB B RNFCT R FLOOR 1 LH50QT C BOLT FLANGE M6X16 1 GB B NUT FLANGE M6 1 GB B RNFCT L FLOOR 1 LH50QT C DUCT AIR/C INT 1 LH50QT C SCREW TAPPING ST4.2X13 2 GB B DUCT AIR/C CASE 1 LH50QT C CLIP 1 1 LH50QT C CLIP 2 2 LH50QT C RUBBER BUSH,LINK ASSY ENG HANGER 1 LH50QT C

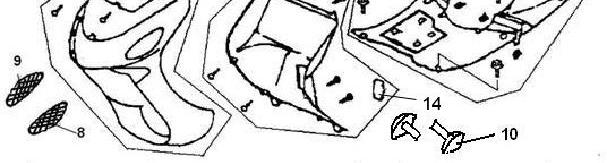

38 37. FRONT COVER ASSY, UPPER AND LOWER Ref# Part# Description Qty Linhai Code Control Code 50383RE FRONT COVER ASSY (RED) 1 LH50QT 2A CE BU FRONT COVER ASSY (DARK BLUE) 1 LH50QT 2A CE YBU FRONT COVER ASSY (LIGHT BLUE) 1 LH50QT 2A CE YE FRONT COVER ASSY (YELLOW) 1 LH50QT 2A CE BK FRONT COVER ASSY (BLACK) 1 LH50QT 2A CE SL FRONT COVER ASSY (SILVER) 1 LH50QT 2A CE PK FRONT COVER ASSY (PINK) 1 LH50QT 2A CE M FRONT MOULDING (MATTE FINISH) 1 LH50QT 2A.3 2 2CE G FRONT MOULDING (GLOSSY FINISH) 1 LH50QT 2A.3 2 2CE COVER UPER 1 LH50QT 2A.3 3 2CE COVER LOWER 1 LH50QT 2A.3 4 2CE WASHER FLOORPANEL BLACK 1 LH50QT C G WASHER FLOORPANEL GREY 1 LH50QT C FLOORPANEL 1 LH50QT C SMALL FRONT COVER,FR 1 LH50QT 2A.3 9 2CE VENTILATIVE COVER LEFT 1 LH50QT 2A.3 7 2CE VENTILATIVE COVER RIGHT 1 LH50QT 2A.3 8 2CE FRONT REFLECTER (YELLOW) 2 LH250T B V SMALL FRONT COVER,RR 1 LH50QT 2A CE HOLDER,SMALL FRONT COVER 1 LH50QT 2A CE HOOK 1 LH50QT C COVER,FRAME NUMBER 1 LH50QT C SCREW TAPPING ST4.2X13 2 GB B
39 38. STAND (FOR USA) Ref# Part# Description Qty Linhai Code Control Code STAND ASSY MAIN 1 LH50QT 2A.6.1 2CE STOPPER RUBBER 1 LH50QT C SPG D MAIN STAND 1 LH50QT 2.6 2a 2C SHAFT MAIN STAND 1 LH5OQT C WASHER PLAIN φ8 1 GB B PIN LOCK 1.8X25 1 GB91 86 B BAR SIDE STAND 1 LH50QT C SCREW SIDE STAND PIVOT 1 LH50QT C SPG B1 SIDE STAND 1 LH50QT C CUSHION 1 LH50QT 2A.7 3 2CE
40 40. ACCESSORIES Ref# Part# Description Qty Linhai Code Control Code REAR RACK 1 LH50QT B 2C00910B A BOLT FLANGE M8X40 2 GB/T70 B BOLT HEX M8X80 1 GB/T5780 B RIGHT STAND 1 LH50QT 2A.9 4 2CE LEFT STAND 1 LH50QT 2A.9 3 2CE LIGHT ASSY RIGHT FR WINKER 1 LH50QT 2.4a.3 2C004a LIGHT ASSY LEFT FR WINKER 1 LH50QT 2.4a.2 2C004a BOLT M6X12 2 GB/T5787 B NUT M6 2 GB/T6177 B WASHER SPRING 2 GB/T93 B025106
