toolspareparts.co PARTS CATALOG EA190 MODEL ISSUE NO ISSUE DATE 19/DEC./2012 EA190V50060/FRONT COVER

Transcript

1 MODEL EA190 PARTS CATALOG SPEC.NO. ISSUE NO ISSUE DATE 19/DEC./2012 EA190V50060/FRONT COVER

2 CONTENTS No. DESCRIPTION FIG. 1 CRANKCASE CRANKCASE COVER CYLINDER HEAD CRANKSHAFT CAMSHAFT MUFFLER AIR CLEANER THROTTLE CONTROL LEVER RECOIL STARTER ENGINE SHROUD LABEL FUEL TANK CARBURETOR IGNITION COIL 700 EA190V50060/CONTENTS

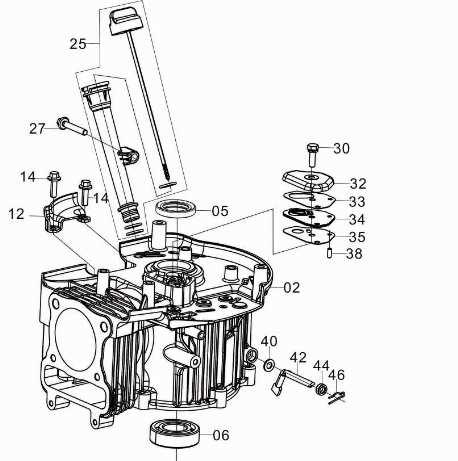

3 FIG.100 CRANKCASE 100_ Z CRANKCASE ASSY _ Z OIL SEAL _ CL BALL BEARING _ Z AIR GUIDE 1 100_ A1 BOLT M _ Z Q2 DIPSTICK ASSY _ A1 BOLT M _ A1 BOLT M _ Z BREATHER COVER 1 100_ Z BREATHER COVER GASKET 1 100_ Z BREATHER 1 100_ Z BREATHER COVER GASKET 1 100_ Z DOWEL PIN 1 100_ Z WASHER _ Z GOVERNOR ARM 1 100_ Z OIL SEAL _ Z COTTER PIN 1 EA190V50060/100

4 FIG.110 CRANKCASE COVER 110_ Z CRANKCASE COVER 1 110_ Z OIL SEAL _ DOWEL PIN _ Z GOVERNOR GEAR ASSY _ A1 BOLT M _ Z WASHER _ Z SUMP GASKET 1 110_ A1 BOLT M _ Z OIL DRAIN PLUG 1 110_ Z WASHER EA190V50060/110

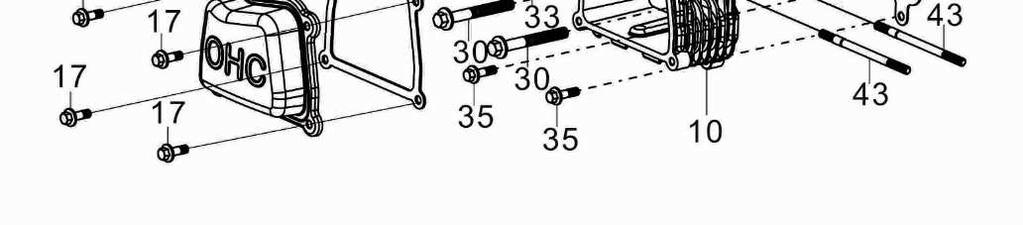

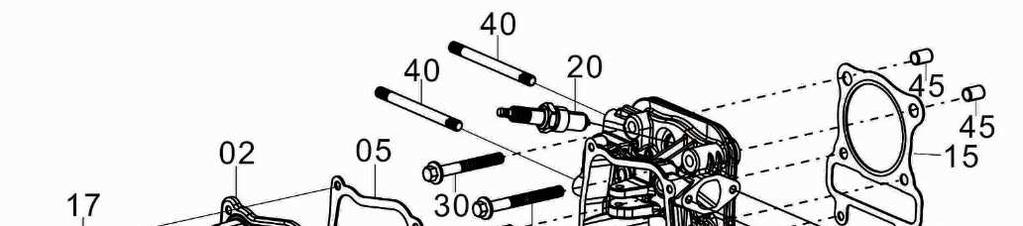

5 FIG.120 CYLINDER HEAD 120_ Z VALVE COVER 1 120_ Z VALVE COVER GASKET 1 120_ Z CYLINDER HEAD ASSY _ Z CYLINDER HEAD GASKET _ A1 BOLT M _ Z SPARK PLUG 1 120_ Z BOLT M8X _ Z BOLT M _ A1 BOLT M _ Z STUD M _ Z STUD M _ DOWEL PIN EA1901V

6 FIG.200 CRANKSHAFT 200_ Z FIRST PISTON RING 1 200_ Z SECOND PISTON RING 1 200_ Z OIL RING ASSY _ Z PISTON 1 200_ Z SNAP RING,PISTON PIN 2 200_ Z PISTON PIN 1 200_ Z CONNECTING ROD ASSY _ Z CRANKSHAFT ASSY. 1 EA190V50060/200

7 FIG.300 CAMSHAFT 300_ Z NUT, VALVE CLEARANCE ADJUSTMENT 2 300_ Z STUD, VALVE CLEARANCE ADJUSTMENT 2 300_ Z INLET ROCKER ARM 1 300_ Z EXHAUST ROCKER ARM 1 300_ Z ROCKER ARM PIVOT 1 300_ Z SPRING RETAINER 2 300_ Z VALVE SPRING 2 300_ Z INLET VALVE 1 300_ Z EXHAUSTVALVE 1 300_ Z CAM GEAR ASSY _ Z CAM SHAFT 1 300_ Z O-RING _ Z CHAIN GUIDE 1 300_ Z CHAIN 25F 88L 1 300_ Z TENSIONER 1 300_ Z TENSIONER SPRING 1 300_ Z TENSIONER SHAFT 1 300_ Z VALVE SEAL 1 300_ WASHER 1 300_ A1 BOLT M5X8 1 EA190V50060/300

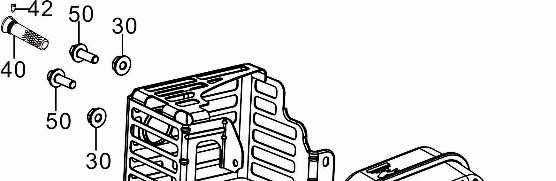

8 FIG.310 MUFFLER 310_ Z MUFFLER COVER CE 1 310_ Z MUFFLER 1 310_ Z MUFFLER GASKET 1 310_ NUT M _ Z SPARK ARRESTER 1 310_ TAPPING SCREW 1 310_ A1 BOLT M EA190V50060/310

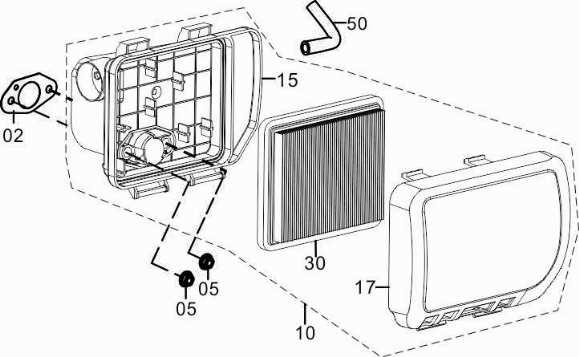

9 FIG.320 AIR CLEANER 320_ Z AIR CLEANER GASKET 1 320_ NUT M _ Z AIR CLEANER ASSY _ Z AIR CLEANER BASE 1 320_ Z AIR CLEANER COVER 1 320_ Z AIR CLEANER ELEMENT PAPER 1 320_ Z BREATH HOSE 1 EA190V50060/320

10 FIG.400 THROTTLE CONTROL LEVER 400_ Z THROTTLE CONTROL LEVER 1 400_ Z THROTTLE RETURNING SPRING 1 400_ Z GOVERNOR LEVER 1 400_ Z BOLT M _ NUT M _ Z GOVERNOR SPRING 1 400_ A1 BOLT M _ Z SPEED CONTROL BRACKET ASSY 1 400_ SCREW M _ Z LIMIT REGULATION SPRING 1 400_ Z CLAMP 1 400_ SCREW M _ Z FULE VALVE BASE 1 400_ Z FULE VALVE 1 400_ A1 BOLT M EA190V50060/400

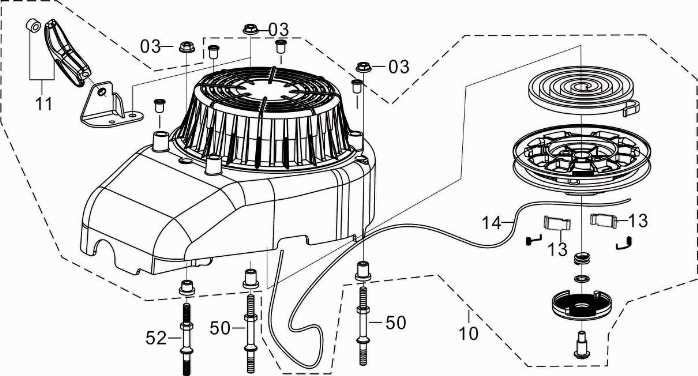

11 FIG.500 RECOIL STARTER 500_ NUT M _ Z Q2 RECOIL STARTER 1 500_ Z RECOIL KNOB 1 500_ Z PAWL 2 500_ Z RECOIL ROPE(2.1m) 1 500_ Z STUD M6X _ Z STUD M6X68 1 EA190V50060/500

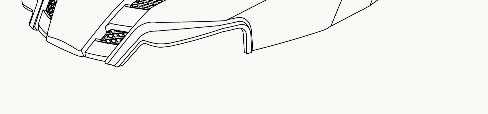

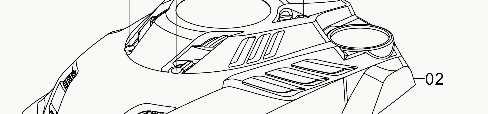

12 FIG.530 ENGINE SHROUD 530_ Z Q2 ENGINE SHROUD 1 530_ SCREW ASSY M EA190V50060/530

13 FIG.540 LABEL 540_ Z TRADE MARK LABEL 1 540_ Z WARNING LABEL 1 540_ Z FUEL VALVE LABEL 1 540_ Z PRIMER LABEL 1 EA190V50060/540

14 FIG.600 FUEL TANK 600_ Z FUEL TANK EPAⅡ/1.5L 1 600_ Z G4 TANK CAP ASSY _ Z QG OIL LEVEL MARK 1 600_ A1 BOLT M _ Z FUEL FILTER 1 600_ Z HOSE CLAMP Φ _ Z FUEL HOSE L= _ Z HOSE CLAMP Φ _ Z HOSE CLAMP Φ _ Z FUEL HOSE L=118 1 EA190V50060/600

15 FIG.610 CARBURETOR 610_ Z CARBURETOR ASSY _ Z PACKING,FUEL DRAIN BOLT 1 610_ Z O-RING,FUEL CUP 1 610_ Z O-RING,FUEL CUP BOLT _ Z INSULATOR GASKET 1 610_ Z INSULATOR 1 610_ Z CARBURETOR GASKET 1 610_ Z PRIMER 1 610_ Z PRIMER HOSE 1 610_ HOSE CLAMP 2 EA190V50060/610

16 FIG.700 IGNITION COIL 700_ Z FLYWHEEL NUT 1 700_ Z START CUP 1 700_ Z COOLING FAN 1 700_ Z FLY WHEEL CAST IRON 1 700_ A1 BOLT M _ Z IGNITION COIL 1 700_ Z PLASTIC CLAMP 1 EA190V50060/700
