1 E01 E01/CRANKCASE ASSY Part. (English part name) Design Change Effective date Interchan geability Remark CVT ASSY CVT CASE COVER ASSY CVT CASE ASSY RIGHT CRANKCASE ASSY 1 RED RIGHT CRANKCASE ASSY 1 BLUE LEFT CRANKCASE ASSY 1 RED LEFT CRANKCASE ASSY 1 BLUE LEFT CRANKCASE ASSY 1

2 E02 / LEFT CRANKCASE ASSY E02/LEFT CRANKCASE ASSY Part. (English part name) OIL FILTER, ENGINE BOLT M BOLT M PLUG, SEAL DOWEL PIN φ O-RING DIPSTICK, ENGINE OIL WASHER BOLT M Remark DOWEL PIN φ BEARING BEARING A SCREW CLIP, BREATHER HOSE HOSE, BREATHER A NIPPLE JOINT, BREATHER HOSE BEARING SLEEVEⅡ 1 RED BEARING SLEEVEⅡ 1 BLUE BEARING SLEEVEⅠ 1 RED BEARING SLEEVEⅠ 1 BLUE NEEDLE PIN P BOLT,RETAINING PLATE GASKET, CRANKCASE PLATE, OIL STRAINER OIL STRAINER WASHER BOLT M8 12.5, FLANGE LEFT CRANKCASE ASSY 1 RED/ LEFT CRANKCASE ASSY 1 BLUE/ LEFT CRANKCASE 1 RED/ LEFT CRANKCASE 1 BLUE/ BOLT M LOWER GUIDE, TIMING CHAIN IDLE GEAR, BREATHER GASKET, LEFT CRANKCASE C CIRCLIP WASHER PLUG SCREW IDLE GEAR SHAFT, BREATHER OIL SEAL GEAR, BREATHER BEARING 6200-RS SHAFT, BREATHER BREATHER ASSY BOLT M DRAIN BOLT, M WASHER A SWITCH, OIL PRESSURE WASHER SEAT, BREATHER SLEEVE, GEARSHIFT 1

3 E03 /RIGHT CRANKCASE ASSY E03 /RIGHT CRANKCASE ASSY Part. (English part name) 1 01A SCREW O-RING BODY,RELIEF VALVE OIL PLUG, RELIEF VALVE SPRING, RELIEF VALVE RETAINER CIRCLIP RELIEF VALVE PRESSURE STRIP, RELIEF VAL BOLT M DOWEL PIN φ BOLT M BOLT M BOLT M STUD AM NUT M BOLT M SENSOR, GEARSHIFT O-RING GASKET, CVT CASE(2) NEEDLE PIN P OIL SEAL BEARING 3206A BEARING BEARING SLEEVEⅠ BEARING SLEEVEⅠ BEARING SLEEVEⅡ BEARING SLEEVEⅡ RIGHT CRANKCASE ASSY RIGHT CRANKCASE ASSY RIGHT CRANKCASE RIGHT CRANKCASE A NIPPLE BOLTM GASKET, CVT CASE(1) UPPER GUIDE, TIMING CHAIN BOLT M8 50 2

4 E04 CVT/CVT CASE ASSY E04 /CVT CASE ASSY Part. (English part name) BOLT M RETAINER, CVT BEARING BALL BEARING OIL SEAL CVT CASE BOLT M BOLT M BOLT M DOWEL PIN φ VENTILATION PLATE, CVT BOLT M WASHER GASKET, CVT COVER 1

5 E05 CVT/CVT COVER ASSY E05 / CVT COVER ASSY Part. (English part name) SCREW M LIMITATOR, OIL SEAL OIL SEAL BALL BEARING BOLT M WASHER CVT COVER BOLT M BOLT M6 45 2

6 E06 /LEFT CRANKCASE COVER ASSY E06 /LEFT CRANKCASE COVER ASSY Part. (English part name) BOLT M BOLT M BOLT M PLUG GASKET, PLUG BOLT M SLEEVE, TIGHTENING BALL BEARING60/ CAP, OIL FILTER O-RING COVER, LEFT CRANKCASE SENSOR, RPM BOLT M BOLT, LEAD HOLDER LEAD HOLDER 1

7 E07 /CYLINDER HEAD AND CYLINDER ASSY E07 /CYLINDER HEAD AND CYLINDER ASSY Part. (English part name) CYLINDER BODY ASSY CYLINDER HEAD NO.1 ASSY CYLINDER HEAD COVER ASSY CAMSHAFT OF CYLINDER CAMSHAFT OF CYLINDER INTAKE MANIFOLD ASSY CYLINDER HEAD NO.2 ASSY 1

8 E08 /CYLINDER HEAD COVER ASSY E08 /CYLINDER HEAD COVER ASSY Part. (English part name) GASKET, CYLINDER HEAD COVER CYLINDER HEAD COVER RUBBER WASHER CAP, RUBBER WASHER BOLT, CYLINDER HEAD COVER BOLT COMP. CYLINDER HEAD COV 4

9 E09/CYLINDER HEAD NO.1 ASSY E09 /CYLINDER HEAD NO.1 ASSY Part. (English part name) WASHER ROCKER ARM, EXHAUST ADJUST NUT, VALVE ADJUST SCREW, VALVE SHAFT, ROCKER ARM LOCK CLIP, VALVE UPPER SEAT, VALVE SPRING SPRING, VALVE SEAL, VALVE STEM LOWER SEAT, VALVE SPRING BOLT, CYLINDER BOLT M NUT M STUD M GASKET, EXHAUST PIPE CYLINDER HEAD NO GASKET, CYLINDER HEAD VALVE, INTAKE VALVE, EXHAUST TAPPING SCREW ST BOLT M THERMOSTAT COVER SEAL RING THERMOSTAT SCREW PLUG M WASHER BOLT M SCREW PLUG, CHAIN TENSION O-RING HOUSING, CHAIN TENSIONER SPRING, CHAIN TENSIONER PLUNGER,CHAIN TENSIONER CHAIN TENSIONER SEAT,THERMOSTAT N O-RING, SPARK PLUG ROCKER ARM, INTAKE WASHER

10 E10 CYLINDER ASSY E10 /CYLINDER ASSY Part. (English part name) Remark GUIDE, TENSIONER SCREW, TENSIONER PLATE TENSIONER PLATE ROLLER PIN P CYLINDER BODY 2 MARK Ⅰ CYLINDER BODY 2 MARK Ⅱ GASKET, CYLINDER 2

11 E11 /CAMSHAFT OF CYLINDER 1 ASSY E11 /CAMSHAFT OF CYLINDER 1 ASSY Part. (English part name) BOLT, TIMING CHAIN TIMING CHAIN SPROCKET, TIMING CHAIN DOWEL PIN, SPROCKET BOLT M HOLDING STRIP, CAMSHAFT CAMSHAFT OF CYLINDER 1 1

12 E12 /INTAKE MANIFOLD ASSY E12 /INTAKE MANIFOLD ASSY Part. (English part name) SEAL RING, MANIFOLD INTAKE MANIFOLD, MAIN BOLT M CLAMP A(50-70) CLAMP JOINT PIPE, MANIFOLD INTAKE MANIFOLD, AUXILIARY JOINT PIPE, THROTTLE 1

13 E13 /CYLINDER HEAD NO.2 ASSY E13 /CYLINDER HEAD NO.2 ASSY Part. (English part name) CLAMP d WATER OUTLET HOSE,CYLINDER GASKET, CYLINDER HEAD CYLINDER HEAD TAPPING SCREW ST BOLT M WASHER HOUSING, THERMOSTAT SPARK PLUG SEAL RING WASHER LOCK CLIP, VALVE UPPER SEAT, VALVE SPRING, VALVE SEAL RING, VALVE STEM LOWER SEAT, VALVE VALVE, INTAKE BOLT, CYLINDER BOLT M VALVE, EXHAUST CHAIN TENSIONER SCREW PLUG, TENSIONER O-RING HOUSING, CHAIN TENSIONER SPRING, CHAIN TENSIONER PLUNGER, CHAIN TENSIONER SEAL RING, TENSIONER NUT M STUD M GASKE, EXHAUST PIPE SENSOR, COOLANT TEMPERATURE WASHER SHAFT, ROCKER ARM ROCKER ARM,EXHAUST ROCKER ARM, INTAKE ADJUST SCREW ADJUST NUT 4

14 E14/CAMSHAFT OF CYLINDER 2 ASSY E14 /CAMSHAFT OF CYLINDER 2 ASSY Part. (English part name) HOLDING STRIP, CAMSHAFT BOLT M CAMSHAFT OF CYLINDER DOWEL PIN, SPROCKET SPROCKET, TIMING CHAIN TIMING CHAIN BOLT, TIMING CHAIN 1

15 E15/MAGNETO ASSY E15 /MAGNETO ASSY Part. (English part name) STATOR, MAGNETO BOLT M SCREW M ROTOR, MAGNETO OVERRIDING CLUTCH 1

16 E16 /CRANKSHAFT ASSY & PISTON E16/CRANKSHAFT ASSY & PISTON Part. (English part name) Remark CRANKSHAFT ASSY 1 MARK A CRANKSHAFT ASSY 1 MARK B WOODRUFF KEY PLAIN BEARING, CONNECTING ROD 4 RED/ PLAIN BEARING, CONNECTING ROD 4 BLACK/ PLAIN BEARING, CONNECTING ROD 4 BLUE/ CONNECTING ROD ASSY 2 MARK Ⅰ CONNECTING ROD ASSY 2 MARK Ⅱ BOLT, CONNECTING ROD CIRCLIP, PISTON PIN PISTON PIN A0 PISTON RING SET PISTON 2 MARK Ⅰ PISTON 2 MARK Ⅱ NUT,LEFT, M B PISTON COMP. 2 MARK Ⅰ B PISTON COMP. 2 MARK Ⅱ

17 E17 /CLUTCH AND CVT ASSY E17 /CLUTCH AND CVT ASSY Part. (English part name) CLUTCH ASSY CLUTCH HOUSING DRIVE PULLEY DRIVE BELT DRIVEN PULLEY 1

18 E18 /DRIVE PULLEY(FRONT) E18 /DRIVE PULLEY(FRONT) Part. (English part name) PRIMARY TIGHT PULLEY SHAFT COLLAR PRIMARY LOOSE PULLEY ROLLER, WEIGHTS SLIDER CAM 1

19 E19 /DRIVEN PULLEY(REAR) E19 /DRIVEN PULLEY(REAR) Part. (English part name) RETAINING RING CAM, DRIVEN PULLEY COMPRESSION SPRING SCREW M CAM SHOE SLIDING FLANGE SLIDING FLANGE ASSY WASHER KEY FIXED FLANGE 1

20 E20/CLUTCH HOUSING ASSY E20 /CLUTCH CRUST ASSY Part. (English part name) OVERRIDING CLUTCH,DRIVE SHAFT CLUTCH HOUSING RETAINER NUT, DRIVE SHAFT 1

21 E21/CLUTCH ASSY E21 /CLUTCH ASSY Part. (English part name) CIRCLIP SIDE WASHER WASHER SPRING SEAT PAWL RETURN SPRING, CLUTCH FIXED PLATE 1

22 E22/GEARSHIFT ASSY (1) E22 /GEARSHIFT ASSY (1) Part. (English part name) MAIN SHAFT NUT, MAIN SHAFT INTERMEDIATE GEAR, REVERSE NEEDLE BEARING INTERMEDIATE GEAR SHAFT, REVERSE RETAIN RING GEAR, PARKING RETAIN RING COUNTERSHAFT DRIVEN GEAR, REVERSE NEEDLE BEARING OUTPUT GEAR, COUNTERSHAFT "H" GEAR, DRIVEN SLIDE GEAR, SHIFT WASHER "L" GEAR, DRIVEN WASHER COUNTERSHAFT ASSY 1

23 E23 /GEARSHIFT ASSY (2) E23 /GEARSHIFT ASSY (2) Part. (English part name) DRIVEN BEVEL GEAR ASSY BOLT M OIL SEAL DISTANCE COLLAR, OUTPUT SHAFT O-RING ADJUST SHIM, DRIVEN BEVEL GEAR BEARING HOUSING, DRIVEN BEVEL GEAR O-RING BALL BEARING STOPPER NUT, BEARING BALL BEARING 6207c FRONT OUTPUT SHAFT BALL BEARING RETAINER, BEARING OIL SEAL FRONT OUTPUT SHAFT ASSY RETAINER DRIVEN GEAR, OUTPUT SHAFT, DRIVE BEVEL GEAR BEARING SEAT, DRIVE BEVEL GEAR LIMITATOR, BEARING SCREW M BALL BEARING ADJUST SHIM, DRIVE BEVEL GEAR LOCK NUT, BEVEL GEAR DRIVE BEVEL GEAR ASSY A0 DRIVE&DRIVEN BEVEL GEAR COMP. 1

24 E24/GEARSHIFT ASSY(3) E24 /GEARSHIFT ASSY(3) Part. (English part name) SHIFT FORK COMP ROCKER ARM, PARKING CIRCLIP SHIFT FORK, LH FORK SPRING, THIN SHAFT, SHIFT FORK SHIFT FORK, RH FORK SPRING, THICK SPRING SEAT SECTOR GEAR COMP. GEARSHIFT BOLT M BOLT M OIL SEAL SD COVER, GEARSHIFT GASKET, GEARSHIFT COVER BOLT M WASHER TORSION SPRING,DRIVEN SECTOR GEAR WASHER DRIVEN SECTOR GEAR SHAFT, DRIVEN SECTOR GEAR WASHER, DRIVEN SECTOR GEAR DRIVEN SECTOR GEAR ASSY DRIVE SECTOR GEAR CAM, PARKING NEEDLE PIN SHIFT DRUM SPRING,GEAR CONTACTOR GEAR CONTACTOR LIMIT WASHER SCREW T DRUM ASSY, GEAR SHIFT BOLT COMP. SHIFT LIMIT SPRING SEAT, LIMIT WASHER SPRING, LIMIT BALL 3/8 1

25 E25 /OIL PUMP ASSY E25/OIL PUMP ASSY Part. (English part name) CIRCLIP WASHER IDLE GEAR, OIL PUMP GEAR, OIL PUMP NEEDLE PIN P BOLT M COVER, OIL PUMP OUTER ROTOR, OIL PUMP INNER ROTOR, OIL PUMP SHAFT, OIL PUMP NEEDLE PIN P

26 E26 /WATER PUMP ASSY E26 /WATER PUMP ASSY Part. (English part name) RETAINIER GEAR, WATER PUMP NEEDLE PIN P WASHER BALL BEARING 3200A OIL SEAL WATER SEAL ASSY IMPELLER, WATER PUMP SEAL, WATER PUMP HOUSING, WATER PUMP BOLT M BOLT M WASHER IDLE GEAR, WATER PUMP SHAFT, BREATHER 1

27 E27 /STARTER MOTOR E27 /STARTER MOTOR Part. (English part name) NEEDLE BEARING NK30/ DRIVEN GEAR MIDDLE GEAR SHAFT, BREATHER DUAL GEAR STARTER MOTOR BOLT M6 25 2

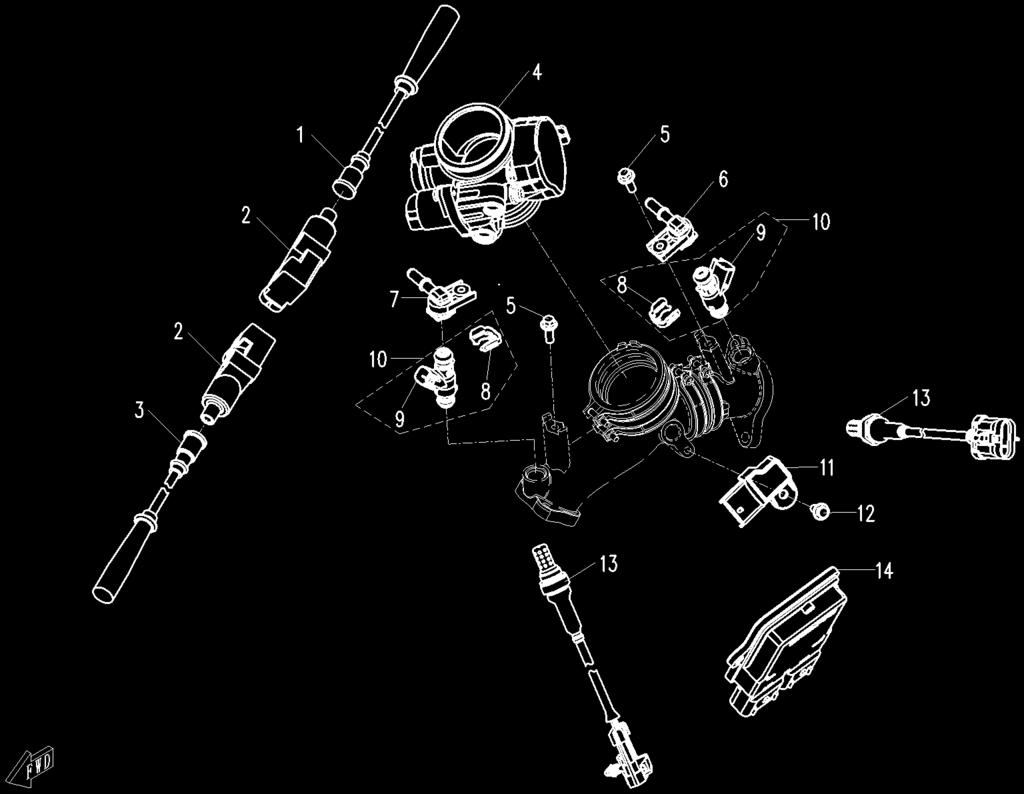

28 E28 /ELECTRIC SYSTEM E28 /ELECTRIC SYSTEM Part. (English part name) HIGH-TENSION CABLE IGNITION COIL HIGH-TENSION CABLE THROTTLE BODY BOLT M6X INJECTOR CAP INJECTOR CAP CLASP INJECTOR INJECTOR ASSY SENSOR, AIR INTAKE TEMP. &PRESSURE BOLT M6X OXYGEN SENSOR ECU 1

29 E29 /ENGINE GASKET SET E29 /ENGINE GASKET SET Part. (English part name) A1 COMPLETE GASKET SET, ENGINE 1

30 E30 /OIL SEAL &O-RING SET E30 /OIL SEAL &O-RING SET Part A2 (English part name) COMPLETE OIL SEAL &O-RING SET, ENGINE 1
