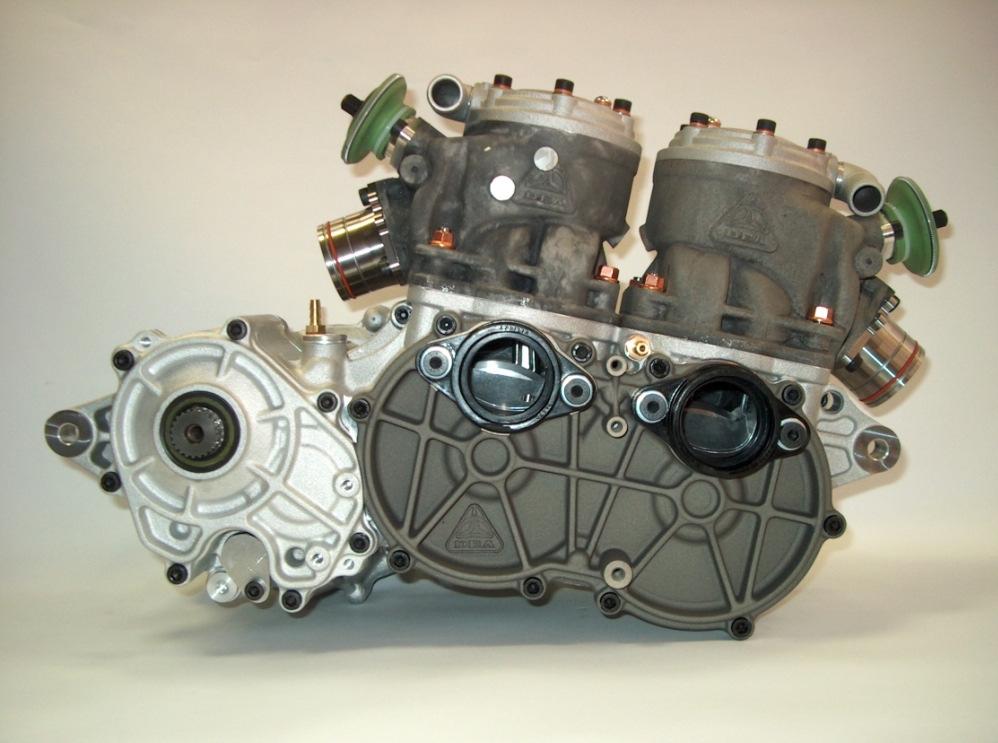

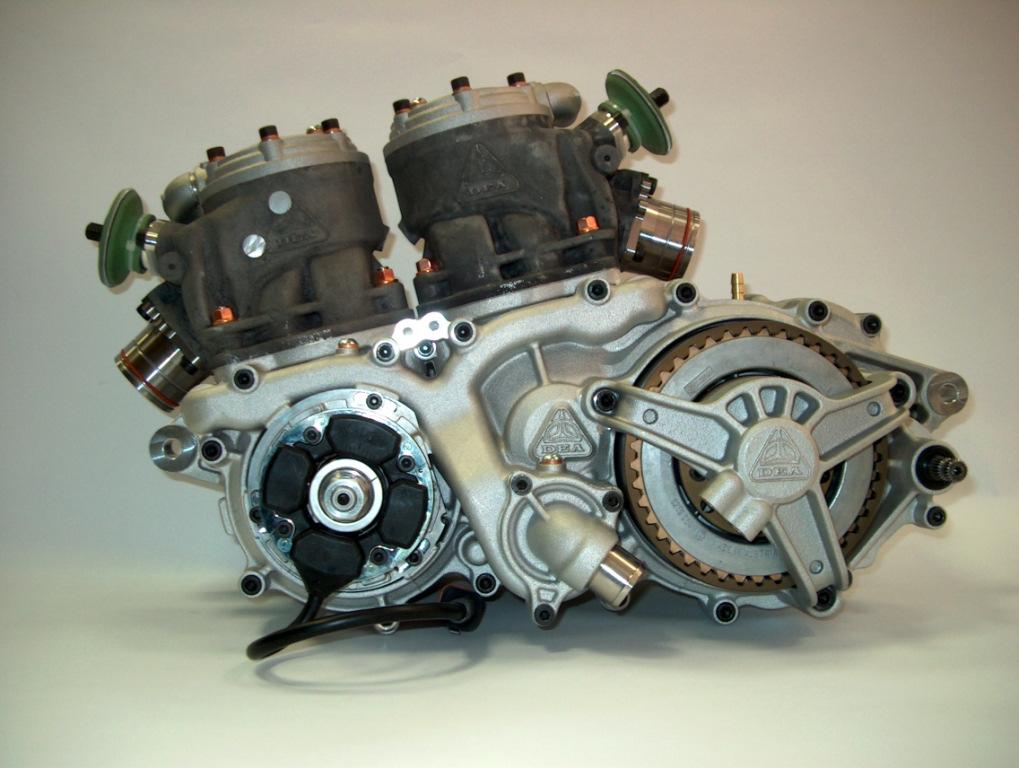

1 SPARE PARTS PRICE LIST 2013 DEA SK 251 SUPERKART ENGINE /07/2013

2 Fill with the page number in which the part is listed Send to Dea Engineering TELEFAX ORDER MODULE VAT IS NOT INCLUDED IN THE PRICES PLEASE NOTE To make order, please use this module. Fill a row for each part and enter all requested fields. Page N. Part Number Price per unit Qty Total Price TOTALE Client Phone Telefax

3 INDEX page Ignition - Generator 4 Ignition - Battery 6 Ignition - Coils Detail 8 Ignition - CDI Detail 10 Crankshafts 12 Gearbox 14 Crankcase 16 Cylinder, Head 18 Disk Valve Cover, Gearbox Cover 20 Clutch Cover, Water Pump 22 Primary Drive Cover 24 Clutch 26 Fuel Pump, Throttle Box 28 Air Box and Carburettors 30 Chain Cover 32 Exhaust System 34 Equipment 36 Complete Engine Package Summary 38 Optional Parts Summary 38 Every item marked with a star (*) next to the price is not included in the Complete Engine Package, so they have to be ordered and paid separately. p 3

4 CAUTION! USE GENERATOR COILS WITH REGULATOR ONLY. IN THIS CONDITION IS VERY IMPORTANT NOT TO CONNECT THE BATTERY. p 4

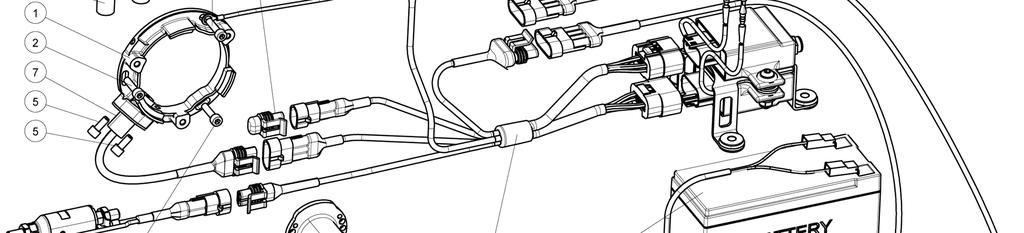

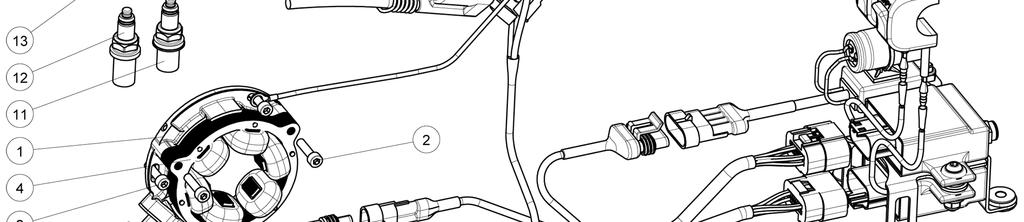

5 IGNITION - GENERATOR DEA 6p Stator Plate K Allen Screw M5x DEA 6p Generator 1 Not Available 5 00K Allen Screw M5x MM d15x20.5 Pick Up K EW Cable K Shifter 1 * DEA 6p Rotor 1 Not Available 11 00K (or NGK R ) Spark Plug H18 NGK R * 13 00K Spark Plug Connector NGK TRS 1225 (1KΩ) 2 * x 60 Pin OPTIONAL PARTS 12 00K Spark Plug H22 To use detonator NGK R7282 A 11 (or NGK R7282 A 105) * IGNITION PHASE TDC CAUTION! Only to obtain the correct ignition phase by the rotor. To avoid any damage, please DON T use the 3mm pin as a block device during the fastening rotor operation on the crankshaft. p 5

6 CAUTION! DON T USE GENERATOR COILS WITH BATTERY p 6

7 IGNITION - BATTERY DEA 6p Stator Plate K Allen Screw M5x K Voltmeter Battery Cable 1 * K Voltmeter Group 1 * K Allen Screw M5x K Roundheaded Screw M4x MM d15x20.5 Pick Up K EW Cable K Shifter 1 * Battery DEA Rotor K Spark Plug H18 2 * 13 00K Spark Plug Connector 2 * 14 00K Self-Locking Nut M4x K Connector Cover 2M K Battery 12V 1 * x 60 Pin K Std Battery Cable OPTIONAL PARTS 12 00K Spark Plug H22 * IGNITION PHASE TDC CAUTION! Only to obtain the correct ignition phase by the rotor. To avoid any damage, please DON T use the 3mm pin as a block device during the fastening rotor operation on the crankshaft. p 7

8 p 8

9 IGNITION - COILS DETAIL 1 00K Self-Locking Nut M6x K Silent Block D15x15 M6x K Coils 55 Fix Plate K Coils 55 Support Plate K Allen Screw M6x K Roundheaded Screw M6x K Coil DE K Earthing Cable Coil K Brass Washer K Roundheaded Screw M6x K Earthing Cable on Cover K Hourmeter 1 * K Hourmeter Bracket p 9

10 p 10

11 IGNITION - CDI DETAIL 1 00K CDI K Nylon Bush 6, K Rubber Ring DA K Fixing Plate for CDIs and Condenser K EW Regulator K Silent Block D15x15 M6x K Rubber Ring DA Spacer K Rubber Ring DA K Roundheaded Screw M6x K Self-Locking Nut M6x K Map Selector K KIT Software + Map Cable p 11

12 p 12

13 CRANKSHAFTS 1 00K FRONT crankshaft assy K REAR crankshaft assy K Spring washer 24.5x35.4x K EW Rotor Blocking Nut K Rasamento K Front Crankshaft Gear K Rear Crankshaft Gear T K Front Crankshaft Gear Blocking Nut K Rear Crankshaft Gear Blocking Nut K Woodruff Key UNI x K Complete Conrod K Complete Conrod Refurbished K KIT Crankpin + Thrust Washer + Needle Roller Bearing OPTIONAL PARTS 7 00K Rear Crankshaft Gear T 22 1 * p 13

14 OIL 450 g Castrol Power 1 Racing or Castrol MTX Synthetic p 14

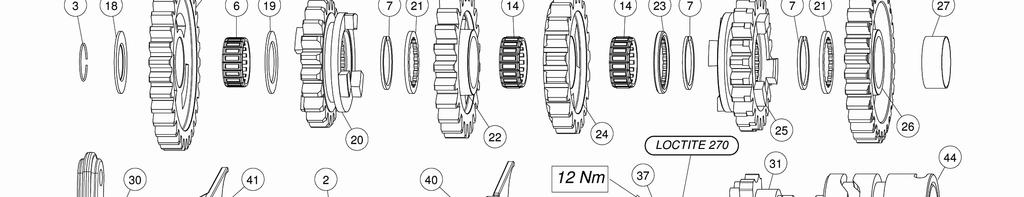

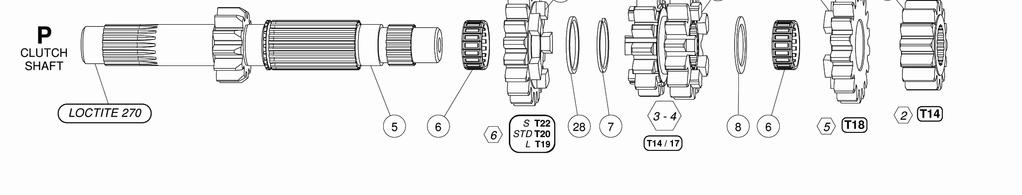

15 GEARBOX 1 00K Needle Roller Bearing HK K Guide Pin K Securing ring D17 x K Allen Screw M6x K Clutch Shaft Z K Needle Roller Bearing K Seeger K Thrust Washer 20,2-27, K Free Pinion 6th Speed (Clutch Shaft) T K Free Pinion 5th Speed (Clutch Shaft) T K Gear Pinion 3rd-4th Speed (Clutch Shaft) T 14/ K Fixed Gear 2nd Speed (Clutch Shaft) T K Main Shaft K Needle Roller Bearing K Allen Screw M8x K Spring Washer 8,5x40x1, K Free Pinion 1st Speed (Main Shaft) T K Washer 17, K Thrust Washer 20, K Gear Pinion 6th Speed (Main Shaft) T K Thrust Washer , K Free Pinion 3rd Speed (Main Shaft) T K Angular Ring , K Free Pinion 4th Speed (Main Shaft) T K Gear Pinion 5th Speed (Main Shaft) T K Free Pinion 2nd (Main Shaft) T K Bush 23,8-25-9, K Thrust Washer 24,2-27,5-1, K Bush D K Shift Lever K Shift Drum Star K Washer 12,1-22-2, K Seeger 12 10,9-25, K Shaft Spacer Washer K Spring (Index Lever) K Bushing Spring Sleeve D K Allen Screw M6x K Spacer Hex Screw (Index Lever) K Spring K Shift Fork (to select 2nd and 4th) Main Shaft K Shift Fork (to select 1st and 3rd) Main Shaft K Index Lever Assy K Shaft with Pawl Assy K Shift Drum Assy K Shift Fork (to select 5th and 6th) Clutch Shaft OPTIONAL PARTS 9 00K Free Pinion 6th Speed (Clutch Shaft) T K Free Pinion 6th Speed (Clutch Shaft) T K Gear Pinion 6th Speed (Main Shaft) T K Gear Pinion 6th Speed (Main Shaft) T p 15

16 p 16

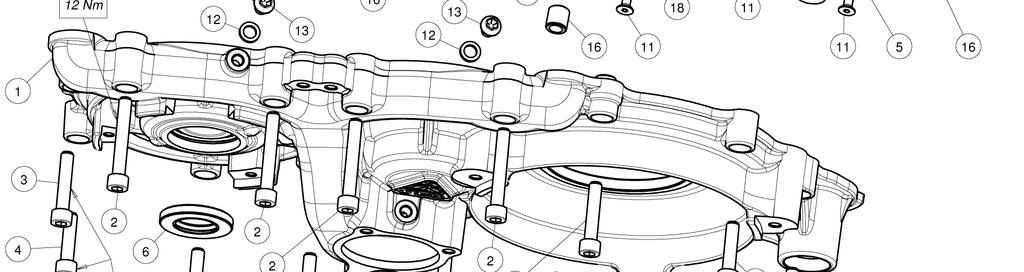

17 CRANKCASE 1 00K Crankcase (Right Side) K Ball Bearing K Roller Bearing NJ K Hose Nipple M8 for Fuel Pump and Air Vent K Copper Washer 8,3-14-1, K Magnetic Oil Drain Plug M12x K Washer for Magnetic Oil Drain Plug M K Cap M18x1.5 Oil Inlet K Washer for Cap M18 Oil Inlet K Stud M8 for Cylinder SK K Crankcase (Left Side) K Countersunk Screw M4x K Ball Bearing cod K Ball Bearing cod K Ball Bearing cod K Roundhead Screw M8x K Dowel Pin D10x10, K Dowel Pin D12x K Allen Screw M3 x 6 Lowered K Air Vent cover K OR K OR Primary Drive Cover K Oil Seal K Allen Screw M6x K Allen Screw M6x p 17

18 p 18

19 CYLINDER, HEAD 1 00K Piston K SK250 Cylinder K Allen Screw M6x K Valve Rod Housing K Valve Compression Spring K Exhaust Valve Stud K Exhaust Valve Slide K Threaded Sleeve K Hose Spring K Valve Gasket K Valve piston K Bellows K OR 2350 Testa K OR 2237 Testa K OR 2093 Combustion Chamber Insert K Roudheaded Screw M6x K Copper Washer 6,3-9,8-1, K Allen Screw M6x K Washer 6,3-12,1-1, K Flange Nut M8x K Combustion Chamber Insert K OR 2162 Exhaust K Cylinder Gasket 0.10 mm K Cylinder Gasket 0.12 mm K Cylinder Gasket 0.15 mm K Cylinder Gasket 0.20 mm K Cylinder Gasket 0.30 mm K Cylinder Gasket 0.50 mm K Cylinder Gasket 0.65 mm K Cylinder Gasket 0.80 mm K Cylinder Gasket 0.05 mm Copper K Cylinder Gasket mm Copper K Cylinder Gasket 0.10 mm Copper K Cylinder Gasket 0.20 mm Copper K Cylinder Gasket 0.30 mm Copper K Exhaust Socket K SK250 Cylinder Head Cover K Piston Pin Needle Roller Bearing IKO K SK Angle Water Tube K OR 2025 for Exhaust Valve Stud K Nut M6x K Clamp Hex Head Screw M6 x p 19

20 p 20

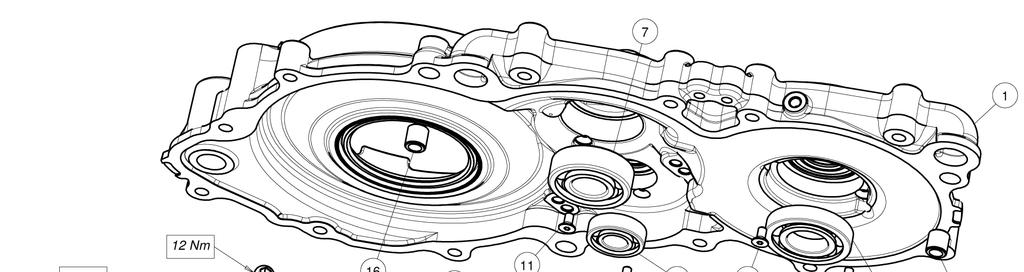

21 DISK VALVE COVER, GEARBOX COVER 1 00K Ball Bearing K Nut Disk Valve Hub K Disk Valve C K Disk Valve Hub K Dowel Pin D6x K Dowel Pin D10x10, K Oil Seal K OR Gearbox Cover K OR Disk Valve Cover K Shift Drum Sensor cover K Allen Screw M6x16 Lowered K Dowel Pin D5x K Ball Bearing K Disk Valve Plate K Disk Valve Cover K Washer 8,4-14-1, K Allen Screw M6x K Roundhead Screw M8x K Intake Air Manifold K Gearbox Cover K Allen Screw M6x K Allen Screw M6x K Countersunk Screw M4x K OR K Clamp Intake Air Manifold p 21

22 p 22

23 CLUTCH COVER, WATER PUMP 1 00K Dowel Pin D10x10, K Allen Screw M6x K Water Pump Shaft K Allen Screw M6x20 Lowered K Dowel Pin D5x K Clutch Cover K Clutch Pump Piston K Water Pump Shaft Support K Water Pump Impeller K Water Pump Gear K Needle Roller Bearing NK 6/10 TN K Seeger INA WR K Air Vent Clutch Pump K OR Clutch Pump Piston K Allen Screw M6x p 23

24 p 24

25 PRIMARY DRIVE COVER 1 00K Primary Drive Cover K Allen Screw M6x K Allen Screw M6x K Allen Screw M6x K Ball Bearing cod K Oil Seal , K Ball Bearing cod K Needle Roller Bearing HK K Clutch Oil Seal K Countersunk Screw M4x K Copper Washer 6,3-9,8-1, K Roundhead Screw M6x K Water Pump Cover K Water Tube K Dowel Pin D10 x 10, K Allen Screw M6x K Ball Bearing cod K Oil Seal K OR K Cable Support p 25

26 p 26

27 CLUTCH 1 00K Primary Drive T K DEA Clutch Drum K Needle Roller Bearing Spacer K Needle Roller Bearing K25x29x K Feather Key 7, Primary Drive K ORM (DIN ,3x2,4-N) K Thrust Washer 20,2-35-1, K Clutch Hub K Tab Washer NA K Nut M18x1, K Allen Screw M6x K Inner Pressure Plate K Clutch Plate K Sinter Plate K Clutch Plate 1, K Clutch Spring 39mm K Springs Pressure Ring K Allen Screw M5x25 Lowered K Retaining Plate K OR K Ball Bearing DDUCM K Thrust Hub OPTIONAL PARTS 1 00K Primary Drive T54 1 * p 27

28 p 28

29 FUEL PUMP, THROTTLE BOX 1 00K Roundhead Screw M4x6 3 * K Rubber Ring DA Spacer 3 * K Rubber Ring DA * K Roundhead Screw M6x35 1 * K Fuel Pump 1 * K Fuel Pump Support 1 * K Self-Locking Nut M6x6 1 * K Front Carburettor Wire 1 Not Available 9 00K Rear Carburettor Wire 1 Not Available 10 00K Throttle Wire 1 Not Available 11 00K Complete Throttle Box 1 Not Available p 29

30 p 30

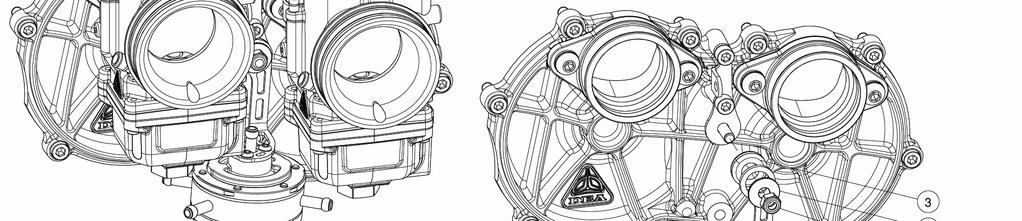

31 AIR BOX and CARBURETTORS 1 00K AirBox Fixing Plate 1 * K Allen Screw M5x16 1 * K Self-Locking Nut M5x7 1 * K Allen Screw M5x12 2 * K Rod End RODOBAL - RM 5 1 * K Nut M5x5 1 * K AirBox Blocking Bar 1 * K Complete DEA SK42 Carburettor K Carburettor Pressure Pipe 4 * K AirBox Body 1 * K Air Box Strip 1 * K AirBox Inner Part Cover 1 * K Air Box Foam 1 * K AirBox Outer Part Cover 1 * K Rubber Ring DA * K Rubber Ring DA * K Washer * K Split Pin x D6 1 * K OR * 3.60 p 31

32 p 32

33 CHAIN COVER 1 00K Chain Cover 1 * K Roundhead Screw M6x8 3 * K Drilled Pin 1 Not Available 4 00K Split Pin x D6 1 * 1.00 p 33

34 p 34

35 EXHAUST SYSTEM 1 00K Exhaust Front Pipe K Exhaust Rear Pipe K Silencer K Silencer Spring L K Glass Wool Silencer Inner Part K Carbon Fibre Silencer Outer Part K Exhaust Spring for Cylinder Type A K Exhaust Spring for Cylinder Type B K Exhaust Ending Pipe K Set of Rivets for Silencer p 35

36 p 36

37 EQUIPMENT 1 00K Gear Puller 1 * K Gear Puller Spacer 1 * K DEA Silicon 1 * K Gear Wrench 1 * K Clutch Hub Locking Tool 1 * K Rotor Puller 1 * K Rotor Wrench 1 * K Water Pump Wrench 1 * K Allen Screw M10x120 1 * K Allen Screw M10x130 1 * K Nut M10x9.8 2 * K Engine Holder 1 * K Precision Gauge Support for Head 1 * K Mounting Gearbox Tool Assy 1 Not Available Long Socket Wrench 1 * mm Socket Wrench 1 * mm Socket Wrench 1 * mm T Wrench 1 * Disk Valve Hub Wrench 1 * p 37

38 COMPLETE ENGINE PACKAGE SUMMARY - Complete Engine - Exhaust System (Pipes and Silencers) - N 2 DEA 42 Carburettors, except: Tube Needle Main Jet - Ignition pages 4, 5, 6, 7 except: 00K (Shifter) * 00K (Voltmeter Battery Cable) * 00K (Voltmeter Group) * 00K (Spark Plug H18) * 00K (Spark Plug Connector) * 00K (Spark Plug H22) * OPTIONAL PARTS SUMMARY page 8 page 28 page 31 page 32 00K (Hourmeter) FUEL PUMP, THROTTLE BOX AIR BOX Chain Cover VAT IS NOT INCLUDED IN THE PRICES No item within the part-list is guaranteed. p 38
