MICHELIN Truck and Bus Tyre TECHNICAL DATABOOK

Transcript

1 Truck and Bus Tyre TECHNICAL DATABOOK Edition 2016 East Asia and Oceania

2 WARNING: Tyre and rim servicing can be dangerous and must be done only by trained personnel using proper tools and procedures. Failure to read and comply with all procedures may result in serious injury or death to you or others. WARNING: Re-inflation of any type of tyre and rim assembly that has been operated in a run-flat or underinflated condition (80% or less of recommended operating pressure) can result in serious injury or death. The tyre may be damaged on the inside and can explode while you are adding air. The rim parts may be worn, damaged or dislodged and can explosively separate. WARNING: Use of gasoline, petrol or any other flammable material to lubricate, seal or seat the beads of a tyre can cause the tyre to explode or can cause the explosive separation of the tyre/rim assembly resulting in serious injury or death. The use of any flammable material during tyre servicing is absolutely prohibited. SAFETY WARNINGS BE SURE TO READ THE SAFETY INFORMATION PROVIDED HEREIN AS SERIOUS INJURY OR DEATH CAN RESULT FROM FAILURE TO FOLLOW SAFETY WARNINGS WARNING: Any inflated tyre mounted on a rim contains explosive energy. The use of damaged, mismatched or improperly assembled tyre/rim parts can cause the assembly to burst apart with explosive force. If you are struck by an exploding tyre, rim part or the air blast, you can be seriously injured or killed. WARNING: Re-assembly and inflation of mismatched rim parts can result in serious injury or death. Just because parts fit together does not mean they belong together. Check for proper matching of all rim parts before putting any parts together. WARNING: Mismatching tyre and rim diameters is dangerous. A mismatched tyre and rim assembly may explode and can result in serious injury or death. This warning applies to any combination of mismatched components. Never assemble a tyre and rim unless you have positively identified and correctly matched the parts.

3 1 TYRE KNOWLEDGE Radial tyre components Sidewall design How to read tyre marking InFLation Pressure Technical characteristics table and product offer User focus, Usage focus 08 Technical characteristics table 3 Appendix Tube&Flap assembly Truck and Bus Wheel Accessories Conversion Table General Information Contents

4

5 TYRE KNOWLEDGE TYRE KNOWLEDGE 1 Radial tyre components 02 Sidewall design 03 How to read tyre marking 04 InFLation Pressure 06

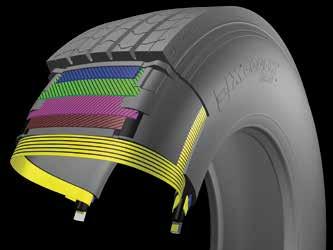

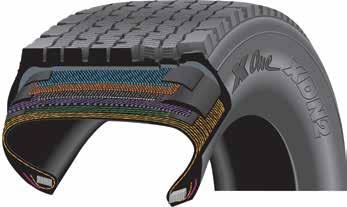

6 Tyre Knowledge 1 Radial Tyre Components Tread Pattern Crown Area Tread Groove Cushion Rubber Protector Ply Working Plies (belt) Shoulder Area Sidewall Area Bead Area Casing Ply Tread Pattern Tread Groove Bead Chafer Inner Liner Bead Toe Components Crown Area Bead Heel Bead Wire Cushion Rubber Protector Ply Working Plies (belt) Infini Coil Stabilizing Ply Casing Ply Shoulder Area Sidewall Area Bead Area Bead Chafer Inner Liner Bead Toe Bead Heel Bead Wire 02

7 Truck & Bus Tyres New Sidewall Design YOUR BRAND TYRE KNOWLEDGE YOUR APPLICATION YOUR EQUIPMENT 385/55R22.5 F = Front axle 295/80R22.5 D = Drive axle 275/70R22.5 Z = All position 455/55R22.5 T = Trailer axle F D Z T This marking indicates the tyre is designed for steer axles. This marking indicates the tyre is designed for drive axles. This marking (<<Z>>) indicates the tyre is designed for all positions which includes steer, drive, free rolling, and trailer axles. This marking indicates the tyre is designed for trailer axles. Tyre with marking (<<T>>) is specifically developed for trailer and semi-trailer fitments and is not suitable for front axle usage. 03

8 147 M 150 Tyre Knowledge 1 How to Read Tyre Marking TRACTION brand logo 2 Max load max press and max speed. US regulation 3 Tyre architecture 4 M+S Mud and Snow & 3PMSF picto 5 Traction new regulation (drive tyre) or FRT, free rolling tyre (trailer only tyre) 6 Specific code 7 Tyre position code (Letter F for Front axle, D for Drive, T for Trailer, Z for all axle...) illustrated on a truck silhouette (arrow indicates axle position) 8 Tyre Size 9 Indicates added load and speed index (see chart) 10 Radial, tubeless, regroovable 11 Load and speed index 12 Made in...: indicates where the tyre has been manufactured 13 Place for logistic information: vignette, barcode & matricule number, ex: PRZ6596G 14 DOT: Department of transport. The last 4 numbers indicate tyre manufacturing. 15 Tyre evolution number: indicates production date 16 Brazil or China homologation 17 Option name: indicates tyre optional benefit. 18 Range Name: indicates tyre usage (see naming chart). 19 Usage Pictogram: illustrates tyre common usage 20 Brand tire here : free space for hot branding 21 X symbol of radial tyre, it's a registered brand 22 E2...: CEE homologation number 23 registered brand 24 Warning: gives user information 04

9 Tyre Marking Detailed Description Overall dimensions S Section width when D measured on R standard rim Free radius. Ø E R Laden radius. e Free diameter (Rx2). Rim diameter. Minimum spacing. Static deflection (R-R ). TYRE KNOWLEDGE H Section height. Load Capacity Index: These numerical values are designed to correspond to a load value listed in a table similar to excerpt shown right. For a omplete Load Capacity Index table, see page 92 in the appendix. Speed symbol and load index Speed Speed symbol mph km/h A1 3 5 A A A A A A A B C D E F G J K L M N Speed Symbols: These alpha numeric symbols correspond to a maximum speed the tyre is designed for continuous operation. For a complete peed Symbol table, see page 92 in the appendix. Index Load kg Index Load kg Index Load kg Index Load kg IMPORTANT : allowed vehicle speed and loading. Unique point A number of truck tyre sizes carry a second load speed index marked on the sidewall. This is known as the «Unique Point» that is located after the main load index as shown below 135/133 G J For these sizes, the «Unique Point» provides additional load speed operating conditions in order to satisfy particular requirements. IMPORTANT : Load variances based on speed do not apply to the additional couple load index / speed symbol of the unique point. 05

10 Tyre Knowledge 1 InFLation Pressure The most critical factor in tyre maintenance is proper inflation. No tyre or tube is completely impervious to loss of air pressure. To avoid the hazards of under inflation, lost-air must be replaced. Inflation pressure has a direct impact in tyre performance - both tread life and endurance - as shown in the following charts : UNDERINFLATION Causes abnormal tyre deflection, which builds up heat and causes irregular wear. Similar to the rim being too wide. OVERINFLATION Causes tyre to run hard and be more vulnerable to impacts. It also causes irregular wear. Similar to the rim being too narrow. PROPER INFLATION The correct profile for full contact with the road promotes traction, braking capability and safety. 06

11 2 Technical characteristics table and product offer User focus, Usage focus 08 Technical characteristics table Technical characteristics table and product offer

12 Technical characteristics table and product offer 2 User Focus, Usage Focus FIND THE RIGHT TYRES FOR YOUR APPLICATION X Line TM X Works TM X Multi TM X Coach TM X Incity TM X Force TM AGILIS LONG HAUL REGIONAL URBAN ON/OFF ROAD OFF ROAD Reliable and cost effective tyre solution for long haulers, bringing fuel efficiency without compromising durability Medium to heavy vehicle tyre ranges optimized for long distances Operating on improved road surfaces and high speeds Light aggression and scrub Slow wear rate applications Outstanding durability and mobility on all kinds of roads and in all seasons for versatile activities Small to heavy vehicle tyre ranges optimized for mixed regional and long distance service Primary and secondary road conditions Moderate to high scrub and frequent turns Medium to fast wear rate applications 08

13 Robustness, durability and off-road mobility for tippers, mixers, and construction service Heavy duty vehicle tyre ranges optimized for mixed application on/off road service Construction, mining, forestry, agriculture activities Slow to moderate speeds, exposure to cuts and chipping Fast wear rate and high tyre aggression applications Extreme robustness and off-road mobility for special vehicles Heavy duty tyre ranges designed for off-road applications, on all type of soils Reliable and cost effective tyre solutions especially designed for urban conditions, with optimized environmental impacts Small to heavy vehicle tyre ranges optimized for urban/suburban service Variable loading with frequent stops, starts and turns City buses and municipal utilities Fast wear rate and high scrub applications Robustness, durability and peace of mind for the light trucks user Light truck tyre ranges designed for multipurpose service Technical characteristics table and product offer Safe, comfortable and cost effective tyre solutions especially designed for coach, bring fuel efficiency without compromising durability Medium to heavy vehicles tyre ranges optimized for motor coach on-road service 09

14 Technical characteristics table and product offer 2 Z X LINE ENERGY Z XZA 2+ ENERGY XZA 2 ENERGY XZA XJE 4 MIX ENERGY F D X LINE ENERGY F XFA 2 ENERGY XDA 2+ ENERGY XDA 2 ENERGY T X ENERGY SAVERGREEN XT X LINE ENERGY T XTA 2+ ENERGY XTA 2 ENERGY Z X MULTI Z X MULTI HD Z X MULTIWAY XZE R X MULTIWAY 3D XZE XZE 3 R XZE 2+ XZE 2 XZE XZN MIX ENERGY XJW 4+ F XJS WINTER GRIP+ XFE 10 Z F D T = ALL POSITION = FRONT AXLE = DRIVE AXLE = TRAILER AXLE Durable Technologies

15 D X MULTI D X MULTIWAY 3D XDE XDE 2+ XDE 2 XDN 2 GRIP XDW ICE GRIP T Z Z X MULTI T X WORKS XZY XTE 3 X WORKS Z D XTE 2 / XTE 2+ X WORKS XZ XTA XZY 3 X ONE XTE XZY-2 T XZH 2 R Technical characteristics table and product offer X ONE XZY 3 X WORKS XDY X WORKS XD XDY 3 XTY 2 Z D XZL 2 XZL+ XZL XML XS XDL Z F D T = ALL POSITION = FRONT AXLE = DRIVE AXLE = TRAILER AXLE Durable Technologies 11

16 Technical characteristics table and product offer 2 Z X INCITY Z XZU 3+ XZU 3 XZU ENERGY XZU 2T X ONE XZU S Z AGILIS AGILIS HD XZA XJE 4 MIX ENERGY XZY 3 XDW Ice Grip Z D X COACH ENERGY Z X COACH XD 12 Z F D T = ALL POSITION = FRONT AXLE = DRIVE AXLE = TRAILER AXLE Durable Technologies

17 Technical characteristics table and product offer

18 2 Technical Characteristics Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 7.50R15 XTA 2 TT /133G 133/132J B /16 J 15x R15 XTA 2 TT 143/141G 141/140J B K 15x R15 XTA 2 TT /145G 146/144J P 15x /75R16 XDW ICE GRIP 7 TL 113/111L JJ-6 JJ 5.50 K-6.5JJ JJ 195/85R16 XJE4 MIX ENERGY 7 TL 114/112L J - 5 1/2J 6J - 6K JK 195/85R16 XDW ICE GRIP 7 TL 114/112L J-5.50 JJ-6 JJ 5 K-5.50 K-6 K JJ XJE4 MIX ENERGY 7 TL 117/115L /85R16 XDW ICE GRIP 7 TL 117/115L J à 61/2K JK 215/85R16 XJE4 MIX ENERGY 7 TL 120/118L JK (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 14

19 15 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 7.50R15 XTA 8.25R15 XTA 10.00R15 XTA 205/75R16 XDW ICE GRIP 195/85R16 XJE4 MIX ENERGY 195/85R16 XDW ICE GRIP 205/85R16 XJE4 MIX ENERGY XDW ICE GRIP 215/85R16 XJE4 MIX ENERGY psi bar Technical characteristics table and product offer

20 2 Technical Characteristics Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 7.00 R16 AGILIS 7 TL /113L AGILIS 7 TL /116L E E 5.50F G 4.50E E 5.50F G F 16J 16x F 16J 16x R16 AGILIS 7 TL /121L AGILIS HD 7 TL /121L F G 6.50H 5.50F G 6.50H G 16J 16x G 16J 16x6.00 AGILIS 7 TT /126K G H 8.25R16 AGILIS HD 7 TT /126K G H H 16K 16x H 16K 16x6.00 (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 16

21 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 7.00 R R R16 17 AGILIS AGILIS AGILIS AGILIS HD AGILIS AGILIS HD psi bar Technical characteristics table and product offer

22 2 Technical Characteristics 17.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 215/70R17.5 XZE2 6 TL 118/116L X MULTI Z 6 TL 136/134M XZE 2 6 TL 136/134M /70R17.5 X MULTI D 6 TL 136/134M XDE 2 6 TL 136/134M XZE 2 6 TL 124/122M /75R17.5 XDE 2 6 TL 124/122M X MULTI Z 6 TL 126/124M /75R17.5 XZE 2 6 TL 126/124M (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 18

23 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 215/70R17.5 XZE2 X MULTI Z 245/70R17.5 XZE 2 X MULTI D XDE 2 205/75R17.5 XZE 2 XDE 2 215/75R17.5 X MULTI Z XZE 2 19 psi bar Technical characteristics table and product offer

24 2 Technical Characteristics 17.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X MULTI D 6 TL 126/124M /75R17.5 XDE 2 6 TL 126/124M X MULTI Z 6 TL 129/127M XZE 2 6 TL 129/127M /75R17.5 X MULTI D 6 TL 129/127M XDE 2 6 TL 129/127M X MULTI Z 6 TL /130M XZE 2 6 TL 132/130M /75R17.5 X MULTI D 6 TL /130M XDE 2 6 TL 132/130M (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 20

25 21 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 215/75R /75R /75R17.5 X MULTI D XDE 2 X MULTI Z XZE 2 X MULTI D XDE 2 X MULTI Z XZE 2 X MULTI D XDE 2 psi bar Technical characteristics table and product offer

26 2 Technical Characteristics 17.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XZN+ MIX ENERGY 6 TL /122L XZN MIX ENERGY 6 TL /122L /80R17.5 XJE4 MIX ENERGY 6 TL 123/122L XJS WINTER GRIP+ 6 TL /122L XDW ICE GRIP 6 TL /122L XZA 6 TL 121/120L R17.5 XZT 6 TL 121/120L XZY 6 TL 121/120L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 22

27 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 225/80R R XZN+ MIX ENERGY XZN MIX ENERGY XJE4 MIX ENERGY XJS WINTER GRIP+ XDW ICE GRIP XZA XZT XZY psi bar Technical characteristics table and product offer

28 2 Technical Characteristics 17.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X MULTI Z 6 TL 129/127L 143J XZA+ 6 TL 129/127L 143J R17.5 XZA 6 TL /127L XZT 6 TL 129/127L XZY 6 TL 129/127L R17.5 XZA 6 TL 134/132L XJE4 MIX ENERGY 6 TL 140/138L /90R17.5 XDW ICE GRIP 6 TL /125L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 24

29 25 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern X MULTI Z XZA+ 9.5R17.5 XZA XZT XZY 10R17.5 XZA 225/90R17.5 XJE4 MIX ENERGY XDW ICE GRIP psi bar Technical characteristics table and product offer

30 2 Technical Characteristics 19.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 225/70R19.5 XZE 6 TL 125/123L X MULTI Z 6 TL /134M XJE4 MIX ENERGY 6 TL 136/134L 136/134J XZN+ MIX ENERGY 6 TL 136/134L /70R19.5 XZN MIX ENERGY 6 TL 136/134L XZE2+ 6 TL 136/134M 136/135J X MULTI D 6 TL /134M 136/135J XDE2+ 6 TL 136/134M 136/135J (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 26

31 27 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 225/70R19.5 XZE X MULTI Z 245/70R19.5 XJE4 MIX ENERGY XZN+ MIX ENERGY XZN MIX ENERGY XZE2+ X MULTI D XDE2+ psi bar Technical characteristics table and product offer

32 2 Technical Characteristics 19.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XJS WINTER GRIP+ 6 TL 136/134L /70R19.5 XDW ICE GRIP 6 TL 136/134L X MULTI Z 6 TL /138M XZN+ MIX ENERGY 6 TL 140/138L XZN MIX ENERGY 6 TL 140/138L XZE2+ 6 TL 140/138M /70R19.5 XJW4+ 6 TL 140/138L X MULTI D 6 TL 140/138M XDE2+ 6 TL 140/138M XDW ICE GRIP 6 TL 140/138L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 28

33 29 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 245/70R /70R19.5 XJS WINTER GRIP+ XDW ICE GRIP X MULTI Z XZN+ MIX ENERGY XZN MIX ENERGY XZE2+ XJW4+ X MULTI D XDE2+ XDW ICE GRIP psi bar Technical characteristics table and product offer

34 2 Technical Characteristics 19.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X MULTI Z 6 TL 146/144L 145/143M XZE2+ 6 TL 144/142M 145/143L /70R19.5 X MULTI D 6 TL 146/144L 145/143M XDE2+ 6 TL 144/142M 145/143L XZE2+ 6 TL 147/145M 148/146L /70R19.5 XDE2+ 6 TL 147/145M 148/146L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 30

35 31 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 285/70R /70R19.5 X MULTI Z XZE2+ X MULTI D XDE2+ XZE2+ XDE2+ psi bar Technical characteristics table and product offer

36 2 Technical Characteristics Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 8.25R20 XZE 6 TT 133/131K 133/131L B T-B B B K 20x R20 XZE 2 2 TT /142K T M 20x7.50 XZE 3 R 2 TT /143K N 20x7.50 XZE 2 2 TT /143K 146/143L N 20x R20 XZY3 HD 3 TT /143K XZY 3 3 TT /143K N 20x N 20x7.50 XDY3 HD 3 TT /143K N 20x7.50 XDY 3 3 TT /143K N 20x7.50 (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 32

37 33 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 8.25R20 XZE 9.00R20 16PR XZE 3 R XZE R20 XZY3 HD XZY 3 XDY3 HD XDY 3 psi bar Technical characteristics table and product offer

38 2 Technical Characteristics Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XZE 3 R 2 TT /146K 150/147J P 20x R20 XZE 2 2 TT /143K XZE 2 2 TT /146K V B N 20x P 20x V XZY 3 3 TT /146K V P 20x R20 XDY 3 3 TT /146K XZE 2 2 TT /150K V V V XZY 3 3 TT /150K P 20x Q 20x Q 20x8.50 (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 34

39 35 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 11.00R R20 XZE 3 R XZE 2 XZE 2 XZY 3 XDY 3 XZE 2 XZY 3 psi bar Technical characteristics table and product offer

40 2 Technical Characteristics Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 12.00R20 XZH2 R 3 TL 154/149G 156F V V B V B V XDY 3 3 TT /150K x Q 20x8.50 X WORKS XZ 3 TL 162/160K /95R24 X WORKS XD 3 TL 162/160K /25x /25x8.50 (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 36

41 37 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 12.00R20 325/95R24 XZH2 R XDY 3 X WORKS XZ X WORKS XD psi bar Technical characteristics table and product offer

42 2 Technical Characteristics Inches WIDEBASE Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 445/45R19.5 XTA2 ENERGY 1 TL 160J /50R /55R /55R22.5 X ONE LINE ENERGY D 1 TL LRL X ONE LINE ENERGY T 1 TL LRL X ONE MULTI ENERGY T 2 TL LRL X ONE XTE 2 TL LRL XFA2 ENERGY 1 TL 158L 160J X MULTI T 2 TL 160K 158L X ENERGY SAVERGREEN XT 1 TL 160J 158L X ONE XZY3 3 TL LRM X ONE XZU S 5 TL LRM X ONE XDN2 2 TL LRL X ONE X MULTI ENERGY T 2 TL LRL X ONE XTE* 2 TL LRL (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 38

43 39 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 445/45R19.5 XTA2 ENERGY 445/50R /55R /55R22.5 X ONE LINE ENERGY D X ONE LINE ENERGY T X ONE MULTI ENERGY T X ONE XTE XFA2 ENERGY X MULTI T X ENERGY SAVERGREEN XT X ONE XZY3 X ONE XZU S X ONE XDN2 X ONE X MULTI ENERGY T X ONE XTE* psi bar Technical characteristics table and product offer

44 2 Technical Characteristics Inches WIDEBASE Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 385/65R /65R /65R22.5 X MULTI F 2 TL 158L 160K X LINE ENERGY F 1 TL 160K 158L XFE 2 TL 160K XFN 2 2 TL 158/L 160J X MULTIWAY HD XZE 2 TL 164K XZY 3 3 TL 160K 158L X LINE ENERGY T 1 TL 160K 158L X MULTI T 2 TL 160K 158L X ENERGY SAVERGREEN XT 1 TL 160J 158L XTE 3 2 TL 160J 158L XZY 3 3 TL K XTE2 2 TL K XZY 3 3 TL 169K XTE2 2 TL K (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 40

45 41 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 385/65R /65R /65R22.5 X MULTI F X LINE ENERGY F XFE XFN 2 X MULTIWAY HD XZE XZY 3 X LINE ENERGY T X MULTI T X ENERGY SAVERGREEN XT XTE 3 XZY 3 XTE2 XZY 3 XTE2 psi bar Technical characteristics table and product offer

46 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XZA 6 TL 133/131L R22.5 XZY 3 TL 133/131K XZA 2 TL 144/142L R22.5 XZY 3 TL 144/142K X MULTI Z 2 TL /145L X INCITY Z 5 TL /145J 151/148E X COACH ENERGY Z 8 TL 148/145M R22.5 XZA 2+ ENERGY 1 TL 148/145M XJE4 MIX ENERGY 1 TL /145L XJW4+ 2 TL /145L XZE2+ 2 TL /145L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 42

47 43 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 9R R R22.5 XZA XZY XZA XZY X MULTI Z X INCITY Z X COACH ENERGY Z XZA 2+ ENERGY XJE4 MIX ENERGY XJW4+ XZE2+ psi bar Technical characteristics table and product offer

48 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XZY 3 3 TL /145K XZY-2 3 TL /145K XZU3+ 5 TL /145J 151/148E XJS WINTER GRIP+ 2 TL /145J X MULTI D 2 TL /145L R22.5 XDE M/S* 2 TL 16 LRH , 7.50 XDY 3 3 TL /145K XDW ICE GRIP 2 TL X MULTI T 2 TL /145L 152/148J XTE2 2 TL /142J (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 44

49 45 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 11R22.5 XZY 3 XZY-2 XZU3+ XJS WINTER GRIP+ X MULTI D XDE M/S* XDY 3 XDW ICE GRIP X MULTI T XTE2 psi bar Technical characteristics table and product offer

50 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X LINE ENERGY Z 1 TL /149L X MULTI Z 2 TL /149L X WORKS XZY 3 TL /149K XZE2+ 2 TL /149L R22.5 XZY-2 3 TL /148K X WORKS XDY 3 TL /149K XDE2+ 2 TL /149L XDE2+ 2 TL /148L XDY 3 3 TL /148K (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 46

51 47 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 12R22.5 X LINE ENERGY Z X MULTI Z X WORKS XZY XZE2+ XZY-2 X WORKS XDY XDE2+ XDE2+ XDY 3 psi bar Technical characteristics table and product offer

52 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X WORKS HD Z 3 TL /151K 158/152G WORKS XZY 3 TL /150K XZE 2 2 TL /150L R22.5 XZH2 R 3 TL /150G 156/150F X WORKS HD D 3 TL /151K 158/152G X WORKS XDY 3 TL /150K XDY 3 3 TL /150K 156G XZA2 ENERGY 1 TL 150/147K 149/146L /60R22.5 XDA 2+ ENERGY 1 TL 150/147K 149/146L X MULTIWAY XD 2 TL 150/147K 149/146L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 48

53 49 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 13R /60R22.5 X WORKS HD Z WORKS XZY XZE 2 XZH2 R X WORKS HD D X WORKS XDY XDY 3 XZA2 ENERGY XDA 2+ ENERGY X MULTIWAY XD psi bar Technical characteristics table and product offer

54 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XZA2 ENERGY 1 TL 152/148L /60R22.5 XDA 2+ ENERGY 1 TL 152/148L XZA 1 TL 140/137M 140L /70R22.5 XZE* 2 TL LRH X MULTI Z 2 TL /145L 149/146K X INCITY Z 5 TL /145J 152/148E XZE2+ 2 TL /145M /70R22.5 XJW4+ 2 TL 148/145L X MULTI D 2 TL /145L 149/146K XDE2+ 2 TL /145M (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 50

55 51 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 315/60R /70R /70R22.5 XZA2 ENERGY XDA 2+ ENERGY XZA XZE* X MULTI Z X INCITY Z XZE2+ XJW4+ X MULTI D XDE2+ psi bar Technical characteristics table and product offer

56 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XDW ICE GRIP 2 TL 148/145L X MULTI T 2 TL /145L 152/148J /70R22.5 XTA2 ENERGY 1 TL 152/148J XTY2 3 TL /145J X MULTI Z 2 TL /150L X INCITY Z 5 TL 153/150J XZA2 ENERGY 1 TL /148L 150/147M /70R22.5 XZU2T 5 TL /147J 154/150E XDA 2+ ENERGY 1 TL 152/148L 150/147M XDE2+ 2 TL 152/148L 150/147M (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 52

57 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 275/70R /70R XDW ICE GRIP X MULTI T XTA2 ENERGY XTY2 X MULTI Z X INCITY Z XZA2 ENERGY XZU2T XDA 2+ ENERGY XDE2+ psi bar Technical characteristics table and product offer

58 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X MULTIWAY 3D XZE 2 TL 156/150L X MULTIWAY 3D XDE 2 TL 154/150L /70R22.5 XDA 2+ ENERGY 1 TL 154/150L 152/148M XDW ICE GRIP 2 TL 154/150L XZN+ MIX ENERGY 2 TL 151/148J 149/146L XZN MIX ENERGY 2 TL 151/148J 149/146L X INCITY XZU3 5 TL 149/146J 152/148E /80R22.5 XZE2+ 2 TL /146L XJE4 MIX ENERGY 1 TL 151/148J 149/146L XDE2+ 2 TL /146L XDW ICE GRIP 2 TL 151/148J 149/146L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 54

59 55 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 315/70R /80R22.5 X MULTIWAY 3D XZE X MULTIWAY 3D XDE XDA 2+ ENERGY XDW ICE GRIP XZN+ MIX ENERGY XZN MIX ENERGY X INCITY XZU3 XZE2+ XJE4 MIX ENERGY XDE2+ XDW ICE GRIP psi bar Technical characteristics table and product offer

60 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X LINE ENERGY Z 1 TL /149M 153/150J X MULTI Z 2 TL /149M 153/150J X MULTIWAY 3D XZE 2 TL 152/148L X WORKS Z 3 TL /149K 154/150J X COACH ENERGY Z 8 TL /149M 153/150J /80R22.5 X COACH HL Z 8 TL 154/149M XZA 2+ ENERGY 1 TL /148M 153/150J XZE2+ 2 TL 152/148M XZY-2 3 TL 152/148K X INCITY XZU 3+ 5 TL /148J 154/150E XJW4+ 2 TL 152/149L 153/150J (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 56

61 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 295/80R X LINE ENERGY Z X MULTI Z X MULTIWAY 3D XZE X WORKS Z X COACH ENERGY Z X COACH HL Z XZA 2+ ENERGY XZE2+ XZY-2 X INCITY XZU 3+ XJW4+ psi bar Technical characteristics table and product offer

62 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal XJS WINTER GRIP+ 2 TL 151/148J 149/146L XJS WINTER GRIP 2 TL /149L 153/150J X MULTI D 2 TL /149M X MULTIWAY 3D XDE 2 TL 152/148L /80R22.5 X COACH XD 8 TL 152/148M 154L XDA 2+ ENERGY 1 TL 152/148M XDE2+ 2 TL 152/148M XDW ICE GRIP 2 TL 152/149L 153/150J X MULTI ENERGY Z 2 TL 156/151L /80R22.5 X MULTIWAY 3D XZE 2 TL 156/150L 154/150M (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 58

63 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 295/80R /80R XJS WINTER GRIP+ XJS WINTER GRIP X MULTI D X MULTIWAY 3D XDE X COACH XD XDA 2+ ENERGY XDE2+ XDW ICE GRIP X MULTI ENERGY Z X MULTIWAY 3D XZE psi bar Technical characteristics table and product offer

64 2 Technical Characteristics 22.5 Inches Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal X WORKS XZY 3 TL 156/150K X MULTIWAY XZE R 2 TL /151L 154/150M XZA 2+ ENERGY 1 TL /151L 154/150M /80R22.5 X MULTIWAY 3D XDE 2 TL 156/150L 154/150M X WORKS XDY 3 TL 156/150K XDE2+ 2 TL 156/150L 154/150M XDW ICE GRIP 2 TL 156/150L (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 60

65 61 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 315/80R22.5 X WORKS XZY X MULTIWAY XZE R XZA 2+ ENERGY X MULTIWAY 3D XDE X WORKS XDY XDE2+ XDW ICE GRIP psi bar Technical characteristics table and product offer

66 2 Technical Characteristics off road sizes Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 325/85R16 XML 4 TL 137J 134K Jt /100R16 XZL 4 TL 126K 134J G H Jt /80R20 XZL 4 TL 8 128K W9-9 SDC P LB / 20x /80R20 XZL 4 TL K W9-9 SDC-W10 DW SDC-W11 DW SDC P LB / 20x10.00 Jt /80R20 XZL 4 TL 152K SDC SDC Q LB / 20x10.00 Jt /80R20 XML 4 TL 166G V V 365/85R20 XZL 4 TL 164G V-10.00W W 20 S L XZL 2 4 TL 168K 164L /85R20 XZL 4 TL 168G 161J V-10.00W ,00 W W 20 S L Jt R20 XL 4 TT 140/137K T-6.5-B B V-7.5-B M L / 20x7.50 (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 62

67 63 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 325/85R16 XML 255/100R16 XZL 275/80R20 XZL 335/80R20 XZL 365/80R20 XZL 475/80R20 XML 365/85R20 XZL 395/85R20 XZL 2 XZL 9.00R20 XL psi bar For Pressure, Please Consult s Representatives Technical characteristics table and product offer

68 2 Technical Characteristics off road sizes Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 7.33V-7.5-B R20 XZL 4 TL /146K V-B V-B V P 20x8.50MI 12.00R20 XZL 4 TL /149K XML 4 TL /146J V V-B V-B V 7.33V V B V B V Q LB / 20x Q XML 4 TL 153G 149K V 10.00W W XZL+ 4 TL 164/161J 166G ,00W 14.00R20 XZL+ 4 TL /160J 166G ,00W XZL 4 TL /160G 156J XS 4 TL 160/157F V V-10.00W V 10.00W W 16.00R20 XZL 4 TL 173/170G W 20 V LB / 20x10.00 (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 64

69 65 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 11.00R20 XZL 12.00R20 XZL XML XML XZL R20 XZL+ XZL XS 16.00R20 XZL psi bar Technical characteristics table and product offer

70 2 Technical Characteristics off road sizes Tread Pattern Category Type PR (Ply Rating) Load / Speed Index Unique point (3) Norminal pressure for unique point (bar) Original tread depth Nominal load per axle () (kg) Nominal pressure for load () (bar) Nominal load per axle () (kg) Nominal pressure for load () (bar) Maximum section width in service (mm) Maximum diameter in service (mm) (1) Rolling circumference (mm) Approved rim(s) ETRTO Laden section width (mm) (2) Free section width (mm) (2) Diameter (mm) (2) Static laden radius (mm) (2) Rolling circumference (mm) (2) Minimum spacing (mm) (2) Recommended rim(s) by Tube Flap Seal 525/65R20.5 XS 4 TL F /20.5 UD 24/70R20.5 XS 4 TL 176F WAMD 24/70R21 XZL 4 TL G /65R22.5 XZL 4 TL 168G R22.5 XZL 4 TL /150K R24 XDL 4 TT LRJ , (1) ETRTO rating (standard value, the ETRTO standard rim may be different to the rim recommended by ). (2) rating, value measured on rim recommended by. (3) Unique point: load capacity/authorized additional speed pair Load variations according to speed do not apply to the unique point. 66

71 67 Table of inflation pressure (bar) in relation to maximum load per axle (kg) Tread pattern 525/65R20.5 XS 24/70R20.5 XS 24/70R21 XZL 445/65R22.5 XZL 13R22.5 XZL 12.00R24 XDL psi bar Technical characteristics table and product offer

72 Technical characteristics table and product offer 2 AGILIS FOR LIGHT TRUCK BENEFITS: Clearly improved mileage 30% better in longevity compared to its previous generation. Even stronger, day to day Thicker sidewall protection to avoid urban obstacles. TECHNOLOGIES Mileage With the Durable Contact Patch technology. The DCP technology enhances the contact between the tread blocks and the road, allowing the contact pressure to be distributed more evenly on the tread, which contributes to longer mileage1 as well as better grip. Strength From the eight sidewall kerbing protectors. The position of eight kerbing protectors on the sidewall has been calculated to optimize tyre protection in all circumstances. Previous generation AGILIS Kerbing protector 68

73 2 Technical Characteristics AGILIS FOR LIGHT TRUCK Pattern Type Load Index Load Index (Dual) Speed Index Load Capacity (kgs) Single Load Capacity (Kgs) Dual Section Width Design Value (mm) Overall Diameter (mm) Rolling Circumference (mm) Min Rim Width (inches) Measuring Rim Width (inches) Maxi Rim Width (inches) 215/75R16C AGILIS TL R /65R16C AGILIS + GRNX TL R /75R16C AGILIS + GRNX TL R /75R16C AGILIS + GRNX TL R /65R16C AGILIS + GRNX TL R /75R16C AGILIS + GRNX TL R /75R16C AGILIS + GRNX TL R Technical characteristics table and product offer

74 Technical characteristics table and product offer 2 XCD2 FOR LIGHT TRUCK BENEFITS: XCD2 tyres are the reference for usage in the most challenging conditions. HEight loading capacity Perfect choice for commercial users. Robust and strong Built to endure and last with ability to carry heavy loads with maximum safety. hard outer layer soft inner layer 01 with a combination of rubber compounds Hard outer layer of 100% natural rubber protects casing ply Soft inner layer of synthetic rubber content lowers heat generation 02 robustness with maximum bead strength michelin XCD2 michelin XCD Five more wires in bead package 20% stronger bead Improved resistance to bead failure Improved damage resistance during fitting and removal 03 handling with rubber insert on lower sidewall 27% 27% increased height* 45% higher bead reinforcement* More rigid sidewall Improved handling stability All claims are made in comparison to the previous generation of XCD tyres. *Based on XCD2 size 205/70 R15C Incorrect tyre usage and driving can lead to accidents. To reduce any possible risk, Michelin recommends users to follow the tyre user manual, tyre sidewall information and vehicle user manual strictly. The tyre user manual is available at all Michelin dealers. For more information, please visit 70

75 2 Technical Characteristics XCD2 FOR LIGHT TRUCK Pattern Type Load Index Load Index (Dual) Speed Index Load Capacity (kgs) Single Load Capacity (Kgs) Dual Section Width Design Value (mm) Overall Diameter (mm) Rolling Circumference (mm) Min Rim Width (inches) Measuring Rim Width (inches) Maxi Rim Width (inches) 195R14C XCD TL 106 P R14C XCD TL 109 P R14C XCD TL 112 P /70R15C XCD TL 106 Q R15C XCD TL 112 Q /75R14C XCD2 TL P /75R14C XCD2 TL P /75R14C XCD2 TL P /70R15C * XCD2 TL S /75R15C * XCD2 TL Q Technical characteristics table and product offer

76

77 Appendix 3 Tube&Flap assembly Truck and Bus Wheel Accessories Conversion Table General Information Appendix 09

78 Appendix 3 Tire/Tube/Flap Assembly Tyre dimensions Tube Valve Reference Reference Bend type 7.50R15 15/16J 570 Single 8.25R15 15K 1221 Double 10.00R15 15P 582 Triple 15P 1548 Straight 7.00R16 16J TR77A Single, Fixed valve 7.50R16 16J TR77A Single, Fixed valve 8.25R16 16K TR77A Single, Fixed valve 8.25R20 20K 1021 Single 9.00R20 20M TR175A Single, Fixed valve 10.00R20 20N TR78A Single, Fixed valve 11.00R20 20P TR78A Single, Fixed valve 12.00R20 20Q 1158 Single 335/80R R20 G20 20S 582 Triple 365/85R20 20S 582 Triple 395/85R20 20S 582 Triple 16.00R20 20V 1188 Single 20V 1548 Straight 12.00R24 24Q 582 Triple 325/95R24 24Q 582 Triple Flap Plates Reference Flap 15X6.00 Flap 15X6.00 Flap 15X7.50 Flap 16x6.00 Flap 16x6.00 Flap 16x6.00 Flap 20x7.50 Flap 20x7.50 Flap 20x7.50 Flap 20X8.50 Flap 20X8.50 Flap 20X10.00 Flap 20X8.50 Flap 20X10.00 Flap 20X10.00 Plastic Plastic Plastic Metal Metal Metal Metal Metal Metal Metal Metal Plastic Metal Plastic Plastic Flap 24/25X8.50 E Plastic Flap 24/25X8.50 E Plastic For other CAIs not listed in this table, please contact your Michelin representative. 74

79 Flap Groups for use in tyres Tire size Rim width 15X X X R R R R R R R Bold = Standard rim width Preferred fitment on this rim Fitment permitted but the flap may be wide Fitment permitted but the flap may be narrow Appendix 75

80 Appendix 3 Tube and Flap Assembly Flap Groups for use in tyres Tire size Rim width 20X X X /25X /25L R R R R R /80R R /80R R R Bold = Standard rim width Preferred fitment on this rim Fitment permitted but the flap may be wide Fitment permitted but the flap may be narrow 76

81 Appendix

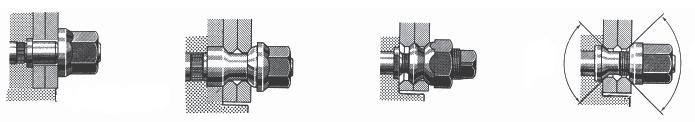

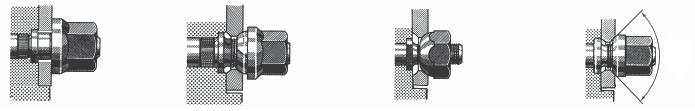

82 Appendix 3 Truck and Bus Wheel Tube Type Wheel Tubeless Wheel OFFSET D B B OFFSET D B N N HUB C E A seat ˇ C E seat ˇ A Dual spacing Dual spacing Characteristics A = Nominal Wheel Diameter B = Inside width C = Centre bore D = Offset E = Diameter of the fixing holes (PCD) N = Number of fixing holes Dual Spacing = 2 x offset Types of Fixing 80 Single Spherical nut or Cylindrical Spherical washer + Cylindrical Spherical nut Conical nut Hub centering Twinned SPIGOT (P or M) Spherical DIN Budd/AMJ (American/Japanese) Conical (AN) 78
