1 Satellite Based IP Content Delivery Network Taylor Jacob ReCon Brussels Jan 2017 Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

2 Receive Only Satellite Network Network Diagram Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

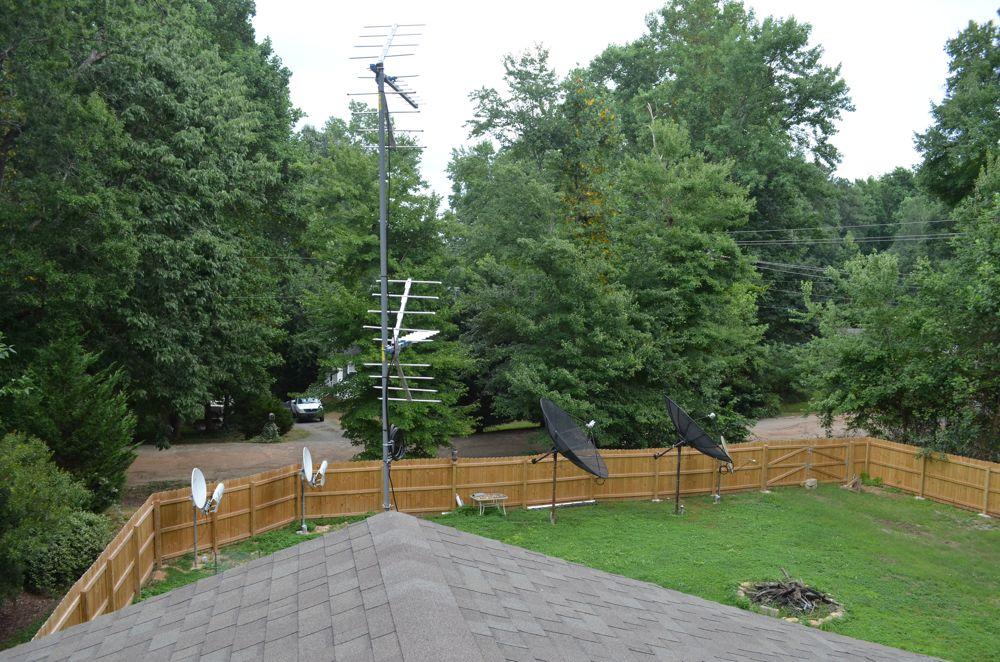

3 Hardware Setup C/Ku Band Dishes and DVB-S2 Tuner Card Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

4 Software Setup dvbsnoop - transport stream analyzing tool linux dvbtools - szap-s2, dvbtraffic standard unix tools - grep, sort, uniq, etc custom software - gnu C v4l/linux dvb-api Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

5 MPEG Transport Stream 47 xx xx xx B4 B5 B6 B7 Fixed Length 188 bytes Header Fixed Length 4 bytes Header always starts with 47h Body contains PES or PSI Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

6 Packetized Elementary Stream (PES) Format xx xx xx FE FF Variable Length (Header and Body) Header always starts with ES contents generally Audio or Video Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

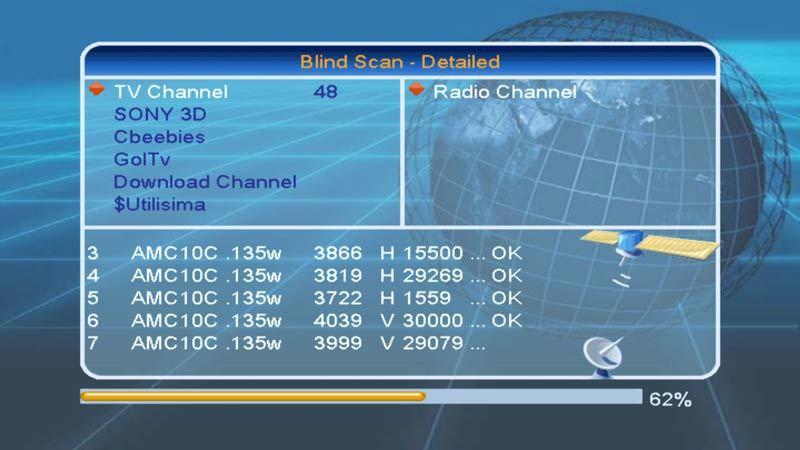

7 Signal Analysis Blind scanning a DVB Signal Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

8 Manual PID Identification - Step 1 Empty Mux $ dvbtraffic p/s 2 kb/s 23 kbit p/s 2 kb/s 23 kbit p/s 8727 kb/s kbit 1fff 512 p/s 94 kb/s 770 kbit p/s 8827 kb/s kbit -PID--FREQ-----BANDWIDTH-BANDWIDTH- Standard Television Mux $ dvbtraffic p/s 0 kb/s 4 kbit p/s 1 kb/s 14 kbit p/s 0 kb/s 1 kbit p/s 0 kb/s 4 kbit p/s 0 kb/s 4 kbit p/s 212 kb/s 1742 kbit p/s 142 kb/s 1168 kbit p/s 145 kb/s 1193 kbit <snip> p/s 1076 kb/s 8823 kbit p/s 56 kb/s 461 kbit p/s 0 kb/s 4 kbit 1c p/s 24 kb/s 203 kbit 1ffe 51 p/s 9 kb/s 77 kbit 1fff 3327 p/s 610 kb/s 5004 kbit p/s 3383 kb/s kbit -PID--FREQ-----BANDWIDTH-BANDWIDTH- Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

9 Manual PID Identification - Step 2 dvbsnoop output $ dvbsnoop -n 1 0x320 dvbsnoop V SECT-Packet: PID: 800 (0x0320), Length: 1360 (0x0550) Time received: Tue :22: : 3e 75 4d e0 e0 c e >um... ^..E..@ <snip> 0540: da d b d2 ee @...%s.&... PID: 800 (0x0320) Guess table from table id... DSM-CC DATAGRAM-decoding... Table_ID: 62 (0x3e) [= DSM-CC - private data section // DVB datagram] <snip> IP_datagram_bytes: <snip> Destination address: e0e0e0e0 [= ] UDP_datagram_bytes: Source port: (0xf991) Destination port: 8001 (0x1f41) Length: 1324 (0x052c) Checksum: (0xdaba) Data 0000: a6 fb 47 7e $..G..G~... <snip> 0520: d2 ee &.. Checksum: 0 (0x ) ========================================================== Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

10 Multicast IP Traffic Examination using dvbsnoop dvbtraffic output piped into grep $ dvbsnoop 0x320 grep "^ Destination address" Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Destination address: e0e0e0e0 [= ] Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

11 UDP Packet Analysis UDP Packet Sample <snip> 0150: : b4 f2 fe 7f e f7...!). 0170: c b b3 eb b b5 84.S : b d4 ff fc DG...GA : fd fa fa fa fa a0: 00 fa fa fa fa fa b0: fa fa fa fa fa fa... 01c0: fa fa fa ff d0: 1a ac b a ac b e0: a ac b a e9 e w9.. 01f0: a9 cf 15 c5 4c e7 be f8 5a ab 80 b8 e8 1b ae 10...L...Z : cc 9d 13 a6 a0 88 c4 ab ed 48 ea 3a 8c a4 14 a8...h.: : b3 72 8b d3 b4 79 e2 42 d9 e0 8f fa.r.1g.!..y.b : aa 0f e 0b c c6 U...u...q&.s : 42 a0 ed d9 c6 7f 73 0a f b8 e2 56 fa B...s.#(Bo..V. <snip> Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

12 Encapsulated Linear TV NHL Centre Ice Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

13 Non-Linear Packets - First Attempts Mangled Video Frame Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

14 Non-Linear Packets - Header Analysis Grepping the header - First 0x10 bytes $ dvbsnoop 0x320 grep "^ 0000:" 0000: d5 5a fc a8 ae da $..Z : e1 8a e $...q.H : d5 5a fc a8 af da $..Z : e1 8a e $...q.H : d5 5a fc a8 b0 da $..Z : e1 8a e $...q.H : d5 5a fc a8 b1 da $..Z : e1 8a e $...q.H... Grepping the header - First 0x20 bytes $ dvbsnoop 0x320 grep "^ 0000:" -A : e1 8a e $...q.H : 4a 83 f c f 0e 87 e8 bb 30 3e J...E.RA)...0> : e1 8a e $...q.H : 47 d6 93 9d 59 ab 12 f8 29 8c d f8 cb G...Y...)..0.D : e1 8a e $...q.H : 0e b b cf f4 7c 25 d4 58 3f 2b..C.t..Ei. %.X?+ Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

15 Non-Linear Packets - Field Identification Grepping the header - First 0x10 bytes $ dvbsnoop 0x320 grep "^ 0000:" 0000: d5 5a fc a8 ae da $..Z : e1 8a e $...q.H : d5 5a fc a8 af da $..Z : ab 00 e1 8a e7 71 a q : e1 8a e $...q.H : d5 5a fc a8 b0 da $..Z : e1 8a e $...q.H : d5 5a fc a8 b1 da $..Z : e1 8a e $...q.H... Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

16 Finding Non-Payload Packets Grepping the header - First 0x10 bytes $ dvbsnoop 0x320 grep "^ 0000: " grep -v "^ 0000: 00 01" 0000: ab a6 fb a G : e 23 fd a : ab a6 fb a G : ab a6 fb a G : ab a6 fb a G : ab a6 fb a G : af d : ab a6 fb a G : ab a6 fb a G : ab a6 fb a G : ab a6 fb a G... Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

17 03 Packet Dissection 03 Packet Dump w/ Filename Visible 0000: ab 00 aa f2 a6 af a : p : a f I : b9 c X 0040: 90 bf 2b bf 2b : c V : bf 2b b8 c : d c : de a 5c c...D:\acquire\ 0090: e 6d ATSC.mpg.. 00a0: h).. Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

18 03 Packet Token Identification Highlighted Printouts Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

19 New Problems data volume - Able to fill a 2TB drive in 1-2 days overall bitrate - Unable to perform disc operations without read/write buffer overruns Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

20 First Attempts at dealing with IO Bottlenecks vm.dirty background ratio=10 $ vmstat -n 1 procs memory swap io---- -system cpu----- r b swpd free buff cache si so bi bo in cs us sy id wa st vm.dirty background ratio=0 $ vmstat -n 1 procs memory swap io---- -system cpu----- r b swpd free buff cache si so bi bo in cs us sy id wa st Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

21 Forward Error Correction File Block 0 $ {2 Block File} -C -n 32 -skip c 65 3d f 63 6f File=sched_core d 38 2d 34 5f 6d 75 6c c 65 2d _multiple-75 File Block 1 $ {2 Block File} -C -n 32 -skip c 65 3d f 63 6f File=sched_core d 38 2d 34 5f 6d 75 6c c 65 2d _multiple-75 Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

22 Galois Field Galois Field Important Properties Any operation on element is another element in the field Finite - 2 n elements in a GF GF for 2 8 elements GF (2 8 ) = x 8 + x 4 + x 3 + x (1) Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

23 Galois Field Math Operations Galois Field Math Operations addition - XOR subtraction - XOR multiplication - lookup table of 2 16 elements division - lookup table of 2 16 elements Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

24 Vandermonde FEC Equations for Vandermonde n/k FEC y k = x n G (2) x n = z n A 1 (3) Variable x n y k z n G A 1 Description Original Data Transmitted Codewords Received Codewords Generator Matrix Repair Matrix Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

25 FEC Example Part 1 Vandermonde Matrix 1 α 1 α1 2 α n α 2 α2 2 α n 1 2 V = 1 α 3 α3 2 α3 n α m αm 2 αm n 1 (4) Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

26 FEC Example Part 2 2x3 Generator Matrix [ 1 1 ] (5) Figure: 2/3 Vandermode Matrix [ 1 0 ] (6) Figure: 2/3 Generator Matrix Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

27 FEC Example Part 3 Identity Matrix I n = (7) Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

28 FEC Example Part 4 Generating Code Words y k = x n G (8) y k = [ 1F F 7 ] [ 1 0 ] (9) y k = [ (1F 1) + (F 7 0) (1F 0) + (F 7 1) (1F 3) + (F 7 2) ] (10) y k = [ 1F F F 3 ] (11) y k = [ 1F F 7 D2 ] (12) Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

29 FEC Example Part 5 Generating the Repair Matrix [ ] 1 3 A = 0 2 [ ] A 1 1 8F = 0 8E (13) (14) Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

30 FEC Example Part 6 Regenerating Original Data x n = z n A 1 (15) x n = [ 1F D2 ] [ ] 1 8F 0 8E (16) x n = [ (1F 1) + (D2 0) (1F 8F ) + (D2 8E) ] (17) x n = [ 1F + 0 9E + 69 ] (18) x n = [ 1F F 7 ] (19) Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

31 C Example of FEC Header C Example /* 2/X FEC */ uint8_t fec_ g_ matrix_ 2_ x [4] = { 3,2, 2,3 }; /* 4/X FEC */ uint8_t fec_ g_ matrix_ 4_ x [16] = { 27,28,18,20, 28,27,20,18, 18,20,27,28, 20,18,28,27 }; Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32

32 Questions Questions and Answers Taylor Jacob (ReCon Brussels 2017) Satellite Based IP Content Delivery Network 27 Jan / 32
