SOFC. (Solid Oxide Fuel Cell, SOFC) Co 0.2 Fe 0.8 O 3- (LSCF) Shao Ba 0.5 Sr 0.5 Co 0.8 Fe 0.2 O 3- (BSCF). 8,9) . 1) SOFC

Transcript

1 (Solid Oxide Fuel Cell, SOFC). 1) SOFC ,2,3-5) SOFC SOFC. (Intermediate Temperature-operating Solid Oxide Fuel Cell, IT-SOFC) 700. SOFC Fig. 1 ABO 3 SOFC. SOFC simple perovskite A B-site (A-site : lanthanide Sr, B-site : transition metal),. 6,7) IT - SOFC Steele Bae La 0.6 Sr 0.4 Co 0.2 Fe 0.8 O 3- (LSCF) Shao Ba 0.5 Sr 0.5 Co 0.8 Fe 0.2 O 3- (BSCF). 8,9) (mixed ionic and electronic conductor, MIEC) IT-SOFC. 8,9) Complex perovskite IT-SOFC (disordering) (coulomb potential), (elastic potential) (mobility). 10) Imperial college John Killer GdBaCo 2 O 5+ layered perovskite IT-SOFC. 11) oxygen deficient complex perovksite layered perovskite. 24

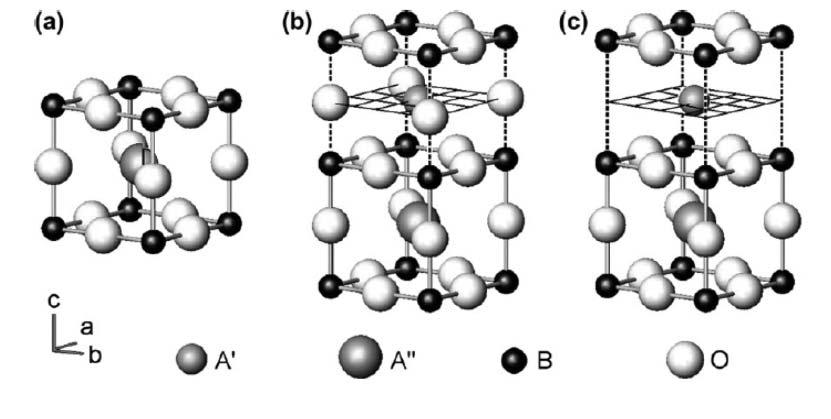

2 2.1. Complex perovskite layered perovskite Fig. 1 ABO 3 Spinel, complex perovskite layered perovskite. ABO 3 simple perovskite cubic A-site,,,. A-site 12 (Coordination Number, CN) B-site Co Fe simple perovskite A-site B-site complex perovskite A-site Sr (BO 6 ) 8. ABO 3 perovskite 90% A-site B-site perovskite simple perovskite A-site La Sr complex perovskite. La 1- xsr x CoO 3 A-site Co d. LSCF A-site La Sr B-site Co Fe complex perovskite. perovskite Sr Co. La 1-x Sr x Co 0.2 Fe 0.8 O 3- Sr 20 mol% orthorhombic La Sr rhombohedral cubic. 13) LSCF Sr rhombohedral rhombohedral cubic. 14) A / A // B 2 O 5+ (colossal magneto resistance, CMR). oxy-. 12) La 1-x Sr x CoO 3 (LSC) La 1-x Sr x Co 1-y Fe y O 3- (LSCF). LSC Fig. 1. Various cathode materials for SOFC. Fig. 2. Ordering of lanthanide A / and alkali-earth A // ions in the A-site sublattice of half-doped perovskites. (a) A simple cubic perovskite A / 0.5A // 0.5BO 3 (B is transition metal) with random occupation of A-sites is transformed into (b) a layered crystal A / A // B 2 O 6 by doubling the unit cell, provided the difference in ionic radii of A / and A // ions is sufficiently large. (c) Oxygen atoms can be partially or completely removed from lanthanide planes, providing a variability of the oxygen content in A / A // B2O5+, where 0< <1. 10) 25

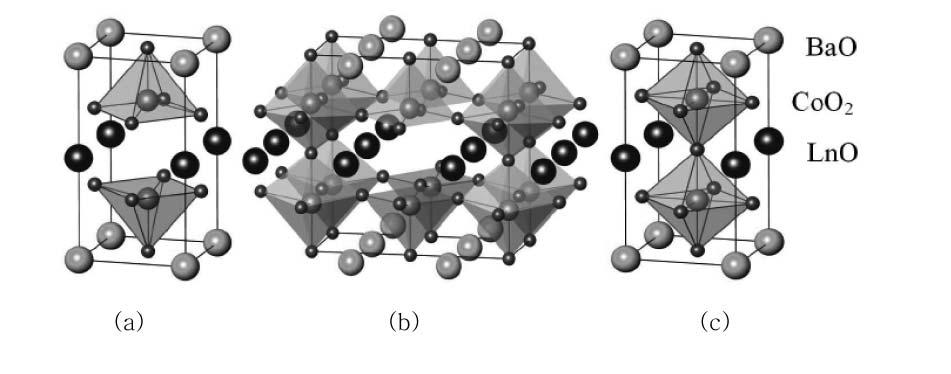

3 gen ion diffusivity surface exchange coefficient SOFC IT-SOFC 11, 15-20). A / A // B 2 O 5+ layered perovkite double layered perovskite A-site ordering. ABO 3 A-site oxygen disordering. layered perovskite Taskin GdBaMnO 5+ (cation sublattice) ordering oxygen transport oxygen uptake. 10,16) Fig ) Fig. 2 A / 0.5A // 0.5BO 3 Fig. 2(a) simple cubic perovskite Fig. 2(b) A / A // B 2 O 6 layered perovskite. Fig. 2(c) A / A // B 2 O 6 Ln A / A // B 2 O 5+ layered perovskite. B-site. B-site Mn A- site ordering disordering. B-site Co Mn ordering. Table 2. The Relation of Oxygen Content and Physical-chemical in LnBaCo 2 O 5+ Oxygen Charge Distribution The ionic content state of of various State radii of Co-O bond distance Cell volume ( ) Co Co state Co Co 2+ :50% Co 3+ :50% -Charge ordering of Co 3+ and Co 2 24,27) Co 3+ :100% -MIT (Metal-Insulation Transition) 1)Different Ln 23) 2)Spin-state transition of Co in octahedral place 28,29) layered perovskite LnBaCo 2 O 5+ Ln Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho Y lanthanide. 11,21-26) LnBaCo 2 O 5+ layered perovskite lanthanide tetragonal orthorhombic. Table 1 Tb, Dy Ho Pr Nd 2.2. Layered perovskite Table 1. The Relation of Compositions and their Structures with Respect to the Various Types of Lanthanides Structure PrBaCo 2 O 5+ Tetragonal NdBaCo 2 O 5+ Tetragonal SmBaCo 2 O 5+ Orthorhombic GdBaCo 2 O 5+ Orthorhombic Fig. 3. Crystal structure of the ordered LnBaCo2O5+ 26). 26

4 Table 3. LnBaCo 2 O 5+ Type Cathode Materials -Power density: 150 and 250 mw.cm -2 at 700 and 800 ) from the samples of GdBaCo 2O 5+ /YSZ/Ni-YSZ GdBaCo 2O 5+ 35) -Advanced power density: 300, 500 and 550 mw.cm -2 at 700, 800 and 900 from the samples of GdBaCo 2O 5+ /porous YSZ layer/ysz/ni-ysz properties -Decomposition of GdBaCo 2O 5+ under 500 ppm to 100% CO 2 -Stability under air condition for 100 hours at 500, 600 and 700 GdBaCo 2O 5+ -Reactivity with various electrolytes 36) -Area specific resistance (ASR): cm 2 at 650 on LSGM electrolyte. - Electrical conductivity: 570 S.cm -1 around , 170 S.cm -1 at 90 - ASR SmBaCo 2O 5+ (1) SBCO sintered at 1000 : cm 2 at ) (2) composite cathode (SBCO:50, mixture of 50wt% of SBCO and 50wt% of CGO): 0.250, cm 2 at 600 and 700. Thermal properties -TEC ( K -1 ) of SBSCO:50 at ASR (1) cm 2 at 572 GdBaCo 2O 5+ (2) cm 2 at ) (3) cm 2 at 621 (4) cm 2 at 645 -ASR from GBCO/CGO/GBCO (1)0.626.cm 2 at 625 properties -Oxygen surface exchange and oxide ionic diffusivity GdBaCo 2O 5+ (500~700 ) 37) oxygen surface exchange(cm.s -1 ) oxide ionic diffusivity(cm 2.s -1 ) 1.6x x x x x x10-9 properties -Oxygen surface exchange and oxide ionic diffusivity (350 ) PrBaCo 2O 5+ oxygen surface exchange(cm.s -1 ) oxide ionic diffusivity(cm 2.s -1 ) 15) ~x10-3 ~x10-5 Structural changes with respect to the Sr substitution NdBaCo -Tetragonal (x=0 and 0.6) 2O 5+ (NBCO) -ASR from NBCO/CGO/NBCO (1)0.250 cm 2 at 700 tetragonal, Sm, Eu Gd orthorhombic. layered perovskite oxygen content (5+ ) oxygen content A-site Ln. Fig. 3 LnBaCo 2 O 5+ Ln 3+ Ba 2+ c 33) Fig. 4. Schematic crystal structure of LnBaCo2O5+ with, from left to right, (a) =0, (b) =0.5, and (c) =1. 32) ordering. Ln layer. Ln Ln Ba 2+ CO 5 pyramid CO 6 octahedral. 23,24) layered perovskite. 1)A-site ordering : Ln Ba 2)Ln layer 3) CO 5 pyramid CO 6 octahedral. LnBaCo 2 O 5+ Table 2 layered perovskite oxygen contents. 23, 24, 27-29) layered perovskite oxygen content.30) 0 LnBaCo 2 O 5 Fig. 4 (a). Co CO 5 pyramid 1 Fig. 4(c) CO 6 octahedral. 0.5 Fig. 4(b) CO 5 CO 6 Ln-O 27

5 . (001). Co. Co 3+ CO 5 intermediate spin state (t 5 2ge 1 g) CO 6 low spin state (t 6 2ge 0 g) high spin state (t 4 2ge 2 g). spin state oxygen content 5.5 metal insulator transition (MIT) K. 31) 350K metallic SOFC Layered perovskite A / A // B 2 O 5+ layered perovskite LnBaCo 2 O 5+. A / A // B 2 O 5+ A / -site lanthanide A // -site Ba. B-site simple complex perovskite Co Fe IT-SOFC LnBaCo 2 O 5+ type LnBaCo 2 O 5+ Table 3. MIEC Ln lanthanide Pr, Nd, Sm Gd PrBaCo 2 O 5+ (PBCO) 15), NdBaCo 2 O 5+ (NBCO) 33), SmBaCo 2 O 5+ (SBCO) 34) GdBaCo 2 O 5+ (GBCO) 11, 35-37). Fig. 5(a) SBCO 34) 200~ S.cm -1, S.cm Ω.cm 2. Co complex perovskite ( K -1 ). 34) PBCO oxygen surface exchange oxide ionic diffusivity GBCO. 15) 350 PBCO oxygen surface exchange 10-3 (cm.s -1 ) oxide ionic diffusivity 10-5 (cm 2.s -1 ) 15) 300 GBCO oxygen surface exchange( cm.s -1 ) oxide ionic diffusivity ( cm 2.s -1 ). 37) LnBa 1-x Sr x Co 2 O 5+ type LnBa 1-x Sr x Co 2 O 5+ LnBaCo 2 O 5+ layered perovskite A-site Sr layered perovskite. Ln lanthanide Pr, Nd, Sm Gd Sr Table 4. LnBa 1-x Sr x Co 2 O 5+ Sr 0 x 1 IT-SOFC Sr 0.5 mol%. University of St. Andrews Irvine Table 4. LnBa 1-x Sr x Co 2 O 5+ Type Cathode Materials -ASRs from PBSCO/CGO/PBSCO PrBa 0.5Sr 0.5Co 2O 5+ (1)0.689 cm 2 at 600 (PBSCO) (2)0.286 cm 2 at ) (3)0.154 cm 2 at ASRs from SBSCO/CGO/SBSCO (1)0.611 cm 2 at 600 (2)0.244 cm 2 at 650 SmBa 0.5Sr 0.5Co 2O 5+ (3)0.092 cm 2 at ) (SBSCO) -ASR from SBSCO/DLE(CGO coated on 8YSZ)/SBSCO (1)0.196 cm 2 at 600 (2)0.052 cm 2 at 650 (3)0.033 cm 2 at 700 -ASR from SBSCO/CGO/SBSCO GdBa 0.5Sr 0.5Co 2O 5+ (1)1.252 cm 2 at 600 (GBSCO) (2)0.558 cm 2 at ) (3)0.253 cm 2 at 700 Structural changes with respect to the Sr substitution -Tetragonal (x=0 and 0.6) NdBa 0.5Sr 0.5Co 2O 5+ (NBSCO) -ASR from NBSCO/CGO/NBSCO 33) (1)0.11 cm 2 at

6 Ω.cm 2. 38) YSZ CGO Ω.cm 2 YSZ CeO 2 Sr layered perovskite. University of St. Andrews Irvine LnBa 0.5 Sr 0.5 Co 2 O 5+ layered perovskite lanthanide Fig. 5. Electrical conductivities of (a) SmBaCo2O5+ 34) and (b) SmBa0.5Sr0.5Co2O5+ 39) as a function of temperature. Sr 0.5 mol% SmBa 0.5 Sr 0.5 Co 2 O 5+ (SBSCO) 0.5mol%. 38) SBSCO Ce 0.9 Gd 0.1 O 2- (CGO91) (Area Specific Resistance, ASR) Ω.cm Ω.cm 2. SBSCO Fig. 5(b) 50 (1280 S.cm -1 ) 900 (280 S.cm -1 ) Metallic Fig. 5(a) SBCO MIT. 39) YSZ YSZ CGO Ω.cm 2 Pr Nd PrBa 0.5 Sr 0.5 Co 2 O 5+ (PBSCO) NdBa 0.5 Sr 0.5 Co 2 O 5+ (NBSCO) (neutron diffraction). 40) PBSCO NBSCO [Pr- O] [Nd-O] (2a p 2a p 2a p ). layered perovskite (DC 4 probe) 300 metallic (2a p 2a p 2a p ) (a p a p 2a p ). 40) LnBaCo 2 O 5+ -composite type Table 5. LnBaCo 2 O 5+ -composite Type Cathode Materials PrBaCo 2 O 5+ -Composite -ASR from PBCO-composite/CGO/ PBCO-composite 15) (1)0.150 cm 2 at 600 NdBaCo 2 O 5+ -composite -ASR from NBCO:50/CGO/NBCO:50 33) (1)0.061 cm 2 at

7 Table 6. LnBa 1-x Sr x Co 2 O 5+ - composite Type Cathode Materials -ASR from SBSCO:50/ DLE(CGO coated on 8YSZ)/SBSCO:50 SmBa 0.5Sr 0.5Co 2O 5+ (1)0.124 cm2 at ) -Composite (2)0.040 cm 2 at 650 (3)0.019 cm 2 at 700 -ASR from SBSCO:50/CGO/SBSCO:50 (1)0.102 cm 2 at 600 SmBa 0.5Sr 0.5Co 2O 5+ (2)0.038 cm2 at ) -Composite (3)0.016 cm 2 at 700 -Electrical conductivity Maximum (1280 S.cm -1 at 50 ) and minimum (280 S.cm -1 at 900 ) NdBa 0.5Sr 0.5Co 2O 5+ -ASR from NBSCO:50/CGO/NBSCO:50 33) -Composite (1)0.038 cm 2 at 700 Fig. 6. Area specific resistance results for various composite cathodes of CGO91 with SBSCO onto CGO91 electrolyte. 39) The chemical composition of SBSCO:10 indicates the composite cathode comprised of 90 wt% SBSCO and 10 wt% CGO91. In addition, SBSCO:50 displays the composite cathode with 50 wt % SBSCO and 50 wt% CGO91. layered perovskite Table 5. PrBaCo 2 O 5+ (PBCO) CeO 2 composite layered perovskite. 15) PBCO-composite ( ) / CGO ( )/ PBCO-composite ( ) Ω.cm 2 15) NdBaCo 2 O 5+ (NBCO) CGO91 1: Ω.cm 2. 33) LnBa 1-x Sr x Co 2 O 5+ - composite type LnBa 1-x Sr x Co 2 O 5+ Ln Sm Ba Sr 0.5 mol% SmBa 0.5 Sr 0.5 Co 2 O 5+ (SBSCO) CGO91 1:1 SBSCO-composite Ω.cm Ω.cm 2 (Fig.6). 39) NdBa 0.5 Sr 0.5 Co 2 O 5+ (NBSCO) NBSCO-composite Ω.cm 2. 33). Fig. 7. Thermal expansion coefficient results as a function of weight percentages of CGO91 with SBSCO from room temperature to 500, 700, and ) Table 7. LnBaM 2 O 5+ Type Cathode Materials Structural changes with respect to the Ni substitution -Tetragonal (0 x 0.4), Orthorhombic (x=0.6) NdBaCo 2-xNixO 5+ 43) -Power density: maximum power density (560, 350 and 220 mw.cm -2 at 800, 750 and 700 ) Cathode for proton conducting oxide GdBaCoFeO 5+ -Power density: maximum power density 42) (482 mw.cm -2 at 700 ) Thermal properties -TEC ( K -1 ) in the temperature ranges of SmBaCu 2O 5+ -Electrical conductivity: S.cm-1 around at 610 -ASR : 41) (1) cm 2 at 600 (2) cm 2 at 650 (3) cm 2 at

8 Table 6. Fig. 7 SBSCO SOFC K -1. Co layered perovskite. SBSCO-composite K -1 CGO YSZ. 39) LnBa 1-x Sr x Co 2 O 5+. Table 8. LnBa 1-x Sr x M 2 O 5+ Type Cathode Materials Thermal properties -TEC ( K -1 ) of SBSCO and ( K -1 ) of SBSCFO in the temperature ranges of Maximum electrical conductivity: S/cm SmBa 0.5Sr 0.5Cu 2O 5+ -ASR from SBSCO/SDC/SBSCO (SBSCO) and (1) cm 2 at ) SmBa 0.5Sr 0.5CuFeO 5+ (2) cm 2 at 650 (SBSCFO) (3) cm 2 at 700 -ASR from SBSCFO/SDC/SBSCFO (1) cm 2 at 600 (2)1.045 cm 2 at 650 (3) cm 2 at LnBaM 2 O 5+ type Layered perovskite B-site Co Fe Cu Table 7. SmBaCu 2 O 5+ 41) SmBaCo 2 O 5+ ( : K -1 ). Cu S.cm Ω.cm Ω.cm 2. GdBaCoFeO 5+ proton conducting oxide GdBaCoFeO 5+ / BaZr 0.1 Ce 0.7 Y 0.2 O 3- (BZCY7) / Ni- BZCY mw.cm ) Ni. NdBaCo 2-x NixO 5+ Ni Tetragonal(0 x 0.4) Orthorhombic Co Ni oxidation state oxygen content (5+ ). NdBaCo 1.6 Ni 0.4 O 5+ /GDC/LDC/Ni-CGO mw. cm ) LnBa 1-x Sr x M 2 O 5+ type Table 8 SmBa 0.5 Sr 0.5 Co 2 O 5+ Cu SmBa 0.5 Sr 0.5 Cu 2 O 5+ SmBa 0.5 Sr 0.5 Co 2 O 5+ ( K -1 ). 44) Cu Ω.cm Ω.cm 2. 44) B-site Cu Fe SmBa 0.5 Sr 0.5 Cu Fe 2 O 5+ SmBa 0.5 Sr 0.5 Cu 2 O SmBa 0.5 Sr 0.5 Cu 2 O 5+ ( K -1 ). SmBa 0.5 Sr 0.5 CuFe 2 O Ω.cm Ω.cm 2. IT-SOFC layered perovskite. simple perovskite complex perovskite layered perovskite oxygen ion diffusivity surface exchange coefficient. SOFC,,. 31

9 . Layered perovskite. layered perovskite. 1. A. E. Lutz, R. S. Larson, and J. O. Keller, Thermodynamic Comparison of Fuel Cells to the Carnot Cycle, Int. J. Hydrogen Energ., (2002). 2. R. O Hayre, S. W. Cha, W. Colella, and Fritz B. Prinz, Fuel Cell Fundamentals, Wiley, New York, USA, G. Hoogers, Fuel Cell Technology, CRC, USA, S. C. Singhal and K. Kendall, High Temperature Solid Oxide Fuel Cells : Fundamentals, Design and Applications, Elsevier, Oxford, UK, B. C. H. Steele and A. Heinzel, Materials for Fuel Cell Technologies, Nature, (2001). 6. W. Chen, T. Wen, H. Nie, and R. Zheng, Study of Ln 0.6 Sr 0.4 Co 0.8 Mn 0.2 O 3 (Ln = La, Gd, Sm, or Nd) as the Cathode Materials for Intermediate Temperature SOFC, Mater. Res. Bull., (2003). 7. S. Hashimoto, K. Kammer, P. Larsen, F. Poulsen, and M. Mogensen, A Study of Pr 0.7 Sr 0.3 Fe 1-x Ni x O 3- as a Cathode Material for SOFCs with Intermediate Operating Temperature, Solid State Ionics, (2005). 8. B. C. H. Steele and J. M. Bae, of La 0.6 Sr 0.4 Co 0.2 Fe 0.8 O 3-x (LSCF) Double Layer Cathodes on Gadolinium Doped Cerium Oxide (CGO) Electrolytes, Solid State Ionics, (1998). 9. Z. Shao, and S. M. Haile, A High Performance Cathode for The Next Generation Solid Oxide Fuel Cells, Nature, (2004). 10. A. A. Taskin, A. N. Lavrov, and A. Yoichi, Fast Oxygen Diffusion in A-Site Ordered Perovskites, Prog. Solid State Chem., (2007). 11. C. Aimin, J. S. Stephen, and A. K John, Electrical of GdBaCo 2 O 5+x for IT-SOFC Applications, Solid State Ionics, (2006). 12. S. Trasatti, Electrodes of Conductive Metallic Oxides Part A, B, Elsevier Scientific Publishing Co., Amsterdam, 1980, L.-W. Tai, M. M. Nasrallah, H. U. Anderson, D. M. Sparlin and S. R. Sehlin, Structure and Electrical of La 1-x Sr x Co 1-y Fe y O 3. Part 2. The system La 1-x Sr x Co 0.2 Fe 0.8 O 3, Solid State Ionics, (1995). 14. S. Wang, M. Katsuki, M. Dokiya, and T. Hashimoto, High Temperature of La 0.6 Sr 0.4 Co 0.8 Fe 0.2 O 3- Phase Structure and Electrical Conductivity, Solid State Ionics, (2003). 15. G. Kim, S. Wang, A. J. Jacobson, L. Reimus, P. Brodersen, and C. A. Mims, Rapid Oxygen Ion Diffusion and Surface Exchange Kinetics in PrBaCo 2 O 5+x with a Perovskite Related Structure and Ordered A Cations, J. Mater. Chem., (2007). 16. Taskin, A.A., A.N. Lavrov, and Y. Ando, Achieving Fast Oxygen Diffusion in Perovskites by Cation Ordering, Appl. Phys. Lett., 86 [9] ~ (2005). 17. F. Millange, V. Caignaert, B. Domenges, and B. Raveau, Order-Disorder Phenomena in New LaBaMn 2 O 6-x CMR Perovskites. Crystal and Magnetic Structure, Chem. Mater., (1998). 18. T. Nakajima, H. Kageyama, and Y. Ueda, Successive Phase Transitions in a Metal-ordered Manganite Perovskite YBaMn 2 O 6, J. Phys. Chem. Solids, (2002). 19. S. V. Trukhanov, I. O. Troyanchuk, M. Hervieu, H. Szymczak, and K. Barner, Magnetic and Electrical of LBaMn 2 O 6- (L=Pr, Nd, Sm, Eu, Gd, Tb) Manganites, Phys. Rev. B: Condens. Mater., ~ (2002). 20. D. Akahoshi, M. Uchida, Y. Tomioka, T. Arima, Y. Matsui, and Y. Tokura: Random Potential Effect near the Bicritical Region in Perovskite Manganites as Revealed by Comparison with the Ordered Perovskite Analogs, Phys. Rev. Lett., ~ (2003). 21. I. O. Troyanchuk, N. V. Kasper, and D. D. Khalyavin, Magnetic and Electrical Transport of Orthocobaltites R 0.5 Ba 0.5 CoO 3 (R=La, Pr, Nd, Sm, Eu, Gd, Tb, Dy), Phys. Rev. B, (1998). 22. Y. Moritomo, M. Takeo, X. J. Liu, T. Akimoto, and A. Nakamura, Metal-insulator Transition due to Charge Ordering in R 1/2 Ba 1/2 CoO 3, Phys. Rev. B, 58 R (1998). 23. A. Maignan, C. Martin, D. Pelloquin, N. Nguyen, and B. Raveau, Structural and Magnetic Studies of Ordered Oxygen-Deficient Perovskites LnBaCo 2 O 5+d, Closely Related to the 112 Structure, J. Solid. State Chem., (1999). 24. T. Vogt, P. M. Woodward, P. Karen, B. A. Hunter, P. Henning, and A. R. Moodenbaugh, Low to High Spin-State Transition Induced by Charge Ordering in Antiferromagnetic YBaCo 2 O 5, Phys. Rev. Lett., 84 32

10 (2000). 25. C. Martin, A. Maignan, D. Pelloquin, N. Nguyen, and B. Raveau, Magnetoresistance in the Oxygen Deficient LnBaCo 2 O 5.4 (Ln=Eu, Gd) Phases, Appl. Phys. Lett., (1997). 26. J.-H. Kim and A. Manthiram, LnBaCo 2 O 5+d (Ln = La, Nd, Sm, Gd, and Y) Oxides as Cathodes for Intermediate Temperature Solid Oxide Fuel Cells, J. Electrochem. Soc., 155 [4] B (2008). 27. Suard, E.; Fauth, F.; Caignaert, V.; Mirebeau, I.; Baldinozzi, G. Charge Ordering in the Layered Cobased Perovskite HoBaCo 2 O 5, Phys. Rev. B, 61 R (2000). 28. F. Fauth, E. Suard, V. Caignaert, and I. Mirebeau, Spin - State Ordered Clusters in the Perovskite Nd BaCo 2 O 5.47, Phys. Rev. B, ~ (2002). 29. H. Wu, Spin State and Phase Competition in TbBaCo 2 O 5.5 and the Lanthanide Series LBaCo 2 O 5+ (0 1), Phys. Rev. B, ~ (2001). 30. K. Conder, A. Podlesnyak, E. Pomjakushina, and M. Stingaciu, Layered Cobaltites: Synthesis, Oxygen Nonstoichiometry, Transport and Magnetic, Acta Phy. Polon. A, (2007). 31. A. A. Taskin, A. N. Lavrov, and Yoichi Ando, Transport and Magnetic of GdBaCo 2 O 5+x Single Crystals: A Cobalt Oxide with Square Lattice CoO 2 Planes over a wide Range of Electron and Hole Doping, Phys. Rev. B, ~ (2005). 32. Harlan U. Anderson, Review of P-type Doped Perovskite Materials for SOFC and Other Applications, Solid State Ionics, (1992). 33. J. H. Kim and J. T.S. Irvine, Characterization of Layered Perovskite Oxides NdBa 1-x Sr x Co 2 O 5+ (x =0 and 0.5) as Cathode Materials for IT-SOFC, Int. J. Hydrogen Energ., (2012). 34. J. H. Kim, Y. Kim, P. A. Connor, J. T. S. Irvine, J. Bae, and W. Zhou, Structural, Thermal and Electrochemical of Layered Perovskite SmBaCo 2 O 5+d, a Potential Cathode Material for Intermediate-Temperature Solid Oxide Fuel Cells, J. Pow. Sour., (2009). 35. A. Tarancón, A. Morata, G. Dezanneau, S. J. Skinner, J. A. Kilner, S. Estradé, F. Hernández-Ramírez, F. Peiró, and J.R. Morante GdBaCo 2 O 5+x Layered Perovskite as an Intermediate Temperature Solid Oxide Fuel Cell Cathode, J. Pow. Sour., (2007). 36. A. Tarancón, J. Peña-Martínez, D. Marrero-López, A. Morata, J.C. Ruiz-Morales, and P. Núñez, Stability, Compatibility and Electrochemical Performance of GdBaCo 2 O 5+x Layered Perovskite as a Cathode for Intermediate Temperature Solid Oxide Fuel Cells, Solid State Ionics, (2008). 37. A. Tarancón, S. J. Skinner, R. J. Chater, F. Hernández-Ramírez, and J. A. Kilner, Layered Perovskites as Promising Cathodes for Intermediate Temperature solid Oxide Fuel cells, J. Mater. Chem., (2007). 38. J. H. Kim, M. Cassidy, J. T. S. Irvine, and J. Bae, Advanced Electrochemical of Ln Ba 0.5 Sr 0.5 Co 2 O 5+ (Ln = Pr, Sm, and Gd) as Cathode Materials for IT-SOFC, J. Electrochem. Soc., 156 [6] B (2009). 39. J. H. Kim, M. Cassidy, J. T.S. Irvine, and J. Bae, Electrochemical Investigation of Composite Cathodes with SmBa 0.5 Sr 0.5 Co 2 O 5+ Cathodes for Intermediate Temperature-Operating Solid Oxide Fuel Cell, Chem. Mater., (2010). 40. A. K. Azad, J. H. Kim, and J. T. S. Irvine, Structureproperty Relationship in Layered Perovskite Cathode LnBa 0.5 Sr 0.5 Co 2 O 5+ (Ln = Pr, Nd) for Solid Oxide Fuel Cells, J. Pow. Sour., (2011). 41. X. Kong and X. Ding, Novel Layered Perovskite SmBaCu 2 O 5+ as a Potential Cathode for Intermediate Temperature Solid Oxide Fuel Cells, Int. J. Hydrogen Energ., (2011). 42. H. Ding and X. Xue Novel Layered Perovskite GdBaCoFeO 5+ as a Potential Cathode for Proton- Conducting Solid Oxide Fuel Cells, Int. J. Hydrogen Energ., (2010). 43. J.H. Kim and A. Manthiram, Layered NdBaCo 2-x Ni x O 5+d Perovskite Oxides as Cathodes for Intermediate Temperature Solid Oxide Fuel Cells, Electroch. Acta, (2009). 44. X. Ding X. Kong, H. Wu, Y. Zhu, J. Tang, and Y. Zhong, SmBa 0.5 Sr 0.5 Cu 2 O 5+ and SmBa 0.5 Sr 0.5 CuFeO 5+ Layered Perovskite Oxides as Cathodes for IT-SOFCs, Int. J. Hydrogen Energ., (2012). 33
