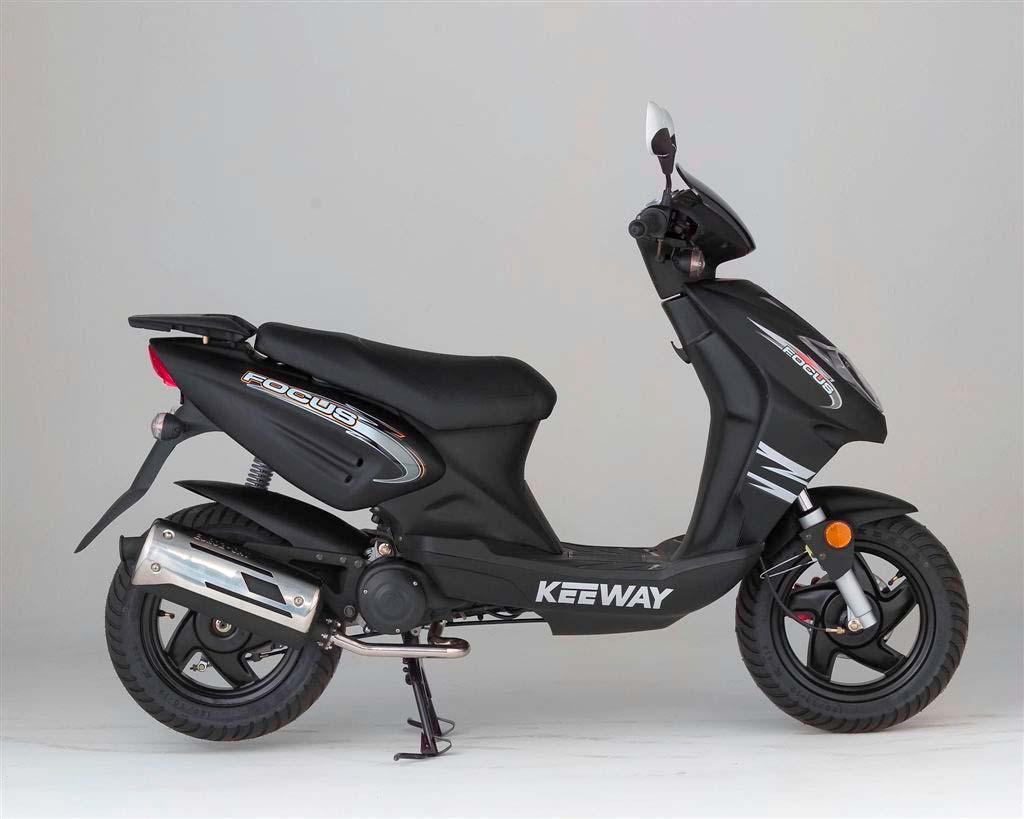

Spare Parts Catalog Focus (BMTM) Euro-2
|
|
|
- Ê Παπαγεωργίου
- 6 χρόνια πριν
- Προβολές:
Transcript
1 Spare Parts Catalog Focus (BMTM) Euro-2 Focus (25 KM-1C) Focus (30 KM-1C) Focus (45 KM-1C) CARL ANDERSEN MOTORCYKLER A/S Niels Bohrs Vej 15, Stilling Postboks 680 DK-8660 Skanderborg Telefon Telefax
2 E01 CYLINDER HEAD ASSY(45KM) New EURO NO. PART NO. DESCRIPTION QTY Remarks HEAD,CYLINDER 1 NEW EURO B01F000 GASKET,CYLINDER HEAD SPARK PLUG (BR7ES) 1 NEW EURO CYLINDER, EURO GASKET,CYLINDER 1 Non asbestos B01F910 STUD BOLT NUT M7 4
3 E01 CYLINDER HEAD ASSY(30KM,25KM) NO. PART NO. DESCRIPTION QTY Remarks HEAD,CYLINDER 1 NEW EURO B01F000 GASKET,CYLINDER HEAD SPARK PLUG 1 BR7ES CYLINDER (BR7ES) GASKET,CYLINDER 1 Non asbestos B01F910 STUD BOLT NUT M NUT, BREAK BOLT 1 with speed limit
4 E02 CRANKCASE ASSY NO. PART NO. DESCRIPTION QTY Remarks CRANKCASE,LH G02F000 BUSH,ENGINE MOUNTING 1 3 B BEARING RS B09F001 CRANKCASE,RH G02F000 BRAKE SHOE G02F000 DOWEL PIN 12* PAN HEAD SCREW M6*35 6 chromeplate B09F000 AXLE,engine mount 1 9 B CIRCLIP B NUT M B09F000 BEARING HOLDER 1 12 B PAN HEAD SCREW M6* J01F000 O-RING G02F000 DOWEL PIN 12* MISSION CASE GASKET 1 Non asbestos B09F000 COVER, GEAR BOX OIL PLUG 1 black color G02F000 O RING FLANGE BOLT 1 chromeplate H03F000 PLATE WASHER 8 1
5 E02 CRANKCASE ASSY NO. PART NO. DESCRIPTION QTY Remarks G02F910 OIL SEAL HOLDER PAN HEAD SCREW M6*12 1 colored zinc GASKET 1 Non asbestos SCREW M8Χ SCREW M8Χ BUSH 1
6 E03 SIDECOVER ASSY NO. PART NO. DESCRIPTION QTY Remarks GASKET,L CRANKCASE 1 Non asbestos L CRANKCASE COVER 1 KEEWAY G02F000 IDLE GEAR J01F000 DOWEL PIN 10* PAN HEAD SCREW M6X25 8 chromeplate PAN HEAD SCREW M6X35 1 chromeplate PAN HEAD SCREW M6X65 1 chromeplate F5 SCREW ST3.5X14 6 chromeplate B09F000 AIR DUCT-OUTLET B09F000 AIR DUCT-INLET B09F000 FILTER ASSY 1
7 E04 PISTON CRANKSHAFT CONNECTING ROD ASSY NO. PART NO. DESCRIPTION QTY Remarks CRANKSHAFT,ASSY B09F000 PISTON 1 EU II B16F000 PISTON PIN B09F000 PISTON RING 2 AVL G02F000 CIRCLIP B16F000 NEEDLE BEARING B01F000 WOODRUFF KEY 3*5* B BEARING 6204/P53 2 TPI G02F000 OIL SEAL 20*42* G02F000 OIL SEAL ASSY 20*30* G02F000 COLLAR G02F000 CIRCLIP 1
8 E05 OIL PUMP ASSY NO. PART NO. DESCRIPTION QTY Remarks OIL PUMP ASSY 1 with 502 mark 2 B SCREW M5* G02F000 PUMP DRIVE GEAR 1 4 B C0 PIN C3* G02F910 CIRCLIP HOSE,OIL INLET G02F00A HOSE CLIP 2 chromeplate HOSE,OIL OUTLET G02F00A HOSE CLIP 2 chromeplate
9 E06 AIR COOLING SYSTEM NO. PART NO. DESCRIPTION QTY Remarks B01F000 COWLING,cylinder G02F000 GROMMET B09F000 COELING,fan 1 AVL G02F000 MOLD,cowling with dusty proof COELING ASSY,fan 1 cover with keeway B01F000 FAN ASSY G02F000 RUBBER RING 70* B SCREW M6* B SPRING WASHER Ø B WASHER Ø G02F000 PLATE G02F000 MOLD,cowling B09F000 COLLOR COVER 1 keeway logo 15 B SCREW M4*35 3 chromeplate
10 E07 KICK STARTER ASSY NO. PART NO. DESCRIPTION QTY Remarks G02F000 START GEAR ASSY G02F000 NEEDLE BEARING G02F000 THRUST WASHER G02F00A START HOLDER ASSY G02F000 DRIVEN GEAR,STARTER G02F000 IDLE GEAR SHAFT G02F000 PLATE WASHER G02F000 IDLE GEAR HOLDER 1 9 B SCREW M6* SCREW M6* SHAFT, kick starter G02F000 SPRING BUSH WASHER,kick starter CIRCLIP 15 1 colored zinc G02F000 KICK PINION ASSY G02F930 CLIP STARTING MOTOR ASSY 1 colored zinc 19 B B0 O-RING 20* G02F000 PLATE WASHER START CLUTCH ASSY 1
11 E08 CLUTCH ASSY NO. PART NO. DESCRIPTION QTY Remarks B09F000 PRIMARY DRIVE SHAFT 1 DRIVEN PULLY and CLUTCH B01F000 1 ASSY B09F00F WASHER(45KM) 1 width 3.2 EU II B09F00J WASHER(30KM) 1 width B09F00E WASHER(25KM) 1 width 8.2 EU II25 4 B CIRCLIP 1 5 B BEARING B09F000 OIL SEAL 17*35* B01F000 CLUTCH ASSY,shoe B01F000 SPRING G02F000 NUT M28* G02F000 HOUSING G02F940 NUT M10* G02F000 O-RING 6.7* G02F000 BEARING 638Z B09F000 FACE,movable drive 1 1set ROLLER(6 pieces) s( G02F000 PLATE,movable drive 1 6.3g G02F000 DAMPER G02F000 COLLER B01F000 WASHER B01F000 V BELT,DRIVE 1
12 E08 CLUTCH ASSY NO. PART NO. DESCRIPTION QTY Remarks B09F000 FACE,FIXED DRIVE G02F000 PLATE,WOODRUFF KEY STARTING DISC G02F010 WASHER,SPRING 1 25 B NUT M12* G02F000 FACE,FIXED DRIVEN G02F000 FACE,MOVEABLE DRIVEN G02F000 OIL SEAL 33* G02F000 O-RING 1.7* G02F000 PIN,GUIDE B01F000 SPRING G02F000 BEARING G02F930 SEAT,SPRING B09F000 DRIVE ASSY SHIFT ASSY 1 6.3g
13 E9 TRANSMISSION SYSTEM ASSY NO. PART NO. DESCRIPTION QTY Remarks B09F000 SHAFT,IDLE 1 2 B BEARING J01F000 WASHER,thrust Ø B09F000 SHAFT,REAR BOX 1 5 B NEEDLE BEARING RS B09F000 OIL SEAL 25*44*7 1 7 B NEEDLE BEARING
14 E10 REED VALVE ASSY(45KM) NO. PART NO. DESCRIPTION QTY Remarks G02F000 REED VALVE ASSY 1 double valve, normal VALVE SEAT GASKET 1 Non asbestos SCREW M6*20 3 chromeplate G02F000 PIPE, intake CLIP SCREW 1 chromeplate
15 E10 REED VALVE ASSY(30KM,25KM) NO. PART NO. DESCRIPTION QTY Remarks G02F000 REED VALVE ASSY 1 double valve, normal VALVE SEAT GASKET 1 Non asbestos SCREW G02F000 PIPE, intake CLIP 1 stainless SCREW 1
16 E11 MAGNETO ASSY NO. PART NO. DESCRIPTION QTY Remarks COIL ASSY MAGNETO ASSY G02F000 PULSE TRIGGER G02F000 OIL SEAT 1 5 B SCREW M5* B SCREW M5* B SCREW M4*6 1 8 B SPRING WASHER FLY WHEEL ASSY B WASHER HV H03F000 NUT M12* B NUT M6*16 2
17 E12 CARBURETOR, ASSY(45KM) NO. PART NO. DESCRIPTION QTY Remarks B01F000 NEEDLE, jet B01F000 VALVE,PISTON 1 25mm JET, main 1 47, B01F000 ELECTRIC CHOKER 1 connection B01F000 PIN, float B01F000 FLOAT B01F000 GASKET CARBURETOR ASSY 1
18 E12 CARBURETOR, ASSY(30KM) NO. PART NO. DESCRIPTION QTY Remarks B01F000 NEEDLE, jet B01F000 VALVE,PISTON 1 28mm JET, main B01F000 ELECTRIC CHOKER 1 connection B01F000 PIN, float B01F000 FLOAT B01F000 GASKET CARBURETOR ASSY 1
19 E12 CARBURETOR, ASSY(25KM) NO. PART NO. DESCRIPTION QTY Remarks B01F000 NEEDLE, jet VALVE,PISTON 1 32mm JET, main B01F000 ELECTRIC CHOKER 1 lengthened to B01F000 PIN, float B01F000 FLOAT B01F000 GASKET CARBURETOR ASSY 1
20 F01 STEERING BMBT001 HANDLE COMP. 1 2 B FLANGE BOLT M10X1.25X B U NUT M10X BMBT000 GRIP L BMBT000 GRIP R., ASSY BM0T000 CABLE THROTTLE 2 (LOWER) BM0T000 CABLE THROTTLE 1 (UPPER) BM0T001 CABLE THROTTLE, ASSY BM0T000 JACKET,RR. BRAKE CABLE 1 10 B PAN HEAD SCREW M5X BMBT000 BRAKE CABLE REAR, ASSY. 1 new focus 1/31
21 F02 LEVER/HANDLE SWITCH BM0T000 HANDLE SWITCH LH., ASSY BM0T000 LEFT LEVER, LH. (145MM) BMAT000 LEVER MOUNTING SCREW M5 1 4 B NUT 5MM BMAT000 STOP SWITCH ASSY BM0T000 HANDLE SWITCH RHASSY BM0T000 HANDLE SWITCH RH BM0T000 R. SWITCH FIXING SEAT 1 9 B SCREW 5X20MM 2 10 B SCREW 5X25MM BM0T000 HANDLE SWITCH, LH BM0T000 SWITCH FIXING SEAT, LH B WASHER 5MM 1 new focus 2/31
22 F03 FRONT FORK BMBT001 FRONT FORK RH., ASSY BMBT001 FRONTFORK LH., ASSY BMBT003 STEM, STEERING BMAT000 NUT II BMBT001 BALL RACE COVER BMBT002 BALL RACE, CONNECTING 1 7 B STEEL BALLφ BMBT000 BALL RACE, BMBT000 BALL RACE, BMBT001 CAP BOLT BMAT000 CLIP, SPEEDOMETER CABLE K00P000 DUST SEAL K00P000 CLIP K00P000 OIL SEAL 2 15 B BOLT M6 x BMBT000 HOLDER, BRAKE HOSE BMBT001 FRONT FORK, ASSY BM0T003 HOLDER, BRAKE HOSE B FLANGE BOLT 10X1.25X B BOLT 6X16 2 new focus 3/31
23 F04/1 FRONT WHEEL (STEEL RIM) BM0T000 FRONTRIM COMP.3.5X12" (SILVER) 1 steel BM0TB40 FRONT RIM COMP.3.5X12 (MATT-BLACK B4) 1 steel BM0TR70 FRONT RIM COMP.3.5X12 (RED R7) 1 steel BM0TY50 FRONT RIM COMP.3.5X12 (YELLOW Y5) 1 steel BM0TL90 FRONT RIM COMP.3.5X12 (BLUE L9) 1 steel BM0T910 DISTANCE COLLAR COMP BM0T000 OIL SEAL 22X35X7, R. 1 4 B BALL BEARING RS 2 5 B140107D12AB TIRE 120/ B1403Z RIM VALVE 1 7 B U NUT 12X1.25MM G4CT000 FR. WHEEL AXLE BM0T000 COLLAR BM0T000 SPEEDOMETER GEAR COMP B1404Z2011C0 CAP, VALVE 1 new focus 4/31
24 F04/2 FRONT WHEEL (ALLOY RIM) BM0T00A FRONT RIM COMP.3.5X12 (SILVER) 1 alloy BM0TB4A FRONT RIM COMP.3.5X12 (MATT-BLACK B4) 1 alloy BM0TR7A FRONT RIM COMP.3.5X12 (RED R7) 1 alloy BM0TY5A FRONT RIM COMP.3.5X12 (YELLOW Y5) 1 alloy BM0TL9A FRONT RIM COMP.3.5X12 (BLUE L9) 1 alloy BM0T910 DISTANCE COLLAR COMP BM0T000 OIL SEAL 22X35X7 1 4 B BEARING RS 2 5 B140107D12AB TIRE 120/ B1403Z RIM VALVE 1 7 B FLANGE U NUT M12X G4CT000 FR. WHEEL AXLE M12X1.25X BM0T000 COLLAR BM0T000 SPEEDOMETER GEAR COMP B1404Z2011C0 CAP, VALVE 1 new focus 5/31

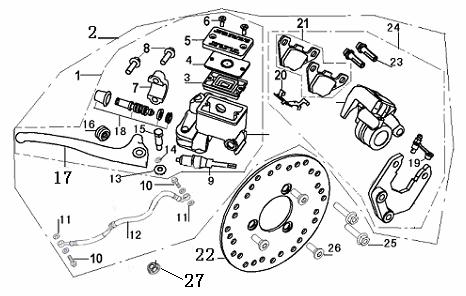

25 F05 FRONT DISK BRAKE stop switch, BMBTB30 CYLINDER COMP. 1 disc brake J4FTRN0 DISC BRAKEASSY,FR.(U P BLACK, DOWN RED) J1DT000 RESERVOIR DIAPHRAGM J1DT000 WASHER, CYLINDER BMBT000 RESERVOIR CAP 1 6 B FLAT HEAD SCREW J1DT000 MASTER CYLINDER BRACKET 1 8 B BOLT M6X23MM J3AT000 STOP SWITCH ASSY J00P000 UNION BOLT J00P000 PLATE WASHER BMBT000 FR. BRAKE HOSE 1 13 B NUT 6MM 1 14 B SPRING WASHER J1CT000 BOLT 6MM G0KP000 TENSION SPRING,LEVER J3AT000 DISC BRAKE LEVER J00P000 PISTON ASSY J00P000 BREED SCREW CAP G0CP000 PAD SUPPORT, J4FT000 BRAKE PAD KIT 1pair BMBTC20 BRAKE DISC G0CP000 GUIDE POLE J4FTRN0 CALIPER ASSY. (RED) J4FT000 BOLT M8X BMAT000 BOLT 3 27 B FLANGE NUT 3 new focus 6/31
26 F06/1 MUFFLER (45 KM) BMBT00A MUFFLER ASSY.(with catalyst) 1 45km/h 47000BMBT007 MUFFLER ASSY.(NO CATALYST) 1 45km/h BMBT005 MUFFLER JOINTING COMP BMBT004 MUFFLER JOINTING COMP..(NO CATALYST) BMBT000 MUFFLER.COVER, DECORATION BMBT000 EXHAUST PIPE COMP.(45km) 1 new EURO-2 5 B BOLT 6X16MM 2 6 B BOLT 8X35MM 1 7 B BOLT 8X20MM B00T000 GROMMET, EXHAUST PIPE 1 9 B NUT 6MM B0ET000 WASHER ASSY., FIXING BMBT000 GASKET, FLANGE 1 12 B SCREW 6X10MM 3 stainless 13 B SCREW 6X25MM 3 stainless 14 B SPRING WASHER 6 6 stainless 15 B WASHER 6MM 6 stainless Attention :The Page For 45 km Edition new focus 7/31
27 F06/2 MUFFLER (30KM & 25KM) BMBT00B MUFFLER ASSY.(30km/h) 1 30km/h BMBT00C MUFFLER ASSY.(25km/h) 1 25km/h BMBT005 MUFFLER JOINTING COMP BMBT000 MUFFLER.COVER, DECORATION BMBT001 EXHAUST PIPE COMP. (30km) 1 30km/h BMBT003 EXHAUST PIPE COMP.(25km) 1 25km/h BM0T000 SCREW M6X &30km/h 6 B BOLT M8X B BOLT M8X B00T000 GROMMET, EXHAUST PIPE 1 9 B NUT M6MM B0ET000 WASHER ASSY., FIXING BMBT000 GASKET, FLANGE 1 12 B SCREW M6X10 3 stainless 13 B SCREW M6X25 3 stainless 14 B SPRING WASHER 6 6 stainless 15 B WASHER 6 6 stainless BM0T001 SCREW M6X &30km/h Attention :The Page For 30km & 25km Edition new focus 8/31
28 F07 AIR CLEANER BMBT000 FILTER 1 2 B SCREW 4.2X20MM 5 3 B SCREW 6X20MM BM0T000 CLIP 42.5(GOLD COLORED) 1 5 B SCREW 4.2X12MM BMBT001 AIR CLEANER ASSY B0DT000 GUIDE, BRAKE CABLE 1 new focus 9/31
29 F08 FUEL TANK BMBT002 FUEL TANK COMP. 1 2 B BOLT 6X16MM BM0T000 FUEL COCK ASSY BM0T000 FUEL HOSE, 1 (4.5X8.5X80) BMBT000 SPRING(BLACK) BM0T000 CLIP Φ BM0T000 VACUUM HOSE, 1 (4X8X360) BM0T000 CLIP Φ BM0T000 FUEL HOSE, 2 (4.5X8.5X250) J0ET000 FUEL FILTER ASSY BMBT000 SENDER UNIT BM0T000 BOLT 5X16MM BMBT000 SENDER UNIT GASKET J0ET000 SEAL RING 1 15 B WASHER 5MM BM0T000 FUEL FILTER 1 new focus 10/31
30 F09 SEAT KEEWAY BMBT007 SEAT ASSY. 1 mark BMBT001 SEAT HINGE H60X000 BOLT 6X14 MM BMBT001 LUGGAGE BOX 1 5 B WASHER 8MM J4AT000 BOLT 6X20 MM BMKTB40 RR..CARRIER COMP(MATT-BLACK B4) BMKTR70 RR.. CARRIER COMP (RED R7) BMKTY50 RR.CARRIER COMP (YELLOW Y5) BMKTL90 RR.. CARRIER COMP (BLUE L9) BMKTE60 RR.. CARRIER COMP (SPEED-BLUE E6) BMKTBA0 RR. CARRIER COMP (SATIN-BLACK BA) 1 8 B SCREW 8X45MM BM0T000 O-RING 84.4X3.1MM 1 new focus 11/31
31 F10/1 REAR WHEEL (STEEL RIM) BM0T000 RR. RIM COMP. 3.5X12 (SILVER) 1 Steel BM0TB40 RR. RIM COMP. 3.5X12 (MATT-BLACK B4) 1 Steel BM0TR70 RR. RIM COMP. 3.5X12 (RED R7) 1 Steel BM0TY50 RR. RIM COMP. 3.5X12 (YELLOW Y5) 1 Steel BM0TL90 RR. RIM COMP. 3.5X12 (BLUE L9) 1 Steel 2 B140108D12BB TIRE 130/ B1403Z RIM VALVE Z BMBT000 BRAKE SHOE KIT BMBT000 SPRING(BLACK) BM0T000 CAM SHAFT, BM0T000 CAM SHAFT LEVER, ASSY BM0T000 INDICATOR PLATE BMBT000 TENSION SPRING BM0T000 HEX. BOLT 6X30MM 1 11 B U NUT 16X1.5MM 1 12 B1404Z2011C0 CAP, VALVE BMBT000 REAR FENDER 1 14 B BOLT M6X20MM J0ET000 SPRING NUT 6MM 2 new focus 12/31
32 F10/2 REAR WHEEL (ALLOY RIM) BM0T00A RR. RIM COMP. 3.5X12 (SILVER/ALU) 1 Alloy BM0TB4A RR. RIM COMP. 3.5X12 (MATT-BLACK B4) 1 Alloy BM0TR7A RR. RIM COMP. 3.5X12 (RED R7) 1 Alloy BM0TY5A RR. RIM COMP. 3.5X12 (YELLOW Y5) 1 Alloy BM0TL9A RR. RIM COMP. 3.5X12 (BLUE L9) 1 Alloy 2 B140108D12BB TIRE 130/ B1403Z RIM VALVE Z BMBT000 BRAKE SHOE KIT 2 pc BMBT000 SPRING(BLACK) BM0T000 CAM SHAFT, BM0T000 CAM SHAFT LEVER, BM0T000 INDICATOR PLATE BMBT000 TENSION SPRING BM0T000 HEX. BOLT 6X B U NUT M16X BMBT000 REAR FENDER J0ET000 SPRING NUT 6MM 2 14 B BOLT M6X20MM BM0T000 CAP 1 16 B1404Z2011C0 CAP, VALVE 1 new focus 13/31
33 F11 FRAME BODY BMBT004 FRAME COMP. 1 E/G MOUNTING BOLT, 1(GOLD BM0T000 1 COLORED)M12X1 25X280 3 B U NUT 12X1.25MM BMBT000 E/G MOUNTING BOLT, B U NUT 10X1.25MM BMBT000 E/G BRKT JOINING. COMP B0DT000 DAMPER BMBT000 SPRING BM0T000 SEAT CATCH COMP B BOLT 6X20MM BMKT000 CARRIER BRACKET 1 12 B BOLT 6X12MM BMBT010 FRAME BODY NO. PLATE(45km) BMBT011 FRAME BODY NO. PLATE(30km) BMBT012 FRAME BODY NO. PLATE(25km) 1 14 B P0 RIVET3.2X7MM BMAT000 BUFFER, ENGINE BRACKET BMBT000 SEAT CABLE BMBT010 ANTI-TAMPERING PLATE(45km) BMBT011 ANTI-TAMPERING PLATE(30km) BMBT012 ANTI-TAMPERING PLATE(25km) 1 new focus 14/31
34 F12 REAR ABSORBER BM0TC10 RR. ABSORBER COMP.,(silver) J0ET000 BOLT 8X31MM 1 3 B BOLT 10X1.25X40MM B0DT000 SPLIT PIN 1 new focus 15/31
35 F13 OIL TANK BMAT000 OIL TANK BMAT000 OIL TANK CAP 1 3 B BOLT 6X16MM BMAT000 OIL LEVER GAUGE ASSY BM0T000 CLIP Φ BMAT000 OIL TANK ASSY. 1 new focus 16/31
36 F14 FRONT FENDER BMBTR70 FRONT FENDER, (RED R7) BMBTB40 FRONT FENDER, (MATT-BLACK B4) BMBTL90 FRONT FENDER, (BLUE L9) BMBTE60 FRONT FENDER, (SPEED-BLUE E6) 1 DK BMBTY50 FRONT FENDER, (YELLOW Y5) BMBTBA0 FRONT FENDER, (SATIN-BLACK BA)) 1 2 B FLANGE NUT 5MM BMMT000 REAR REFLECTOR(E ) BMBT000 FRONT FENDER BRACKET, BMBT000 FRONT FENDER BRACKET, BMBT000 SCREW W/WASHER 6X16MM 4 7 B WASHER 5 2 new focus 17/31
37 F15 HANDLE COVER BMBTB42 HANDLE COVER, 1, (MATT-BLACK B4) BMBTR72 HANDLE COVER, 1, (RED R7) BMBTY52 HANDLE COVER, 1, (YELLOW Y5) BMBTL92 HANDLE COVER, 1, (BLUE L9) BMBTE60 HANDLE COVER, 1, (SPEED-BLUE E6) 1 DK BMBTBA2 HANDLE COVER, 1, (SATIN-BLACK BA) BMBT000 HANDLE COVER, BMBT000 METER VISION ASSY. 1 4 B SCREW 5X16MM 2 5 B SCREW 5X12MM 2 6 B SCREW 4X12MM 2 7 B SCREW 4X16MM 2 8 B SCREW 3X10MM 4 9 B SCREW 5X14MM 1 REAR VIEW MIRROR ASSY., 2 (E BMBT002 1 MARK REAR VIEW SILVER/BLACK) MIRROR ASSY., 1 (E BMBT002 1 MARK SILVER/BLACK) new focus 18/31
38 F16 FRONT COVER BMBTB4A LEG SHIELD, 1 (MATT-BLACK B4) BMBTR7A LEG SHIELD, 1 (RED R7) BMBTY5A LEG SHIELD, 1 (YELLOW Y5) BMBTL9A LEG SHIELD, 1 (BLUE L9) BMBTE60 LEG SHIELD, 1 (SPEED-BLUE E6) 1 DK BMBTBAA LEG SHIELD, SATIN-(BLACK BA) BMBT000 SCREW J4AT000 PLASTIC WASHER 1 4 B SCREW 4X BMBT000 COVER, R BMBT000 COVER, L 1 7 B SCREW 4X BMAT000 SPRING NUT 4 new focus 19/31
39 F17 LEG SHIELD BMBT000 LEG SHIELD, BMBTCA0 UNDER COVER, (SILVER CA) BMBTB40 UNDER COVER, (MATT-BLACK B4) BMAT000 SPRING NUT 4MM 8 4 B TAPPING SCREW 4.8X BMKT000 INNER FENDER 1 6 B BOLT6X BMBT000 INSPECT COVER BMBT000 HOOK, HELMET 1 9 B TAPPING SCREW 4.2X16 8 new focus 20/31

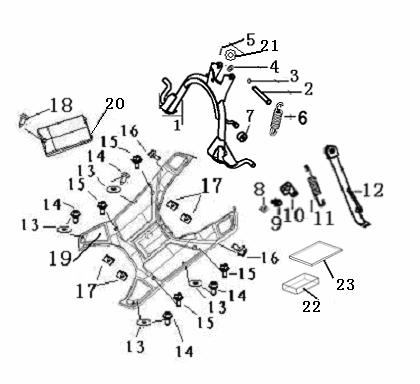

40 F18 FOOTREST/STAND BM0T002 MAIN STAND COMP BM0T000 PIN 1 3 B A0 O-RING 10X B0DT000 PLATE WASHER B0DT000 SPLIT PIN BM0T000 MAIN STAND SPRING ASSY BM0T000 CUSHION, MAIN STAND 1 8 B U NUT 8MM BMBT000 BOLT, SINGLE STAND BM0T000 HOOK SPRING BM0T000 SIDE STAND SPRING ASSY BM0T000 SIDE STAND COMP B WASHER B TAPPING SCREW H60X000 BOLT 4 16 B BOLT 6X BMAT000 SPRING NUT 6 18 B TAPPING SCREW 5X BMBT000 FLOOR, BLACK BMBT000 BATTERY COVER 1 21 B WASHER BMBT000 BATTERY DAMPER II BMBT000 BATTERY DAMPER I 1 new focus 21/31
41 F19 SIDE COVER BMBTB40 SIDE COVER, 1 (MATT-BLACK B4) BMBTR70 SIDE COVER, 1 (RED R7 ) BMBTY50 SIDE COVER, 1 (YELLOW Y5) BMBTL90 SIDE COVER, 1 (BLUE L9) BMBTE60 SIDE COVER, 1 (SPEED-BLUE E6) 1 DK BMBTBA0 SIDE COVER, 1 (SATIN-BLACK BA) BMBTB40 SIDE COVER, 2 (MATT-BLACK B4 ) BMBTR70 SIDE COVER, 2 (RED R7 ) BMBTY50 SIDE COVER, 2 (YELLOW Y5) BMBTL90 SIDE COVER, 2 (BLUE L9) BMBTE60 SIDE COVER, 2 (SPEED-BLUE E6) 1 DK BMBTBA0 SIDE COVER, 2 (SATIN-BLACK BA) BMBT000 SIDE COVER, BMBT000 SIDE COVER, BMBTB40 SIDE COVER, 5 (MATT-BLACK B4 ) BMBTR70 SIDE COVER, 5 (RED R7 ) BMBTY50 SIDE COVER, 5 (YELLOW Y5 ) BMBTL90 SIDE COVER, 5 (BLUE L9 ) BMBTE60 SIDE COVER, 5 (SPEED-BLUE E6 ) 1 DK BMBTBA0 SIDE COVER, 5 (SATIN-BLACK BA ) 1 6 B SCREW 4X12MM 2 7 B SCREW BMAT000 SPRING NUT 5MM 4 9 B SCREW 5X12MM 4 10 B SCREW 6X20MM BMBT000 WASHER J00P000 RUBBER WASHER BM0T000 BUSH, RR. FENDER 2 14 B SCREW 1 new focus 22/31
42 F20 SPEEDOMETER BMMTW63 SPEEDOMETER COMP.,45KM VER 1 45km/h BMMTW64 SPEEDOMETER COMP.,30KM VER 1 30km/ BMMTW65 SPEEDOMETER COMP.,25KM VER 1 25km/h 2 B TAPPING SCREW 4X BMBT000 SPEEDOMETERCABLE COMP BMBT000 BULB 12V-3W BMBT000 BULB 12V-2W BMBT001 KEY NUT RIGHT BMBT004 SPEEDOMETER COVER BMBT001 DIGITAL WATCH BMBT002 KEY NUT LEFT J4HT000 STICK 1 11 B TAPPING SCREW 1 new focus 23/31
43 F21 FLASHER LIGHT/HEAD LIGHT B20T001 FLASHER LIGHT ASSY., 1MARK:E3 50R B20T001 FLASHER LIGHT ASSY., 2MARK:E3 50R B SCREW W/WASHER 5X J4AT000 HEAD LAMP ASSY BMBT000 BULB, 12V/10W BMBT000 BULB(12V-3W) B20T000 BULB(12V35/35W) B20T000 LIGHT COVER, R B20T000 LIGHT COVER, L B20T000 SCREW 3X28 2 new focus 24/31
44 F22 TAIL LIGHT B20T001 TURN LIGHT,F.R.E-MARK:E3 50R B20T001 TURN LIGHT,R.L-MARK:E3 50R BM0T000 FLASHER LIGHT CUSHION,L 1 4 B WASHER 10MM 2 5 B NUT10X1.25MM BM0T000 FLASHER LIGHT CUSHION,R BM0T000 SPRING NUT 5MM 2 8 B NUT 6MM BMBT000 BULB, 12V/10W BM0T000 LICENSE BRACKET BM0T003 INDICATOR LENS BM0T001 TAIL LIGHT ASSY. (E MARK) BM0T000 SCREW 4X G00P000 RUBBER WASHER B20T000 BULB 12V 21/5W B20T000 RR. LIGHT COVER, L B20T000 RR. LIGHT COVER, R B20T000 SCREW 3X28 2 new focus 25/31
45 F23 ELECTRICAL EQUIPMENT I BM0T001 C.D.I. UNIT COMP BM0T000 CUSHION. C.D.I BMAT000 IGNITION COIL ASSY 1 4 B SCREW 5X BM0T000 BATTERY ASSY BMBT00A WIRE HARNESS ASSY BMBT00H WIRE HARNESS VT, ASSY BMBT000 WIRE HARNESS BMAT000 FUSE 8A,250V BMBT000 STARTER RELAY COMP K00P000 BAND 8* BMAT000 RESISTOR COMP B BOLT 6X K00P000 BAND 8* K00P000 BAND 8* B NUT 6MM 1 16 B WASHER B WASHER B WASHER B WASHER 5 1 new focus 26/31
46 F24 ELECTRICAL EQUIPMENT J0ET000 REGULATOR COMP. 1 2 B BOLT 6X BMBT000 MAIN SWITCH ASSY BMBT00A MAIN SWITCH VT, ASSY BMBT000 BOLT 6X BMBT000 LOCK ASSY BMBT00A LOCK VT, ASSY BMDT000 HORN (E MARK) BMBT000 LOCK ASSY., SEAT BM0T00B FLASH&AUDIO PILOT COMP BMBT000 LOCK, COVER BMBT000 LOCK ASSY., FUEL TANK 1 11 B WASHER B TAPPING SCREW 4X BMBT000 COVER MAIN SWITCH JCCT000 BAKT ALARMSYSTEM BMBT002 ALARM SYSTEM HORN BMBT002 ALARM ASSY B TAPPING SCREW 1 new focus 27/31
47 F25 STICKER BMBT01A R, SIDE COVER STICKER BMBT01A L, SIDE COVER STICKER BMBT010 BLACK STICK KEEWAY J4AT005 SILVER STICK KEEWAY BMBT01A STICKER FR.COVER L BMBT01A STICKER FR.COVER R BMBT010 FR.COVER L BMBT010 FR.COVER R BMBTB40 MARK, BIRD BLACK BMBTR70 MARK, BIRD RED BMBTY50 MARK, BIRD YELLOW BMBTL90 MARK, BIRD BLUE BMBTBA0 MARK, BIRD BLACK(BA) 1 new focus 28/31
48 F26 TOOL KIT BM0T000 TOOL BAG BM0T000 SPARK PLUG SOCKET BM0T000 SPARK PLUG SOCKET HANDLE BM0T000 SCREW DRIVER BM0T000 HANDLE BM0T000 FILTER, OIL TANK BM0T000 RR. ABSORBER ADJUSTER BMBT000 WRENCH 35 1 new focus 29/31
49 F27 KICK PEDAL BM0TC10 STARTING SHAFT(SILVER) 1 2 B SCREW 6X25 1 new focus 30/31
50 F28 FOCUS-50 TOP BOX ASSY BMBTB40 TOPBOX (MATT-BLACK B4) 1 Føres ikke BMBTY50 TOPBOX (YELLOW Y5) 1 Føres ikke BMBTR70 TOPBOX (RED R7) 1 Føres ikke BMBTL90 TOPBOX (BLUE L9) 1 Føres ikke BMBTE60 TOPBOX (SPEED-BLUE E6) 1 Føres ikke BMBTBA0 TOPBOX (SATIN-BLACK BA) 1 Føres ikke 2 B BOLT M B BOLT M BMBT000 WASHER 4 5 B WASHER B SPRING WASHER B NUT M BMBT000 BACK BOX LOCK 1 9 B SCREW M BMBT000 NUT,CLIPPING M BMBT000 TOPBOX COVER BMBTB40 TOPBOX ASSY (MATT-BLACK B4) BMBTY50 TOPBOX ASSY (YELLOW Y5) BMBTR70 TOPBOX ASSY (RED R7) BMBTL90 TOPBOX ASSY (BLUE L9) BMBTE60 TOPBOX ASSY (SPEED-BLUE E6) 1 DK BMBTBA0 TOPBOX ASSY (SATIN-BLACK BA) 1 new focus 31/31
