PARKS BOOK This parts book is in EPA-conditions. Model Code: 009FR700-US09- Talk the QLINK Model Code to the dealer, when you order any parts.
|
|
|
- Μέλαινα Βυζάντιος
- 6 χρόνια πριν
- Προβολές:
Transcript
1 PARKS BOOK This parts book is in EPA-conditions. Model Code: 009FR700-US09- Talk the QLINK Model Code to the dealer, when you order any parts.
2 ENGINE PAGE DESCRIPTION 1 CYLINDER HEAD 2 CYLINDER HEAD 3 VALVE ROCKER ARM COMP&VALVE 4 CYLINDER 5 CAMSHAFT CHAIN 6 CRANKSHAFT PISTON 7 CRANKSHAFT PISTON 8 CRANKCASE 9 CRANKCASE 10 CRANKCASE COVER 1 11 CRANKCASE COVER 1 12 TRANSMISSION 13 MIDDLE DRIVE GEAR 14 MIDDLE DRIVE GEAR 15 CLUTCH 16 SHIFT CAM FORK 17 SHIFT CAM FORK 18 OIL PUMP 19 OIL PUMP 20 STARTER CLUTCH 21 GENERATOR 22 WATER PUMP 23 CARBURETOR 24 FITLTER BASE 25 FAN FRAME 26 GEAR SHIFTER ASSEMBLY 27 FRAME 28 FRAME 29 REAR ARM 30 HEAD COVER 31 HEAD COVER 32 SIDE COVER PARTS 33 REAR AXLE REDUCER ASSY 34 REAR AXLE REDUCER ASSY 35 REAR AXLE REDUCER ASSY 36 FRONT AXLE ASSY 37 FRONT AXLE ASSY 38 FRONT AXLE ASSY 39 REAR SUSPENSION 40 FRONT SUSPENSION 41 FUEL TANK
3 42 FUEL TANK 43 FUEL TANK 44 STEERING MACHINE PARTS 45 STEERING MACHINE PARTS 46 SEAT 47 SEAT 48 FRONT WHEEL 49 FRONT WHEEL 50 BRAKE SYSTEM 51 REAR WHEEL 52 REAR WHEEL 53 FOOTREST 54 FOOTREST 55 METER 56 FRONT HEAD LIGHT PARTS 57 REAR POSITION LIGHT PARTS 58 POSITION 1,ELECTRICAL PARTS 59 POSITION 1,ELECTRICAL PARTS 60 POSITION 2,ELECTRICAL PARTS 61 POSITION 2,ELECTRICAL PARTS 62 HEAD SHED FRAME 63 BUMPER 64 CARRIER 65 CARRIER 66 CARRIER 67 DISC BRAKE PARTS 68 STICKER POSITION 1 69 AIR FILTER PARTS 70 AIR FILTER PARTS 71 MUFFLER PARTS 72 MUFFLER PARTS 73 RADIATOR 74 RADIATOR 75 OIL PIPE 76 SECOND AIR-SUPPLY PART 77 CRANKCASE COVER 1 78 CHOICE PARTS 79 CHOICE PARTS 80 OTHERS 81 ACCESSORIES 82 ACCESSORIES
4 CYLINDER HEAD F CYLINDER HEAD ASSY STUD BOLT M F HAND HOLE COVER F O-RING F BOLT M F WASHER F SPARK PLUG(NGK DPR8EA) BOLT M BOLT M BOLT M BOLT M BOLT M F PIN,CYLINDER HEAD BOLT M F WASHER F OUTLET VALVE COVER F O-RING F INLET VALVE COVER F O-RING BOLT M
5 CYLINDER HEAD F CASE, CAMSHAFT F O-RING BOLT M BOLT M F WASHER F INTAKE PIPE ASSY F O-RING F O-RING F CLAMP, INLET PIPE F JOINT, INLET PIPE F CLAMP, INLET PIPE F WATER TEMPERATURE SENSOR F CYLINDER HEAD BODY F CYLINDER HEAD COVER 1 2
6 VALVE ROCKER ARM COMP&VALVE F VALVE, INTAKE F VALVE, EXHAUST F SPRING, INTAKE VALVE F SPRING,EXHAUST VALVE F SEAT, VALVE SPRING F SEAL, VALVE STEM F RETAINER, VALVE SPRING F COTTER VALVE F INTAKE VALVE ROCKER ARM ASSY Ⅰ F INTAKE VALVE ROCKER ARM ASSYⅡ F EXHAUST VALVE ROCKER ARM ASSY Ⅰ F EXHAUST VALVE ROCKER ARM ASSY Ⅱ F SHAFT, ROCKERⅠ F SHAFT, ROCKER Ⅲ F SHAFT, ROCKER Ⅱ F O-RING BOLT M F WASHER 4 3
7 CYLINDER F GASKET, GYLINDER HEAD F DOWEL PIN BOLT M F WASHER F CYLINDER F O-RING F GASKET, CYLINDER F BOLT M F BOLT M F WASHER BOLT M F DOWEL PIN
8 CAMSHAFT CHAIN F CAMSHAFT ASSY M CHAIN (92RH M) F GUIDE STOPPER F GUIDE STOPPER BOLT M F TENSIONER ASSY CAM CHAIN BOLT M F GASKET TENSIONER CASE F SPROCKET, CAM CHAIN 1 5
9 CRANKSHAFT PISTON F CRANKSHAFT ASSY F GEAR, DRIVE F WASHER, DRIVE GEAR F SPRING, COMPRESSION F PIN DOWEL F CIRCLIP F WASHER BOLT M F O-RING BEARING F PISTON F PISTON RING COMP F PISTON PIN F CIRCLIP F SEAL RING SHEATH F SEAL, CRANK F WEIGHT F BALANCER WEIGHT GEAR COMP KEY STRAIGHT B NUT M
10 CRANKSHAFT PISTON F WASHER, LOCK BEARING R BEARING6304R F OIL SEAL F SEMICIRCLE KEY 1 7
11 CRANKCASE F CRANKCASE ASSY F DOWEL PIN BOLT, FLANGE M F LEFT CRANKCASE ASSY BOLT, FLANGE M BOLT, FLANGE M BOLT, FLANGE M PIPE, BREATHER CLIP F PLUG, OIL LEVEL F O-RING F PLATE BEARING COVER BOLT, FLANGE M F HOUSING, BEARING F GASKET, COVER PINION F DOWEL PIN BEARING F OIL SEAL F CIRCLIP F BRACKET 1 8
12 CRANKCASE BOLT, FLANGE M BOLT, FLANGE M F HOUSING, BEARING F DOWEL PIN BOLT, FLANGEM RD BEARING 6201RD F OIL SEAL F PLATE BEARING COVER BOLT, FLANGE M F GEAR SWITCH F GASKET F GEARSHIFT INDICATOR F O-RING GASKET M F STATE BOLT, PARKING F GASKET
13 CRANKCASE COVER F COVER, CRANKCASE F GASKET, CRANKCASE COVER F CLAMP I F CLAMP I F DOWEL PIN BOLT, FLANGE M BOLT, FLANGE M F PLATE BOLT, FLANGE M /28 BEARING 60/ F OIL SEAL F WASHER, THRUST SCREW, COUNTERSUNK M F PLUG, STRAIGHT SCREW F O-RING F COVER CRANKCASE F CLUTCH CRANKCASE CUSHION Ⅰ F SEAL, CRANKCASEⅡ F COVER CRANKCASE F SEAL, CRANKCASE 1 10
14 CRANKCASE COVER BOLT, FLANGE M BOLT, FLANGE M F GROMMET I F PLUG, DRAIN 1 11
15 TRANSMISSION F SHAFT, SECONDARY BEARING C3 BEARING 6006C F COLLAR F O-RING F OIL SEAL F MIDDLE AXLE ASSY BEARING DLA8 BEARING 6203DLA M CHAIN (23RH302-34ASM) F X OUTPUT SHAFT BEARING
16 MIDDLE DRIVE GEAR F HOUSING BEARING BEARING F PLATE, BEARING COVER SCREW M BOLT, FLANGE M F SHIM, PINION (0.10~0.60) NUT M F DRIVE GERA F DRIVEN GEAR BEARING F NUT M (L) /22 BEARING 63/ F OIL SEAL F COUPLING F WASHER, PLATE F NUT M F O-RING BOLT M F HOUSING, BEARING F SHIM, PINION (0.10~0.60) 1 13
17 MIDDLE DRIVE GEAR F SHAFT Y OUTPUT BEARING F FLANGE COUPLING F WASHER, PLATE F NUT, SELF-LOCKING M F LOCKED RING M55 1.5(L) F OIL SEAL
18 CLUTCH F ORIGINAL CLUTCH PARTS F CIRCLIP NUT M F CVT ORIGINAL CLUTCH PARTS F V-BELT F WASHER, PLATE NUT M F CVT HYPO CLUTCH PARTS F BEARING, ONE WAY F CLUTCH COVER ASSY F BEARING HK F CIRCLIP F CLUTCH BLOCK 1 15
19 SHIFT CAM FORK F SHIFT CAM ASSY F FORK, SHIFT R F FORK, SHIFT HL F BAR, SHIFT FORK GUIDE F SPRING COMPRESSION R F SPRING COMPRESSION HL F CAP SPRING F CIRCLIP F STAGE JACK BOLT F GASKET F SHIFT SHAFT COMP BOLT, FLANGE M F OIL SEAL F COVER SHIFT SHAFT F GASKET SHIFT SHAFT COVER F WIRE CLIPⅡ BOLT, FLANGE M BOLT, FLANGE M F DOWEL PIN F SPRING, COMPRESSION 1 16
20 SHIFT CAM FORK F BALL 1 17
21 OIL PUMP F OIL PUMP ASSY F GASKET PUMP COVER BOLT, FLANGE M F OIL STRAINER ASSY F O-RING BOLT, FLANGE M PLUG, STRAIGHT SCREW M H F WASHET F ELEMENT ASSY OIL CLEANER F BOLT UNION F SPROCKET DRIVEN F CIRCLIP II CH-70 CHAIN F PIPE DELIVERY I F GASKET F BOLT, UNION I M F PIPE DELIVERY II F BOLT, UNION II M F GASKET F BOLT, UNION IV M
22 OIL PUMP F GASKET F PIPE DELIVERY F BOLT Ⅲ M F WASHET BOLT M F RELIEF VALVE ASSY F O-RING F PLATE BOLT, FLANGE M
23 STARTER CLUTCH F GEAR, IDLER F SHAFT, IDLER GEAR F BEARINGKBK F GEAR, IDLER F WASHER, PLATE F SPRAG CLUTCH BOLT M F STARTING MOTOR ASSY BOLT, FLANGE M
24 GENERATOR F STATOR ASSY F ROTOR ASSY SCREW, PAN HEAD M BOLT M
25 WATER PUMP F WATER PUMP ASSY BOLT, FLANGE M BOLT, FLANGE M BOLT M F WATER PIPE Ⅱ F O-RING F WATER PIPE Ⅲ F WATER PIPE CLIP F INLET CONNECTOR, CYLINDER BOLT M F O-RING F WATER PIPE Ⅰ F CLIP Ⅱ F PIPE CLIP Ⅱ BOLT, FLANGE M F THERMOSTAT COVER 1 22
26 CARBURETOR F CARBURETOR ASSY ENGINE 1 23
27 FITLTER BASE F O-RING F ANCHER EAR, OIL PIPE BOLT, FLANGE M F O-RING F FILTER BASE F PIPE BRACKET F WASHER F ONE WAY VALVE SPRING φ φ F WASHER F CIRCLIP F OIL PIPE IV F OIL PIPE V 1 24
28 FAN BOLT M F MOTHERBOARD F WASHER F O-RING F STRONGBACK, FAN F PULLEY STARTER F VANE WHEEL F OUTER COVER F UTV FAN PARTS 1 25
29 GEAR SHIFTER ASSEMBLY SHIFTER ASSY KNOB, SHIFT LEVER BOOT, SEALING GEARSHIFT ASSY ROD, SHIFT NUT M6(L) PULLING BALL ASSY, GEARSHIFT WASHER, PLATE Φ BOLT, FLANGE M BOLT, FLANGE M RIVET STOPPER, RUBBER CLIP Φ HOSE NUT M6 1 26

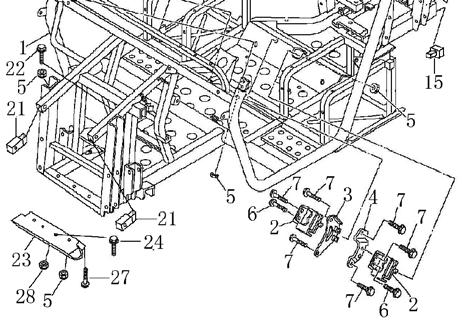

30 FRAME FRAME COMP DAMPER, RUBBER RIGHT SUPPORT, ENGINE LEFT SUPPORT,ENGINE NUT, U FLANGE M BOLT, FLANGE M6X BOLT, FLANGE M8X DAMPER, RUBBER BOLT, FLANGE M BRACKET,MIDDLE PROTECTIVE BOARD BOLT, FLANGE M LEFT BRACKET,LOCK SET RIGHT BRACKET,LOCK SET UPPER PLUG LOWER PLUG TOOL KIT GAUGE, AIR INSULATION BOARD, MUFFLER INSULATION BOARD REAR INSULATION ALUMINUM FOIL 1 27
31 FRAME BRACKET,FRONT INSERT BOLT, FLANGE M FIXING SEAT FOR BUMPER BOLT, FLANGE M GASKET Ф WASHER Ф BOLT, FLANGE M NUT M SHOCK ABSORB RUBBER CUSHION, CARGO BED 1 28
32 REAR ARM UPPER ARM, REAR LEFT LOWER ARM, REAR RIGHT LOWER ARM, REAR LEFT BUSH BOLT, FLANGE M NUT, SELF-LOCKING M10X UPPER ARM, REAR RIGHT WASHER PROTECTIVE BOARD, REAR RIGHT LOWER ARM PROTECTIVE BOARD, REAR LEFT LOWER ARM REAR LEFT UPPER ARM ASSY REAR LEFT LOWER ARM ASSY REAR RIGHT UPPER ARM ASSY REAR RIGHT LOWER ARM ASSY 1 29

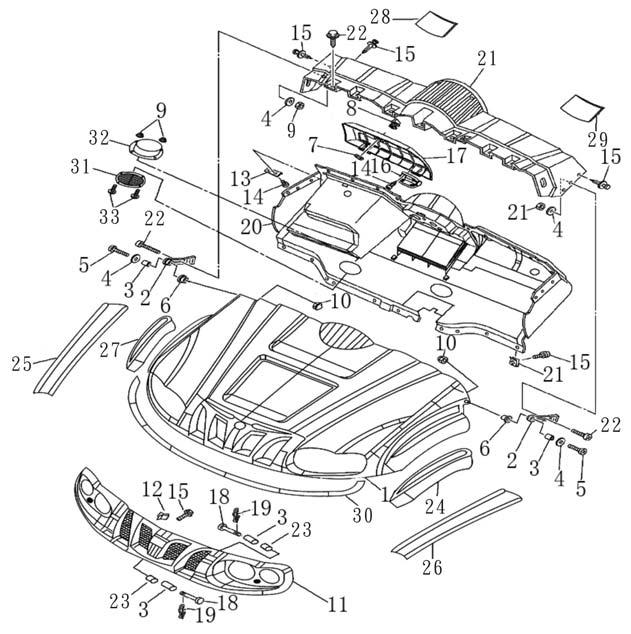

33 HEAD COVER FRONT FENDER ASSY FRONT COVER LATCH LEFT MOUNT BUSHING, FRONT COVER WASHER Ф BOLT, FLANGE M WASHER BOLT M GLOVE COMPARTMENT LOCK NUT M NUT M GRILLE, FRONT CAP M FRONT COVER LATCH CATCH SCREW SCREW M PLASTIC JAW COVER SUNEIES CASE PIN Φ COLLAR PIN Φ DASH BOARD 1 30
34 HEAD COVER CONNECTING COVER BOLT, FLANGE M RIGHT MOUNT BUSHING, FRONT COVER LEFT BLACK FENDER, FRONT COVER RIGHT DECORATIVE PANEL, FRONT COVER LEFT DECORATIVE PANEL, FRONT COVER RIGHT BLACK FENDER, FRONT COVER 1 LEFT DECORATIVE PANEL, CONNECTING COVER RIGHT DECORATIVE PANEL, CONNECTING COVER FRONT DECORATIVE REGULA, FRONT COVER SPEAKER COVER SPEAKER BOX BOLT M
35 SIDE COVER PARTS LEFT SEAT BASE SIDE PANEL BOLT, FLANGE M6X RIGHT SEAT BASE SIDE PANEL CROSS INFLATED SCREW REAR LEFT PANEL, SEAT CENTER COVER RIGHT INSULATION PAPER, CENTER COVER LEFT INSULATION PAPER, CENTER COVER PRIMARY AIR CLEANER PRIMARY AIR CLEANER COVER TIE STRAP L= REAR RIGHT PANEL, SEAT SCREW WHORL CLIP M BOLT M LEFT SEAT BASE RIGHT SEAT BASE CUP HOLDER 1 32

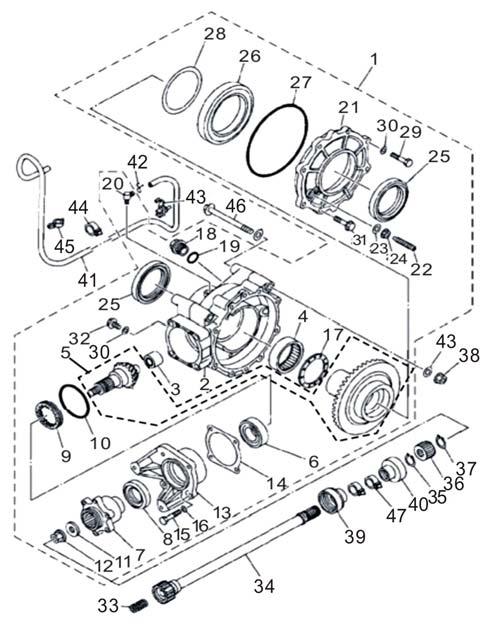

36 REAR AXLE REDUCER ASSY SPEEDREDUCER REAR REDUCER CASE Ⅰ HK BEARING HK223013Φ22 Φ HK BEARING HK556720Φ55 Φ DRIVE & DRIVEN GEARS ASSY BEARING 6305Φ25 Φ MOUNT BRACKET, REAR DISK BRAKE PLATE OIL SEAL Φ61 Φ BM6720 BEARING 55BM O-RING Φ3.1 Φ WASHER Φ12 4 Φ FLANGE NUT M MOUNT BRACKET, REAR DISK BRAKE CLAMP REAR ADJUSTMENT GASKET I (0.1T) REAR ADJUSTMENT GASKET I (0.2T) REAR ADJUSTMENT GASKET I (0.5T) BOLT M WASHER Φ REAR ADJUSTMENT GASKET II (1.7T) REAR ADJUSTMENT GASKET II (1.8T) 1 33
37 REAR AXLE REDUCER ASSY REAR ADJUSTMENT GASKET II (1.9T) REAR ADJUSTMENT GASKET II (2.0T) REAR ADJUSTMENT GASKET II (2.1T) BOLT M O-RING D=Φ2.3 Φ VENT, REAR REDUCER REAR REDUCER CASE Ⅱ INSERT SHEATH M WASHER Φ FLANGE NUT M OIL SEAL Φ65 Φ BEARING 16017Φ85 Φ O-RING D=Φ3.1 Φ ADJUSTMENT GASKET(0.1T) ADJUSTMENT GASKET(0.2T) BOLT M WASHER Φ FLANGE BOLT M BOLT M8X SPRING Φ16.5 D=Φ
38 REAR AXLE REDUCER ASSY MIDDLE DRIVING AXLE,REAR AXLE REDUCER CIRCLIP D=20.5 8= CONNECTION COVER,REAR REAR AXLE REDUCER CIRCLIP D=17.5 8= FLANGE NUT M FRONT DUSTPROOF COVER 2,REAR BRIDGEΦ23.5 Φ REAR DUSTPROOF COVER 1,REAR BRIDGE Φ19 Φ TUBE(L1320) CLIP Φ8 D= WASHER Φ CLIP Φ CLIP Φ BOLT FLANGE M CLAMPⅠ
39 FRONT AXLE ASSY FRONT AXLE GEAR CASE COMP HOUSING, SHAFT DRIVE HOUSING, BEARING PINION, DRIVE CONNECTION I BOLT M O-RING Φ14 D=Φ OIL SEAL Φ48 Φ OIL SEAL WASHER ( 0.1T) WASHER ( 0.2T) WASHER ( 0.5T) BOLT M DRIVER GEAR BOLT M PLUG, STRAIGHT SCREW M10x RING, HOLE SNAP D=66.2 8= SHAFT, SHIFTER SERVO MOTOR COMP CLUTCH, DRIVEN 1 36
40 FRONT AXLE ASSY RACK O-RING D=Φ2 Φ O-RING D=Φ2.4 Φ R BEARING 6007RΦ35 Φ BEARING 6912Φ60 Φ BEARING 16007Φ35 Φ HK BALLING BEARING HK152112Φ15 Φ BOLT M WASHER Φ NUT M WASHER Φ SHAFT FORK UNIVERSAL JOINT BOLT M CONNECTIONⅡ TUBE Φ4.5 L= CLIP Φ8 D= CLAMP MIDDLE SHAFT, FRONT BRIDGE CIRCLIP D=17.5 8=1 2 37
41 FRONT AXLE ASSY CUSHION PIECE SPRING, COMPRESSION D=Φ25 Φ SEAL SEAL BOLT M SCREW, FLANGE M
42 REAR SUSPENSION SHOCK ABSORBER ASSY, REAR (L.&R.) FLANGE BOLT M FLANGE BOLT M NUT M12X BAR, STABILIZER JOINT, STABILIZER LEFT JOINT, STABILIZER RIGHT NUT, SELF-LOCKING M BUSH, STABILIZER FRONT COVER, STABILIZER FRONT BOLT, FLANGE M8x CUSHION PLATEφ8 2 39
43 FRONT SUSPENSION FRONT LEFT UPPER ARM BALL JOINT SPRING CIRCLIP D0=30,AXLE FRONT RIGHT UPPER ARM FRONT LEFT LOWER ARM FRONT RIGHT LOWER ARM BUSH BOLT, FLANGE M NUT, SELF-LOCKING M WASHER PIN,COTTER SHOCK ABSORBER ASSY( L OR R) BOLT, FLANGE M10x COVER, LOWER NUT,FLANGE M FLANGE BOLT M6X FRONT RIGHT UPPER ARM ASSY FRONT LEFT UPPER ARM ASSY FRONT RIGHT LOWER ARM ASSY FRONT LEFT LOWER ARM ASSY 1 40
44 FUEL TANK FUEL PUMP BUSH, FUEL PUMP TUBE CLIP φ INLET VITTA Φ6 Φ9 210, SMALL FUEL TANK CLIP Φ MINUS PRESSURE PIPE, FUEL PUMP FLANGE BOLT M6X VENTILATE TUBE Φ7 Φ PIPE CLIP INSULATOR INSULATOR SHOCK ABSORBER FOAM, FUEL TANK PRESS FOAM STRIP FLANGE BOLT M8X CLIP Φ FUEL TANK INHALE VITTA O-RING SCREW M5X
45 FUEL TANK FUEL SENSOR CUSHION FUEL TANK LID FUEL FILTER ASSY HOLD-DOWN PLATE FUEL PIPE Φ5.5 Φ INLET VITTA,FUEL PUMP Φ5.5 Φ CLIP Φ HEAT INSULATION Ⅰ SMALL FUEL TANK Y TUBEΦ HEAT INSULATION Ⅱ HEAT INSULATION Ⅲ CAP,SMALL FUEL TANK OIL RETURN VITTA, SMALL FUEL TANK Φ8 Φ INLET VITTA,CARBUTATOR Φ8 Φ CLIP Φ VENTILATE TUBE, SMALL FUEL TANK Φ4.5 Φ CLIP Φ MINUS PRESSURE PILE IIΦ4 Φ10, FUEL PUMP 1 42
46 FUEL TANK FUEL TANK INLET VITTA JOINT 1 43
47 STEERING MACHINE PARTS STEERING MACHINE PARTS DRIVE GEAR WHEEL SPRING CUSHION φ BLOCK RING,SPRING COVER,ADJUSTER SPRING WASHER FIANGE NUT Φ PLASTIC COVER CLAMP L= DUST-PROOF BOOT FLANGE BOLT M10X TIE ROD END,STEERING MACHINE LOCKNUT,ROD M STEERING SHAFT FLANGE BOLT M8X STEERING COLUMN FLANGE BOLT M8X NOTCH NUT M PIN 3.2X
48 STEERING MACHINE PARTS STEERING WHELL FLANGE NUT M12X WASHER Φ
49 SEAT SEAT ASSY LIFE BELT LIMITER SEAT MOUNTING BOARD FLANGE BOLT M8X FLANGE LOCKNUT M8X LOCK HOOK PARTS,SEAT BOLT M FLANGE LOCKNUT M LOCKER, SEAT THICK RUBBER CUSION, MOUNT BOARD THIN RUBBER CUSION, MOUNT BOARD BUSHING Φ SIDE ARMREST FLANGE BOLT M HEAD REST NUT M BOLT M10 25-Φ BOLT M COVER LIFE BELT BUCKLE 2 46
50 SEAT LIFE BELT ASSY NUT M FLANGE BOLT M BOLT M WASHER Φ LIFE BELT BUSH 2 47
51 FRONT WHEEL RIM , FRONT WHEEL 2 IRON FRONT TIRE 25X VALVE, RIM NUT M CAP, WHEEL LEFT AXLE, FRONT WHEEL RIGHT AXLE, FRONT WHEEL NUT M FRONT HUB SCREW M PROTECTING COVER,FRONT BRAKE DISC FRONT LEFT STEERING KNUCKLE ASSY FRONT RIGHT STEERING KNUCKLE ASSY INNER RUBBER DUST-PROOF C-1610, FRONT AXLE OUTER RUBBER DUST-PROOF C-1605, FRONT AXLE BEARING 6006, FRONT STEERING KNUCKLE OUTER OIL SEAL, FRONT STEERING KNUCKLE CIRCLIP MIDDLE DRIVEN SHAFT, FRONT WHEEL CLIP, DRIVE SHAFT 1 48
52 FRONT WHEEL BEARING 6006, FRONT STEERING KNUCKLE FRONT WHEEL CLIP, DRIVE SHAFT INNER TUBE, FRONT STEERING KNUCKLE CLAMP CLAMP 4 49
53 BRAKE SYSTEM DISC, FRONT BRAKE BOLT M /10/22 BOLT M DISC, REAR BRAKE BOLT M6 29-Φ NUT M6X REAR BRAKE PAD FRONT BRAKE PAD CALIPER ASSY, FRONT CALIPER ASSY, REAR 1 50
54 REAR WHEEL RIM 12 8, REAR WHEEL 2 IRON REAR TIRE VALVE, RIM HUB, REAR BOLT, SERRATION M NUT M LEFT AXLE, REAR WHEEL RIGHT AXLE, REAR WHEEL CAP, WHEEL NUT M MIDDLE DRIVEN SHAFT,REAR BRIDGE INNER RUBBER DUST-PROOF C-1610, REAR AXLE OUTER RUBBER DUST-PROOF C-1605, REAR AXLE NUT, SELF-LOCKING M10X SPRING RING, REAR AXLE COVER, THRUST BOLT, FLANGE M CAP, WHEEL BUSH, SOLID REFUELING NOZZLE 4 51
55 REAR WHEEL INNER OIL SEAL, REAR KNUCKLE OUTER OIL SEAL, REAR KNUCKLE CIRCLIP BEARING INNER TUBE, REAR KNUCKLE CLAMP CLAMP PROTECTIVE BOARD, LEFT REAR STEERING KNUCKLE PROTECTIVE BOARD, RIGHT REAR STEERING KNUCKLE REAR WHEEL REAR KNUCKLE REAR KNUCKLE ASSY CLIP, SPRING φ
56 FOOTREST LEFT FOOTREST SCREW CENTER PROTECTIVE BOARD INSULATOR, CENTER PROTECTIVE BOARD SCREW WHORL CLIP M RIGHT FOOTREST RUBBER SCREW M REAR BRAKE HOLDER ASSY FLANGE BOLT M8X ACCELERATOR PEDAL ASSY WASHER COTTER CLIP RETURN SPRING, ACCELERATOR PEDAL REAR BRAKE PEDAL WASHER COTTER CLIP RETURN SPRING, REAR BRAKE PEDAL THROTTLE CABLE 1 53
57 FOOTREST BELT 7(L=200) BELT 4(L=150) SCREW PARKING BRAKE ASSY SWITCH, PARKING BRAKE ASSY BOLT M4X NUT M FLANGE BOLT M8X A CABLE, PARKING BRAKE ASSY NUT,CHOKE CABLE CABLE CLIP FLANGE BOLT M6X CHOKE CABLE 1 54
58 METER METER NUT, FLANGE M5 3 55
59 FRONT HEAD LIGHT PARTS LENS ASSY, RIGHT LENS ASSY, LEFT SOCKET, HEADLIGHT ADJUSTING BOLT M6 50, HEADLIGHT SPRING, SCREW NUT, ADJUSTING φ NUT, SPRING M BOLT M SCREW, ADJUSTING M BULBⅠ 12V/35W BULBⅡ 12V/5W LEFT HEADLIGHT RIGHT HEADLIGHT 1 56
60 REAR POSITION LIGHT PARTS COVER,TAILLIGHT BULB(12V-21/5W) REAR COVER, TAILLIGHT TAILLIGHT ASSY BOLT 3.9X

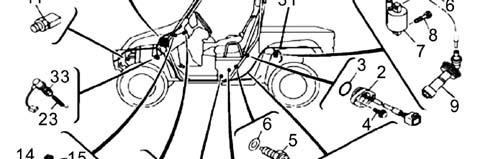

61 POSITION 1,ELECTRICAL PARTS C.D.I. ASSY SWITCH, GEAR SHIFT ASSY O-RING φ BOLT, FLANGE M REVERSE GEAR SWITCH ASSY GASKET Φ IGNITION COIL ASSY /6/20 BOLT M6X CAP, IGNITION COIL WATER TEMPERATURE SENSOR WATER TEMPERATURE SENSOR SPEEDOMETER SENSOR /6/16 BOLT, FLANGE M RECTIFIER BOLT, FLANGE M6X BATTERY ASSY 12V32AH BALTERY BOX BATTERY COVER CUSHION, BATTERY RELAY ASSY 3 58

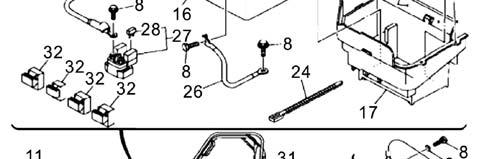

62 POSITION 1,ELECTRICAL PARTS BRACKET, BATTERY NUT, FLANGE M RETURN SPRING, REAR BRAKE LIGHT TIE STRAP (L=200) POSITIVE CABLE, BATTERY NEGATIVE CABLE, BATTERY STARTER RELAY ASSY FUSE (30A-BL) IGNITION SWITCH ASSY WIRE, SUB LEAD FUSE (5A-BL) RELAY ASSY BRAKE LIGHT SWITCH ASSY FUSE(10A-BL) FUSE(15A-BL) 1 59
63 POSITION 2,ELECTRICAL PARTS AUXILIARY DC JACK AUXILIARY DC JACK COVER NUT, AUXILIARY DC JACK COVER AUXILIARY RELAY TIE STRAP(L=200) CLIP Φ TIE STRAP(L=150) CLIP Φ IGNITION COIL LINK CLIP Φ RUBBER RING, FRAME RUBBER RING Φ8 Φ EPA LIGHT SWITCH TOW/FOUR DRIVE SWITCH FLANGE BOLT M6X WASHER Φ NUT, FLANGE M MIRROR R MIRROR L FLASHER RELAY 1 60
64 POSITION 2,ELECTRICAL PARTS MIRROR MOUNT HORN ASSY CD PLAYER SET 1 61
65 HEAD SHED FRAME LEFT MAIN PIPE ASSY, SHED BOLT M NUT M BOLT M NUT M WASHER RIGHT MAIN PIPE ASSY, SHED NUT M FRONT CROSS BAR Ⅰ FRONT CROSS BAR Ⅱ HEADREST MAIN SUPPORT HEADREST LOWER SUPPORT BRACKET BOLT, FLANGE M HEADREST SUPPORT 1 62
66 BUMPER FRONT BUMPER ASSY CAP, FRONT BUMPER BOLT, FLANGE M BOLT, FLANGE M FRONT BUMPER COVER BOLT, FLANGE M6X FRONT BUMPER BOARD WASHER FRAME PROTECTIVE BOARD 1 63
67 CARRIER REAR CARRIER PARTS RUBBER CUSHION RUBBER THICK GASKET CLEVIS PIN Φ WASHER Φ PIN Φ PROTECTING BOARD,HANDEL GRIP BOLT M LEFT DECORATION PANEL, REAR CARRIER INFLATION SCREW BOLT M6X DRAWSTRING POTHOOK SPRING WASHER Φ CAP NUT M RIGHT DECORATION PANEL, REAR CARRIER FLANGE BOLT M6X CARRIER DOOR PARTS REAR CARRIER TAILGATE COMP HOOK FLANGE BOLTM6X
68 CARRIER TAILGATE BOARD, REAR CARRIER PULLING BOARD, REAR CARRIER DOOR SCREWST CABLE, REAR CARRIER DOOR BOLT M6X BLOT M6X CUSHION, REAR CARRIER LIMIT RUBBER RING, REAR CARRIER DOOR BUSH FLANGE BOLT DUMP BRACKET HOLDER DUMP BRACKET SHOCK ABSORBER RUBBER RING SPRING DUMP BRACKET LEFT MOUNT BOARD CROSS SCREW M FLANGE NUT M FLANGE NUT M DUMP BRACKET ASSY DUMP BRACKET RUBBER SHEATH SPRING MOUNT BRACKET 2 65
69 CARRIER SPRING NUT M RUBBER PIECE,CARRIER DUMP BRACKET RIGHT MOUNT BOARD LICENSE SIGNAL BOLT M BRACKET, LICENSE LEFT DECORATION PANEL STRIP, CARRIER RIGHT DECORATION PANEL STRIP, CARRIER DECORATION PANEL, CARRIER DOOR 1 66
70 DISC BRAKE PARTS REAR DISC BRAKE PUMP FLANGE BOLT M6X TIE STRAP 3(L=150) TIE STRAP 4(L=200) FLANGE BOLT M6X DISC BRAKE TUBE CLIP REAR DISC BRAKE HOLDER DISC BRAKE ASSY REAR DISC BRAKE TUBE ASSY FRONT DISC BRAKE TUBE ASSY 1 67
71 STICKER POSITION WARNING LABEL STICKER WARNING LABEL WARNING LABEL WARNING LABEL RIVET STICKER WARNING LABEL STICKER STICKER RIVET φ WARNING LABEL WARNING LABEL MIRROR ASSY.LH 1 E-MARK MIRROR ASSY.RH 1 E-MARK WINDSHIELD TYPE B. 1 HALF COVER TYPE ACCESSORIES OF ROOF ACCESSORIES OF WINDSHIELD TYPE B ACCESSORIES OF WINDSHIELD WINDSHIELD TYPE A. 1 68
72 AIR FILTER PARTS CLAMP BALANCE PIPE Φ11 Φ15,CARBURATOR INLET RUBBER TUBE,AIR FILTER CLAMP AIR FILTER CORE PARTS AIR FILTER PARTS CROSS SCREW M CLAMP Φ OIL&AIR SEPARATOR CLIP φ AIR MUFFLER, AIR FILTER CLAMP PRIMARY AIR FILTER OUTLET PIPE OVERFLOE PIPE, SEPATETOR F AIR PIPE 1 Φ7 Φ11 90,CARBURATOR AIR PIPE 2 Φ7 Φ11 300,CARBURATOR AIR PIPE 2 Φ7 Φ11 102,CARBURATOR CLIP Φ Y-PIPE φ AIR PIPE COMP(LEFT),CARBURATOR 1 69
73 AIR FILTER PARTS AIR PIPE COMP(RIGHT),CARBURATOR INLET PIPE,SEPARETOR OUTLET PIPE, SEPARETOR 1 70
74 MUFFLER PARTS SEAL WASHER A EXHAUST PIPE SPRING FLANGE BOLT M WASHER,VENT-PIPE NUT M WASHER Φ NUT M MUFFLER DAMPING WASHER,MUFFLER FLANGE BOLT M8X NUT M FLANGE BOLT M8X BUSH MUFFLIER EXHAUST PIPE BOLT M6X FIREPROOFING NET,MUFFLER BLOT M8X HEAT INSULATION CUSHION MIDDLE PART, MUFFLER 1 71
75 MUFFLER PARTS RUBBER RING, MUFFLER CLIP MUFFLER ASSY 1 72
76 RADIATOR FRONT RUBBER WATER PIPE LEFT FRONT METAL PIPE REAR LEFT RUBBER WATER PIPE LEFT RUBBER WATER PIPE RIGHT METAL PIPE REAR RIGHT RUBBER WATER PIPE CLIP CLIP, OIL PIPE BOLT M6X RADIATOR ASSY FAN ASSY BOLT M WASHER, PLATE Φ PLATE M CAP, RADIATOR UPPER BRACKET, OIL COOLER DOWN BRACKET,OIL COOLER RADIATOR ASSY RADIATOR COVER OIL COOLER 1 73
77 RADIATOR HOSE PART BOLT, FLANGE M COLLAR Φ GROMMET STANDBY WATER BOTTLE COVER,OIL COOLER CONNECTING PIPE Φ6 Φ CLIP Φ OVERFLOW PIPE Φ7 Φ CLIP Φ
78 OIL PIPE LEFT FRONT METAL PIPE RIGHT METAL PIPE CLIP, OIL PIPE FLANGE BOLT M6X CLAMP 11-20, BOLT RIGHT FRONT METAL OIL PIPE LEFT REAR METAL PIPE FRONT END RUBBER OIL PIPE MIDDLE RUBBER OIL PIPE REAR END RUBBER OIL PIPE H-TYPE RUBBER RING II,OIL PIPE H-TYPE RUBBER RING I,OIL PIPE 4 75
79 SECOND AIR-SUPPLY PART SECOND INLET VALVE CLAMP Φ MINUS PRESSURE PIPE φ4 φ BOLT M CLAMP Φ HIGH TEMPERATURE TUBE RUBBER PIPE,SECOND INLET VALVE CLAMP Φ SMALL AIR FILTER Y-PIPE,OIL PUMPER NEGATIVE PRESURE PIP 1 76
80 CRANKCASE COVER CLAMP SEAL, AIR DUCT DUCT, AIR FLANGE BOLT M NUT, SPRING M CLAMP SEAL, AIR DUCT AIR-OUT PIPE FLANGE BOLT M6X METAL PLATE, CLUTCH CAP, CLUTCH AIR INLET PIPE 1 77
81 CHOICE PARTS HITCH COMPONENTS BOLT, HITCH BAR 1 DOT COTTER Φ BOLT, HITCH BAR 1 EPA TRAILER HOLDER 1 78
82 CHOICE PARTS WINCH FIXING PLATE,WINCH FLANGE BOLT M8X FLANGE NUT M CONTROLLER OF WINCH SNOW SHOVEL 1 E-MARK SNOW PLOW INSTALLIKG PLATE 1 E-MARK U-RING HOOP 4 E-MARK NUT M8 8 E-MARK WINCH SWINTCH 1 79
83 OTHERS 1/ STICKER 1 CAMO STICKER 1 RED/SILVER PACKAGE BOX 1 QLINK FR OWNER S MANUAL PARTS BOOK SERVICE MANUAL 1 80
84 ACCESSORIES SHED SHED REAR RIGHT ASSEMBLY LUG SHED REAR LEFT ASSEMBLY LUG SHED FRONT RIGHT ASSEMBLY LUG SHED FRONT LEFT ASSEMBLY LUG SHED RUBBER GASKET SHED COLLAR GB/T SEXANGLE FLANG BOLT M GB/T SIXANGLE FLANG NUT M WINDSCREEN SUPPORT WINDSCREEN IRON CLIP GLASS IRON INTELAYER GB/T HEAD SCREW M5 12,CROSS PLATE GB/T SIXANGLE FLANG NUT M GB/T BIG WASHER φ SHED RUBBER GASKET SHED COLLAR WINDSCREEN CLIP(PP) SHED RUBBER GASKET SHED LINING 4 81
85 ACCESSORIES GB/T SEXANGLE FLANG BOLT M GB/T BIG WASHER φ GB/T CAP NUT(LONGER)M
