01 How to order screw terminal type aluminum electrolytic capacitors. 02 VCG6A/ screw terminal type aluminum electrolytic capacitors
|
|
- Ευτέρπη Τρικούπη
- 6 χρόνια πριν
- Προβολές:
Transcript
1
2 Catalog 01 How to order screw terminal type aluminum electrolytic capacitors 02 VCG6A/ screw terminal type aluminum electrolytic capacitors 05 VCG5A/ screw terminal type aluminum electrolytic capacitors 11 MKCH-S/metalized film snubber protection capacitor 14 MKCH-SB/ metalized film snubber protection capacitor 16 MKCH-R/ metalized film high voltage resonance capacitor 22 MKCH-RS/water cooling metalized film resonance capacitor 24 MKC-LS/ metalized film couping / filter capacitor MKC-LL/ metalized film filter capacitor 30 MKC-LM/ metalized film filter capacitor 33 MKC-LG/SG/ metalized film filter/ storage capacitor 37 MKC-LA/ metalized film DC-Link capacitor 38 MCH-RH/ water cooling metalized film high voltage capacitor 40 MKCH-RA/ metalized film high voltage resonance capacitor 42 MKCH-RG/ metalized film high voltage resonance capacitor 43 VGMJ/VKMJ/ metalized film AC filter capacitor

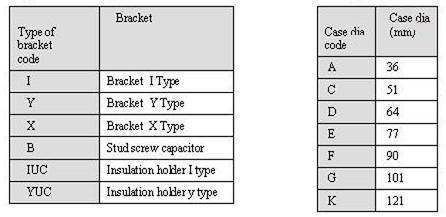

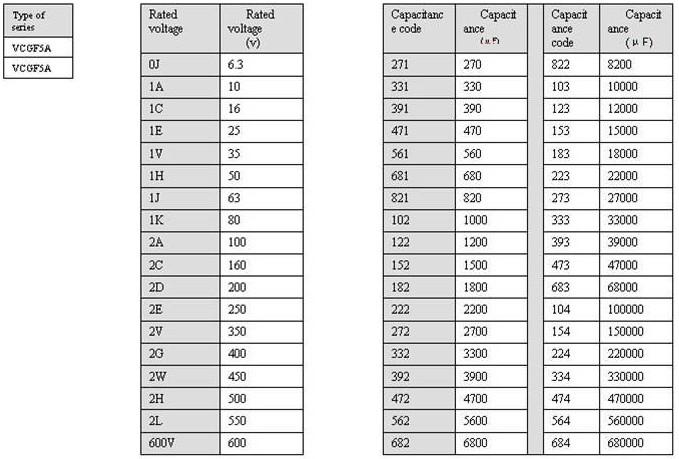

3 VTCO Screw terminal type aluminum electrolytic capacitors HOW TO ORDER VCGF6 A 2W 222 Y (C) Case dia code Type of bracket code Capacitance code Rated voltage code Terminal code A (scew) Type of serie Type of series Rated voltage Capacitance code Type of bracket code case dia code 1
4 VTCO Screw terminal type aluminum electrolytic capacitors VCGF6A 系列 Useful of 4,000 hours at 85 C (Warranty of 2,000 hours at 85 C) Comform RoHS Bracket Product names in the Standard Products able correspond to the bracket for Type Y (Type Ι for ø36 only), but Type Ι bracket may be used (Type of bracket Code = Ι ). If bracket are not necessary, enter "N" for the type of bracket code. Bracket will be delivered separately. 2
5 VTCO Screw terminal type aluminum electrolytic capacitors Standard Products Table Rated Capacitanc Case size tanδ Ripple current ESR(typ.) Z max ESL(typ.) Product name Voltage(VCD e DXL(mm) 20 C,120Hz 40 C,120Hz 20 C,100Hz 20 C,10kHz (nh) ) (μf) (Arms) (mω) (mω) VCGF6A2G222Y VCGF6A2G2YC VCGF6A2G2YD VCGF6A2G332Y VCGF6A2G392Y VCGF6A2G472Y VCGF6A2G562Y VCGF6A2G682Y VCGF6A2G822Y VCGF6A2G103YE VCGF6A2G103YF VCGF6A2G123Y VCGF6A2G153Y VCGF6A2G183YF VCGF6A2G183YG VCGF6A2G223Y VCGF6A2W182Y VCGF6A2W222YC VCGF6A2W222YD VCGF6A2W2Y VCGF6A2W332Y VCGF6A2G392Y VCGF6A2W472Y VCGF6A2W562Y VCGF6A2W682Y VCGF6A2W822YE VCGF6A2W822YF VCGF6A2G103Y VCGF6A2W123YF VCGF6A2W123YG VCGF6A2W153YF VCGF6A2W153YG VCGF6A2W183Y VCGF6A2H122YC VCGF6A2H122YD 3
6 VTCO Screw terminal type aluminum electrolytic capacitors Standard Products Table Rated Voltage( VCD) Capacitanc e (μf) Case size DXL(mm) tanδ 20 C,12 0Hz Ripple current 40 C,120Hz (Arms) ESR(typ. ) 20 C,100 Hz (mω) Z max 20 C,1 0kHz (mω) ESL(ty p.) (nh) Product name VCGF6A2H152YC VCGF6A2H152YD VCGF6A2H182Y VCGF6A2H222Y VCGF6A2H2Y VCGF6A2H332Y VCGF6A2H392Y VCGF6A2H472YE VCGF6A2H472YF VCGF6A2H562YE VCGF6A2H562YF VCGF6A2H682Y VCGF6A2H822YF VCGF6A2H822YG VCGF6A2H103YF VCGF6A2H103YG VCGF6A2H123Y Life time graph Useful life depending on ambient temperature Ta and ripple current operating conditions Ir versus rated ripple current at 40,120Hz Ripple Current of Diminishing Ratio(I/Ir40 ) 4

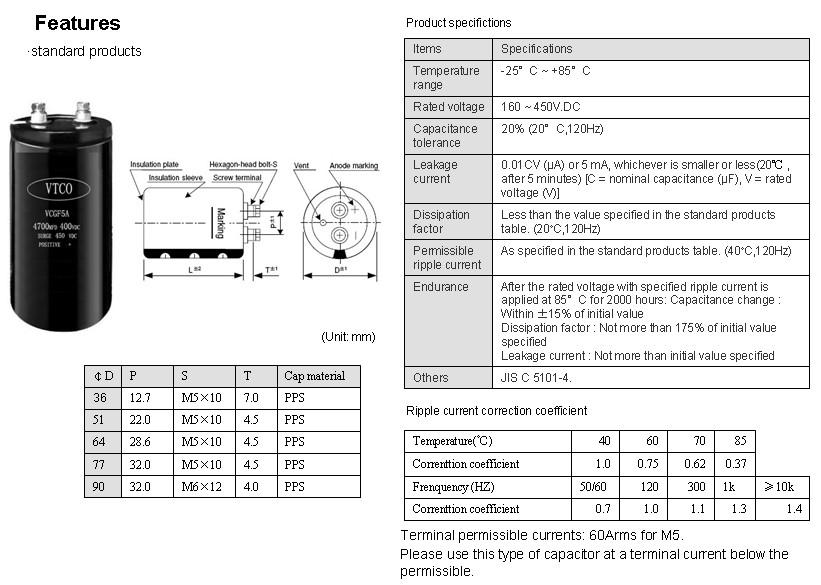

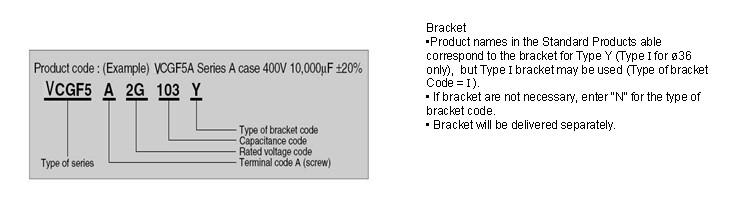

7 VTCO Screw terminal type aluminum electrolytic capacitors VCGF5A 系列 Useful of 4,000 hours at 85 C (Warranty of 2,000 hours at 85 C) Comform RoHS 5
8 VTCO Screw terminal type aluminum electrolytic capacitors Standard Products Table Rated Voltage(VCD ) Capacitance (μf) Case size DXL(mm) tanδ 20 C,120 Hz Ripple current 40 C,120Hz (Arms) ESR(typ.) 20 C,100Hz (mω) Z max 20 C,10kHz (mω) ESL(typ.) (nh) Product name VCGF5A2C332I VCGF5A2C392Y VCGF5A2C472Y VCGF5A2C472Y VCGF5A2C682Y VCGF5A2C822Y VCGF5A2C103Y VCGF5A2C123Y VCGF5A2C153Y VCGF5A2C183Y VCGF5A2C223Y VCGF5A2C3Y VCGF5A2C333Y VCGF5A2C393Y VCGF5A2D222I VCGF5A2D2I VCGF5A2D332Y VCGF5A2D392Y VCGF5A2D472Y VCGF5A2D562Y VCGF5A2D682Y VCGF5A2D822Y VCGF5A2D103Y VCGF5A2D123Y VCGF5A2D153Y VCGF5A2D183Y VCGF5A2D223Y VCGF5A2D3Y VCGF5A2D333Y VCGF5A2E152I VCGF5A2E182I VCGF5A2E222Y VCGF5A2E2Y VCGF5A2E332Y VCGF5A2E392Y VCGF5A2E472Y VCGF5A2E562Y VCGF5A2E682Y VCGF5A2E822Y VCGF5A2E103Y VCGF5A2E123Y VCGF5A2E153Y VCGF5A2E183Y VCGF5A2E223Y VCGF5A2V391I VCGF5A2V471I VCGF5A2V561I VCGF5A2V681I VCGF5A2V821I VCGF5A2V102I VCGF5A2V122Y 6
9 VTCO Screw terminal type aluminum electrolytic capacitors Standard Products Table Rated Voltage(VCD) Capacitance (μf) Case size DXL(mm) tanδ 20 C,120 Hz Ripple current 40 C,120Hz (Arms) ESR(typ.) 20 C,100Hz (mω) Z max 20 C,10kHz (mω) ESL(typ.) (nh) Product name VCGF5A2V152Y VCGF5A2V182Y VCGF5A2V222Y VCGF5A2V2Y VCGF5A2V332Y VCGF5A2V392Y VCGF5A2V472Y VCGF5A2V562Y VCGF5A2V682Y VCGF5A2V822Y VCGF5A2V103Y VCGF5A2V123Y VCGF5A2V153Y VCGF5A2V183Y VCGF5A2G331I VCGF5A2G391I VCGF5A2G471I VCGF5A2G561I VCGF5A2G681I VCGF5A2G821I VCGF5A2G102Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2G122Y VCGF5A2W1I VCGF5A2W331I VCGF5A2W391I VCGF5A2W471I VCGF5A2W561I VCGF5A2W681I VCGF5A2W821Y VCGF5A2W102Y VCGF5A2W122Y VCGF5A2W152Y VCGF5A2W182Y VCGF5A2W222Y VCGF5A2W2Y VCGF5A2W332Y VCGF5A2W392Y VCGF5A2W472Y VCGF5A2W562Y VCGF5A2W682Y VCGF5A2W822Y VCGF5A2W103Y VCGF5A2W123Y 7
10 VTCO Screw terminal type aluminum electrolytic capacitors Standard Products Table Rated Voltage(VCD) 450 Capacitance (μf) Case size DXL(mm) tanδ 20 C,120Hz Ripple current 40 C,120Hz (Arms) ESR(typ.) 20 C,100Hz (mω) Z max 20 C,10kHz (mω) ESL(typ.) (nh) Product name VCGF5A2W1I VCGF5A2W331I VCGF5A2W391I VCGF5A2W471I VCGF5A2W561I VCGF5A2W681I VCGF5A2W821Y VCGF5A2W102Y VCGF5A2W122Y VCGF5A2W152Y VCGF5A2W182Y VCGF5A2W222Y VCGF5A2W2Y VCGF5A2W332Y VCGF5A2W392Y VCGF5A2W472Y VCGF5A2W562Y VCGF5A2W682Y VCGF5A2W822Y VCGF5A2W103Y VCGF5A2W123Y Life time graph Useful life depending on ambient temperature Ta and ripple current operating conditions Ir versus rated ripple current at 40,120Hz Ripple Current of Diminishing Ratio(I/Ir40 ) 8
11 FILM CAPACITOR Power Electronic Capacitors Induction heater capacitors MKC-LL DC-Link capacitor(large) MKC-LS High frequency filter capacitor(small) MKC-LA DC-Link capacitor(large) MKCH-R Resonance capacitor MKCH-RH High voltage induction heating power resonance capacitor(high frequency) MKCH-RG Water cooling capacitor for induction heating(large) MKCH-RS capacitor for induction heating MKCH-RA High frequency filter capacitor VKMJ(VGMJ) AC filter capacitor Electric capacitor MKC-LL DC-Link capacitor(large) MKC-LS High frequency filter capacitor(small) MKC-LA DC-Link capacitor(large) MKC-LM DC-Link capacitor(subminiature) MKCH-SB IGBT snubber protection capacitor MKCH-R Resonance capacitor MKCH-RA High frequency filter capacitor VKMJ(VGMJ) AC filter capacitor Transducer & inverter MKC-LL DC-Link capacitor(large) MKC-LG DC-Link capacitor(huge) MKCH-LG DC-Link capacitor(huge) MKC-LS High frequency filter capacitor(small) MKC-LA DC-Link capacitor(large) MKCH-SB IGBT snubber protection capacitor MKCH-RA High frequency filter capacitor VKMJ(VGMJ) AC filter capacitor Vehicle capacitor MKC-LG DC-Link capacitor(huge) MKC-LS High frequency filter capacitor(small) MKC-LA DC-Link capacitor(large) MKP80 High frequency filter capacitor MKCH-S High frequency filter capacitor(small) MKCH-RA High frequency filter capacitor VKMJ(VGMJ) AC filter capacitor 9
12 FILM CAPACITOR HOW TO ORDER Example: MKC-LL BF Series Series capacitor voltage case encapsulation tolerance execution terminal assemble Digita: :sesies 1-2-3:MKC -> Metalized polypropylene capacitor 4-5:LL -> DC-Link, Alunimum case Digit6-7-8:Capacitance Example:507 means 50x10pF=500uF Digit :voltage Example:01200means 1200V.DC Digit14:Case 3 ->Mylar tape 5 ->Metal Case Digit15:Encapsulation 1 >Dry and fill with resin Digit16:Tolerance 1->5% 2->10% 3->20% Digit17-18:Execution Inner identify Digit19:Terminal B->Bolt N-.Nut Digit20:Assemble F->Flat botton S->With stud botton 10

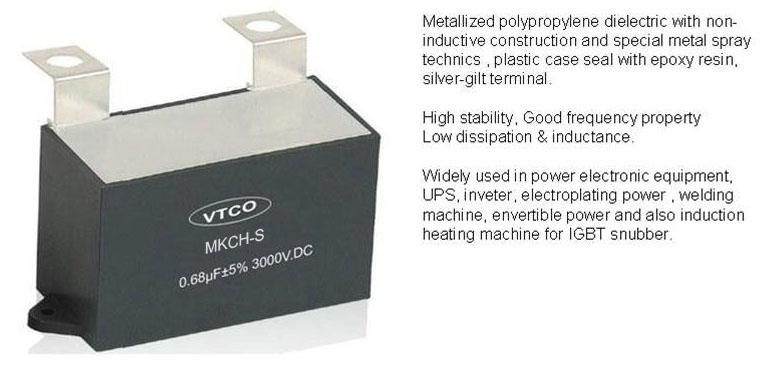

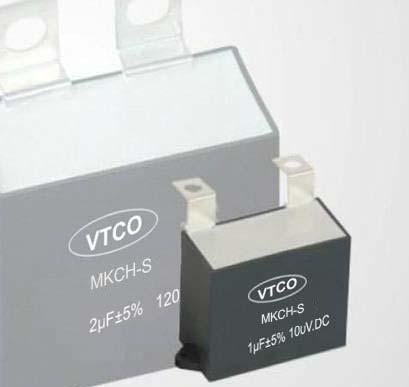

13 metalized film snubber protection capacitor Plastic Case Capacitor IGBT Snubber Capacitor MKCH-S Typical circuit C1 specifications Operating temp rang -40 ~+85 /+105 Capacitance 0.1~4.7µF Capacitance tolerance ±5%(J) ±10%(k) Rated voltage 600~0V.DC(50KHz) Withstand voltage 1.75Un/60S Dissipation factor tgδ (at 10KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current ability Dv/dt>600v/µs Flame retardation UL94V-0 Stray inductance 20nH Effective current 8~15A Referenced standard IEC GB CGE 11
14 Metalized film snubber protection capacitor VTCO Plastic Case Capacitor IGBT Snubber Capacitor MKCH-S Un/1000V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz) Un/1200V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz)
15 Metalized film snubber protection capacitor VTCO Un/1600V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz) Un/2200V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz) ,00E+06 1,00E+05 1,00E+04 1,00E Lifetime Expectancy (hours) Permanent working or operating DC-voltage 13

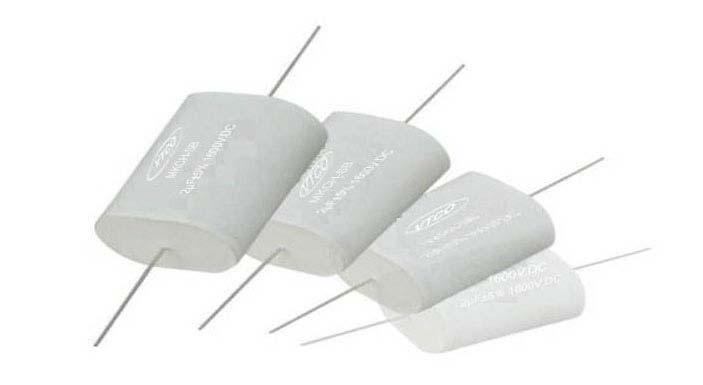

16 Axial Capacitor IGBT Snubber capacitor MKCH-SB metalized film snubber protection capacitor specifications Operating temp rang -40 ~+85%/+105 Capacitance 0.01~4.7µF Capacitance tolerance ±5%(J) ±10%(k) Rated voltage 800~0V.DC(50KHz) Withstand voltage 1.75Un/60S Dissipation factor tgδ (at 10KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current ability Dv/dt>600v/µs Flame retardation UL94V-0 Stray inductance 30nH Effective current 7~15A Referenced standard IEC GB CGE Typical circuit Un/1000V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz)
17 Metalized film snubber protection capacitor VTCO Axial Capacitor IGNT Snubber capacitor MKCH-SB Un/1200V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz) Un/1600V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz) Un/2000V.DC Cn Part number W(mm) H(mm) T(mm) P(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 100KHz)
18 Axial Capacitor IGNT Snubber capacitor MKCH-R metalized film high voltage resonance capacitor specifications Operating temp rang -40 ~+85%/+105 Capacitance(Qn) 0.1~10µF(20~200KVar) Capacitance tolerance ±5%(J) ±10%(k) Rated voltage 800~2000V.AC Withstand voltage 1. 5Un/60S Dissipation factor tgδ (at 10KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current Dv/dt>600v/µs ability Flame retardation UL94V-0 Stray inductance 30nH Effective current 30~100A Referenced standard IEC GB/T
19 Film capacitor Metalized film high voltage resonance capacitor VTCO Rresonance Capacitoer MKCH-R Un/1200V.DC(500V.AC) Cn Part number L(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 Qn(kvAR) Weight(g) Remark D 100KHz)
20 Metalized film high voltage resonance capacitor VTCO Rresonance Capacitoer MKCH-R Un/1600V.DC(600V.AC) Cn Part number L(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 Qn(kvAR) Weight(g) Remark D 100KHz)
21 Metalized film high voltage resonance capacitor VTCO Rresonance Capacitoer MKCH-R Un/2000V.DC(750V.AC) Cn Part number L(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Irms(70 Qn(kvAR) Weight(g) Remark D 100KHz)
22 Metalized film high voltage resonance capacitor Film capacitor Un/0V.DC(1200V.AC) Cn Part number D L(mm) ESR(m ESL(nH Dv/dt((V/µ Lpk(A) Irms(70 Ω) ) s) 100KHz) Qn(kvA R) VTCO Weight( Re g) mar k Un/0V.DC(1600V.AC) Cn Part number D L(mm) ESR(m Ω) ESL(nH ) Dv/dt((V/µ s) Lpk(A) Irms(70 100KHz) Qn(kvA R) Weight( g) Re mar k
23 Metalized Film capacitor film high voltage resonance capacitor VTCO Un/0V.DC(1600V.AC) Cn Part number D L(mm) ESR(m ESL(nH Dv/dt((V/µ Lpk(A) Irms(70 Qn(kvA Weight( Re Ω) ) s) 100KHz) R) g) mar k Un/5000V.DC(2000V.AC) Cn Part number D L(mm) ESR(m ESL(nH Dv/dt((V/µ Lpk(A) Irms(70 Qn(kvA Weight( Re Ω) ) s) 100KHz) R) g) mar k Lifetime (hours) 1,00E+06 1,00E+05 1,00E+04 1,00E Temperature Lifetime expectancy for MKCH-R 21

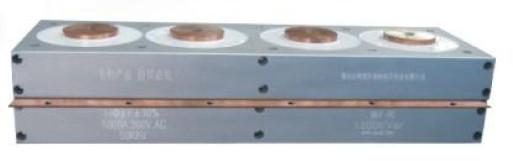

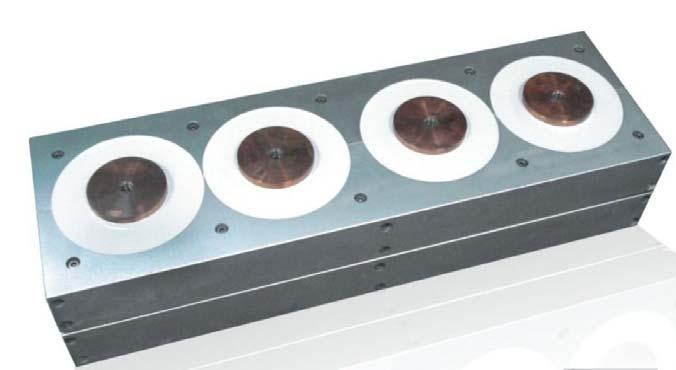

24 Aluminum Capacitor Resonance Capacitor MKCH-RS/MKC-RS Water cooling metalized film resonance capacitor MKC-RS Metallized polypropylene dielectric with non-inductive construction and special metal spray technics, seal with epoxy resin and brass terminals. High stability, Low dissipation & inductance Good self-healing properly, Good frequency property Withstand heavy current,water cooling construction Widely used in resonance in middle frequency induction heating machine Specifications Model VKPH-RS VKP-RS Operating temp rang -40 ~ ~8+5 Capacitance 20~100µF 80~µF Capacitance tolerance ±10%(k) +10%(K) Rated voltage 700V.AC V.AC Frequency range 50KHz 50KHz Reactive power 1000~2000Kvar 1000~2000Kvar Effective current 500A~0A 1000A~6000A Dissipation factor tgδ 0.001(at 10KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current Dv/dt>1000v/µs ability Flame retardation UL94V-0 Stray inductance 20nH Referenced standard IEC GB/T

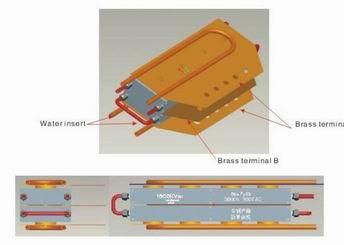

25 Water cooling metalized film resonance capacitor VTCO Aluminum Capacitor Resonance Capacitor MKCH-RS/MKC-RS MKCH-RS Cn W(mm) H(mm) T(mm) P1 P2 ESR(mΩ) ESL(nH) Dv/dt(v/us) IPK(A) Irms(A) 40µF/750V.AC/1200Kvar µF/750V.AC/1500Kvar MKC-RS Cn W(mm) H(mm) T(mm) P1 P2 ESR(mΩ) ESL(nH) Dv/dt(v/us) IPK(A) Irms(A) 160µF/V.AC/1200Kvar µF/V.AC/1500Kvar
26 Metalized film couping/filter capacitor High Frequency Filter CapacitorMKC-LS(Small) Metallized polypropylene dielectric with non-inductive construction and special metal spray technics, plastic case or seal with epoxy resin and brass fetch out by many ways. Eg.Braass nut bolt terminal. Good frequency property,withstangd heavy current, Good self-healing properly, Low dissipation & inductance Widely used in UPS, electroplating power, welding machine, invertible power and also induction heater for high frequency filter. specifications Operating temp rang -40 ~+85%/+105 Capacitance(Qn) 10~100µF Capacitance tolerance ±5%(J) ±10%(k) Rated voltage ~0V.AC Withstand voltage 1. 5Un/60S Dissipation factor tgδ 0.002(at 1KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current Dv/dt>50v/µs ability Flame retardation UL94V-0 Stray inductance 30nH Effective current 30~80A Referenced standard IEC GB/T
27 Metalized film coupling/ filter capacitor VTCO High Frequency Filter Capacitor MKC-LS(Small) Un/V.DC Cn Part number D L(mm) ESL(mn) ESR(mΩ) Dv/dt(v/μs) Ipk(A) Irms(70 100KHz Weight(g) Un/600V.DC Cn Part number D L(mm) ESL(mn) ESR(mΩ) Dv/dt(v/μs) Ipk(A) Irms(70 100KHz Weight(g)
28 Metalized film coupling/ filter capacitor High Frequency Filter Capacitor MKC-LS(Small) VTCO Un/800V.DC Cn Part number D L(mm) ESL(mn) ESR(mΩ) Dv/dt(v/μs) Ipk(A) Irms(70 100KHz Weight(g)
29 Metalized film coupling/ filter capacitor VTCO High Frequency Filter Capacitor MKC-LS(Small) Un/1200V.DC Cn Part number D L(mm) ESL(mn) ESR(mΩ) Dv/dt(v/μs) Ipk(A) Irms(70 100KHz Weight(g) Un/1V.DC Cn Part number D L(mm) ESL(mn) ESR(mΩ) Dv/dt(v/μs) Ipk(A) Irms(70 100KHz Weight(g) ,00E+06 1,00E+05 1,00E+04 1,00E Lifetime Expectancy (hours) Temperature( )

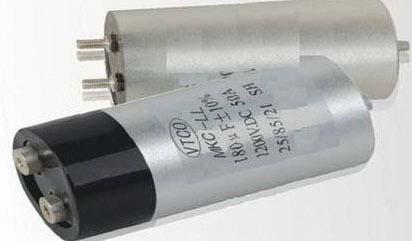

30 Aluminum Case Capacitor DC-Link Capacitor MKC-LL (Large) Metalized film filter capacitor Metallized polypropylene dielectric with non-inductive construction and special metal spray technics, plastic or aluminum case, seal with epoxy resin,brass bolt terminal or brass nut terminal. High stability, High ripple current, Withstand high voltage, withstand much levels of surge voltage,very high RMS current ratings, and longer lifetime. Widely used in UPS, inverter, electroplating power, welding machine inversion power and also induction heater,big switch power supply for high frequency filter and energy storage for welding machine. specifications Operating temp rang -40 ~+85%/+105 Capacitance(Qn) 10~100µF Capacitance tolerance ±5%(J) ±10%(k) Rated voltage ~0V.AC Withstand voltage 1. 5Un/60S Dissipation factor tgδ 0.002(at 1KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current ability Dv/dt>50v/µs Flame retardation UL94V-0 Stray inductance 30nH Effective current 30~80A Referenced standard IEC GB/T
31 Un/V.DC Metalized film filter capacitor VTCO Cn Part number D H(mm) ESL(mn) ESL(Nh) Dv/dt(v/μs) Ipk(A) Irms(A) Weight(g) Remark T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T2 Un/600V.DC Cn Part number D H(mm) ESL(mn) ESL(Nh) Dv/dt(v/μs) Ipk(A) Irms(A) Weight(g) Remark T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T2 Un/800V.DC Cn Part number D H(mm) ESL(mn) ESL(Nh) Dv/dt(v/μs) Ipk(A) Irms(A) Weight(g) Remark T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T2 29
32 Metalized film filter capacitor VTCO Un/1200v.DC Cn Part number D H(mm) ESL(mn) ESL(Nh) Dv/dt(v/μs) Ipk(A) Irms(A) Weight(g) Remark T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T T1/T ooo Lifetime expectancy (hour) Vw: permanent working or operating DC-votage 30

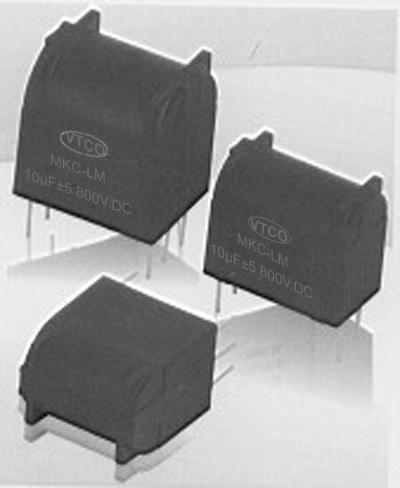

33 Metalized film filter capacitor High Frequency Filter Capacitor MKC-LM(large Small) The products are made of metallized polypropylene film, special metal spray technics, encapsulated in a plastic case seal with epoxy resin, brass pin terminal. High stability, Good frequency property, small size,low dissipation & inductance, Good self-healing properly, Widely used in UPS, inverter, electroplating power,welding machine, invertible power and also induction heater for high frequency filter. Outline drewing specifications Operating temp rang Capacitance(Qn) Capacitance tolerance -40 ~+105 5~50µF ±5%(J) ±10%(k) Rated voltage 450V.DC 600 V.DC 800 V.DC Withstand voltage 1. 5Un/60S Dissipation factor tgδ 0.002(at 1KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current ability Dv/dt>50v/µs Flame retardation UL94V-0 Stray inductance 30nH Effective current 10~30A Referenced standard IEC GB/T
34 Metalized film filter capacitor High Frequency Filter Capacitor MKC-LM(large Small) VTCO Un=500V.DC Cn Part L(mm) T(mm) H(mm) P1(mm) P2(mm) Dv/dt(v/us) Irms(A) number Un=700V.DC Cn Part L(mm) T(mm) H(mm) P1(mm) P2(mm) Dv/dt(v/us) Irms(A) number Un=1000V.DC Cn Part L(mm) T(mm) H(mm) P1(mm) P2(mm) Dv/dt(v/us) Irms(A) number Lifetime expectancy (hour) Vw: permanent working or operating DC-votage 32

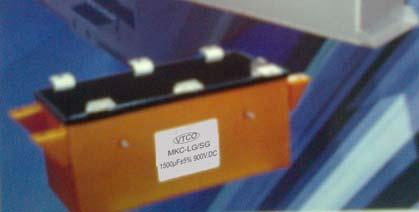

35 Metalized film filter/storage capacitor The products are made of metallized polypropylene film, with non-inductive and special metal spray technics, encapsulated in a stainless steel case or aluminum case, seal with epoxy resin, brass bolt terminal or brass nut terminal. High ripple current, high peak current. Widely used in UPS, inverter, electroplating power,welding machine, invertible power and also induction heating machine, big switch power supply for filter and energy storage for welding machine. Outline drewing specifications Operating temp rang -40 ~+105 Capacitance(Qn) 1000~10000µF Capacitance tolerance ±5%(J) ±10%(k) Rated voltage 800~0 V.DC Withstand voltage 10.35~ 1. 5Un/60S Dissipation factor tgδ 0.002(at 1KHz) Insulation resistance CxRs 5000S(at V.DC 60S) Withstand strike current ability Dv/dt>10v/µs Flame retardation UL94V-0 Stray inductance 120nH Effective current 80~500A Referenced standard IEC GB/T
36 34 Un=800V.DC Un=1000V.DC Metalized film filter/storage capacitor VTCO Metalized film filter/storage capacitor VTCO Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm)
37 35 Un=1200V.DC Un=1200V.DC Metalized film filter/storage capacitor VTCO Metalized film filter/storage capacitor VTCO Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm) Weight Cn H(mm) W(mm) L(mm)
38 Metalized film filter/storage capacitor VTCO Un=2000V.DC L(mm) W(mm) H(mm) Cn Weight L(mm) W(mm) H(mm) Cn Weight ooo Lifetime expectancy (hour) Vw: permanent working or operating DC-votage sc-leadertech.ne 36
39 Aluminuum Case Capacitor DC-Link Capacitor MKC-LA Metalized film DC-Link capacitor Metallized polypropylene dielectric with non-inductive construction and special metal spray technics, seal with epoxy resin, brass terminals. Good frequency property, Withstand heavy Current, Good self-healing property, Low dissipation & inductance specifications Operating temp rang -40 ~+85%/+105 Capacitance (Qn) 10~100µF(200~800KVar) Capacitance tolerance ±5%(J) ±10%(k) Rated voltage ~0V.AC Withstand voltage 1. 5Un/60S Dissipation factor tg 0.002(at 10KHz) Insulation resistance CxRs MΩ(at V.DC 60S) Withstand strike current Dv/dt>50v/µs ability Flame retardation UL94V-0 Stray inductance 30nH Effective current 10~80A Referenced standard IEC GB/TGB Un/1600V.DC Cn Part number L(mm) W(mm) H(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Lrms(A) Weight

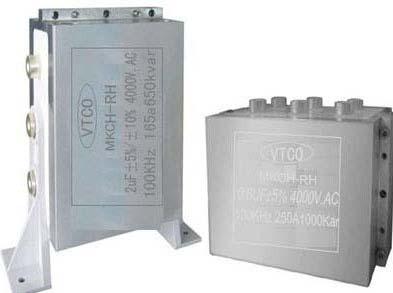

40 Water cooling Metalized film high voltage capacitor Outline drawing metallized polypropylene dielectric with non-inductive construction and special metal spray technics, encapsulated in a water cooling aluminum case seal with epoxy resin, fetch out by brass bolt or brass nut. Good frequency property, Good self-healing properly, Low dissipation & inductance, High stability, Very high over rate current ability, Small size. Widely used in high frequency induction heating equipment for high voltage resonance circuit. Construction A :3 element Construction A : 5element Dimensions : W1=150 W2=134 T=70 Dimensions : W1=150 W2=134 T=110 H=100 P2=38 H=100 P1=40 P2=38 specifications Operating temp rang -40 ~+85%/+105 Capacitance (Qn) 0.06~0.6µF(200~800KVar) Capacitance tolerance ±5%(J) ±10%(k) Rated voltage ~5000V.AC Frequency range 20KHz~250KHz Withstand voltage 1. 5Un/60S Dissipation factor tg (at 10KHz) Insulation resistance CxRs MΩ(at V.DC 60S) Withstand strike current ability Dv/dt>0v/µs Flame retardation UL94V-0 Stray inductance 20nH Effective current 100~250A Referenced standard IEC GB/T
41 Water cooling metalized film high voltage capacitor VTCO C0nstuction CN μf±5% Un v.ac Irms(mac)A Qn Kvar F Khz Remark A C Lifetime (hours) 1,00E+06 1,00E+05 1,00E+04 1,00E Temperature( ) Lifetime expectancy 39

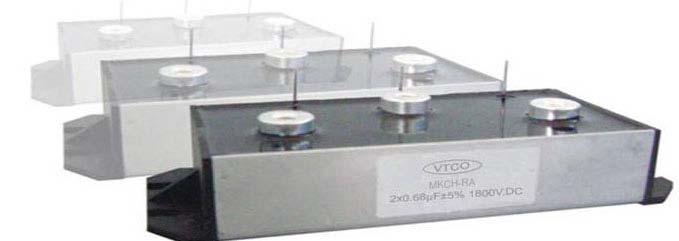

42 Film capacitor Metalized film high voltage resonance capacitor Aluminuum Case Capacitor Resonance Capacitor MKCH-RA Metallized polypropylene dielectric with non-inductive construction and special metal spray technics, aluminum case seal with epoxy resin, fetch out by brass bolt or brass nut. Good high frequency property, Good self-healing properly, Low dissipation & inductance, High stability, Very high RMS current ratings, Small size and longer lifetime. Widely used in high frequency induction heating equipment for high voltage resonance circuit. specifications Operating temp rang -40 ~+85%/+105 Capacitance (Qn) 0.06~0.6µF(200~800KVar) Capacitance tolerance ±5%(J) ±10%(k) Rated voltage ~5000V.AC Frequency range 20KHz~250KHz Withstand voltage 1. 5Un/60S Dissipation factor tg (at 10KHz) Insulation resistance CxRs MΩ(at V.DC 60S) Withstand strike current Dv/dt>0v/µs ability Flame retardation UL94V-0 Stray inductance 20nH Effective current 100~250A Referenced standard IEC GB/T Un/1600V.DC Cn Part number L(mm) W(mm) H(mm) ESR(mΩ) ESL(nH) Dv/dt((V/µs) Lpk(A) Lrms(A) Weight 2x x x
43 Metalized film high voltage resonance capacitor Capacitor for Commercial Induction Cooker VTCO Trsditional application DC-Link Resonance 3-35kw CBB65 3uF/450VAC 0.1uF/1600VDC New application from CG-Elec DC-Link Resonance 3-35kw VKP 5uF/800VDC VKP10uF/800VDC VKPH-RM 0.1uF /0V VKPH-RM0.22uF /2500V VKPH-RM 0.35uF /0V VKPH-RM 0.15uF/0V VKPH-RM0.24uF/0V VKPH-RM0.39uF /2500V VKPH-RM 0.18 uf /0V VKPH-RM 0. uf /0V 12-35kw VKP-LA 20Uf/800VDC VKP-LA 30Uf/800VDC VKP-LA 45Uf/800VDC VKPH-RA 2* 0.6uF /1600VDC VKPH-RA 2* 0.7uF /1600VDC VKPH-RA 2* 1.0uF /1600VDC VKPH-RA 2*1.2uF /1600VDC VKPH-RA 2* 1.4uF /1600VDC VKPH-RA 2* 0.6uF /0VDC VKPH-RA 2* 0.7uF /0VDC VKPH-RA 2* 1.0uF /0VDC VKPH-RA 2*1.2uF /0VDC VKPH-RA 2* 1.4uF /0VDC Film capacitor sc-lesdertech.net 41

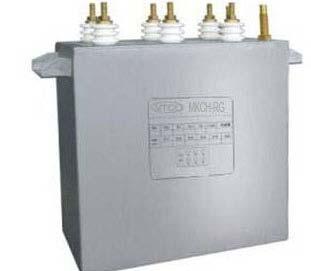

44 Water Cooling Resonance Capacitor MKCH-RG Water cooling metalized film resonance capacitor Metallized polypropylene dielectric with non-inductive construction and special metal spray technics, aluminum case and fetch out by brass bolt or brass nut. High stability, Low dissipation & inductance,good self-healing properly, Withstand heavy current, Water cooling constructiongood frequency property, Widely used in induction heating equipment for middle frequence resonance circuit. specifications Operating temp rang Capacitance (Qn) Capacitance tolerance Rated voltage Frequency range Withstand voltage -40 ~+55 /+70 / ~600µF(500~0KVar) ±5%(J) ±10%(k) 375V.AC~0V.AC KHz~25KHz 1. 5Un/60S Dissipation factor tg 0.001(at 1KHz) Insulation resistance CxRs 5000 S(at V.DC 60S) Withstand strike current Dv/dt>500v/µs ability Flame retardation UL94V-0 Stray inductance 150nH Effective current 1.3In(In2πfcu) Referenced standard IEC GB/T Cn Part number Un V.AC F HZ ON KVAR A A1 A2 B H H1 D Weight (g) Remark RG RG.75--4S RG S RG S RG S RG S RG S RG S RG S RG S RG S RG =7S RG S RG S 42
45 Metalized film AC filter capacitor Huge capacitance, withstand high voltage and ripple current, small size, install easily and flexibly. Wildly used in UPS, switch power supply, transducer, inverter, power supply and so on. Composed of multi-stage LC filter circuit with reactor L for harmonic pollution remediation remediation and providing reactive power compensation, then improve power factor and so on. It can be made according to customer requirements within the triangle or connection. Typical circuit L Output C Load specifications Operating temp rang Capacitance (Qn) Capacitance tolerance Rated voltage Withstand voltage -40 ~ ~1000µF(10~800KVar) ±5%(J) ±10%(k) 250~1000V.AC 1. 5Un/60S Dissipation factor tg 0.002(at 1KHz) Insulation resistance Withstand strike current ability Flame retardation Stray inductance Effective current Referenced standard CxRs 5000 mω(at V.DC 60S) Dv/dt>20v/µs UL94V-0 20nH 10~250A IEC GB/ C : Output filter capacitor H±1 D Special specification available on request Cn Un DxW WXTH Cn Un DxW WXTH 3x1.0µF 2000V.AC 78x38x54 3x800µF 500V.AC 205x70x150 3x10µF V.AC 78x38x54 3x150µF 690V.AC 380x80x190 3x12µF 450V.AC 100x5x75 3x160µF 450V.AC 116x220 3x13.9µF 850V.AC 250x130x160 3x40µF 450V.AC 160x45x60 3x55.7µF 3x46.7µF 3x60µF 950V.AC 450V.AC 1V.AC 116x0 116x0 200x135x150 3x60µF 3x350µF 3x450µF 690V.AC 450V.AC 1140V.AC 250x55x70 x80x 530x135x290 43
46 44
