FILTER DRIERS. FILTER DRIER TYPE LIQUID SUCTION STAS Take-Apart X X ADKS Take-Apart X X BTAS Take-Apart -- X
|
|
|
- Κόριννα Ταρσούλη
- 8 χρόνια πριν
- Προβολές:
Transcript

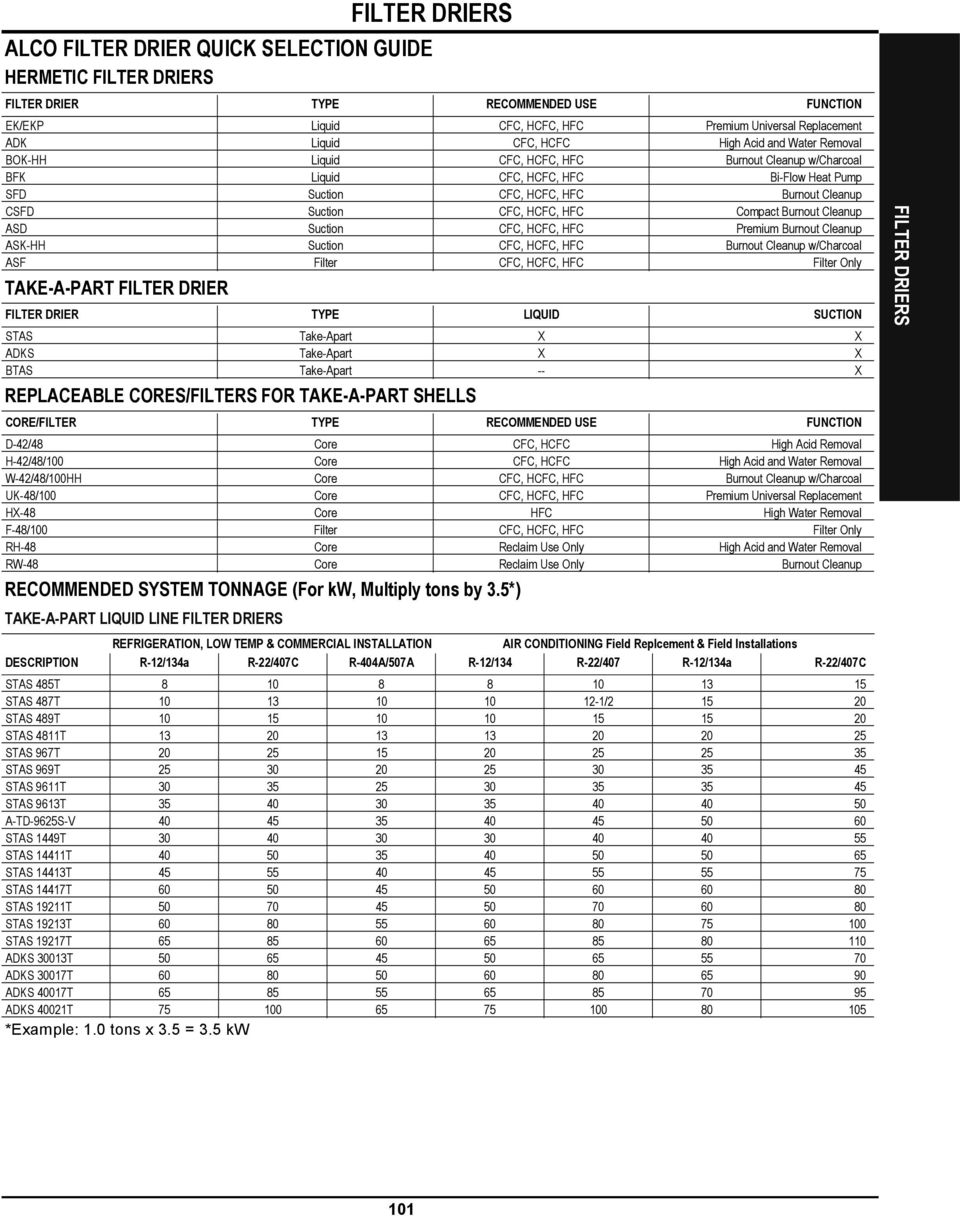

1 ALCO FILTER DRIER QUICK SELECTION GUIDE HERMETIC FILTER DRIER TYPE RECOMMENDED USE FUNCTION EK/EKP Liquid CFC, HCFC, HFC Premium Universal Replacement ADK Liquid CFC, HCFC High Acid and Water Removal BOK-HH Liquid CFC, HCFC, HFC Burnout Cleanup w/charcoal BFK Liquid CFC, HCFC, HFC Bi-Flow Heat Pump SFD Suction CFC, HCFC, HFC Burnout Cleanup CSFD Suction CFC, HCFC, HFC Compact Burnout Cleanup ASD Suction CFC, HCFC, HFC Premium Burnout Cleanup ASK-HH Suction CFC, HCFC, HFC Burnout Cleanup w/charcoal ASF Filter CFC, HCFC, HFC Filter Only TAKE-A-PART FILTER DRIER FILTER DRIER TYPE LIQUID SUCTION STAS Take-Apart X X ADKS Take-Apart X X BTAS Take-Apart -- X REPLACEABLE CORES/FILTERS FOR TAKE-A-PART SHELLS CORE/FILTER TYPE RECOMMENDED USE FUNCTION D-42/48 Core CFC, HCFC High Acid Removal H-42/48/100 Core CFC, HCFC High Acid and Water Removal W-42/48/100HH Core CFC, HCFC, HFC Burnout Cleanup w/charcoal UK-48/100 Core CFC, HCFC, HFC Premium Universal Replacement HX-48 Core HFC High Water Removal F-48/100 Filter CFC, HCFC, HFC Filter Only RH-48 Core Reclaim Use Only High Acid and Water Removal RW-48 Core Reclaim Use Only Burnout Cleanup RECOMMENDED SYSTEM TONNAGE (For kw, Multiply tons by 3.5*) TAKE-A-PART LIQUID LINE REFRIGERATION, LOW TEMP & COMMERCIAL INSTALLATION AIR CONDITIONING Field Replcement & Field Installations DESCRIPTION R-12/134a R-22/407C R-404A/507A R-12/134 R-22/407 R-12/134a R-22/407C STAS 485T STAS 487T / STAS 489T STAS 4811T STAS 967T STAS 969T STAS 9611T STAS 9613T A-TD-9625S-V STAS 1449T STAS 14411T STAS 14413T STAS 14417T STAS 19211T STAS 19213T STAS 19217T ADKS 30013T ADKS 30017T ADKS 40017T ADKS 40021T *Example: 1.0 tons x 3.5 = 3.5 kw 101
2 ALCO FILTER DRIER QUICK SELECTION GUIDE RECOMMENDED SYSTEM TONNAGE (For kw, Multiply tons by 3.5*) SPUN COPPER LIQUID LINE SERVICE DRIERS REFRIGERATION, LOW TEMP & COMMERCIAL INSTALLATION AIR CONDITIONING Field Replcement & Field Installations DESCRIPTION R-12/R-134a R-22/R-407C R-404A/R-507A R-12/R-134A R-22/R-407C R-12/R-134a R-22/R-407C CU-80, 619 1/3 1/2 1/3 1/3 1/2 1/2 1/2 CU-620, 621 1/2 3/4 1/ /5 2 CU-200 1/2 3/4 1/2 3/ /2 CU-319 1/2 3/4 1/ /2 2 *Example: 1.0 tons x 3.5 = 3.5 kw RECOMMENDED SYSTEM TONNAGE HERMETIC LIQUID LINE (EK, ADK, BFK, BOK)0 Recommended Capacities at 2 psi drop REFRIGERATION, LOW TEMP & COMMERCIAL INSTALLATION AIR CONDITIONING Field Replcement & Field Installations DESCRIPTION R-12/134a R-22/R-407C/R- R-404A/507A R-12/134 R-22/407C/R-410A 032 1/2 1/2 1/ /2 032S 1/2 1/2 1/ / /2 1/2 1/ /2 033S 1/2 1/2 1/ / /4 3/4 1/ /2 052S 3/4 3/4 1/ / / / S 1-1/ / /4 1-1/ S 1 1 3/4 1-1/ S S /2 084S / / / S 1-1/ / S S S / / S 3 7-1/ / S / / S 4 7-1/ / / S 7-1/ S 7-1/ S 7-1/ / S / /2 7-1/2 7-1/ S 7-1/2 7-1/2 7-1/ S / S S S
3 ALCO EK EXTRA-KLEAN LIQUID LINE FILTER DRIER 103

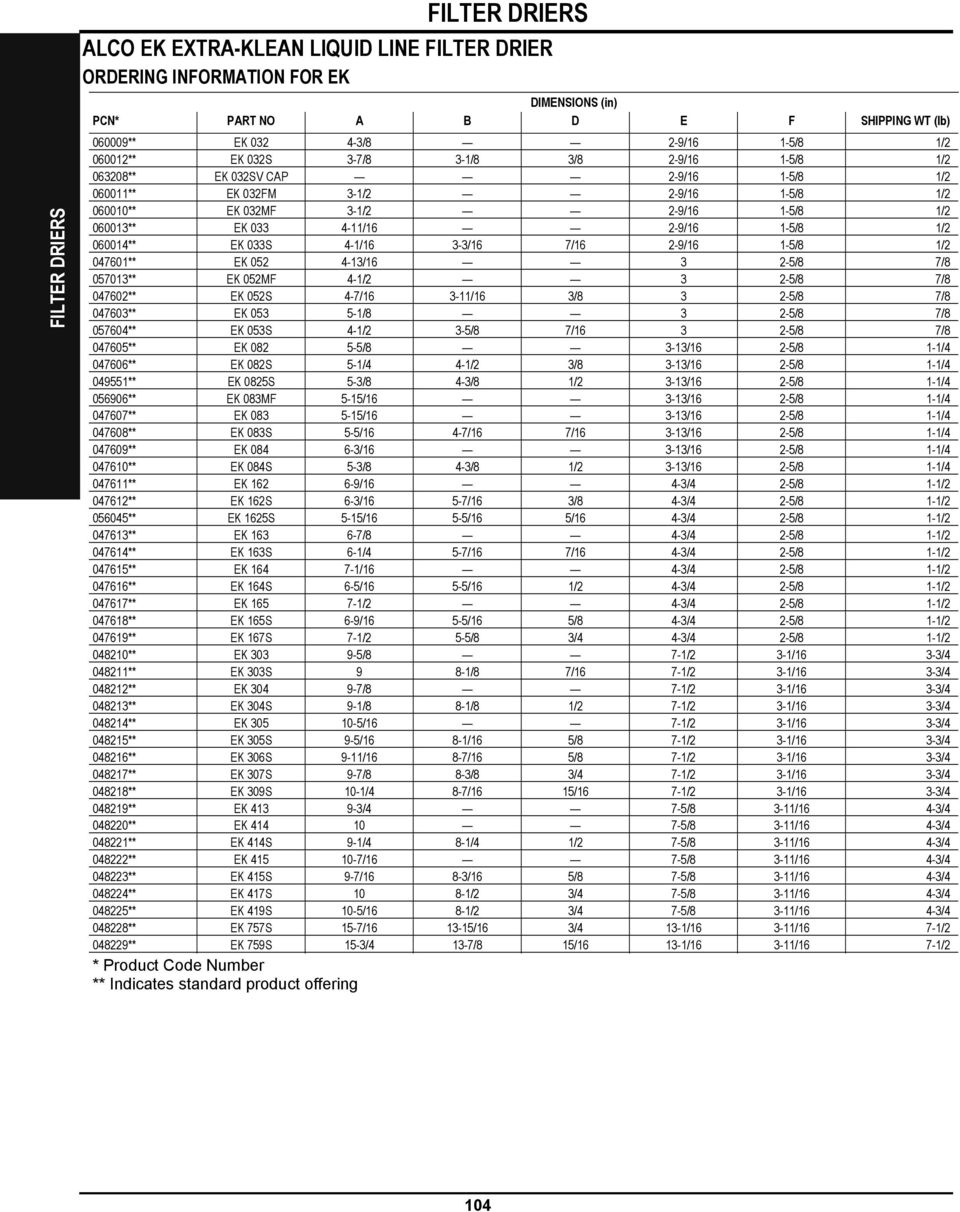

4 ALCO EK EXTRA-KLEAN LIQUID LINE FILTER DRIER ORDERING INFORMATION FOR EK DIMENSIONS (in) PCN* PART NO A B D E F SHIPPING WT (lb) ** EK /8 2-9/16 1-5/8 1/ ** EK 032S 3-7/8 3-1/8 3/8 2-9/16 1-5/8 1/ ** EK 032SV CAP 2-9/16 1-5/8 1/ ** EK 032FM 3-1/2 2-9/16 1-5/8 1/ ** EK 032MF 3-1/2 2-9/16 1-5/8 1/ ** EK /16 2-9/16 1-5/8 1/ ** EK 033S 4-1/16 3-3/16 7/16 2-9/16 1-5/8 1/ ** EK / /8 7/ ** EK 052MF 4-1/ /8 7/ ** EK 052S 4-7/ /16 3/ /8 7/ ** EK / /8 7/ ** EK 053S 4-1/2 3-5/8 7/ /8 7/ ** EK /8 3-13/16 2-5/8 1-1/ ** EK 082S 5-1/4 4-1/2 3/8 3-13/16 2-5/8 1-1/ ** EK 0825S 5-3/8 4-3/8 1/2 3-13/16 2-5/8 1-1/ ** EK 083MF 5-15/ /16 2-5/8 1-1/ ** EK / /16 2-5/8 1-1/ ** EK 083S 5-5/16 4-7/16 7/ /16 2-5/8 1-1/ ** EK / /16 2-5/8 1-1/ ** EK 084S 5-3/8 4-3/8 1/2 3-13/16 2-5/8 1-1/ ** EK /16 4-3/4 2-5/8 1-1/ ** EK 162S 6-3/16 5-7/16 3/8 4-3/4 2-5/8 1-1/ ** EK 1625S 5-15/16 5-5/16 5/16 4-3/4 2-5/8 1-1/ ** EK /8 4-3/4 2-5/8 1-1/ ** EK 163S 6-1/4 5-7/16 7/16 4-3/4 2-5/8 1-1/ ** EK /16 4-3/4 2-5/8 1-1/ ** EK 164S 6-5/16 5-5/16 1/2 4-3/4 2-5/8 1-1/ ** EK /2 4-3/4 2-5/8 1-1/ ** EK 165S 6-9/16 5-5/16 5/8 4-3/4 2-5/8 1-1/ ** EK 167S 7-1/2 5-5/8 3/4 4-3/4 2-5/8 1-1/ ** EK /8 7-1/2 3-1/16 3-3/ ** EK 303S 9 8-1/8 7/16 7-1/2 3-1/16 3-3/ ** EK /8 7-1/2 3-1/16 3-3/ ** EK 304S 9-1/8 8-1/8 1/2 7-1/2 3-1/16 3-3/ ** EK /16 7-1/2 3-1/16 3-3/ ** EK 305S 9-5/16 8-1/16 5/8 7-1/2 3-1/16 3-3/ ** EK 306S 9-11/16 8-7/16 5/8 7-1/2 3-1/16 3-3/ ** EK 307S 9-7/8 8-3/8 3/4 7-1/2 3-1/16 3-3/ ** EK 309S 10-1/4 8-7/16 15/16 7-1/2 3-1/16 3-3/ ** EK /4 7-5/8 3-11/16 4-3/ ** EK /8 3-11/16 4-3/ ** EK 414S 9-1/4 8-1/4 1/2 7-5/8 3-11/16 4-3/ ** EK /16 7-5/8 3-11/16 4-3/ ** EK 415S 9-7/16 8-3/16 5/8 7-5/8 3-11/16 4-3/ ** EK 417S /2 3/4 7-5/8 3-11/16 4-3/ ** EK 419S 10-5/16 8-1/2 3/4 7-5/8 3-11/16 4-3/ ** EK 757S 15-7/ /16 3/4 13-1/ /16 7-1/ ** EK 759S 15-3/4 13-7/8 15/ / /16 7-1/2 * Product Code Number ** Indicates standard product offering 104

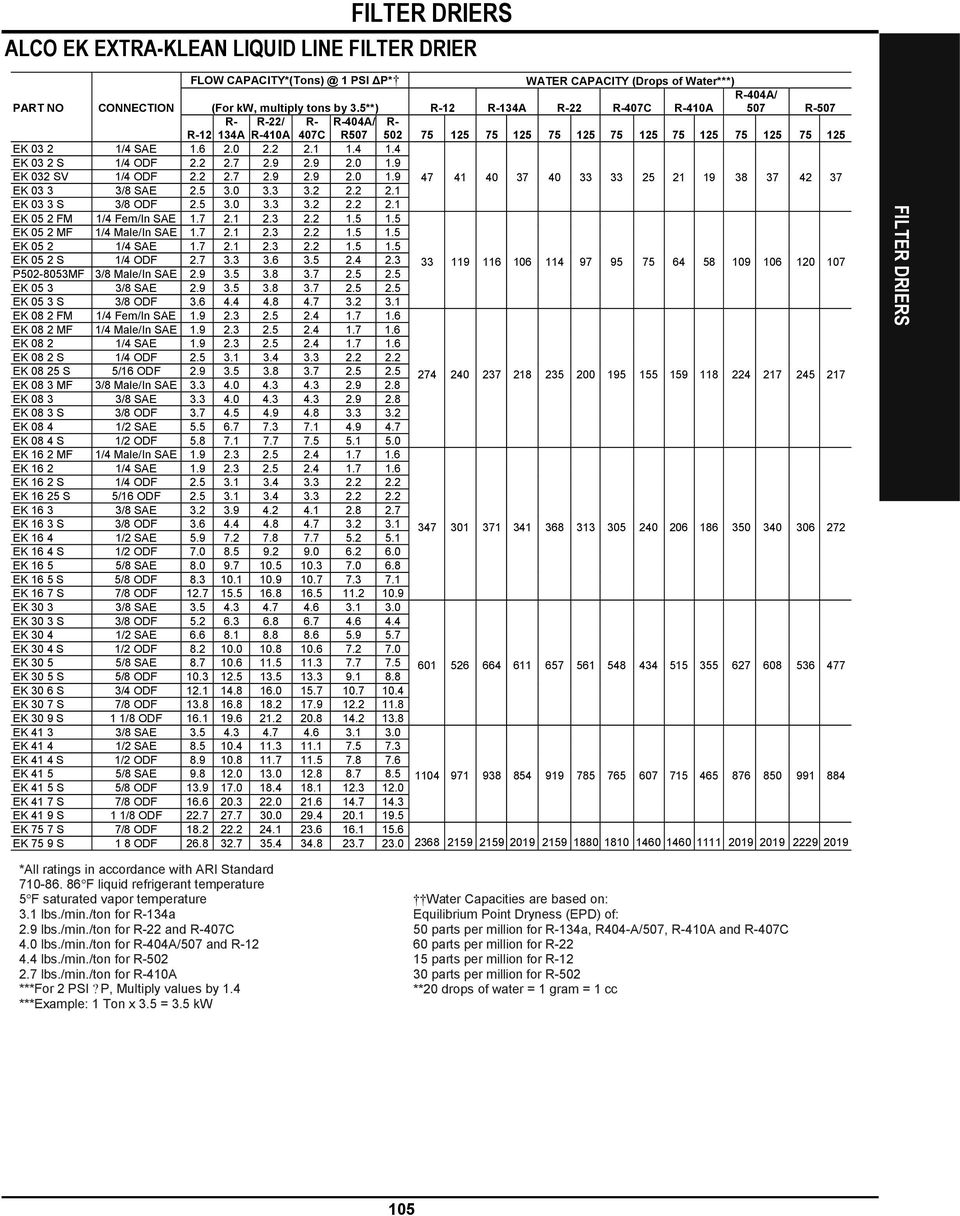

5 ALCO EK EXTRA-KLEAN LIQUID LINE FILTER DRIER PART NO CONNECTION FLOW 1 PSI ΔP* WATER CAPACITY (Drops of Water***) (For kw, multiply tons by 3.5**) R-12 R-134A R-22 R-407C R-410A R- R-22/ R- R-404A/ R A R-410A 407C R507 R-404A/ 507 R-507 R EK /4 SAE EK 03 2 S 1/4 ODF EK 032 SV 1/4 ODF EK /8 SAE EK 03 3 S 3/8 ODF EK 05 2 FM 1/4 Fem/In SAE EK 05 2 MF 1/4 Male/In SAE EK /4 SAE EK 05 2 S 1/4 ODF P MF 3/8 Male/In SAE EK /8 SAE EK 05 3 S 3/8 ODF EK 08 2 FM 1/4 Fem/In SAE EK 08 2 MF 1/4 Male/In SAE EK /4 SAE EK 08 2 S 1/4 ODF EK S 5/16 ODF EK 08 3 MF 3/8 Male/In SAE EK /8 SAE EK 08 3 S 3/8 ODF EK /2 SAE EK 08 4 S 1/2 ODF EK 16 2 MF 1/4 Male/In SAE EK /4 SAE EK 16 2 S 1/4 ODF EK S 5/16 ODF EK /8 SAE EK 16 3 S 3/8 ODF EK /2 SAE EK 16 4 S 1/2 ODF EK /8 SAE EK 16 5 S 5/8 ODF EK 16 7 S 7/8 ODF EK /8 SAE EK 30 3 S 3/8 ODF EK /2 SAE EK 30 4 S 1/2 ODF EK /8 SAE EK 30 5 S 5/8 ODF EK 30 6 S 3/4 ODF EK 30 7 S 7/8 ODF EK 30 9 S 1 1/8 ODF EK /8 SAE EK /2 SAE EK 41 4 S 1/2 ODF EK /8 SAE EK 41 5 S 5/8 ODF EK 41 7 S 7/8 ODF EK 41 9 S 1 1/8 ODF EK 75 7 S 7/8 ODF EK 75 9 S 1 8 ODF *All ratings in accordance with ARI Standard F liquid refrigerant temperature 5 F saturated vapor temperature 3.1 lbs./min./ton for R-134a 2.9 lbs./min./ton for R-22 and R-407C 4.0 lbs./min./ton for R-404A/507 and R lbs./min./ton for R lbs./min./ton for R-410A ***For 2 PSI? P, Multiply values by 1.4 ***Example: 1 Ton x 3.5 = 3.5 kw Water Capacities are based on: Equilibrium Point Dryness (EPD) of: 50 parts per million for R-134a, R404-A/507, R-410A and R-407C 60 parts per million for R parts per million for R parts per million for R-502 **20 drops of water = 1 gram = 1 cc 105

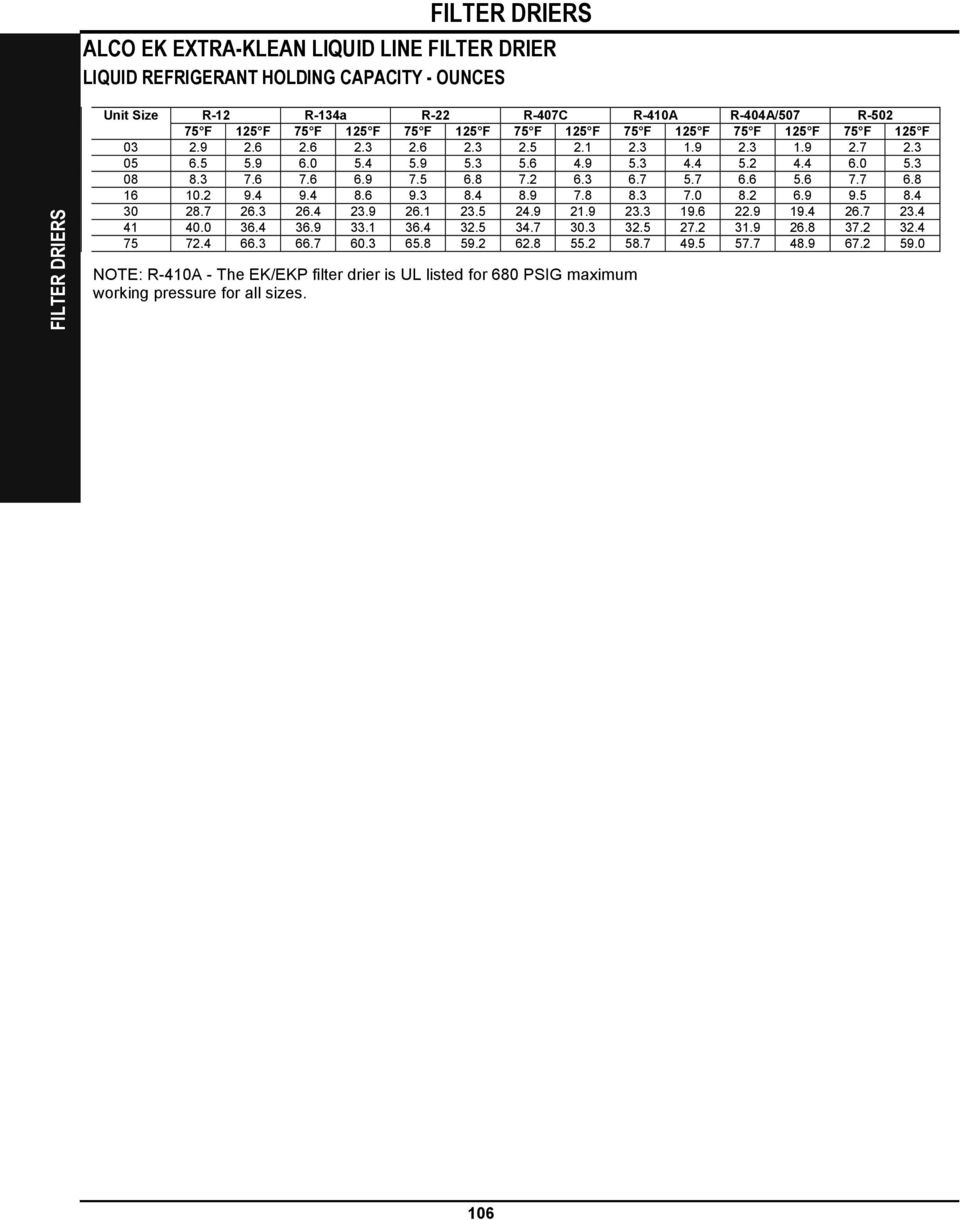

6 ALCO EK EXTRA-KLEAN LIQUID LINE FILTER DRIER LIQUID REFRIGERANT HOLDING CAPACITY - OUNCES Unit Size R-12 R-134a R-22 R-407C R-410A R-404A/507 R F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F NOTE: R-410A - The EK/EKP filter drier is UL listed for 680 PSIG maximum working pressure for all sizes. 106

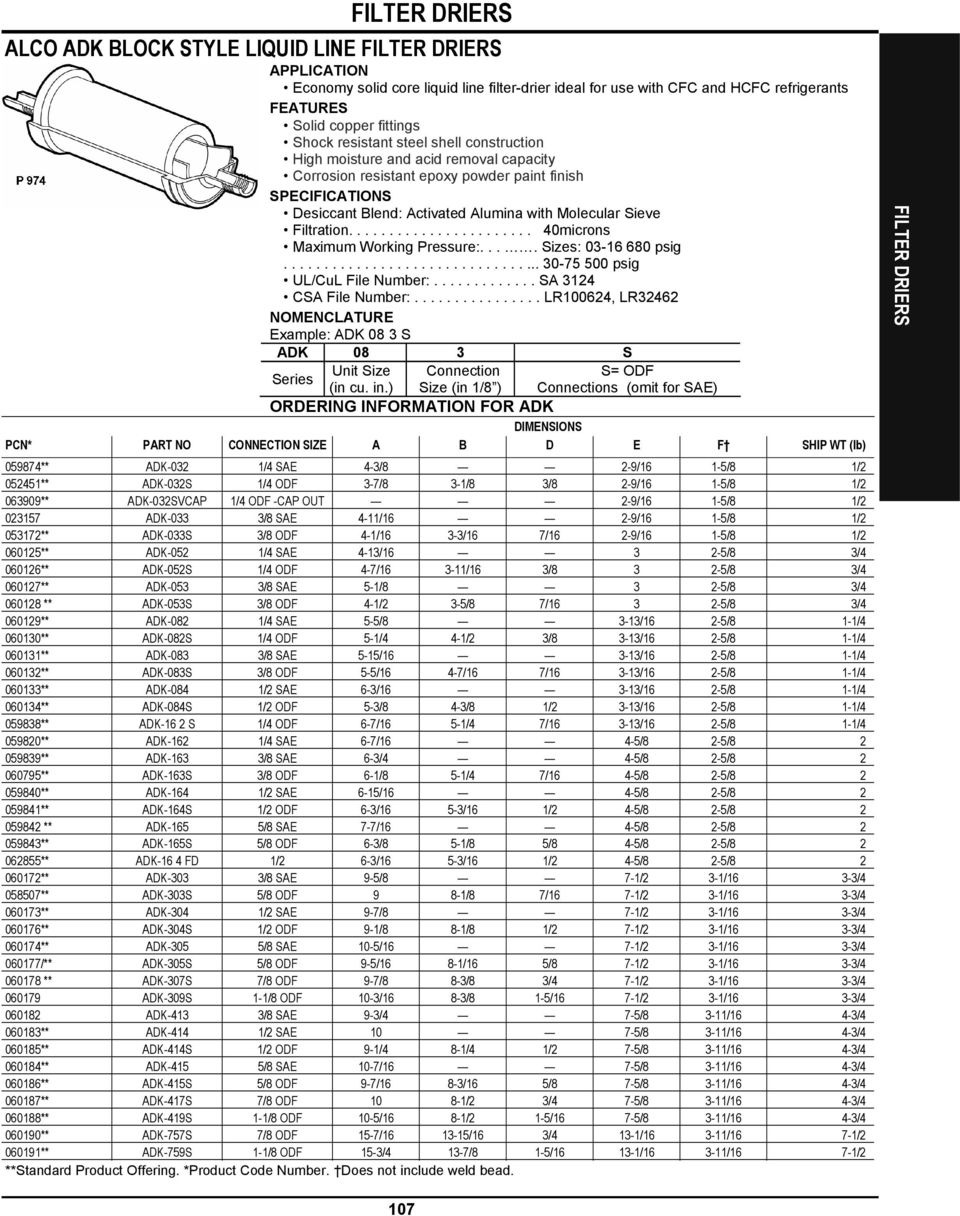

7 ALCO ADK BLOCK STYLE LIQUID LINE APPLICATION Economy solid core liquid line filter-drier ideal for use with CFC and HCFC refrigerants FEATURES Solid copper fittings Shock resistant steel shell construction High moisture and acid removal capacity Corrosion resistant epoxy powder paint finish SPECIFICATIONS Desiccant Blend: Activated Alumina with Molecular Sieve Filtration microns Maximum Working Pressure:.... Sizes: psig psig UL/CuL File Number: SA 3124 CSA File Number: LR100624, LR32462 NOMENCLATURE Example: ADK 08 3 S ADK 08 3 S Unit Size Connection S= ODF Series (in cu. in.) Size (in 1/8 ) Connections (omit for SAE) ORDERING INFORMATION FOR ADK DIMENSIONS PCN* PART NO CONNECTION SIZE A B D E F SHIP WT (lb) ** ADK-032 1/4 SAE 4-3/8 2-9/16 1-5/8 1/ ** ADK-032S 1/4 ODF 3-7/8 3-1/8 3/8 2-9/16 1-5/8 1/ ** ADK-032SVCAP 1/4 ODF -CAP OUT 2-9/16 1-5/8 1/ ADK-033 3/8 SAE 4-11/16 2-9/16 1-5/8 1/ ** ADK-033S 3/8 ODF 4-1/16 3-3/16 7/16 2-9/16 1-5/8 1/ ** ADK-052 1/4 SAE 4-13/ /8 3/ ** ADK-052S 1/4 ODF 4-7/ /16 3/ /8 3/ ** ADK-053 3/8 SAE 5-1/ /8 3/ ** ADK-053S 3/8 ODF 4-1/2 3-5/8 7/ /8 3/ ** ADK-082 1/4 SAE 5-5/8 3-13/16 2-5/8 1-1/ ** ADK-082S 1/4 ODF 5-1/4 4-1/2 3/8 3-13/16 2-5/8 1-1/ ** ADK-083 3/8 SAE 5-15/ /16 2-5/8 1-1/ ** ADK-083S 3/8 ODF 5-5/16 4-7/16 7/ /16 2-5/8 1-1/ ** ADK-084 1/2 SAE 6-3/ /16 2-5/8 1-1/ ** ADK-084S 1/2 ODF 5-3/8 4-3/8 1/2 3-13/16 2-5/8 1-1/ ** ADK-16 2 S 1/4 ODF 6-7/16 5-1/4 7/ /16 2-5/8 1-1/ ** ADK-162 1/4 SAE 6-7/16 4-5/8 2-5/ ** ADK-163 3/8 SAE 6-3/4 4-5/8 2-5/ ** ADK-163S 3/8 ODF 6-1/8 5-1/4 7/16 4-5/8 2-5/ ** ADK-164 1/2 SAE 6-15/16 4-5/8 2-5/ ** ADK-164S 1/2 ODF 6-3/16 5-3/16 1/2 4-5/8 2-5/ ** ADK-165 5/8 SAE 7-7/16 4-5/8 2-5/ ** ADK-165S 5/8 ODF 6-3/8 5-1/8 5/8 4-5/8 2-5/ ** ADK-16 4 FD 1/2 6-3/16 5-3/16 1/2 4-5/8 2-5/ ** ADK-303 3/8 SAE 9-5/8 7-1/2 3-1/16 3-3/ ** ADK-303S 5/8 ODF 9 8-1/8 7/16 7-1/2 3-1/16 3-3/ ** ADK-304 1/2 SAE 9-7/8 7-1/2 3-1/16 3-3/ ** ADK-304S 1/2 ODF 9-1/8 8-1/8 1/2 7-1/2 3-1/16 3-3/ ** ADK-305 5/8 SAE 10-5/16 7-1/2 3-1/16 3-3/ /** ADK-305S 5/8 ODF 9-5/16 8-1/16 5/8 7-1/2 3-1/16 3-3/ ** ADK-307S 7/8 ODF 9-7/8 8-3/8 3/4 7-1/2 3-1/16 3-3/ ADK-309S 1-1/8 ODF 10-3/16 8-3/8 1-5/16 7-1/2 3-1/16 3-3/ ADK-413 3/8 SAE 9-3/4 7-5/8 3-11/16 4-3/ ** ADK-414 1/2 SAE /8 3-11/16 4-3/ ** ADK-414S 1/2 ODF 9-1/4 8-1/4 1/2 7-5/8 3-11/16 4-3/ ** ADK-415 5/8 SAE 10-7/16 7-5/8 3-11/16 4-3/ ** ADK-415S 5/8 ODF 9-7/16 8-3/16 5/8 7-5/8 3-11/16 4-3/ ** ADK-417S 7/8 ODF /2 3/4 7-5/8 3-11/16 4-3/ ** ADK-419S 1-1/8 ODF 10-5/16 8-1/2 1-5/16 7-5/8 3-11/16 4-3/ ** ADK-757S 7/8 ODF 15-7/ /16 3/4 13-1/ /16 7-1/ ** ADK-759S 1-1/8 ODF 15-3/4 13-7/8 1-5/ / /16 7-1/2 **Standard Product Offering. *Product Code Number. Does not include weld bead. 107

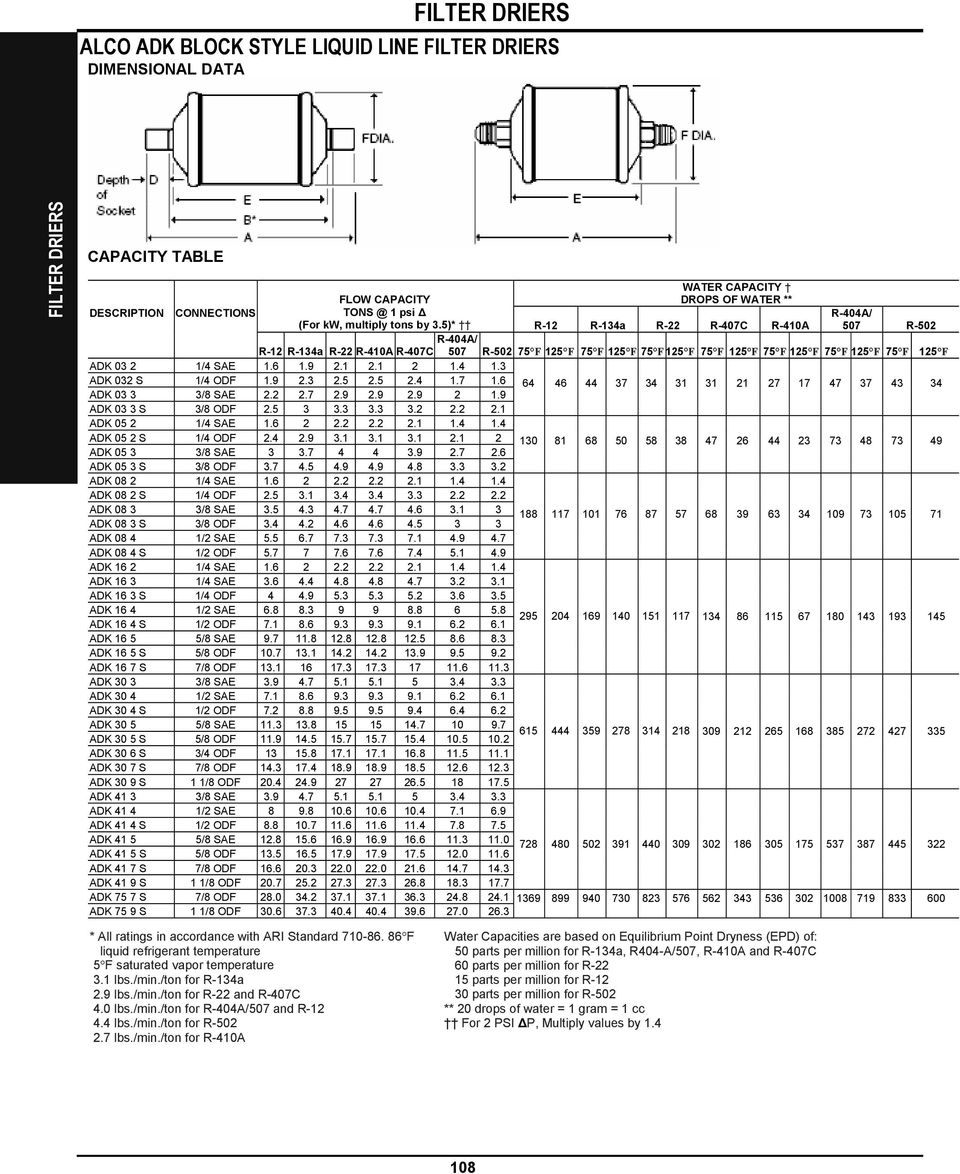

8 ALCO ADK BLOCK STYLE LIQUID LINE DIMENSIONAL DATA CAPACITY TABLE DESCRIPTION CONNECTIONS WATER CAPACITY FLOW CAPACITY DROPS OF WATER ** 1 psi Δ (For kw, multiply tons by 3.5)* R-12 R-134a R-22 R-407C R-410A R-404A/ 507 R-502 R-12 R-134a R-22 R-410A R-407C R-404A/ 507 R F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F ADK /4 SAE ADK 032 S 1/4 ODF ADK /8 SAE ADK 03 3 S 3/8 ODF ADK /4 SAE ADK 05 2 S 1/4 ODF ADK /8 SAE ADK 05 3 S 3/8 ODF ADK /4 SAE ADK 08 2 S 1/4 ODF ADK /8 SAE ADK 08 3 S 3/8 ODF ADK /2 SAE ADK 08 4 S 1/2 ODF ADK /4 SAE ADK /4 SAE ADK 16 3 S 1/4 ODF ADK /2 SAE ADK 16 4 S 1/2 ODF ADK /8 SAE ADK 16 5 S 5/8 ODF ADK 16 7 S 7/8 ODF ADK /8 SAE ADK /2 SAE ADK 30 4 S 1/2 ODF ADK /8 SAE ADK 30 5 S 5/8 ODF ADK 30 6 S 3/4 ODF ADK 30 7 S 7/8 ODF ADK 30 9 S 1 1/8 ODF ADK /8 SAE ADK /2 SAE ADK 41 4 S 1/2 ODF ADK /8 SAE ADK 41 5 S 5/8 ODF ADK 41 7 S 7/8 ODF ADK 41 9 S 1 1/8 ODF ADK 75 7 S 7/8 ODF ADK 75 9 S 1 1/8 ODF * All ratings in accordance with ARI Standard F liquid refrigerant temperature 5 F saturated vapor temperature 3.1 lbs./min./ton for R-134a 2.9 lbs./min./ton for R-22 and R-407C 4.0 lbs./min./ton for R-404A/507 and R lbs./min./ton for R lbs./min./ton for R-410A Water Capacities are based on Equilibrium Point Dryness (EPD) of: 50 parts per million for R-134a, R404-A/507, R-410A and R-407C 60 parts per million for R parts per million for R parts per million for R-502 ** 20 drops of water = 1 gram = 1 cc For 2 PSI ΔP, Multiply values by

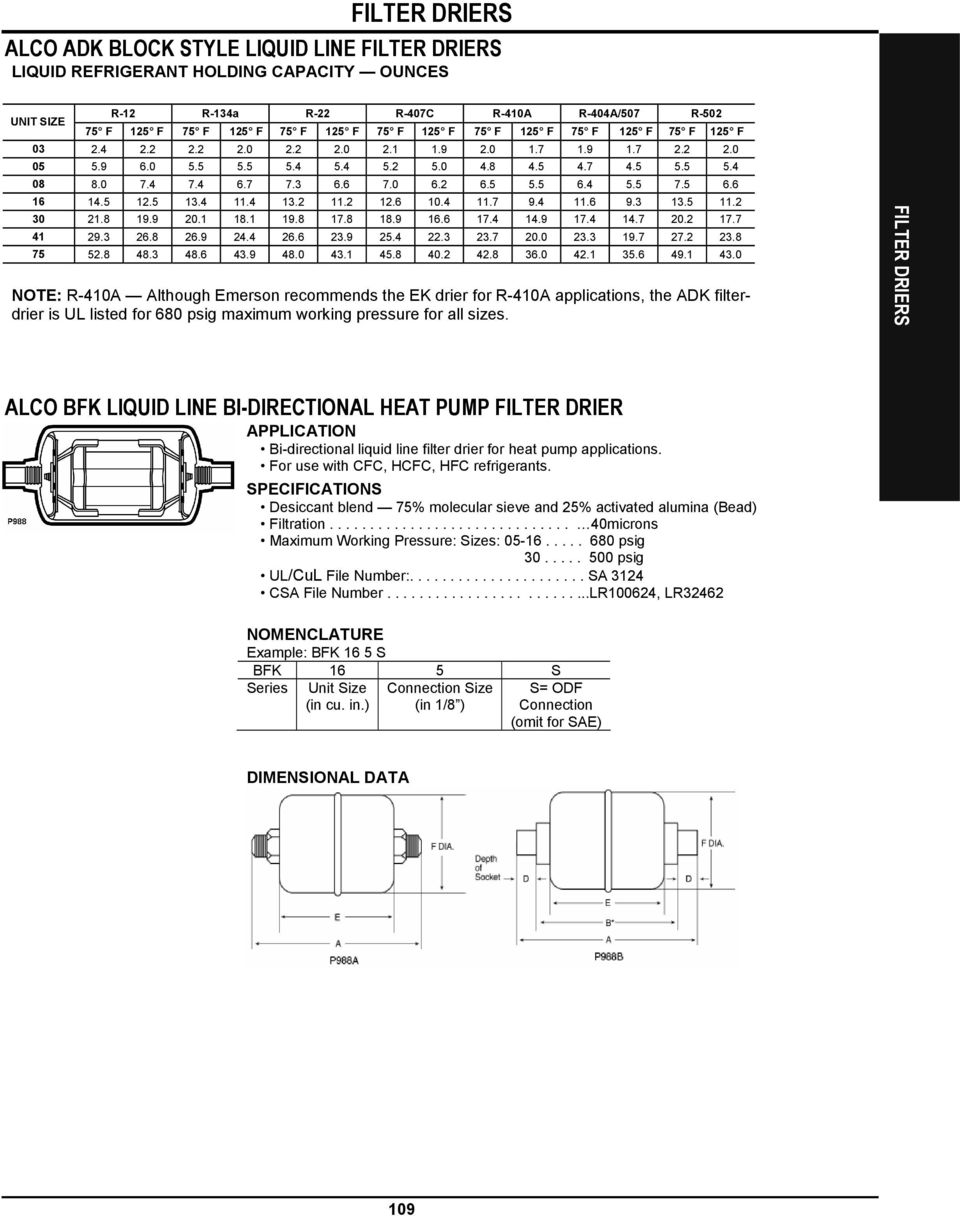

9 ALCO ADK BLOCK STYLE LIQUID LINE LIQUID REFRIGERANT HOLDING CAPACITY OUNCES UNIT SIZE R-12 R-134a R-22 R-407C R-410A R-404A/507 R F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F NOTE: R-410A Although Emerson recommends the EK drier for R-410A applications, the ADK filterdrier is UL listed for 680 psig maximum working pressure for all sizes. ALCO BFK LIQUID LINE BI-DIRECTIONAL HEAT PUMP FILTER DRIER APPLICATION Bi-directional liquid line filter drier for heat pump applications. For use with CFC, HCFC, HFC refrigerants. SPECIFICATIONS Desiccant blend 75% molecular sieve and 25% activated alumina (Bead) Filtration microns Maximum Working Pressure: Sizes: psig psig UL/CuL File Number: SA 3124 CSA File Number LR100624, LR32462 NOMENCLATURE Example: BFK 16 5 S BFK 16 5 S Series Unit Size Connection Size S= ODF (in cu. in.) (in 1/8 ) Connection (omit for SAE) DIMENSIONAL DATA 109

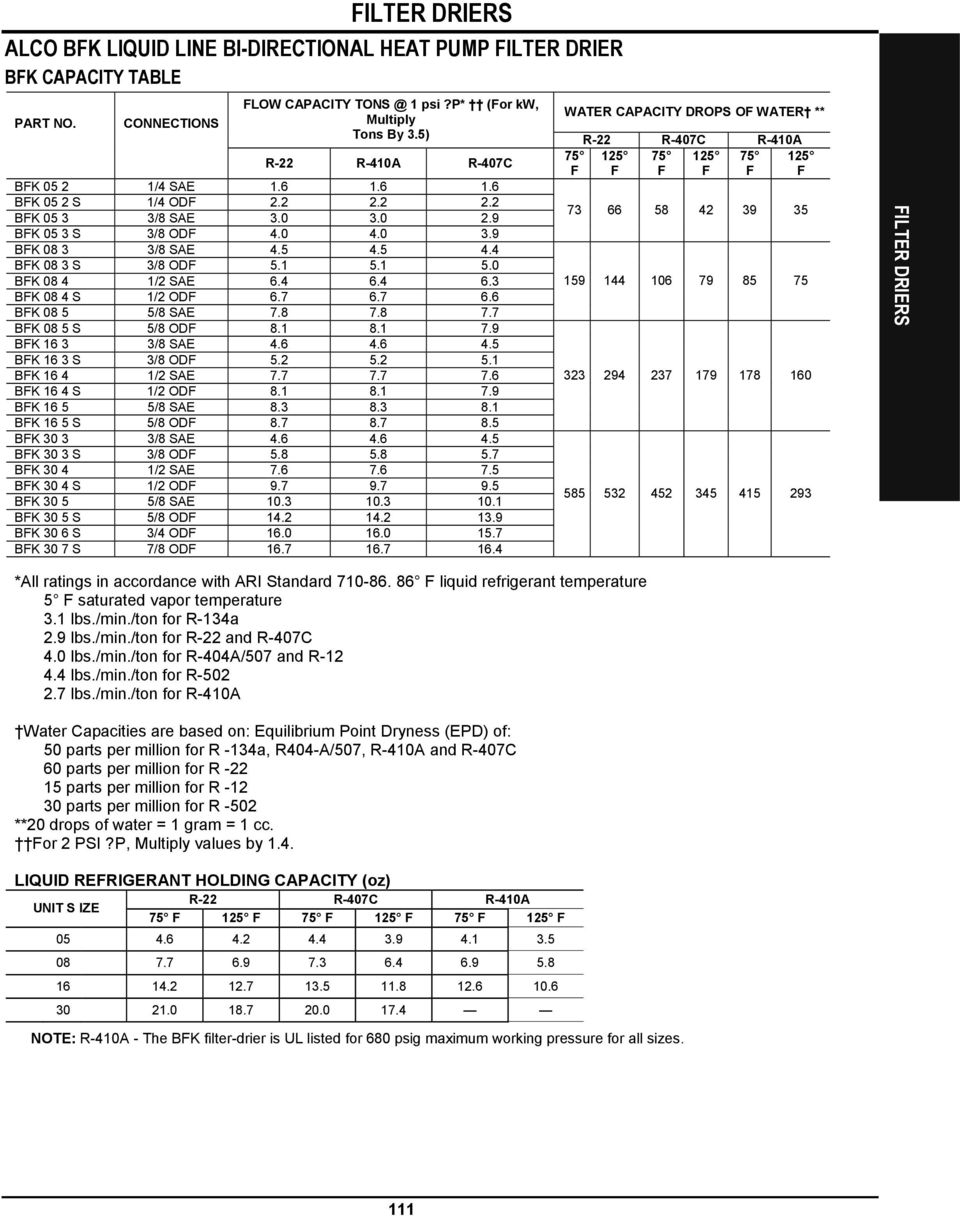

10 ALCO BFK LIQUID LINE BI-DIRECTIONAL HEAT PUMP FILTER DRIER DIMENSIONS PCN* PART NO CONNECTION A B C D E SHIP WT (lb) SIZE (in) & STYLE 62300** BFK-052 1/4 SAE ** BFK-052S 1/4 ODF BFK-053 3/8 SAE ** BFK-053S 3/8 ODF ** BFK-083 3/8 SAE ** BFK-083S 3/8 ODF ** BFK-084 1/2 SAE ** BFK-084S 1/2 ODF BFK-085 5/8 SAE BFK-085S 5/8 ODF ** BFK-163 3/8 SAE / EBF163 3/8 SAE 6-3/4 4-5/ / ** BFK-163S 3/8 ODF / EBF163S 3/8 ODF 6-1/8 4-5/8 5/1/ /8 7/ ** BFK-164 1/2 SAE / EBF164 1/2 SAE 6-15/16 4-5/ / ** BFK-164S 1/2 ODF EBF164S 1/2 ODF 6-3/16 4-5/8 5/3/ / ** BFK-165 5/8 SAE ** BFK-165S 5/8 ODF EBF165S 5/8 ODF 6-3/8 4-5/8 5/1/ / BFK-303 3/8 SAE ** BFK-303S 3/8 ODF BFK-304 1/2 SAE ** BFK-304S 1/2 ODF ** BFK305 5/8 SAE ** BFK305S 5/8 ODF ** BFK306S 3/4 ODF ** BFK307S 7/8 ODF BFK309S 1-1/8 ODF * Product Code Number. ** Standard Product Offering. 110
11 ALCO BFK LIQUID LINE BI-DIRECTIONAL HEAT PUMP FILTER DRIER BFK CAPACITY TABLE PART NO. CONNECTIONS FLOW CAPACITY 1 psi?p* (For kw, WATER CAPACITY DROPS OF WATER ** Multiply Tons By 3.5) R-22 R-407C R-410A R-22 R-410A R-407C F F F F F F BFK /4 SAE BFK 05 2 S 1/4 ODF BFK /8 SAE BFK 05 3 S 3/8 ODF BFK /8 SAE BFK 08 3 S 3/8 ODF BFK /2 SAE BFK 08 4 S 1/2 ODF BFK /8 SAE BFK 08 5 S 5/8 ODF BFK /8 SAE BFK 16 3 S 3/8 ODF BFK /2 SAE BFK 16 4 S 1/2 ODF BFK /8 SAE BFK 16 5 S 5/8 ODF BFK /8 SAE BFK 30 3 S 3/8 ODF BFK /2 SAE BFK 30 4 S 1/2 ODF BFK /8 SAE BFK 30 5 S 5/8 ODF BFK 30 6 S 3/4 ODF BFK 30 7 S 7/8 ODF *All ratings in accordance with ARI Standard F liquid refrigerant temperature 5 F saturated vapor temperature 3.1 lbs./min./ton for R-134a 2.9 lbs./min./ton for R-22 and R-407C 4.0 lbs./min./ton for R-404A/507 and R lbs./min./ton for R lbs./min./ton for R-410A Water Capacities are based on: Equilibrium Point Dryness (EPD) of: 50 parts per million for R -134a, R404-A/507, R-410A and R-407C 60 parts per million for R parts per million for R parts per million for R -502 **20 drops of water = 1 gram = 1 cc. For 2 PSI?P, Multiply values by 1.4. LIQUID REFRIGERANT HOLDING CAPACITY (oz) R-22 R-407C R-410A UNIT S IZE 75 F 125 F 75 F 125 F 75 F 125 F NOTE: R-410A - The BFK filter-drier is UL listed for 680 psig maximum working pressure for all sizes. 111

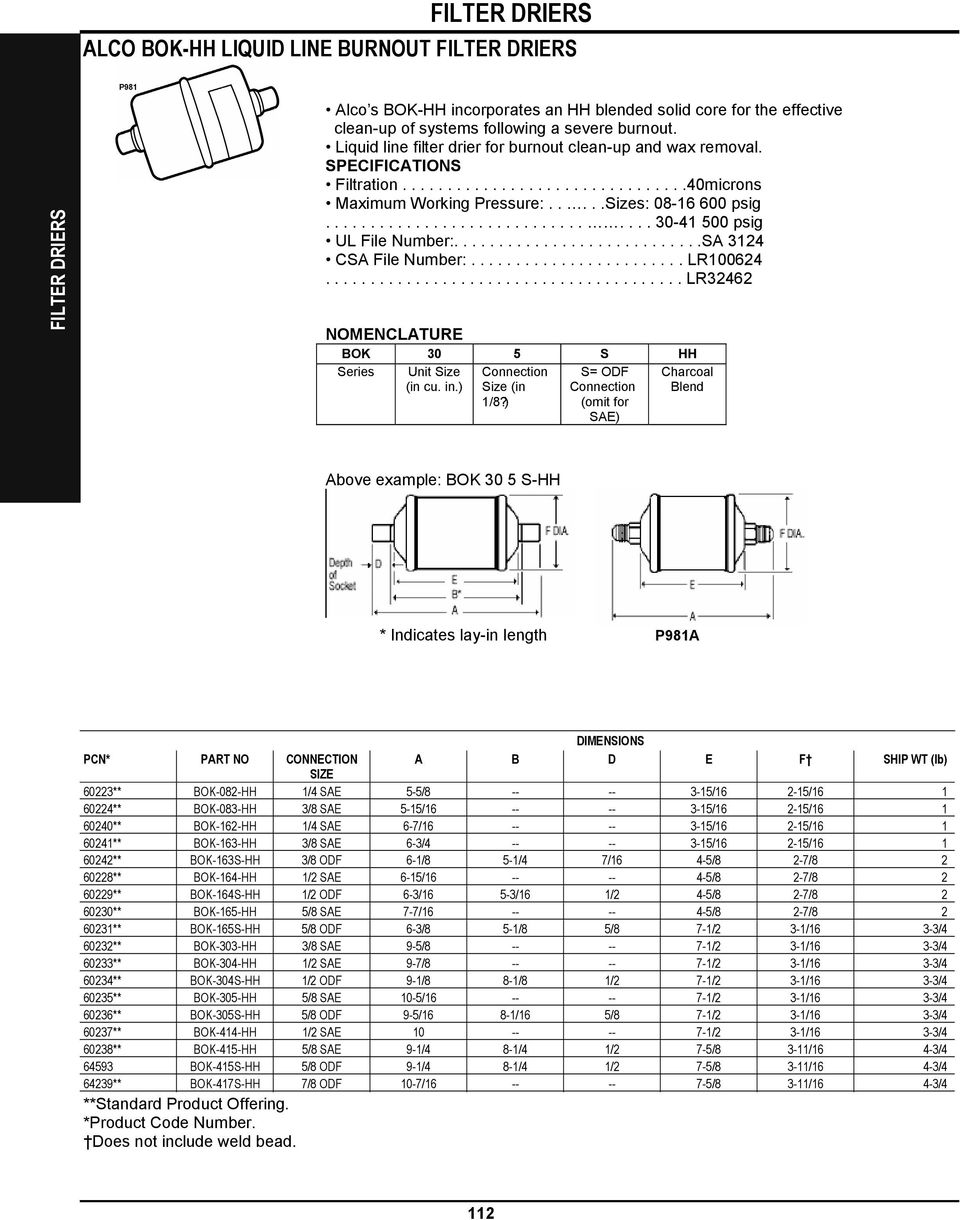

12 ALCO BOK-HH LIQUID LINE BURNOUT Alco s BOK-HH incorporates an HH blended solid core for the effective clean-up of systems following a severe burnout. Liquid line filter drier for burnout clean-up and wax removal. SPECIFICATIONS Filtration microns Maximum Working Pressure:.....Sizes: psig psig UL File Number: SA 3124 CSA File Number: LR LR32462 NOMENCLATURE BOK 30 5 S HH Series Unit Size (in cu. in.) Charcoal Blend Connection Size (in 1/8?) S= ODF Connection (omit for SAE) Above example: BOK 30 5 S-HH * Indicates lay-in length P981A DIMENSIONS PCN* PART NO CONNECTION A B D E F SHIP WT (lb) SIZE 60223** BOK-082-HH 1/4 SAE 5-5/ / / ** BOK-083-HH 3/8 SAE 5-15/ / / ** BOK-162-HH 1/4 SAE 6-7/ / / ** BOK-163-HH 3/8 SAE 6-3/ / / ** BOK-163S-HH 3/8 ODF 6-1/8 5-1/4 7/16 4-5/8 2-7/ ** BOK-164-HH 1/2 SAE 6-15/ /8 2-7/ ** BOK-164S-HH 1/2 ODF 6-3/16 5-3/16 1/2 4-5/8 2-7/ ** BOK-165-HH 5/8 SAE 7-7/ /8 2-7/ ** BOK-165S-HH 5/8 ODF 6-3/8 5-1/8 5/8 7-1/2 3-1/16 3-3/ ** BOK-303-HH 3/8 SAE 9-5/ /2 3-1/16 3-3/ ** BOK-304-HH 1/2 SAE 9-7/ /2 3-1/16 3-3/ ** BOK-304S-HH 1/2 ODF 9-1/8 8-1/8 1/2 7-1/2 3-1/16 3-3/ ** BOK-305-HH 5/8 SAE 10-5/ /2 3-1/16 3-3/ ** BOK-305S-HH 5/8 ODF 9-5/16 8-1/16 5/8 7-1/2 3-1/16 3-3/ ** BOK-414-HH 1/2 SAE /2 3-1/16 3-3/ ** BOK-415-HH 5/8 SAE 9-1/4 8-1/4 1/2 7-5/8 3-11/16 4-3/ BOK-415S-HH 5/8 ODF 9-1/4 8-1/4 1/2 7-5/8 3-11/16 4-3/ ** BOK-417S-HH 7/8 ODF 10-7/ /8 3-11/16 4-3/4 **Standard Product Offering. *Product Code Number. Does not include weld bead. 112
13 ALCO BOK-HH LIQUID LINE BURNOUT BOK-HH CAPACITY TABLES 113

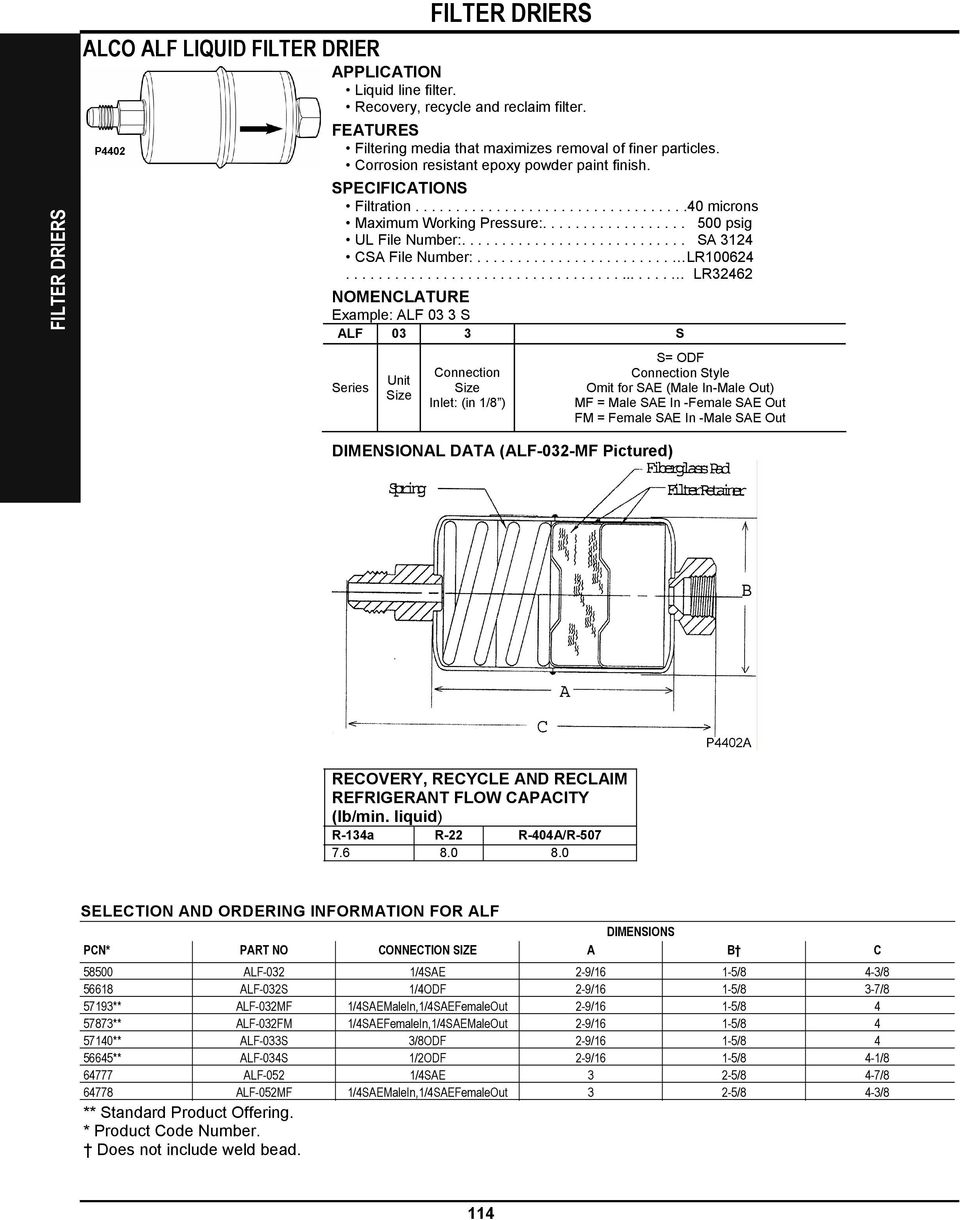

14 ALCO ALF LIQUID FILTER DRIER APPLICATION Liquid line filter. Recovery, recycle and reclaim filter. FEATURES Filtering media that maximizes removal of finer particles. Corrosion resistant epoxy powder paint finish. SPECIFICATIONS Filtration microns Maximum Working Pressure: psig UL File Number: SA 3124 CSA File Number: LR LR32462 NOMENCLATURE Example: ALF 03 3 S ALF 03 3 S Series Unit Size Connection Size Inlet: (in 1/8 ) S= ODF Connection Style Omit for SAE (Male In-Male Out) MF = Male SAE In -Female SAE Out FM = Female SAE In -Male SAE Out DIMENSIONAL DATA (ALF-032-MF Pictured) RECOVERY, RECYCLE AND RECLAIM REFRIGERANT FLOW CAPACITY (lb/min. liquid) R-134a R-22 R-404A/R SELECTION AND ORDERING INFORMATION FOR ALF DIMENSIONS PCN* PART NO CONNECTION SIZE A B C ALF-032 1/4SAE 2-9/16 1-5/8 4-3/ ALF-032S 1/4ODF 2-9/16 1-5/8 3-7/ ** ALF-032MF 1/4SAEMaleIn,1/4SAEFemaleOut 2-9/16 1-5/ ** ALF-032FM 1/4SAEFemaleIn,1/4SAEMaleOut 2-9/16 1-5/ ** ALF-033S 3/8ODF 2-9/16 1-5/ ** ALF-034S 1/2ODF 2-9/16 1-5/8 4-1/ ALF-052 1/4SAE 3 2-5/8 4-7/ ALF-052MF 1/4SAEMaleIn,1/4SAEFemaleOut 3 2-5/8 4-3/8 ** Standard Product Offering. * Product Code Number. Does not include weld bead. 114

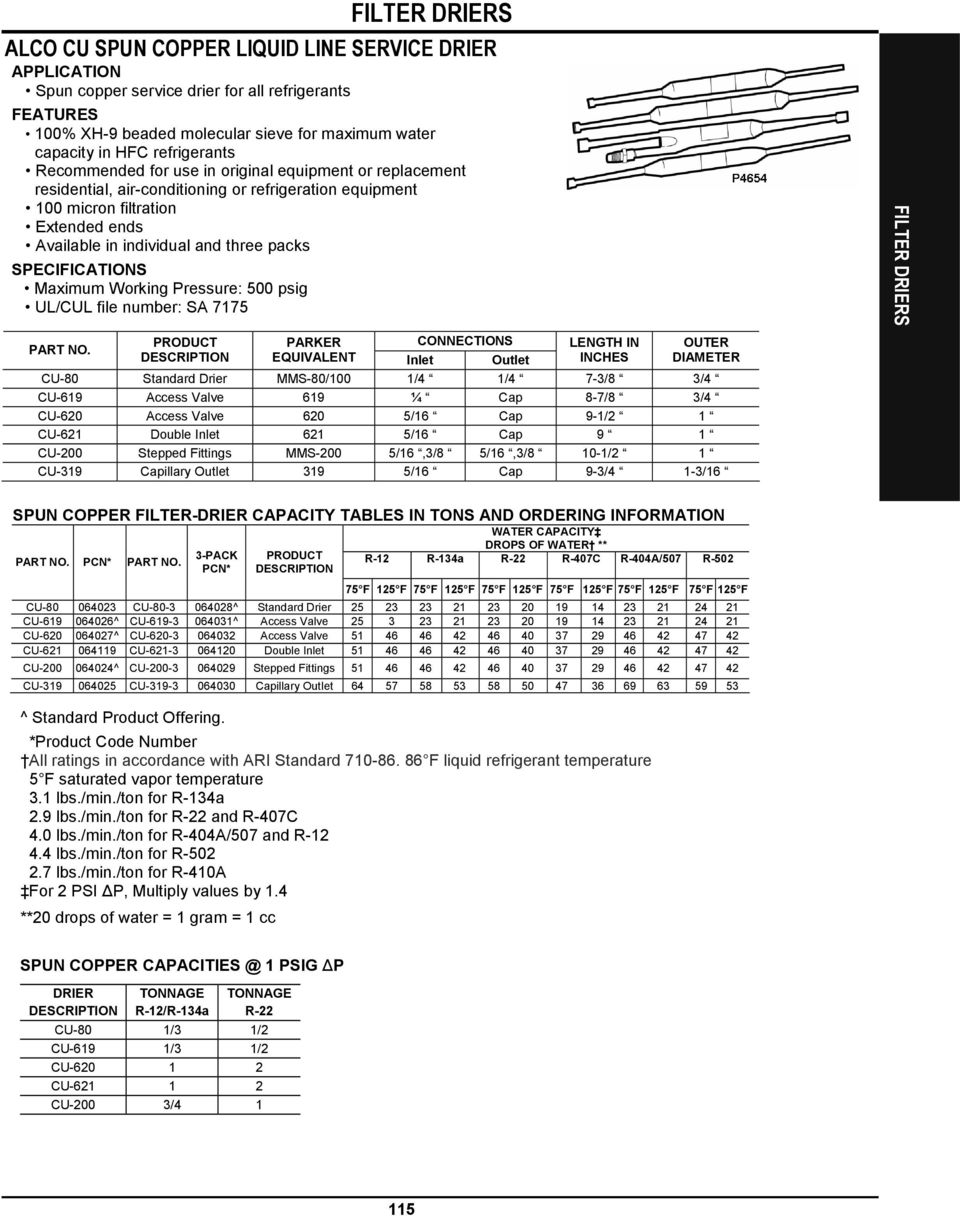

15 ALCO CU SPUN COPPER LIQUID LINE SERVICE DRIER APPLICATION Spun copper service drier for all refrigerants FEATURES 100% XH-9 beaded molecular sieve for maximum water capacity in HFC refrigerants Recommended for use in original equipment or replacement residential, air-conditioning or refrigeration equipment 100 micron filtration Extended ends Available in individual and three packs SPECIFICATIONS Maximum Working Pressure: 500 psig UL/CUL file number: SA 7175 PART NO. PRODUCT DESCRIPTION PARKER CONNECTIONS EQUIVALENT Inlet Outlet LENGTH IN INCHES OUTER DIAMETER CU-80 Standard Drier MMS-80/100 1/4 1/4 7-3/8 3/4 CU-619 Access Valve 619 ¼ Cap 8-7/8 3/4 CU-620 Access Valve 620 5/16 Cap 9-1/2 1 CU-621 Double Inlet 621 5/16 Cap 9 1 CU-200 Stepped Fittings MMS-200 5/16,3/8 5/16,3/8 10-1/2 1 CU-319 Capillary Outlet 319 5/16 Cap 9-3/4 1-3/16 SPUN COPPER FILTER-DRIER CAPACITY TABLES IN TONS AND ORDERING INFORMATION WATER CAPACITY PART NO. PCN* PART NO. 3-PACK PCN* PRODUCT DESCRIPTION DROPS OF WATER ** R-12 R-134a R-22 R-407C R-404A/507 R F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F CU CU ^ Standard Drier CU ^ CU ^ Access Valve CU ^ CU Access Valve CU CU Double Inlet CU ^ CU Stepped Fittings CU CU Capillary Outlet ^ Standard Product Offering. *Product Code Number All ratings in accordance with ARI Standard F liquid refrigerant temperature 5 F saturated vapor temperature 3.1 lbs./min./ton for R-134a 2.9 lbs./min./ton for R-22 and R-407C 4.0 lbs./min./ton for R-404A/507 and R lbs./min./ton for R lbs./min./ton for R-410A For 2 PSI ΔP, Multiply values by 1.4 **20 drops of water = 1 gram = 1 cc SPUN COPPER 1 PSIG ΔP DRIER TONNAGE TONNAGE DESCRIPTION R-12/R-134a R-22 CU-80 1/3 1/2 CU-619 1/3 1/2 CU CU CU-200 3/

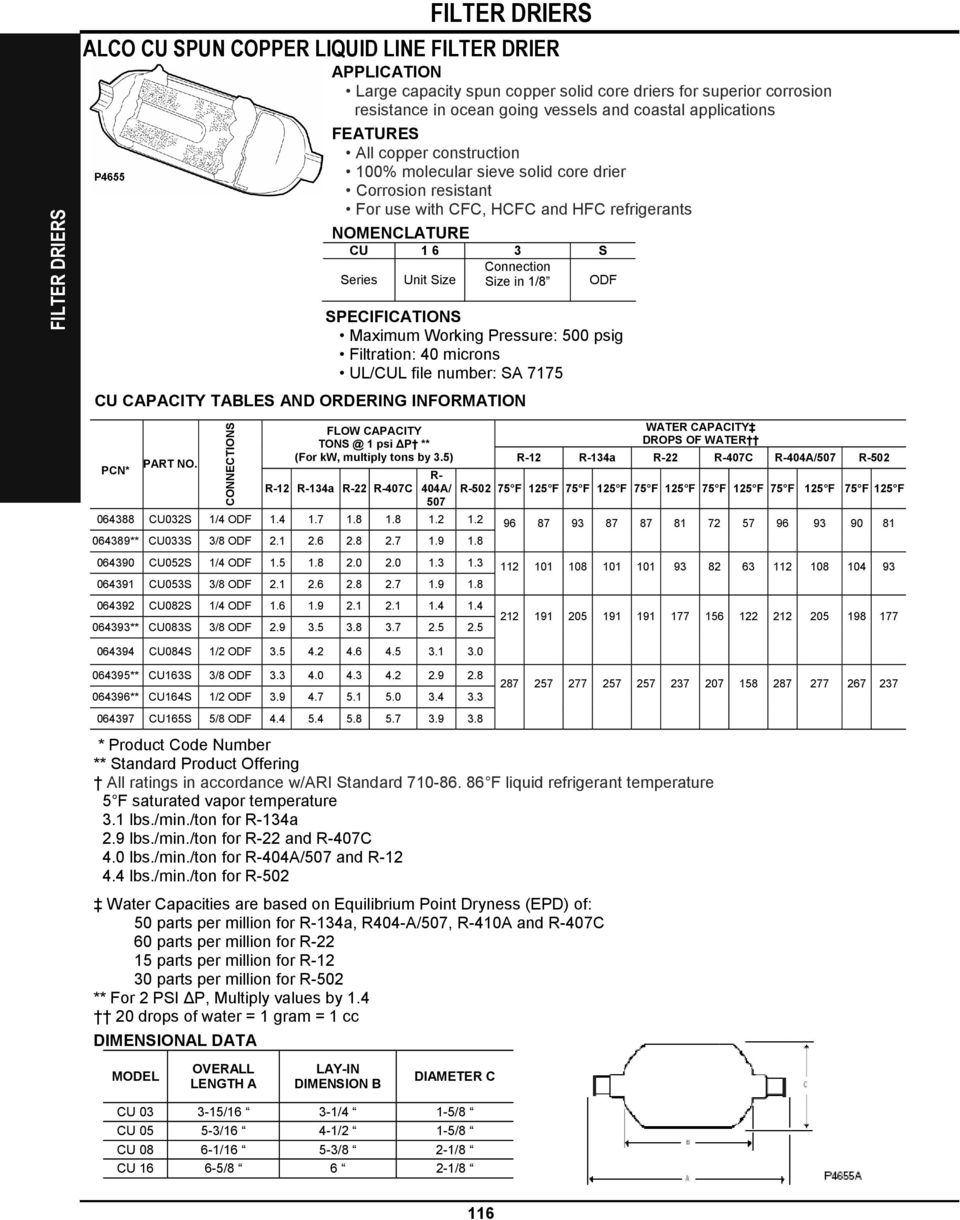

16 ALCO CU SPUN COPPER LIQUID LINE FILTER DRIER APPLICATION Large capacity spun copper solid core driers for superior corrosion resistance in ocean going vessels and coastal applications FEATURES All copper construction 100% molecular sieve solid core drier Corrosion resistant For use with CFC, HCFC and HFC refrigerants NOMENCLATURE CU S Series Unit Size Connection Size in 1/8 ODF SPECIFICATIONS Maximum Working Pressure: 500 psig Filtration: 40 microns UL/CUL file number: SA 7175 CU CAPACITY TABLES AND ORDERING INFORMATION PCN* PART NO. FLOW CAPACITY WATER CAPACITY 1 psi ΔP ** DROPS OF WATER (For kw, multiply tons by 3.5) R-12 R-134a R-22 R-407C R-404A/507 R-502 R- R-12 R-134a R-22 R-407C 404A/ R F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F 75 F 125 F CU032S 1/4 ODF ** CU033S 3/8 ODF CONNECTIONS CU052S 1/4 ODF CU053S 3/8 ODF CU082S 1/4 ODF ** CU083S 3/8 ODF CU084S 1/2 ODF ** CU163S 3/8 ODF ** CU164S 1/2 ODF CU165S 5/8 ODF * Product Code Number ** Standard Product Offering All ratings in accordance w/ari Standard F liquid refrigerant temperature 5 F saturated vapor temperature 3.1 lbs./min./ton for R-134a 2.9 lbs./min./ton for R-22 and R-407C 4.0 lbs./min./ton for R-404A/507 and R lbs./min./ton for R-502 Water Capacities are based on Equilibrium Point Dryness (EPD) of: 50 parts per million for R-134a, R404-A/507, R-410A and R-407C 60 parts per million for R parts per million for R parts per million for R-502 ** For 2 PSI ΔP, Multiply values by drops of water = 1 gram = 1 cc DIMENSIONAL DATA MODEL OVERALL LENGTH A LAY-IN DIMENSION B DIAMETER C CU /16 3-1/4 1-5/8 CU /16 4-1/2 1-5/8 CU /16 5-3/8 2-1/8 CU / /8 116
