April MD simulation of interaction between radiation damages and microstructure: voids, helium bubbles and grain boundaries
|
|
- Λυσιμάχη Μπλέτσας
- 7 χρόνια πριν
- Προβολές:
Transcript
1 Joint ICTP-IAEA Advanced Workshop on Multi-Scale Modelling for Characterization and Basic Understanding of Radiation Damage Mechanisms in Materials April 2010 MD simulation of interaction between radiation damages and microstructure: voids, helium bubbles and grain boundaries N. Lazarev Akhiezer Institute for Theoretical Physics Kharkov Ukraine
2 MD simulation of interaction between radiation damages and microstructures: voids, helium bubbles and grain boundaries
3 Collaboration Anatole A. Turkin Vladimir I. Dubinko Kharkov Institute of Physics and Technology, Ukraine Robin Schäublin EPFL SB CRPP Groupe Matériaux, PSI, Switzerland ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
4 Motivation = α κ + + = α κ + + κ = κ κ = κ = 0 α = 4π + It is assumed that under irradiation, Frenkel pairs of vacancies and SIAs are created in the bulk and annihilated at extended defects, such as dislocations, grain boundaries, cavities and the like, which are thus considered primarily as the sinks for point defects. However, extended defects can act also as the radiation-induced sources of point defects, which can result in a new driving force of the microstructural evolution. ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

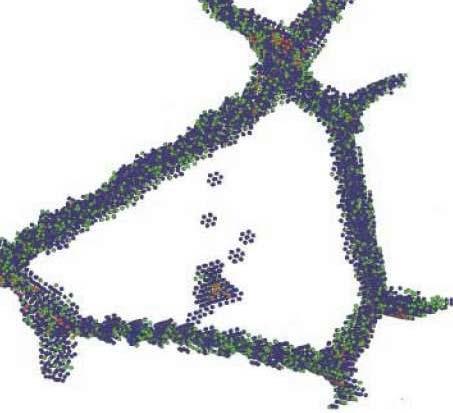

5 Motivation External surface 10 kev, Au M. Ghaly and R.S. Averback, Phys. Rev. Lett. 72 (1994) 364. Bilayer interfaces 5 kev, Co/Cu K. Nordlund and R. S. Averback, Phys. Rev. B59 (1999) 20. Grain boundaries 20 kev, Ni M. Samaras, P. M. Derlet, H. Van Swygenhoven, M. Victoria, Phys. Rev. Lett. 88 (2002) ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

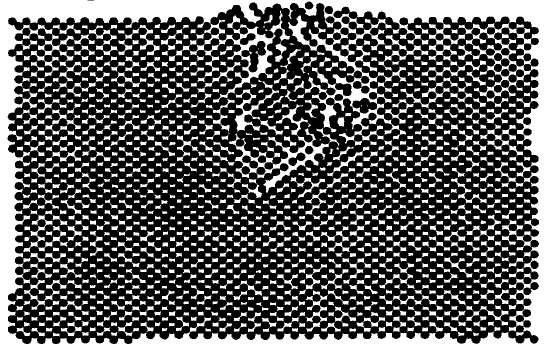

6 Motivation Kai Nordlund et al, Nature 398 (1999) 6722 ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

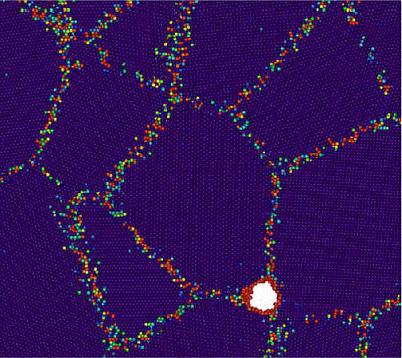

7 Motivation M. Samaras, W. Hoffelner, M. Victoria, J. Nucl. Mat. 352 (2006) ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
8 Outline ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
9 Simulation method U = V ( r + ij ) F( ρi ) ρ = ij i i φ( r ij ) j ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
10 Defect production close to voids in Cu N. P. Lazarev, V. I. Dubinko, Radiat. Eff. & Def. Solids 158 (2003) 803. V.I. Dubinko, N.P. Lazarev, Nucl. Instr. Meth. Phys. Res. B 228 (2005) 187 SIA PKA Void Vacancy ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
11 Displacement threshold energy in bulk Cu at T = 4 K E d pc, ev N. P. Lazarev, V. I. Dubinko, Radiat. Eff. & Def. Solids 158 (2003) 803. D. J. Bacon, H. F. Deng, F. Gao, J. Nucl. Mater. 205 (1993) [322] [311] 80 [520] [221] [211] 60 [720] 40 [110] [810] [111] 20 [210] [100] [441] [100] Angle, deg ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
12 A biased formation of vacancies in the vicinity of void 10 Number of defects Vacancies FP in bulk SIAs PKA Energy, ev ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
13 Simulation of void dissolution by subthreshold irradiation R 2 δ R 1 ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
14 Time of thermal dissolution of void ( ) 0 = 4 π = exp( 2γ ) γ = σω / 0 ( 1 exp(2 / ) ) / = γ τ = γ 0 ( 2 + exp(2γ / )) τ ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
15 Time dependence of void size during irradiation 15 T = 1000 K E K = 18 ev >5000 cascades R, A V 0 =1004ω Time, ns ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
16 Different stages of void dissolution ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
17 ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April Void dissolution rate due to radiation emission of vacancies α R r = 2 2 * ), ( ), ( Δ + < < = 0,, ), ( 0 + Δ Δ π ) / exp(2 4 0 γ π = γ = σω / ) ( 4 ) / exp(2 ~ Δ Δ + = γ
18 Void dissolution rate due to radiation or thermal vacancies 10-2 Dose rate, K Irradiation dissolution Thermal dissolution Temperature, o C ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
19 Critical size of a void vs temperature and dose rate 10 3 R c, A 10 2 K = Temperature, o C ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
20 Diffusion and primary damages in Fe 10-4 D, cm 2 /s V SIA /T, K -1 i v ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
21 Primary damages in displacement cascades ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
22 Variable time step. E PKA = 20 kev, T = 900 K K max, ev ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
23 Point defect distribution, E PKA = 20 kev, T = 900 K SIAs SIA disl. loop Vacancy clusters vacancies ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

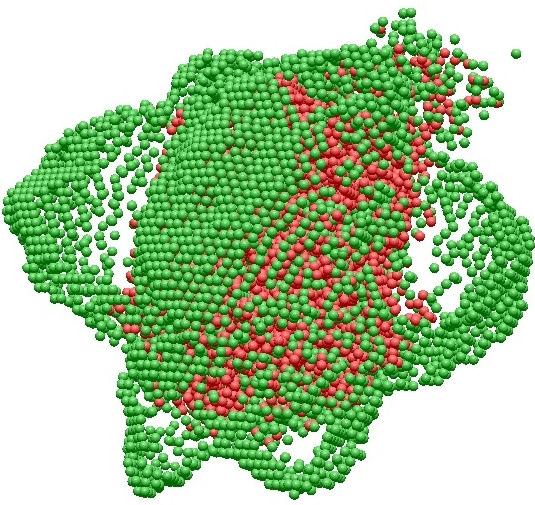

24 Cascade evolution in time. 1 frame per 500 MD time steps ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
25 Cascade evolution in time, another view ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
26 Defect production in perfect crystal at T = 300K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
27 Number of Frenkel pairs vs. PKA energy at T = 900K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
28 Effect of cascade defects annealing at high temperature ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
29 Survived point defects fraction ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

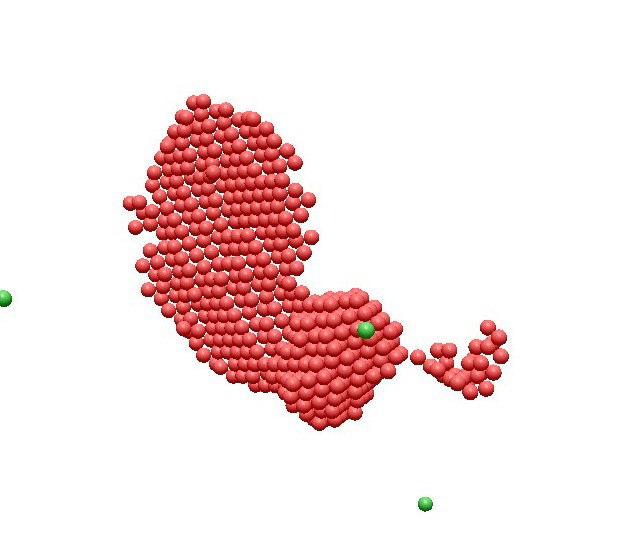

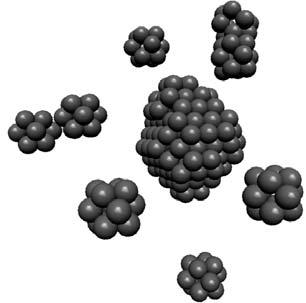

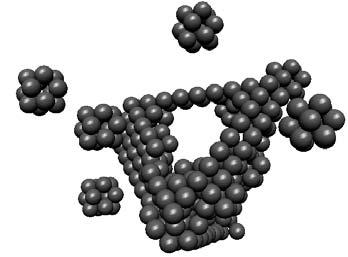

30 Distribution of cluster sizes ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
31 Defects production near voids ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

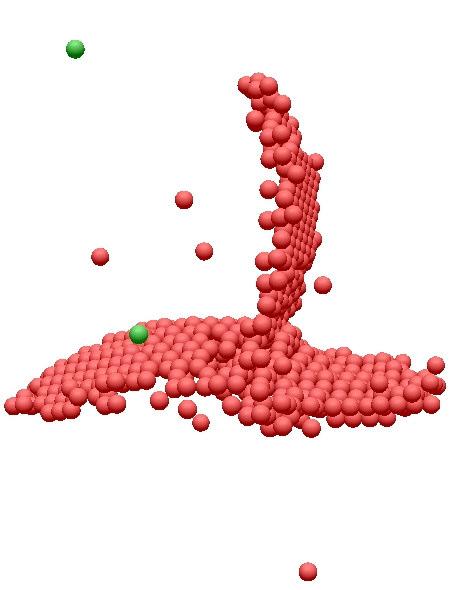

32 Some final states of cascade development near voids SIAs vacancies Void ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
33 Cascade evolution near a void. 1 frame per 500 MD time steps ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
34 Cascade evolution near void. 1 frame per 500 MD time steps ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
35 Defect production near voids at T = 300K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
36 Defect production near voids at T = 900K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
37 Melting temperature of He vs pressure 10-1 P, ev/a T m, K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
38 Equation of state for Helium K 600K V a, A K 100K V, A P, ev/a kt/p, A 3 ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
39 Defects production near He bubbles ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
40 Cascade evolution near bubble. 1 frame per 500 MD time steps ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
41 Cascade evolution near bubble. 2-nd example ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
42 Defect production near bubbles at T = 300K K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
43 Defect production near bubbles at T = 900K K ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

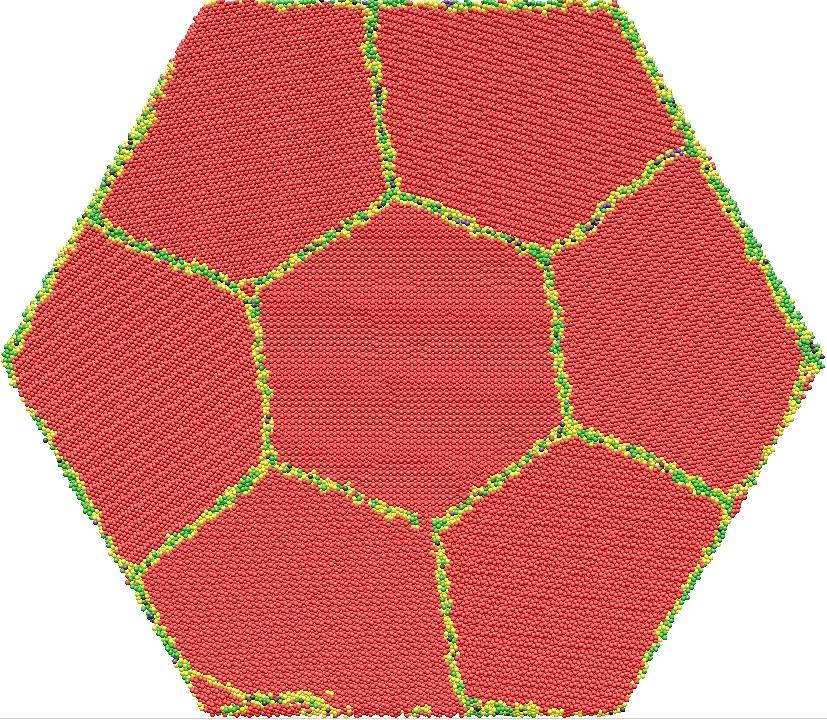

44 Simulation of recrystallization under irradiation ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

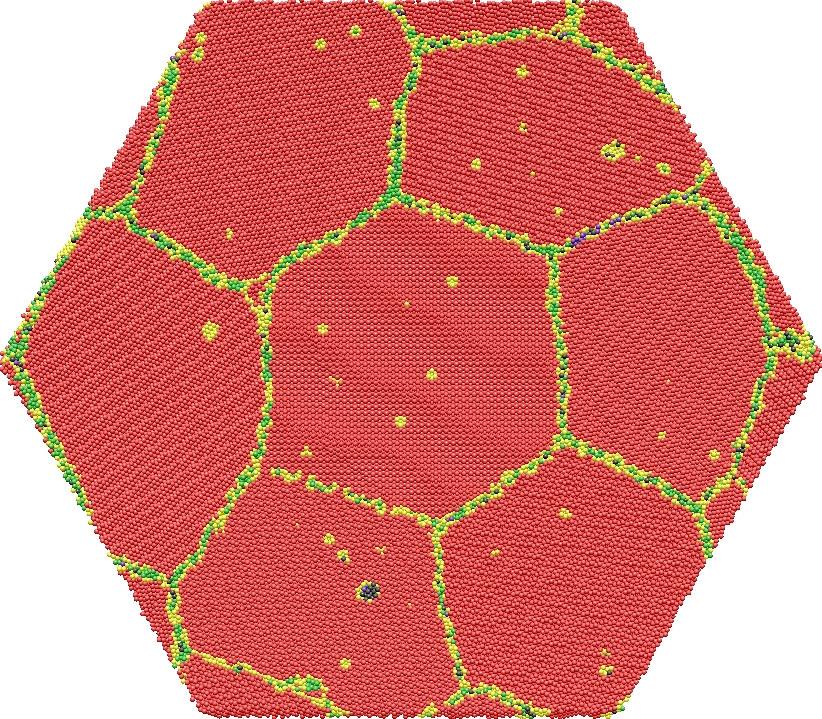

45 Homogeneous irradiation of polycrystal ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

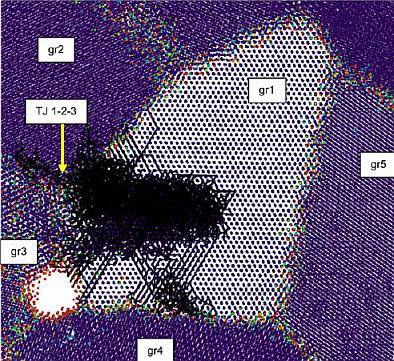

46 Heterogeneous irradiation of polycrystal ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April

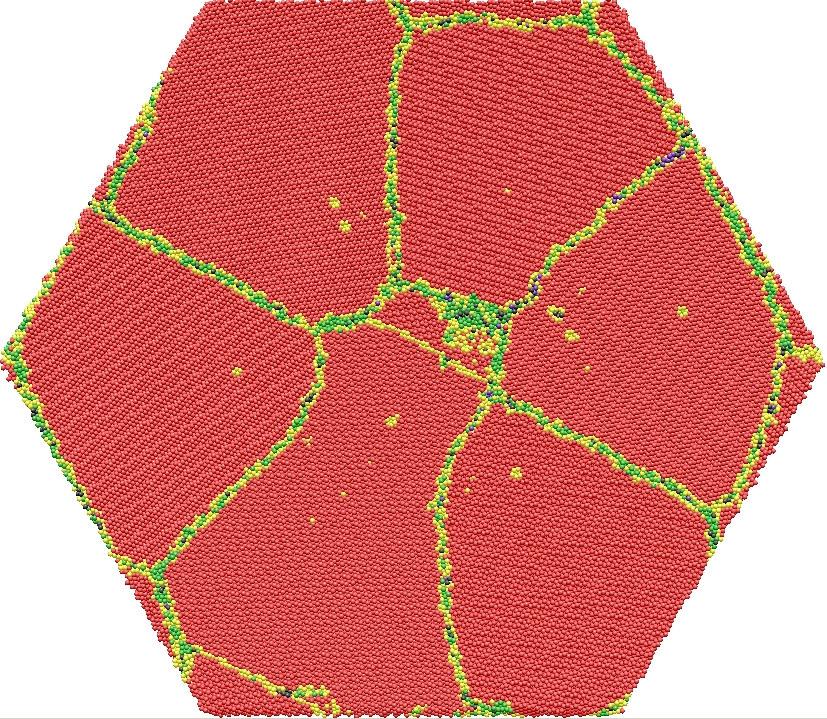

47 Heterogeneous irradiation of polycrystal ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
48 Conclusion ICTP/IAEA Workshop on Multi-Scale Modelling, Trieste April
Laboratory Studies on the Irradiation of Solid Ethane Analog Ices and Implications to Titan s Chemistry
Laboratory Studies on the Irradiation of Solid Ethane Analog Ices and Implications to Titan s Chemistry 5th Titan Workshop at Kauai, Hawaii April 11-14, 2011 Seol Kim Outer Solar System Model Ices with
ΙΕΥΘΥΝΤΗΣ: Καθηγητής Γ. ΧΡΥΣΟΛΟΥΡΗΣ Ι ΑΚΤΟΡΙΚΗ ΙΑΤΡΙΒΗ
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΑΤΡΩΝ ΠΟΛΥΤΕΧΝΙΚΗ ΣΧΟΛΗ ΤΜΗΜΑ ΜΗΧΑΝΟΛΟΓΩΝ ΚΑΙ ΑΕΡΟΝΑΥΠΗΓΩΝ ΜΗΧΑΝΙΚΩΝ ΕΡΓΑΣΤΗΡΙΟ ΣΥΣΤΗΜΑΤΩΝ ΠΑΡΑΓΩΓΗΣ & ΑΥΤΟΜΑΤΙΣΜΟΥ / ΥΝΑΜΙΚΗΣ & ΘΕΩΡΙΑΣ ΜΗΧΑΝΩΝ ΙΕΥΘΥΝΤΗΣ: Καθηγητής Γ. ΧΡΥΣΟΛΟΥΡΗΣ Ι ΑΚΤΟΡΙΚΗ
2.1
181 8588 2 21 1 e-mail: sekig@th.nao.ac.jp 1. G ab kt ab, (1) k 8pGc 4, G c 2. 1 2.1 308 2009 5 3 1 2) ( ab ) (g ab ) (K ab ) 1 2.2 3 1 (g ab, K ab ) 1 t a S n a a b a 2.3 a b i (t a ) 2 1 2.4 1 g ab ab
(1) Describe the process by which mercury atoms become excited in a fluorescent tube (3)
Q1. (a) A fluorescent tube is filled with mercury vapour at low pressure. In order to emit electromagnetic radiation the mercury atoms must first be excited. (i) What is meant by an excited atom? (1) (ii)
The mass and anisotropy profiles of nearby galaxy clusters from the projected phase-space density
The mass and anisotropy profiles of nearby galaxy clusters from the projected phase-space density 5..29 Radek Wojtak Nicolaus Copernicus Astronomical Center collaboration: Ewa Łokas, Gary Mamon, Stefan
Μέθοδοι και Εφαρµογές Πυρηνικής Επιστήµης και Ακτινοφυσικής
Μέθοδοι και Εφαρµογές Πυρηνικής Επιστήµης και Ακτινοφυσικής Οµάδα Εφαρµοσµένης Πυρηνικής Επιστήµης και Ακτινοφυσικής Σκοπός Έρευνα και Ανάπτυξη στις εφαρµογές της Πυρηνικής Επιστήµης και Ακτινοφυσικής
ˆ ˆ ˆ ˆˆ γ-ˆ ˆŸ ˆ Š Œ ˆ Œ œ Š ˆˆ
Ó³ Ÿ. 2008.. 5, º 2(144).. 219Ä225 ˆ ˆ ƒˆÿ, Š ƒˆÿ ˆ Ÿ Ÿ Œ ˆ ˆ ˆ ˆ ˆ Œ Œ ˆ ˆ ˆ ˆˆ γ-ˆ ˆŸ ˆ Š Œ ˆ Œ œ Š ˆˆ.. Šμ ²μ a,.. Š,.. μ ±μ,.. Ö a,.. ² ± a,.. ² Õ± a a ÊÎ μ- ² μ É ²Ó ± É ÉÊÉ Ö μ Ë ± ³... ±μ ²ÓÍÒ Œμ
Mechanical Behaviour of Materials Chapter 5 Plasticity Theory
Mechanical Behaviour of Materials Chapter 5 Plasticity Theory Dr.-Ing. 郭瑞昭 Yield criteria Question: For what combinations of loads will the cylinder begin to yield plastically? The criteria for deciding
Statistical Inference I Locally most powerful tests
Statistical Inference I Locally most powerful tests Shirsendu Mukherjee Department of Statistics, Asutosh College, Kolkata, India. shirsendu st@yahoo.co.in So far we have treated the testing of one-sided
Microwave Sintering of Electronic Ceramics
25,,, Microwave Sintering of Electronic Ceramics Hideoki Fukushima, Goro Watanabe, Hiroyuki Mori, Masao Matsui ZnO PZT ZnO PZT Microwave heating offers advantages over conventional technologies such as
Jesse Maassen and Mark Lundstrom Purdue University November 25, 2013
Notes on Average Scattering imes and Hall Factors Jesse Maassen and Mar Lundstrom Purdue University November 5, 13 I. Introduction 1 II. Solution of the BE 1 III. Exercises: Woring out average scattering
P Ò±,. Ï ± ˆ ˆŒˆ Š ƒ ˆŸ. Œ ƒ Œ ˆˆ γ-š Œˆ ƒ ƒˆ 23 ŒÔ. ² μ Ê ². Í μ ²Ó Ò Í É Ö ÒÌ ² μ, É μí±, μ²óï
P15-2012-75.. Ò±,. Ï ± ˆ Œ ˆŸ ˆ, š Œ ˆ ˆŒˆ Š ƒ ˆŸ ˆ ˆ, Œ ƒ Œ ˆˆ γ-š Œˆ ƒ ƒˆ 23 ŒÔ ² μ Ê ² Í μ ²Ó Ò Í É Ö ÒÌ ² μ, É μí±, μ²óï Ò±.., Ï ±. P15-2012-75 ˆ ³ Ö μ Ì μ É, μ Ñ ³ ÒÌ μ É Ì ³ Î ±μ μ μ É μ Íμ Ö ÕÐ
ˆŒ œ ƒ ƒ ˆ ˆŸ ˆ Š ˆ 137 Cs Š ˆ Œ.
Ó³ Ÿ. 2017.. 14, º 6(211).. 630Ä636 ˆ ˆŠ Œ ˆ ˆ Œ ƒ Ÿ. Š ˆŒ ˆ Š ˆŸ ˆŸ ˆŒ œ ƒ ƒ ˆ ˆŸ ˆ Š ˆ 137 Cs Š ˆ Œ. œ.., 1,.. ³,. ƒ. Š ² ±μ,.. ³ ±,.. ³ μ,. ˆ. É ²μ,. ˆ. ÕÉÕ ±μ, ƒ.. Ë,, ˆ.. ±μ ˆ É ÉÊÉ μ Ð Ë ± ³.. Œ.
Phys460.nb Solution for the t-dependent Schrodinger s equation How did we find the solution? (not required)
Phys460.nb 81 ψ n (t) is still the (same) eigenstate of H But for tdependent H. The answer is NO. 5.5.5. Solution for the tdependent Schrodinger s equation If we assume that at time t 0, the electron starts
상대론적고에너지중이온충돌에서 제트입자와관련된제동복사 박가영 인하대학교 윤진희교수님, 권민정교수님
상대론적고에너지중이온충돌에서 제트입자와관련된제동복사 박가영 인하대학교 윤진희교수님, 권민정교수님 Motivation Bremsstrahlung is a major rocess losing energies while jet articles get through the medium. BUT it should be quite different from low energy
ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΤΜΗΜΑ ΝΟΣΗΛΕΥΤΙΚΗΣ
ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΤΜΗΜΑ ΝΟΣΗΛΕΥΤΙΚΗΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ ΨΥΧΟΛΟΓΙΚΕΣ ΕΠΙΠΤΩΣΕΙΣ ΣΕ ΓΥΝΑΙΚΕΣ ΜΕΤΑ ΑΠΟ ΜΑΣΤΕΚΤΟΜΗ ΓΕΩΡΓΙΑ ΤΡΙΣΟΚΚΑ Λευκωσία 2012 ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΕΠΙΣΤΗΜΩΝ
Ó³ Ÿ , º 7(205) Ä1486 ˆ ˆŠ ˆ ˆŠ Š ˆ. . ³ μ 1, ƒ. μ μë,. μ,. ŠÊ² ±μ,. Œ ² μ ± Ñ Ò É ÉÊÉ Ö ÒÌ ² μ, Ê
Ó³ Ÿ. 06.. 3, º 7(05).. 479Ä486 ˆ ˆŠ ˆ ˆŠ Š ˆ Š ˆŒ œ ˆ ˆ - Š Ÿ ˆ Œ Š ƒ ˆŸ. ³ μ, ƒ. μ μë,. μ,. ŠÊ² ±μ,. Œ ² μ ± Ñ Ò É ÉÊÉ Ö ÒÌ ² μ, Ê μ ±É NICA ±²ÕÎ É Ö É ³Ê Ô² ±É μ μ μ μì² Ö Êαμ Ö ÒÌ Î É Í μ μ² μ Ô μ
.. 2,.. 3,.. 4 , - [1].,, [2],. [2], 1. ,,. - ,..)., , ( - , - A n+1 A n A [5]. [6] : ; ; , - . «..»
544.272 1.. 2,.. 3,.. 4 - -.. - -.. : ; ; -., -,, -.,., - -, [1].,, [2],. [2], 1., -,, -,,. - [3]., ( -,..).,,. -., [4],, -,. -,., -,.. - A n+1 A n A [5]. [6]. 1. 2 -,,, -. E-mail: korenchenko@physics.susu.ac.ru
P ƒ Ê Î 1, 2,.. ƒê μ 1, 3,. ÉÓ±μ 2, O.M.ˆ μ 1,.. Œ É μë μ 1,.. μ μ 1,. ƒ. Ê±μ ± 1,.. ³ 1,.. ±Ê Éμ 1. ˆ ˆ ˆ ˆ Š ˆ Si- ˆ SiC- Š Š ˆ
P13-2017-81. ƒ Ê Î 1, 2,.. ƒê μ 1, 3,. ÉÓ±μ 2, O.M.ˆ μ 1,.. Œ É μë μ 1,.. μ μ 1,. ƒ. Ê±μ ± 1,.. ³ 1,.. ±Ê Éμ 1 ˆ ˆ ˆ ˆ Š ˆ Si- ˆ SiC- Š Š ˆ ² μ Ê ² μ Ò É Ì ± Ô± ³ É 1 Ñ Ò É ÉÊÉ Ö ÒÌ ² μ, Ê 2 ² ±É μé Ì
Surface Mount Multilayer Chip Capacitors for Commodity Solutions
Surface Mount Multilayer Chip Capacitors for Commodity Solutions Below tables are test procedures and requirements unless specified in detail datasheet. 1) Visual and mechanical 2) Capacitance 3) Q/DF
レーザ結晶. Altechna 社. Laser Crystals. Ti:Sapphire crystals. High damage threshold Strong Kerr effect
Ti:Sapphire crystals Features Large gain-bandwidth Very large emission bandwidth Excellent thermal conductivity Short upper-state lifetime (3.2 μs) High saturation power Relatively high laser cross-sections
X g 1990 g PSRB
e-mail: shibata@provence.c.u-tokyo.ac.jp 2005 1. 40 % 1 4 1) 1 PSRB1913 16 30 2) 3) X g 1990 g 4) g g 2 g 2. 1990 2000 3) 10 1 Page 1 5) % 1 g g 3. 1 3 1 6) 3 S S S n m (1/a, b k /a) a b k 1 1 3 S n m,
Instruction Execution Times
1 C Execution Times InThisAppendix... Introduction DL330 Execution Times DL330P Execution Times DL340 Execution Times C-2 Execution Times Introduction Data Registers This appendix contains several tables
ES440/ES911: CFD. Chapter 5. Solution of Linear Equation Systems
ES440/ES911: CFD Chapter 5. Solution of Linear Equation Systems Dr Yongmann M. Chung http://www.eng.warwick.ac.uk/staff/ymc/es440.html Y.M.Chung@warwick.ac.uk School of Engineering & Centre for Scientific
(Biomass utilization for electric energy production)
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙΔΕΥΤΙΚΟ ΙΔΡΥΜΑ T.Ε.I. ΠΕΙΡΑΙΑ ΣΧΟΛΗ: ΤΕΧΝΟΛΟΓΙΚΩΝ ΕΦΑΡΜΟΓΩΝ ΤΜΗΜΑ: ΗΛΕΚΤΡΟΛΟΓΙΑΣ Επιβλέπων: ΠΕΤΡΟΣ Γ. ΒΕΡΝΑΔΟΣ, Ομότιμος Καθηγητής Συνεπιβλέπουσα: ΕΡΙΕΤΤΑ Ι. ΖΟΥΝΤΟΥΡΙΔΟΥ, Παν. Υπότροφος
Cite as: Pol Antras, course materials for International Economics I, Spring MIT OpenCourseWare (http://ocw.mit.edu/), Massachusetts
/ / σ/σ σ/σ θ θ θ θ y 1 0.75 0.5 0.25 0 0 0.5 1 1.5 2 θ θ θ x θ θ Φ θ Φ θ Φ π θ /Φ γφ /θ σ θ π θ Φ θ θ Φ θ θ θ θ σ θ / Φ θ θ / Φ / θ / θ Normalized import share: (Xni / Xn) / (XII / XI) 1 0.1 0.01 0.001
1 Decay Scheme. 2 Nuclear Data. 2.1 α Transitions
1 Decay Scheme Cf- disintegrates by alpha emissions mainly to the Cm-248 ground state level, and by spontaneous fission for 3,086(8) %. The average number of neutrons emitted by spontaneous fission is:
Εργαστηριακή άσκηση Στατικοί υπολογισμοί σε μεταλλικά συστήματα (Πλεγματική σταθερά, ενέργεια συνοχής, μέτρο ελαστικότητας όγκου)
Τεχνικές Προσομοίωσης και Σχεδιασμού Υλικών σε ΗΥ Σύστημα που θα μελετήσουμε Εργαστηριακή άσκηση Στατικοί υπολογισμοί σε μεταλλικά συστήματα (Πλεγματική σταθερά, ενέργεια συνοχής, μέτρο ελαστικότητας όγκου)
Dong Liu State Key Laboratory of Particle Detection and Electronics University of Science and Technology of China
Dong Liu State Key Laboratory of Particle Detection and Electronics University of Science and Technology of China ISSP, Erice, 7 Outline Introduction of BESIII experiment Motivation of the study Data sample
SERIES DATASHEET INDUCTORS RF INDUCTORS (MRFI SERIES)
SERIES DATASHEET INDUCTORS RF INDUCTORS (MRFI SERIES) (8) 95-8365 venkel.com Features: RoHS Compliant and Halogen Free Good Q values High SRF range: 1nH to 47uH Tolerance: ±.2nH, ±.3nH, ±2%, ±5%, ±1% High
P ƒ. μ μ², Œ.. ˆ μ,.. μ ± Î Š Ÿ ˆ Œ ˆŸ ˆ Ÿ Š ˆ. ² μ Ê ² μ Ò É Ì ± Ô± ³ É.
P13-2011-120. ƒ. μ μ², Œ.. ˆ μ,.. μ ± Î Š Ÿ ˆ Œ ˆŸ ˆ Ÿ Š ˆ ² μ Ê ² μ Ò É Ì ± Ô± ³ É E-mail: sobolev@nrmail.jinr.ru μ μ². ƒ., ˆ μ Œ.., μ ± Î.. P13-2011-120 É μ ± ²Ö ³ Ö μ² ÒÌ Î Ö ÒÌ ±Í Ò É Ö Ô± ³ É ²Ó Ö
レーザ結晶. Altechna 社. Laser Crystals. Ti:Sapphire crystals. High damage threshold Strong Kerr effect
Ti:Sapphire crystals Features Large gain-bandwidth Very large emission bandwidth Excellent thermal conductivity Short upper-state lifetime (3. μs) High saturation power Relatively high laser cross-sections
Ó³ Ÿ , º 7(163).. 855Ä862 ˆ ˆŠ ˆ ˆŠ Š ˆ. . ƒ. ² ͱ 1,.. μ μ Íμ,.. μ²ö,.. ƒ² μ,.. ² É,.. ³ μ μ, ƒ.. Š ³ÒÏ,.. Œμ μ μ,. Œ.
Ó³ Ÿ. 2010.. 7, º 7(163).. 855Ä862 ˆ ˆŠ ˆ ˆŠ Š ˆ ˆ œ ˆŠ Ÿ ˆŸ Š Ÿ Š. ƒ. ² ͱ 1,.. μ μ Íμ,.. μ²ö,.. ƒ² μ,.. ² É,.. ³ μ μ, ƒ.. Š ³ÒÏ,.. Œμ μ μ,. Œ. Ð ±μ Ñ Ò É ÉÊÉ Ö ÒÌ ² μ, Ê μ Ö ± É μ É Êα Ê ±μ ÒÌ μéμ μ
HOMEWORK 4 = G. In order to plot the stress versus the stretch we define a normalized stretch:
HOMEWORK 4 Problem a For the fast loading case, we want to derive the relationship between P zz and λ z. We know that the nominal stress is expressed as: P zz = ψ λ z where λ z = λ λ z. Therefore, applying
Simon et al. Supplemental Data Page 1
Simon et al. Supplemental Data Page 1 Supplemental Data Acute hemodynamic effects of inhaled sodium nitrite in pulmonary hypertension associated with heart failure with preserved ejection fraction Short
ΓΕΝΝΗΤΡΙΑ MUX ΚΑΤΑΓΡΑΦΙΚΟ ΗΜΙΤΟΝΙΚΟΥ ΣΗΜΑΤΟΣ. σχήμα A
1 Με απλά βήματα θα κατασκευάσουμε ένα απλό μοντέλο,με σκοπό να κεντρίσουμε το ενδιαφέρον του αναγνώστη,αν και είναι κατανοητό ότι δεν έχουν ακόμη αναλυθεί οι μεγάλες δυνατότητες του προγράμματος, MATLAB-SIMULINK.
Engineering Tunable Single and Dual Optical. Emission from Ru(II)-Polypyridyl Complexes. Through Excited State Design
Engineering Tunable Single and Dual Optical Emission from Ru(II)-Polypyridyl Complexes Through Excited State Design Supplementary Information Julia Romanova 1, Yousif Sadik 1, M. R. Ranga Prabhath 1,,
Ελαφρές κυψελωτές πλάκες - ένα νέο προϊόν για την επιπλοποιία και ξυλουργική. ΒΑΣΙΛΕΙΟΥ ΒΑΣΙΛΕΙΟΣ και ΜΠΑΡΜΠΟΥΤΗΣ ΙΩΑΝΝΗΣ
Ελαφρές κυψελωτές πλάκες - ένα νέο προϊόν για την επιπλοποιία και ξυλουργική ΒΑΣΙΛΕΙΟΥ ΒΑΣΙΛΕΙΟΣ και ΜΠΑΡΜΠΟΥΤΗΣ ΙΩΑΝΝΗΣ Αριστοτέλειο Πανεπιστήµιο Θεσσαλονίκης Σχολή ασολογίας και Φυσικού Περιβάλλοντος,
DATA SHEET Surface mount NTC thermistors. BCcomponents
DATA SHEET 2322 615 1... Surface mount N thermistors Supersedes data of 17th May 1999 File under BCcomponents, BC02 2001 Mar 27 FEATURES High sensitivity High accuracy over a wide temperature range Taped
Νανοσύνθετα πολυαιθυλενίου υψηλής πυκνότητας (HDPE) / νανοϊνών χαλκού (Cu-nanofibers) με βελτιωμένη σταθερότητα στην υπεριώδη ακτινοβολία
ΑΡΙΣΤΟΤΕΛΕΙΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΘΕΣΣΑΛΟΝΙΚΗΣ ΣΧΟΛΗ ΘΕΤΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΤΜΗΜΑ ΦΥΣΙΚΗΣ Πρόγραμμα Μεταπτυχιακών Σπουδών ΦΥΣΙΚΗΣ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ ΥΛΙΚΩΝ Νανοσύνθετα πολυαιθυλενίου υψηλής πυκνότητας (HDPE) / νανοϊνών
H επεξεργασία πληροφορίας απαιτεί ανίχνευση πληροφορίας
Ανιχνευτές οπτοηλεκτρονικής H επεξεργασία πληροφορίας απαιτεί ανίχνευση πληροφορίας Ανίχνευση σημάτων με οπτικές συχνότητες (10 14 Hz) το φώς ηλεκτρικό σήμα ενίσχυση + ανίχνευση με FET, διπολικά τρανζίστορ,
Physique des réacteurs à eau lourde ou légère en cycle thorium : étude par simulation des performances de conversion et de sûreté
Physique des réacteurs à eau lourde ou légère en cycle thorium : étude par simulation des performances de conversion et de sûreté Alexis Nuttin To cite this version: Alexis Nuttin. Physique des réacteurs
Ó³ Ÿ , º 7(163).. 737Ä741 ˆ ˆŠ ˆ ˆŠ Š ˆ. .. ² Ì μ,.. Œ ± μ,.. Œ ÉÕÏ ±,.. Œμ μ μ,. Œ. Ò, Œ.. ±μ. Ñ Ò É ÉÊÉ Ö ÒÌ ² μ, Ê
Ó³ Ÿ. 2010.. 7, º 7(163).. 737Ä741 ˆ ˆŠ ˆ ˆŠ Š ˆ ˆ ƒ ˆŠˆ œ Š Šˆ Š ˆ ILC Ÿ ƒ ˆ ˆ ƒ ˆ ˆŸ.. ² Ì μ,.. Œ ± μ,.. Œ ÉÕÏ ±,.. Œμ μ μ,. Œ. Ò, Œ.. ±μ Ñ Ò É ÉÊÉ Ö ÒÌ ² μ, Ê μ É ± ʲÓÉ ±μ μé± Ì Ô² ±É μ ÒÌ Î, ÉÒ ³
Fundamentals of Radiation Materials Science
Fundamentals of Radiation Materials Science Metals and Alloys Bearbeitet von Gary S Was 1. Auflage 2007. Buch. xxii, 827 S. Hardcover ISBN 978 3 540 49471 3 Format (B x L): 15,5 x 23,5 cm Gewicht: 1554
Thermoelectrics: A theoretical approach to the search for better materials
Thermoelectrics: A theoretical approach to the search for better materials Jorge O. Sofo Department of Physics, Department of Materials Science and Engineering, and Materials Research Institute Penn State
Απόκριση σε Μοναδιαία Ωστική Δύναμη (Unit Impulse) Απόκριση σε Δυνάμεις Αυθαίρετα Μεταβαλλόμενες με το Χρόνο. Απόστολος Σ.
Απόκριση σε Δυνάμεις Αυθαίρετα Μεταβαλλόμενες με το Χρόνο The time integral of a force is referred to as impulse, is determined by and is obtained from: Newton s 2 nd Law of motion states that the action
Calculating the propagation delay of coaxial cable
Your source for quality GNSS Networking Solutions and Design Services! Page 1 of 5 Calculating the propagation delay of coaxial cable The delay of a cable or velocity factor is determined by the dielectric
ˆ ˆŠ Œ ˆ ˆ Œ ƒ Ÿ Ä664
ˆ ˆŠ Œ ˆ ˆ Œ ƒ Ÿ 2017.. 48.. 5.. 653Ä664 ˆ Œ ˆ ˆ e + e K + K nπ (n =1, 2, 3) Š Œ ŠŒ -3 Š - ˆ Œ Š -2000 ƒ.. μéμ Î 1,2, μé ³ ±μ²² μ Í ŠŒ -3: A.. ß ±μ 1,2,. Œ. ʲÓÎ ±μ 1,2,.. ̳ ÉÏ 1,2,.. μ 1,.. ÏÉμ μ 1,.
UDZ Swirl diffuser. Product facts. Quick-selection. Swirl diffuser UDZ. Product code example:
UDZ Swirl diffuser Swirl diffuser UDZ, which is intended for installation in a ventilation duct, can be used in premises with a large volume, for example factory premises, storage areas, superstores, halls,
Approximation of distance between locations on earth given by latitude and longitude
Approximation of distance between locations on earth given by latitude and longitude Jan Behrens 2012-12-31 In this paper we shall provide a method to approximate distances between two points on earth
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΑΤΡΩΝ ΣΧΟΛΗ ΑΝΘΡΩΠΙΣΤΙΚΩΝ ΚΑΙ ΚΟΙΝΩΝΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΤΜΗΜΑ ΦΙΛΟΛΟΓΙΑΣ
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΑΤΡΩΝ ΣΧΟΛΗ ΑΝΘΡΩΠΙΣΤΙΚΩΝ ΚΑΙ ΚΟΙΝΩΝΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΤΜΗΜΑ ΦΙΛΟΛΟΓΙΑΣ Π.Μ.Σ: «Σύγχρονες Προσεγγίσεις στη γλώσσα και στα κείμενα» ΚΑΤΕΥΘΥΝΣΗ ΓΛΩΣΣΟΛΟΓΙΑΣ ΜΕΤΑΠΤΥΧΙΑΚΗ ΔΙΑΤΡΙΒΗ Το φωνηεντικό
ADVANCED STRUCTURAL MECHANICS
VSB TECHNICAL UNIVERSITY OF OSTRAVA FACULTY OF CIVIL ENGINEERING ADVANCED STRUCTURAL MECHANICS Lecture 1 Jiří Brožovský Office: LP H 406/3 Phone: 597 321 321 E-mail: jiri.brozovsky@vsb.cz WWW: http://fast10.vsb.cz/brozovsky/
Study of In-vehicle Sound Field Creation by Simultaneous Equation Method
Study of In-vehicle Sound Field Creation by Simultaneous Equation Method Kensaku FUJII Isao WAKABAYASI Tadashi UJINO Shigeki KATO Abstract FUJITSU TEN Limited has developed "TOYOTA remium Sound System"
Thin Film Chip Resistors
FETURES PRECISE TOLERNCE ND TEMPERTURE COEFFICIENT EI STNDRD CSE SIZES (0201 ~ 2512) LOW NOISE, THIN FILM (NiCr) CONSTRUCTION REFLOW SOLDERLE (Pb FREE TERMINTION FINISH) Type EI Size Power Rating at 70
Thin Film Chip Resistors
FETURES PRECISE TOLERNCE ND TEMPERTURE COEFFICIENT EI STNDRD CSE SIZES (0201 ~ 2512) LOW NOISE, THIN FILM (NiCr) CONSTRUCTION REFLOW SOLDERLE (Pb FREE TERMINTION FINISH) RoHS Compliant includes all homogeneous
Thin Film Chip Resistors
FEATURES PRECISE TOLERANCE AND TEMPERATURE COEFFICIENT EIA STANDARD CASE SIZES (0201 ~ 2512) LOW NOISE, THIN FILM (NiCr) CONSTRUCTION REFLOW SOLDERABLE (Pb FREE TERMINATION FINISH) Type Size EIA PowerRating
TRIAXIAL TEST, CORPS OF ENGINEERS FORMAT
TRIAXIAL TEST, CORPS OF ENGINEERS FORMAT .5 C, φ, deg Tan(φ) Total.7 2.2 Effective.98 8.33 Shear,.5.5.5 2 2.5 3 Total Normal, Effective Normal, Deviator,.5.25.75.5.25 2.5 5 7.5 Axial Strain, % Type of
Ferrite Chip Beads For Automotive Use
FETURES RUGGED CONSTRUCTION IN STNDRD EI SIZES EC Q-200 QULIFIED EFFECTIVE EM/RFI SUPPRESSION UP TO 1GHz CURRENT RTINGS UP TO 2.2 MPS SHRP ND HIGH IMPEDNCES VILLE OPERTING TEMPERTURE RNGE: -55 C TO +125C
Second Order RLC Filters
ECEN 60 Circuits/Electronics Spring 007-0-07 P. Mathys Second Order RLC Filters RLC Lowpass Filter A passive RLC lowpass filter (LPF) circuit is shown in the following schematic. R L C v O (t) Using phasor
Μετρήσεις ηλιοφάνειας στην Κύπρο
Πτυχιακή εργασία Μετρήσεις ηλιοφάνειας στην Κύπρο Ιωσήφ Μικαίος Λεμεσός, Μάιος 2018 1 ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΓΕΩΤΕΧΝΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΚΑΙ ΔΙΑΧΕΙΡΙΣΗΣ ΠΕΡΙΒΑΛΛΟΝΤΟΣ ΤΜΗΜΑ ΕΠΙΣΤΗΜΗΣ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ
Exercises 10. Find a fundamental matrix of the given system of equations. Also find the fundamental matrix Φ(t) satisfying Φ(0) = I. 1.
Exercises 0 More exercises are available in Elementary Differential Equations. If you have a problem to solve any of them, feel free to come to office hour. Problem Find a fundamental matrix of the given
Hydrologic Process in Wetland
J. Jpn. Soc. Soil Phys. No. +*-, p.1+12,**0 * Hydrologic Process in Wetland Characteristics of a Mire in a Snowy Region Makoto NAKATSUGAWA** ** Toyohashi O$ce of River Works, Chubu Regional Development
Data sheet Thick Film Chip Resistor 5% - RS Series 0201/0402/0603/0805/1206
Data sheet Thick Film Chip Resistor 5% - RS Series 0201/0402/0603/0805/1206 Scope -This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material. Features
Capacitors - Capacitance, Charge and Potential Difference
Capacitors - Capacitance, Charge and Potential Difference Capacitors store electric charge. This ability to store electric charge is known as capacitance. A simple capacitor consists of 2 parallel metal
P 990 / 991 / 1990 / 1991
42 embossed aluminium panels πρεσαριστα panels αλουμινιου 990 PANEL 1690 Χ 310 mm 1990 PANEL 1690 Χ 510 mm πρεσαριστα panels αλουμινιου embossed aluminium panels Τα πρεσαριστά panels της σειράς Ρ1000 ειναι
MOTROL. COMMISSION OF MOTORIZATION AND ENERGETICS IN AGRICULTURE 2014, Vol. 16, No. 5,
MOTROL. COMMISSION OF MOTORIZATION AND ENERGETICS IN AGRICULTURE 2014, Vol. 16, No. 5, 3 14 -, :., 83, 66404 e-mail: chupinvr@istu.irk.ru...,,., -,.,. :,,,,,, -, - [1].,.., [2, 3].,.,,,.,,, [4, 5].,..1.
Web-based supplementary materials for Bayesian Quantile Regression for Ordinal Longitudinal Data
Web-based supplementary materials for Bayesian Quantile Regression for Ordinal Longitudinal Data Rahim Alhamzawi, Haithem Taha Mohammad Ali Department of Statistics, College of Administration and Economics,
ΤΜΗΜΑ ΦΥΣΙΚΩΝ ΠΟΡΩΝ & ΠΕΡΙΒΑΛΛΟΝΤΟΣ
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙ ΕΥΤΙΚΟ Ι ΡΥΜΑ ΚΡΗΤΗΣ ΠΑΡΑΡΤΗΜΑ ΧΑΝΙΩΝ ΤΜΗΜΑ ΦΥΣΙΚΩΝ ΠΟΡΩΝ & ΠΕΡΙΒΑΛΛΟΝΤΟΣ ΤΟΜΕΑΣ ΠΕΡΙΒΑΛΛΟΝΤΙΚΗΣ ΤΕΧΝΟΛΟΓΙΑΣ ΕΡΓΑΣΤΗΡΙΟ ΠΕΡΙΒΑΛΛΟΝΤΙΚΗΣ ΧΗΜΕΙΑΣ & ΒΙΟΧΗΜΙΚΩΝ ΙΕΡΓΑΣΙΩΝ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ
Μελέτη Πρότυπων Καταλυτικών Συστηµάτων. µε Επιφανειακά Ευαίσθητες Τεχνικές
Μελέτη Πρότυπων Καταλυτικών Συστηµάτων µε Επιφανειακά Ευαίσθητες Τεχνικές ιδακτορική διατριβή Υποβληθείσα στο Τµήµα Χηµικών Μηχανικών Του Πανεπιστηµίου Πατρών Υπό ΣΤΑΥΡΟΥ ΓΕΩΡΓΙΟΥ ΚΑΡΑΚΑΛΟΥ του Πέτρου
Current Status of PF SAXS beamlines. 07/23/2014 Nobutaka Shimizu
Current Status of PF SAXS beamlines 07/23/2014 Nobutaka Shimizu BL-6A Detector SAXS:PILATUS3 1M WAXD:PILATUS 100K Wavelength 1.5Å (Fix) Camera Length 0.25, 0.5, 1.0, 2.0, 2.5 m +WAXD Chamber:0.75, 1.0,
DETERMINATION OF DYNAMIC CHARACTERISTICS OF A 2DOF SYSTEM. by Zoran VARGA, Ms.C.E.
DETERMINATION OF DYNAMIC CHARACTERISTICS OF A 2DOF SYSTEM by Zoran VARGA, Ms.C.E. Euro-Apex B.V. 1990-2012 All Rights Reserved. The 2 DOF System Symbols m 1 =3m [kg] m 2 =8m m=10 [kg] l=2 [m] E=210000
.. ƒ²μ É, Œ. Œ Ï,. Š. μé ±μ,..,.. ³ μ μ, ƒ.. ÒÌ
13-2016-82.. ƒ²μ É, Œ. Œ Ï,. Š. μé ±μ,..,.. ³ μ μ, ƒ.. ÒÌ ˆ Œ ˆŸ Š Š Š ( ) ƒ ˆ ˆ ˆŒ Œ Ÿ Š Œ Š ˆŒ NA62. I. ˆ Œ ˆŸ Ÿ Œ ² μ Ê ² μ Ò É Ì ± Ô± ³ É ƒ²μ É... 13-2016-82 ² ³ Éμ μ²μ Ö μ ÒÌ μ μ²μ± Éμ ±μ É ÒÌ Ëμ
ΑΡΙΣΤΟΤΕΛΕΙΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΘΕΣΣΑΛΟΝΙΚΗΣ ΤΜΗΜΑ ΦΥΣΙΚΗΣ ΙΑΤΜΗΜΑΤΙΚΟ ΜΕΤΑΠΤΥΧΙΑΚΟ ΠΡΟΓΡΑΜΜΑ ΣΠΟΥ ΩΝ ΝΑΝΟΕΠΙΣΤΗΜΕΣ & ΝΑΝΟΤΕΧΝΟΛΟΓΙΕΣ Ν&Ν ΓΡΑΦΕΝΙΟ : ΦΥΣΙΚΗ & ΕΦΑΡΜΟΓΕΣ ΛΑΜΠΡΙΝΟΣ Ι. ΜΙΧΑΗΛ ΕΠΙΒΛΕΠΩΝ ΚΑΘΗΓΗΤΗΣ:
6.1. Dirac Equation. Hamiltonian. Dirac Eq.
6.1. Dirac Equation Ref: M.Kaku, Quantum Field Theory, Oxford Univ Press (1993) η μν = η μν = diag(1, -1, -1, -1) p 0 = p 0 p = p i = -p i p μ p μ = p 0 p 0 + p i p i = E c 2 - p 2 = (m c) 2 H = c p 2
Technical Information T-9100 SI. Suva. refrigerants. Thermodynamic Properties of. Suva Refrigerant [R-410A (50/50)]
d Suva refrigerants Technical Information T-9100SI Thermodynamic Properties of Suva 9100 Refrigerant [R-410A (50/50)] Thermodynamic Properties of Suva 9100 Refrigerant SI Units New tables of the thermodynamic
ΜΕΤΑΠΤΥΧΙΑΚΗ ΕΡΕΥΝΗΤΙΚΗ ΔΙΑΤΡΙΒΗ
ΓΕΩΠΟΝΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΑΘΗΝΩΝ ΤΜΗΜΑ ΕΠΙΣΤΗΜΗΣ & ΤΕΧΝΟΛΟΓΙΑΣ ΤΡΟΦΙΜΩΝ ΕΡΓΑΣΤΗΡΙΟ ΠΟΙΟΤΙΚΟΥ ΕΛΕΓΧΟΥ & ΥΓΙΕΙΝΗΣ ΤΡΟΦΙΜΩΝ ΚΑΙ ΠΟΤΩΝ Π.Μ.Σ. «ΕΠΙΣΤΗΜΗ & ΤΕΧΝΟΛΟΓΙΑ ΤΡΟΦΙΜΩΝ & ΔΙΑΤΡΟΦΗ ΤΟΥ ΑΝΘΡΩΠΟΥ» Η ΕΠΙΔΡΑΣΗ
Discontinuous Hermite Collocation and Diagonally Implicit RK3 for a Brain Tumour Invasion Model
1 Discontinuous Hermite Collocation and Diagonally Implicit RK3 for a Brain Tumour Invasion Model John E. Athanasakis Applied Mathematics & Computers Laboratory Technical University of Crete Chania 73100,
Πτυχιακή Εργασία. Παραδοσιακά Προϊόντα Διατροφική Αξία και η Πιστοποίηση τους
ΑΛΕΞΑΝΔΡΕΙΟ ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙΔΕΥΤΙΚΟ ΙΔΡΥΜΑ ΣΧΟΛΗ ΤΕΧΝΟΛΟΓΙΑΣ ΤΡΟΦΙΜΩΝ ΚΑΙ ΔΙΑΤΡΟΦΗΣ ΤΜΗΜΑ ΔΙΑΤΡΟΦΗΣ ΚΑΙ ΔΙΑΙΤΟΛΟΓΙΑΣ Πτυχιακή Εργασία Παραδοσιακά Προϊόντα Διατροφική Αξία και η Πιστοποίηση τους Εκπόνηση:
Accu-Guard II. SMD Thin-Film Fuse ELECTRICAL SPECIFICATIONS
Accu-Guard II is a version of Accu-Guard fuses for a wider range of current and voltage ratings. Con struct ed on alumina substrates, Accu-Guard II fuses display superior electrical, mechanical and en
Spherical Coordinates
Spherical Coordinates MATH 311, Calculus III J. Robert Buchanan Department of Mathematics Fall 2011 Spherical Coordinates Another means of locating points in three-dimensional space is known as the spherical
Base Metal + Alloying Elements
2109101, 3 + (+ ) Base Metal + Alloying Elements (+ Impurities) = Fe + C + Mn + i + P + = Al + i + Mg + Cu + Fe = Fe + Cr + Ni + C; Cr > 13% 2 - / (, ) (Component)- (Phase)- Homogenous Distinct Portion
Optimizing Microwave-assisted Extraction Process for Paprika Red Pigments Using Response Surface Methodology
2012 34 2 382-387 http / /xuebao. jxau. edu. cn Acta Agriculturae Universitatis Jiangxiensis E - mail ndxb7775@ sina. com 212018 105 W 42 2 min 0. 631 TS202. 3 A 1000-2286 2012 02-0382 - 06 Optimizing
Design Method of Ball Mill by Discrete Element Method
Design Method of Ball Mill by Discrete Element Method Sumitomo Chemical Co., Ltd. Process & Production Technology Center Makio KIMURA Masayuki NARUMI Tomonari KOBAYASHI The grinding rate of gibbsite in
ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΕΠΙΣΤΗΜΩΝ ΥΓΕΙΑΣ ΤΜΗΜΑ ΝΟΣΗΛΕΥΤΙΚΗΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ ΕΠΗΡΕΑΖΕΙ ΤΗΝ ΠΡΟΛΗΨΗ ΚΑΡΚΙΝΟΥ ΤΟΥ ΜΑΣΤΟΥ
ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΕΠΙΣΤΗΜΩΝ ΥΓΕΙΑΣ ΤΜΗΜΑ ΝΟΣΗΛΕΥΤΙΚΗΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ ΠΩΣ Η ΚΑΤΑΝΑΛΩΣΗ ΦΡΟΥΤΩΝ ΚΑΙ ΛΑΧΑΝΙΚΩΝ ΕΠΗΡΕΑΖΕΙ ΤΗΝ ΠΡΟΛΗΨΗ ΚΑΡΚΙΝΟΥ ΤΟΥ ΜΑΣΤΟΥ Όνομα φοιτήτριας ΚΑΛΑΠΟΔΑ ΜΑΡΚΕΛΛΑ
CHAPTER 25 SOLVING EQUATIONS BY ITERATIVE METHODS
CHAPTER 5 SOLVING EQUATIONS BY ITERATIVE METHODS EXERCISE 104 Page 8 1. Find the positive root of the equation x + 3x 5 = 0, correct to 3 significant figures, using the method of bisection. Let f(x) =
Εργαστηριακή άσκηση Ιδιότητες μετάλλων από προσομοίωση Μοριακής Δυναμικής
Κλασσική ατομιστική προσομοίωση Εργαστηριακή άσκηση Ιδιότητες μετάλλων από προσομοίωση Μοριακής Δυναμικής Λογισμικό LAMMPS: Large scale Atomic/Molecular Massively Parallel Simulator http://lammps.sandia.gov/
5.4 The Poisson Distribution.
The worst thing you can do about a situation is nothing. Sr. O Shea Jackson 5.4 The Poisson Distribution. Description of the Poisson Distribution Discrete probability distribution. The random variable
Fractional Colorings and Zykov Products of graphs
Fractional Colorings and Zykov Products of graphs Who? Nichole Schimanski When? July 27, 2011 Graphs A graph, G, consists of a vertex set, V (G), and an edge set, E(G). V (G) is any finite set E(G) is
Ordinal Arithmetic: Addition, Multiplication, Exponentiation and Limit
Ordinal Arithmetic: Addition, Multiplication, Exponentiation and Limit Ting Zhang Stanford May 11, 2001 Stanford, 5/11/2001 1 Outline Ordinal Classification Ordinal Addition Ordinal Multiplication Ordinal
Υλικά V, Κεραμικά-Διάλεξη 2. Διδακτέα ύλη:
Υλικά V, Κεραμικά-Διάλεξη 2 Διδακτέα ύλη: Διάλεξη 1: Εισαγωγή στα Κεραμικά Υλικά. Πυροσυσσωμάτωση και ανάπτυξη μικροδομής. Δεσμοί σε Κεραμικά Υλικά. Δομές σε Κεραμικά Υλικά - Πυριτικά πλέγματα. Διάλεξη
Homework 8 Model Solution Section
MATH 004 Homework Solution Homework 8 Model Solution Section 14.5 14.6. 14.5. Use the Chain Rule to find dz where z cosx + 4y), x 5t 4, y 1 t. dz dx + dy y sinx + 4y)0t + 4) sinx + 4y) 1t ) 0t + 4t ) sinx
Other Test Constructions: Likelihood Ratio & Bayes Tests
Other Test Constructions: Likelihood Ratio & Bayes Tests Side-Note: So far we have seen a few approaches for creating tests such as Neyman-Pearson Lemma ( most powerful tests of H 0 : θ = θ 0 vs H 1 :
Strain gauge and rosettes
Strain gauge and rosettes Introduction A strain gauge is a device which is used to measure strain (deformation) on an object subjected to forces. Strain can be measured using various types of devices classified
Démographie spatiale/spatial Demography
ΠΑΝΕΠΙΣΤΗΜΙΟ ΘΕΣΣΑΛΙΑΣ Démographie spatiale/spatial Demography Session 1: Introduction to spatial demography Basic concepts Michail Agorastakis Department of Planning & Regional Development Άδειες Χρήσης
the total number of electrons passing through the lamp.
1. A 12 V 36 W lamp is lit to normal brightness using a 12 V car battery of negligible internal resistance. The lamp is switched on for one hour (3600 s). For the time of 1 hour, calculate (i) the energy
Ó³ Ÿ , º 4Ä5(174Ä175).. 629Ä634 ˆ ˆŠ ˆ ˆŠ Š ˆ. .. Ëμ μ,.. μ, Š.. ±μ. Î ± É ÉÊÉ ³..., Œμ ±
Ó³ Ÿ. 2012.. 9, º 4Ä5(174Ä175).. 629Ä634 ˆ ˆŠ ˆ ˆŠ Š ˆ Ÿ Œ Ÿ.. Ëμ μ,.. μ, Š.. ±μ Î ± É ÉÊÉ ³..., Œμ ± Ö Ì μ ÊÌ É³μ Ë μ μ ² Ö ³ ± ³ ²Ó μ³ Ö μ³ Êɱ μé 0,8 μ 1,2 Œ É μ μ ³ Ê²Ó μ É μ ±μ ²ÊÎ Ô ± Éμ μ² 5 ±Ô
Εργαστηριακή άσκηση Ιδιότητες μετάλλων από προσομοίωση Μοριακής Δυναμικής
Κλασσική ατομιστική προσομοίωση Εργαστηριακή άσκηση Ιδιότητες μετάλλων από προσομοίωση Μοριακής Δυναμικής Δ.Γ. Παπαγεωργίου Πρόγραμμα Μεταπτυχιακών Σπουδών «Προηγμένα Υλικά» Κλασσική ατομιστική προσομοίωση
DuPont Suva 95 Refrigerant
Technical Information T-95 SI DuPont Suva refrigerants Thermodynamic Properties of DuPont Suva 95 Refrigerant (R-508B) The DuPont Oval Logo, The miracles of science, and Suva, are trademarks or registered
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΑΤΡΩΝ ΤΜΗΜΑ ΗΛΕΚΤΡΟΛΟΓΩΝ ΜΗΧΑΝΙΚΩΝ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ ΥΠΟΛΟΓΙΣΤΩΝ ΤΟΜΕΑΣ ΣΥΣΤΗΜΑΤΩΝ ΗΛΕΚΤΡΙΚΗΣ ΕΝΕΡΓΕΙΑΣ
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΑΤΡΩΝ ΤΜΗΜΑ ΗΛΕΚΤΡΟΛΟΓΩΝ ΜΗΧΑΝΙΚΩΝ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ ΥΠΟΛΟΓΙΣΤΩΝ ΤΟΜΕΑΣ ΣΥΣΤΗΜΑΤΩΝ ΗΛΕΚΤΡΙΚΗΣ ΕΝΕΡΓΕΙΑΣ ιπλωµατική Εργασία του φοιτητή του τµήµατος Ηλεκτρολόγων Μηχανικών και Τεχνολογίας Ηλεκτρονικών
MARKET INTRODUCTION System integration
MARKET INTRODUCTION System integration Air to Water Split System Inverter Driven Nomιnal Capacities : 5-6,5-9 - 11,5 kwth Max LWT= 60 C & Min OAT = -15 C COP>= 4.1 Air to Water Monoblock Inverter Driven
