CONTENTS ENGINE GROUP

Transcript

1

2 CONTENTS ENGINE GROUP CYLINDER HEAD CRANKSHAFT, PISTON FAN COVER, SHROUD AIR CLEANER, REED, CARB CRANK CASE, COVER, OIL PUMP TRANSMISSION KICK, STARTER CLUTCH DRIVEN PULLEY (CVT) ENGINE BRACKET GENERATOR, START MOTOR MUFFLER

3 CONTENTS FRAME GROUP FRAME SWING ARM, FOOTREST FENDER SEAT OIL TANK, FUEL TANK SUSPENSION FRONT WHEEL REAR WHEEL REAR BRAKE HANDLE BAR REAR WHEEL AXLE SWING ARM, PROTECT COVER

4 CONTENTS FRAME GROUP STEERING ELECTRICAL EQUIPMENT PACKING CASE, EXTERNAL ACCESSORIES

5

6 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 1 CYLINDER, HEAD 1-1 A2200-B HEAD CYLINDER (φ40) A2251-B GASKET CYLINDER HEAD I8000-B SPARK PLUG (NGK BPR7HS) 1 * 250~ A2100-B CYLINDER A2191-B GASKET CYLINDER I H BOLT STUD.(A) (M7 109) 4 140~ I H FLANGE NUT 4 *140~180

7

8 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 2 CRANKSHAFT, PISTON 2-1 A3000-B CRANK SHAFT COMP I KEY, WODRUFF I BRG RADIAL BALL I1202-B OIL SEAL ( ) I1201-B OIL SEAL ( ) B8117-B BOSS A3101-B PISTON A3111-B PIN PISTON (φ10 33) A3011-B PISTON RING SET (φ40) I4601-B CIRCLIP (φ12) I BEARING, NEEDLE I CIRCLIP EX A5131-B GEAR PUMP DRIVE I KNOCK PIN 1

9

10 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 3 FAN COVER, AIR SHROUD 3-1 A9620-B AIR SHROUD, CYLINDER A1207-B GROMMET A961A-B FAN COVER ASSY A9610-B COVER COMP FAN A9617-B SEAL SHROUD A9618-B SEAL SHROUD A9616-B CAP FAN COVER I B0 TRUSS I WASHER I C SCREW WASHER I C0 TAPPING SCREW PAN A9510-B FAN COMP COOLING I O-RING I H SCREW WASHER 3 80~ H0153-B DEFLEVTOR A7910-5EG CABLE ASSY., THROTTLE 1

11

12 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 4 AIR CLEANER, REED VALVE,CARBURETOR 4-1 A6201-B GASKET, VALVE SEAT A410A-B REED VALVE ASSY A720A-B AIR CLEANER ASSY. (ATV) A7257-B DUCT A7230-B CASE AIR CLEANER A7232-B CAP I TUBE CLIP A7234-B TUBE DRAIN A7205-B ELEMENT, AIR CLEANER A7214-B SEAL A7233-B PLATE FIXING CONNECTING TUBE I B0 TRUSS A7231-B COVER AIR CLEANER A7253-B JOIN PIPE AIR CLEANER I TUBE CLIP I C0 SELF-TAPPING SCREW A711A-B CARBURETOR PIPE ASSY INLET A7110-B PIPE INLET COMP A7256-B BAND A CONNECTIOG TUBE A610A-B CARBURETOR ASSY. (#85) 1 N/A N/A N/A A610A-B CARBURETOR ASSY. (#85) 1 N/A A6111-B BOLT WASHER A6109-B BOLT WASHER A6102-B CARBURETOR COVER A6112-B NUT HEX A6103-B CARBURETOR COVER WASHER KAC31810 THROTTLE VALVE SPRING KAC30310 V CLIP KAB90220 JET NEEDLE ASSY. (#3CR1) 1 * KAC30222 E CLIP 1 * KAB90221 JET NEEDLE (#3CR1) 1

13 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 4 AIR CLEANER, REED VALVE,CARBURETOR KAC30110 THROTTLE VALVE (#3.0) A6105-B AIR FLOW ADJUSTING SCREW KAC30840 THROTTLE ADJUSTING SCREW KAC30510 SLOW JET (*20) KAB90610 NEEDLE JET (*426 E-1) KAC30410 MAIN JET * A6104-B CARBURETOR BODY A6118-B O-RING A0001-B NEEDLE VALVE SEAT COMP 1 * A6119-B NEEDLE VALVE SEAT 1 * KAC31120 NEEDLE VALVE ASSY A6120-B PLATE FIXING A6115-B BOLT KAC30910 CHAMBER O-RING KAC31210 FLOAT ASSY A6108-B CARBURETOR CHAMBER 1 N/A N/A N/A N/A KAC31410 DRAIN SCREW A6117-B BOLT WASHER A6106-B RUBBER TUBE A6153-B MANUAL CHOKE VALVE A6152-B SPRING A6113-B O-RING A6110-B MANUAL CHOKE COMP 1 N/A A6154-B MANUAL CHOKE VALVE SEAT A6155-B JACKET A6114-B BOLT WASHER A6022-5EC RESTICTOR CARBURETOR 1 N/A N/A N/A 4-7 A6101-B CARBURETOR RUBBER I C SCREW SOCKET WITH WASHER I H BOLT,HEXAGON HEAD 4 *70~ A7920-B AIR CUT CABLE 1 N/A

14

15 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 5 CRANK CASE COVER OIL PUMP 5-1 A1000-B R L CRANK CASE COMP 1 *5-1-1 A1200-B CRANK CASE (L) 1 *5-1-2 A1100-B CRANK CASE R A1203-B BUSH REAR SHOCK ABSRBER A1105-B RUBBER CAP, R A1220-B HOSE BREATHER ASSY A1206-B BREATHER JOINT A1221-B HOSE BREATHER I TUBE CLIP I A SCREW, PAN HEAD (M5 14) 2 45~ I G SCREW BUTTON HEAD CAP 4 80~ I PIN, DOWEL (φ12 16) I A SCREW, PAN HEAD (M6 35) 10 80~ A1205-B RUBBER CAP, (L) B1300-B COVER, MISSION B1395-B GASKET, MISSION COVER A1395-B GASKET, CRANKCASE COVER L I PIN, DOWEL (φ10 14) I A SCREW, PAN HEAD (M6 20) 3 80~ A1341-B COVER CRANK CASE L A1342-B SHAFT (φ8 31) I A SCREW, PAN HEAD (M6 25) 8 80~ I A SCREW, PAN HEAD (M6 65) 1 80~ A5651-B PLUG, OIL I O-RING (φ ) I H BOLT,HEXAGON HEAD (M8 16) 1 *130~ I WASHER A1121-B HOLDER I A SCREW, PAN HEAD 1 80~ A1393-B GASKET, CRANK CASE COVER A1364-B PLATE A1362-B ELEMENT A1363-B GUIDE, ELEMENT I CIRCLIP EX A510A-B OIL PUMP ASSY. 1

16

17 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 6 TRANSMISSION 6-1 B3420-B COUNTER SHAFT COMP I BEARING, BALL, RADIAL I WASHER I700W SPOKE NIPPLE WASHER B3430-B FINAL SHAFT COMP I BEARING, NEEDLE I BEARING, BALL, RADIAL I1204-B OIL SEAL ( ) I CIRCLIP EX I CIRCLIP I WASHER I CIRCLIP# B3801-B DRIVE CHAIN SPROCKET (19T) B3811-A PLATE A2 FIXING I H BOLT HEXAGON HEAD 2 80~120

18

19 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 7 KICK SHAFT ASSY STARTER CLUTCH ASSY. 7-1 B8110-B GEAR COMP STARTING CLUTCH I BRG NEEDLE B8115-B BOSS, GEAR I WASHER B8120-B OUTER COMP ST CLUTCH B8100-B GEAR COMP STARTER REDUCTION B8102-B SHAFT START REDUCTION I WASHER B8105-B PLATE START REDUCTION I H SCREW WASHER 2 *100~ B8250-B KICK SHAFT ASSY B8281-B SPRING TORSION B8254-B BUSH SOLID I WASHER I CIRCLIP EX B8300-B KICK CRANK ASSY B823A-B KICK PINION ASSY B8223-B SPG KICK DRIVEN GEAR B8230-B GEAR COMP KICK DRIVEN A1000-5EA RUBBER CAP,KICK SHAFT 1

20

21 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 8 DRIVEN PULLEY (CVT) 8-1 B3411-B SHAFT DRIVE I A WASHER I A SCREW PAN 1 80~ I CIRCLIP I BEARING RADIAL BALL (6003) I1203-B OIL SEAL ( ) B301A-B PLATE SUB ASSY DRIVE I1211-B SEAL,OIL I O-RING B3237-B COLLAR SEAL B3233-B SPG DRIVEN FACE B2300-B PLATE COMP DRIVE I A0 NUT HEXAGON 1 * 490~ B2100-B CLUTCH HOUSING B3210-B PLATE SUB DRIVE COMP B3225-B PIN GUIDE B3220-B PLATE SUB DRIVE I H NUT FLANGE 1 * 390~ I BEARING, BALL, RADIAL I O-RING B211A-B FACE ASSY MOVABLE DRIVE B2121-B ROLLER COMP WEIGHT B2110-B FACE COMP MOVABLE DRIVE B2132-B PIECE SLIDE B2131-B PLATE RAMP B2105-B BOSS DRIVE FACE B3100-B BELT DRIVE B2102-B FACE DRIVE B8211-B CLUTCH ONEWAY I700W SPOKE NIPPLE WASHER I C0 NUT HEXAGON 1 * 390~ B2103-B WASHER DRIVE FACE I WASHER 1

22

23 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 9 ENGINE ATV 9-1 AB000-B ENG ATV 1 N/A AB000-B02-A000 ENG ATV 1 N/A N/A N/A 9-2 A1261-B PIN BRAKE SHOE ANCHOR I H NUT, CHECK 1 180~ A1240-B ENGINE BRACKET COMP I H BOLT,HEXAGON HEAD I H0 NUT HEXAGON 1 * 590~ I WASHER 1

24

25 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 10 GENERATOR, START MOTOR 10-1 C1120-B STARTER COMP 1 * C1121-B STARTER COMP 1 * I1205-B SEAL OIL( ) C1110-B FLYWHEEL COMP I WASHER I C0 NUT HEXAGON 1 *390~ I A SCREW PAN 2 80~ C1200-B STARTER MOTOR ASSY C1220-B CARBON BRUSH COMP 1 * C1221-B POSITIVE CARBON BRUSH 1 * C1222-B NEGATIVE CARBON BRUSH I H BOLT HEXAGON HEAD (M6 22) 2 100~140

26

27 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 13 MUFFLER ASSY A830A-5EE MUFFLER PIPE ASSY. 1 N/A A830A-5EA MUFFLER PIPE ASSY. 1 N/A N/A N/A A8303-5EE SPARK ARRESTER 1 N/A A8304-5EE BUFFER RUBBER A830G-5EE SCRAW 1 N/A 13-2 I BOLT,FLANGE (M6 18) A8291-5AA GASKET (φ ) I BOLT,FLANGE (M10 48) 1

28

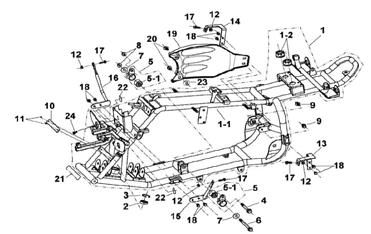

29 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 14 FRAME 14-1 E010A-5EE FRAME COMP ASSY E0100-5EE FRAME COMP G7212-5EA RUBBER DAMPER(φ37 φ13 23) I ZZ BEARING (6002ZZ) I C CLIP E0352-5EA ENGINE SET BOLT(M10 85) E0350-5EA ENGINE SUSPENSION ASSY E0201-5EA BUSH (φ28.1 φ ) E0351-5EA ENGINE SET BOLT(M10 115) I WASHER(φ28 φ11 1.2) I NUT,HEXAGON CHECK(M10) I BOLT,FLANGE(M8 36) E0101-5EA FRAME NUMBER PLATE 1 N/A E0101-5EE FRAME NUMBER PLATE 1 6A N/A N/A N/A H750A-5BA FIX NAIL I G NUT,FLANGE CHECK (M6) E0105-5EE LEFT,FIXED PLATE,REAR FENDER E0106-5EE RIGHT,FIXED PLATE,REAR FENDER E0107-5EE LEFT,FIXED PLATE,FRONT FENDER E0108-5EE RIGHT,FIXED PLATE,FRONT FENDER I BOLT,FLANGE (M6 23) I BOLT,FLANGE (M6 12) D0103-5EA FRONT PROTECT COVER I BOLT,FLANGE (M8 16) F4309-5EA STICKER, MFD H7111-5EG HEAD LIGHT COVER,STICKER (L) H7112-5EG HEAD LIGHT COVER,STICKER (R) I SCREW 1

30

31 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 15 SWING ARM,FOOTREST,FEND BAR 15-1 E020A-5EE ARM, SUSPENSION, L.H. (SILVER) E0200-5EE ARM, SUSPENSION, L.H. (SILVER) E0201-5EA BUSH, ARM SUSPENSION E0206-5EA OIL LINER(φ17) E0207-5EA OIL LINER(φ15.5) E021A-5EE ARM, SUSPENSION, R.H. (SILVER) E0210-5EE ARM, SUSPENSION, R.H. (SILVER) E0201-5EA BUSH, ARM SUSPENSION E0206-5EA OIL LINER(φ17) E0207-5EA OIL LINER(φ15.5) E0202-5EA WATERPROOF SEAL E0203-5EA DUST SEAT I PIN HOLE BOLT(M10 48) I NUT,FLANGE CHECK(M10) I GREASE VALVE E0209-5EA CAP, GREASE VALVE E0700-5EG FOOTREST BAR ASSY E0707-5EE RUBBER PLUG I BOLT,FLANGE(M10 22) E0400-9KA FEND BAR ASSY. FRONT (SILVER) 1 N/A E0400-9KA FEND BAR ASSY. FRONT (SILVER) 1 N/A N/A N/A I BOLT,FLANGE(M8 16) I BOLT,FLANGE(M6 12) C3742-5BA CIRCLE REFLECTOR,AMBER(DOT) 2 N/A N/A N/A I NUT, HEXAGON 2 N/A N/A N/A

32

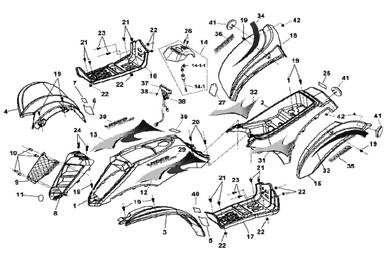

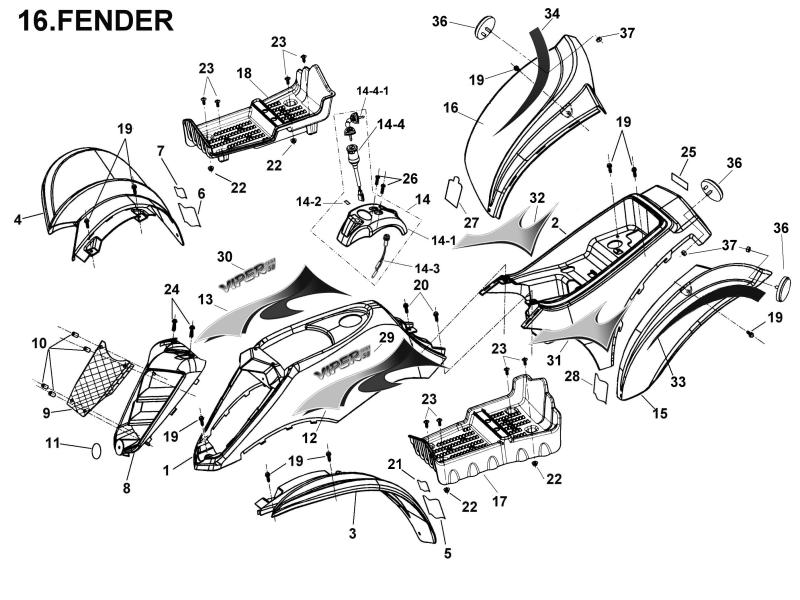

33 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 16 FENDER 16-1 F4300-5EE FRONT BODY COVER(BLUE) 1 F4300-5EE FRONT BODY COVER (YELLOW) 1 F4300-5EE FRONT BODY COVER(RED) 1 F4300-5EE FRONT BODY COVER(BLACK) H3500-5EE REAR BODY COVER (BLUE) 1 H3500-5EE REAR BODY COVER (YELLOW) 1 H3500-5EE REAR BODY COVER (RED) 1 H3500-5EE REAR BODY COVER (BLACK) F3520-5EE FRONT FENDER (L) (BLUE) 1 F3520-5EE FRONT FENDER (L) (YELLOW) 1 F3520-5EE FRONT FENDER (L) (RED) 1 F3520-5EE FRONT FENDER (L) (BLACK) F3620-5EE FRONT FENDER (R) (BLUE) 1 F3620-5EE FRONT FENDER (R) (YELLOW) 1 F3620-5EE FRONT FENDER (R) (RED) 1 F3620-5EE FRONT FENDER (R) (BLACK) H7101-5EB STICKER,WARNING(PASSENGER) H7102-5EB STICKER, WARNING (Y6) H7102-5EA STICKER, CE 1 N/A N/A N/A 16-8 F4301-5EE FRONT CENTER COVER (BLUE) 1 F4301-5EE FRONT CENTER COVER(YELLOW) 1 F4301-5EE FRONT CENTER COVER (RED) 1 F4301-5EE FRONT CENTER COVER (BLACK) E0415-5EE FILTER NET E0417-5EE FILTER NET PLUE H7107-5EB EMBLEM, LOGO(SILVER) H7124-5EE FRONT BODY STICKER (YELLOW)(L) 1 H7124-5EE FRONT BODY STICKER (RED) (L) 1

34 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 16 FENDER H7125-5EE FRONT BODY STICKER (YELLOW) (R) 1 H7125-5EE FRONT BODY STICKER (RED)(R) E320A-5EE COVER,HANDLE BAR ASSY.(BLUE) E3205-5EE COVER,HANDLE BAR(BLUE) H7101-5EE STICKER,OIL PILOT LAMP C3101-FIA OIL PILOT LAMP(RED) C5010-9FA MAIN SWITCH ASSY. 1 5A C5013-9FA MATERIAL KEK E320A-5EE COVER,HANDLE BAR ASSY.(YELLOW) E3205-5EE COVER,HANDLE BAR(YELLOW) H7101-5EE STICKER,OIL PILOT LAMP C3101-FIA OIL PILOT LAMP(RED) C5010-9FA MAIN SWITCH ASSY C5013-9FA MATERIAL KEK E320A-5EE COVER,HANDLE BAR ASSY.(RED) E3205-5EE COVER,HANDLE BAR(RED) H7101-5EE STICKER,OIL PILOT LAMP C3101-FIA OIL PILOT LAMP(RED) C5010-9FA MAIN SWITCH ASSY C5013-9FA MATERIAL KEK E320A-5EE COVER,HANDLE BAR ASSY.(BLACK) E3205-5EE COVER,HANDLE BAR(BLACK) H7101-5EE STICKER,OIL PILOT LAMP C3101-FIA OIL PILOT LAMP(RED) C5010-9FA MAIN SWITCH ASSY C5013-9FA MATERIAL KEK H3720-5EE REAR FENDER (L)(BLUE) 1 H3720-5EE REAR FENDER (L)(YELLOW) 1 H3720-5EE REAR FENDER (L)(RED) 1 H3720-5EE REAR FENDER (L)(BLACK) 1

35 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 16 FENDER H3820-5EE REAR FENDER (R)(BLUE) 1 H3820-5EE REAR FENDER (R)(YELLOW) 1 H3820-5EE REAR FENDER (R)(RED) 1 H3820-5EE REAR FENDER (R)(BLACK) H3520-5EG FOOTREST,(L) H3620-5EG FOOTREST,(R) I BLOT,HEXANGOR HEAD(M6 16) I BLOT,HEXANGOR HEAD(M6 20) H7133-9EF STICKER, WARNING REMOTE CONTROLLER I G NUT,SELF LOCK I BOLT,FLANGE(M6 16) I8310-FIA PLASTIC SCREW H7106-5ED WARNING STICKER, MUFFLER I A SCREW,PAN H7101-5EA STICKER,WARNING 1 N/A N/A F4310-5EA STICKER,WARNING(PASSENGER) 1 N/A N/A H7103-5EG STICKER, VIPER mini-50m (L) H7104-5EG STICKER, VIPER mini-50m ( R) H7128-5EE STICKER,REAR BODY (YELLOW))(L) 1 H7128-5EE STICKER,REAR BODY (RED)(L) H7129-5EE STICKER,REAR BODY (YELLOW))(R) 1 H7129-5EE STICKER,REAR BODY (RED)(R) H7126-5EE STICKER,REAR FENDER(L) H7127-5EE STICKER,REAR FENDER(R) H7142-5EE WARNING STICKER,VEHICLE SUIT 1 N/A N/A N/A C3743-5BA CIRCLE REFLECTOR,RDE(DOT) 3 N/A N/A N/A I NUT, HEXAGON 3 N/A N/A N/A

36

37 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 17 SEAT 17-1 G7200-5EE SEAT ASSY. (BLACK/YELLOW) 1 G7200-5EE SEAT ASSY.(BLACK/RED) G7201-9ED SEAT FIXER,ASSY. 1

38

39 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 18 FUEL TANK, OIL TANK 18-1 E5100-9EF OIL TANK (PMX) E5105-5EA OIL TANK CAP I BOLT,HEXAGON HEAD(M6 20) E5101-5EE PAD A7500-5EE FUEL TANK ASSY A762A-5EA FUEL TANK CAP ASSY A7620-5EA FUEL TANK CAP A7621-9FA RESPIRATORY TUBE A7510-5EA FUEL FILTER ASSY A7519-FIA FILTER COMP FUEL A7516-5EA CLIP(A) A7514-5EA FUEL TUBE (A) A7515-5EA FUEL TUBE (B) A7501-5EE FUEL TUBE A7516-5EA CLIP(A) A7517-5EA CLIP(B) A7502-5EE SPARE TUBE A7516-5EA CLIP(A) A7517-5EA CLIP(B) A7520-5EA MANUAL FUEL CUP ASSY I SCREW,PAN HEAD(M5 16) A7622-5EB RUBBER PAD, FUEL TANK CAP C5410-5EE OIL TANK BUOY A1251-9EF BRACKET,OIL TANK I SCREW, PAN HEAD (M6 16) H7503-5EG PREMIX FUEL NOTICE TAG I NUT,HEXAGON 1

40

41 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 19 SUSPENSION 19-1 E1105-5EE SUSPENSION, FRONT (SILVER) I PIN HOLE BOLT(M10 40) I NUT(M10) E2400-4HA SUSPENSION, REAR I COTTER PIN I CLIP 1

42

43 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 20 FRONT WHEEL 20-1 D471A-5EG FRONT WHEEL ASSY.,LEFT(145mm 7-6) D4710-5EG FRONT WHEEL,LEFT(145mm 7-6) D4601-4HA WHEEL RIM D471B-5EG FRONT WHEEL ASSY.,RIGHT(145mm 7-6) D4710-5EG FRONT WHEEL,LEFT(145mm 7-6) D4601-4HA WHEEL RIM D4622-4HA OUTER SPACER(2)(ψ17 ψ ) I3102-5AC OIL SEAL(φ22 φ35 7) D4620-5EA INNER SPACER(ψ15 ψ ) D4621-5EA OUTER SPACER (ψ15 ψ ) I LLU BEARING(6002LLU) I LLU BEARING(6003LLU) I CASTLE NUT(M12) I C WASHER(ψ13 φ20 2t) I COTTER PIN D4609-5EA RUBBER CAP D4608-5EA FRONT WHEEL SHAFT WASHER 2

44

45 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 21 REAR WHEEL 21-1 D471C-5EG REAR WHELL ASSY.,LEFT(145mm 7-6) D4710-5EG WHELL LEFT(145mm 7-6) D4602-5EG WHEEL RIM D471D-5EG REAR WHELL ASSY.,RIGHT(145mm 7-6) D4710-5EG WHELL LEFT(145mm 7-6) D4602-5EG WHEEL RIM I CASTLE NUT(M14) I WASHER(ψ14 5t) D4609-5EA RUBBER COVER I COTTER PIN D2309-5EA WHEEL AXLE WASHER, REAR (ψ40 ψ14 4.5t) 2

46

47 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 23 REAR BRAKE 23-1 D2310-5EE BEARING SEAT ASSY., REAR WHEEL AXLE D2311-5EA SPACER I ZZ BEARING(6006ZZ) D2313-9EA OIL SEAL I SCREW FLANGE (M12 25) (SUS) G7130-5EE BRAKE CALLIPER G7131-5EE BRAKE LINING G7132-5EE BOLT LEAKAGE G7133-BCA CAP LEAKAGE D0114-9EA SPACER D3520-FIA BRAKE DISK D3251-5EE BRAKE DISK MOUNTING SEAT D3210-5EG BRAKE OIL TUBE I BOLT,FLANGE(M8 35) I BOLT,ROUND HEAD(M10) I UNION BOLT,BRAKE HOSE I WASHER,PLATE G7111-BCA BRAKE FUEL TUBE, CLIP I BOLT,FLANGE(M6 12) I BOLT,FLANGE(M12 28) I SPRING WASHER D3701-5EG CALLIPER D3705-5EG CALLIPER LINING D3702-5EG CABLE WIRE D3704-5EG CALLIPER MOUNTING SEAT I H0 NUT,CHECK 2

48

49 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 24 HANDLE BAR 24-1 E3100-5EG HANDLE BAR ASSY E3166-4HA GRIP HANDLE E3112-5EA HANDLE BAR CLAMP, BOTTOM E3110-5EA HANDLE BAR CLAMP, CAP, LEFT E3111-5EA HANDLE BAR CLAMP, CAP, RIGHT I SCREW, SOCKET (M6 25) D3200-5EG BRAKE MASTER CYLINDER,LEFT D3201-5EG LEVER,LEFT D3202-FIA BRAKE SWITCH ASSY E3180-4HA LEVER ASSY., RIGHT E319A-4HA LEVER ACCELERATE E3191-4HA ACCELERATOR BODY I NUT,FLANGE CHECK (M10) I UNION BOLT,BRAKE HOSE I WASHER,PLATE D3703-5EG LEVER PREARRANGE I SCREW,PAN HEAD E3183-4HA COVER,RIGHT LEVER E3188-5EA GASKET, RIGHT LEVER 1

50

51 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 25 REAR WHEEL AXLE 25-1 D2301-9EA REAR AXLE D0110-5EB DRIVE CHAIN ASSY(28T) D0111-9EA SPROCKET HOLDER,REAR D1111-5EB GEAR (420 28T) D2706-9EA STUD(M10) I NUT,HEXAGON CHECK(M10) D2302-9EA NUT,REAR WHEEL AXLE(M28 1.5) D0100-5EB DRIVE CHAIN(# 目 ) D0104-5EA MASTERLINK (#420) D0510-5EE CHAIN PROTECTIVE COVER,UPPER I BOLT, FLANGE (M8 16) 2

52

53 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 26 SWING ARM SUB 26-1 E220A-5EB SWING ARM SUB ASSY E2208-5EA SWING ARM OIL LINER(φ20) E2202-5EA CHAIN TENSIONER ROLLER E2209-5EA SWING ARM SPACER (φ ) E2205-5EA SWING ARM SEAL COVER( ) E2201-5EA SWING ARM SET BOLT(M14 290) I NUT,FLANGE CHECK(M14) D3617-5EE REAR BRAKE PROTECTIVE COVER I BOLT,FLANGE(M8 12) D0101-5EA PROTECT COVER I SPRING WASHER(φ8) D0120-9EA ADJUSTER, CHAIN I BOLT,FLANGE (M8 16) 3

54

55 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 27 STEERING 27-1 E3200-5EA SHAFT ASSY., STEERING E3201-5EA OIL SEAL(ψ18 ψ32 7) I3102-5AC OIL SEAL(ψ22 ψ35 7) D4620-5EA INNER SPACER(ψ15 ψ ) I NUT,FLANGE CHECK(M14) I NUT,FLANGE CHECK (M8) E3225-5EA PU BUSH SLEEVE, STEERING SHAFT E0205-4HA KNUCKLE, LEFT ASSY E0215-4HA KNUCKLE, RIGHT ASSY I NUT,NYLON(M10) I NUT,FLANGE CHECK (M10) E0258-5EA STEERING TIE-ROD ASSY., LEFT E0251-5EA BOLT,STUD E0255-FIA UNIVERSAL JOINT(L) E0256-FIA UNIVERSAL JOINT(R) E0252-5EA NUT(R) E0253-5EA NUT(L) E0259-5EA STEERING TIE-ROD ASSY., RIGHT E0251-5EA BOLT,STUD E0255-FIA UNIVERSAL JOINT(L) E0256-FIA UNIVERSAL JOINT(R) E0252-5EA NUT(R) E0253-5EA NUT(L) E3202-9FA HOLDER, STEERING SHAFT I COTTER PIN 5

56

57 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 28 ELECTRICAL EQUIPMENT 28-1 C2100-5EG MAIN WIRE ASSY C2010-5EA FUSE (7A) C1500-9FA BATTERY (GTX5L-BS) C5200-5EG LEVER HOLDER ASSY., LEFT 1 N/A C5201-5EG LEVER HOLDER, LEFT 1 N/A C5202-5EE AIR CUT,LEVER 1 N/A 28-4 C2108-7EE HANDLE BAR SAFETY SWITCH I SCREW(M5 16) I SCREW WITH WASHER(M6x12) N/A N/A N/A 28-7 I SCREW WITH WASHER(M5 20) C051A-5EE IGNITION COIL ASSY C0410-B C.D.I. UNIT ASSY C1600-B RECTIFIER&REGULATOR C5400-B RESISTOR ASSY N/A N/A N/A C5850-B STARTER RELAY ASSY I SCREW,WITH WASHER(M6 12) C1501-9FA FOAM STICK,BATTERY C1502-9ED RUBBER FIX TAPE,BATTERY(175L) C8110-5EE HORN C5031-5EE TAIL LIGHT C5004-5EE BULB(12v 21/5w) C5005-5EE TAIL LAMP CASING C5035-5EE TAIL LIGHT RUBBER I SPGWASHER(ψ5.2 ψ9.3 1) 4

58 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm C505A-5EE LED COMP I C SELF-TAPPING SCREW(M4 13) C2105-9EF REMOTE CONTROL SWITCH ASSY C2106-9EF RECEIVE C2107-9EF REMOTE CONTROL (310MHZ) I WASHER(ψ5.2 ψ10 1) 4

59

60 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A TORQUE kgf-cm 29 PACKING CASE,EXTERNAL 29-1 H9500-5EE PACKING CASE,EXTERNAL H9020-9FA TOOL SET H9021-9FA RUBBER CLAMP, TOOL BOX H990A-9EF OWNER S MANUAL ASSY 1 H990A-9EF OWNER S MANUAL ASSY H9900-9EF OWNER S MANUAL H9022-5EA TIRE PRESSURE GAUGE H840A-9EF FLAG HOLDER ASSY H8401-9EF FLAG HOLDER COMP H8402-9EF FLAG HOLDER BASE I C SCREW 1 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

61 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A 30 MANUAL CHOKE KIT 30-1 A611A-5EG MANUAL CHOKE KIT A6110-B MANUAL CHOKE COMP A7920-B AIR CUT CABLE C5200-5EG LEVER HOLDER ASSY., LEFT C5201-5EG LEVER HOLDER, LEFT C5202-5EE AIR CUT,LEVER 1 N/A N/A N/A N/A N/A N/A

62 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A 31 SERVICE KITS,BRAKE CALLIPER 31-1 G7137-5EE SERVICE KITS,BRAKE CALLIPER G7134-5EE RING,SEAL G7135-5EE RING,DUST RESISTANT G7136-5EE PISTON,BRAKE CALLIPER 1

63 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A 32 CYLINDER+PISTON TOP END KIT 32-1 A21AA-B CYLINDER+PISTON TOP END KIT A2100-B CYLINDER A2191-B GASKET CYLINDER A2251-B GASKET CYLINDER HEAD A3011-B PISTON RING SET (φ40) A3101-B PISTON A3111-B PIN PISTON (φ10 33) I4601-B CIRCLIP (φ12) I BEARING, NEEDLE A8291-5AA GASKET (φ ) 1

64 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A 33 MAINTENANCE KIT 1 (MJ # 85) A6100-B02-A001 MAINTENANCE KIT 1 (MJ # 85) KAC30310 V CLIP KAB90220 JET NEEDLE ASSY. (#3CR1) KAC30110 THROTTLE VALVE (#3.0) A6105-B AIR FLOW ADJUSTING SCREW KAC30840 THROTTLE ADJUSTING SCREW KAC30510 SLOW JET (*20) KAB90610 NEEDLE JET (*426 E-1) KAC30410 MAIN JET * A6118-B O-RING KAC30910 CHAMBER O-RING A0001-B NEEDLE VALVE SEAT COMP 1

65 ITEM PART NO. NAME Q'TY VIN NO U.S U.K A.L C.A 34 MAINTENANCE KIT 2 (MJ # 85) A6100-B02-A002 MAINTENANCE KIT 2 (MJ # 85) KAC30310 V CLIP KAB90220 JET NEEDLE ASSY. (#3CR1) KAC30110 THROTTLE VALVE (#3.0) A6105-B AIR FLOW ADJUSTING SCREW KAC30840 THROTTLE ADJUSTING SCREW KAC30510 SLOW JET (*20) KAB90610 NEEDLE JET (*426 E-1) KAC30410 MAIN JET * A6118-B O-RING KAC30910 CHAMBER O-RING KAC31210 FLOAT ASSY KAC31410 DRAIN SCREW A0001-B NEEDLE VALVE SEAT COMP 1
