Technical Information Efficiency and Derating SUNNY BOY / SUNNY TRIPOWER / SUNNY MINI CENTRAL
|
|
|
- Θήρα Χριστόπουλος
- 9 χρόνια πριν
- Προβολές:
Transcript
1 Technical Information Efficiency and Derating SUNNY BOY / SUNNY TRIPOWER / SUNNY MINI CENTRAL WirkungDerat-TI-en-40 Version 4.0 ENGLISH

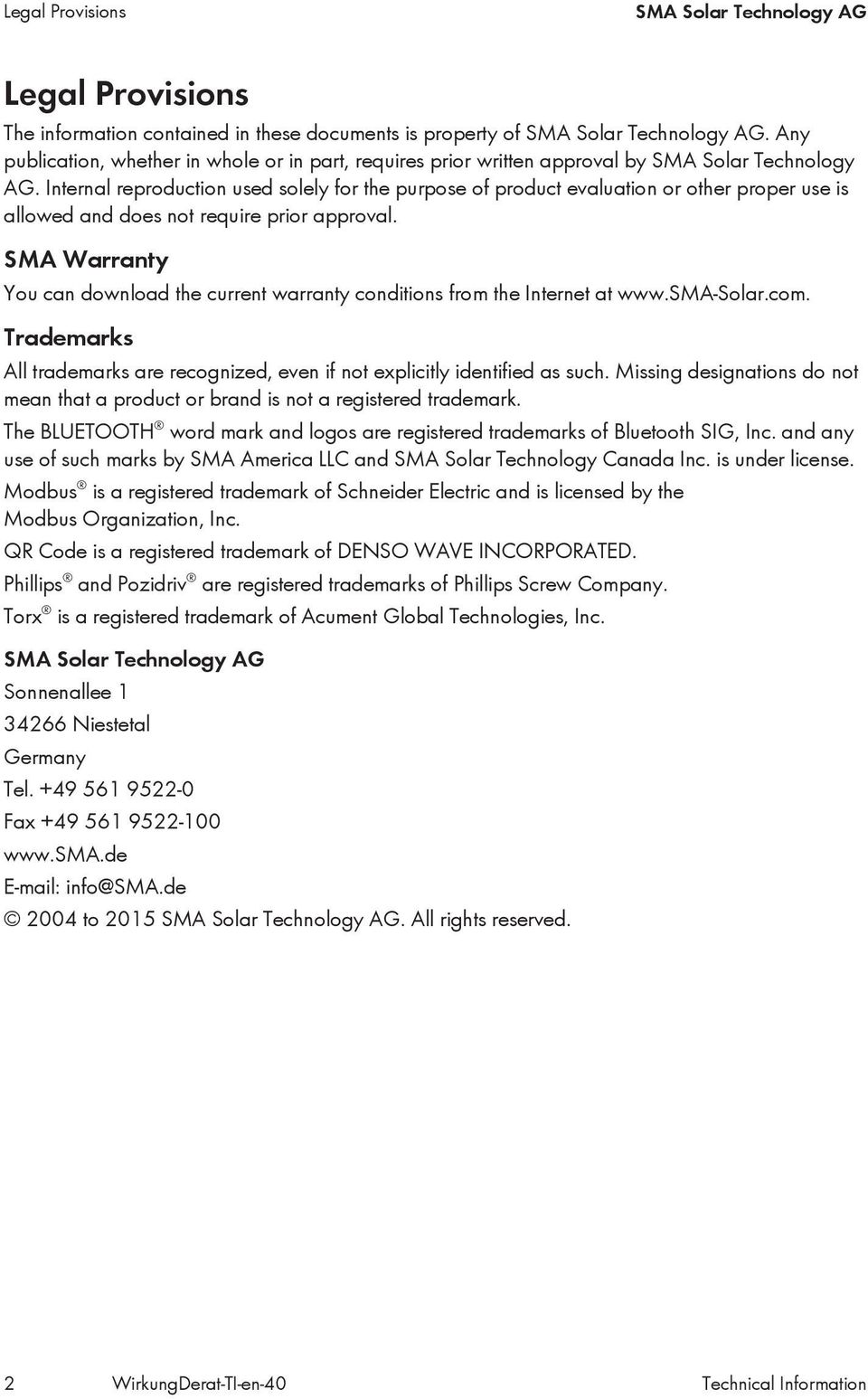

2 Legal Provisions SMA Solar Technology AG Legal Provisions The information contained in these documents is property of SMA Solar Technology AG. Any publication, whether in whole or in part, requires prior written approval by SMA Solar Technology AG. Internal reproduction used solely for the purpose of product evaluation or other proper use is allowed and does not require prior approval. SMA Warranty You can download the current warranty conditions from the Internet at Trademarks All trademarks are recognized, even if not explicitly identified as such. Missing designations do not mean that a product or brand is not a registered trademark. The BLUETOOTH word mark and logos are registered trademarks of Bluetooth SIG, Inc. and any use of such marks by SMA America LLC and SMA Solar Technology Canada Inc. is under license. Modbus is a registered trademark of Schneider Electric and is licensed by the Modbus Organization, Inc. QR Code is a registered trademark of DENSO WAVE INCORPORATED. Phillips and Pozidriv are registered trademarks of Phillips Screw Company. Torx is a registered trademark of Acument Global Technologies, Inc. SMA Solar Technology AG Sonnenallee Niestetal Germany Tel Fax info@sma.de 2004 to 2015 SMA Solar Technology AG. All rights reserved. 2 WirkungDerat-TI-en-40 Technical Information

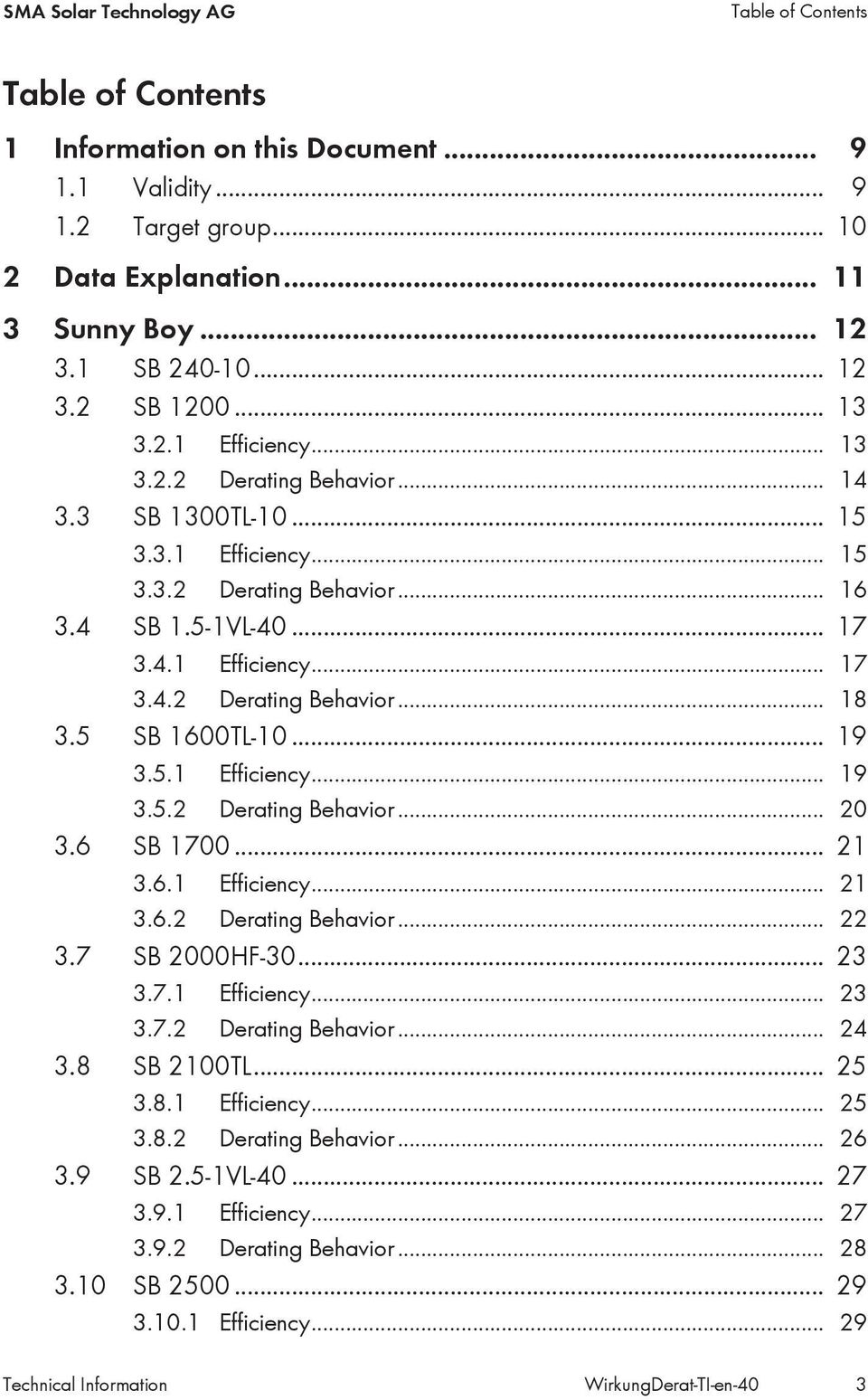

3 SMA Solar Technology AG Table of Contents Table of Contents 1 Information on this Document Validity Target group Data Explanation Sunny Boy SB SB Efficiency Derating Behavior SB 1300TL Efficiency Derating Behavior SB 1.5-1VL Efficiency Derating Behavior SB 1600TL Efficiency Derating Behavior SB Efficiency Derating Behavior SB 2000HF Efficiency Derating Behavior SB 2100TL Efficiency Derating Behavior SB 2.5-1VL Efficiency Derating Behavior SB Efficiency Technical Information WirkungDerat-TI-en-40 3

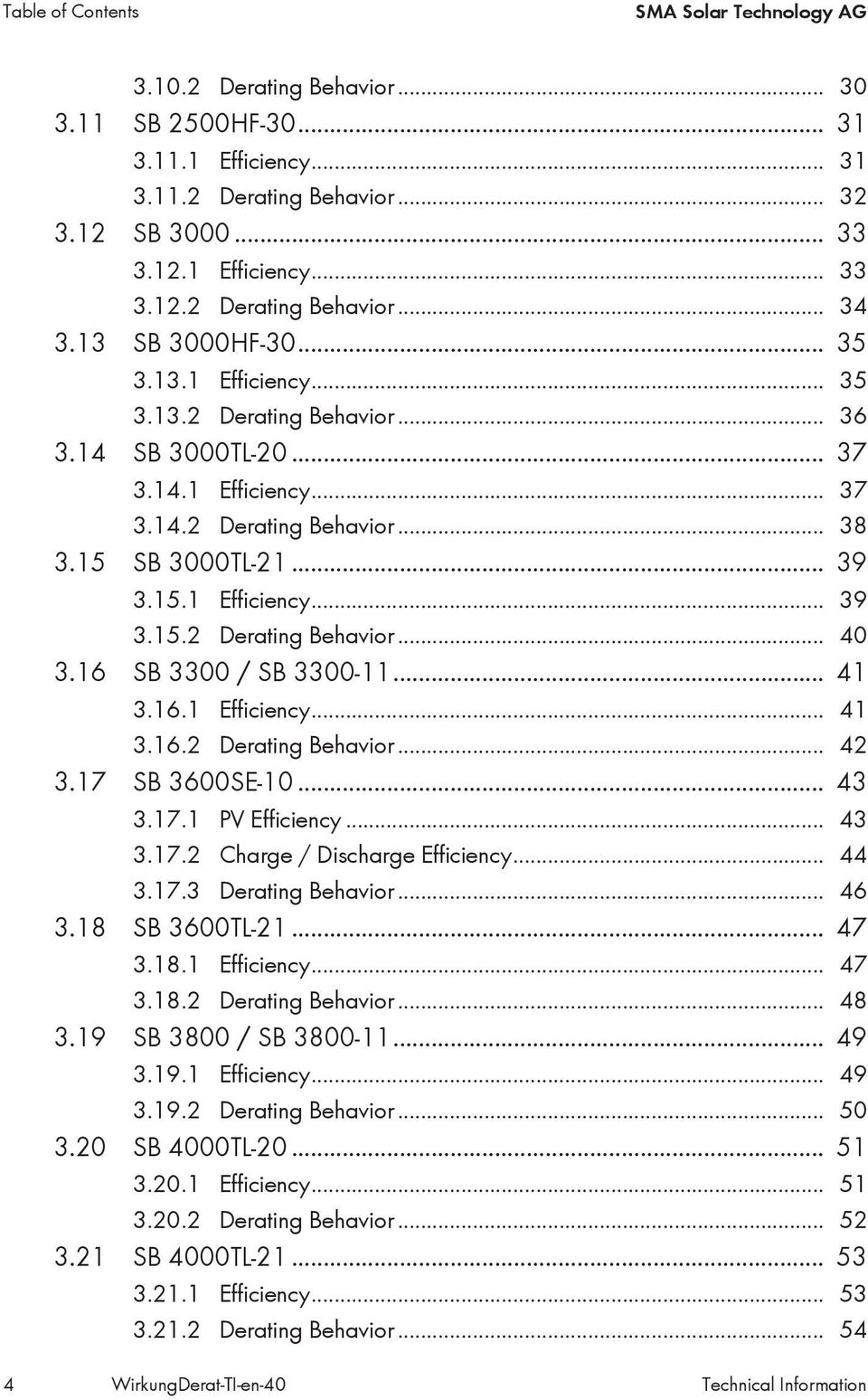

4 Table of Contents SMA Solar Technology AG Derating Behavior SB 2500HF Efficiency Derating Behavior SB Efficiency Derating Behavior SB 3000HF Efficiency Derating Behavior SB 3000TL Efficiency Derating Behavior SB 3000TL Efficiency Derating Behavior SB 3300 / SB Efficiency Derating Behavior SB 3600SE PV Efficiency Charge / Discharge Efficiency Derating Behavior SB 3600TL Efficiency Derating Behavior SB 3800 / SB Efficiency Derating Behavior SB 4000TL Efficiency Derating Behavior SB 4000TL Efficiency Derating Behavior WirkungDerat-TI-en-40 Technical Information

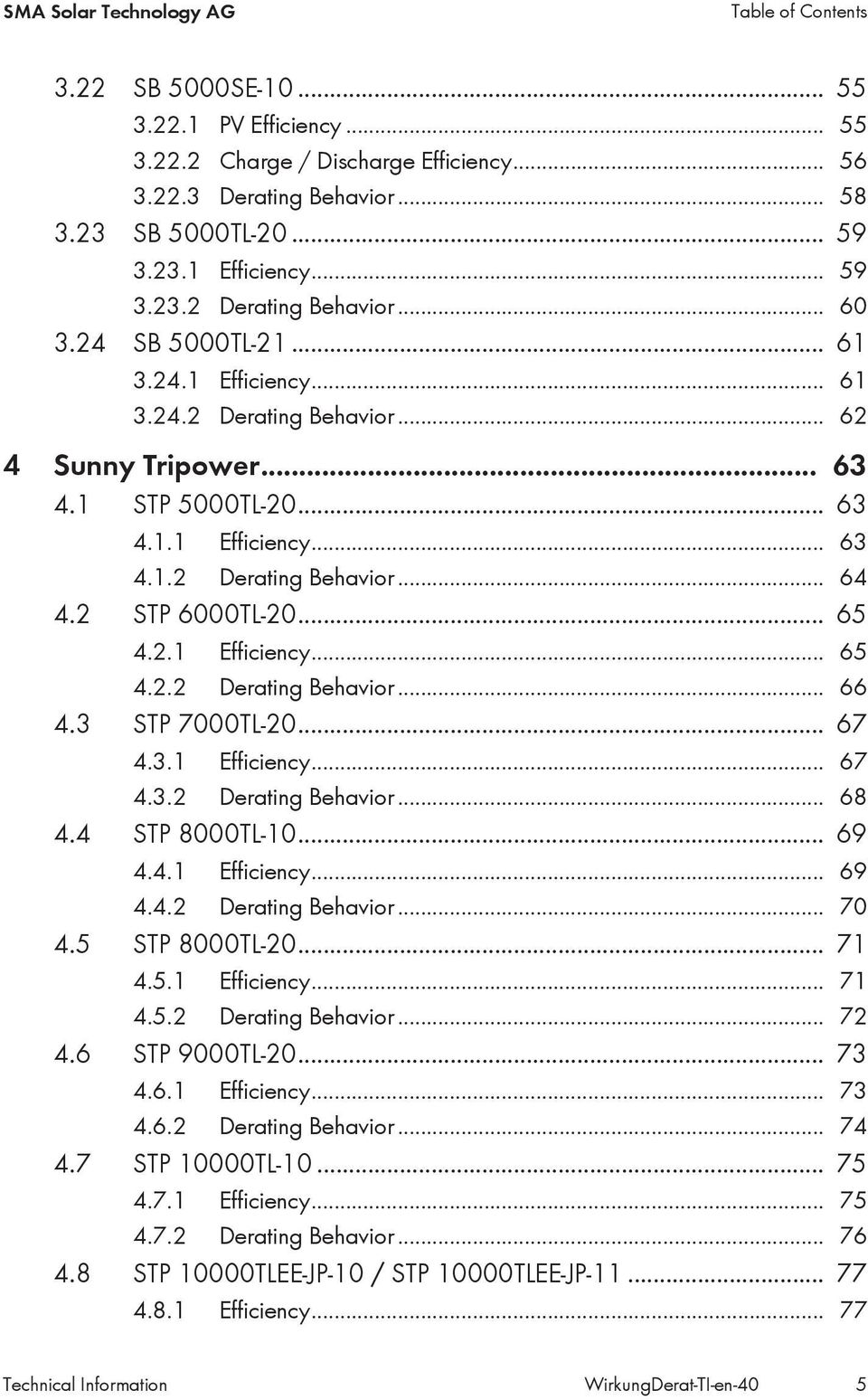

5 SMA Solar Technology AG Table of Contents 3.22 SB 5000SE PV Efficiency Charge / Discharge Efficiency Derating Behavior SB 5000TL Efficiency Derating Behavior SB 5000TL Efficiency Derating Behavior Sunny Tripower STP 5000TL Efficiency Derating Behavior STP 6000TL Efficiency Derating Behavior STP 7000TL Efficiency Derating Behavior STP 8000TL Efficiency Derating Behavior STP 8000TL Efficiency Derating Behavior STP 9000TL Efficiency Derating Behavior STP 10000TL Efficiency Derating Behavior STP 10000TLEE-JP-10 / STP 10000TLEE-JP Efficiency Technical Information WirkungDerat-TI-en-40 5

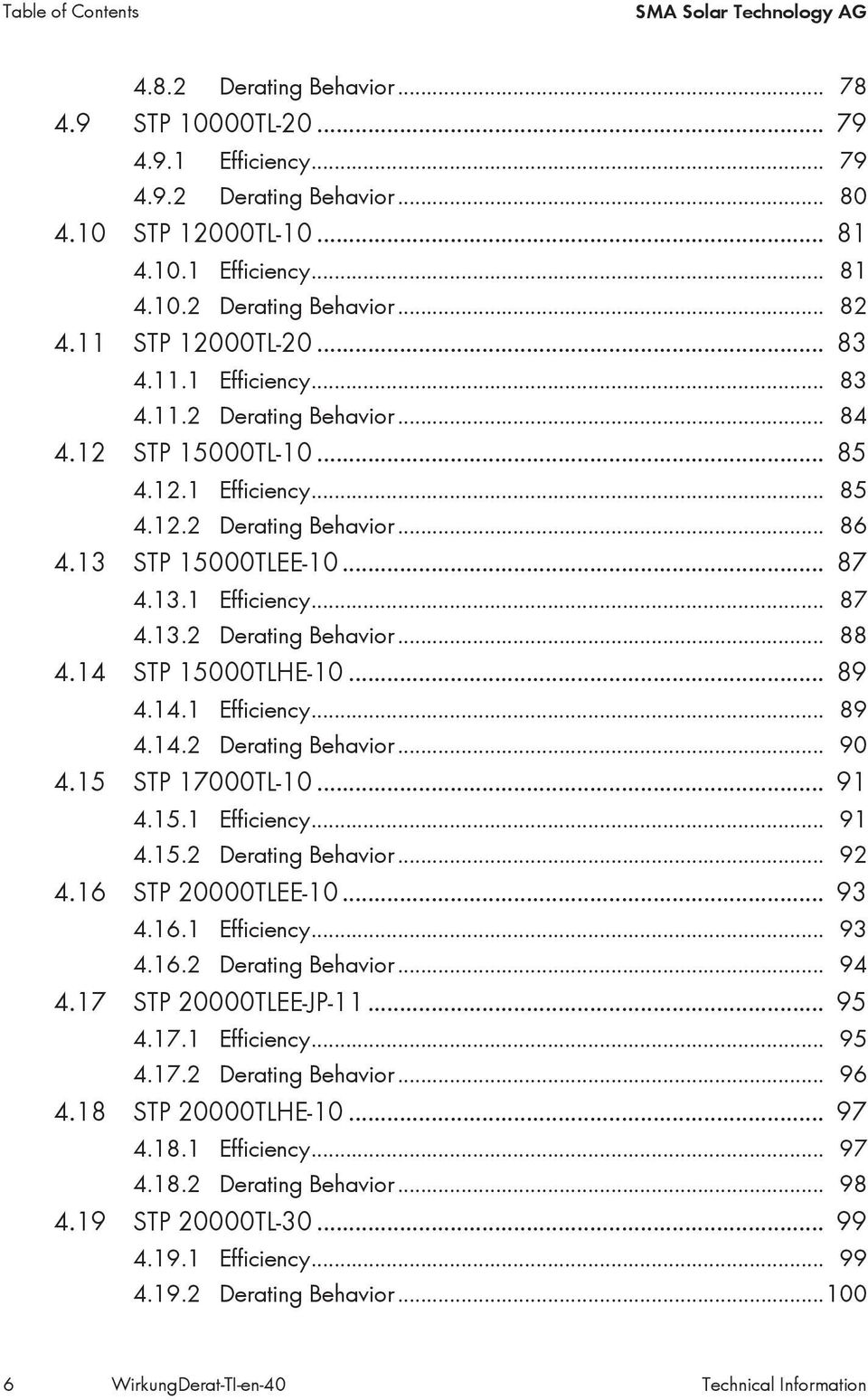

6 Table of Contents SMA Solar Technology AG Derating Behavior STP 10000TL Efficiency Derating Behavior STP 12000TL Efficiency Derating Behavior STP 12000TL Efficiency Derating Behavior STP 15000TL Efficiency Derating Behavior STP 15000TLEE Efficiency Derating Behavior STP 15000TLHE Efficiency Derating Behavior STP 17000TL Efficiency Derating Behavior STP 20000TLEE Efficiency Derating Behavior STP 20000TLEE-JP Efficiency Derating Behavior STP 20000TLHE Efficiency Derating Behavior STP 20000TL Efficiency Derating Behavior WirkungDerat-TI-en-40 Technical Information

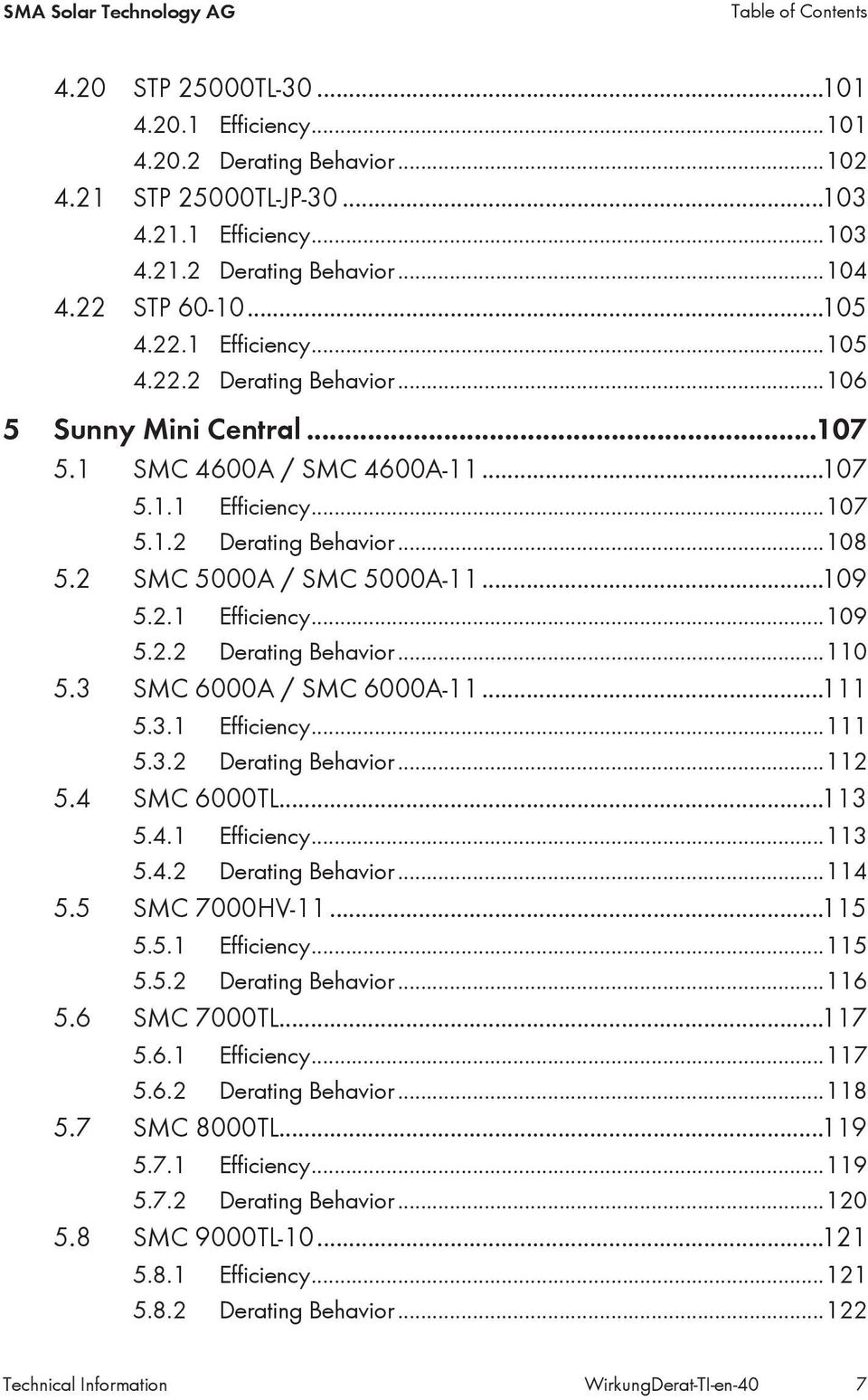

7 SMA Solar Technology AG Table of Contents 4.20 STP 25000TL Efficiency Derating Behavior STP 25000TL-JP Efficiency Derating Behavior STP Efficiency Derating Behavior Sunny Mini Central SMC 4600A / SMC 4600A Efficiency Derating Behavior SMC 5000A / SMC 5000A Efficiency Derating Behavior SMC 6000A / SMC 6000A Efficiency Derating Behavior SMC 6000TL Efficiency Derating Behavior SMC 7000HV Efficiency Derating Behavior SMC 7000TL Efficiency Derating Behavior SMC 8000TL Efficiency Derating Behavior SMC 9000TL Efficiency Derating Behavior Technical Information WirkungDerat-TI-en-40 7

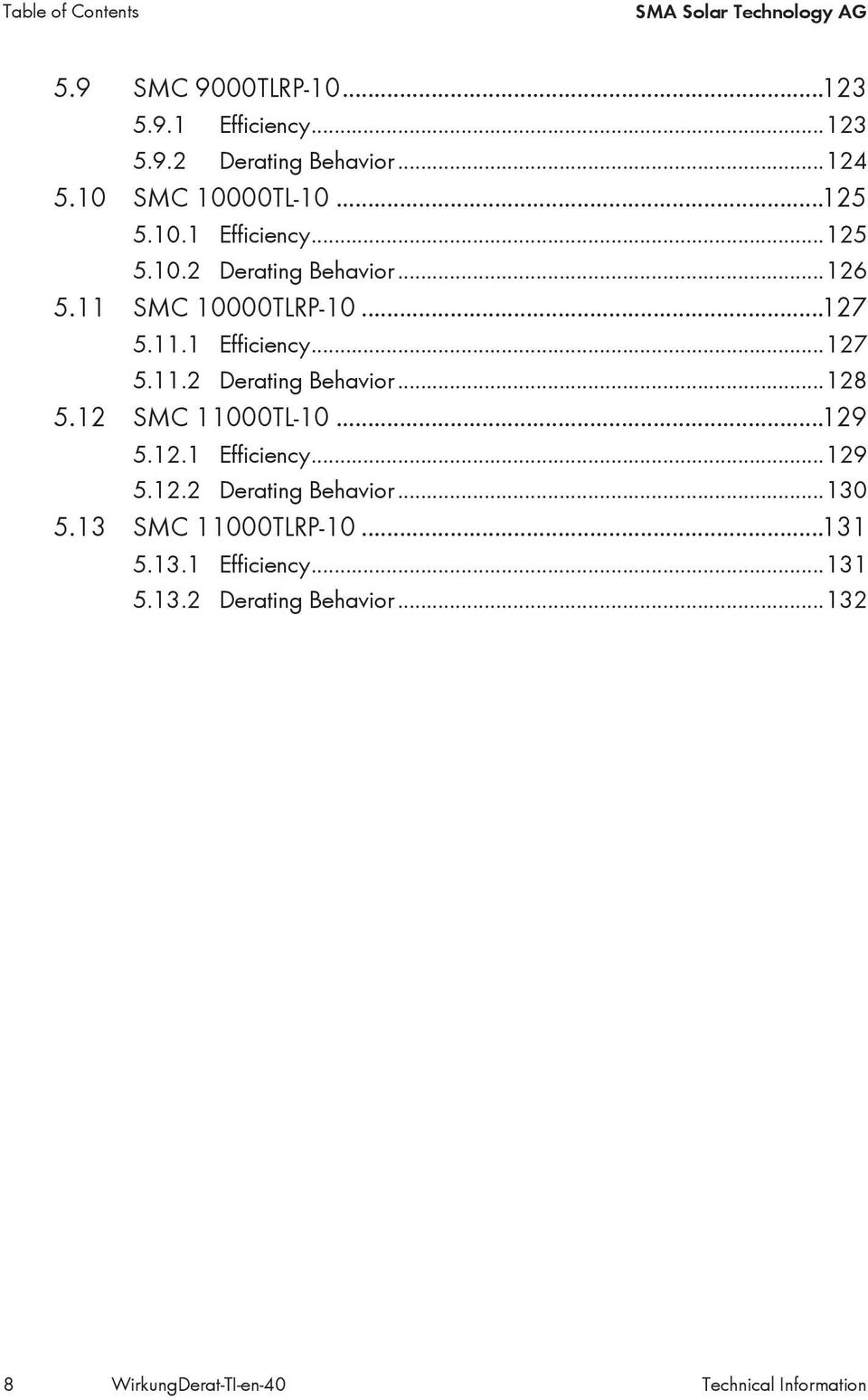

8 Table of Contents SMA Solar Technology AG 5.9 SMC 9000TLRP Efficiency Derating Behavior SMC 10000TL Efficiency Derating Behavior SMC 10000TLRP Efficiency Derating Behavior SMC 11000TL Efficiency Derating Behavior SMC 11000TLRP Efficiency Derating Behavior WirkungDerat-TI-en-40 Technical Information

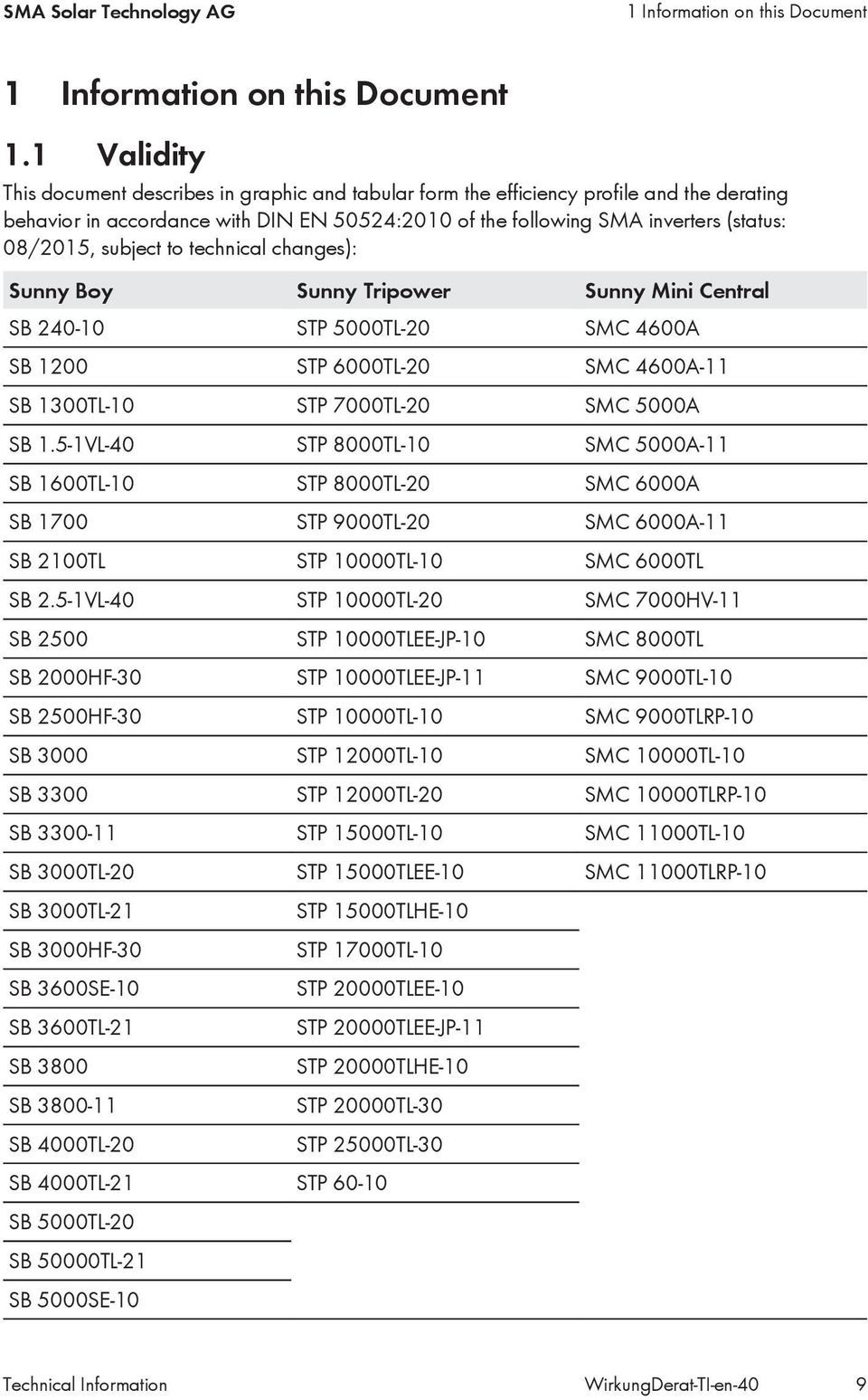

9 SMA Solar Technology AG 1 Information on this Document 1 Information on this Document 1.1 Validity This document describes in graphic and tabular form the efficiency profile and the derating behavior in accordance with DIN EN 50524:2010 of the following SMA inverters (status: 08/2015, subject to technical changes): Sunny Boy Sunny Tripower Sunny Mini Central SB STP 5000TL-20 SMC 4600A SB 1200 STP 6000TL-20 SMC 4600A-11 SB 1300TL-10 STP 7000TL-20 SMC 5000A SB 1.5-1VL-40 STP 8000TL-10 SMC 5000A-11 SB 1600TL-10 STP 8000TL-20 SMC 6000A SB 1700 STP 9000TL-20 SMC 6000A-11 SB 2100TL STP 10000TL-10 SMC 6000TL SB 2.5-1VL-40 STP 10000TL-20 SMC 7000HV-11 SB 2500 STP 10000TLEE-JP-10 SMC 8000TL SB 2000HF-30 STP 10000TLEE-JP-11 SMC 9000TL-10 SB 2500HF-30 STP 10000TL-10 SMC 9000TLRP-10 SB 3000 STP 12000TL-10 SMC 10000TL-10 SB 3300 STP 12000TL-20 SMC 10000TLRP-10 SB STP 15000TL-10 SMC 11000TL-10 SB 3000TL-20 STP 15000TLEE-10 SMC 11000TLRP-10 SB 3000TL-21 SB 3000HF-30 SB 3600SE-10 SB 3600TL-21 SB 3800 SB SB 4000TL-20 STP 15000TLHE-10 STP 17000TL-10 STP 20000TLEE-10 STP 20000TLEE-JP-11 STP 20000TLHE-10 STP 20000TL-30 STP 25000TL-30 SB 4000TL-21 STP SB 5000TL-20 SB 50000TL-21 SB 5000SE-10 Technical Information WirkungDerat-TI-en-40 9

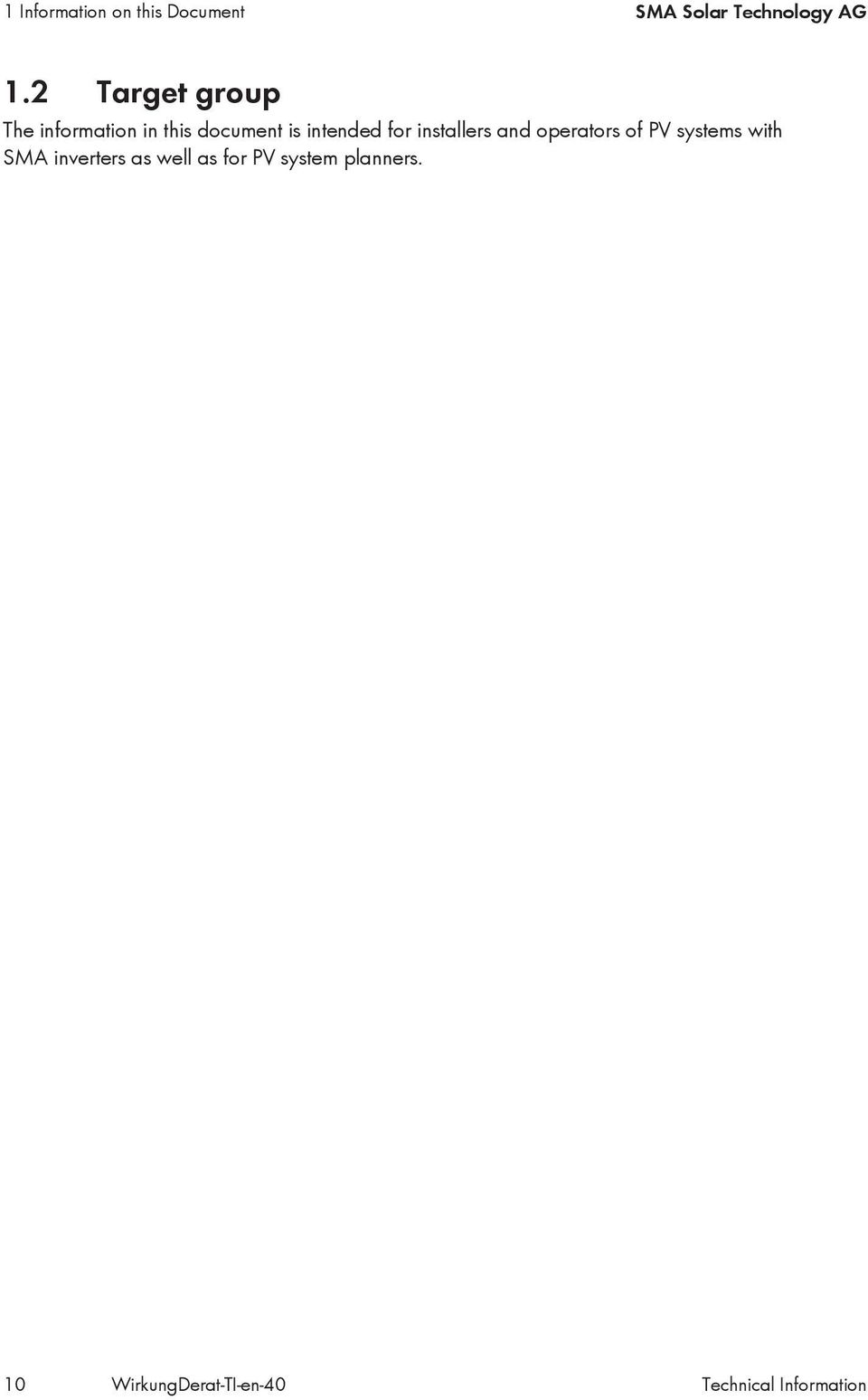

10 1 Information on this Document SMA Solar Technology AG 1.2 Target group The information in this document is intended for installers and operators of PV systems with SMA inverters as well as for PV system planners. 10 WirkungDerat-TI-en-40 Technical Information

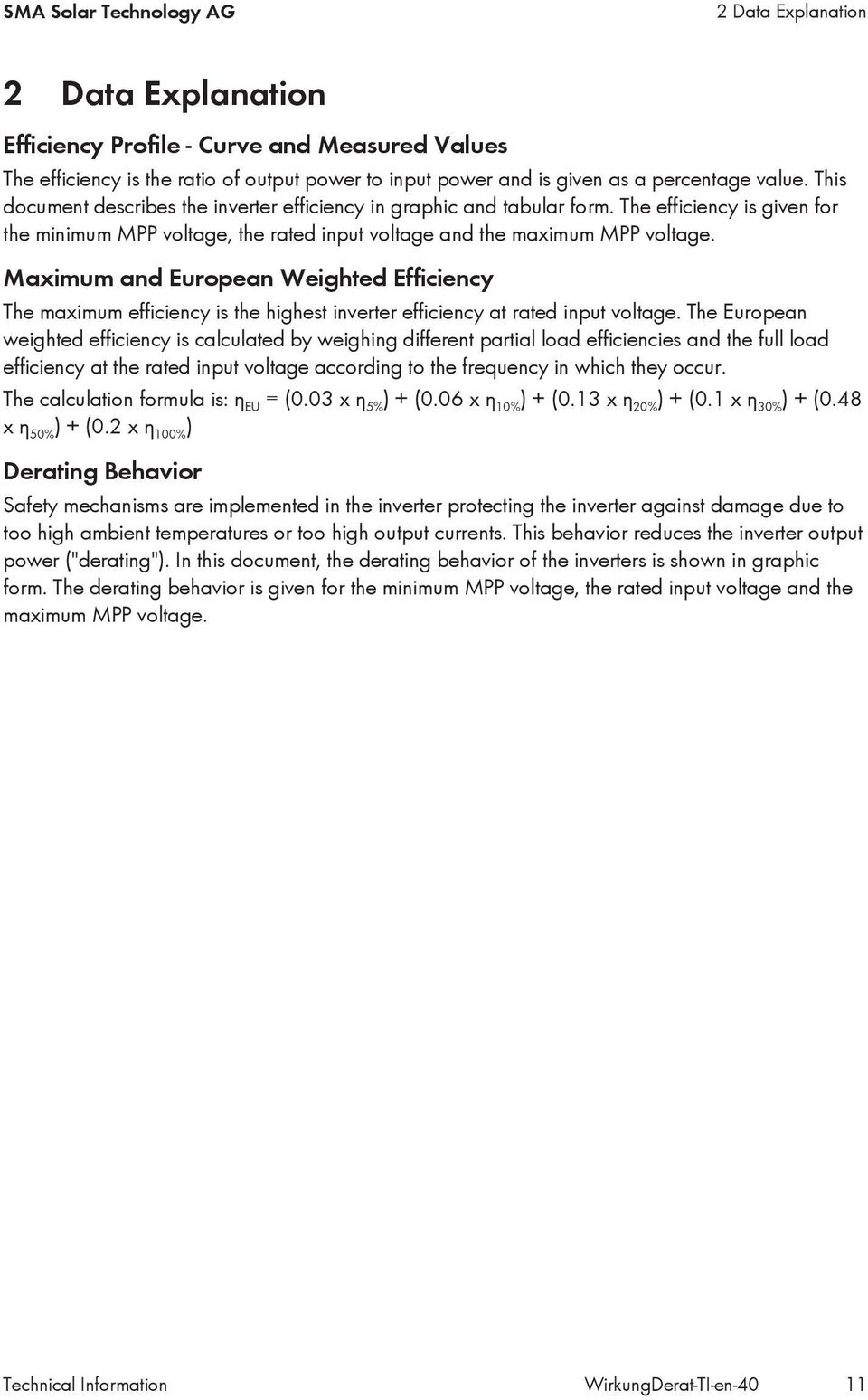

11 SMA Solar Technology AG 2 Data Explanation 2 Data Explanation Efficiency Profile - Curve and Measured Values The efficiency is the ratio of output power to input power and is given as a percentage value. This document describes the inverter efficiency in graphic and tabular form. The efficiency is given for the minimum MPP, the rated input and the maximum MPP. Maximum and European Weighted Efficiency The maximum efficiency is the highest inverter efficiency at rated input. The European weighted efficiency is calculated by weighing different partial load efficiencies and the full load efficiency at the rated input according to the frequency in which they occur. The calculation formula is: η EU = (0.03 x η 5% ) + (0.06 x η 10% ) + (0.13 x η 20% ) + (0.1 x η 30% ) + (0.48 x η 50% ) + (0.2 x η 100% ) Derating Behavior Safety mechanisms are implemented in the inverter protecting the inverter against damage due to too high ambient temperatures or too high output currents. This behavior reduces the inverter output power ("derating"). In this document, the derating behavior of the inverters is shown in graphic form. The derating behavior is given for the minimum MPP, the rated input and the maximum MPP. Technical Information WirkungDerat-TI-en-40 11
12 3 Sunny Boy SMA Solar Technology AG 3 Sunny Boy 3.1 SB Maximum efficiency, η max 95.8% European efficiency, η EU 95.3% Efficiency Profile Standardized output power Minimum MPP 23 V Efficiency Rated input 29 V Maximum MPP 32 V 5% 93.0% 92.6% 93.0% 10% 94.7% 94.6% 94.5% 20% 95.4% 95.4% 95.3% 25% 95.5% 95.6% 95.4% 30% 95.6% 95.7% 95.5% 50% 95.6% 95.8% 95.6% 75% 95.4% 95.6% 95.6% 100% 95.4% 95.4% 95.5% 12 WirkungDerat-TI-en-40 Technical Information

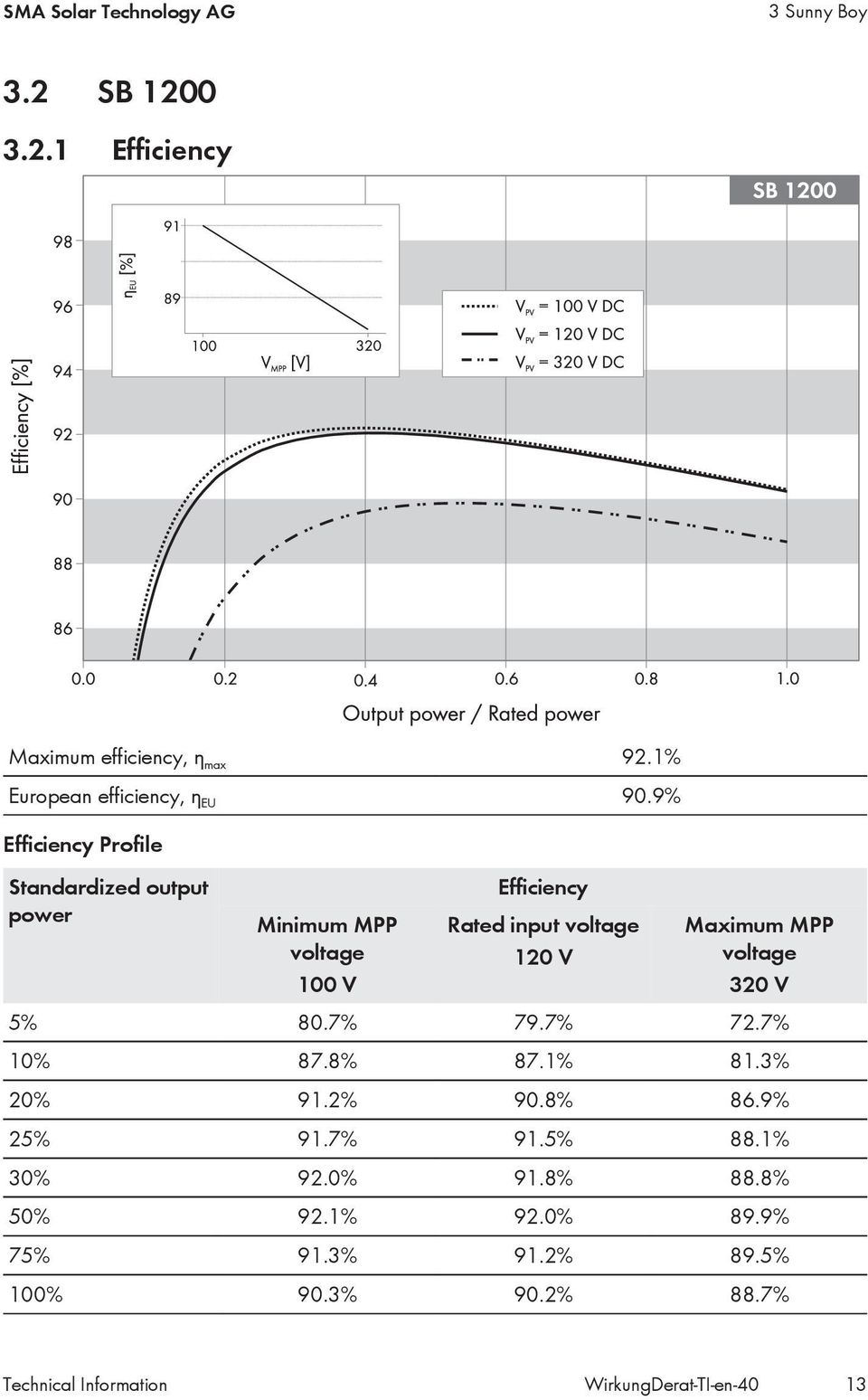

13 SMA Solar Technology AG 3 Sunny Boy 3.2 SB Efficiency Maximum efficiency, η max 92.1% European efficiency, η EU 90.9% Efficiency Profile Standardized output power Minimum MPP 100 V Efficiency Rated input 120 V Maximum MPP 320 V 5% 80.7% 79.7% 72.7% 10% 87.8% 87.1% 81.3% 20% 91.2% 90.8% 86.9% 25% 91.7% 91.5% 88.1% 30% 92.0% 91.8% 88.8% 50% 92.1% 92.0% 89.9% 75% 91.3% 91.2% 89.5% 100% 90.3% 90.2% 88.7% Technical Information WirkungDerat-TI-en-40 13

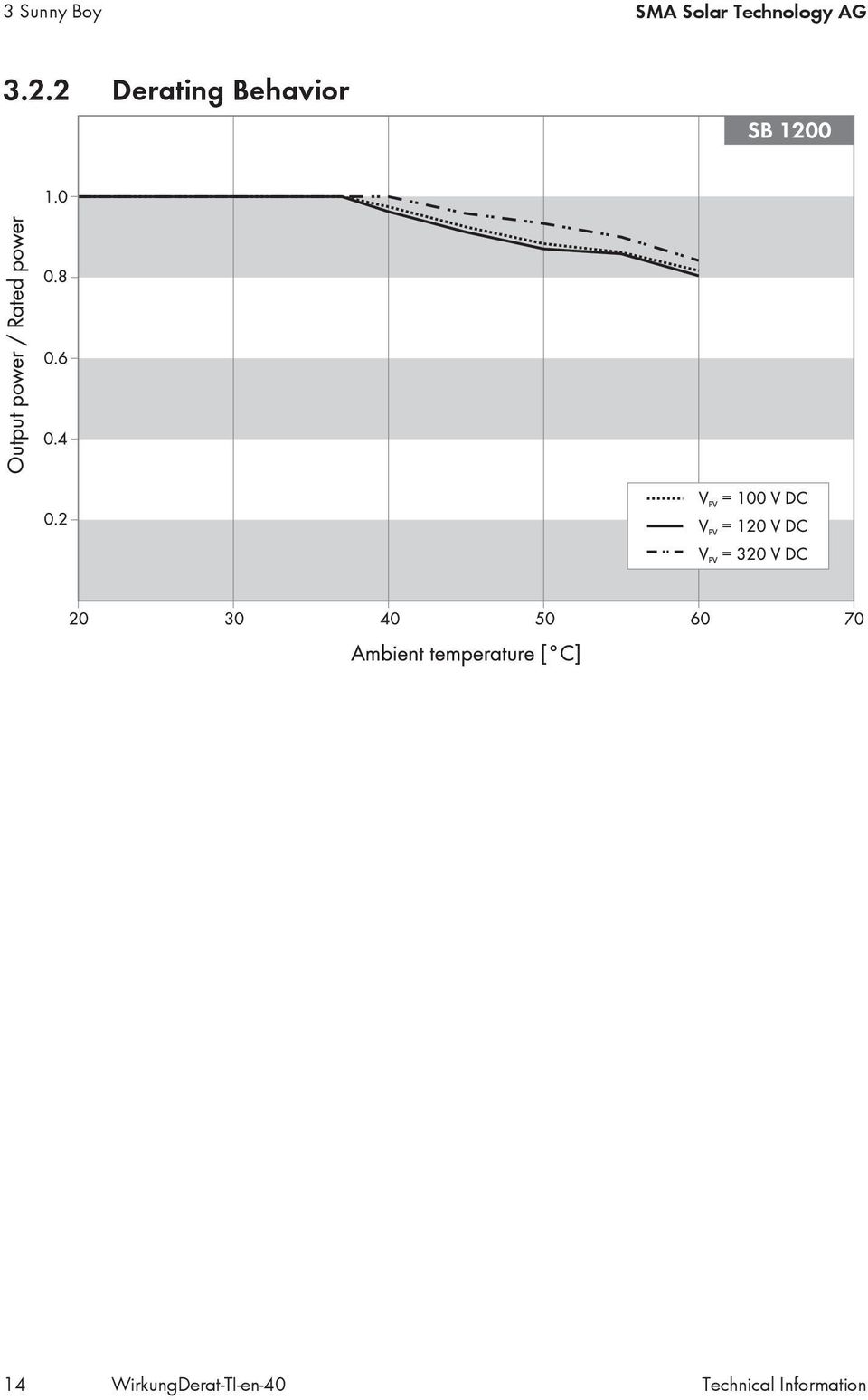

14 3 Sunny Boy SMA Solar Technology AG Derating Behavior 14 WirkungDerat-TI-en-40 Technical Information

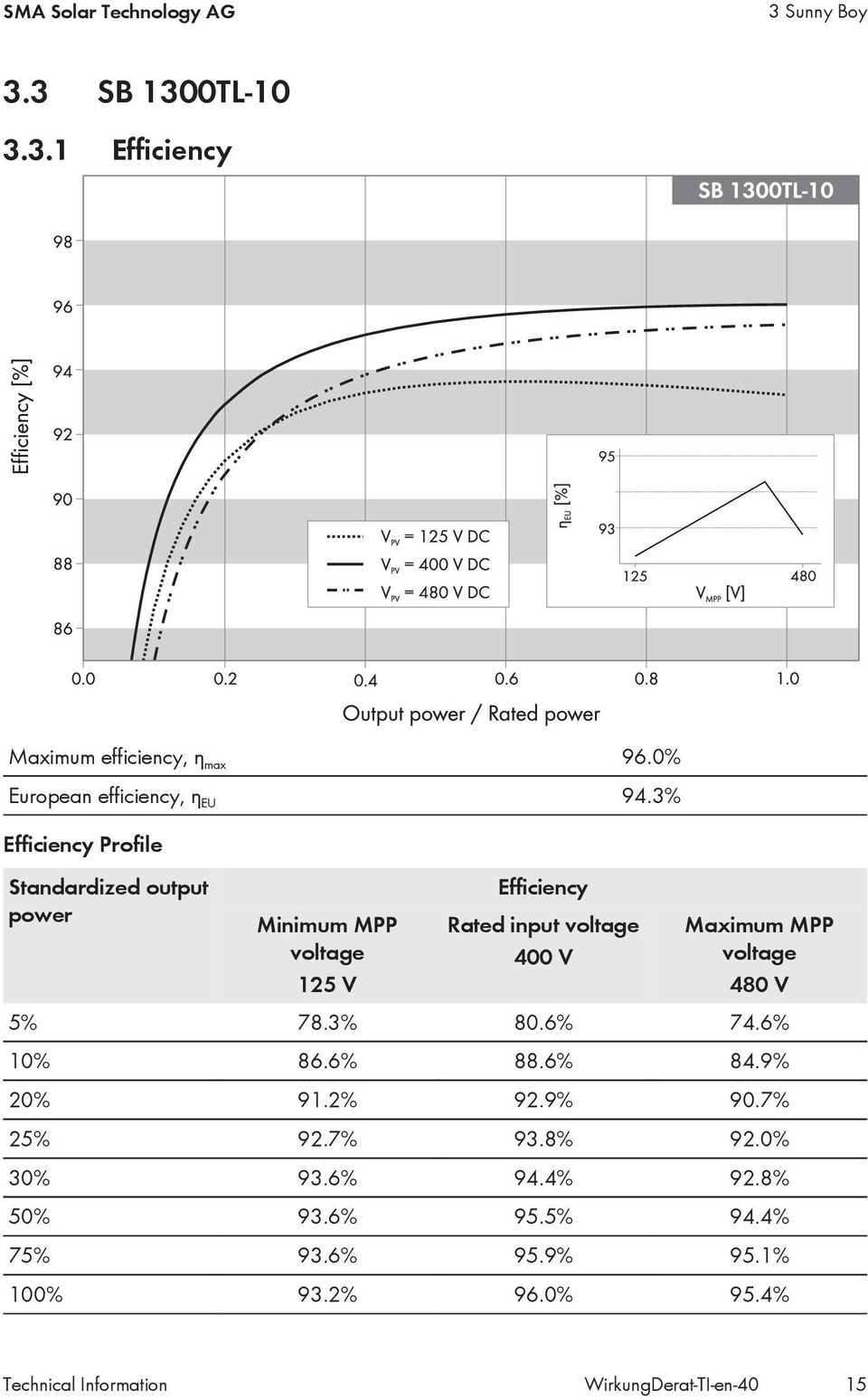

15 SMA Solar Technology AG 3 Sunny Boy 3.3 SB 1300TL Efficiency Maximum efficiency, η max 96.0% European efficiency, η EU 94.3% Efficiency Profile Standardized output power Minimum MPP 125 V Efficiency Rated input 400 V Maximum MPP 480 V 5% 78.3% 80.6% 74.6% 10% 86.6% 88.6% 84.9% 20% 91.2% 92.9% 90.7% 25% 92.7% 93.8% 92.0% 30% 93.6% 94.4% 92.8% 50% 93.6% 95.5% 94.4% 75% 93.6% 95.9% 95.1% 100% 93.2% 96.0% 95.4% Technical Information WirkungDerat-TI-en-40 15
16 3 Sunny Boy SMA Solar Technology AG Derating Behavior 16 WirkungDerat-TI-en-40 Technical Information

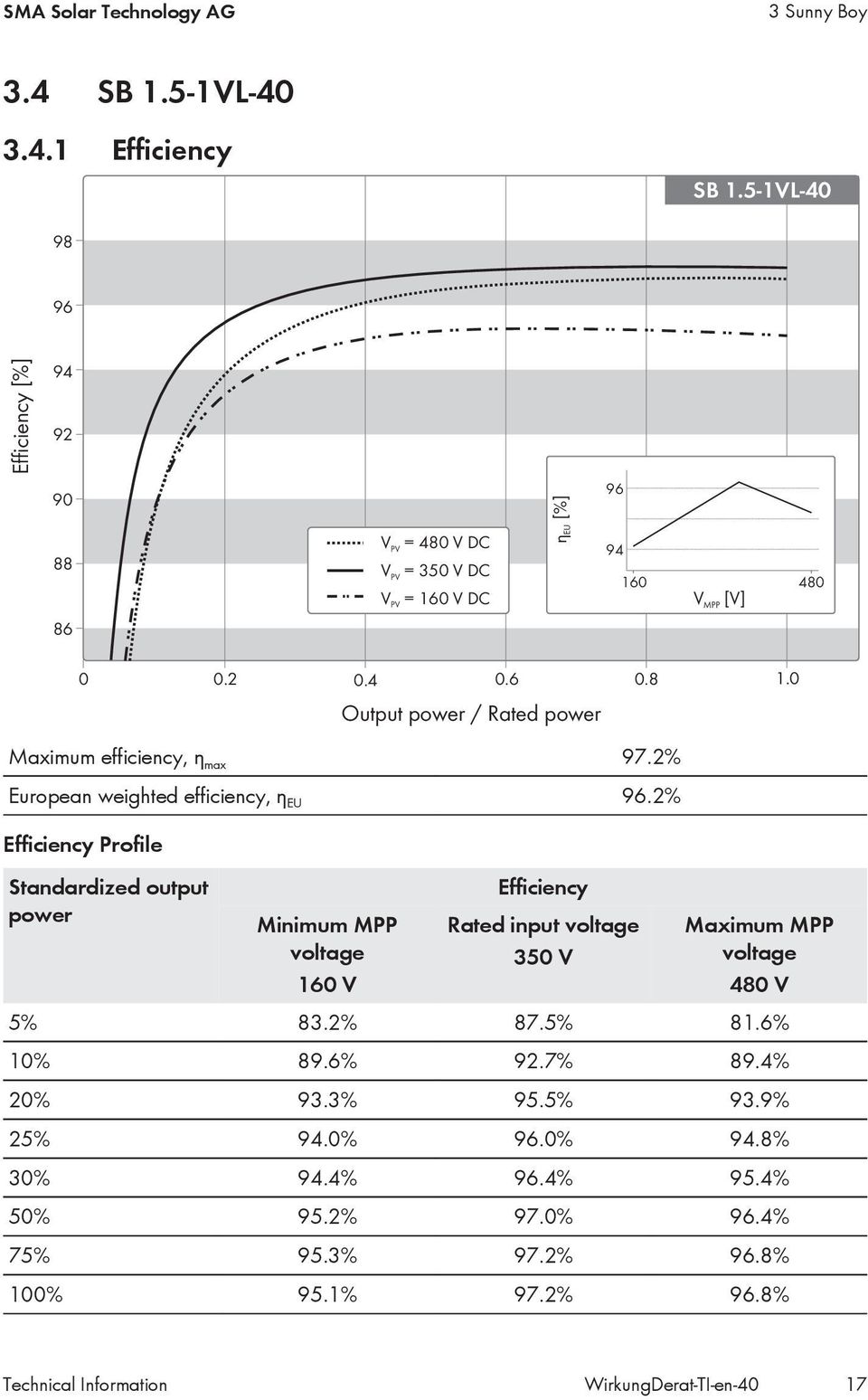

17 SMA Solar Technology AG 3 Sunny Boy 3.4 SB 1.5-1VL Efficiency SB 1.5-1VL Efficiency [%] V PV = 480 V DC V = 350 V DC PV V = 160 V DC PV η EU [%] V [V] MPP Output power / Rated power Maximum efficiency, η max 97.2% European weighted efficiency, η EU 96.2% Efficiency Profile Standardized output power Minimum MPP 160 V Efficiency Rated input 350 V Maximum MPP 480 V 5% 83.2% 87.5% 81.6% 10% 89.6% 92.7% 89.4% 20% 93.3% 95.5% 93.9% 25% 94.0% 96.0% 94.8% 30% 94.4% 96.4% 95.4% 50% 95.2% 97.0% 96.4% 75% 95.3% 97.2% 96.8% 100% 95.1% 97.2% 96.8% Technical Information WirkungDerat-TI-en-40 17

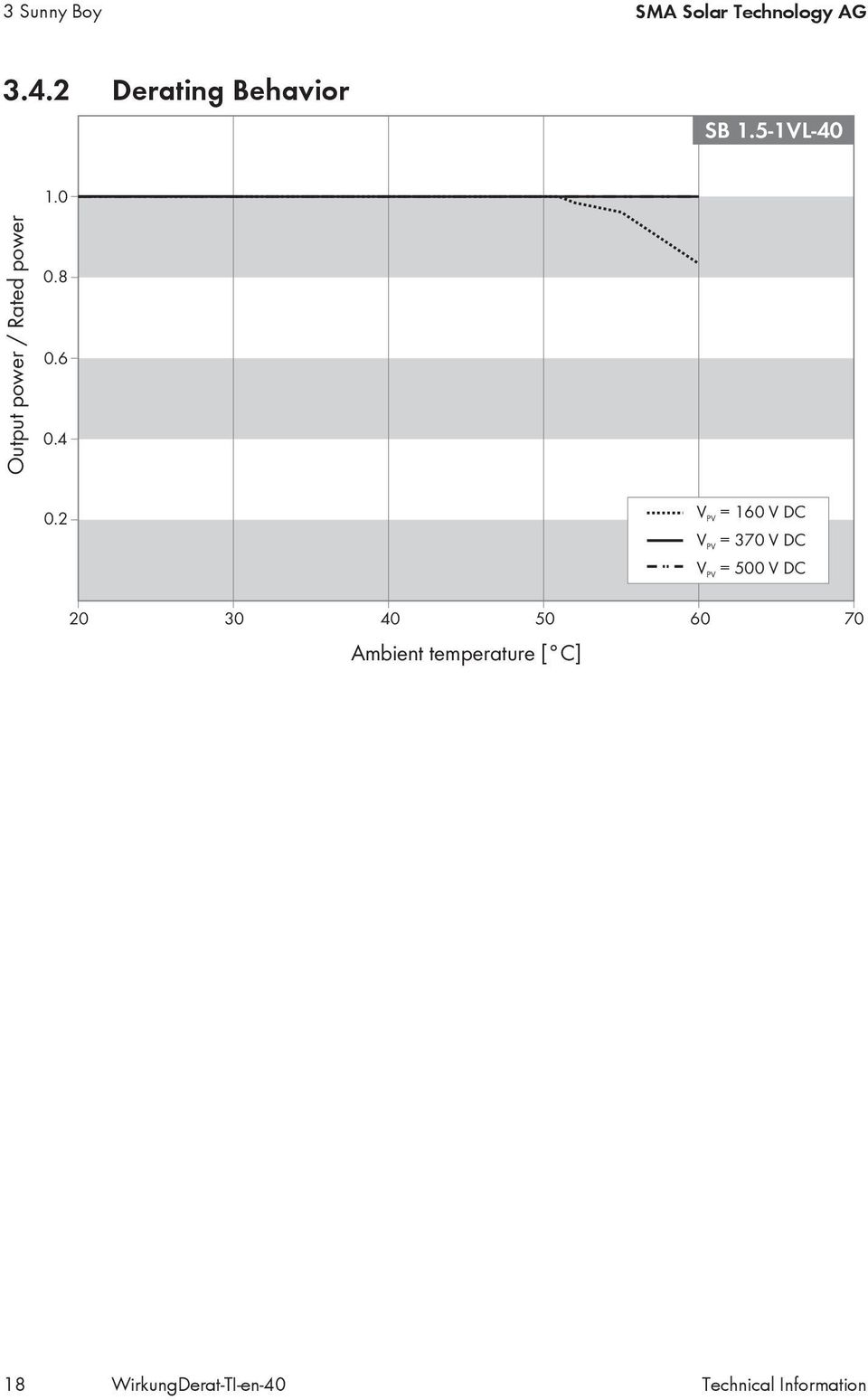

18 3 Sunny Boy SMA Solar Technology AG Derating Behavior SB 1.5-1VL Output power / Rated power V = 160 V DC V PV PV PV = 370 V DC V = 500 V DC Ambient temperature [ C] 18 WirkungDerat-TI-en-40 Technical Information
19 SMA Solar Technology AG 3 Sunny Boy 3.5 SB 1600TL Efficiency Maximum efficiency, η max 96.0% European efficiency, η EU 95.0% Efficiency Profile Standardized output power Minimum MPP 155 V Efficiency Rated input 400 V Maximum MPP 480 V 5% 83.2% 85.1% 79.8% 10% 89.4% 90.9% 87.8% 20% 93.0% 94.1% 92.5% 25% 93.8% 94.8% 93.4% 30% 94.3% 95.2% 94.1% 50% 95.0% 95.9% 95.3% 75% 95.0% 96.0% 95.6% 100% 94.7% 96.0% 95.6% Technical Information WirkungDerat-TI-en-40 19

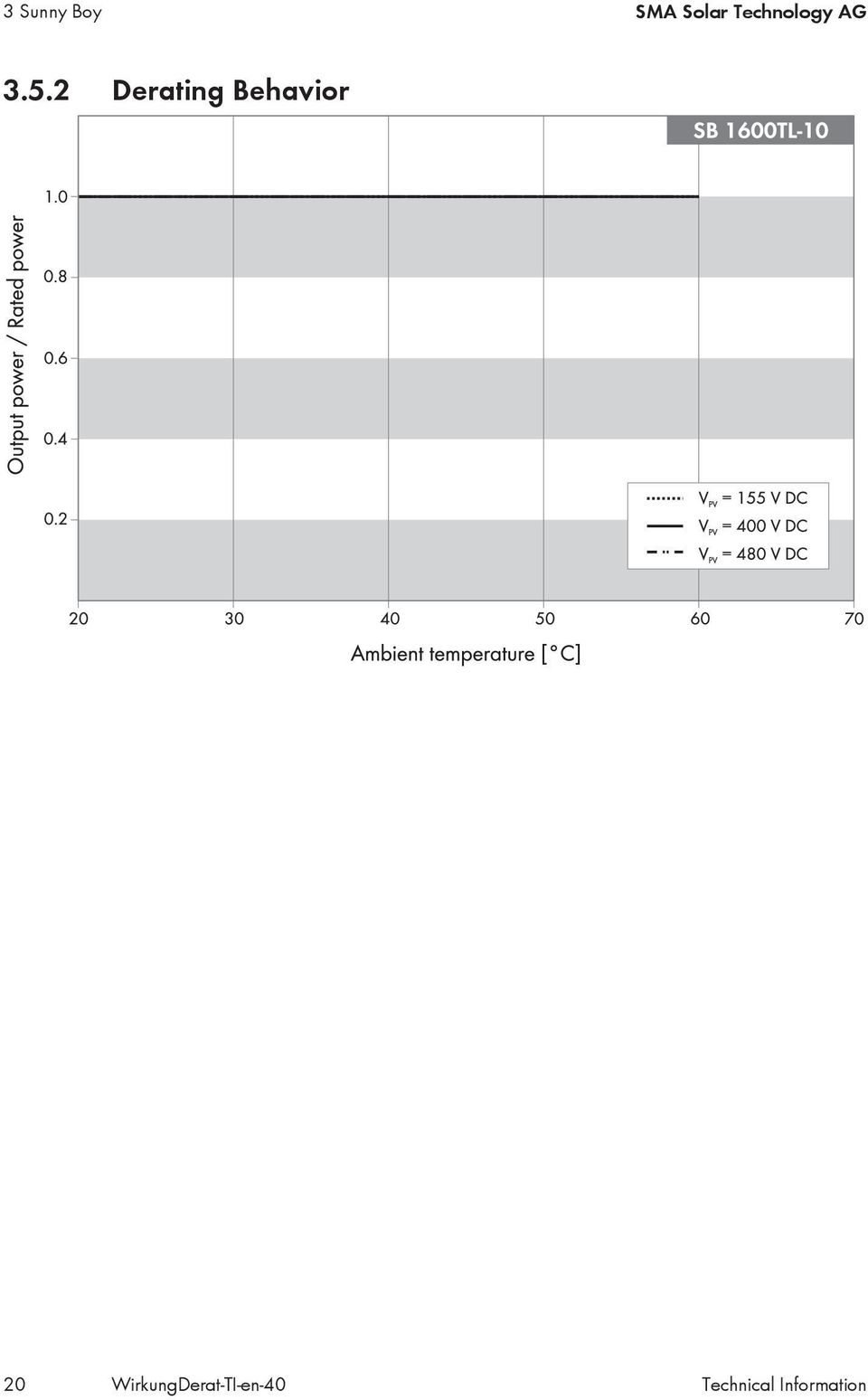

20 3 Sunny Boy SMA Solar Technology AG Derating Behavior 20 WirkungDerat-TI-en-40 Technical Information
21 SMA Solar Technology AG 3 Sunny Boy 3.6 SB Efficiency Maximum efficiency, η max 93.5% European efficiency, η EU 91.8% Efficiency Profile Standardized output power Minimum MPP 147 V Efficiency Rated input 180 V Maximum MPP 320 V 5% 80.4% 78.9% 74.3% 10% 88.2% 87.0% 82.6% 20% 92.1% 91.3% 88.3% 25% 92.8% 92.1% 89.5% 30% 93.2% 92.6% 90.3% 50% 93.4% 93.0% 91.4% 75% 92.8% 92.5% 91.3% 100% 92.0% 91.7% 90.7% Technical Information WirkungDerat-TI-en-40 21
22 3 Sunny Boy SMA Solar Technology AG Derating Behavior 22 WirkungDerat-TI-en-40 Technical Information
23 SMA Solar Technology AG 3 Sunny Boy 3.7 SB 2000HF Efficiency Maximum efficiency, η max 96.3 % European weighted efficiency, η EU 95.0 % Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 530 V Maximum MPP 560 V 5 % 85.1 % 80.8 % 80.5 % 10 % 90.8 % 89.6 % 89.0 % 20 % 93.7 % 93.9 % 93.6 % 25 % 94.6 % 95.0 % 94.8 % 30 % 94.8 % 95.3 % 95.1 % 50 % 95.2 % 96.2 % 96.1 % 75 % 94.5 % 96.3 % 96.3 % 100 % 94.0 % 96.2 % 96.0 % Technical Information WirkungDerat-TI-en-40 23
24 3 Sunny Boy SMA Solar Technology AG Derating Behavior 24 WirkungDerat-TI-en-40 Technical Information
25 SMA Solar Technology AG 3 Sunny Boy 3.8 SB 2100TL Efficiency Maximum efficiency, η max 96.0% European efficiency, η EU 95.2% Efficiency Profile Standardized output power Minimum MPP 200 V Efficiency Rated input 400 V Maximum MPP 480 V 5% 85.4% 87.0% 82.4% 10% 90.9% 92.0% 89.4% 20% 93.9% 94.7% 93.3% 25% 94.5% 95.2% 94.1% 30% 94.8% 95.6% 94.6% 50% 95.3% 96.0% 95.5% 75% 95.1% 96.0% 95.7% 100% 94.6% 95.8% 95.5% Technical Information WirkungDerat-TI-en-40 25
26 3 Sunny Boy SMA Solar Technology AG Derating Behavior 26 WirkungDerat-TI-en-40 Technical Information
27 SMA Solar Technology AG 3 Sunny Boy 3.9 SB 2.5-1VL Efficiency SB 2.5-1VL Efficiency [%] V PV = 260 V DC V = 360 V DC PV V = 500 V DC PV η EU [%] V [V] MPP Output power / Rated power Maximum efficiency, η max 97.2% European weighted efficiency, η EU 96.7% Efficiency Profile Standardized output power Minimum MPP 260 V Efficiency Rated input 360 V Maximum MPP 500 V 5% 89.8% 91.2% 87.8% 10% 93.7% 94.8% 92.9% 20% 95.6% 96.6% 95.6% 25% 96.0% 96.9% 96.1% 30% 96.1% 97.0% 96.4% 50% 96.3% 97.2% 96.9% 75% 96.0% 97.0% 96.8% 100% 95.6% 96.7% 96.6% Technical Information WirkungDerat-TI-en-40 27
28 3 Sunny Boy SMA Solar Technology AG Derating Behavior SB 2.5-1VL Output power / Rated power V = 260 V DC V PV PV PV = 370 V DC V = 500 V DC Ambient temperature [ C] 28 WirkungDerat-TI-en-40 Technical Information
29 SMA Solar Technology AG 3 Sunny Boy 3.10 SB Efficiency Maximum efficiency, η max 94.1% European efficiency, η EU 93.2% Efficiency Profile Standardized output power Minimum MPP 224 V Efficiency Rated input 300 V Maximum MPP 480 V 5% 84.0% 83.2% 79.5% 10% 90.3% 89.8% 87.3% 20% 93.4% 93.0% 91.4% 25% 93.9% 93.6% 92.2% 30% 94.1% 93.9% 92.7% 50% 94.1% 94.1% 93.3% 75% 94.0% 93.8% 93.0% 100% 93.3% 93.2% 92.4% Technical Information WirkungDerat-TI-en-40 29
30 3 Sunny Boy SMA Solar Technology AG Derating Behavior 30 WirkungDerat-TI-en-40 Technical Information
31 SMA Solar Technology AG 3 Sunny Boy 3.11 SB 2500HF Efficiency Maximum efficiency, η max 96.3% European efficiency, η EU 95.3% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 530 V Maximum MPP 560 V 5% 87.0% 84.4% 84.1% 10% 92.1% 91.2% 91.0% 20% 94.4% 94.8% 94.5% 25% 95.0% 95.6% 95.5% 30% 95.1% 95.8% 95.7% 50% 95.1% 96.3% 96.3% 75% 93.8% 96.2% 96.2% 100% 93.3% 95.8% 95.7% Technical Information WirkungDerat-TI-en-40 31
32 3 Sunny Boy SMA Solar Technology AG Derating Behavior 32 WirkungDerat-TI-en-40 Technical Information
33 SMA Solar Technology AG 3 Sunny Boy 3.12 SB Efficiency Maximum efficiency, η max 95.0% European efficiency, η EU 93.6% Efficiency Profile Standardized output power Minimum MPP 268 V Efficiency Rated input 350 V Maximum MPP 480 V 5% 86.1% 83.0% 78.9% 10% 91.7% 89.8% 87.0% 20% 94.3% 93.2% 91.4% 25% 94.8% 93.8% 92.3% 30% 95.0% 94.2% 92.9% 50% 95.0% 94.6% 93.7% 75% 94.8% 94.3% 93.7% 100% 94.2% 93.8% 93.3% Technical Information WirkungDerat-TI-en-40 33
34 3 Sunny Boy SMA Solar Technology AG Derating Behavior 34 WirkungDerat-TI-en-40 Technical Information
35 SMA Solar Technology AG 3 Sunny Boy 3.13 SB 3000HF Efficiency Maximum efficiency, η max 96.3% European efficiency, η EU 95.4% Efficiency Profile Standardized output power Minimum MPP 210 V Efficiency Rated input 530 V Maximum MPP 560 V 5% 86.0% 85.9% 85.8% 10% 91.8% 92.3% 91.9% 20% 94.2% 95.3% 95.1% 25% 94.9% 96.0% 95.8% 30% 95.0% 96.1% 95.9% 50% 95.1% 96.3% 96.3% 75% 94.0% 96.0% 96.0% 100% 93.2% 95.4% 95.5% Technical Information WirkungDerat-TI-en-40 35
36 3 Sunny Boy SMA Solar Technology AG Derating Behavior 36 WirkungDerat-TI-en-40 Technical Information
37 SMA Solar Technology AG 3 Sunny Boy 3.14 SB 3000TL Efficiency Maximum efficiency, η max 97.0% European efficiency, η EU 96.3% Efficiency Profile Standardized output power Minimum MPP 188 V Efficiency Rated input 400 V Maximum MPP 440 V 5% 88.2% 88.5% 87.4% 10% 92.7% 93.3% 92.8% 20% 94.4% 95.7% 95.4% 25% 95.3% 96.1% 95.9% 30% 95.5% 96.4% 96.2% 50% 95.9% 96.9% 96.8% 75% 95.8% 97.0% 97.0% 100% 95.6% 97.0% 96.9% Technical Information WirkungDerat-TI-en-40 37
38 3 Sunny Boy SMA Solar Technology AG Derating Behavior 38 WirkungDerat-TI-en-40 Technical Information
39 SMA Solar Technology AG 3 Sunny Boy 3.15 SB 3000TL Efficiency Maximum efficiency, η max 97.1% European efficiency, η EU 96.0% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 400 V Maximum MPP 500 V 5% 87.7% 87.8% 85.6% 10% 91.7% 92.6% 90.8% 20% 94.4% 95.2% 94.1% 25% 95.0% 95.7% 94.9% 30% 95.4% 96.1% 95.4% 50% 96.1% 96.8% 96.3% 75% 96.4% 97.0% 96.7% 100% 96.3% 97.1% 96.8% Technical Information WirkungDerat-TI-en-40 39
40 3 Sunny Boy SMA Solar Technology AG Derating Behavior 40 WirkungDerat-TI-en-40 Technical Information
41 SMA Solar Technology AG 3 Sunny Boy 3.16 SB 3300 / SB Efficiency Maximum efficiency, η max 95.2% European efficiency, η EU 94.4% Efficiency Profile Standardized output power Minimum MPP / rated input 200 V Efficiency Maximum MPP 400 V 5% 87.8% 81.4% 10% 92.5% 88.4% 20% 94.6% 92.1% 25% 94.9% 92.8% 30% 95.1% 93.2% 50% 95.2% 93.6% 75% 94.8% 93.2% 100% 94.2% 92.5% Technical Information WirkungDerat-TI-en-40 41
42 3 Sunny Boy SMA Solar Technology AG Derating Behavior 42 WirkungDerat-TI-en-40 Technical Information
43 SMA Solar Technology AG 3 Sunny Boy 3.17 SB 3600SE PV Efficiency Maximum efficiency, η max 97.1% European efficiency, η EU 96.5% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 89.8% 91.2% 88.8% 10% 93.3% 94.4% 92.6% 20% 95.2% 96.2% 95.1% 25% 95.6% 96.5% 95.7% 30% 95.8% 96.8% 96.0% 50% 96.1% 97.1% 96.7% 75% 96.0% 97.1% 96.9% 100% 95.8% 96.9% 96.8% Technical Information WirkungDerat-TI-en-40 43
44 3 Sunny Boy SMA Solar Technology AG Charge / Discharge Efficiency SB 3600SE-10 / SB 5000SE Efficiency [%] Battery efficiency SoC min. Charge mode SoC min. Discharge mode SoC min. 0 Figure 1: Charge/discharge efficiency SoC min Charging/discharging power [kw] 44 WirkungDerat-TI-en-40 Technical Information
45 SMA Solar Technology AG 3 Sunny Boy SB 3600SE-10 / SB 5000SE Efficiency [%] Battery efficiency SoC max. Charge mode SoC max. Discharge mode SoC max. 0 Figure 2: Charge/discharge efficiency SoC max Charging/discharging power [kw] Maximum efficiency Charge mode (PV battery) SoC max 98.0% Charge mode (PV battery) SoC min 97.2% Discharge mode (battery utility grid) SoC - max 95.4% Discharge mode (battery utility grid) SoC min 95.0% Battery efficiency SoC max 99.1% Battery efficiency SoC min 98.5% Technical Information WirkungDerat-TI-en-40 45
46 3 Sunny Boy SMA Solar Technology AG Derating Behavior 46 WirkungDerat-TI-en-40 Technical Information
47 SMA Solar Technology AG 3 Sunny Boy 3.18 SB 3600TL Efficiency Maximum efficiency, η max 97.0% European efficiency, η EU 96.1% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 400 V Maximum MPP 500 V 5% 87.2% 88.0% 85.0% 10% 92.4% 93.0% 91.4% 20% 94.6% 95.5% 94.9% 25% 95.3% 96.0% 95.4% 30% 95.7% 96.3% 95.7% 50% 96.4% 96.9% 96.1% 75% 96.7% 97.0% 96.2% 100% 96.7% 96.6% 96.0% Technical Information WirkungDerat-TI-en-40 47
48 3 Sunny Boy SMA Solar Technology AG Derating Behavior 48 WirkungDerat-TI-en-40 Technical Information
49 SMA Solar Technology AG 3 Sunny Boy 3.19 SB 3800 / SB Efficiency Maximum efficiency, η max 95.6% European efficiency, η EU 94.7% Efficiency Profile Standardized output power Minimum MPP / rated input 200 V Efficiency Maximum MPP 400 V 5% 89.3% 83.3% 10% 93.4% 89.7% 20% 95.2% 92.9% 25% 95.5% 93.5% 30% 95.6% 93.8% 50% 95.4% 93.9% 75% 94.8% 93.3% 100% 94.1% 92.4% Technical Information WirkungDerat-TI-en-40 49
50 3 Sunny Boy SMA Solar Technology AG Derating Behavior 50 WirkungDerat-TI-en-40 Technical Information
51 SMA Solar Technology AG 3 Sunny Boy 3.20 SB 4000TL Efficiency Maximum efficiency, η max 97.0% European efficiency, η EU 96.4% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 400 V Maximum MPP 440 V 5% 89.3% 89.2% 87.6% 10% 93.2% 93.7% 92.9% 20% 95.1% 95.9% 95.5% 25% 95.4% 96.3% 96.0% 30% 95.6% 96.6% 96.3% 50% 95.0% 97.0% 96.9% 75% 95.8% 97.0% 96.9% 100% 95.6% 97.0% 96.9% Technical Information WirkungDerat-TI-en-40 51
52 3 Sunny Boy SMA Solar Technology AG Derating Behavior 52 WirkungDerat-TI-en-40 Technical Information
53 SMA Solar Technology AG 3 Sunny Boy 3.21 SB 4000TL Efficiency Maximum efficiency, η max 97.1% European efficiency, η EU 96.4% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 400 V Maximum MPP 500 V 5% 89.4% 90.6% 89.9% 10% 92.9% 93.9% 92.4% 20% 95.1% 95.8% 95.1% 25% 95.6% 96.2% 95.6% 30% 95.9% 96.5% 96.0% 50% 96.3% 97.0% 96.6% 75% 96.3% 97.1% 96.8% 100% 96.1% 97.0% 96.8% Technical Information WirkungDerat-TI-en-40 53
54 3 Sunny Boy SMA Solar Technology AG Derating Behavior 54 WirkungDerat-TI-en-40 Technical Information
55 SMA Solar Technology AG 3 Sunny Boy 3.22 SB 5000SE PV Efficiency Maximum efficiency, η max 97.1% European efficiency, η EU 96.7% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 91.7% 92.9% 90.8% 10% 94.4% 95.3% 94.0% 20% 95.7% 96.7% 95.9% 25% 96.0% 96.9% 96.3% 30% 96.1% 97.0% 96.5% 50% 96.1% 97.1% 96.9% 75% 95.7% 96.9% 96.8% 100% 95.3% 96.6% 96.6% Technical Information WirkungDerat-TI-en-40 55
56 3 Sunny Boy SMA Solar Technology AG Charge / Discharge Efficiency SB 3600SE-10 / SB 5000SE Efficiency [%] Battery efficiency SoC min. Charge mode SoC min. Discharge mode SoC min. 0 Figure 3: Charge/discharge efficiency SoC min Charging/discharging power [kw] 56 WirkungDerat-TI-en-40 Technical Information
57 SMA Solar Technology AG 3 Sunny Boy SB 3600SE-10 / SB 5000SE Efficiency [%] Battery efficiency SoC max. Charge mode SoC max. Discharge mode SoC max. 0 Figure 4: Charge/discharge efficiency SoC max Charging/discharging power [kw] Maximum efficiency Charge mode (PV battery) SoC max 98.0% Charge mode (PV battery) SoC min 97.2% Discharge mode (battery utility grid) SoC - max 95.4% Discharge mode (battery utility grid) SoC min 95.0% Battery efficiency SoC max 99.1% Battery efficiency SoC min 98.5% Technical Information WirkungDerat-TI-en-40 57
58 3 Sunny Boy SMA Solar Technology AG Derating Behavior 58 WirkungDerat-TI-en-40 Technical Information
59 SMA Solar Technology AG 3 Sunny Boy 3.23 SB 5000TL Efficiency Maximum efficiency, η max 97.0% European efficiency, η EU 96.5% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 400 V Maximum MPP 440 V 5% 90.2% 90.3% 88.9% 10% 93.7% 94.2% 93.6% 20% 95.3% 96.1% 95.8% 25% 95.6% 96.5% 96.3% 30% 95.7% 96.7% 96.5% 50% 95.9% 97.0% 97.0% 75% 95.8% 97.0% 97.0% 100% 95.5% 97.0% 96.9% Technical Information WirkungDerat-TI-en-40 59
60 3 Sunny Boy SMA Solar Technology AG Derating Behavior 60 WirkungDerat-TI-en-40 Technical Information
61 SMA Solar Technology AG 3 Sunny Boy 3.24 SB 5000TL Efficiency Maximum efficiency, η max 97.1% European weighted efficiency, η EU 96.5% Efficiency Profile Standardized output power Minimum MPP 175 V Efficiency Rated input 400 V Maximum MPP 500 V 5% 90.2% 91.4% 88.9% 10% 93.5% 94.4% 93.1% 20% 95.4% 96.1% 95.4% 25% 95.8% 96.4% 95.9% 30% 96.1% 96.7% 96.2% 50% 96.4% 97.0% 96.7% 75% 96.3% 97.1% 96.8% 100% 96.0% 97.0% 96.7% Technical Information WirkungDerat-TI-en-40 61
62 3 Sunny Boy SMA Solar Technology AG Derating Behavior 62 WirkungDerat-TI-en-40 Technical Information
63 SMA Solar Technology AG 4 Sunny Tripower 4 Sunny Tripower 4.1 STP 5000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.2% Efficiency Profile Standardized output power Minimum MPP 245 V Efficiency Rated input 580 V Maximum MPP 800 V 5% 87.8% 90.1% 84.0% 10% 92.6% 94.2% 90.8% 20% 95.0% 96.5% 94.5% 25% 95.5% 97.0% 95.3% 30% 95.7% 97.3% 95.8% 50% 96.2% 97.9% 96.7% Technical Information WirkungDerat-TI-en-40 63
64 4 Sunny Tripower SMA Solar Technology AG Standardized output power Minimum MPP 245 V Efficiency Rated input 580 V Maximum MPP 800 V 75% 96.2% 98.0% 97.1% 100% 96.0% 98.0% 97.2% Derating Behavior 64 WirkungDerat-TI-en-40 Technical Information
65 SMA Solar Technology AG 4 Sunny Tripower 4.2 STP 6000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.4% Efficiency Profile Standardized output power Minimum MPP 295 V Efficiency Rated input 580 V Maximum MPP 800 V 5% 89.7% 91.3% 86.5% 10% 93.7% 95.0% 92.1% 20% 95.7% 96.9% 95.2% 25% 96.1% 97.3% 95.9% 30% 96.3% 97.5% 96.3% 50% 96.6% 98.0% 97.1% 75% 96.6% 98.0% 97.4% 100% 96.4% 98.0% 97.4% Technical Information WirkungDerat-TI-en-40 65
66 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 66 WirkungDerat-TI-en-40 Technical Information
67 SMA Solar Technology AG 4 Sunny Tripower 4.3 STP 7000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.5% Efficiency Profile Standardized output power Minimum MPP 290 V Efficiency Rated input 580 V Maximum MPP 600 V 5% 90.7% 92.5% 88.0% 10% 94.2% 95.5% 92.8% 20% 95.9% 97.2% 95.5% 25% 96.3% 97.5% 96.1% 30% 96.4% 97.7% 96.4% 50% 96.6% 98.0% 97.1% 75% 96.5% 98.0% 97.3% 100% 96.2% 97.9% 97.3% Technical Information WirkungDerat-TI-en-40 67
68 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 68 WirkungDerat-TI-en-40 Technical Information
69 SMA Solar Technology AG 4 Sunny Tripower 4.4 STP 8000TL Efficiency Maximum efficiency, η max 98.1% European efficiency, η EU 97.5% Efficiency Profile Standardized output power Minimum MPP 320 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 88.2% 91.6% 87.6% 10% 93.0% 95.3% 93.1% 20% 95.4% 97.1% 95.8% 25% 95.8% 97.5% 96.3% 30% 96.1% 97.7% 96.7% 50% 96.6% 98.0% 97.3% 75% 96.6% 98.1% 97.6% 100% 96.5% 98.0% 97.6% Technical Information WirkungDerat-TI-en-40 69
70 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 70 WirkungDerat-TI-en-40 Technical Information
71 SMA Solar Technology AG 4 Sunny Tripower 4.5 STP 8000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.6% Efficiency Profile Standardized output power Minimum MPP 330 V Efficiency Rated input 580 V Maximum MPP 800 V 5% 91.7% 93.2% 89.4% 10% 94.8% 96.0% 93.7% 20% 96.3% 97.4% 96.0% 25% 96.6% 97.7% 96.4% 30% 96.7% 97.8% 96.7% 50% 96.9% 98.0% 97.1% 75% 96.7% 97.8% 97.2% 100% 96.3% 97.6% 97.1% Technical Information WirkungDerat-TI-en-40 71
72 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 72 WirkungDerat-TI-en-40 Technical Information
73 SMA Solar Technology AG 4 Sunny Tripower 4.6 STP 9000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.6% Efficiency Profile Standardized output power Minimum MPP 370 V Efficiency Rated input 580 V Maximum MPP 800 V 5% 92.7% 94.0% 90.4% 10% 95.4% 96.4% 94.2% 20% 96.7% 97.6% 96.2% 25% 96.9% 97.8% 96.6% 30% 97.0% 97.9% 96.8% 50% 97.0% 98.0% 97.2% 75% 96.8% 97.6% 97.2% 100% 96.5% 97.2% 97.1% Technical Information WirkungDerat-TI-en-40 73
74 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 74 WirkungDerat-TI-en-40 Technical Information
75 SMA Solar Technology AG 4 Sunny Tripower 4.7 STP 10000TL Efficiency Maximum efficiency, η max 98.1% European efficiency, η EU 97.7% Efficiency Profile Standardized output power Minimum MPP 320 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 90.0% 93.0% 89.7% 10% 94.0% 96.0% 94.2% 20% 95.8% 97.5% 96.3% 25% 96.1% 97.7% 96.8% 30% 96.3% 97.9% 97.0% 50% 96.6% 98.1% 97.5% 75% 96.5% 98.0% 97.6% 100% 96.3% 97.9% 97.5% Technical Information WirkungDerat-TI-en-40 75
76 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 76 WirkungDerat-TI-en-40 Technical Information
77 SMA Solar Technology AG 4 Sunny Tripower 4.8 STP 10000TLEE-JP-10 / STP 10000TLEE-JP Efficiency Maximum efficiency, η max 97.8% Efficiency Profile Standardized output power Minimum MPP / rated input 300 V Efficiency Maximum MPP 480 V 5% 96.2% 93.3% 10% 97.4% 95.5% 20% 97.8% 96.5% 25% 97.8% 96.6% 30% 97.8% 96.7% 50% 97.5% 96.5% 75% 97.0% 96.0% 100% 96.4% 95.5% Technical Information WirkungDerat-TI-en-40 77
78 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 78 WirkungDerat-TI-en-40 Technical Information
79 SMA Solar Technology AG 4 Sunny Tripower 4.9 STP 10000TL Efficiency Maximum efficiency, η max 98.0% European weighted efficiency, η EU 97.6% Efficiency Profile Standardized output power Minimum MPP 370 V Efficiency Rated input 580 V Maximum MPP 800 V 5% 94.5% 94.9% 92.2% 10% 96.1% 96.8% 95.2% 20% 96.8% 97.7% 96.7% 25% 96.9% 97.8% 97.0% 30% 96.9% 97.9% 97.1% 50% 96.8% 97.9% 97.3% 75% 96.5% 97.6% 97.2% 100% 96.2% 97.3% 97.0% Technical Information WirkungDerat-TI-en-40 79
80 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 80 WirkungDerat-TI-en-40 Technical Information
81 SMA Solar Technology AG 4 Sunny Tripower 4.10 STP 12000TL Efficiency Maximum efficiency, η max 98.1% European efficiency, η EU 97.7% Efficiency Profile Standardized output power Minimum MPP 380 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 91.6% 93.9% 91.1% 10% 94.8% 96.5% 94.9% 20% 96.3% 97.7% 96.7% 25% 96.6% 97.9% 97.0% 30% 96.7% 98.0% 97.2% 50% 96.9% 98.1% 97.6% 75% 96.8% 97.9% 97.6% 100% 96.6% 97.7% 97.4% Technical Information WirkungDerat-TI-en-40 81
82 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 82 WirkungDerat-TI-en-40 Technical Information
83 SMA Solar Technology AG 4 Sunny Tripower 4.11 STP 12000TL Efficiency Maximum efficiency, η max 98.3% European efficiency, η EU 97.9% Efficiency Profile Standardized output power Minimum MPP 440 V Efficiency Rated input 580 V Maximum MPP 800 V 5% 95.5% 95.9% 93.8% 10% 96.7% 97.4% 95.9% 20% 97.2% 98.1% 97.1% 25% 97.3% 98.2% 97.3% 30% 97.3% 98.3% 97.6% 50% 97.1% 98.1% 97.6% 75% 96.8% 97.8% 97.4% 100% 96.5% 97.4% 97.1% Technical Information WirkungDerat-TI-en-40 83
84 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 84 WirkungDerat-TI-en-40 Technical Information
85 SMA Solar Technology AG 4 Sunny Tripower 4.12 STP 15000TL Efficiency Maximum efficiency, η max 98.2% European efficiency, η EU 97.8% Efficiency Profile Standardized output power Minimum MPP 360 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 93.1% 93.9% 90.5% 10% 95.7% 96.6% 94.7% 20% 96.7% 97.8% 96.6% 25% 96.9% 98.0% 97.0% 30% 97.0% 98.1% 97.2% 50% 96.9% 98.2% 97.5% 75% 96.6% 98.0% 97.3% 100% 96.3% 97.7% 97.1% Technical Information WirkungDerat-TI-en-40 85
86 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 86 WirkungDerat-TI-en-40 Technical Information
87 SMA Solar Technology AG 4 Sunny Tripower 4.13 STP 15000TLEE Efficiency Maximum efficiency, η max 98.5% European efficiency, η EU 98.3% Efficiency Profile Standardized output power Minimum MPP / rated input 580 V Efficiency Maximum MPP 800 V 5% 96.1% 92.2% 10% 97.6% 95.5% 20% 98.3% 97.0% 25% 98.4% 97.3% 30% 98.5% 97.5% 50% 98.5% 97.8% 75% 98.4% 97.7% 100% 98.2% 97.6% Technical Information WirkungDerat-TI-en-40 87
88 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 88 WirkungDerat-TI-en-40 Technical Information
89 SMA Solar Technology AG 4 Sunny Tripower 4.14 STP 15000TLHE Efficiency Maximum efficiency, η max 99.0% European efficiency, η EU 98.7% Efficiency Profile Standardized output power Minimum MPP / rated input 580 V Efficiency Maximum MPP 800 V 5% 96.4% 93.3% 10% 98.0% 96.3% 20% 98.7% 97.8% 25% 98.9% 98.0% 30% 98.9% 98.2% 50% 99.0% 98.5% 75% 98.9% 98.4% 100% 98.8% 98.3% Technical Information WirkungDerat-TI-en-40 89
90 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 90 WirkungDerat-TI-en-40 Technical Information
91 SMA Solar Technology AG 4 Sunny Tripower 4.15 STP 17000TL Efficiency Maximum efficiency, η max 98.2% European efficiency, η EU 97.8% Efficiency Profile Standardized output power Minimum MPP 400 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 94.0% 94.5% 91.4% 10% 96.1% 96.9% 95.1% 20% 97.0% 97.9% 96.8% 25% 97.1% 98.1% 97.1% 30% 97.2% 98.2% 97.3% 50% 97.1% 98.1% 97.5% 75% 96.7% 97.9% 97.3% 100% 96.3% 97.6% 96.9% Technical Information WirkungDerat-TI-en-40 91
92 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 92 WirkungDerat-TI-en-40 Technical Information
93 SMA Solar Technology AG 4 Sunny Tripower 4.16 STP 20000TLEE Efficiency Maximum efficiency, η max 98.5% European efficiency, η EU 98.2% Efficiency Profile Standardized output power Minimum MPP / rated input 580 V Efficiency Maximum MPP 800 V 5% 96.7% 93.6% 10% 97.9% 96.2% 20% 98.4% 97.4% 25% 98.5% 97.6% 30% 98.5% 97.7% 50% 98.4% 97.7% 75% 98.2% 97.5% 100% 97.9% 97.2% Technical Information WirkungDerat-TI-en-40 93
94 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 94 WirkungDerat-TI-en-40 Technical Information
95 SMA Solar Technology AG 4 Sunny Tripower 4.17 STP 20000TLEE-JP Efficiency Maximum efficiency, η max 98.5% Efficiency Profile Standardized output power Minimum MPP / rated input 580 V Efficiency Maximum MPP 800 V 5% 96.7% 93.6% 10% 97.9% 96.2% 20% 98.4% 97.4% 25% 98.5% 97.6% 30% 98.5% 97.7% 50% 98.4% 97.7% 75% 98.2% 97.5% 100% 97.9% 97.2% Technical Information WirkungDerat-TI-en-40 95
96 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 96 WirkungDerat-TI-en-40 Technical Information
97 SMA Solar Technology AG 4 Sunny Tripower 4.18 STP 20000TLHE Efficiency Maximum efficiency, η max 99.0% European weighted efficiency, η EU 98.7% Efficiency Profile Standardized output power Minimum MPP / rated input 580 V Efficiency Maximum MPP 800 V 5% 97.0% 94.7% 10% 98.3% 97.0% 20% 98.9% 98.1% 25% 99.0% 98.3% 30% 99.0% 98.4% 50% 99.0% 98.5% 75% 98.8% 98.3% 100% 98.5% 98.0% Technical Information WirkungDerat-TI-en-40 97
98 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 98 WirkungDerat-TI-en-40 Technical Information
99 SMA Solar Technology AG 4 Sunny Tripower 4.19 STP 20000TL Efficiency Maximum efficiency, η max 98.4% European weighted efficiency, η EU 98.0% Efficiency Profile Standardized output power Minimum MPP 320 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 93.5% 95.3% 93.1% 10% 95.6% 97.3% 95.8% 20% 96.5% 98.2% 97.1% 25% 96.7% 98.3% 97.3% 30% 96.8% 98.4% 97.5% 50% 96.7% 98.3% 97.6% 75% 96.5% 98.1% 97.4% 100% 96.1% 97.7% 97.2% Technical Information WirkungDerat-TI-en-40 99
100 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 100 WirkungDerat-TI-en-40 Technical Information
101 SMA Solar Technology AG 4 Sunny Tripower 4.20 STP 25000TL Efficiency Maximum efficiency, η max 98.3% European weighted efficiency, η EU 98.1% Efficiency Profile Standardized output power Minimum MPP 390 V Efficiency Rated input 600 V Maximum MPP 800 V 5% 94.8% 96.7% 93.9% 10% 96.4% 97.7% 96.3% 20% 97.1% 98.2% 97.4% 25% 97.2% 98.2% 97.6% 30% 97.2% 98.3% 97.7% 50% 97.1% 98.2% 97.8% 75% 96.8% 98.1% 97.6% 100% 96.4% 97.9% 97.4% Technical Information WirkungDerat-TI-en
102 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 102 WirkungDerat-TI-en-40 Technical Information
103 SMA Solar Technology AG 4 Sunny Tripower 4.21 STP 25000TL-JP Efficiency Maximum efficiency, η max 98.7% European weighted efficiency, η EU 98.4% Efficiency Profile Standardized output power Minimum MPP 390 V Efficiency Rated input 625 V Maximum MPP 800 V 5% 95.6% 97.1% 95.4% 10% 96.8% 98.2% 97.0% 20% 97.4% 98.6% 97.8% 25% 97.4% 98.6% 97.9% 30% 97.4% 98.7% 98.0% 50% 97.3% 98.6% 97.9% 75% 97.0% 98.3% 97.8% 100% 96.7% 98.0% 97.5% Technical Information WirkungDerat-TI-en
104 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 104 WirkungDerat-TI-en-40 Technical Information
105 SMA Solar Technology AG 4 Sunny Tripower 4.22 STP Efficiency Maximum efficiency, η max 98.8 % European weighted efficiency, η EU 98.2 % Efficiency Profile Standardized output power Minimum MPP 570 V Efficiency Rated input 630 V Maximum MPP 800 V 5 % 97.3 % 96.5 % 94.6 % 10 % 98.2 % 97.8 % 96.9 % 20 % 98.7 % 98.4 % 97.9 % 25 % 98.8 % 98.5 % 98.0 % 30 % 98.8 % 98.5 % 98.1 % 50 % 98.6 % 98.5 % 98.0 % 75 % 98.4 % 98.2 % 97.8 % 100 % 98.2 % 98.0 % 97.6 % Technical Information WirkungDerat-TI-en
106 4 Sunny Tripower SMA Solar Technology AG Derating Behavior 106 WirkungDerat-TI-en-40 Technical Information
107 SMA Solar Technology AG 5 Sunny Mini Central 5 Sunny Mini Central 5.1 SMC 4600A / SMC 4600A Efficiency Maximum efficiency, η max 96.1% European efficiency, η EU 95.3% Efficiency Profile Standardized output power Minimum MPP / rated input 246 V Efficiency Maximum MPP 480 V 5% 87.4% 80.1% 10% 92.9% 87.9% 20% 95.3% 92.4% 25% 95.7% 93.3% 30% 96.0% 93.9% 50% 96.1% 94.8% Technical Information WirkungDerat-TI-en
108 5 Sunny Mini Central SMA Solar Technology AG Standardized output power Minimum MPP / rated input 246 V Efficiency Maximum MPP 480 V 75% 96.0% 94.9% 100% 95.6% 94.7% Derating Behavior 108 WirkungDerat-TI-en-40 Technical Information
109 SMA Solar Technology AG 5 Sunny Mini Central 5.2 SMC 5000A / SMC 5000A Efficiency Maximum efficiency, η max 96.1% European efficiency, η EU 95.3% Efficiency Profile Standardized output power Minimum MPP / rated input 246 V Efficiency Maximum MPP 480 V 5% 88.1% 81.2% 10% 93.2% 88.6% 20% 95.4% 92.8% 25% 95.7% 93.6% 30% 95.9% 94.1% 50% 96.1% 94.9% 75% 95.8% 94.9% 100% 95.3% 94.5% Technical Information WirkungDerat-TI-en
110 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 110 WirkungDerat-TI-en-40 Technical Information
111 SMA Solar Technology AG 5 Sunny Mini Central 5.3 SMC 6000A / SMC 6000A Efficiency Maximum efficiency, η max 96.1% European efficiency, η EU 95.3% Efficiency Profile Standardized output power Minimum MPP / rated input 246 V Efficiency Maximum MPP 480 V 5% 89.8% 83.4% 10% 94.0% 90.0% 20% 95.7% 93.4% 25% 96.0% 94.1% 30% 96.1% 94.5% 50% 96.0% 94.9% 75% 95.6% 94.7% 100% 94.9% 94.2% Technical Information WirkungDerat-TI-en
112 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 112 WirkungDerat-TI-en-40 Technical Information
113 SMA Solar Technology AG 5 Sunny Mini Central 5.4 SMC 6000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.7% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 95.1% 94.8% 92.2% 10% 97.0% 96.8% 95.1% 20% 98.0% 97.9% 96.8% 25% 98.0% 98.0% 97.1% 30% 98.0% 98.0% 97.3% 50% 98.0% 98.0% 97.6% 75% 97.9% 97.8% 97.4% 100% 97.5% 97.5% 97.1% Technical Information WirkungDerat-TI-en
114 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 114 WirkungDerat-TI-en-40 Technical Information
115 SMA Solar Technology AG 5 Sunny Mini Central 5.5 SMC 7000HV Efficiency Maximum efficiency, η max 96.2% European efficiency, η EU 95.5% Efficiency Profile Standardized output power Minimum MPP 335 V Efficiency Rated input 340 V Maximum MPP 560 V 5% 89.1% 89.0% 84.5% 10% 93.6% 93.5% 90.8% 20% 95.6% 95.6% 93.9% 25% 95.9% 95.9% 94.5% 30% 96.1% 96.1% 94.8% 50% 96.2% 96.1% 95.2% 75% 95.7% 95.7% 94.9% 100% 95.1% 95.1% 94.3% Technical Information WirkungDerat-TI-en
116 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 116 WirkungDerat-TI-en-40 Technical Information
117 SMA Solar Technology AG 5 Sunny Mini Central 5.6 SMC 7000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.7% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 95.6% 95.3% 92.9% 10% 97.3% 97.1% 95.5% 20% 98.0% 98.0% 97.0% 25% 98.0% 98.0% 97.3% 30% 98.0% 98.0% 97.4% 50% 98.0% 98.0% 97.5% 75% 97.7% 97.7% 97.3% 100% 97.2% 97.2% 96.9% Technical Information WirkungDerat-TI-en
118 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 118 WirkungDerat-TI-en-40 Technical Information
119 SMA Solar Technology AG 5 Sunny Mini Central 5.7 SMC 8000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.7% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 96.0% 95.7% 93.4% 10% 97.5% 97.4% 95.9% 20% 98.0% 98.0% 97.2% 25% 98.0% 98.0% 97.4% 30% 98.0% 98.0% 97.5% 50% 98.0% 98.0% 97.5% 75% 97.5% 97.5% 97.1% 100% 96.9% 96.9% 96.6% Technical Information WirkungDerat-TI-en
120 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 120 WirkungDerat-TI-en-40 Technical Information
121 SMA Solar Technology AG 5 Sunny Mini Central 5.8 SMC 9000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.6% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 95.8% 95.6% 93.6% 10% 97.3% 97.2% 95.9% 20% 98.0% 97.9% 97.1% 25% 98.0% 98.0% 97.3% 30% 98.0% 98.0% 97.4% 50% 97.9% 97.8% 97.5% 75% 97.5% 97.5% 97.3% 100% 97.0% 97.0% 96.9% Technical Information WirkungDerat-TI-en
122 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 122 WirkungDerat-TI-en-40 Technical Information
123 SMA Solar Technology AG 5 Sunny Mini Central 5.9 SMC 9000TLRP Efficiency Maximum efficiency, η max 97.7% European efficiency, η EU 97.3% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 95.0% 94.6% 91.3% 10% 96.9% 96.7% 94.9% 20% 97.7% 97.6% 96.6% 25% 97.7% 97.7% 96.9% 30% 97.7% 97.7% 97.0% 50% 97.7% 97.6% 97.2% 75% 97.3% 97.3% 96.9% 100% 96.9% 96.8% 96.6% Technical Information WirkungDerat-TI-en
124 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 124 WirkungDerat-TI-en-40 Technical Information
125 SMA Solar Technology AG 5 Sunny Mini Central 5.10 SMC 10000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.5% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 96.1% 95.9% 94.0% 10% 97.5% 97.3% 96.1% 20% 98.0% 97.9% 97.2% 25% 98.0% 98.0% 97.4% 30% 98.0% 98.0% 97.5% 50% 97.8% 97.8% 97.5% 75% 97.3% 97.3% 97.2% 100% 96.8% 96.8% 96.7% Technical Information WirkungDerat-TI-en
126 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 126 WirkungDerat-TI-en-40 Technical Information
127 SMA Solar Technology AG 5 Sunny Mini Central 5.11 SMC 10000TLRP Efficiency Maximum efficiency, η max 97.7% European efficiency, η EU 97.2% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 95.3% 95.0% 92.0% 10% 97.1% 96.9% 95.3% 20% 97.7% 97.6% 96.7% 25% 97.7% 97.7% 97.0% 30% 97.7% 97.7% 97.1% 50% 97.6% 97.5% 97.1% 75% 97.2% 97.0% 96.8% 100% 96.7% 96.4% 96.4% Technical Information WirkungDerat-TI-en
128 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 128 WirkungDerat-TI-en-40 Technical Information
129 SMA Solar Technology AG 5 Sunny Mini Central 5.12 SMC 11000TL Efficiency Maximum efficiency, η max 98.0% European efficiency, η EU 97.5% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 96.3% 96.1% 94.3% 10% 97.6% 97.5% 96.3% 20% 98.0% 98.0% 97.3% 25% 98.0% 98.0% 97.4% 30% 98.0% 98.0% 97.5% 50% 97.7% 97.7% 97.4% 75% 97.2% 97.2% 97.0% 100% 96.6% 96.6% 96.6% Technical Information WirkungDerat-TI-en
130 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 130 WirkungDerat-TI-en-40 Technical Information
131 SMA Solar Technology AG 5 Sunny Mini Central 5.13 SMC 11000TLRP Efficiency Maximum efficiency, η max 97.7% European weighted efficiency, η EU 97.2% Efficiency Profile Standardized output power Minimum MPP 333 V Efficiency Rated input 350 V Maximum MPP 500 V 5% 95.6% 95.3% 92.5% 10% 97.2% 97.0% 95.5% 20% 97.7% 97.7% 96.8% 25% 97.7% 97.7% 97.0% 30% 97.7% 97.7% 97.1% 50% 97.5% 97.5% 97.1% 75% 97.0% 97.0% 96.7% 100% 96.5% 96.4% 96.3% Technical Information WirkungDerat-TI-en
132 5 Sunny Mini Central SMA Solar Technology AG Derating Behavior 132 WirkungDerat-TI-en-40 Technical Information
133
134 SMA Solar Technology
Tεχνικές πληροφορίες Βαθμοί απόδοσης και derating SUNNY BOY / SUNNY TRIPOWER / SUNNY MINI CENTRAL
Tεχνικές πληροφορίες Βαθμοί απόδοσης και derating SUNNY BOY / SUNNY TRIPOWER / SUNNY MINI CENTRAL WirkungDerat-TI-el-38 Έκδοση 3.8 ΕΛΛΗΝΙΚΑ Νομικές διατάξεις SMA Solar Technology AG Νομικές διατάξεις Οι
Tεχνικές πληροφορίες Βαθμοί απόδοσης και derating SUNNY BOY / SUNNY TRIPOWER / SUNNY MINI CENTRAL
Tεχνικές πληροφορίες Βαθμοί απόδοσης και derating SUNNY BOY / SUNNY TRIPOWER / SUNNY MINI CENTRAL WirkungDerat-TI-el-39 Έκδοση 3.9 ΕΛΛΗΝΙΚΑ Νομικές διατάξεις SMA Solar Technology AG Νομικές διατάξεις Οι
Οδηγίες χρήσης SUNNY CENTRAL 500CP XT / 630CP XT / 720CP XT / 760CP XT / 800CP XT / 850CP XT / 900CP XT / 1000CP XT
Οδηγίες χρήσης SUNNY CENTRAL 500CP XT / 630CP XT / 720CP XT / 760CP XT / 800CP XT / 850CP XT / 900CP XT / 1000CP XT SCCPXT-BA-E7-el-55 98-100900.05 Έκδοση 5.5 ΕΛΛΗΝΙΚΑ Νομικές διατάξεις SMA Solar Technology
Netzformen-TI-el-28 Έκδοση 2.8 ΕΛΛΗΝΙΚΑ
Συνοπτική παρουσίαση της συμβατότητας μεταξύ συνηθισμένων τύπων δικτύων και μετατροπέων SMA SUNNY BOY / SUNNY MINI CENTRAL / SUNNY TRIPOWER / WINDY BOY / WINDY TRIPOWER Netzformen-TI-el-28 Έκδοση 2.8 ΕΛΛΗΝΙΚΑ
Επιτήρηση εγκατάστασης Αισθητήρας ανέμου
Επιτήρηση εγκατάστασης Αισθητήρας ανέμου Οδηγίες τοποθέτησης Windsensor-IGR101010 98-0025510 Έκδοση 1.0 GR SMA Solar Technology AG Πίνακας περιεχομένων Πίνακας περιεχομένων 1 Υποδείξεις σχετικά με το
Potential Dividers. 46 minutes. 46 marks. Page 1 of 11
Potential Dividers 46 minutes 46 marks Page 1 of 11 Q1. In the circuit shown in the figure below, the battery, of negligible internal resistance, has an emf of 30 V. The pd across the lamp is 6.0 V and
Aluminum Electrolytic Capacitors (Large Can Type)
Aluminum Electrolytic Capacitors (Large Can Type) Snap-In, 85 C TS-U ECE-S (U) Series: TS-U Features General purpose Wide CV value range (33 ~ 47,000 µf/16 4V) Various case sizes Top vent construction
Bulletin 1489 UL489 Circuit Breakers
Bulletin 489 UL489 Circuit Breakers Tech Data 489-A Standard AC Circuit Breaker 489-D DC Circuit Breaker 489-A, AC Circuit Breakers 489-D, DC Circuit Breakers Bulletin 489-A Industrial Circuit Breaker
Aluminum Electrolytic Capacitors
Aluminum Electrolytic Capacitors Snap-In, Mini., 105 C, High Ripple APS TS-NH ECE-S (G) Series: TS-NH Features Long life: 105 C 2,000 hours; high ripple current handling ability Wide CV value range (47
Μετασχηματιστής μέσης τάσης
Τεχνικές πληροφορίες Μετασχηματιστής μέσης τάσης Σημαντικές απαιτήσεις για τους μετασχηματιστές μέσης τάσης για SUNNY BOY, SUNNY MINI CENTRAL και SUNNY TRIPOWER Περιεχόμενα Το παρόν έγγραφο περιγράφει
Precision Metal Film Fixed Resistor Axial Leaded
Features EIA standard colour-coding Non-Flame type available Low noise and voltage coefficient Low temperature coefficient range Wide precision range in small package Too low or too high ohmic value can
Οδηγός χρήσης Nokia 6730 classic. Τεύχος 2
Οδηγός χρήσης Nokia 6730 classic Τεύχος 2 2009 Nokia. Με την επιφύλαξη παντός δικαιώµατος. ΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ Με την παρούσα, η NOKIA CORPORATION δηλώνει ότι το RM-566 συµµορφώνεται προς τις ουσιώδεις απαιτήσεις
Κριτήρια για την επιλογή μιας διάταξης προστασίας από ρεύματα διαφυγής
Κριτήρια για την επιλογή μιας διάταξης προστασίας από ρεύματα διαφυγής Χρήση διατάξεων προστασίας από ρεύματα διαφυγής για SUNNY BOY, SUNNY MINI CENTRAL και SUNNY TRIPOWER Περιεχόμενα Κατά την εγκατάσταση
Τύποι δικτύων Συνοπτική παρουσίαση της συμβατότητας μεταξύ συνηθισμένων τύπων δικτύων και μετατροπέων SMA
Τύποι δικτύων Συνοπτική παρουσίαση της συμβατότητας μεταξύ συνηθισμένων τύπων δικτύων και μετατροπέων SMA Περιεχόμενα Υπάρχουν διαφορετικοί τρόποι ή τύποι δικτύων για τη δημιουργία ενός δημόσιου δικτύου
Ρελέ πολλαπλών λειτουργιών και λειτουργία OptiTrac Global Peak SUNNY BOY / SUNNY TRIPOWER / WINDY BOY
Ρελέ πολλαπλών λειτουργιών και λειτουργία OptiTrac Global Peak SUNNY BOY / SUNNY TRIPOWER / WINDY BOY Tεχνική περιγραφή ZusFunktNG-TB-TGR121224 Έκδοση 2.4 GR SMA Solar Technology AG Πίνακας περιεχομένων
Πνεσμαηικά Γικαιώμαηα 2006 Ίδρσμα ECDL (ECDL Foundation - www.ecdl.org)
Έθδνζε 1.5 PEOPLECERT Hellas A.E - Φορέας Πιζηοποίηζης Ανθρώπινοσ Γσναμικού Κνξαή 3, 105 64 Αζήλα, Τει.: 210 372 9100, Fax: 210 372 9101, e-mail: info@peoplecert.org, www.peoplecert.org Πνεσμαηικά Γικαιώμαηα
Mean bond enthalpy Standard enthalpy of formation Bond N H N N N N H O O O
Q1. (a) Explain the meaning of the terms mean bond enthalpy and standard enthalpy of formation. Mean bond enthalpy... Standard enthalpy of formation... (5) (b) Some mean bond enthalpies are given below.
Διακόπτης προστασίας αγωγών:
Διακόπτης προστασίας αγωγών: Διαστασιολόγηση των κατάλληλων διακοπτών προστασίας αγωγών για μετατροπείς υπό ειδικές συνθήκες Περιεχόμενα Η επιλογή του σωστού διακόπτη προστασίας αγωγών εξαρτάται από διάφορους
Η ΕΠΙΔΡΑΣΗ ΤΗΣ ΑΙΘΑΝΟΛΗΣ,ΤΗΣ ΜΕΘΑΝΟΛΗΣ ΚΑΙ ΤΟΥ ΑΙΘΥΛΟΤΡΙΤΟΤΑΓΗ ΒΟΥΤΥΛΑΙΘΕΡΑ ΣΤΙΣ ΙΔΙΟΤΗΤΕΣ ΤΗΣ ΒΕΝΖΙΝΗΣ
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙΔΕΥΤΙΚΟ ΙΔΡΥΜΑ ΚΑΒΑΛΑΣ ΣΧΟΛΗ ΤΕΧΝΟΛΟΓΙΚΩΝ ΕΦΑΡΜΟΓΩΝ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ Η ΕΠΙΔΡΑΣΗ ΤΗΣ ΑΙΘΑΝΟΛΗΣ,ΤΗΣ ΜΕΘΑΝΟΛΗΣ ΚΑΙ ΤΟΥ ΑΙΘΥΛΟΤΡΙΤΟΤΑΓΗ ΒΟΥΤΥΛΑΙΘΕΡΑ ΣΤΙΣ ΙΔΙΟΤΗΤΕΣ ΤΗΣ ΒΕΝΖΙΝΗΣ ΟΝΟΜΑΤΕΠΩΝΥΜΟ
Surface Mount Multilayer Chip Capacitors for Commodity Solutions
Surface Mount Multilayer Chip Capacitors for Commodity Solutions Below tables are test procedures and requirements unless specified in detail datasheet. 1) Visual and mechanical 2) Capacitance 3) Q/DF
the total number of electrons passing through the lamp.
1. A 12 V 36 W lamp is lit to normal brightness using a 12 V car battery of negligible internal resistance. The lamp is switched on for one hour (3600 s). For the time of 1 hour, calculate (i) the energy
Φωτοβολταϊκός μετατροπέας SUNNY MINI CENTRAL 9000TL / 10000TL / 11000TL
Φωτοβολταϊκός μετατροπέας SUNNY MINI CENTRAL 9000TL / 10000TL / 11000TL με Reactive Power Control Oδηγίες χρήσης SMC9-11TLRP-BA-el-30 TBEL-SMCTLRP Έκδοση 3.0 GR SMA Solar Technology AG Πίνακας περιεχομένων
Second Order RLC Filters
ECEN 60 Circuits/Electronics Spring 007-0-07 P. Mathys Second Order RLC Filters RLC Lowpass Filter A passive RLC lowpass filter (LPF) circuit is shown in the following schematic. R L C v O (t) Using phasor
ΚΑΘΟΡΙΣΜΟΣ ΠΑΡΑΓΟΝΤΩΝ ΠΟΥ ΕΠΗΡΕΑΖΟΥΝ ΤΗΝ ΠΑΡΑΓΟΜΕΝΗ ΙΣΧΥ ΣΕ Φ/Β ΠΑΡΚΟ 80KWp
ΕΘΝΙΚΟ ΜΕΤΣΟΒΙΟ ΠΟΛΥΤΕΧΝΕΙΟ ΣΧΟΛΗ ΗΛΕΚΤΡΟΛΟΓΩΝ ΜΗΧΑΝΙΚΩΝ ΚΑΙ ΜΗΧΑΝΙΚΩΝ ΥΠΟΛΟΓΙΣΤΩΝ ΤΟΜΕΑΣ ΣΥΣΤΗΜΑΤΩΝ ΜΕΤΑΔΟΣΗΣ ΠΛΗΡΟΦΟΡΙΑΣ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ ΥΛΙΚΩΝ ΚΑΘΟΡΙΣΜΟΣ ΠΑΡΑΓΟΝΤΩΝ ΠΟΥ ΕΠΗΡΕΑΖΟΥΝ ΤΗΝ ΠΑΡΑΓΟΜΕΝΗ ΙΣΧΥ
Μεταπτυχιακή διατριβή. Ανδρέας Παπαευσταθίου
Σχολή Γεωτεχνικών Επιστημών και Διαχείρισης Περιβάλλοντος Μεταπτυχιακή διατριβή Κτίρια σχεδόν μηδενικής ενεργειακής κατανάλωσης :Αξιολόγηση συστημάτων θέρμανσης -ψύξης και ΑΠΕ σε οικιστικά κτίρια στην
Smaller. 6.3 to 100 After 1 minute's application of rated voltage at 20 C, leakage current is. not more than 0.03CV or 4 (µa), whichever is greater.
Low Impedance, For Switching Power Supplies Low impedance and high reliability withstanding 5000 hours load life at +05 C (3000 / 2000 hours for smaller case sizes as specified below). Capacitance ranges
και τα οφέλη για τον τομέα ανάπτυξης γης και οικοδομών
www.pwc.com Η νέα φορολογική νομοθεσία (VAT) και τα οφέλη για τον τομέα ανάπτυξης γης και οικοδομών Σεπτέμβριος 2012 Χρυσήλιος Πελεκάνος chrysilios.pelekanos@cy.pwc.cy (Συνέταιρος Υπεύθυνος Έμμεσης Φορολογίας
Design and Fabrication of Water Heater with Electromagnetic Induction Heating
U Kamphaengsean Acad. J. Vol. 7, No. 2, 2009, Pages 48-60 ก 7 2 2552 ก ก กก ก Design and Fabrication of Water Heater with Electromagnetic Induction Heating 1* Geerapong Srivichai 1* ABSTRACT The purpose
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙΔΕΥΤΙΚΟ ΙΔΡΥΜΑ ΚΡΗΤΗΣ ΣΧΟΛΗ ΔΙΟΙΚΗΣΗΣ ΚΑΙ ΟΙΚΟΝΟΜΙΑΣ ΤΜΗΜΑ ΛΟΓΙΣΤΙΚΗΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙΔΕΥΤΙΚΟ ΙΔΡΥΜΑ ΚΡΗΤΗΣ ΣΧΟΛΗ ΔΙΟΙΚΗΣΗΣ ΚΑΙ ΟΙΚΟΝΟΜΙΑΣ ΤΜΗΜΑ ΛΟΓΙΣΤΙΚΗΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ ΛΟΓΙΣΤΙΚΗ ΚΑΙ ΦΟΡΟΛΟΓΙΑ Ο.Ε. ΕΙΣΗΓΗΤΡΙΑ ΚΑΘΗΓΗΤΡΙΑ: κ. ΟΥΡΑΝΟΥ ΕΡΜΙΟΝΗ ΣΠΟΥΔΑΣΤΡΙΕΣ: ΔΕΜΕΤΖΟΥ ΑΓΛΑΪΑ
ΜΕΛΕΤΗ ΑΠΟΤΙΜΗΣΗΣ ΠΑΡΑΓΟΜΕΝΗΣ ΕΝΕΡΓΕΙΑΣ Φ/Β ΣΥΣΤΗΜΑΤΩΝ ΕΓΚΑΤΕΣΤΗΜΕΝΩΝ ΣΕ ΕΛΛΑ Α ΚΑΙ ΤΣΕΧΙΑ
ΜΕΛΕΤΗ ΑΠΟΤΙΜΗΣΗΣ ΠΑΡΑΓΟΜΕΝΗΣ ΕΝΕΡΓΕΙΑΣ Φ/Β ΣΥΣΤΗΜΑΤΩΝ ΕΓΚΑΤΕΣΤΗΜΕΝΩΝ ΣΕ ΕΛΛΑ Α ΚΑΙ ΤΣΕΧΙΑ V. Poulek 1, M. Libra 2, Ι. Γράβαλος 3, Θ. Γιαλαµάς 3,. Μόσχου 4, Π. Ξυραδάκης 3,. Κατέρης 4, Ζ. Τσιρόπουλος 3,
Math 6 SL Probability Distributions Practice Test Mark Scheme
Math 6 SL Probability Distributions Practice Test Mark Scheme. (a) Note: Award A for vertical line to right of mean, A for shading to right of their vertical line. AA N (b) evidence of recognizing symmetry
NTC thermistors for temperature measurement
NTC thermistors for temperature measurement SMD NTC thermistors with nickel barrier termination, case size 0603 Series/Type: Date: June 2008 EPCOS AG 2008. Reproduction, publication and dissemination of
ΥΒΡΙΔΙΚΟ ΣΥΣΤΗΜΑ ΠΑΡΑΓΩΓΗΣ ΗΛΕΚΤΡΙΚΗΣ ΕΝΕΡΓΕΙΑΣ ΣΕ ΙΣΤΙΟΠΛΟΪΚΑ ΣΚΑΦΗ ΔΙΠΛΩΜΑΤΙΚΗ ΕΡΓΑΣΙΑ
ΕΘΝΙΚΟ ΜΕΤΣΟΒΙΟ ΠΟΛΥΤΕΧΝΕΙΟ ΣΧΟΛΗ ΗΛΕΚΤΡΟΛΟΓΩΝ ΜΗΧΑΝΙΚΩΝ ΚΑΙ ΜΗΧΑΝΙΚΩΝ ΥΠΟΛΟΓΙΣΤΩΝ ΤΟΜΕΑΣ ΗΛΕΚΤΡΙΚΩΝ ΒΙΟΜΗΧΑΝΙΚΩΝ ΔΙΑΤΑΞΕΩΝ ΚΑΙ ΣΥΣΤΗΜΑΤΩΝ ΑΠΟΦΑΣΕΩΝ ΥΒΡΙΔΙΚΟ ΣΥΣΤΗΜΑ ΠΑΡΑΓΩΓΗΣ ΗΛΕΚΤΡΙΚΗΣ ΕΝΕΡΓΕΙΑΣ ΣΕ ΙΣΤΙΟΠΛΟΪΚΑ
The Nottingham eprints service makes this work by researchers of the University of Nottingham available open access under the following conditions.
Luevorasirikul, Kanokrat (2007) Body image and weight management: young people, internet advertisements and pharmacists. PhD thesis, University of Nottingham. Access from the University of Nottingham repository:
Keys-To-Go. Ultra-portable keyboard for Android and Windows. Setup Guide
Keys-To-Go Ultra-portable keyboard for Android and Windows Setup Guide Contents Keys-To-Go - Ultra-portable keyboard Ελληνικά..................104 2 OFF PDF ON www.logitech.com/support/keys-to-go-tablet
UDZ Swirl diffuser. Product facts. Quick-selection. Swirl diffuser UDZ. Product code example:
UDZ Swirl diffuser Swirl diffuser UDZ, which is intended for installation in a ventilation duct, can be used in premises with a large volume, for example factory premises, storage areas, superstores, halls,
Κάτοχοι εμπορικών σημάτων
1 / 12 Κάτοχοι εμπορικών σημάτων Καταχωρήστε το δικό σας αποκλειστικό δίκτυο Φρόγκανς κατά τη διάρκεια της περιόδου κατά προτεραιότητα εγγραφής για κατόχους εμπορικών σημάτων 2 / 12 Προϊόντα και Υπηρεσίες
15W DIN Rail Type DC-DC Converter. DDR-15 s e r i e s. File Name:DDR-15-SPEC
DIN Rail Type DC-DC Converter ± : DIN Rail Type DC-DC Converter SPECIFICATION MODEL OUTPUT INPUT PROTECTION ENVIRONMENT SAFETY & EMC (Note 5) OTHERS NOTE DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER
[1] P Q. Fig. 3.1
![[1] P Q. Fig. 3.1](/thumbs/79/80362156.jpg "[1] P Q. Fig. 3.1")
1 (a) Define resistance....... [1] (b) The smallest conductor within a computer processing chip can be represented as a rectangular block that is one atom high, four atoms wide and twenty atoms long. One
Assalamu `alaikum wr. wb.
LUMP SUM Assalamu `alaikum wr. wb. LUMP SUM Wassalamu alaikum wr. wb. Assalamu `alaikum wr. wb. LUMP SUM Wassalamu alaikum wr. wb. LUMP SUM Lump sum lump sum lump sum. lump sum fixed price lump sum lump
DULUX L LUMILUX IMPROVED LIFETIME & SYSTEM GUARANTEE. DULUX L LUMILUX & QUICKTRONIC TECHNICAL INFORMATION
www.osram.com IMPROVED LIFETIME & SYSTEM GUARANTEE QTP-M 1x26-42 1 Benefits Extremly economical Good quality of light Excellent luminous flux Improved lumen maintenance Long service life time OSRAM + Guarantee
Α ιθ EL. 3. Κα ασ ασ ής: fischerwerke GmbH & Co. KG, Klaus-Fischer-Straße 1, Waldachtal, α ία. Tumlingen,
Η ΩΣΗ ΠΙ ΟΣ Ω Α ιθ. 0020 EL 1. Μο α ι ός ω ι ός α ο οί σ ς ο ύ ο ο οϊό ος: fischer η ώ α ο ώ α ύ ιο FH II, FH II-I 2. Π οβ ό - ς χ ήσ - ις : Π οϊό Α ύ ιο ιασ ο ής χό ς α ό ο ι έ η/ ς ήση/ ις ω σ έ ω σ
15W DIN Rail Type DC-DC Converter. DDR-15 series. File Name:DDR-15-SPEC
DIN Rail Type DC-DC Converter ± : DIN Rail Type DC-DC Converter SPECIFICATION MODEL OUTPUT INPUT PROTECTION ENVIRONMENT SAFETY & EMC (Note 5) OTHERS DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER RIPPLE
ΚΥΠΡΙΑΚΗ ΕΤΑΙΡΕΙΑ ΠΛΗΡΟΦΟΡΙΚΗΣ CYPRUS COMPUTER SOCIETY ΠΑΓΚΥΠΡΙΟΣ ΜΑΘΗΤΙΚΟΣ ΔΙΑΓΩΝΙΣΜΟΣ ΠΛΗΡΟΦΟΡΙΚΗΣ 24/3/2007
Οδηγίες: Να απαντηθούν όλες οι ερωτήσεις. Όλοι οι αριθμοί που αναφέρονται σε όλα τα ερωτήματα μικρότεροι του 10000 εκτός αν ορίζεται διαφορετικά στη διατύπωση του προβλήματος. Αν κάπου κάνετε κάποιες υποθέσεις
ΚΥΠΡΙΑΚΗ ΕΤΑΙΡΕΙΑ ΠΛΗΡΟΦΟΡΙΚΗΣ CYPRUS COMPUTER SOCIETY ΠΑΓΚΥΠΡΙΟΣ ΜΑΘΗΤΙΚΟΣ ΔΙΑΓΩΝΙΣΜΟΣ ΠΛΗΡΟΦΟΡΙΚΗΣ 19/5/2007
Οδηγίες: Να απαντηθούν όλες οι ερωτήσεις. Αν κάπου κάνετε κάποιες υποθέσεις να αναφερθούν στη σχετική ερώτηση. Όλα τα αρχεία που αναφέρονται στα προβλήματα βρίσκονται στον ίδιο φάκελο με το εκτελέσιμο
Metal thin film chip resistor networks
Metal thin film chip resistor networks AEC-Q200 Compliant Features Relative resistance and relative TCR definable among multiple resistors within package. Relative resistance : ±%, relative TCR: ±1ppm/
MCRH Series High Temp. Electrolytic Capacitors
Features: General purpose. Wide CV value range. Safety vent construction products, ECRH series are guaranteed for 000 hours at C. High temperature radial leaded electrolytic. Supplied loose with straight
Sunlord. Wire Wound SMD Power Inductors SWCS Series SWCS XXXX -XXX T. Operating Temperature: -25 ~ +105 FEATURES APPLICATIONS PRODUCT IDENTIFICATION
Wire Wound SMD Power Inductors SWCS Series Operating Temperature: -25 ~ +105 FEATURES Various high power inductors are superior to be high saturation Suitable for surface mounting equipment APPLICATIONS
Capacitors - Capacitance, Charge and Potential Difference
Capacitors - Capacitance, Charge and Potential Difference Capacitors store electric charge. This ability to store electric charge is known as capacitance. A simple capacitor consists of 2 parallel metal
Instruction Execution Times
1 C Execution Times InThisAppendix... Introduction DL330 Execution Times DL330P Execution Times DL340 Execution Times C-2 Execution Times Introduction Data Registers This appendix contains several tables
Oδηγίες εγκατάστασης Αντικατάσταση συσκευών SMA σε εγκαταστάσεις με προϊόντα επικοινωνίας SMA
Oδηγίες εγκατάστασης Αντικατάσταση συσκευών SMA σε εγκαταστάσεις με προϊόντα επικοινωνίας SMA Geraeteaustausch-IA-el-20 Έκδοση 2.0 ΕΛΛΗΝΙΚΑ Νομικές διατάξεις SMA Solar Technology AG Νομικές διατάξεις Οι
Biodiesel quality and EN 14214:2012
3η Ενότητα: «Αγορά Βιοκαυσίμων στην Ελλάδα: Τάσεις και Προοπτικές» Biodiesel quality and EN 14214:2012 Dr. Hendrik Stein Pilot Plant Manager, ASG Analytik Content Introduction Development of the Biodiesel
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΕΙΡΑΙΩΣ ΤΜΗΜΑ ΠΛΗΡΟΦΟΡΙΚΗΣ ΠΜΣ «ΠΡΟΗΓΜΕΝΑ ΣΥΣΤΗΜΑΤΑ ΠΛΗΡΟΦΟΡΙΚΗΣ» ΚΑΤΕΥΘΥΝΣΗ «ΕΥΦΥΕΙΣ ΤΕΧΝΟΛΟΓΙΕΣ ΕΠΙΚΟΙΝΩΝΙΑΣ ΑΝΘΡΩΠΟΥ - ΥΠΟΛΟΓΙΣΤΗ»
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΕΙΡΑΙΩΣ ΤΜΗΜΑ ΠΛΗΡΟΦΟΡΙΚΗΣ ΠΜΣ «ΠΡΟΗΓΜΕΝΑ ΣΥΣΤΗΜΑΤΑ ΠΛΗΡΟΦΟΡΙΚΗΣ» ΚΑΤΕΥΘΥΝΣΗ «ΕΥΦΥΕΙΣ ΤΕΧΝΟΛΟΓΙΕΣ ΕΠΙΚΟΙΝΩΝΙΑΣ ΑΝΘΡΩΠΟΥ - ΥΠΟΛΟΓΙΣΤΗ» ΜΕΤΑΠΤΥΧΙΑΚΗ ΙΑΤΡΙΒΗ ΤΟΥ ΕΥΘΥΜΙΟΥ ΘΕΜΕΛΗ ΤΙΤΛΟΣ Ανάλυση
ΔΙΠΛΩΜΑΤΙΚΗ ΕΡΓΑΣΙΑ. του φοιτητή του Τμήματος Ηλεκτρολόγων Μηχανικών και. Τεχνολογίας Υπολογιστών της Πολυτεχνικής Σχολής του. Πανεπιστημίου Πατρών
ΠΑΝΕΠΙΣΤΗΜΙΟ ΠΑΤΡΩΝ ΤΜΗΜΑ ΗΛΕΚΤΡΟΛΟΓΩΝ ΜΗΧΑΝΙΚΩΝ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ ΥΠΟΛΟΓΙΣΤΩΝ ΤΟΜΕΑΣ ΣΥΣΤΗΜΑΤΩΝ ΗΛΕΚΤΡΙΚΗΣ ΕΝΕΡΓΕΙΑΣ ΕΡΓΑΣΤΗΡΙΟ ΗΛΕΚΤΡΟΜΗΧΑΝΙΚΗΣ ΜΕΤΑΤΡΟΠΗΣ ΕΝΕΡΓΕΙΑΣ ΔΙΠΛΩΜΑΤΙΚΗ ΕΡΓΑΣΙΑ του φοιτητή του
DETERMINATION OF THERMAL PERFORMANCE OF GLAZED LIQUID HEATING SOLAR COLLECTORS
ΕΘΝΙΚΟ ΚΕΝΤΡΟ ΕΡΕΥΝΑΣ ΦΥΣΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΗΜΟΚΡΙΤΟΣ / DEMOKRITOS NATIONAL CENTER FOR SCIENTIFIC RESEARCH ΕΡΓΑΣΤΗΡΙΟ ΟΚΙΜΩΝ ΗΛΙΑΚΩΝ & ΑΛΛΩΝ ΕΝΕΡΓΕΙΑΚΩΝ ΣΥΣΤΗΜΑΤΩΝ LABORATORY OF TESTIN SOLAR & OTHER ENERY
DuPont Suva. DuPont. Thermodynamic Properties of. Refrigerant (R-410A) Technical Information. refrigerants T-410A ENG
Technical Information T-410A ENG DuPont Suva refrigerants Thermodynamic Properties of DuPont Suva 410A Refrigerant (R-410A) The DuPont Oval Logo, The miracles of science, and Suva, are trademarks or registered
Polymer PTC Resettable Fuse: KMC Series
Features 1. RoHS & Halogen-Free (HF) compliant 2. IA size: 0603, 0805, 1206, 1812 3. Hold current ratings from 0.05 to 3A 4. Voltage ratings from 6V computer and electronic applications to 60V 5. Small
Μειέηε, θαηαζθεπή θαη πξνζνκνίσζε ηεο ιεηηνπξγίαο κηθξήο αλεκνγελλήηξηαο αμνληθήο ξνήο ΓΗΠΛΩΜΑΣΗΚΖ ΔΡΓΑΗΑ
Μειέηε, θαηαζθεπή θαη πξνζνκνίσζε ηεο ιεηηνπξγίαο κηθξήο αλεκνγελλήηξηαο αμνληθήο ξνήο ΓΗΠΛΩΜΑΣΗΚΖ ΔΡΓΑΗΑ Κνηζακπφπνπινο Υ. Παλαγηψηεο Δπηβιέπσλ: Νηθφιανο Υαηδεαξγπξίνπ Καζεγεηήο Δ.Μ.Π Αζήλα, Μάξηηνο 2010
Alféa Extensa + and Extensa Duo +
Alféa Extensa + and Extensa Duo + FR Document n 1592-2~ 12/07/2013 EN Heat pumps air/water split 1 service and 2 services Technical manual Intended for professionals Completed by the installation and operating
Διεπαφή επικοινωνίας για μετατροπείς SMA Μονάδα δεδομένων 485 Οδηγίες εγκατάστασης
Διεπαφή επικοινωνίας για μετατροπείς SMA Μονάδα δεδομένων 485 Οδηγίες εγκατάστασης 485i-Module-IA-el-19 Έκδοση 1.9 ΕΛΛΗΝΙΚΑ Νομικές διατάξεις SMA Solar Technology AG Νομικές διατάξεις Οι πληροφορίες που
2R2. 2 (L W H) [mm] Wire Wound SMD Power Inductor. Nominal Inductance Packing Tape & Reel. Design Code M ±20%
![2R2. 2 (L W H) [mm] Wire Wound SMD Power Inductor. Nominal Inductance Packing Tape & Reel. Design Code M ±20%](/thumbs/78/78109689.jpg "2R2. 2 (L W H) [mm] Wire Wound SMD Power Inductor. Nominal Inductance Packing Tape & Reel. Design Code M ±20%")
Wire Wound SMD Power Inductors WPN Series Operating temperature range : -40 ~+125 (Including self-heating) FEATURES Fe base metal material core provides large saturation current Metallization on ferrite
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙ ΕΥΤΙΚΟ Ι ΡΥΜΑ ΚΡΗΤΗΣ ΣΧΟΛΗ ΙΟΙΚΗΣΗΣ ΚΑΙ ΟΙΚΟΝΟΜΙΑΣ ΤΜΗΜΑ ΙΟΙΚΗΣΗΣ ΕΠΙΧΕΙΡΗΣΕΩΝ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ
ΤΕΧΝΟΛΟΓΙΚΟ ΕΚΠΑΙ ΕΥΤΙΚΟ Ι ΡΥΜΑ ΚΡΗΤΗΣ ΣΧΟΛΗ ΙΟΙΚΗΣΗΣ ΚΑΙ ΟΙΚΟΝΟΜΙΑΣ ΤΜΗΜΑ ΙΟΙΚΗΣΗΣ ΕΠΙΧΕΙΡΗΣΕΩΝ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ Το franchising ( δικαιόχρηση ) ως µέθοδος ανάπτυξης των επιχειρήσεων λιανικού εµπορίου
derivation of the Laplacian from rectangular to spherical coordinates
derivation of the Laplacian from rectangular to spherical coordinates swapnizzle 03-03- :5:43 We begin by recognizing the familiar conversion from rectangular to spherical coordinates (note that φ is used
THICK FILM LEAD FREE CHIP RESISTORS
Features Suitable for lead free soldering. Compatible with flow and reflow soldering Applications Consumer Electronics Automotive industry Computer Measurement instrument Electronic watch and camera Configuration
65W PWM Output LED Driver. IDLV-65 series. File Name:IDLV-65-SPEC
~ A File Name:IDLV65SPEC 07050 SPECIFICATION MODEL OUTPUT OTHERS NOTE DC VOLTAGE RATED CURRENT RATED POWER DIMMING RANGE VOLTAGE TOLERANCE PWM FREQUENCY (Typ.) SETUP TIME Note. AUXILIARY DC OUTPUT Note.
DuPont Suva 95 Refrigerant
Technical Information T-95 SI DuPont Suva refrigerants Thermodynamic Properties of DuPont Suva 95 Refrigerant (R-508B) The DuPont Oval Logo, The miracles of science, and Suva, are trademarks or registered
FEATURES APPLICATION PRODUCT T IDENTIFICATION PRODUCT T DIMENSION MAG.LAYERS
FEATURES RoHS compliant. Super low resistance, ultra high current rating. High performance (I sat) realized by metal dust core. Frequency Range: up to 1MHz. APPLICATION PDA, notebook, desktop, and server
Siemens AG Rated current 1FK7 Compact synchronous motor Natural cooling. I rated 7.0 (15.4) 11.5 (25.4) (2.9) 3.3 (4.4)
Synchronous motors Siemens 2009 FK7 Compact motors Nural cooling Selection and ordering da Red speed Shaft height n red S P red ΔT=00 K rpm kw (P) Red power Stic torque M 0 ΔT=00 K Red torque ) M red ΔT=00
Breaking capacity: ~200kA Rated voltage: ~690V, 550V. Operating I 2 t-value (A 2 s) Power
SYSTEM NV-NH NV/NH SERIES TYPES gr UQ M M, M-striker pin ~ 5V ~9V Technical data on page 8 Technical data: Application: MCUQ/5A/9V Standards: IEC 9- Breaking capacity: ~ka Rated voltage: ~9V, 55V For battery
Metal Oxide Varistors (MOV) Data Sheet
Φ SERIES Metal Oxide Varistors (MOV) Data Sheet Features Wide operating voltage (V ma ) range from 8V to 0V Fast responding to transient over-voltage Large absorbing transient energy capability Low clamping
Surface Mount Aluminum Electrolytic Capacitors
FEATURES CYLINDRICAL V-CHIP CONSTRUCTION LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85 O C NEW EXPANDED CV RANGE (up to 6800µF) ANTI-SOLVENT (2 MINUTES) DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
DuPont Suva 95 Refrigerant
Technical Information T-95 ENG DuPont Suva refrigerants Thermodynamic Properties of DuPont Suva 95 Refrigerant (R-508B) The DuPont Oval Logo, The miracles of science, and Suva, are trademarks or registered
INPAQ Global RF/Component Solutions
MCB & MHC W Series Specification Product Name Series Multilayer Chip Ferrite Bead MCB & MHC W Series Size EIAJ 1005/1608/2012/3216/4516 MCB and MHC Series Chip Ferrite Bead for Automotive Applications
(1) Describe the process by which mercury atoms become excited in a fluorescent tube (3)
Q1. (a) A fluorescent tube is filled with mercury vapour at low pressure. In order to emit electromagnetic radiation the mercury atoms must first be excited. (i) What is meant by an excited atom? (1) (ii)
2 Composition. Invertible Mappings
Arkansas Tech University MATH 4033: Elementary Modern Algebra Dr. Marcel B. Finan Composition. Invertible Mappings In this section we discuss two procedures for creating new mappings from old ones, namely,
Μετρήσεις ηλιοφάνειας στην Κύπρο
Πτυχιακή εργασία Μετρήσεις ηλιοφάνειας στην Κύπρο Ιωσήφ Μικαίος Λεμεσός, Μάιος 2018 1 ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΓΕΩΤΕΧΝΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΚΑΙ ΔΙΑΧΕΙΡΙΣΗΣ ΠΕΡΙΒΑΛΛΟΝΤΟΣ ΤΜΗΜΑ ΕΠΙΣΤΗΜΗΣ ΚΑΙ ΤΕΧΝΟΛΟΓΙΑΣ
Προσωπική Aνάπτυξη. Ενότητα 2: Διαπραγμάτευση. Juan Carlos Martínez Director of Projects Development Department
Προσωπική Aνάπτυξη Ενότητα 2: Διαπραγμάτευση Juan Carlos Martínez Director of Projects Development Department Unit Scope Σε αυτή την ενότητα θα μελετήσουμε τα βασικά των καταστάσεων διαπραγμάτευσης winwin,
First Sensor Quad APD Data Sheet Part Description QA TO Order #
Responsivity (/W) First Sensor Quad PD Data Sheet Features Description pplication Pulsed 16 nm laser detection RoHS 211/65/EU Light source positioning Laser alignment ø mm total active area Segmented in
ΤΕΙ ΚΑΒΑΛΑΣ ΣΧΟΛΗ ΤΕΧΝΟΛΟΓΙΚΩΝ ΕΦΑΡΜΟΓΩΝ ΤΜΗΜΑ ΗΛΕΚΤΡΟΛΟΓΙΑΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ
ΤΕΙ ΚΑΒΑΛΑΣ ΣΧΟΛΗ ΤΕΧΝΟΛΟΓΙΚΩΝ ΕΦΑΡΜΟΓΩΝ ΤΜΗΜΑ ΗΛΕΚΤΡΟΛΟΓΙΑΣ ΠΤΥΧΙΑΚΗ ΕΡΓΑΣΙΑ ΜΕΛΕΤΗ ΦΩΤΟΒΟΛΤΑΙΚΟΥ ΠΑΡΚΟΥ ΜΕ ΟΙΚΙΣΚΟΥΣ ΓΙΑ ΠΑΡΑΓΩΓΗ ΗΛΕΚΤΡΙΚΗΣ ΕΝΕΡΓΕΙΑΣ ΜΕΣΗΣ ΤΑΣΗΣ STUDY PHOTOVOLTAIC PARK WITH SUBSTATIONS
Lowara SPECIFICATIONS
SH Series Centrifugal pumps entirely made of AISI 36 stainless steel according to EN 733 (ex DIN 24255). Designed to pump hot, cold and moderately aggressive liquids. Available versions: SHE Close-coupled
SLD Series. SMD Type Shielded Power Inductors. Features. Applications. Lead Free Part Numbering. Dimensions
SMD Type Shielded Power Inductors Features 1. Magnetically shielded Version. 2. High inductance /High Power Inductor. 3. The products contain no lead and also support lead-free soldering. Pb Applications
DC-DC Constant Current Step-Down LED driver LDD-300L LDD-350L LDD-500L LDD-600L LDD-700L CURRENT RANGE
SPECIFICATION ORDER NO. LDD-00L LDD-0L LDD-00L LDD-00L LDD-700L CURRENT RANGE 00mA 0mA 00mA VOLTAGE RANGE Note. ~ VDC for LDD-00~700L/LW ; ~ 8VDC for LDD-00~700LS CURRENT ACCURACY (Typ.) ±% at VDC input
ΔΙΕΡΕΥΝΗΣΗ ΤΗΣ ΣΕΞΟΥΑΛΙΚΗΣ ΔΡΑΣΤΗΡΙΟΤΗΤΑΣ ΤΩΝ ΓΥΝΑΙΚΩΝ ΚΑΤΑ ΤΗ ΔΙΑΡΚΕΙΑ ΤΗΣ ΕΓΚΥΜΟΣΥΝΗΣ ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΕΠΙΣΤΗΜΩΝ ΥΓΕΙΑΣ
ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΕΠΙΣΤΗΜΩΝ ΥΓΕΙΑΣ Πτυχιακή Εργασία ΔΙΕΡΕΥΝΗΣΗ ΤΗΣ ΣΕΞΟΥΑΛΙΚΗΣ ΔΡΑΣΤΗΡΙΟΤΗΤΑΣ ΤΩΝ ΓΥΝΑΙΚΩΝ ΚΑΤΑ ΤΗ ΔΙΑΡΚΕΙΑ ΤΗΣ ΕΓΚΥΜΟΣΥΝΗΣ ΑΝΔΡΕΟΥ ΣΤΕΦΑΝΙΑ Λεμεσός 2012 i ii ΤΕΧΝΟΛΟΓΙΚΟ
Εργαστήριο Ανάπτυξης Εφαρμογών Βάσεων Δεδομένων. Εξάμηνο 7 ο
Εργαστήριο Ανάπτυξης Εφαρμογών Βάσεων Δεδομένων Εξάμηνο 7 ο Procedures and Functions Stored procedures and functions are named blocks of code that enable you to group and organize a series of SQL and PL/SQL
Polymer PTC Resettable Fuse:KMC Series
Features 1. RoHS compliant 2. EIA size:1206~1812 3. Hold current ratings from 0.05 to 3A 4. Voltage ratings from 6V computer and electronic applications to 60V 5. Small footprint 6. Fast time to trip 7.
Μεταπτυχιακή διατριβή
ΤΕΧΝΟΛΟΓΙΚΟ ΠΑΝΕΠΙΣΤΗΜΙΟ ΚΥΠΡΟΥ ΣΧΟΛΗ ΓΕΩΤΕΧΝΙΚΩΝ ΕΠΙΣΤΗΜΩΝ ΚΑΙ ΔΙΑΧΕΙΡΙΣΗΣ ΠΕΡΙΒΑΛΛΟΝΤΟΣ Μεταπτυχιακή διατριβή ΣΥΣΧΕΤΙΣΜΟΙ ΠΡΑΓΜΑΤΙΚΗΣ ΠΑΡΑΓΩΓΗΣ ΥΦΙΣΤΑΜΕΝΩΝ ΦΩΤΟΒΟΛΤΑΪΚΩΝ ΣΥΣΤΗΜΑΤΩΝ ΑΝΑΛΟΓΑ ΜΕ ΤΗ ΤΟΠΟΘΕΣΙΑ
Econ 2110: Fall 2008 Suggested Solutions to Problem Set 8 questions or comments to Dan Fetter 1
Eon : Fall 8 Suggested Solutions to Problem Set 8 Email questions or omments to Dan Fetter Problem. Let X be a salar with density f(x, θ) (θx + θ) [ x ] with θ. (a) Find the most powerful level α test
Κάθε γνήσιο αντίγραφο φέρει υπογραφή του συγγραφέα. / Each genuine copy is signed by the author.
Κάθε γνήσιο αντίγραφο φέρει υπογραφή του συγγραφέα. / Each genuine copy is signed by the author. 2012, Γεράσιμος Χρ. Σιάσος / Gerasimos Siasos, All rights reserved. Στοιχεία επικοινωνίας συγγραφέα / Author
SMD Power chokes- SPD Series SPD series chokes For High Current Use
SMD Power chokes- SPD Series SPD series chokes For High Current Use Features 1.Shielded construction. 2.High current rating up to DC Amp 3.High frequency range up to 5.MHz 4.Ultra low buzz noise, due to
Data sheet Thick Film Chip Resistor 5% - RS Series 0201/0402/0603/0805/1206
Data sheet Thick Film Chip Resistor 5% - RS Series 0201/0402/0603/0805/1206 Scope -This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material. Features
TRC ELECTRONICS, INC LED Driver Constant Voltage 45W MEAN WELL IDLV-45 Series
LED Driver Constant Voltage 5W MEAN WELL IDLV5 Series ~ A File Name:IDLV5SPEC 0707 TRC ELECTRONICS, INC..888.6.95 LED Driver Constant Voltage 5W MEAN WELL IDLV5 Series TRC ELECTRONICS, INC. SPECIFICATION
Ψηφιακή ανάπτυξη. Course Unit #1 : Κατανοώντας τις βασικές σύγχρονες ψηφιακές αρχές Thematic Unit #1 : Τεχνολογίες Web και CMS
Ψηφιακή ανάπτυξη Course Unit #1 : Κατανοώντας τις βασικές σύγχρονες ψηφιακές αρχές Thematic Unit #1 : Τεχνολογίες Web και CMS Learning Objective : SEO και Analytics Fabio Calefato Department of Computer
SIEMENS Squirrel Cage Induction Standard Three-phase Motors
- SIEMENS Squirrel Cage Induction Standard Three-phase Motors 2 pole 3000 rpm 50Hz Rated current Power Efficiency Rated Ratio Noise Output Frame Speed Weight 3V 400V 415V factor Class 0%Load 75%Load torque
WWW.Greek Trading. Club
Trading Level (TL) Σημαντικές πληροφορίες για το Trading Το Trading εμπεριέχει μεγάλο κίνδυνο και δεν είναι για όλους. Ο συγγραφέας και ο εκδότης δεν αναλαμβάνουν καμία ευθύνη για τις ενέργειες του αναγνώστη.
MATRIX. EBARA PUMPS EUROPE S.p.A. HORIZONTAL MULTISTAGE PUMPS
CONTENTS Page - SPECIFICATIONS 200 PUMP SPECIFICATION 200 TYPE KEY 201 SELECTION CHART 202 SELECTION CHART 203 PERFORMANCE CURVE 3 ( 2-3-4-5 impellers ) 204 PERFORMANCE CURVE 3 ( 6-7-8-9 impellers ) 205
Monolithic Crystal Filters (M.C.F.)
Monolithic Crystal Filters (M.C.F.) MCF (MONOLITHIC CRYSTAL FILTER) features high quality quartz resonators such as sharp cutoff characteristics, low loss, good inter-modulation and high stability over
Οδηγίες εγκατάστασης ΡΕΛΕ ΠΟΛΛΑΠΛΩΝ ΛΕΙΤΟΥΡΓΙΩΝ
Οδηγίες εγκατάστασης ΡΕΛΕ ΠΟΛΛΑΠΛΩΝ ΛΕΙΤΟΥΡΓΙΩΝ MFR-NR-IA-el-23 Έκδοση 2.3 ΕΛΛΗΝΙΚΑ Νομικές διατάξεις SMA Solar Technology AG Νομικές διατάξεις Οι πληροφορίες που περιλαμβάνονται σε αυτά τα έγγραφα αποτελούν
1000 VDC 1250 VDC 125 VAC 250 VAC J K 125 VAC, 250 VAC
Metallized Polyester Film Capacitor Type: ECQE(F) Non-inductive construction using metallized Polyester film with flame retardant epoxy resin coating Features Self-healing property Excellent electrical
Πανεπιστήμιο Πειραιώς Τμήμα Πληροφορικής Πρόγραμμα Μεταπτυχιακών Σπουδών «Πληροφορική»
Πανεπιστήμιο Πειραιώς Τμήμα Πληροφορικής Πρόγραμμα Μεταπτυχιακών Σπουδών «Πληροφορική» Μεταπτυχιακή Διατριβή Τίτλος Διατριβής Επίκαιρα Θέματα Ηλεκτρονικής Διακυβέρνησης Ονοματεπώνυμο Φοιτητή Σταμάτιος
SMD Power Inductor-VLH
SMD Power Inductor-VH Dimensions Unit: mm Type A B C E F H I J 252010 2.5±0.2 2.0±0.2 1.0max. 0.4±0.2 1.0min. 2.1 0.90 0.8 252012 2.5±0.2 2.0±0.2 1.2max. 0.4±0.2 1.0min. 2.1 0.90 0.8 321618C 3.2±0.3 1.6±0.2
