MEASUREMENT OF SURFACE TENSION IN BASE METAL SULFIDE MATTES BY AN IMPROVED SESSILE DROP METHOD

Transcript

1 MEASUREMENT OF SURFACE TENSION IN BASE METAL SULFIDE MATTES BY AN IMPROVED SESSILE DROP METHOD by Joseph Hamuyuni Thesis presented in partial fulfilment of the requirements for the degree of Master of Science in Engineering (Extractive Metallurgical Engineering) in the Faculty of Engineering at Stellenbosch University Supervisor Prof. G. Akdogan Co-Supervisors Prof. S.M. Bradshaw Prof. P. Taskinen (Aalto University) December 2012

2 DECLARATION By submitting this thesis electronically, I declare that the entirety of the work contained therein is my own, original work, that I am the sole author thereof (save to the extent explicitly otherwise stated), that reproduction and publication thereof by Stellenbosch University will not infringe any third party rights and that I have not previously in its entirety or in part submitted it for obtaining any qualification. Joseph Hamuyuni Signature: Date: 15/11/2012 Copyright 2012 Stellenbsoch University All rights reserved

3 Ni S 3 2 Cu 2S FeS Ni S 3 2 FeS Cu 2 S

4 Ni S 3 2 FeS Cu 2 S

5 Ni S 3 2 Cu 2S FeS

6 Ni S 3 2 FeS Cu 2 S Ni S 3 2 FeS Cu 2S

7

8 Stellenbosch University

9 Stellenbosch University

10 Ni S 3 2

11 Cu 2 S Ni S 3 2 FeS

12

13 ai c g h Pi Θ P r rdrop S T β γ γ m g γ m s γ s g Δ Δp

14 θ μslag v ρ drop ρslag τ s Φ ϕ

15

16 θ ϕ

17

18 Φ = γ s g γ γ s g m g γ m s γ m γ m g s

19 Δ γ γ + γ s g m g m s

20 o o o o Ni S 3 2 Cu 2S FeS

21 Ni S 3 2 Cu 2S FeS

22

23 CuFeS 2 CuSFe 4 Cu 2 S Cu Fe S Cu Fe S

24 FeO Fe SiO2 CuFeS matte O2 Cu Fe S + FeO SO ( ) 2

25 Cu 3 2S + 2O2 Cu 2O + SO 2 FeO( slag ) + Cu2 S( matte ) FeS ( matte ) + Cu2O( slag ) 3FeO + 1 2O2 Fe3O4 ( s) FeO + SiO2 FeO. SiO2 ( slag ) Cu x O SiO2 SiO 2 SiO 2 SiO 2 SiO 2 PbO SiO 2

26 SiO 2 Φ = γ s g γ m g γ m s Δ γ γ + γ s g m g m s

27 γ m g

28 ( ρdrop ρslag ) 2 2 v = g r drop 9 μ slag ρ ρslag drop μ slag rdrop

29

30 2γ cosθ h = rρg

31 L1 L1 L1 L2 L 1 L1 L2 L 1

32 dγ γ dt γ dc γ dϕ τ s = = + + dx T dx c dx ϕ dx ϕ

33

34 Ni S 3 2 FeS Cu 2S

35 Ni S 3 2CoS Cu 2S FeS FeS

36

37 Ni3S2 Cu2S FeS Cu 2 S Ni S 3 2 FeS FeS Ni3S2 FeS

38

39 Δ P = γ R1 R 2

40 A = ΔpdV = γds ΔpV γ S

41 ( φx γ + x γ ) ( x + ) γ = φ x2 γ 1γ 2 φ Cu 2 S FeS Ni S 3 2 FeS Cu2S

42 Cu2S Ni3S2 FeS Cu 2 S FeS

43

44

45

46

47 Stellenbosch University

48

49 J L dγ = d [] x [ x ] 0 θa θb

50

51

52

53 p 1 1 Δ = γ + = gz c R R ρ ρ Δp φ 1 2 sin φ ρgb z + = 2 + ( R b) ( x b) γ b

54 β ρgb 2 γ 1 sinφ z + = 2 + β ( R b) ( x b) b x b z b β φ β φ 2 ρgb γ = β

55

56

57

58

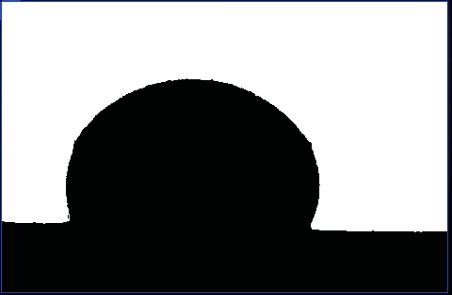

59 ρ Ni S 3 2 = T 4 ρ = T Cu S 2 4 ρ = T FeS

60

61 S 3 2 Ni

62

63

64 X η % Difference = 100 η X Ni S 3 2

65

66

67

68

69

70

71 Cu 2 S Ni S 3 2 FeS

72 P O 2 a P P = i i Θ a i Pi Θ P

73 22 log P 14 2 O ( atm) exp( P ) P O = log 2 O 2

74

75

76

77

78

79

80

81

82

83 β φ x b z b x b z b x b z b x b z b x b z b

84

85

86 Log(Activity) 5 File: C:\HSC7\Gibbs\0.8 mol. % Ni3S2.OGI 0 FeS Ni3S2 Ni3S2(l) FeS(l) NiS(g) FeS(g) -15 S2(g) O2(g) SO2(g) Temperature (oc) Log(Activity) 5 File: C:\HSC7\Gibbs\0.2 mol. % Ni3S2.OGI 0 FeS Ni3S2(l) Ni3S2 FeS(l) NiS(g) FeS(g) -15 S2(g) O2(g) SO2(g) Temperature (oc)

87 Log(Activity) File: C:\HSC7\Gibbs\0.2 mol. % FeS(0.OGI 3-2 Cu2S FeS FeS(l) Cu2S(l) -7 Cu2S(g) FeS(g) -12 CuS(g) -17 O2(g) -22 S2(g) -27 SO2(g) Temperature (oc) C Log(Activity) File: C:\HSC7\Gibbs\0.8 mol. % FeS.(0.OGI 4-1 FeS Cu2S FeS(l) Cu2S(l) -6 FeS(g) Cu2S(g) O2(g) S2(g) SO2(g) Temperature (oc)

88 Log(Activity) File: C:\HSC7\Gibbs\0.2 Cu2S.OGI 4-1 Cu2S Ni3S2 Ni3S2(l) Cu2S(l) -6 Cu2S(g) -11 CuS(g) -16 SO2(g) O2(g) Temperature (oc) S2(g) C Log(Activity) File: C:\HSC7\Gibbs\0.8 mol. % Cu2S.OGI 0 Cu2S Ni3S2 Cu2S(l) Ni3S2(l) CuS(g) Cu2S(g) SO2(g) -15 O2(g) S2(g) C Temperature (oc)

89 Stellenbosch University

90
