Type 441 DIN 442 DIN. Capacities. Flanged Safety Relief Valves spring loaded. The-Safety-Valve.com LWN E
|
|
- Άκανθα Ταρσούλη
- 6 χρόνια πριν
- Προβολές:
Transcript

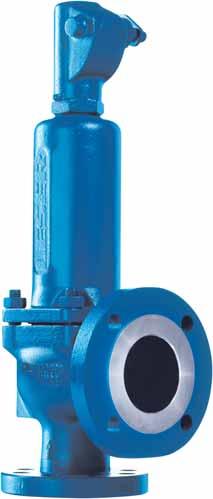

1 Type 441 DIN 442 DIN Flanged Safety Relief Valves spring loaded Capacities The-Safety-Valve.com LWN E
2 Approvals Approvals DN I DN O Actual Orifice diameter d0 [mm] Actual Orifice area A0 [mm 2 ] Europe Coefficient of discharge K dr DIN EN ISO Approval No Z0008/0/08-2 Germany S/G 0,7 L 0,45 Coefficient of discharge α w AD 2000-Merkblatt A2 Approval No. TÜV SV 576 United States S/G 0,7 L 0,45 Coefficient of discharge K ASME Sec. VIII Approval No. M37044 Canada Approval No. S/G 0,699 M37055 L 0,521 Coefficient of discharge K Canada: CRN Approval No. OG1182.9C China CSBQTS Approval No. S/G 0,699 L 0,521 Coefficient of discharge α w S/G 0,7 L 0,45 Russia Coefficient of discharge α w GGTN/ Approval No. PPC GOSGOTECHNADZOR S/G 0,7 GOST R L 0,45 Classification societies Homepage Bureau Veritas BV Det Norske Veritas DNV Germanischer Lloyd GL Lloyd s register EMEA LREMEA Registro Italiano Navale RINA The valid certification number is changed with every renewal. A sample certificate including the valid certification number can be taken from the homepage of the classification societies.
3 Capacities Steam Capacities for saturated steam according to AD 2000-Merkblatt A2, based on set pressure plus 10 % overpressure. Capacities at 1 bar (14,5 psig) and below are based on 0,1 bar (1,45 psig) overpressure. Metric Units AD 2000-Merkblatt A2 [kg/h] Actual Orifice diameter d 0 [mm] Actual Orifice area A0 [mm 2 ] LEOS/G* ) [inch 2 ] 0,283 0,283 0,462 0,734 1,195 1,847 3,142 4,779 7,387 8,382 13,637 23,761 Set pressure [bar] Capacities [kg/h] 0, , , * ) LEO S/G = LESER Effective Orifice steam/gas please refer to page 00/11
4 Capacities Steam Capacities for saturated steam according to ASME Section VIII (UV), based on set pressure plus 10% overpressure. Capacities at 2,07 bar (30 psig) and below are based on 0,207 bar (3 psig) overpressure. US Units ASME Section VIII [lb/ h] Actual Orifice diameter d 0 [inch] 0,71 0,71 0,91 1,14 1,46 1,81 2,36 2,91 3,62 3,86 4,92 6,5 Actual Orifice area A0 [inch 2 ] ,644 1,024 1,667 2,576 4,383 6, ,691 19,021 33,142 LEOS/G* ) [inch 2 ] 0,283 0,283 0,462 0,734 1,195 1,847 3,142 4,779 7,387 8,382 13,637 23,761 Set pressure [psig] Capacities [Ib/h] Please select DNI * ) LEO S/G = LESER Effective Orifice steam/gas please refer to page 00/11
5 Capacities Air Capacities for air according to AD 2000-Merkblatt A2, based on set pressure plus 10 % overpressure at 0 C and 1013 mbar. Capacities at 1 bar (14,5 psig) and below are based on 0,1 bar (1,45 psig) overpressure. Metric Units AD 2000-Merkblatt A2 [ m n 3 /h] Actual Orifice diameter d 0 [mm] Actual Orifice area A0 [mm 2 ] LEOS/G* ) [inch 2 ] 0,283 0,283 0,462 0,734 1,195 1,847 3,142 4,779 7,387 8,382 13,637 23,761 Set pressure [bar] Capacities [m 3 n /h] 0, , , * ) LEO S/G = LESER Effective Orifice steam/gas please refer to page 00/11
6 Capacities Air Capacities for air according to ASME Section VIII (UV), based on set pressure plus 10 % overpressure at 16 C (60 F). Capacities at 2,07 bar (30 psig) and below are based on 0,207 bar (3 psig) overpressure. US Units ASME Section VIII [l S.C.F.M.] Actual Orifice diameter d 0 [inch] 0,71 0,71 0,91 1,14 1,46 1,81 2,36 2,91 3,62 3,86 4,92 6,5 Actual Orifice area A0 [inch 2 ] ,644 1,024 1,667 2,576 4,383 6, ,691 19,021 33,142 LEOS/G* ) [inch 2 ] 0,283 0,283 0,462 0,734 1,195 1,847 3,142 4,779 7,387 8,382 13,637 23,761 Set pressure [psig] Capacities [ S.C.F.M.] Please select DNI * ) LEO S/G = LESER Effective Orifice steam/gas please refer to page 00/11
7 Capacities Water Capacities for water according to AD 2000-Merkblatt A2, based on set pressure plus 10 % overpressure at 20 C (68 F). Capacities at 1 bar (14,5 psig) and below are based on 0,1 bar (1,45 psig) overpressure. Metric Units AD 2000-Merkblatt A2 [10 3 kg/h] Actual Orifice diameter d 0 [mm] Actual Orifice area A0 [mm 2 ] Set pressure [bar] LEOL* ) [inch 2 ] ,516 0,821 1,336 2,062 3,513 5,343 8,259 9,371 15,246 26,565 Capacities [10 3 kg/h] 0,1 2,60 2,60 4,25 6,76 11,0 17,0 28,9 44,0 68,0 77, ,2 3,19 3,19 5,21 8,28 13,5 20,8 35,5 53,9 83,3 94, ,5 4,51 4,51 7,37 11,7 19,1 29,5 50,1 76, ,11 6,11 9,97 15,9 25,8 39,9 67, ,64 8,64 14,1 22,4 36,5 56,4 96, ,6 10,6 17,3 27,5 44,7 69, ,2 12,2 19,9 31,7 51,6 79, ,7 13,7 22,3 35,5 57,7 89, ,0 15,0 24,4 38,8 63,2 97, ,2 16,2 26,4 42,0 68, ,3 17,3 28,2 44,8 73, ,3 18,3 29,9 47,6 77, ,3 19,3 31,5 50,1 81, ,2 21,2 34,6 54,9 89, ,9 22,9 37,3 59,3 96, ,4 24,4 39,9 63, ,9 25,9 42,3 67, ,3 27,3 44,6 70, ,7 28,7 46,8 74, ,9 29,9 48,9 77, ,1 31,1 50,9 80, ,3 32,3 52,8 83, ,5 33,5 54,6 86, ,6 34,6 56,4 89, ,6 35,6 58,2 92, ,7 36,7 59,8 95, ,7 37,7 61,5 97, ,6 38,6 63, * ) LEO L = LESER Effective Orifice liquids please refer to page 00/12
8 Capacities Water Capacities for water according to ASME Section VIII (UV), based on set pressure plus 10 % overpressure at 21 C (70 F). Capacities at 2,07 bar (30 psig) and below are based on 0,207 bar (3 psig) overpressure. US Units ASME Section VIII [US-G.P.M.] Actual Orifice diameter d 0 [inch] 0,71 0,71 0,91 1,14 1,46 1,81 2,36 2,91 3,62 3,86 4,92 6,5 Actual Orifice area A0 [inch 2 ] ,644 1,024 1,667 2,576 4,383 6, ,691 19,021 33,142 LEOL* ) [inch 2 ] ,516 0,821 1,336 2,062 3,513 5,343 8,259 9,371 15,246 26,565 Set pressure [psig] Capacities [US-G.P.M.] 15 54,0 85, ,1 97, , , , Please select DNI * ) LEO L = LESER Effective Orifice liquids please refer to page 00/12
9 Determination of coefficent of discharge in case of lift restriction or back pressure Diagram for evaluation of ratio of lift / flow diameter (h/d 0 ) in reference to the coefficient of discharge (Kdr/αw) 0,8 K dr = α w = f (h/d 0 ) h = Lift [mm] d 0 = Flow diameter [mm] of selected safety valve, refer to table article numbers h/d 0 = Ratio of lift / flow diameter p a0 = Back pressure [bar a ] p 0 = Set pressure [bar a ] p a0 /p 0 = Ratio of back pressure / set pressure K dr = Coefficient of discharge acc. to DIN EN ISO α w = Coefficient of discharge acc. to AD 2000-Merkblatt A2 K b = Back pressure correction factor acc. to API 520 topic 3.3 0,7 0,6 DN , DN 200 "S/G" 0,5 DN "S/G" Coefficient of discharge K dr / αw 0,4 0,2 0,1 0 0 DN , DN 200 "L" DN "L" 0,1 0,2 Ratio of lift / flow diameter h / d 0 Diagram for evaluation of coefficient of discharge (K dr /α w ) or K b in reference to the ratio of back pressure / set pressure (p a0 /p 0 ) 0,8 K dr = α w = f (p a0 /p 0 ) and K b = f (p a0 /p 0 ) 0,7 1,0 0,6 0,9 0,8 0,5 0,7 Coefficient of discharge K dr / αw 0,4 0,2 0,1 0 0,2 0,4 0,5 0,6 0,7 Ratio of back pressure / set pressure p a0 / p 0 0,8 0,91 0,6 0,5 0,4 0,2 0,1 0 Back pressure correction factor K b
Type. Capacities. 441, 442 Full nozzle DIN. Flanged Safety Relief Valves spring loaded. The-Safety-Valve.com LWN E
Type 441, 442 Full nozzle DIN Flanged Safety Relief Valves spring loaded Capacities The-Safety-Valve.com LWN 468.3-E Approvals Approvals DN O 5 65 8 Actual Orifice diameter d [mm] 23 37 46 Europe Coefficient
