Comparison of Nonlinear Models for Prediction of Continuum Damage in Aluminum under Different Loading

Transcript

1 ;< +:=>3 9): / +,( )*! + (##$ %&' () *+, -,/ "! + (##$ %&' () *+, -,/ *+,!! C"$ : "#$ % = + # ; *+, - 9: " ) ; 3 ) 583 % GH3 L %I J&K GH3 D 3 E?F >!C 3 &' ) 3?@ A >, ) ' ) > + 3 M 3 Q 3 3 D 3?@ A,> H F 3 = N H 3 E3 M & Q %I (USDFLD); 3 & 3 3 P+ % ;: + ) O,> ;,! # 3 S, 3 K, 3 I M) ) Q GH $R #,-) + 3M 3!3 F 3 > D$ -KH + ) > 3@?@ MK3 V U3 E?F -, T$ 3 M,> ;, L 3 > 3 > 583% $ P4 N = " :+H+,E:F Comparison of Nonlinear Models for Prediction of Continuum Damage in Aluminum under Different Loading A M A Farsi Mechanical Engineering, Astronautic Research Institute, Iranian Space Research Center, Tehran, Iran A R Sehat Mechanical Engineering, Astronautic Research Institute, Iranian Space Research Center, Tehran, Iran Abstract In this paper, the continuum damage mechanics principles based on onora model and limiter model as a non-linear model are studied Nucleation, development and propagation of damage in Al 583 are investigated Different loading such as cyclic loading, triaxial stress and temperature influence on damage mechanism is investingated The FE simulation of material behavior during failures is carried out by AAQUS software package and USDFLD subroutine The results are validated with experimental tests These comparison show that the simulation results are verified by experimental tests, and the onora model accuracy to behavior modeling is better Also, capability of model to prediction of fracture is not acceptable when the temperature is high Keywords: Continuum Damage Mechanics, FEM, Aluminum 583, onora Model, Limiter Model 3 3 V 3 >' %-, (&' 775 % F ;##$ 4 % ): ; [4] % L! (E?F,) 3 + H ), + ;3 ) = = "N % 9&$ ) &R,N [5] IJ KL8/ F ) (##$,) ^V, j, Z! 3 %I 4 4 &' 3 _?# k? M $ & " 3 ) 9R: Q 3,-) Q #3? [6] OR lp >a ) ) R ) -KH W %' -KH NP@ L 3 M %' + no,$ ; S! "C,M ) _) Continuum Damage Mechanic(CDM) * - 9: 3 F P3 = " W " [P3 " \,9 X Y, &Z ]CC W ; P4' ( L 9&$ ) ) + ) 3 3 " W &@, X % -KH = I % ^ ) _F ` *+, ER 3 9?@ A = I, O:? 3 3 " " \, 9 X 3 ;W? &' 3 : a,n 3 C H b S&' E 3 Z E?F ) KH S, ) L 3,) E ) ) 3 &R 9' ), + -C M, 4! " ; G []3 *+,! ): :,) Rf@,) 3 %I ) > ): 3 (##$ [] M, "3 >` ' 3 [3] * farsi@ariacir :

2 -H&H > ##: [4]! Z D E > -" U [P3,9 X ' 9&$ 3 x 3 ' W 3 " P A " \?@ A = " ]CC 9@ " ; 9Z?@ 3 $ P4 N [5] F 3 L, X O 9&$ 4 $ " = M 3 & > 4 %' M ) $," ) H O 3 > 3 3 GH3 $ ) + 3?3 = ) O 3 % (P&+ 3 & > " [6] Z []3 =?@ A > [7] \& 4 : S& M 3 M { 93# ( L > ; + H T o ) KH 3, " P A + M 3,> 3 ;##$ 4 P ; % [8] Z % ; + 3, X ;E 3 3 I " ) V K z\ = > "! O U+ A533- pr E 3 P+ % " \ " U 9 E?F 3 % -KH+ ) 3 > ; $ E?F ) 9R: =, X + H 3 3 &E p',! + H F O + M) ) 9R: # 3 $ o ^ 3 $3 [9] # " P = ( X 3 > " > ; Z " &@, X ]C!C GH3 L 3 [] >E M L M >R 3 &@ O: L - [] 3 = N H & ) O 3 ) 33 >' %-, % 3 [] 3 $OR M 3M 3 E4 > ), %I (##$ 4 3 D J &K 3 Z = ) 3, /3 E3,M _) ;Y, J&K GH3 %)U ; 3 3 ( O,> ; Z F M P Z,> }?,> E ): (##$ % # ; 3 J&K GH3 D 3 / 3 *+, ) : +, 3 a@ H F 3*+ (E?F ; S!D 3 ) O %?@ 3D Z,> A) 3! ), ): F 3 3 ]K &' 3 3 = >, ) = ) E3,M 3,> O ' ) 3 I,) { 3583b % p4)e?f ; 3 M (ASTM E8) Z 4 > [7]jC, j, > 3 ;K 3 H NP@ % ) = " >R Z G j?e ;+ ) = ) % -KH = " ' 3 o + 3, O: [5], O: p ]$,) " U " 4 qk 3?3 [8]! O: : " \ S 93F A ١ 3 3! E P-& # N pr -" U (R 3 + t +, O: 3 SI: ( X ;Y, (K 3)9 " \ T + 9 X,F O: ", M MP+ 3! + H M, % 3 " " P A > 989> L $ ($OR,o $3 qk [9] E x C D " \ ),9 X yp4 D3 3, $3,o N H 3 > ; # 3 $3,3 ;Y,! + E $ #,-), X ]CC = " P > D " W &@ 3 >E M >R L M 3 = > ; [] M 3 4 3?@ A ( X > ;! Q ) O 3 > ; I $R, " \ ) HY > ; > %I % b,-) N 3 3 I! $, ) O Z H D! ;E 3 fk E 3 I (, 3?@ A 3 9 X 3,?@ A = I, O:,9 X %-,, > ; [] " \ E E) _3 " \ 3 > ; " \ L M ^I =: 3?@ A ; ;Y, > 3@ 3 % -KH (O &: 3 M 3 $ M L k 3 ze3 > [] E A533 U+ % 4 P -@ 3 = " -KH I &R M# " \ 9 X,GH3 3 =?@ A > 3 SE 93F 3 D Z > &R P [3] SE & M) Q) O 3! >, $ & GH3 M, O: 9f $ # ) 3 4 > " " \ U - 3 "C &@ 3M?@ A,> # = Rayleigh-Ritz Nonisotropic

3 $R V + &'$ N O 8: N/* P/-M " (583 %) 3 ; 3 4 3, O:,o _) t + ;-, " P!4 3 3 (D) = I: D = - / = : I: _?# k?, O: : -3 A _?# k? 3 ' F $ GH3 : (٢) M J E ;+ H T 3 >' _4 I: " P t + 3 = () G-4 = J E(3)?3 (R 3 L M?3 3 =!"#! = : + L M J E 3 3 : (UE - (' 3 L M L $ L M (O ; 3 ' : (UE 9` = (3) (UE M ;P-4 ]CC qk " & (UE 3 3 O :, X ) " G H 3, + E & : " " JR 3 ;Y, % _3 (Ψ) P&, ) b ) zue : F O 3 3 &@, X y i &@ 3, X %&= '(()) '*& X L x i &@, X ;3-3 (4?3) -C(,M! = : 3 ( L 4 ; (4)?3 3 [], A : 9 " \ ( L 3 " U (4) ((5)?3)3 - ) 9# - (' H FM -KHT$ %I P(E?F & GH 3 ) " \ $ M?@ AM L 3 3 M P ) 3{ " +3 + ' ) > 3;Y, H FO,> ) 3O 3 P+% ) : 3 + ( O ~@ J E!4 3 (USDFLD) ; 3 ) P+ % 4 )9 R: Q,> ; 9&$ 3 3 O # ',9&$ Q 3 3 I,M) 4 56 (, { % & 3 (P&+ -3 { P ( : 4 (P& ;, {, ^ ; ) E?F E3 GH3 : " \ % + X 3, % # 9&$," ) H F 3 [3] 4@ >' L = ) ;+ ) ' 3 X " = 9 X = 3 D 3 9$ 9` G H 3 ( X I ^ " \ 3 I 4 3, O:,o ) 4 -KH _?# k? M, (R 3 = P+ H ) b, I: f' ;, X % _4 I: J E + H T,o ) 4 a@ 3 _?# k? M, ) 3 4 3,=,-, O: [P3,*+ 3 #, "C I: _) " \ G H 3 M 3, =, # _4 I: # # M D P,,o, O: zu: & : $? -C & 3 P+ (R 3 = X 4 ) _a# $OR 3,o o 9f+,o 3 3 $OR " 3 (9) J E _4 I: D ( ) = () () [5] Z = X J E 3 ()?3> () I: _?# k? A > 3?3 ; ] K 3 3 = X L k? O?3 ) JR 3 3 A () _4 > 3 3 ) = ) e(, -,T, D)+ ) P( T, r, x) K &@ X r T?3 ; (5) 4 K &@ X Crack Nucleation Representative Volume Element

4 ()?3 (R 3 D Z 9 _) [5] ` F = (ab!)(!") (c` ) (ab!) () K n ~fk S 3L t + 3 (3?3) - [ K F S!?3 3 OR 3 3 : = # ; f =gh!/ [3] $ = N H (3) K F G-4 (),?3 ) H } 3, 3 = _3 # a3 ( $ %I 9 _3 3 > 3 = 3! I l K > : ) (R = : (UE?@ " U ]CC X 3 (7) (6),?3 G 3 Y=( 67 6# Y=- > 9 :;(!"#) <=( > 9) E M b ) ) { ", Mσ A )P M >E ) e 9 ) 3 = 3 Y (6) (7) D3 ; ( X 3 3 'F F 3 (UE 9 3 " U GH 3 : ) &@, X 3 3 j\ ; " % F )U :G 3 ` 3 3M?@ A,> # = D-D =(D z{ D )( -[ (L ^ L rs ) ( t pq^ trs ) ]a ) D D z{ = ( c`) : (P-P z{ ) 3 lm # k j 3 M [5] 3 (6)?3 ) O lm = n (6) o t pq L 3 pq $ : _F ` 3 %)U t rs L rs f( v w " 3 3 ) $ M : [] 3 3 v xy +? +Q K,P+ % E! M % I! " E? 3 O,N ),P+ yp 4N " 3 ' ) z ' ) 4 #9 : 3' ; %I $ ; -,?3 9:P ZP4 9 O(UE (U E 3! ) 9 O(UE 9jG: N 9 : &9 ` ',N 3 E 9 O [4] 6 p 3 T O&K,P+% 3M,&, + ) ) 3 P +% 34 3 }#$ ; + H 3 % I ) > 3 )?@ A9Z 9&$ 3 9 ) O C3D8 O 9&$ ) (E?F 3 M 3 (4) (5) X) H, 3?@ " ( ] K H 3 E E3[5] ),% + E MP + 3 I M ) 9# Q %$?# E?F I `: M,,C : G F G * Ġ - Y - { x Ṁ = ( X { D M { εl?3 ; (8) K ( X, X ( X E " F 3 ) 3 (F)j\ 9 ) > &@ " \ 4 I,-) Q, ) O []3 4 - ) _) 9 (R 3 9 _) 3 3 9Y +- / 9 " % F V 3 &@, X ) E3 = N (,O,P)+ # (F) [], 3 K K R?3 ; J E ()?3 (R 3 = X 3 ( X?3 = - Q 6R 6S = 9 _)F D (9) () " \ M { λ?3 ; M { -KH { ;3 9-3?3 ; (-λ )" \ = V& 3 ^I " \ 9 _) ;E 3 ) & (UE _) " % F 3 (F )= ; 3 ]$ _3 " 3 = 9 ;Y, 3 `, O: ) 4 9: a@ 3 % 3 _) _) _3,> []?@ A ( 3! = (E? 3 # ; Z O&K 9 I?@ A > %I [3] ]K -KH ()?3 (R 3 Z 3 & _) # = [(! : )("S W ) : ( W!"# )]# YZ [\] ^ [ C <_^ [] () 3 Ramberg-Osgood hardening law 4 Finite Element Method(FEM) 5 AAQUS 6 ANSYS Isotropic hardening kinematic hardening 4

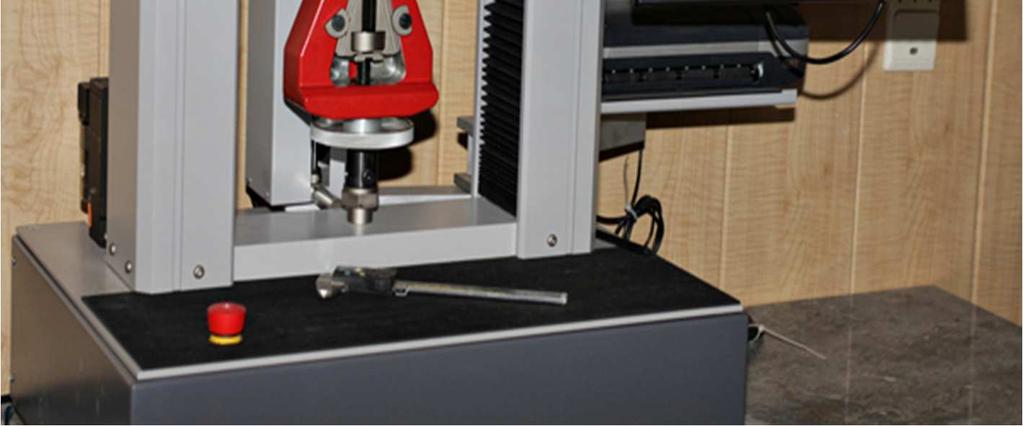

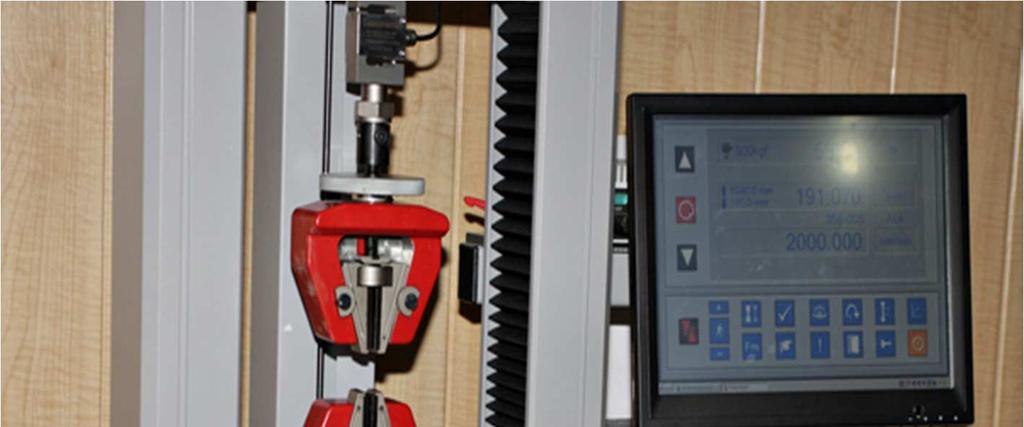

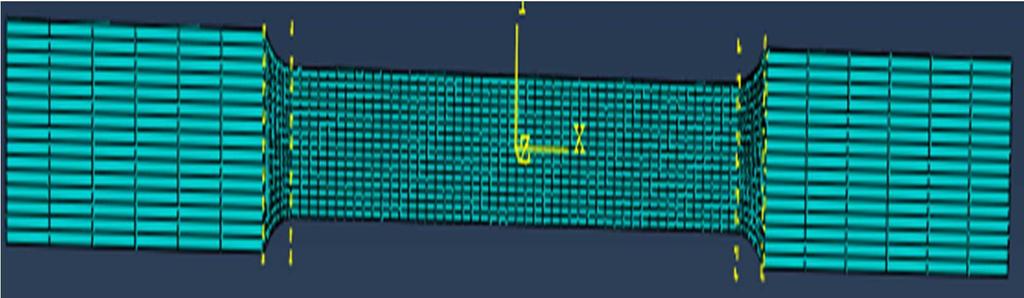

5 $R V + &'$ ) 9 R: 59 %I 3 M M ) ;, MM) O ',) qk M -M > 4( R 3M M) )9R: # 6 9 )E3> M) E?F 9;Y, ::-JH-)6L/R-4M (F:-)6 L/R L3:-(F ) (mm) 3 5/8 9/3 9/3 9/6 7/ A C D G R T 3 PC 3 ( X qk # " 3! &45 z # : ; ) 3 3 I M) %-, GH3 $ ) D % " T ; 3 >'3 P+% 3 (R > 9 > f ( R 3 ( C! k? ) E?F : 3 ) I D#+ (! k? ) - 3, ) 4 M, ; a FV SDV PH ' 3 = X, P +% ; >E+P+ % T ST MK3 + ) D= X>' $ EF D (USDFLD) ; 3 "3; 33 ) -KH + 3, H, XJ E 3(USDFLD) ; 3, X I fk, ) )E3 ' 33 9:+ E 3;Y, Z ; 3 ; [5] O -L/R-M σ(mpa),> 3S+,-)6 }F 3,) )9R: Q GH$R -5 M ) % I ) ), l K ;Y, 3 %I M (R 3,M) ; 3 I GT-> ", > M - )T ;, O -,/ b -) # 7-LC (3 9) 5 ( )I (F:-)6 L/R )3-- S K:US-5M C : L3 (F: -)6 L/R-6M O > M) E?F 3 z\ E?F ) % M) M $ > M) 3 M) ; E?F 3 & GH3 " \ #? + H F :?@ A,> M) ; " 3 GH3,: ) ) 3 & GH3 & ] (R 3 >' 3 D >', ) E?F G L -3 ) ; ;Y, 8F, (44) -JH CS T-3M GT-7-LC (49 ) 583% p 4) E?F>M ) > 4 E3 3(ASTM E8) 3 Solution dependent state variable(sdv) Predefined field variable 5

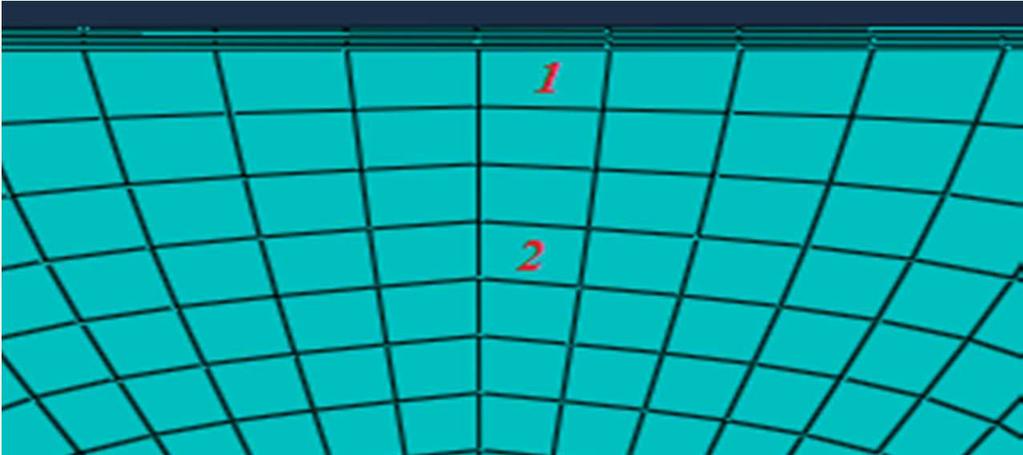

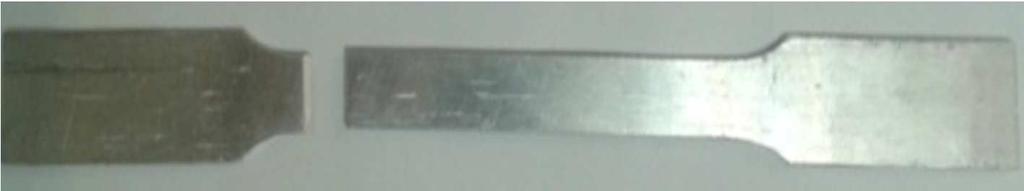

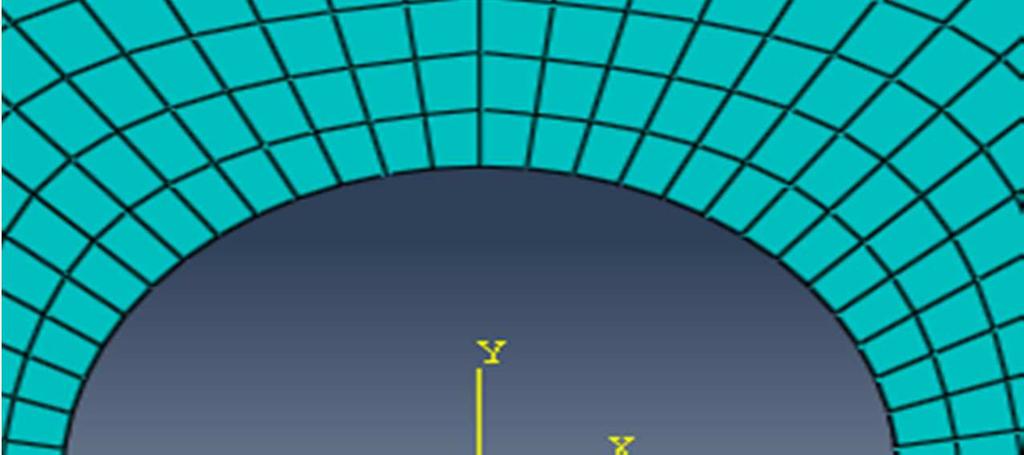

6 3 5 σ(mpa) :X:4 L/R L3:-3(F (mm)) 8 A D T 3 = 9&$ &F GH3 Z 79 M) I3 O -JH -)6 : 6 C3 V:4-(F # 36MPa 75 MPa 53 MPa 64 S& M! %$ P M M 3M?@ A,> # = 3 σ(mpa) ( )I )6 )3 Y:3 - S K:US-9M 5 5 ( )I )E3 % M) E?F- M 7F -)6 L/R )3-- S K:US-7M + 7D -)6L/R)3-- SK:US-M :T 5 Z) 3-6 ( R 3,M ) + %I,M) 343 (USDFLD) ; 3 "3 3 P+% & 3' # 3,) )9R: Q ) 9&$ #,M) Q M ) ) 9R: Q 3 4 3,) s 3 I 3 []_4 D! # D$ + H T 4>4 (R 3 ), >' %-, + 3 M,> }3? { E?F ) % A M 99 % M) I O 3 >4 3 E3 3 ) E3 % M) E?F f ;Y, Z 9 'F 3 =?@ A,> ; ; 3 4 3! F E }#$ ;! 3 3 P U3 z = N H + 3 M G + H F 4 O S! ^V ; 3M = N H 3 L 3 3 %!C M) ) T ; 3 %I %-,?@ A > F $ %I H %)U 9R: ) Q + H F M %$ S& M 3 =, :X:4 L/R-8M # 3 ' ) ƒ\r 4! 6

7 $R V + &'$ "P OR 3 3 I ) %-, 33 + # I34 # )?@ OR -Y, ; ; 3 P ' 9&$ 3 Q L - 3 P+ % ) O 3 %I ) D H ) + ; GH3 9: ) O?, 6>4 39 9R: Q F P : ;?@ A,>, ; 3 4 3, & GH3 ) > 3 3@ 3, " U $ M -M =) " U > ; 3K3, > ; X GH3 3, (GH3 % > M) Q # 3 >' X :OH " \ $ ] GH3 : " M, ( M ) 3) ) ; ; 3 G?@ A, > X C 3 F 93F F ) T$ + 3M > ) σ(mpa)!3 P : ; 3 > F ;, 3 > M) > ε ' 9&$ ) 9R: Q 3 > M) ) 3 Q 9) # ˆ Š Œ 9 Q 3 > 3 ( 5>4 + Q [ )*-4(F ƒ ƒ 64 ~ 36 } 75 E (GPa) 7 ʋ 3 s 5 3>, 5>49 a, T + 3M 3 > 3 3, Z M 8 F :4 3 ( +,/ $ Q"-5(F?@ R 3 > 3 # /9 /95 / /5 75E 75E 73E 68E R >?@ 3 # / /44 / /5 /75 / 5!3 ) %-, š œ ž Ÿž 78E 78E 76E 7E 73E 7E 7E 65E ;-?@ 7 8 F :4 3 ( + Q3 M -F K:US- M 7F -)6 Z) 3 )* 3 CQ 8 F :4 3 +,( +,/ $Q"-6(F >?@ R # 3 % 3 Steps 7F -)6+,: R >?@ # % 3 š œ ž Ÿž /6 54E / 7 55E 3E+8 /3 57E / 4 58E 64E /6 58E / 3 6E 38E /8 64E / 9 64E+8 356E+8 /3 65E / 64E 4E /4 / 5?@ ; σ(mpa) F 8 ( :4 3( + Q3M -F K:US- (F: -)6 Z) M 3) 3 = > 3),N ) 3 & ] GH3 %-, T$ 3M F & GH3 $ T ; 3 (E?F X $ 3 3 GH3 + ) %-, + H, { E?F! (E+ 3 " \ 9 ε

8 -K H ^ F T$; E " U $ + T$ ; E,> F > F 9 3F F ; M _ ) $ " : 3 # : ; ;! ) : E 3 (f ( > ) 9)= t + j\@ ; 9U E?F -, ) + H T = X D3?3 ; %)U F 3 t + ; { ; # H }#$ $ }F t + a K3 ; ; ;Y,,@ EF : ) 3 P " P + ; -3 Q ; ;Y, " P 9a J &K,> E % I 3 (##$ ( ##$ ) E3 M : σ(mpa) 74 -)6 L/R )3-- S K:US-4 M -K H + GH L S!, 9' ) =?@ A,> E ;Y, ; 3 G + H!3 " ) ^ V ; V D $ ) M3,> T ; 3 limiter bonora TEST Elongation 5 5 _F 4 ; (##$ -, b ; ER 3 ; " M H ak3 ) *+, -,/ 3 3 ) }#$ ; [6] H 4 3 ) %I H R: Q O )3?@ A > F 3 4 Z 69 = # H) 9&$ ) [5] )?3 ) O 3! ^F ) 9F ' N ) & 3 9: = # (7?3) $ D = E E "! > E i- GH3 3, " U > O 3 = # D i E i (7) &F GH3 " U 7>4 (R 3 = Q ; ) +:33 F +:=>3 )6@ 56: US-7(F ) ' Q >F 93F K, -3 >4 ; Q GH3 3 /36 - /7 /7, = P, ;Y, &' 3 MP+ " \ % + X $ 33 %-, = 3 M,> &F,) EF, (E?F 3 $ " M >' ~fk3 $ " A (R 3 z' ' M 3 ( X E3 M L 3 3 >' $ O { E?F " ) ) + 3 M ), 9$ M _) $ ;K S,3 = { 4 D#+ 3 I M _) = _) C ' 9&$ L 9 I34 ' ) &R+ 3 = J&K # M M ] ; 33 /58 /6 M) ) X M # { M # ; 3 O H;- N ) = ; O! ;- $ 4 9 }3??# ) &R+) D 3 D$ 3 # ]K (E?F { 3M?@ A,> # = 74 -)6 L/R M"S +:3 \<: +,8: -3 M 3M 3 # ; M / 3 F = # M Pattern 8

9 $R V + &'$ D 3) O U 3 /3 L )] GH3 %I,> ;!3 9 3 = K C4-8 K #, X J E 3 USDFLD ; 3 I fk, ) ) E3 ' 3 9 : + E 3 ; Y, qk X O ~@ 3 3 (USDFLD) ; 3 ) I SUROUTINE USDFLD(FIELD,STATEV,PNEWDT,DIRECT,T,CELE NT, TIME,DTIME,CMNAME,ORNAME,NFIELD,NSTATV, NOEL, LAYER, KSPT,KSTEP,KINC,NDI,NSHR,COORD,JMAC,JMAT YP,MATLAYO) C INCLUDE 'AA_PARAMINC' C CHARACTER*8 CMNAME,ORNAME CHARACTER*3 FLGRAY(5) DIMENSION FIELD(NFIELD),STATEV(NSTATV),DIRECT(3,3), T(3,3),TIME() DIMENSION ARRAY(5),JARRAY(5),JMAC(*),JMATYP(*),COOR D(*) user coding to define FIELD and, if necessary, STATEV and PNEWDT RETURN END : (USDFLD) ; 3, X J E FIELD(NFIELD) T?#, X : " STATEV(NSTATV), X : 3 3 9: : " PNEWDT O 3 ) MP ) MP+ DIRECT(3,3) CELENT TIME() CMNAME NFIELD NSTATV NOEL NPT,, : " > 4 t ' >a ) " 9:, )A &:, ) # fk % K #, X E 9: 3 3, X E, E 3)* :4 3 ( )3-- SK:US-6 M :> 5+,TJ)6Z) + 3 M > F C,, Q ) A T$ 3 K3 z # >F 93F 3 = N H zu : U ; 3 M = T K F x r (&' ( X } F C(- [ K F) > + H F 3 % + X ) > ; 33 y 93F G 3M! T$ = / 4 q# " ' 3 ^V ; 3 ;##$ %)U 3!3 P : ; > F N\ +> % -K H S! 9' ) = N H 9 > ), %I 3 (##$ SA &' -7,) # ; Z = E4 +)!4 = j E > 3) % I ' 3 I (R 3 -KH + ) O b ; S!) 583% H 3 3 I,) ; (,9:,*+ A,> )' ) >!C 3 3 I,M) O P +% + H F E? ) 3?@ 3> # ; H%I E?F Q H> '(USDFLD) ; 3 & 3 3 M M ) " 3, 3 I,M), l K ' ) > 3%)U -K H + ) > 3@?@ > $ " GH3 %-, # A,> ; -, + 3M 3!3 F 3,> ; F ) E3 E?F 3 ' M _) L 3 3 %I }#$ ;Y, = 3 M,> ;, = N H,!3 -)3 ) FU3 P A 3E? H! (##$ Tempering 9

10 [] Pirondi A, onora N, Steglich D, rocks, D Hellmann W, Simulation of failure under cyclic plastic loading by damage models, International Journal of Plasticity, pp 46 7, 6 [] Tvergaard, Viggo Effect of initial void shape on ductile failure in a shear field, Mechanics of Materials, 4 [3] Sehat A R, study on aluminum damage using CDM theory, MSc thesis, Aerospace Research Institute, 3 [4] Reddy J N, An Introduction to the Finite Element Method, McGraw Hill Series in Mechanical Engineering, 6 [5] Abaqus analysis user manual 6 [6] M A Farsi et al Sounding rocket 6 structure analysis, ARI Report, 3 KSTEP NDI COORD H> - # E 9: 9: E &R M P4 E T?# (fk JMAC 3 3(GETVRM) 3 X 3M?@ A,> # = N: -9 [] Gross D, Seelig T, Fracture Mechanic: With an introduction to Micromechanics Springer, Second edition, [] Sun C, Jin Z-H, Fracture Mechanics, Elsevier, [3] ui H D, Fracture Mechanics: Inverse Problem and Solutions, Springer, 6 [4] ørvik Tore, Odd Sture Hopperstad, and Ketill O Pedersen Quasi-brittle fracture during structural impact of AA775-T65 aluminium plates, International Journal of Impact Engineering, vol 375, pp , [5] Lemaitre J, A continuous damage mechanics model for ductile fracture", Journal of Engineering Materials and Technology, vol 7, pp 83-89, 985 [6] Hoff N, The necking and the rupture of rods subjected to constant tensile loads, Journal of Applied Mechanics, vol, No, pp 5-8, 953 [7] Kachanov L M, Rupture time under creep conditions, International Journal of Fracture, No8, pp6 3, 958 [8] Rice J R, Tracy D M, On the ductile enlargement of voids in triaxial stress fields, Journal of the Mechanics and Physics of Solids, Vol 7, No3, pp-7, 969 [9] Wang J, Chow C L, Subcritical crack growth in ductile fracture with continuum, Engineering Fracture Mechanics, Vol33, No, pp39-37, 989 [] Chandrakanth S, Pandey P C, An isotropic damage model for ductile", Engineering Fracture Mechanics, Vol 5, No4, pp , 995 [] N onora, "A nonlinear CDM model for ductile failure, Engineering Fracture Mechanics, Vol 58, No/, pp 8, 997 [] Garrison WM, Moody NR, Ductile fracture, Journal of Physics and Chemistry of Solids, Volume 48, Issue, PP 35 74, 987 [3] onora N, On the effect of triaxial state of stress on ductility using nonlinear CDM model, International Journal of Fracture, Vol 8 8, pp , 998 [4] T Pardoen, and J W Hutchinson, "An extended model for void growth and coalescence", Journal of the Mechanics and Physics of Solids, Vol 48, pp467 5, [5] ruunig M, Numerical analysis of anisotropic ductile continuum damage, Comput Methods Appl Mech Eng, Vol 9, pp , 3 [6] N onora, and Milella, "Constitutive modeling for ductile metals behavior incorporating strain rate, temperature and damage", International Journal of Impact Engineering, Vol 6, pp 35-64, [7] Milella P P, Temperature and strain rate dependence of mechanical behavior of body-centered cubic structure materials, Proc TMS Fall Meeting '98, Chicago, Illinois, 998 [8] enzerga A A, esson J, and Pineau A, Anisotropic ductile fracture, Part II: theory, Acta Materialia, Vol 5, pp , 4 [9] Mashayekhi M, and ZiaeiRad S, Identification and validation of a ductile damage model for A533 steel, Journal of Materials Processing Technology, Vol 7, pp9-95, 6 [] Thakkar K, and Pandey P, A high-order isotropic continuum damage, International Journal of Fracture, Vol 6, pp 43-46, 7
