Higher Order Visual Processing in the primate brain

Transcript

1 Higher Order Visual Processing in the primate brain

2

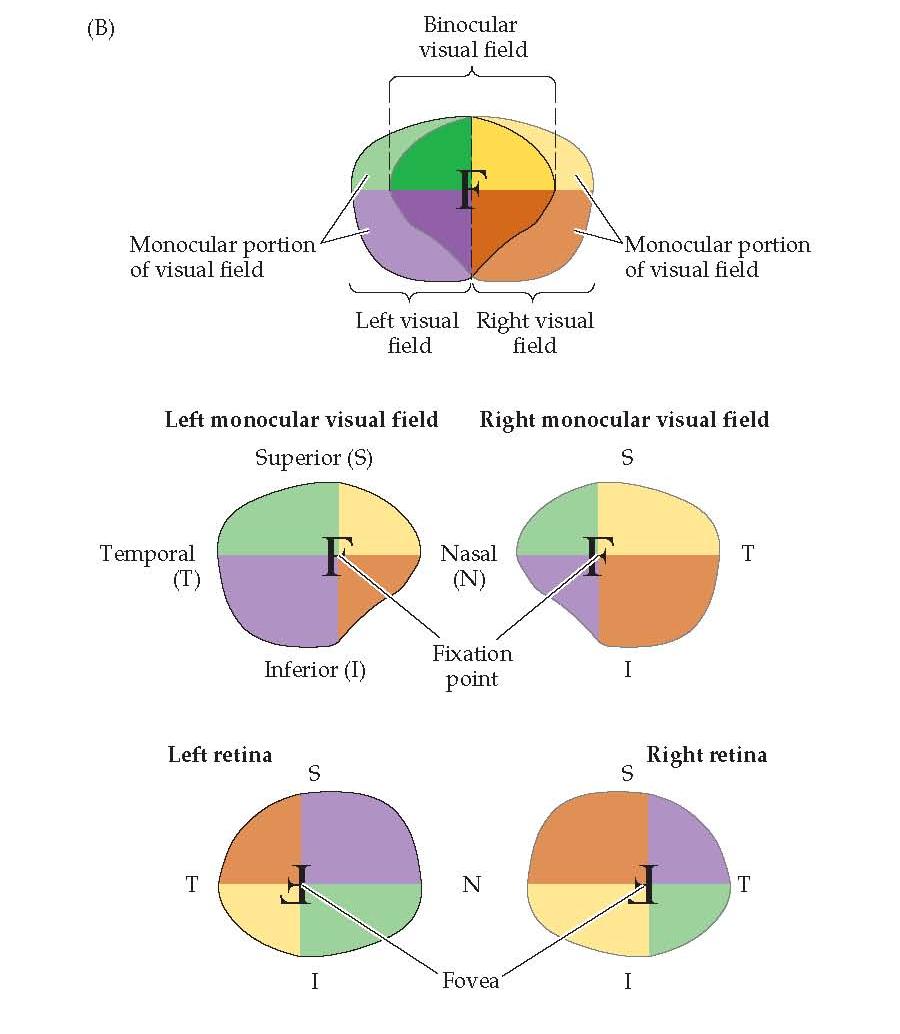

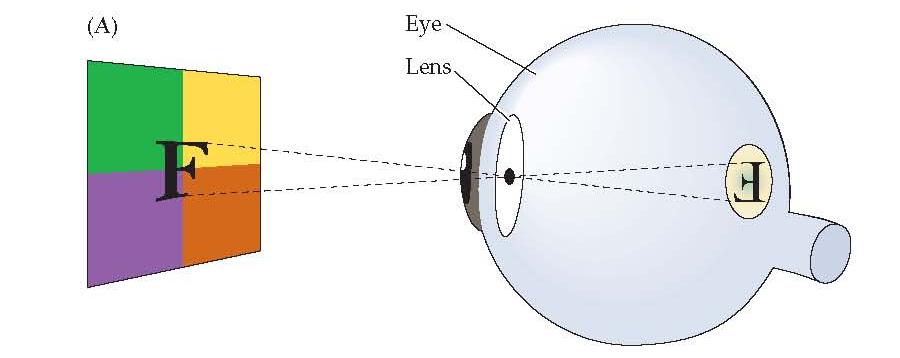

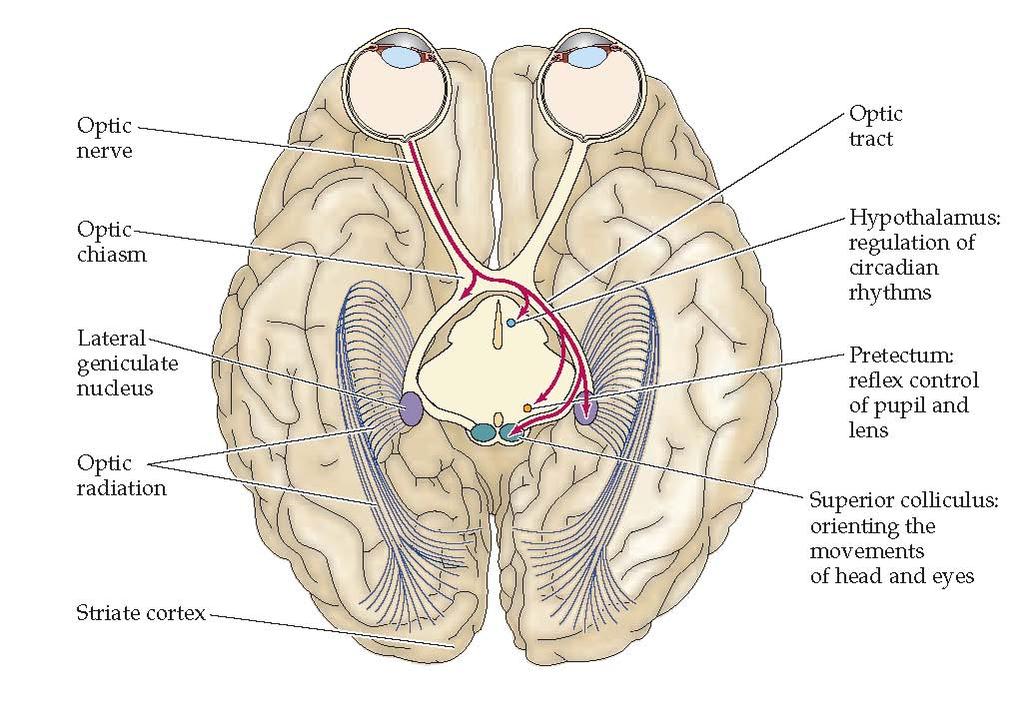

3 Projection of the visual field on the retina Retina

4 Οπτικό νεύρο περιέχει ίνες που προέρχονται από ένα μάτι Οπτικό χίασμα αλλά μεταφέρουν πληροφορία και από τα δύο οπτικά ημιπεδία Οπτική ταινία: περιέχει ίνες που προέρχονται και από τα δύο μάτια αλλά μεταφέρουν πληροφορία από το ετερόπλευρο οπτικό ημιπεδίο

5 Υποθάλαμος Έξω γονατώδες σώμα Προτετραδιμυκός πυρήνας (pretectum) Άνω διδύμιο

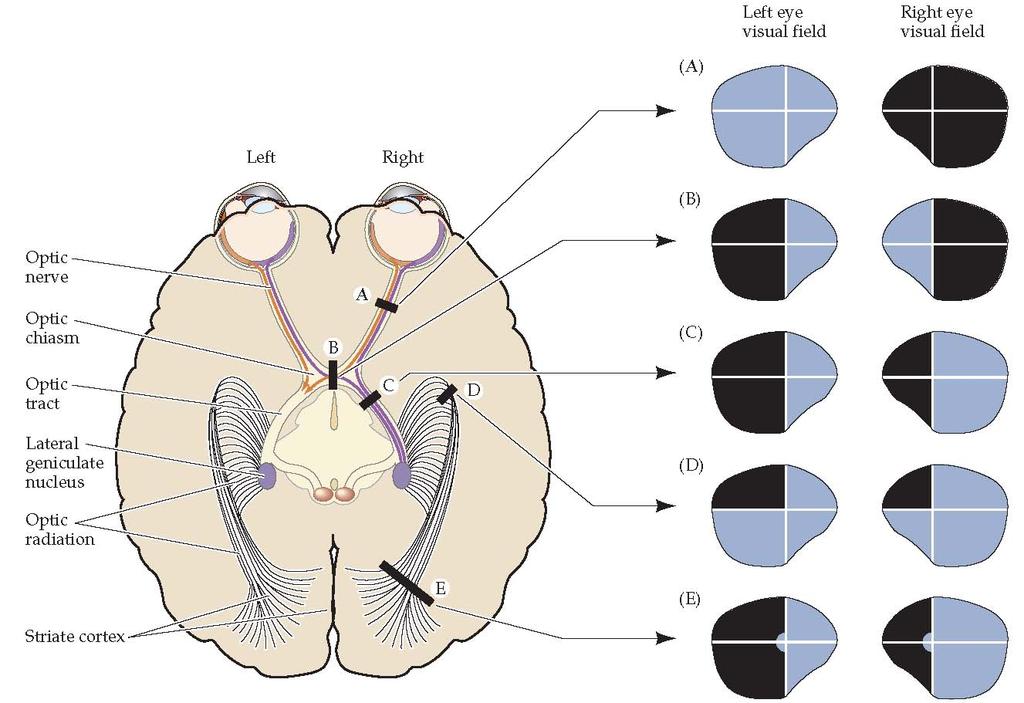

6 Visual deficits from damage at different points along the primary visual pathway

7 Visual deficits from damage at different points along the primary visual pathway

8 Visual deficits from damage at different points along the primary visual pathway Bitemporal (heteronomous) hemianopsia

9 Visual deficits from damage at different points along the primary visual pathway Bitemporal (heteronomous) hemianopsia Left homonymous hemianopsia

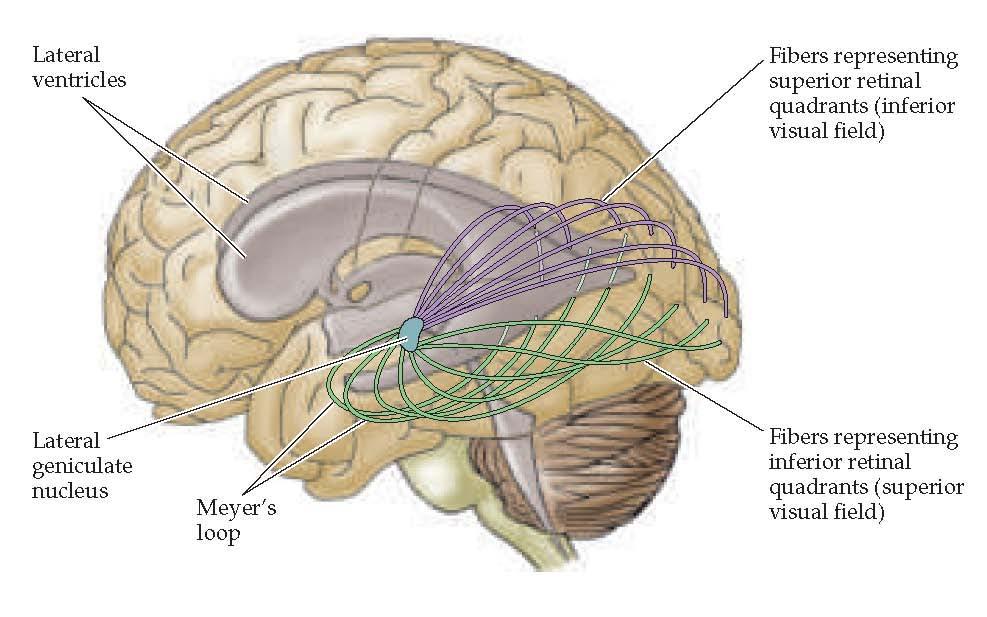

10 Course of the optic radiation to the striate cortex

11 Visual deficits from damage at different points along the primary visual pathway Bitemporal (heteronomous) hemianopsia Left homonymous hemianopsia Left superior quadrantanopsia

12 Organizational Principles of Visual Projections Retinotopy Neighboring cells in the retina feed information to neighboring places in their target structures

13 Visual field representation in V1 Retinotopy but..: Distortion (e.g. central vs peripheral representation) When the retina is stimulated by a point of light the activity in striate cortex is a broad distribution with a peak at the corresponding retinotopic location

14 Φυσιολογία V1 Διοφθάλμια υποδεκτικά πεδία κύτταρα αποκρίνονται σε ερεθισμό και των δύο ματιών. Επιλεκτικότητα για προσανατολισμό ερεθίσματος. Επιλεκτικότητα για κατεύθυνση κίνησης. Απλά και Πολύπλοκα υποδεκτικά πεδία (simple and complex) Ανάλυση χρώματος blobs Οργάνωση σε στήλες (οφθαλμικής επικράτησης, προσανατολισμού)

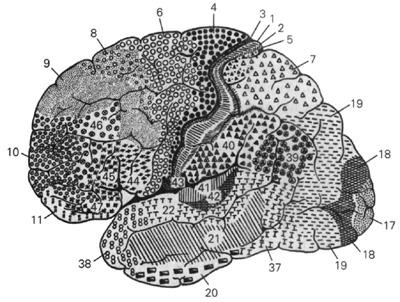

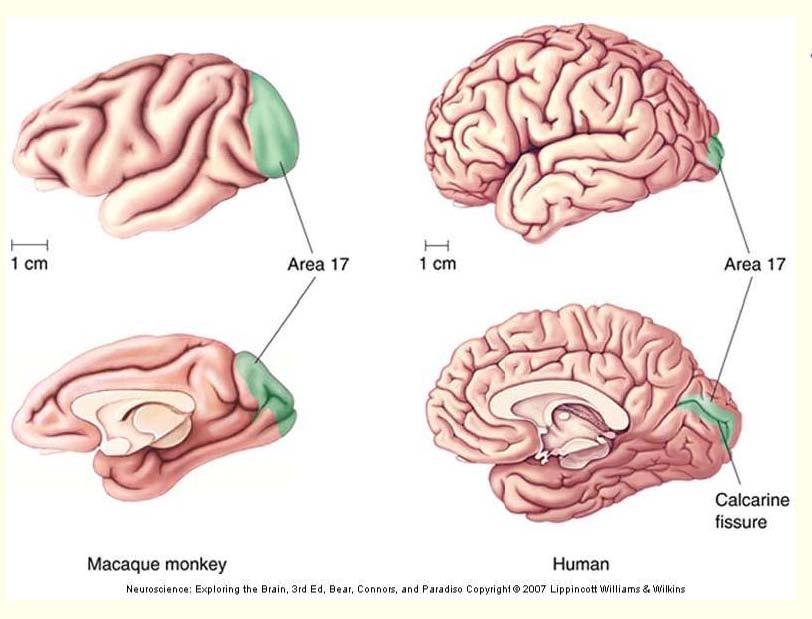

15 Cytoarchitectonic subdivisions of the cerebral cortex motor cortex primary somatosensory cortex early 1900s Brodmann primary visual cortex

16

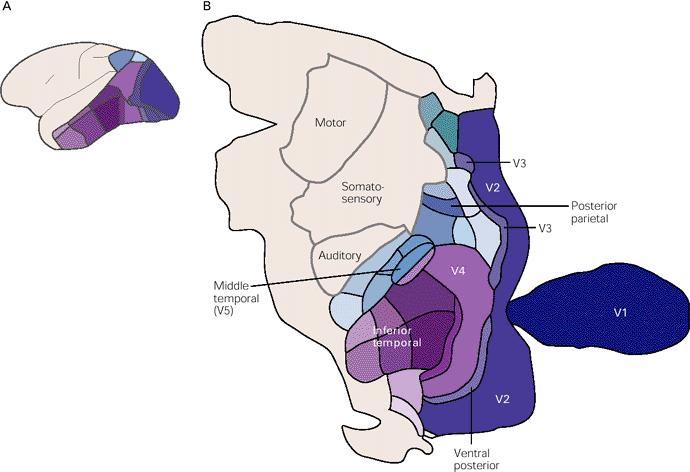

17 Macaque Cortex CORTEX: 52% visual, 10% somatosensory, 3% auditory, 8% motor, 1% olfactory) Van Essen, The Visual Neurosciences, Chapter 32, 2004

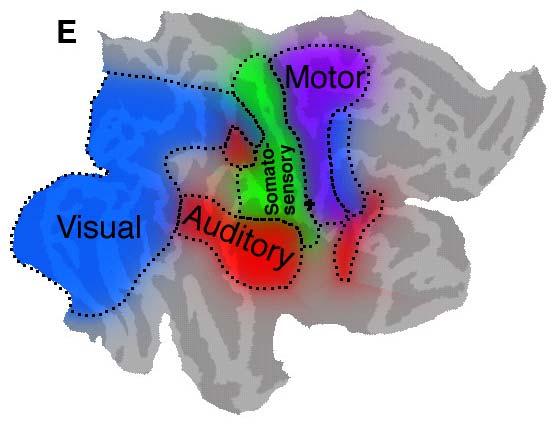

18 Human Cortex CORTEX: 27% visual, 7% somatosensory, 8% auditory, 7% motor)

19

20 Felleman and Van Essen 1991 Van Essen, Anderson and Felleman Science 1992

21 Too many visual areas (24, 32, 10-12) WHY?

22 Color Shape Depth Motion

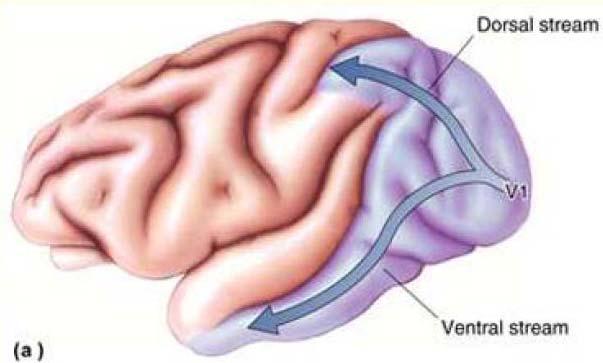

23 Two visual pathways Dorsal and Ventral

24 Two visual pathways Dorsal and Ventral Posterior Parietal MST MT V3 V2 V1 Inferior Temporal (IT) V4

25 Posterior Parietal MST MT V3 V2 V1 Inferior Temporal (IT) V4

26 PRIMARY VISUAL CORTEX (V1) (cytochrome oxidase histology) blobs: color processing interblobs: high spatial resolution form processing layer 4B: direction-selectivity interblob blob

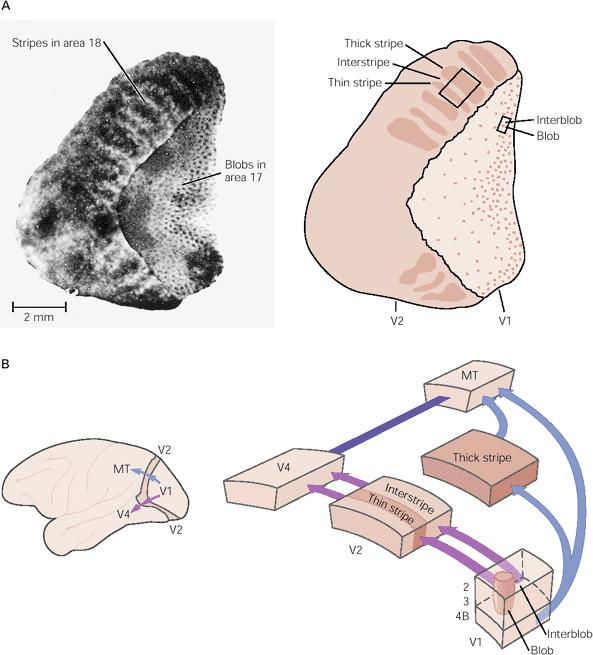

27 Parallel streams of visual processing V1 V2 blob Layer 4B thin stripe interblob interstripe thick stripe

28 Parallel streams of visual processing V1 V2 V4, MT blob Layer 4B thin stripe interblob interstripe thick stripe V4 MT

29 Parallel streams of visual processing

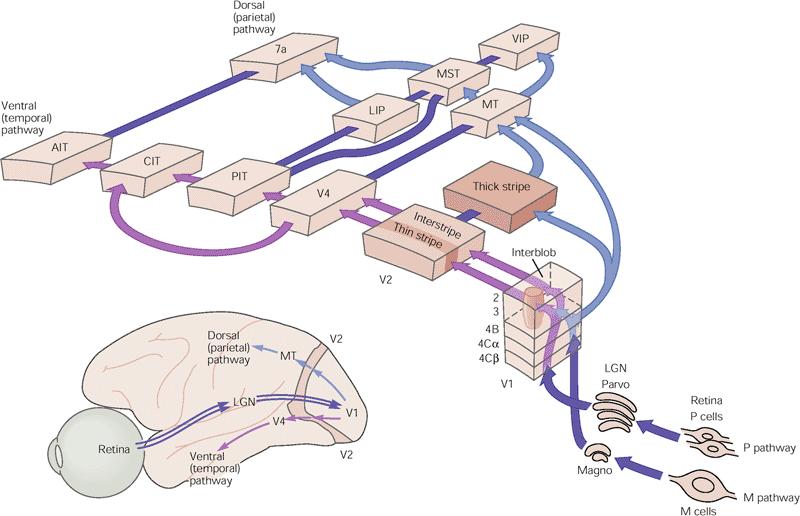

30 Ventral Pathway Parallel streams of visual processing Dorsal Pathway Posterior Parietal Lobe

31 Mixing of K, P and M pathways within V1 and origins of projections to higher areas Shipp Vis Neurosci 2005

32 The dorsal and ventral cortical streams cannot be viewed as an extension of the M and P retinogeniculate pathways Predominance of M or P input in the dorsal and ventral pathways, respectively. Experiment?????

33 WHERE spatial localization Ungerleider and Mishkin (1982) WHAT object recognition

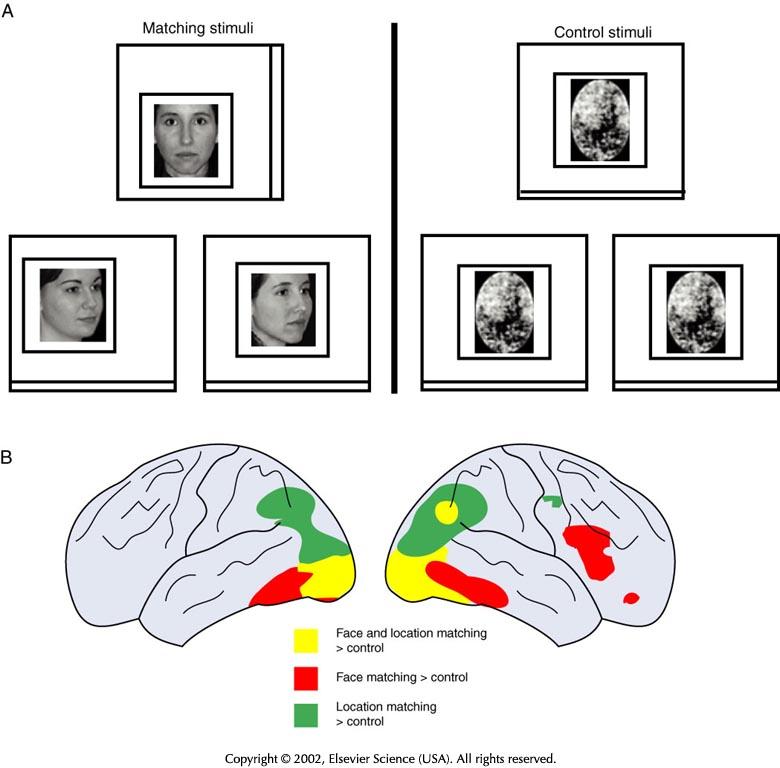

34 identity vs location Mishkin, Ungerleider and Macko Trends Neurosci 1983

35

36 HOW Vision for action WHAT Vision for perception Milner and Goodale 1992

37 Goodale and Milner Nature 1991

38 V1 V2 V3 MT V4 Ραχιαία Οδός: ΠΟΥ, ΟΠΤΙΚΗ ΠΛΗΡΟΦΟΡΙΑ ΓΙΑ ΡΑΣΗ Οπίσθιος βρεγματικός λοβός Κάτω κροταφικός λοβός (ΙΤ) Κοιλιακή Οδός: ΤΙ, ΑΝΑΓΝΩΡΙΣΗ ΑΝΤΙΚΕΙΜΕΝΩΝ

39 Visual Illusions Muller-Lyer illusion Kanizsa triangle

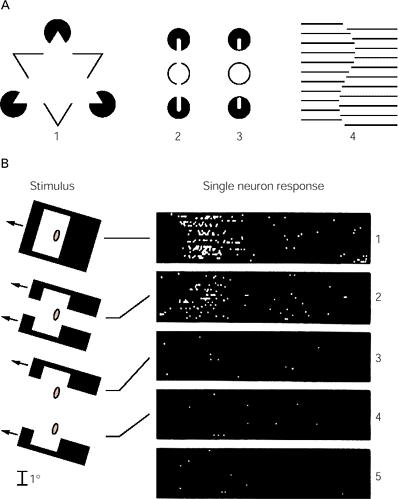

40 Responses of V2 cells to illusory contours

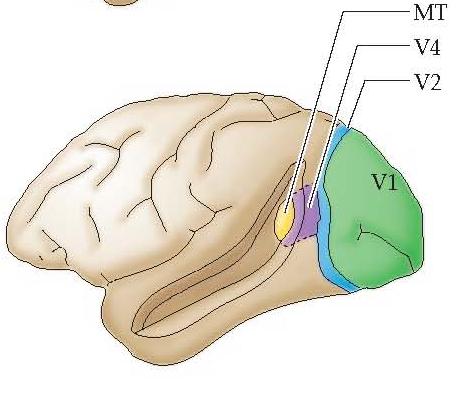

41 Posterior Parietal MST MT V3 V2 V1 Inferior Temporal (IT) V4

42 MT Middle Temporal area (V5) 95% of the neurons selective for the direction of motion Receives input from layer 4B of V1 as well as from the thick stripes of V2 RFs ten times wider than those of cells in V1 directional specificity organized into vertical columns

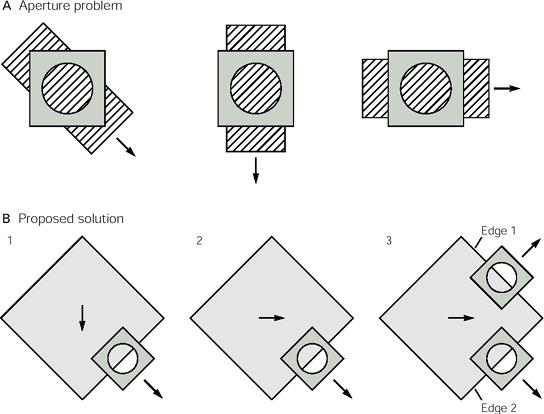

43 The aperture problem

44

45

46 Microstimulation of ΜΤ affects perception of motion

47 Two techniques that can assess causal relationship between brain activity and behavior lesions (necessary) microstimulation (sufficient)

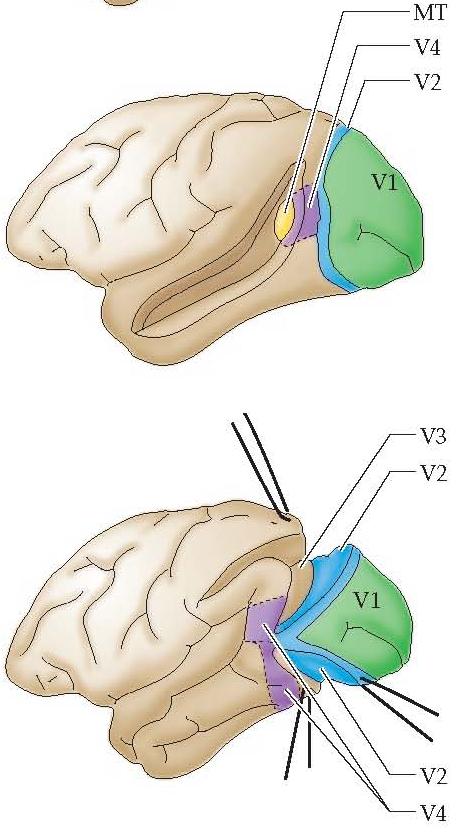

48 Posterior Parietal MST MT V3 V2 V1 Inferior Temporal (IT) V4

49 V4 Receives input from the blob and interblob regions of striate cortex via a relay in V2 RFs are larger than those in V1 and V2 Cells display orientation and color selectivity => shape and color perception Lesions in the human analogue of V4 result in achromatopsia

50 Posterior Parietal MST MT V3 V2 V1 Inferior Temporal (IT) V4

51

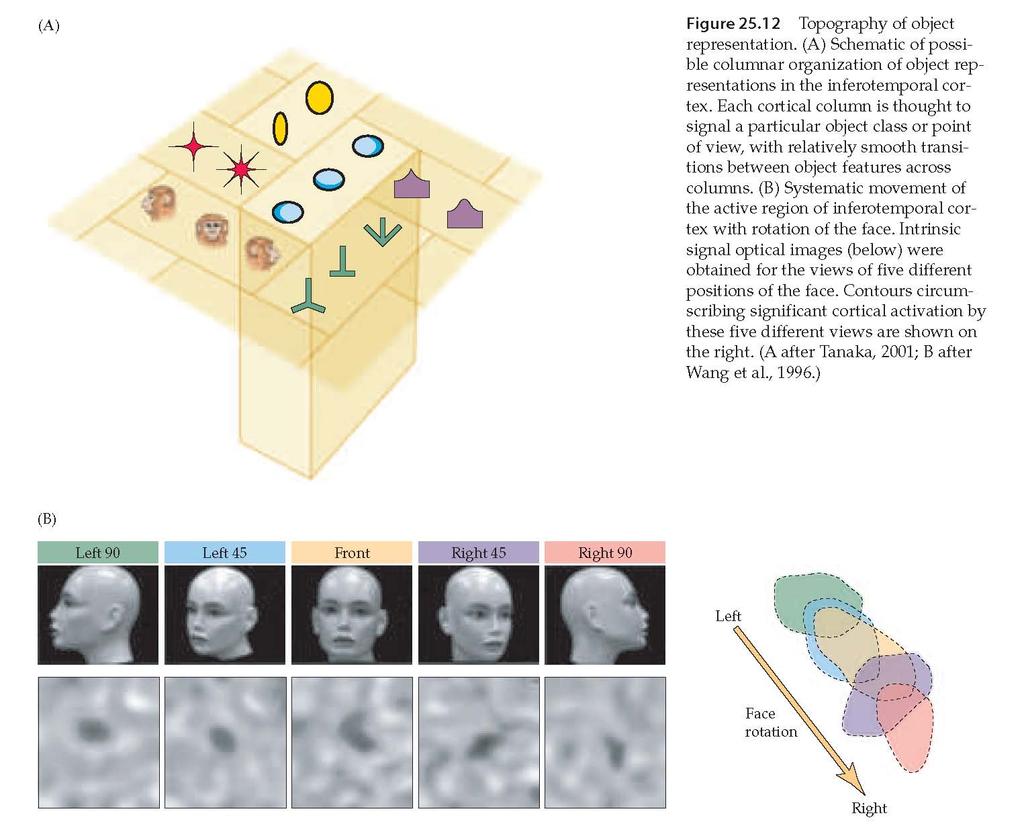

52 IT No clear retinotopic organization Very large RFs covering both visual hemifields => position invariance Sensitive to shape and color Cells respond to abstract shapes and complex stimuli (e.g. hands, faces) Damage in IT results in prosopagnosia

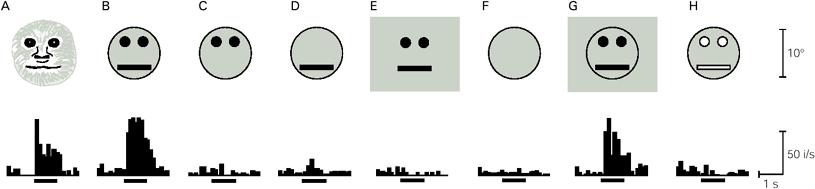

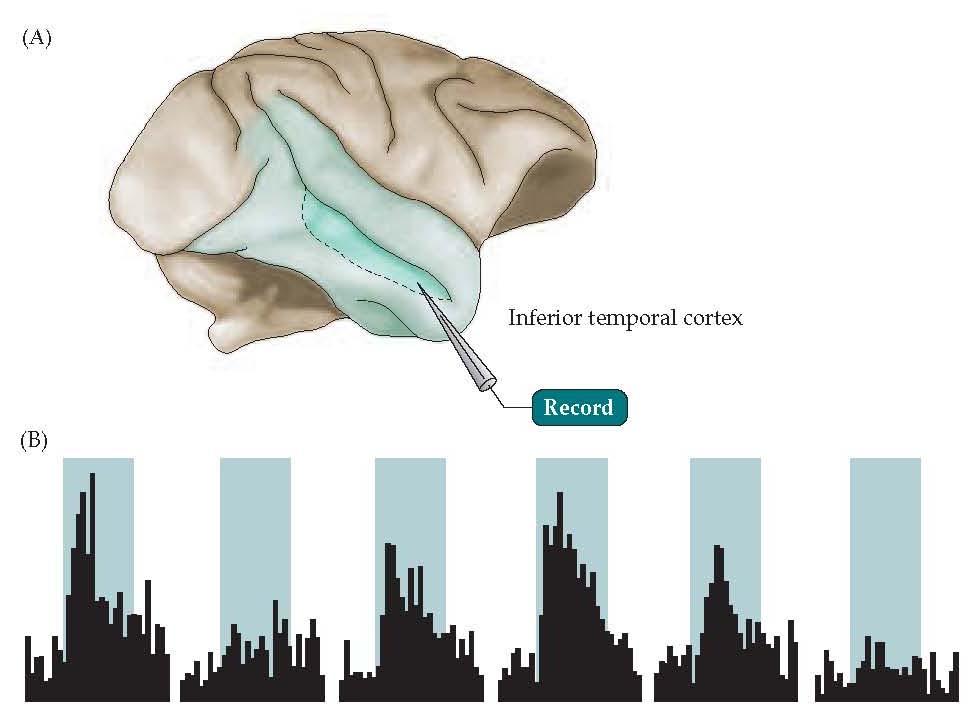

53 Face selective cells in IT

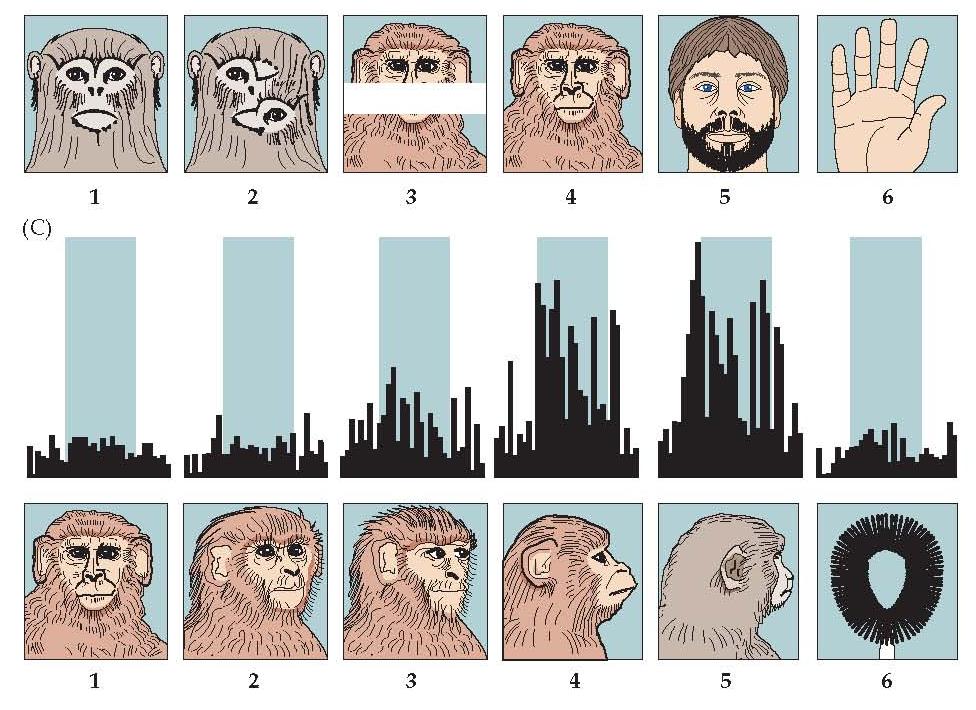

54 Face selective cells in IT

55 Face selective cells in IT

56

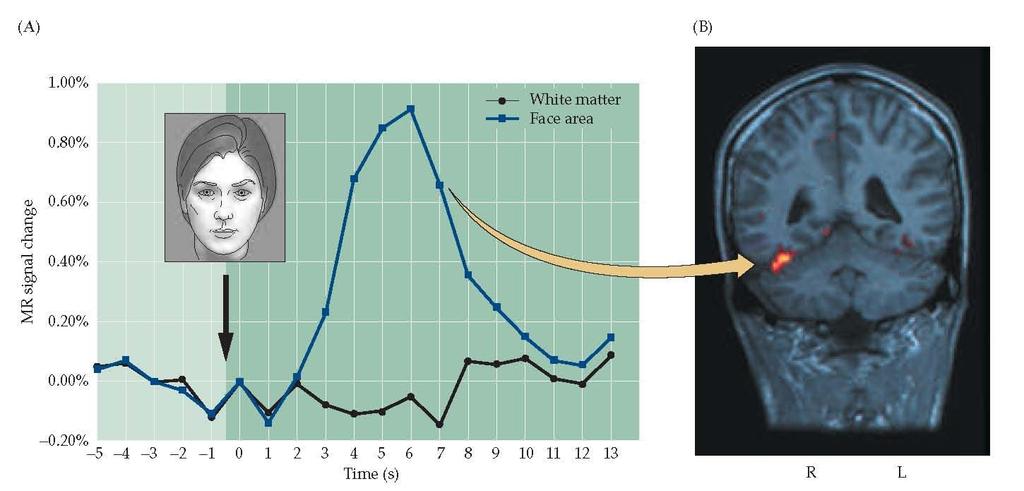

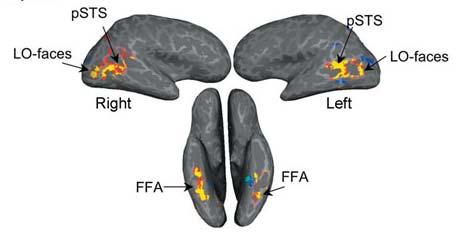

57 Fusiform Face Area (FFA) in humans

58 How does visual perception come about from the concerted action of individual neurons? Which neurons in which areas determine what we perceive? How and where does integration take place?

59 Going higher in the visual hierarchy we encounter larger RFs and processing of more complex stimuli Rolls, ET, Visual Neurosciences 1992

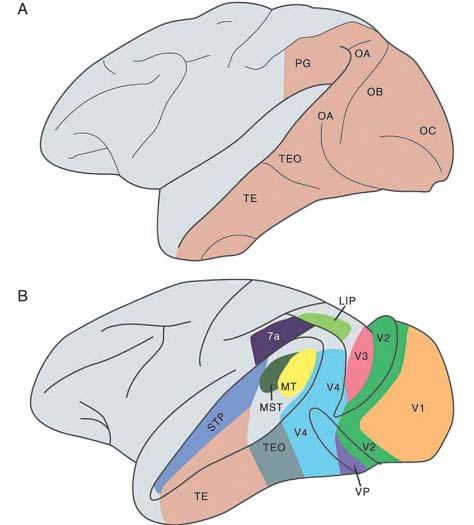

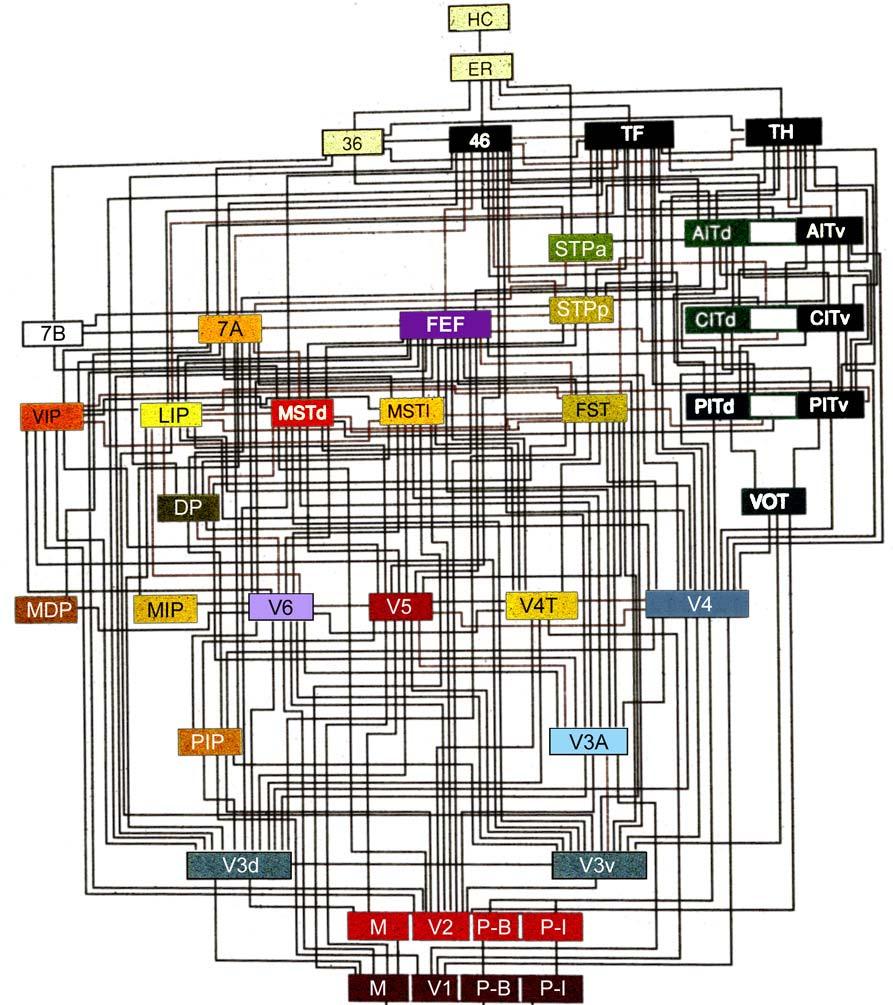

60 A hierarchy of visual areas in the macaque based on laminar patterns of anatomical connections Van Essen, Anderson and Felleman Science 1992

61 Multiple visual areas defined on the basis of anatomy and function Two visual pathways with different properties and functions but with extensive crossconnections. Parallel processing throughout the visual system=> division of labor for perception: within a given cortical area many broadly tuned cells may serve to represent features of objects

62

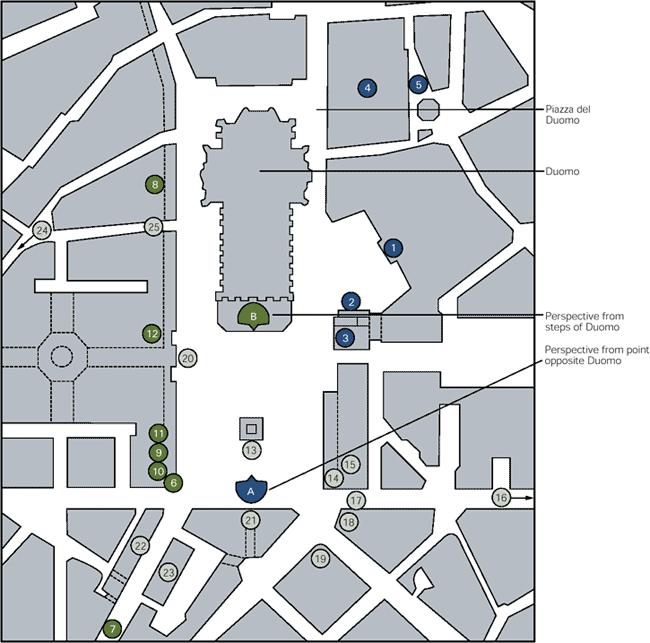

63 Contralateral (hemispatial) neglect syndrome Inability to report or respond to stimuli presented on the side opposite to the lesion. Usually a result of damage to the RIGHT parietal lobe

64

65

66

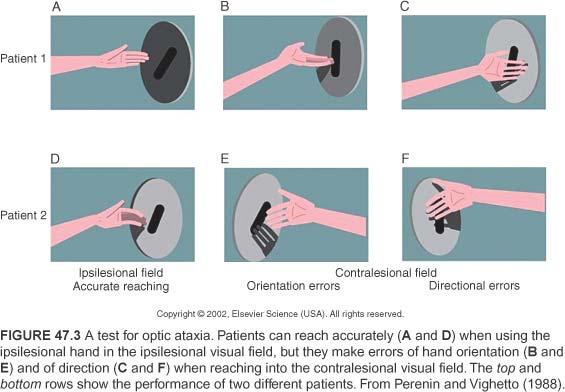

67 Optic ataxia
