Including new chipbreakers: EME, ESE, ESEW

Transcript

1 Including new chipbreakers: EME, ESE, ESEW New Generation of Steel Turning Grades Steel Stainless Steel

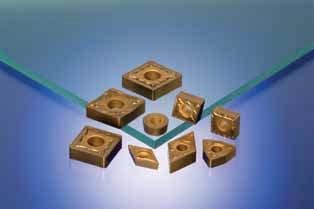

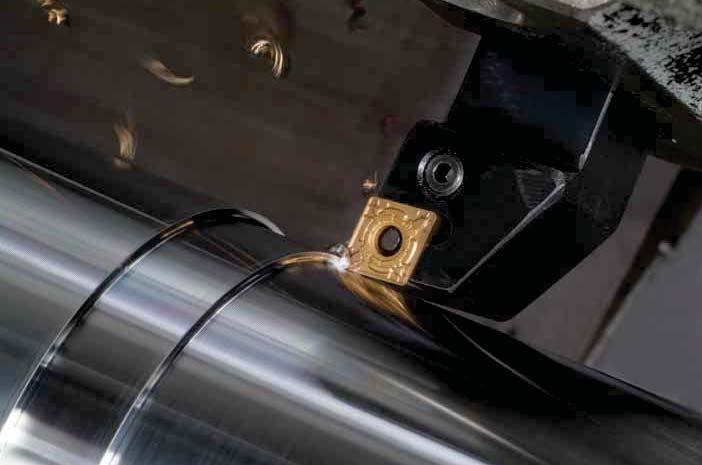

2 General Features Electric Carbide, Inc. introduces the next generation of P1, P2, and P3 coated carbide grades with AC81P, AC82P, and AC83P. Together these new grades machine applications ranging from high speed Grade Features The ultra hard - ultra smooth super FINE and super FLAT coating greatly improves both heat and wear resistance - resulting in higher speeds and feeds - more parts per hour. The high bonding strength of the Super FF coat yields cutting of steels and stainless steels AC81P AC82P For general purpose turning of steels and stainless steels AC83P For interrupted roughing of steels and stainless steels Excellent on all continuous high speed cutting applications, all general purpose, carbon, alloyed, and cutting applications. Technical Features Coating Structure Substrate Substrate Al 2O 3 Exttremely strong bond resists built-up edge Ultra-FLA T surface Flat surface - excellent chip adhesion resistance Super FF Alumina - excellent wear and heat resistance TiCN Ultra hard extremely tough Ultra-FINE particles Super FF TiCN - excellent wear and chipping resistance Substrate Conventional coating Super FF coat Newly developed tough substrate Features of Coating Conv. Alumina (α Type) Super FF coat Toughness Good (Peeling resistance)?? 5% increase in bonding strength 5% improvement heat resistance Hardness of TiCN layer (GPa) T Super FF coat Conventional coating Hardness 3% increase Surface finish 5% improvement

3 AC81P 6 Excellent stability and high efficiency CVJ Outer Race Flank wear (in) AC7G Cutting time (min) Work Material: 4137 CNMG432EGU Competitor (P2) AC81P Wear resistance increased 2% Conditions: vc=886 SFM, f=.18 IPR D.O.C.=.6", WET Number of impacts AC81P AC7G chipping resistance doubled! Competitor (P1) Work Material: 4137 CNMG432EGU Conditions: vc=725 SFM, f=.12 IPR, doc=.6", WET Output / Cutting Edge 1 AC81P 15% increase in tool life using AC81P - OD turning application without coolant. 5 Up 15% Competitor P1 Work Material: 153 DNMG 443 EGE Conditions: v c = 886 SFM, f =.14~.15 IPR D.O.C. =.59" Dry AC82P Excellent versatility, stability, and high efficiency Gear (Construction machine) Flank wear (in) Competitor (P2) Cutting time (min) AC2 AC82P Wear resistance increased 5% Work Material: 413 CNMG432EMU Conditions: vc=725 SFM, f=.12 IPR D.O.C.=.6", WET Number of impacts AC82P AC2 chipping resistance doubled! Competitor (P2) Work Material: 4137 CNMG432EGU Conditions: vc=725 SFM, f=.12 IPR, doc=.6", WET Output / Cutting edge AC82P Up 3% Competitor P2 Work Material: 155 DNMG 432 EMU Conditions: v c = 5 SFM, f =.1 IPR D.O.C.=.4" Wet 3% increase in tool life using AC82P - continuous and interrupted turning application. AC83P Flank wear (in) Conditions: Competitor (P3) Cutting time (min) Work Material: 4137 CNMG432EGU AC3 AC83P Wear resistance increased 15% vc=722 SFM, f=.12 IPR D.O.C.=.6", WET Number of impacts Work Material: Conditions: AC83P Outstanding tool life AC3 chipping resistance doubled! Competitor (P3) 413 (4 deep grooves) CNMG432EMU vc=725 SFM, f=.12 IPR, doc=.6", WET Machine part Output / Cutting Edge AC83P Up 23% Competitor P3 Work Material: 149 CNMG 433 EMU Conditions: v c = 445 SFM, f =.1 IPR D.O.C. =.6" Wet Productivity up 25% and tool life more than doubled using AC83P - interrupted turning application.

4 AC81P STEEL Finishing General Purpose Roughing AC81P STAINLESS STEEL Finishing General Purpose Roughing AC82P STEEL Finishing General Purpose Roughing AC82P STAINLESS STEEL Finishing General Purpose Roughing Mild Steel Low Carbon Steel Low Alloy Steel (Up to 18HB) High Carbon Steel High Alloy Steel (Over 18HB) Speed (SFM) Feed (IPR) D.O.C. (inch) Speed (SFM) Feed (IPR) D.O.C. (inch) Series Stainless Steel 4 Series Stainless Steel Speed (SFM) Feed (IPR) D.O.C. (inch) Speed (SFM) Feed (IPR) D.O.C. (inch) Mild Steel Low Carbon Steel Low Alloy Steel (Up to 18HB) High Carbon Steel High Alloy Steel (Over 18HB) Speed (SFM) Feed (IPR) D.O.C. (inch) Speed (SFM) Feed (IPR) D.O.C. (inch) Series Stainless Steel 4 Series Stainless Steel Speed (SFM) Feed (IPR) D.O.C. (inch) Speed (SFM) Feed (IPR) D.O.C. (inch) D.O.C. (Inch) D.O.C. (Inch) High Speed ~ Light Interrupted Cut ESU ELU EGU ESX EMU EHG EGE EME Feed rate (IPR) EUX ESE EMX ESE EHG EGE ESEW Light Interrupted Cut ~ Heavy Interrupted Cut EME Feed rate (IPR) AC83P STEEL Finishing General Purpose Roughing AC83P STAINLESS STEEL Finishing General Purpose Roughing Mild Steel Low Carbon Steel Low Alloy Steel (Up to 18HB) High Carbon Steel High Alloy Steel (Over 18HB) Speed (SFM) Feed (IPR) D.O.C. (inch) Speed (SFM) Feed (IPR) D.O.C. (inch) Series Stainless Steel 4 Series Stainless Steel Speed (SFM) Feed (IPR) D.O.C. (inch) Speed (SFM) Feed (IPR) D.O.C. (inch)

5 CNMG 8 Diamond/Negative CNMG431EFL CNMG1244N-FL CNMG432EFL CNMG1248N-FL CNMG321ESU CNMG934N-SU CNMG322ESU CNMG938N-SU CNMG331ESU CNMG944N-SU CNMG332ESU CNMG948N-SU CNMG431ESU CNMG1244N-SU CNMG432ESU CNMG1248N-SU CNMG433ESU CNMG12412N-SU CNMG431ESE CNMG1244N-SE CNMG432ESE CNMG1248N-SE CNMG433ESE CNMG12412N-SE CNMG432ESEW CNMG1248N-SEW CNMG433ESEW CNMG12412N-SEW CNMG321ELU CNMG934N-LU CNMG322ELU CNMG938N-LU CNMG431ELU CNMG1244N-LU CNMG432ELU CNMG1248N-LU CNMG433ELU CNMG12412N-LU CNMG431ELUW CNMG1244N-LUW CNMG432ELUW CNMG1248N-LUW CNMG433ELUW CNMG12412N-LUW CNMG431ENK CNMG1244N-SK CNMG432ENK CNMG1248N-SK CNMG431ESX CNMG1244N-SX CNMG432ESX CNMG1248N-SX CNMG433ESX CNMG12412N-SX CNMG431EUP CNMG1244N-UP CNMG432EUP CNMG1248N-UP CNMG433EUP CNMG12412N-UP CNMG542EUP CNMG1668N-UP CNMG543EUP CNMG16612N-UP CNMG643EUP CNMG19612N-UP CNMG322EGU CNMG938N-GU CNMG431EGU CNMG1244N-GU CNMG432EGU CNMG1248N-GU CNMG433EGU CNMG12412N-GU CNMG434EGU CNMG12416N-GU CNMG542EGU CNMG1668N-GU CNMG543EGU CNMG16612N-GU CNMG544EGU CNMG16616N-GU CNMG432EGUW CNMG1248N-GUW CNMG433EGUW CNMG12412N-GUW CNMG322EUX CNMG938N-UX CNMG431EUX CNMG1244N-UX CNMG432EUX CNMG1248N-UX CNMG433EUX CNMG12412N-UX CNMG434EUX CNMG12416N-UX CNMG542EUX CNMG1668N-UX CNMG543EUX CNMG16612N-UX CNMG544EUX CNMG16616N-UX CNMG642EUX CNMG1968N-UX CNMG643EUX CNMG19612N-UX CNMG644EUX CNMG19616N-UX CNMG431EGE CNMG1244N-GE CNMG432EGE CNMG1248N-GE CNMG433EGE CNMG12412N-GE CNMG434EGE CNMG12416N-GE CNMG543EGE CNMG16612N-GE CNMG 8 Diamond/Negative (continued) CNMM 8 Diamond/Negative CNMM432EHG CNMM1248N-HG CNMM433EHG CNMM12412N-HG CNMM543EHG CNMM16612N-HG CNMM544EHG CNMM16616N-HG CNMM643EHG CNMM1968N-HG CNMG544EGE CNMG16616N-GE CNMG643EGE CNMG19612N-GE CNMG644EGE CNMG19616N-GE CNMG321ENG CNMG934N-UG CNMG322ENG CNMG938N-UG CNMG431ENG CNMG1244N-UG CNMG432ENG CNMG1248N-UG CNMG433ENG CNMG12412N-UG CNMG434ENG CNMG12416N-UG CNMG542ENG CNMG1668N-UG CNMG543ENG CNMG16612N-UG CNMG544ENG CNMG16616N-UG CNMG642ENG CNMG1968N-UG CNMG643ENG CNMG19612N-UG CNMG644ENG CNMG19616N-UG CNMG432ENZ CNMG1248N-NZ CNMG433ENZ CNMG12412N-NZ CNMG542ENZ CNMG1668N-NZ CNMG543ENZ CNMG16612N-NZ CNMG544ENZ CNMG16616N-NZ CNMG642ENZ CNMG1968N-NZ CNMG643ENZ CNMG19612N-NZ CNMG644ENZ CNMG19616N-NZ CNMG432EMU CNMG1248N-MU CNMG433EMU CNMG12412N-MU CNMG434EMU CNMG12416N-MU CNMG542EMU CNMG1668N-MU CNMG543EMU CNMG16612N-MU CNMG544EMU CNMG16616N-MU CNMG642EMU CNMG1968N-MU CNMG643EMU CNMG19612N-MU CNMG644EMU CNMG19616N-MU CNMG432EME CNMG1248N-ME CNMG433EME CNMG12412N-ME CNMG434EME CNMG12416N-ME CNMG542EME CNMG1668N-ME CNMG543EME CNMG16612N-ME CNMG544EME CNMG16616N-ME CNMG643EME CNMG19612N-ME CNMG644EME CNMG19616N-ME CNMG432EMX CNMG1248N-MX CNMG433EMX CNMG12412N-MX CNMG434EMX CNMG12416N-MX CNMG542EMX CNMG1668N-MX CNMG543EMX CNMG16612N-MX CNMG544EMX CNMG16616N-MX CNMG643EMX CNMG19612N-MX CNMG644EMX CNMG19616N-MX

6 CNMM 8 Diamond/Negative (continued) CNMM644EHG CNMM19612N-HG CNMM646EHG CNMM19616N-HG CNMM646ENP CNMM19624N-MP DNMG 55 Diamond/Negative DNMG431EFL DNMG1544N-FL DNMG432EFL DNMG1548N-FL DNMG431ESU DNMG1544N-SU DNMG432ESU DNMG1548N-SU DNMG433ESU DNMG15412N-SU DNMG332ESE DNMG1148N-SE DNMG431ESE DNMG1544N-SE DNMG432ESE DNMG1548N-SE DNMG433ESE DNMG15412N-SE DNMG431ELU DNMG1544N-LU DNMG432ELU DNMG1548N-LU DNMG433ELU DNMG15412N-LU DNMG431ENK DNMG1544N-SK DNMG432ENK DNMG1548N-SK DNMG441ENK DNMG1564N-SK DNMG442ENK DNMG1568N-SK DNMG431ESX DNMG1544N-SX DNMG432ESX DNMG1548N-SX DNMG433ESX DNMG15412N-SX DNMG431EUP DNMG1544N-UP DNMG432EUP DNMG1548N-UP DNMG433EUP DNMG15412N-UP DNMG331EGU DNMG1144N-GU DNMG332EGU DNMG1148N-GU DNMG431EGU DNMG1544N-GU DNMG432EGU DNMG1548N-GU DNMG433EGU DNMG15412N-GU DNMG442EGU DNMG1568N-GU DNMG332EUX DNMG1148N-UX DNMG431EUX DNMG1544N-UX DNMG432EUX DNMG1548N-UX DNMG433EUX DNMG15412N-UX DNMG443EUX DNMG15612N-UX DNMG431EGE DNMG1544N-GE DNMG432EGE DNMG1548N-GE DNMG433EGE DNMG15412N-GE DNMG331ENG DNMG1144N-UG DNMG332ENG DNMG1148N-UG DNMG431ENG DNMG1544N-UG DNMG432ENG DNMG1548N-UG DNMG433ENG DNMG15412N-UG DNMG542ENG DNMG1968N-UG DNMG543ENG DNMG19612N-UG DNMG431ENZ DNMG1544N-UZ DNMG432ENZ DNMG1548N-UZ DNMG433ENZ DNMG15412N-UZ DNMG542ENZ DNMG1968N-UZ DNMG543ENZ DNMG19612N-UZ DNMG544ENZ DNMG19616N-UZ DNMG432EMU DNMG1548N-MU DNMG433EMU DNMG15412N-MU DNMG 55 Diamond/Negative (continued) DNMG434EMU DNMG15416N-MU DNMG442EMU DNMG1568N-MU DNMG432EME DNMG1548N-ME DNMG433EME DNMG15412N-ME DNMG442EME DNMG1568N-ME DNMG443EME DNMG15612N-ME DNMG444EME DNMG15616N-ME DNMG432EMX DNMG1548N-MX DNMG433EMX DNMG15412N-MX DNMG434EMX DNMG15416N-MX DNMX 55 Diamond/Negative DNMX431ESEW DNMX1544N-SEW DNMX432ESEW DNMX1548N-SEW DNMX433ESEW DNMX15412N-SEW Round/Negative RNMG43ENT RNMG54ENU RNMG64ENV RNMG84ENY RNMG86ENY SNMG 9 Square/Negative SNMG432EFL SNMG1248N-FL SNMG432ESU SNMG1248N-SU SNMG432ESE SNMG1248N-SE SNMG433ESE SNMG12412N-SE SNMG432ELU SNMG1248N-LU SNMG433ELU SNMG12412N-LU SNMG321ENK SNMG934N-SK SNMG322ENK SNMG938N-SK SNMG431ENK SNMG1244N-SK SNMG432ENK SNMG1248N-SK SNMG432ESX SNMG1248N-SX SNMG433ESX SNMG12412N-SX SNMG431EUP SNMG1244N-UP SNMG432EUP SNMG1248N-UP SNMG433EUP SNMG12412N-UP SNMG321EGU SNMG934N-GU SNMG322EGU SNMG938N-GU SNMG431EGU SNMG1244N-GU SNMG432EGU SNMG1248N-GU SNMG433EGU SNMG12412N-GU SNMG434EGU SNMG12416N-GU SNMG543EGU SNMG16612N-GU SNMG322EUX SNMG938N-UX SNMG431EUX SNMG1244N-UX SNMG432EUX SNMG1248N-UX

7 SNMG 9 Square/Negative (continued) SNMM 9 Square/Negative (continued) SNMG433EUX SNMG12412N-UX SNMG434EUX SNMG12416N-UX SNMG643EUX SNMG19612N-UX SNMG644EUX SNMG19616N-UX SNMG432EGE SNMG1248N-GE SNMG433EGE SNMG12412N-GE SNMG434EGE SNMG12416N-GE SNMG322ENG SNMG938N-UG SNMG432ENG SNMG1248N-UG SNMG433ENG SNMG12412N-UG SNMG434ENG SNMG12416N-UG SNMG543ENG SNMG16612N-UG SNMG643ENG SNMG19612N-UG SNMG644ENG SNMG19616N-UG SNMG866ENG SNMG25924N-UG SNMG432ENZ SNMG1248N-NZ SNMG433ENZ SNMG12412N-NZ SNMG434ENZ SNMG12416N-NZ SNMG543ENZ SNMG16612N-NZ SNMG544ENZ SNMG16616N-NZ SNMG642ENZ SNMG1968N-NZ SNMG643ENZ SNMG19612N-NZ SNMG644ENZ SNMG19616N-NZ SNMG866ENZ SNMG25924N-NZ SNMG432EMU SNMG1248N-MU SNMG433EMU SNMG12412N-MU SNMG434EMU SNMG12416N-MU SNMG543EMU SNMG16612N-MU SNMG544EMU SNMG16616N-MU SNMG643EMU SNMG19612N-MU SNMG644EMU SNMG19616N-MU SNMG432EME SNMG1248N-ME SNMG433EME SNMG12412N-ME SNMG434EME SNMG12416N-ME SNMG543EME SNMG16612N-ME SNMG544EME SNMG16616N-ME SNMG643EME SNMG19612N-ME SNMG644EME SNMG19616N-ME SNMG432EMX SNMG1248N-MX SNMG433EMX SNMG12412N-MX SNMG434EMX SNMG12416N-MX SNMG543EMX SNMG16612N-MX SNMG544EMX SNMG16616N-MX SNMG643EMX SNMG19612N-MX SNMG644EMX SNMG19616N-MX SNMM 9 Square/Negative SNMM432EHG SNMM1248N-HG SNMM433EHG SNMM12412N-HG SNMM434EHG SNMM12416N-HG SNMM643EHG SNMM19612N-HG SNMM644EHG SNMM19616N-HG SNMM646EHG SNMM19616N-HG SNMM643EHP SNMM19612N-HP SNMM644EHP SNMM19616N-HP SNMM856EHP SNMM25724N-HP SNMM866EHP SNMM25924N-HP SNMM644ENP SNMM19616N-MP SNMM856ENP SNMM25724N-MP SNMM866ENP SNMM25924N-MP TNMG 6 Triangle/Negative TNMG331EFL TNMG1644N-FL TNMG332EFL TNMG1648N-FL TNMG321ESU TNMG1634N-SU TNMG322ESU TNMG1638N-SU TNMG331ESU TNMG1644N-SU TNMG332ESU TNMG1648N-SU TNMG333ESU TNMG16412N-SU TNMG331ESE TNMG1644N-SE TNMG332ESE TNMG1648N-SE TNMG333ESE TNMG16412N-SE TNMG431ESE TNMG2244N-SE TNMG432ESE TNMG2248N-SE TNMG433ESE TNMG22412N-SE TNMG331ELU TNMG1644N-LU TNMG332ELU TNMG1648N-LU TNMG333ELU TNMG16412N-LU TNMG221ENK TNMG1134N-SK TNMG321ENK TNMG1634N-SK TNMG322ENK TNMG1638N-SK TNMG331ENK TNMG1644N-SK TNMG332ENK TNMG1648N-SK TNMG431ENK TNMG2244N-SK TNMG432ENK TNMG2248N-SK TNMG321ESX TNMG1634N-SX TNMG322ESX TNMG1638N-SX TNMG331ESX TNMG1644N-SX TNMG332ESX TNMG1648N-SX TNMG431ESX TNMG2244N-SX TNMG432ESX TNMG2248N-SX TNMG433ESX TNMG22412N-SX TNMG321EUX TNMG1634N-UX TNMG322EUX TNMG1638N-UX TNMG331EUX TNMG1644N-UX TNMG332EUX TNMG1648N-UX TNMG333EUX TNMG1644N-UX TNMG432EUX TNMG2248N-UX TNMG433EUX TNMG22412N-UX TNMG331EUP TNMG1644N-UP TNMG332EUP TNMG1648N-UP TNMG333EUP TNMG16412N-UP TNMG432EUP TNMG2248N-UP TNMG433EUP TNMG22412N-UP TNMG331EGU TNMG1644N-GU TNMG332EGU TNMG1648N-GU TNMG333EGU TNMG16412N-GU TNMG334EGU TNMG16416N-GU TNMG431EGU TNMG2244N-GU TNMG432EGU TNMG2248N-GU

8 TNMG 6 Triangle/Negative (continued) 55 Triangle/Negative TNMG433EGU TNMG22412N-GU TNMG331EGE TNMG1644N-GE TNMG332EGE TNMG1648N-GE TNMG333EGE TNMG16412N-GE TNMG432EGE TNMG2248N-GE TNMG321ENG TNMG1634N-UG TNMG322ENG TNMG1638N-UG TNMG331ENG TNMG1644N-UG TNMG332ENG TNMG1648N-UG TNMG333ENG TNMG16412N-UG TNMG334ENG TNMG16416N-NG TNMG432ENG TNMG2248N-UG TNMG433ENG TNMG22412N-UG TNMG434ENG TNMG22416N-UG TNMG542ENG TNMG2768N-UG TNMG543ENG TNMG27612N-UG TNMG544ENG TNMG27616N-UG TNMG666ENG TNMG33924N-UG TNMG322ENZ TNMG1638N-UZ TNMG323ENZ TNMG16312N-UZ TNMG332ENZ TNMG1648N-UZ TNMG333ENZ TNMG16412N-UZ TNMG432ENZ TNMG2248N-UZ TNMG433ENZ TNMG22412N-UZ TNMG434ENZ TNMG22416N-UZ TNMG444ENZ TNMG22616N-UZ TNMG542ENZ TNMG2768N-UZ TNMG543ENZ TNMG27612N-UZ TNMG544ENZ TNMG27616N-UZ TNMG548ENZ TNMG27632N-UZ TNMG666ENZ TNMG33924N-UZ TNMG332EMU TNMG1648N-MU TNMG333EMU TNMG16412N-MU TNMG432EMU TNMG2248N-MU TNMG433EMU TNMG22412N-MU TNMG434EMU TNMG22416N-MU TNMG543EMU TNMG27612N-MU TNMG544EMU TNMG27616N-MU TNMG332EME TNMG1648N-ME TNMG333EME TNMG16412N-ME TNMG432EME TNMG2248N-ME TNMG433EME TNMG22412N-ME TNMG434EME TNMG22416N-ME TNMG332EMX TNMG1648N-MX TNMG333EMX TNMG16412N-MX TNMG432EMX TNMG2248N-MX TNMG433EMX TNMG22412N-MX TNMM 6 Triangle/Negative TNMM432EHG TNMM2248N-HG TNMM433EHG TNMM22412N-HG TNMM434EHG TNMM22416N-HG TNMM332ENP TNMM1648N-MP TRM55174LU TRM55174-LU TRM55178LU TRM55178-LU TRM551712LU TRM LU TRM55174GU TRM55174-GU TRM55178GU TRM55178-GU TRM551712GU TRM GU VNMG 35 Diamond/Negative VNMG331EFL VNMG1644N-FL VNMG332EFL VNMG1648N-FL VNMG331ESU VNMG1644N-SU VNMG332ESU VNMG1648N-SU VNMG331ESE VNMG1644N-SE VNMG332ESE VNMG1648N-SE VNMG331ELU VNMG1644N-LU VNMG332ELU VNMG1648N-LU VNMG331ESX VNMG1644N-SX VNMG332ESX VNMG1648N-SX VNMG331EUP VNMG1644N-UP VNMG332EUP VNMG1648N-UP VNMG331EGU VNMG1644N-GU VNMG332EGU VNMG1648N-GU VNMG333EGU VNMG16412N-GU VNMG331EUX VNMG1644N-UX VNMG332EUX VNMG1648N-UX VNMG333EUX VNMG16412N-UX VNMG331EGE VNMG1644N-GE VNMG332EGE VNMG1648N-GE VNMG333EGE VNMG16412N-GE VNMG331ENG VNMG1644N-UG VNMG332ENG VNMG1648N-UG VNMG331ENZ VNMG1644N-UZ VNMG332ENZ VNMG1648N-UZ VNMG333ENZ VNMG16412N-UZ VNMG432ENZ VNMG2248N-UZ VNMG433ENZ VNMG22412N-UZ Trigon/Negative WNMG431EFL WNMG844N-FL WNMG432EFL WNMG848N-FL WNMG331ESU WNMG644N-SU WNMG332ESU WNMG648N-SU WNMG431ESU WNMG844N-SU WNMG432ESU WNMG848N-SU WNMG433ESU WNMG8412N-SU WNMG431ESE WNMG844N-SE WNMG432ESE WNMG848N-SE WNMG433ESE WNMG8412N-SE WNMG432ESEW WNMG848N-SEW WNMG433ESEW WNMG8412N-SEW WNMG431ELU WNMG844N-SU WNMG432ELU WNMG848N-SU

9 8 Trigon/Negative (continued) CCMT 8 Diamond/7 Positive (continued) WNMG433ELU WNMG8412N-SU WNMG331ELUW WNMG644N-LUW WNMG332ELUW WNMG648N-LUW WNMG431ELUW WNMG844N-LUW WNMG432ELUW WNMG848N-LUW WNMG433ELUW WNMG8412N-LUW WNMG431ENK WNMG844N-SK WNMG432ENK WNMG848N-SK WNMG431ESX WNMG844N-SX WNMG432ESX WNMG848N-SX WNMG433ESX WNMG8412N-SX WNMG432EUP WNMG848N-UP WNMG433EUP WNMG8412N-UP WNMG332EGU WNMG648N-GU WNMG333EGU WNMG6412N-GU WNMG431EGU WNMG844N-GU WNMG432EGU WNMG848N-GU WNMG433EGU WNMG8412N-GU WNMG432EGUW WNMG848N-GUW WNMG433EGUW WNMG8412N-GUW WNMG431EUX WNMG844N-UX WNMG432EUX WNMG848N-UX WNMG433EUX WNMG8412N-UX WNMG332EGE WNMG648N-GE WNMG333EGE WNMG6412N-GE WNMG432EGE WNMG848N-GE WNMG433EGE WNMG8412N-GE WNMG434EGE WNMG8416N-GE WNMG431ENG WNMG844N-UG WNMG432ENG WNMG848N-UG WNMG433ENG WNMG8412N-UG WNMG543ENG WNMG1612N-UG WNMG431ENZ WNMG844N-NZ WNMG432ENZ WNMG848N-NZ WNMG433ENZ WNMG8412N-NZ WNMG332EMU WNMG648N-MU WNMG333EMU WNMG6412N-MU WNMG432EMU WNMG848N-MU WNMG433EMU WNMG8412N-MU WNMG543EMU WNMG1612N-MU WNMG332EME WNMG648N-ME WNMG333EME WNMG6412N-ME WNMG432EME WNMG848N-ME WNMG433EME WNMG8412N-ME WNMG543EME WNMG1612N-ME WNMG432EMX WNMG848N-MX WNMG433EMX WNMG8412N-MX Insert Availability - POSITIVE CCMT 8 Diamond/7 Positive CCMT21.5.5ESU CCMT622N-SU CCMT21.51ESU CCMT624N-SU CCMT21.52ESU CCMT628N-SU CCMT32.5.5ESU CCMT9T32N-SU CCMT32.51ESU CCMT9T34N-SU CCMT32.52ESU CCMT9T38N-SU CCMT431ESU CCMT1244N-SU CCMT432ESU CCMT1248N-SU CCMT21.5.5ELU CCMT622N-LU CCMT21.51ELU CCMT624N-LU CCMT32.51ELU CCMT9T34N-LU CCMT32.52ELU CCMT9T38N-LU CCMT32.51ELUW CCMT9T34N-LUW CCMT32.52ELUW CCMT9T38N-LUW CCMT21.51ENK CCMT624N-SK CCMT21.52ENK CCMT628N-SK CCMT32.51ENK CCMT9T34N-SK CCMT32.52ENK CCMT9T38N-SK CCMT431ENK CCMT1244N-SK CCMT432ENK CCMT1248N-SK CCMT32.51EMU CCMT9T34N-MU CCMT32.52EMU CCMT9T38N-MU CCMT21.51EFM CCMT624N-SC CCMT322EFM CCMT938N-SC Diamond/11 Positive CPMT ESU CPMT824N-SU CPMT ESU CPMT828N-SU CPMT21.51ESU CPMT624N-SU CPMT21.52ESU CPMT628N-SU CPMT32.51ESU CPMT9T34N-SU CPMT32.52ESU CPMT9T38N-SU CPMT321ESU CPMT934N-SU CPMT322ESU CPMT938N-SU CPMT321ELU CPMT934N-LU CPMT322ELU CPMT938N-LU CPMT321ELUW CPMT934N-LUW CPMT322ELUW CPMT938N-LUW CPMT21.51EMU CPMT624N-MU CPMT21.52EMU CPMT628N-MU CPMT321EMU CPMT934N-MU CPMT322EMU CPMT938N-MU DCMT 55 Diamond/7 Positive DCMT21.5.5ELU DCMT722N-LU DCMT21.51ELU DCMT724N-LU DCMT32.5.5ELU DCMT11T32N-LU DCMT32.51ELU DCMT11T34N-LU DCMT32.52ELU DCMT11T38N-LU DCMT21.5.5ESU DCMT722N-SU DCMT21.51ESU DCMT724N-SU DCMT21.52ESU DCMT728N-SU DCMT32.5.5ESU DCMT11T32N-SU DCMT32.51ESU DCMT11T34N-SU DCMT32.52ESU DCMT11T38N-SU

10 DCMT 55 Diamond/7 Positive (continued) 9 Square/11 Positive DCMT21.51ENK DCMT724N-SK DCMT32.51ENK DCMT11T34N-SK DCMT32.52ENK DCMT11T38N-SK DCMT32.51EMU DCMT11T34N-MU DCMT32.52EMU DCMT11T38N-MU Diamond/11 Positive RCMX13 RCMX13MON-RP RCMX124 RCMX124MON-RP RCMX166 RCMX166MON-RP RCMX26 RCMX26MON-RP RCMX257 RCMX257MON-RP SCMT 9 Square/7 Positive SCMT32.51ESU SCMT9T34N-SU SCMT32.52ESU SCMT9T38N-SU SCMT431ESU SCMT1244N-SU SCMT432ESU SCMT1248N-SU SCMT32.51ELU SCMT9T34N-LU SCMT32.52ELU SCMT9T38N-LU SCMT32.51ENK SCMT9T34N-SK SCMT32.52ENK SCMT9T38N-SK SCMT431ENK SCMT1244N-SK SCMT432ENK SCMT1248N-SK SCMT433ENK SCMT12412N-SK SCMT32.52EMU SCMT9T38N-MU SCMT432EMU SCMT1248N-MU DPMT21.51ESU DPMT724N-SU DPMT32.51ESU DPMT11T34N-SU DPMT32.52ESU DPMT11T38N-SU Round/7 Positive RCMT13RX RCMT13MON-RX RCMT124RX RCMT124MON-RX RCMT166RX RCMT166MON-RX RCMT26RX RCMT26MON-RX RCMT257RX RCMT257MON-RX Round/7 Positive SPG422 SPGN SPG423 SPGN SPG432 SPGN SPG433 SPGN SPG632 SPGN SPG633 SPGN SPG634 SPGN Square/11 Positive 9 Square/11 Positive SPMT322ELU SPMT938N-LU SPMT321ENF SPMT934N-SF SPMT322ENF SPMT938N-SF Square/11 Positive SPMR321ENF SPMR934N-SF SPMR322ENF SPMR938N-SF SPMR421ENF SPMR1234N-SF SPMR422ENF SPMR1238N-SF SPMR423ENF SPMR12312N-SF TBGT 6 Triangle/5 Positive TBGT52.5L TBGT612L-W TBGT521L TBGT614L-W TBGT52.5LFX TBGT612L-FX TBGT521LFX TBGT614L-FX TCMT 6 Triangle/7 Positive TCMT21.51ESU TCMT1124N-SU TCMT21.52ESU TCMT1128N-SU TCMT32.51ESU TCMT16T34N-SU TCMT32.52ESU TCMT16T38N-SU TCMT21.51ELU TCMT1124N-LU TCMT21.52ELU TCMT1128N-LU SPMN322 SPMN SPMN421 SPMN SPMN422 SPMN SPMN634 SPMN

11 TCMT 6 Triangle/7 Positive 6 Triangle/11 Positive TPG221 TPGN TPG222 TPGN TPG321 TPGN TPG322 TPGN TPG323 TPGN TPG324 TPGN TPG332 TPGN TPG431 TPGN TPG432 TPGN TPG433 TPGN TPG434 TPGN TPG436 TPGN Triangle/11 Positive TPMN321 TPMN TPMN322 TPMN TPMN432 TPMN TPMN433 TPMN Triangle/11 Positive TPMT ESU TPMT922N-SU TPMT ESU TPMT924N-SU TPMT21.5.5ESU TPMT1122N-SU TPMT21.51ESU TPMT1124N-SU TPMT21.52ESU TPMT1128N-SU TPMT22.5ESU TPMT1132N-SU TPMT221ESU TPMT1134N-SU TPMT222ESU TPMT1138N-SU TPMT32.51ESU TPMT16T34N-SU TPMT32.52ESU TPMT16T38N-SU TPMT331ESU TPMT1644N-SU TPMT332ESU TPMT1648N-SU TPMT ELU TPMT922N-LU TPMT ELU TPMT924N-LU TPMT221ELU TPMT1134N-LU TPMT222ELU TPMT1138N-LU TPMT221ENF TPMT1134N-SF TPMT222ENF TPMT1138N-SF TPMT331ENF TPMT1644N-SF TPMT332ENF TPMT1648N-SF TPMT221EMU TPMT1134N-MU TCMT21.51ENK TCMT1124N-SK TCMT21.52ENK TCMT1128N-SK TCMT32.51ENK TCMT16T34N-SK TCMT32.52ENK TCMT16T38N-SK TCMT32.53ENK TCMT16T312N-SK Triangle/11 Positive 6 Triangle/11 Positive TPMR221ENF TPMR1134N-SF TPMR222ENF TPMR1138N-SF TPMR321ENF TPMR1634N-SF TPMR322ENF TPMR1638N-SF TPMR323ENF TPMR16312N-SF TPMR432ENF TPMR2248N-SF TPMR433ENF TPMR22412N-SF VBMT 35 Diamond/5 Positive VBMT221ESU VBMT1134N-SU VBMT222ESU VBMT1138N-SU VBMT331ESU VBMT1644N-SU VBMT332ESU VBMT1648N-SU VBMT221ELU VBMT1134N-LU VBMT331ELU VBMT1644N-LU VBMT332ELU VBMT1648N-LU VBMT332ENK VBMT1648N-SK VCMT 35 Diamond/7 Positive VCMT331ESU VCMT1644N-SU VCMT332ESU VCMT1648N-SU VCMT331ELU VCMT1644N-LU VCMT332ELU VCMT1648N-LU VCMT331ENK VCMT1644N-SK VCMT332ENK VCMT1648N-SK Neutral (N) 1/128 2 W 2 WCFN2T WCFR2T WCFL2T WCFN3 WCFR3 WCFL3 WCFN4 WCFR4 WCFL4 WCFN5 WCFR5 WCFL5 Right Hand (R) 1/128 2 W 8 Left Hand (L) 8 2 W /128 TPMT222EMU TPMT1138N-MU TPMT331EMU TPMT1644N-MU TPMT332EMU TPMT1648N-MU
