1 ΔΟΜΕΣ ΔΕΔΟΜΕΝΩΝ & ΑΛΓΟΡΙΘΜΟΙ ΕΡΓΑΣΤΗΡΙΟ Κωδικός Θ: ΤΠ3001, Κωδικός Ε: ΤΠ3101 (ΜΕΥ/Υ) Ώρες (Θ - Ε): 4-2 Προαπαιτούμενα: Δρ. ΒΙΔΑΚΗΣ ΝΙΚΟΣ

2 ΕΡΓΑΣΤΗΡΙΟ 4 Ταξινόμηση με 1. Bubble Sort 2. Quick Sort

3 Bubble Sort Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 3

4 Bubble Sort Introduction Bubble sort is also known as exchange sort. Bubble sort is the simplest sorting algorithm. In bubble sort algorithm array is traversed from 0 to the length-1 index of the array and compared one element to the next element and swap values in between if the next element is less than the previous element. In other words, bubble sorting algorithm compare two values and put the largest value at largest index. The algorithm follow the same steps repeatedly until the values of array is sorted. In practice it is used rarely and its main application is to make an introduction to the sorting algorithms In worst-case the complexity of bubble sort is O(n2) and in best-case the complexity of bubble sort is Ω(n). Quite inefficient for sorting large data volumes. Bubble sort is stable and adaptive Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 4

5 Bubble Sort Code description: Bubble Sorting is an algorithm in which we are comparing first two values and put the larger one at higher index. Then we take next two values compare these values and place larger value at higher index. This process do iteratively until the largest value is not reached at last index. Then start again from zero index up to n-1 index. The algorithm follows the same steps iteratively unlit elements are sorted. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 5

6 Bubble Sort algorithm working sequence Working of bubble sort algorithm: Ας θεωρήσουμε το unsorted array A[0],A[1],A[2]... A[n-1],A[n]. Βήματα ταξινόμησης αλγόριθμου bubble sort. 1. Compare A[0] and A[1]. 2. If A[0]>A[1] then Swap A[0] and A[1]. 3. Take next A[1] and A[2]. 4. Comapre these values. 5. If A[1]>A[2] then swap A[1] and A[2] at last compare A[n-1] and A[n]. 8. If A[n-1]>A[n] then swap A[n-1] and A[n]. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 6

7 Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 1: every step is a comparison (j=1) a. Compare first two values 12 and 9. b. 12, 9, 4, 99, 120, 1, 3, 10 c. 12>9 thus swap these values d. Then the new sequence will be e. 9, 12, 4, 99, 120, 1, 3, 10 Step 2: every step is j++ (j=2) a. take next two values 12 and 4 b. 9, 12, 4, 99, 120, 1, 3, 10 c. Compare these two values. d. 12>4 thus swap these values. e. Then the new sequence will be f. 9, 4, 12, 99, 120, 1, 3, 10 Steps 3-7: Follow similar steps up to end of array <99 ok <120 ok <120 ok >3 swap >10 swap Bubble Sort Working of bubble sort algorithm Example First loop i = 0: for(i = 0; i < n; i++) public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; RESULTS new order in array = End of the array Array is UNSORTED Start Again Second loop: for(j = 1; j < (n-i); j++) j = 3, n = 8, i = 0 (with j < (n-i) && i < n) j = 4, n = 8, i = 0 (with j < (n-i) && i < n) j = 5, n = 8, i = 0 (with j < (n-i) && i < n) j = 6, n = 8, i = 0 (with j < (n-i) && i < n) j = 7, n = 8, i = 0 (with j < (n-i) && i < n) Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 7

8 Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Steps 8-13: Follow similar steps up to end of array >4 swap <12 ok <99 ok Bubble Sort Working of bubble sort algorithm Example >1 swap >3 swap >10 swap public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; First loop in code for(i = 0; i < n; i++) (with i = 1) Second loop in code for(j = 1; j < (n-i); j++) translates to for (j=1; j<7;j++) j = 1, n = 8, i = 1 (with j < (n-i) && i < n) j = 2, n = 8, i = 1 (with j < (n-i) && i < n) j = 3, n = 8, i = 1 (with j < (n-i) && i < n) j = 4, n = 8, i = 1 (with j < (n-i) && i < n) j = 5, n = 8, i = 1 (with j < (n-i) && i < n) j = 6, n = 8, i = 1 (with j < (n-i) && i < n) RESULTS (for 2 nd pass where i=1) 2 nd pass element order = End of unsorted array reached and array is UNSORTED i++ Start Again Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 8

9 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 First loop in code for(i = 0; i < n; i++) (with i = 2) Steps 14-18: Follow similar steps up to end of array <9 ok <12 ok >1 swap >3 swap >10 swap Second loop in code for(j = 1; j < (n-i); j++) translates to for (j=1; j<6;j++) j = 1, n = 8, i = 2 (with j < (n-i) && i < n) j = 2, n = 8, i = 2 (with j < (n-i) && i < n) j = 3, n = 8, i = 2 (with j < (n-i) && i < n) j = 4, n = 8, i = 2 (with j < (n-i) && i < n) j = 5, n = 8, i = 2 (with j < (n-i) && i < n) public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; RESULTS (for 3 rd pass where i=2) 3 rd pass element order = End of unsorted array reached and array is UNSORTED i++ Start Again Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 9

10 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 First loop in code for(i = 0; i < n; i++) (with i = 3) Steps 19-22: Follow similar steps up to end of array <9 ok >1 swap >3 swap <10 ok Second loop in code for(j = 1; j < (n-i); j++) translates to for (j=1; j<5;j++) j = 1, n = 8, i = 3 (with j < (n-i) && i < n) j = 2, n = 8, i = 3 (with j < (n-i) && i < n) j = 3, n = 8, i = 3 (with j < (n-i) && i < n) j = 4, n = 8, i = 3 (with j < (n-i) && i < n) public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; RESULTS (for 4 th pass where i=3) 4 th pass element order = End of unsorted array reached and array is UNSORTED i++ Start Again Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 10

11 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 First loop in code for(i = 0; i < n; i++) (with i = 4) Steps 23-25: Follow similar steps up to end of array >1 swap >3 swap <9 ok Second loop in code for(j = 1; j < (n-i); j++) translates to for (j=1; j<4;j++) j = 1, n = 8, i = 4 (with j < (n-i) && i < n) j = 2, n = 8, i = 4 (with j < (n-i) && i < n) j = 3, n = 8, i = 4 (with j < (n-i) && i < n) public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; RESULTS (for 5 th pass where i=4) 5 th pass element order = End of unsorted array reached and array is UNSORTED i++ Start Again Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 11

12 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 First loop in code for(i = 0; i < n; i++) (with i = 5) Steps 26-27: Follow similar steps up to end of array <3 ok <4 ok Second loop in code for(j = 1; j < (n-i); j++) translates to for (j=1; j<3;j++) j = 1, n = 8, i = 5 (with j < (n-i) && i < n) j = 2, n = 8, i = 5 (with j < (n-i) && i < n) public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; RESULTS (for 6 th pass where i=5) 6 th pass element order = End of unsorted array reached and array is UNSORTED i++ Start Again Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 12

13 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 First loop in code for(i = 0; i < n; i++) (with i = 6) Steps 28: Follow similar steps up to end of array <3 ok Second loop in code for(j = 1; j < (n-i); j++) translates to for (j=1; j<2;j++) j = 1, n = 8, i = 6 (with j < (n-i) && i < n) public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; RESULTS (for 7 th pass where i=6) 7 th pass element order = End of unsorted array reached and array is UNSORTED i++ Start Again Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 13

14 Bubble Sort Working of bubble sort algorithm Example Example array values: 12, 9, 4, 99, 120, 1, 3, 10 Steps 29 and 30 do not change anything in the arrays, so they don t count as COMPARES. They are just to demonstrate the function of the outer FOR loop and the exit of the bubble_srt( ) function. Step 29: No comparison in this step j = 1 n = 8 i = 7 with j < (n-i) && i < n; In every end of array i++ ; Step 30: No comparison in this step j = 1 n = 8 i = 8 with j < (n-i) && i < n; Now it exits the function Sorted array values: 1, 3, 4, 9, 10, 12, 99, 120, Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 14

15 Turtles and rabbits Bubble Sort One more problem of bubble sort is that its running time badly depends on the initial order of the elements. Big elements (rabbits) go up fast, while small ones (turtles) go down very slow. This problem is solved in the Cocktail sort. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 15

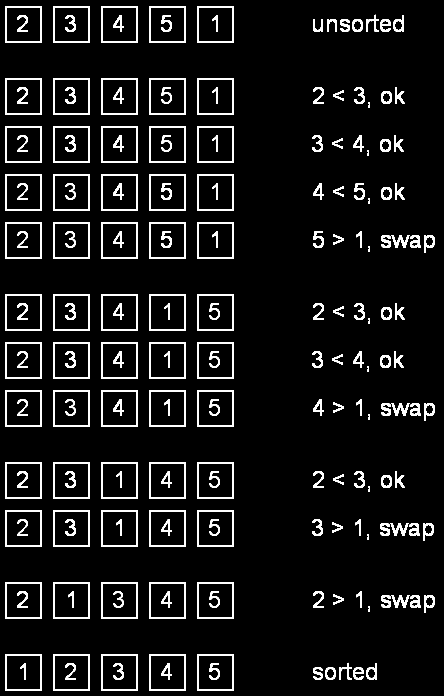

16 Bubble Sort Working of bubble sort algorithm Turtle Example Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 16

17 Bubble Sort Working of bubble sort algorithm Rabbit Example Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 17

18 Bubble Sort Example code in Java public class bubblesort{ public static void main(string a[]){ int i; int array[] = {12,9,4,99,120,1,3,10; System.out.println("Values Before the sort:\n"); for(i = 0; i < array.length; i++) System.out.print( array[i]+" "); System.out.println(); bubble_srt(array, array.length); System.out.print("Values after the sort:\n"); for(i = 0; i <array.length; i++) System.out.print(array[i]+" "); System.out.println(); System.out.println("PAUSE"); public static void bubble_srt( int a[], int n ){ int i, j,t=0; for(i = 0; i < n; i++){ for(j = 1; j < (n-i); j++){ if(a[j-1] > a[j]){ t = a[j-1]; a[j-1]=a[j]; a[j]=t; Example code taken from: Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 18

19 Bubble Sort Example code in C++ public class bubblesort{ void bubblesort(int arr[], int n) { bool swapped = true; int j = 0; int tmp; while (swapped) { swapped = false; j++; for (int i = 0; i < n - j; i++) { if (arr[i] > arr[i + 1]) { tmp = arr[i]; arr[i] = arr[i + 1]; arr[i + 1] = tmp; swapped = true; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 19

20 Bubble Sort Example code in C /* Bubble sort code */ #include <stdio.h> main() { int array[100], n, c, d, swap; printf("enter number of elements\n"); scanf("%d", &n); printf("enter %d integers\n", n); for (c = 0; c < n; c++) scanf("%d", &array[c]); for (c = 0 ; c < ( n - 1 ); c++) { for (d = 0 ; d < n - c - 1; d++) { if (array[d] > array[d+1]) /* For decreasing order use < */ { swap = array[d]; array[d] = array[d+1]; array[d+1] = swap; printf("sorted list in ascending order:\n"); for ( c = 0 ; c < n ; c++ ) printf("%d\n", array[c]); Copyrights: Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 20

21 Bidirectional Bubble Sort Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 21

22 Bidirectional Bubble Sort Introduction: Bi-directional bubble sorting also known as cocktail shaker sort, shaker sort, double-direction bubble sort. Facts: A alternative of bubble sort is bi-directional bubble sort. The bi-directional bubble sort compares each adjacent pair of elements in an array. The values will be swap if necessary. The values passes from the beginning to the end and also from the end to the beginning. It stops when there is no any element to swap. The complexity of bi-directional bubble sort is O(n2). Bi-directional bubble sort is better than bubble sort. In Bi-directional bubble sort at least one elements is moved forward or backward to its place in the array with each pass. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 22

23 Bidirectional Bubble Sort algorithm working sequence Working of bubble sort algorithm: Ας θεωρήσουμε το unsorted array A[0],A[1],A[2]... A[n-1],A[n]. Βήματα ταξινόμησης αλγόριθμου bubble sort. 1. Compare A[0] &A[1] and A[n-1] & A[n]. 2. If A[0]>A[1] then Swap A[0] & A[1] and also if A[n-1]>A[n] then swap it. 3. Take next A[1] & A[2] and A[n-2] & A[n-1]. 4. Comapre these values. 5. If A[1]>A[2] then Swap A[1] & A[2] and also if A[n-2]>A[n-1] then swap it Stop: when there is no any pass for swap or the array values are in sorted order. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 23

24 Bidirectional Bubble Sort public class BidirectionalBubbleSort{ public static void main(string a[]){ int i; int array[] = {12,9,4,99,120,1,3,10; System.out.println("\n\n RoseIndia\n\n"); System.out.println(" Bidirectional Bubble Sort\n\n"); System.out.println("Values Before the sort:\n"); for(i = 0; i < array.length; i++) System.out.print( array[i]+" "); System.out.println(); bidirectionalbubble_srt(array, array.length); System.out.print("Values after the sort:\n"); for(i = 0; i <array.length; i++) System.out.print(array[i]+" "); System.out.println(); System.out.println("PAUSE"); Example code public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Example code taken from: Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 24

25 Bidirectional Bubble Sort Παράδειγμα σε C /* * C Program to Implement CockTail Sort */ #include <stdio.h> #define MAX 8 int main() { int data[max]; int i, j, n, c; printf("\nenter the data"); for (i = 0; i < MAX; i++) { scanf("%d", &data[i]); n = MAX; do { /* * Rightward pass will shift the largest element to its correct place at the end */ for (i = 0; i < n - 1; i++) { if (data[i] > data[i + 1]) { data[i] = data[i] + data[i + 1]; data[i + 1] = data[i] - data[i + 1]; data[i] = data[i] - data[i + 1]; n = n - 1; /* * Leftward pass will shift the smallest element to its correct place at the beginning */ for (i= MAX - 1, c = 0; i >= c; i--) { if(data[i] < data[i - 1]) { data[i] = data[i] + data[i - 1]; data[i - 1] = data[i] - data[i - 1]; data[i] = data[i] - data[i - 1]; c = c + 1; while (n!= 0 && c!= 0); printf("the sorted elements are:"); for (i = 0; i < MAX; i++) { printf("%d\t", data[i]); Copyrights: Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 25

26 Bidirectional Bubble Sort Working of bubble sort algorithm Example Example array values: 12, 9, 4, 99, 120, 1, 3, 10 Steps 1-7: Start to End Direction >9 swap >4 swap <99 ok <120 ok >1 swap >3 swap >10 swap new temp array = Steps 7-14: End to Start Direction <120 ok <10 ok <3 ok >1 swap >1 swap >1 swap >1 swap Steps 15-19: Start to End Direction >4 swap >12 ok >99 ok >3 swap >10 swap new temp array = Steps 20-24: End to Start Direction <99 ok <10 ok >3 swap >3 swap >3 swap new array = new array = Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 26

27 Bidirectional Bubble Sort Working of bubble sort algorithm Example Example array values: 12, 9, 4, 99, 120, 1, 3, 10 Steps 25-27: Start to End Direction <9 ok <12 ok >10 swap New temp array = Steps 28-30: End to Start Direction <12 ok <10 ok <9 ok new array = Step 31: Start to End Direction <10 ok new temp array = Step 32: End to Start Direction <12 ok new array = sorted So we have 32 steps Sorted array values: 1, 3, 4, 9, 10, 12, 99, 120, Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 27

28 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Begin the bidirectionalbubble_srt() with st = -1 Before Step1 and before entering the FOR loops, it checks the WHILE statement. Then it adds 1 to the st variable. So st = 0; And it subtracks 1 from the n variable. So n = 7 Steps 1-7: Start to End Direction j = st j = 0; so it starts comparing from: array[0] >9 swap >4 swap <99 ok <120 ok >1 swap >3 swap >10 swap And stop after 7 loops because j must be < than n so j < 7 new temp array: NEXT 2 PAGES STEP 1 4 WITH DETAILES public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 28

29 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 1: From Start To End. We are in 1 st FOR loop with n=7, st=0, j=0 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[0]>Array[1] Inside the IF it SWAPS the values of the array >9 swap j++; New Array: This loops for j<n, which means j < 7. Step 2: From Start To End. We are in 1 st FOR loop with n=7, st=0, j=1 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[1]>Array[2] Inside the IF it SWAPS the values of the array >4 swap j++; New Array: This loops for j<n, which means j < 7. public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 29

30 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 3: From Start To End. We are in 1 st FOR loop with n=7, st=0, j=2 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[2]>Array[3] Inside the IF it SWAPS the values of the array <99 ok j++; New Array: This loops for j<n, which means j < 7. Step 4: From Start To End. We are in 1 st FOR loop with n=7, st=0, j=3 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[3]>Array[4] Inside the IF it SWAPS the values of the array <120 ok j++; New Array: This loops for j<n, which means j < 7. SAME STEPS FOR J < N public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 30

31 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 st = 0; n = 7 First subtrack 1 from j then check if j >= st So, the starting value of j (j = n) will NOT be 7 but 6. Steps 8-14: End to Start Direction j=n j 7 but j j=6; so it starts comparing from array[6] > array[7] <120 ok j= <10 ok j= <3 ok j= >1 swap j= >1 swap j= >1 swap j= >1 swap j=0 And stops after 7 loops because j >= st; j >= 0; new array = NEXT 2 PAGES STEP 8 11 WITH DETAILES public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 31

32 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 8: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=7, j=n, st=0, j=6 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[6]>Array[7] Inside the IF it SWAPS the values of the array <120 ok New Array: This loops for j>=st, which means j >= 0. Step 9: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=7, st=0, j=5 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[5]>Array[6] Inside the IF it SWAPS the values of the array <10 ok New Array: This loops for j>=st, which means j >= 0. public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 32

33 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 10: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=7, st=0, j=4 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[4]>Array[5] Inside the IF it SWAPS the values of the array < 3 ok New Array: This loops for j>=st, which means j >= 0. Step 11: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=7, st=0, j=3 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[3]>Array[4] Inside the IF it SWAPS the values of the array > 1 swap New Array: This loops for j>=st, which means j >= 0. SAME STEPS FOR J >= ST public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 33

34 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 At Step14 both FOR loops are completed. So it checks the WHILE statement again. Then it adds 1 to the st variable. So st = 1; And it subtracks 1 from the n variable. So n = 6 Steps 15-19: Start to End Direction j = st j = 1; so it starts comparing from: array[1] >4 swap >12 ok >99 ok >3 swap >10 swap And stop after 5 loops because j must be < than n so j < 6 new temp array: NEXT 2 PAGES STEP WITH DETAILES public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 34

35 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 15: From Start To End. We are in 1 st FOR loop with n=6, st=1, j=1 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[1]>Array[2] Inside the IF it SWAPS the values of the array >4 swap j++; New Array: This loops for j<n, which means j < 6. Step 16: From Start To End. We are in 1 st FOR loop with n=6, st=1, j=2 On the IF we COMPARES the elements of the array in couples.the current and the next one. Array[2]>Array[3] Inside the IF it SWAPS the values of the array <12 ok j++; New Array: This loops for j<n, which means j < 6. public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 35

36 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 17: From Start To End. We are in 1 st FOR loop with n=6, st=1, j=3 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[3]>Array[4] Inside the IF it SWAPS the values of the array <99 ok j++; New Array: This loops for j<n, which means j < 6. Step 18: From Start To End. We are in 1 st FOR loop with n=6, st=1, j=4 On the IF we COMPARES the elements of the array in couples.the current and the next one. Array[4]>Array[5] Inside the IF it SWAPS the values of the array >3 swap j++; New Array: This loops for j<n, which means j < 6. SAME STEPS FOR J < N public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 36

37 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 st = 1; n = 6 First subtrack 1 from j then check if j >= st So, the starting value of j (j = n) will NOT be 6 but 5. Steps 20-24: End to Start Direction j=n j 6 but j j=5; so it starts comparing from array[5] > array[6] <99 ok j = <10 ok j = >3 swap j = >3 swap j = >3 swap j = 1 And stops after 5 loops because j >= st; j >= 1; new array = NEXT 2 PAGES STEP WITH DETAILES public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 37

38 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 20: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=6, st=1, j=5 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[5]>Array[6] Inside the IF it SWAPS the values of the array <99 ok j++; New Array: This loops for j>=st, which means j >= 1. Step 21: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=6, st=1, j=4 On the IF we COMPARES the elements of the array in couples.the current and the next one. Array[4]>Array[5] Inside the IF it SWAPS the values of the array <10 ok j++; New Array: This loops for j>=st, which means j >= 1. public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 38

39 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 22: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=6, st=1, j=3 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[3]>Array[4] Inside the IF it SWAPS the values of the array >3 swap j++; New Array: This loops for j>=st, which means j >= 1. Step 23: From End To Start. Here it first decreases the j and then enters the loop.(--j) We are in 2 st FOR loop with n=6, st=1, j=2 On the IF we COMPARES the elements of the array in couples.the current and the next one. Array[2]>Array[3] Inside the IF it SWAPS the values of the array >3 swap j++; New Array: This loops for j>=st, which means j >= 1. public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 39

40 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 At Step24 both FOR loops are completed again. So it checks the WHILE statement once more. Then it adds 1 to the st variable. So st = 2; And it subtracks 1 from the n variable. So n = 5 Steps 25-27: Start to End Direction j = st => j = 2; so it starts comparing from: array[2] <9 ok <12 ok >10 swap And stop after 3 loops because j must be < than n so j < 5 new temp array: NEXT 2 PAGES STEP WITH DETAILES public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 40

41 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 25: From Start To End. We are in 1 st FOR loop with n=5, st=2, j=2 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[2]>Array[3] Inside the IF it SWAPS the values of the array <9 ok j++; New Array: This loops for j<n, which means j < 5. Step 26: From Start To End. We are in 1 st FOR loop with n=5, st=2, j=3 On the IF we COMPARES the elements of the array in couples.the current and the next one. Array[3]>Array[4] Inside the IF it SWAPS the values of the array <12 ok j++; New Array: This loops for j<n, which means j < 5. public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 41

42 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 Step 27: From Start To End. We are in 1 st FOR loop with n=5, st=2, j=4 On the IF it COMPARES the elements of the array in couples.the current and the next one. Array[3]>Array[4] Inside the IF it SWAPS the values of the array >10 swap j++; New Array: This loops for j<n, which means j < 5. SAME STEPS FOR J < N public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 42

43 Bubble Sort Working of bubble sort algorithm Example Array Elements: Start Order = 12, 9, 4, 99, 120, 1, 3, 10 st = 2; n = 5; First subtrack 1 from j then check if j >= st So, the starting value of j (j = n) will NOT be 5 but 4. Steps 28-30: End to Start Direction <12 ok <10 ok <9 ok new array = NEXT PAGE STEP WITH DETAILES public static void bidirectionalbubble_srt(int array[], int n){ int j; int st = -1; while (st < n) { st++; n--; for (j = st; j < n; j++) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; for (j = n; --j >= st;) { if (array[j] > array[j + 1]) { int T = array[j]; array[j] = array[j + 1]; array[j + 1] = T; Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 43

44 Quick Sort Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 44

45 Quick sort Introduction Quick sort algorithm is developed by C. A. R. Hoare. Quick sort is a comparison sort. The working of quick sort algorithm is depending on a divide-and-conquer strategy. A divide and conquer strategy is dividing an array into two sub-arrays. Quick sort is one of the fastest and simplest sorting algorithm. The complexity of quick sort in the average case is Θ(n log(n)) and in the worst case is Θ(n2). Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 45

46 Quick sort Code description In quick sort algorithm pick an element from array of elements. This element is called the pivot. Then compare the values from left to right until a greater element is find then swap the values. Again start comparison from right with pivot. When lesser element is find then swap the values. Follow the same steps until all elements which are less than the pivot come before the pivot and all elements greater than the pivot come after it. After this partitioning, the pivot is in its last position.this is called the partition operation. Recursively sort the sub-array of lesser elements and the sub-array of greater elements. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 46

47 Quick sort Algorithm description The divide-and-conquer strategy is used in quick-sort. Below the recursion step is described: Choose a pivot value. We take the value of the middle element as pivot value, but it can be any value, which is in range of sorted values, even if it doesn't present in the array. Partition. Rearrange elements in such a way, that all elements which are lesser than the pivot go to the left part of the array and all elements greater than the pivot, go to the right part of the array. Values equal to the pivot can stay in any part of the array. Notice, that array may be divided in non-equal parts. Sort both parts. Apply quick-sort algorithm recursively to the left and the right parts. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 47

48 Quick sort Partition algorithm in detail There are two indices i and j and at the very beginning of the partition algorithm i points to the first element in the array and j points to the last one. Then algorithm moves i forward, until an element with value greater or equal to the pivot is found. Index j is moved backward, until an element with value lesser or equal to the pivot is found. If i j then they are swapped and i steps to the next position (i + 1), j steps to the previous one (j - 1). Algorithm stops, when i becomes greater than j. After partition, all values before i-th element are less or equal than the pivot and all values after j-th element are greater or equal to the pivot. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 48

49 Quick Sort An example Example. Sort {1, 12, 5, 26, 7, 14, 3, 7, 2 using quicksort. Notice, that we show here only the first recursion step, in order not to make example too long. But, in fact, {1, 2, 5, 7, 3 and {14, 7, 26, 12 are sorted then recursively. Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 49

50 Quick Sort Working of quick sort algorithm Example Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 50

51 Quick Sort Working of quick sort algorithm Example Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 51

52 Quick Sort Working of quick sort algorithm Example Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 52

53 Quick Sort Example code1 public class QuickSort{ public static void main(string a[]){ int i; int array[] = {12,9,4,99,120,1,3,10,13; System.out.println("\n\n RoseIndia\n\n"); System.out.println(" Quick Sort\n\n"); System.out.println("Values Before the sort:\n"); for(i = 0; i < array.length; i++) System.out.print( array[i]+" "); System.out.println(); quick_srt(array,0,array.length-1); System.out.print("Values after the sort:\n"); for(i = 0; i <array.length; i++) System.out.print(array[i]+" "); System.out.println(); System.out.println("PAUSE"); public static void quick_srt(int array[],int low, int n){ int lo = low; int hi = n; if (lo >= n) { return; int mid = array[(lo + hi) / 2]; while (lo < hi) { while (lo<hi && array[lo] < mid) { lo++; while (lo<hi && array[hi] > mid) { hi--; if (lo < hi) { int T = array[lo]; array[lo] = array[hi]; array[hi] = T; if (hi < lo) { int T = hi; hi = lo; lo = T; quick_srt(array, low, lo); quick_srt(array, lo == low? lo+1 : lo, n); Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 53

54 Quick Sort Example code_2 public class QuickSort{ public static void main(string a[]){ int i; int array[] = {12,9,4,99,120,1,3,10,13; System.out.println("Values Before the sort:\n"); for(i = 0; i < array.length; i++) System.out.print( array[i]+" "); System.out.println(); quick_srt(array,0,array.length-1); System.out.print("Values after the sort:\n"); for(i = 0; i <array.length; i++) System.out.print(array[i]+" "); System.out.println(); System.out.println("PAUSE"); public static void quick_srt(int array[],int low, int high){ int lq = low; int hq = high; int mid, temp; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; if(lq <= hq){ temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(lq <= hq); if(low < hq) quick_srt(array, low, hq); if(lq < high) quick_srt(array, lq, high); Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 54

55 Step By Step Analisys(Theory) Array Elements: Start Order = 12,9,4,99,120,1,3,10,13 It originates values of low and high into the others because we are going to use it again so we need them stored somewhere. It also assigns to mid the value stored into the array we need to be our pivot. Now we enter the do loop and the firtst while loop. Here it checks whether the array[lq] is smaller than mid. While this is true it adds 1 to the lq variable. When the first while loop ends, it enters the second: Here it checks whether the mid is smaller than the array[hq]. While this is true it subtracks 1 from the hq variable. In both of the while loops is where COMPARISONS take place. In this 1 st if statement, the SWAPS are done. All the above run while the do-while loop is true. (lq < = hq) Now we come to the last two if statements. On the 2 nd if it checks if low, the one we had from the beginnig(low = 0) is smaller than the hq the one that changed through the quick(). If its true it calls itself with array, low, hq as definitions. Same thing will happen on the 3 rd if but with different variables for the definition. If none of the two if is true it ends the quick algorithm and returns to main. public static void quick(int array[],int low, int high){ int mid, temp; int lq = low; int hq = high; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; if(lq <= hq){ temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(loq <= hq); if(low < hq) quick(array, low, hq); if(lq < high) quick(array, lq, high); 1 st While 2 nd While Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 55 1 st If 2 nd if 3 rd if

56 Step By Step Analisys(Variables) Array Elements: Start Order = 12,9,4,99,120,1,3,10,13 VALUES FOR FISRT RUN OF quick() array[] = {12,9,4,99,120,1,3,10,13, low = 0, high = 8 because (array.length 1); lq = 0; hq = 8; mid = array[ ( 0+8) / 2] = array[4] = 120; array[0] = 12, mid = < 120 true lq++; array[1] = 9, mid = < 120 true lq++; array[2] = 4, mid = < 120 true lq++; array[3] = 99, mid = < 120 true lq++; array[4] = 120,mid = < 120 false (lq=4) array[8] = 13,mid = < 13 false (hq=8) lq = 4,hq = 8 4 < = 8 true temp = array[4]; temp = 120 array[4] = array[8]; array[4] = 13 array[8] = temp; array[8] = 120 lq++; lq = 5 hq--; hq = 7 new array: {12, 9, 4, 99, 13, 1, 3, 10, 120; lq = 5, hq = 7 5 < = 7 true run again public static void quick(int array[],int low, int high){ int mid, temp; int lq = low; int hq = high; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; Runs 4 times Runs 0 times if(lq <= hq){ Enters temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(lq <= hq); It s true and runs again if(low < hq) quick(array, low, hq); if(lq < high) quick(array, lq, high); Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 56

57 Step By Step Analisys(Variables) Array Elements: Start Order = 12,9,4,99,120,1,3,10,13 public static void quick(int array[],int low, int high){ Having from previous: lq = 5; hq = 7; mid = 120 array[ ] = {12, 9, 4, 99, 13, 1, 3, 10, 120; array[5] = 1, mid = < 120 true lq++; array[6] = 3, mid = < 120 true lq++; array[7] = 10, mid = < 120 true lq++; array[8] = 120, mid = < 120 false ---- (lq=8) array[7] = 10, mid = < 10 false --- (hq = 7) int mid, temp; int lq = low; int hq = high; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; Runs 3 times Runs 0 times lq = 8, hq = 7 8 <= 7 false new array: {12, 9, 4, 99, 13, 1, 3, 10, 120; same as before lq = 8, hq = 7 8 < = 7 false low = 0, hq = 7 0 < 7 true array[ ] = {12, 9, 4, 99, 13, 1, 3, 10, 120, low = 0, hq = 7; Now it transfers these values and the array back to the top of the algorithm. So at the next step we ll see how it s done. if(lq <= hq){ Doesn t Enter temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(lq <= hq); Has run 2 times if(low < hq) quick(array, low, hq); if(lq < high) quick(array, lq, high); Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 57

58 Step By Step Analisys(Variables) Array Elements: Start Order = 12,9,4,99,120,1,3,10,13 VALUES FOR SECOND RUN OF quick() new array: {12, 9, 4, 99, 13, 1, 3, 10, 120, low = 0, high = 7 because the values are transferred from the previous run of quick() when we called quick(array, low, hq); lq = 0; hq = 7; mid = array[ ( 0+7) / 2] = array[4] = 13; array[0] = 12, mid = < 13 true lq++; array[1] = 9, mid = 13 9 < 13 true lq++; array[2] = 4, mid = 13 4 < 13 true lq++; array[3] = 99, mid = < 13 false ---- (lq = 3) public static void quick(int array[],int low, int high){ int mid, temp; int lq = low; int hq = high; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; Runs 3 times Runs 0 times array[7] = 10, mid = < 10 false ---- (hq = 7) lq = 3, hq = 7 3 <= 7 true temp = array[3]; temp = 99 array[3] = array[7]; array[3] = 10 array[7] = temp; array[7] = 99 lq++; lq = 4 hg--; hq = 6 new array: {12, 9, 4, 10, 13, 1, 3, 99, 120; if(lq <= hq){ Enters temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(lq <= hq); It s true and runs again lq = 4, hq = 6 4 < = 6 true run again if(low < hq) quick(array, low, hq); if(lq < high) quick(array, lq, high); Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 58

59 Step By Step Analisys(Variables) Array Elements: Start Order = 12,9,4,99,120,1,3,10,13 public static void quick(int array[],int low, int high){ Having from previous: lq = 4; hq = 6; mid = 13 array[ ] = {12, 9, 4, 10, 13, 1, 3, 99, 120; array[4] = 13, mid = < 13 false ---- (lq = 4) array[6] = 3, mid = < 3 false ----(hq = 6) int mid, temp; int lq = low; int hq = high; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; Runs 0 times Runs 0 times lq = 4, hq = 6 4 <= 6 true temp = array[4]; temp = 13 array[4] = array[6]; array[4] = 3 array[6] = temp; array[6] = 13 lq++; lq = 5 hq--; hq = 5 new array: {12, 9, 4, 10, 3, 1, 13, 99, 120; lq = 5, hq = 5 5 < = 5 true run again if(lq <= hq){ Enters temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(lq <= hq); It s true and runs again if(low < hq) quick(array, low, hq); if(lq < high) quick(array, lq, high); Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 59

60 Step By Step Analisys(Variables) Array Elements: Start Order = 12,9,4,99,120,1,3,10,13 public static void quick(int array[],int low, int high){ Having from previous: lq = 5; hq = 5; mid = 13 array[ ] = {12, 9, 4, 10, 3, 1, 13, 99, 120; array[5] = 1, mid = 13 1 < 13 true lq++; array[6] = 13, mid = < 13 false (lq = 6) array[5] = 1, mid = < 1 false ---- (hq = 5) lq = 6, hq = 5 6 <= 5 false new array: {12, 9, 4, 10, 3, 1, 13, 99, 120; same as before lq = 6, hq = 5 6 < = 5 false low = 0, hq = 5 0 < 5 true array[ ] = {12, 9, 4, 10, 3, 1, 13, 99, 120, low = 0, hq = 5; Now it transfers these values and the array back to the top of the algorithm. So at the next step we ll see how it s done. int mid, temp; int lq = low; int hq = high; mid = array[(low + high)/2]; do{ while(array[lq] < mid) lq++; while(mid < array[hq]) hq--; if(lq <= hq){ temp = array[lq]; array[lq] = array[hq]; array[hq] = temp; lq++; hq--; while(lq <= hq); if(low < hq) quick(array, low, hq); if(lq < high) quick(array, lq, high); Runs 1 time Runs 0 times Doesn t Enters Has run 3 times Μάθημα: Δομές Δεδομένων & Αλγόριθμοι (Εργαστήριο) Καθηγητής: Δρ. Βιδάκης Νίκος Slide 60
