ΔΕΙΓΜΑΤΟΛΗΨΙΑ - SAMPLING -

Μέγεθος: px
Εμφάνιση ξεκινά από τη σελίδα:

Download "ΔΕΙΓΜΑΤΟΛΗΨΙΑ - SAMPLING -"

Transcript

1 ΔΕΙΓΜΑΤΟΛΗΨΙΑ - SAMPLING - Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 1 Continuous Time Sinusoidal Signals It is periodic for every fixed value of F, I.e. x a (t+t p )=x a (t), where T p =1/F For distinct (different) frequencies they are themselves distinct Increasing F results in an increase in the rate of oscillation Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ

2 Discrete Time Sinusoidal Signals It is periodic only if f is a rational number Discrete-Time sinusoids whose frequencies are separated by an integer multiple of π are identical The highest rate of oscillation is attained when ω=π (or ω=-π) or f=1/ (or f=-1/) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 3 Continuous Time Sinusoidal Signals x a ( t) = A cos( Ωt + θ ), < t < where A is the amplitude Ω is the frequency in rad/sec θ is the phase in rad (Ω=πF) Discrete Time Sinusoidal Signals x ( n) = A cos( ωn + θ ), < n < where n integer variable A the amplitude ω is the frequency in rad/sample θ is the phase in rad (ω=πf) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 4

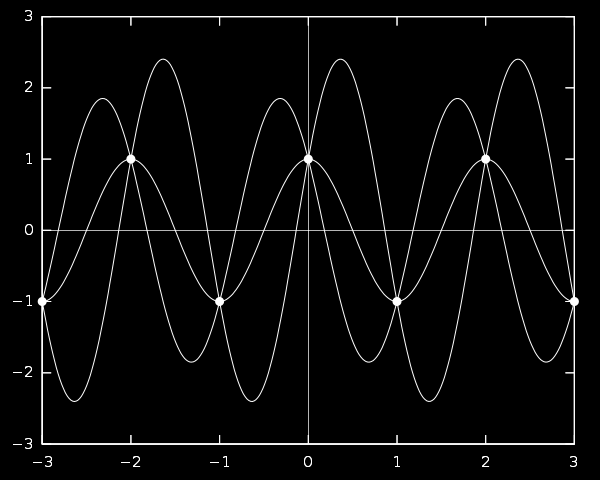

3 Discrete-time sinusoids whose frequencies are separated by an integer multiple of π are identical. Proof: Let x ( n) = A cos( ω n +θ ) Then the signal x 1 (n) of frequency ω+π is equal to x 1 ( n) = A cos[ ( ω + kπ ) n + θ ] = A cos( ωn + θ + kπn) = A cos( ωn + θ ) = = x( n) = = Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 5 Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 6

4 A Brief History of Sampling Research E.T. Whitaker devised a proof showing that a bandlimited function can be reconstructed from samples K. Ogura proved that if a function is sampled at a frequency at least twice the highest function frequency, it could be reconstructed from those samples Bell Labs engineer Harry Nyquist published an article titled Certain topics in Telegraph Transmission Theory. In this article he provided proof that for complete signal construction, the frequency bandwidth is proportional to the signaling speed, and that the highest frequency is equal to half the number of code elements per second Claude Shannon unified many aspects of sampling, founded that larger science of information theory. Harry Nyquist ( ) Claude Elwood Shannon ( ) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 7 Sampling the continuous-time (analog) sinusoid signal at a frequency of F s =1/T, we get the discrete-time signal x(n): x ( n) x ( t) x ( nt ) = A cos( πfnt + θ ) = a t= nt a = A cos πn F F S + θ = A cos = ( πfn + θ ) = A cos( ωn + θ ) i.e. f = F F S or ω = ΩT Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 8

5 ALIASING Continuous-Time Sampling Discrete-Time ( t) = A cos ( π F t +θ ) x( n) = A cos( π f0n +θ ) x a 0 x ( t) = A ( π F t +θ ) a cos where s k f = 0 F0 F where F = F + kf, k = ± 1,,... k 0 s ± Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 9 Proof: x ( n) x ( nt ) a F0 = A cos π F0 = A cos π Fs = A cos = x( n) + kf F ( πf n + θ ) 0 s s n + θ = n + θ + πkn = = Frequencies F k =F 0 +kf s cannot be distinguished from F 0 after sampling. In other words, they are aliases of F 0. This phenomenon is called aliasing or spectral overlap. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 10

6 Sampling Theorem or Nyquist Criteria or Shannon Theorem If a signal contains no frequency components above a frequency F M the signal can be uniquely represented by equally spaced samples if the sampling frequency F s is greater than twice F M, i.e. F s >F M Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 11 ALIASING Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 1

7 ALIASING Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 13 ALIASING Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 14

8 ALIASING Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 15 ALIASING Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 16

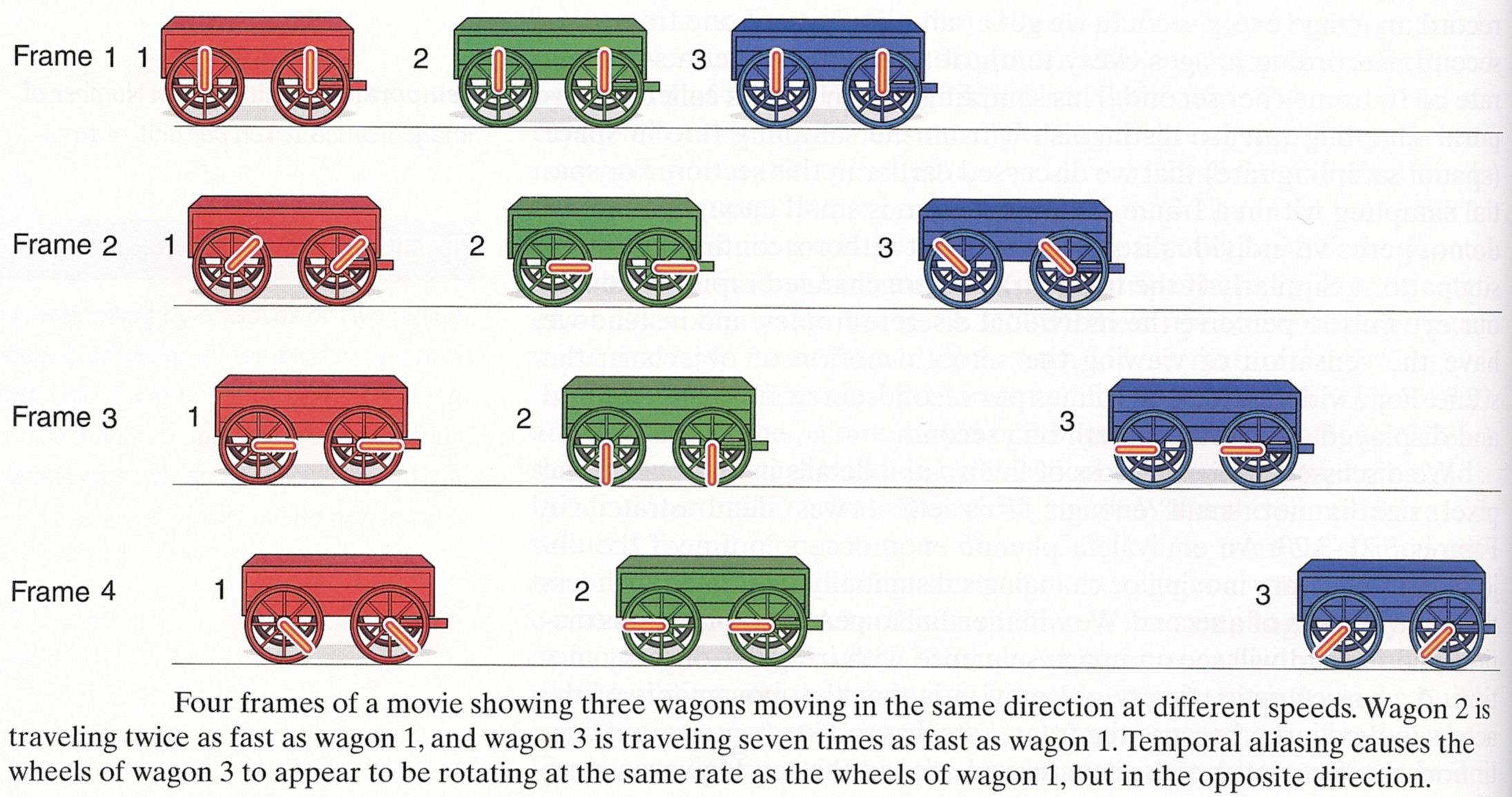

9 Aliasing example Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 17 Aliasing demos Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 18

10 Aliasing example Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 19 Aliasing demo Similar to one-dimensional discrete-time signals, images can also suffer from aliasing if the sampling resolution or pixel density, is inadequate. (Moiré pattern) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 0

11 Aliasing example Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 1 Aliasing demo Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ

12 Aliasing demo Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 3 Aliasing example x 1 8 ( t) = sin t 1 π Proof x 7 = 8 ( t) sin t π Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 4

13 In conclusion ALIASING is F k = S F0 + kf, k = ± 1, ±,... x ( n) x ( nt ) a F0 = Acos πn Fs = Acos F0 = Acos π ( πf n + θ ) 0 + kf F + θ + πkn = s s n + θ = higher frequency impersonating lower frequencies due to the sampling rate not satisfying the Nyquist sampling criteria. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 5 Aliased frequencies F 0 F k F s 0 F s F s If F k > F s / then the actual frequency obtained is given by where k is any integer F 0 = F k k F s ( < k < ) such that F s F F s 0 Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 6

14 Δειγµατοληψία στο Πεδίο του Χρόνου Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 7 Δειγµατοληψία στο Πεδίο της Συχνότητας Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 8

15 Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 9 Παράδειγµα Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 30

16 Παράδειγµα (συνέχεια) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 31 Aliasing in the Frequency Domain Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 3

17 Sampling and the Frequency Domain Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 33 Ανακατασκευή Αρχικού Σήµατος Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 34

18 Ανακατασκευή Αρχικού Σήµατος Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 35 Ανακατασκευή Αρχικού Σήµατος Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 36

19 Analog Anti-Aliasing Filter (Lowpass Filter) Analog signals must be band-limited to proper frequency before sampling, because: a. Input signal is time-limited and therefore cannot be band-limited b. Even if the signal is naturally band-limited, additive noise has a much broader spectrum than the signal. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 37 Digital to Analog Converter (DAC or D/A) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 38

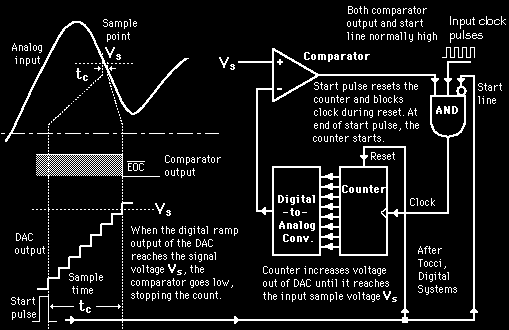

20 Analog to Digital Converter (ADC or A/D) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 39 Analog to Digital Converter (ADC or A/D) Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 40

21 Analog to Digital Conversion Stages Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 41 Quantization & Coding Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 4

22 Quantization & Coding Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 43 Quantization & Coding Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 44

23 Quantization & Coding Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 45 Quantization introduces an error which cannot be removed! The level of the error is a function of the number of bits ADC, being approx. equal to ½ of an LSB. Example: A 1-bit ADC with an input voltage range of ±10V will have a LSB of 0/ 1 V, of 4.9mV and a quantization error of.45mv For an ADC with b bits the number of quantization levels is b, and the interval between the levels, that is the quantization step size q is q = V fs V b 1 where V fs is the full-scale range of the ADC with bipolar signal inputs. fs b Quantization & Coding Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 46

24 Quantization & Coding Maximum quantization error for rounding is ± q For a sine wave input of amplitude A, the quantization step size becomes The quantization error for each sample e is assumed to be random and uniformly distributed in the interval ± q with zero mean. Thus, the quantization noise power of variance is given by q = A b σ e = q 1 Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 47 Quantization & Coding For a sine wave input, the average signal power is A /. The signal-to-quantization noise power ratio (SQNR), in decibels, is SQNR = 10log 10 A = 10log10 q = 6.0b signal power = noise power 1 = db that is, SQNR increases by 6dB for each additional bit in the wordlength. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 48

25 Quantization & Coding Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 49 Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 50

26 Appendix FREQUENCY RANCES OF SOME BIOLOGICAL SIGNALS Type of Signal Electrororetinogram a Electronystagmogram b Pneumogram c Electrocardiogram (ECG) Electroencephalogram (EEG) Electromyogram d Sphygmomanogram e Speech Frequency Range (Hz) a A graphic recording of retina characteristics. b A graphic recording of involuntary movement of the eyes. c A graphic recording of respiratory activity. d A graphic recording of muscular action, such as muscular contraction. e A recording of blood pressure. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 51 Appendix FREQUENCY RANCES OF SOME SEISMIC SIGNALS Type of Signal Wind noise Seismic exploration signals Earthquake and nuclear explosion signals Seismic noise Frequency Range (Hz) FREQUENCY RANCES OF SOME ELECTROMAGNETIC SIGNALS Type of Signal Wavelength (m) Frequency Range (Hz) Radio broadcast Shortwave radio signals Radar, satellite communications, space communications, common-carrier microwave Infrared Visible light Ultraviolet Gamma rays and x-rays x x x x x x x x x x x x x x x x Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 5

27 Appendix The need for Decibels Since one of the major uses of the frequency domain is to resolve small signals in the presence of large ones, let us now address the problem of how we can see both large and small signals on our display simultaneously. Suppose we wish to measure a distortion component that is 0.1% of the signal. If we set the fundamental to full scale on a four inch (10cm) screen, the harmonic would be only four thousandths of an inch (0.1mm) tall. Obviously, we could barely see such a signal, much less measure it accurately. Yet many analyzers are available with the ability to measure signals even smaller than this. Since we want to be able to see all the components easily at the same time, the only answer is to change our amplitude scale. A logarithmic scale would compress our large signal amplitude and expand the small ones, allowing all components to be displayed at the same time. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 53 Appendix Alexander Graham Bell discovered that the human ear responded logarithmically to power difference and invented a unit, the Bel, to help him measure the ability of people to hear. One tenth of a Bel, the decibel (db) is the most common unit used in the frequency domain today. A table of the relationship between volts, power and db is given in Figure A. From the table we can see that our 0.1% distortion component example is 60 db below the fundamental. If we had an 80 db display as in Figure B, the distortion component would occupy ¼ of the screen, not 1/1000 as in a linear display. Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 54

28 Appendix db Power Ratio db Voltage Ratio / 1/10 1/ / 1/10 1/100 db=10 log (Power Ratio)=0 log (Voltage Ratio) Figure A The relationship between decibels, power and voltage Linear Amplitude Scale -80 Figure B Small signals can be measured with a logarithmic amplitude scale Α. ΣΚΟΔΡΑΣ ΣΗΜΑΤΑ ΚΑΙ ΣΥΣΤΗΜΑΤΑ ΙΙ (Y603) ΕΝΟΤΗΤΑ 5 ΔΙΑΛΕΞΗ 1 ΔΙΑΦΑΝΕΙΑ 55

Main source: "Discrete-time systems and computer control" by Α. ΣΚΟΔΡΑΣ ΨΗΦΙΑΚΟΣ ΕΛΕΓΧΟΣ ΔΙΑΛΕΞΗ 4 ΔΙΑΦΑΝΕΙΑ 1

Main source: Discrete-time systems and computer control by Α. ΣΚΟΔΡΑΣ ΨΗΦΙΑΚΟΣ ΕΛΕΓΧΟΣ ΔΙΑΛΕΞΗ 4 ΔΙΑΦΑΝΕΙΑ 1 Main source: "Discrete-time systems and computer control" by Α. ΣΚΟΔΡΑΣ ΨΗΦΙΑΚΟΣ ΕΛΕΓΧΟΣ ΔΙΑΛΕΞΗ 4 ΔΙΑΦΑΝΕΙΑ 1 A Brief History of Sampling Research 1915 - Edmund Taylor Whittaker (1873-1956) devised a
