Intravascular Ultrasound. Kostis Raisakis General Hospital of Athens «G. Gennimatas»

Transcript

1 Intravascular Ultrasound Kostis Raisakis General Hospital of Athens «G. Gennimatas»

2

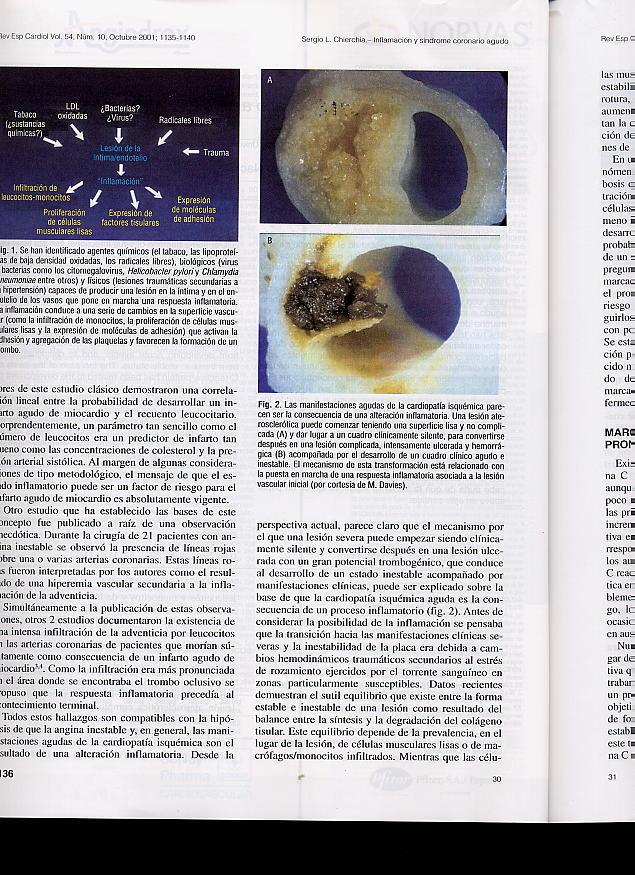

3

4

5 Intravascular Imaging: From sound to light IVUS the gold standard for evaluation of lumen dimensions and plaque morphology OCT Far superior resolution (10x), but limited penetration (<2mm) IVPA Penetration and chemical specificity

6 IVUS

7

8 Intravascular Ultrasound in PCIs IVUS Prior Stent Deployment Prognostic Value Post-PCI Complex PCI

9 Intravascular Ultrasound in PCIs IVUS Prior Stent Deployment Prognostic Value Post-PCI Complex PCI

10 Intermediate Coronary Lesions Assessment I V U S Intermediate? Coronary Lesions (40-80%) + - MLA< 4mm 2 (<6mm 2 for LM) & Plaque Burden >50% PCI Non-PCI

11 Πρώτη προοπτική πολυκεντρική µελέτη µε 350 ασθενείς (367 ενδιάµεσες στενώσεις). Καθορισµός των ορίων των ανατοµικών παραµέτρων (MLA, φορτίο πλάκας) που προκύπτουν µε IVUS VH που σχετίζονται µε το λειτουργικό κριτήριο σηµαντικότητας (FFR< 0.8.). Waksman et al. JACC, 2013

12 The FIRST Trial all RVD MLA 3.07mm 2 RVD<3mm MLA 2.68mm 2 RVD 3-3.5mm MLA 3.16mm 2 RVD >3.5mm MLA 3.74mm 2 Waksman et al. JACC, 2013

13 Συσχέτιση MLA και µήκους βλάβης Yang et al. Catheter Cardiovasc Interv. 2013

14 Plaque Burden Minimum lumen area Culprit of the culprit Proximal plaque region Blood flow

15 «landing zones»

16 Intravascular Ultrasound in PCIs IVUS Prior Stent Deployment Prognostic Value Post-PCI Complex PCI

17 Virtual Histology Tissue components of the plaque are correlated to specific colors

18 Plaque Characterization with IVUS-VH Intima thickness thick-cap fibroatheroma) thin-cap fibroatheroma Fibro-calcified Plaque

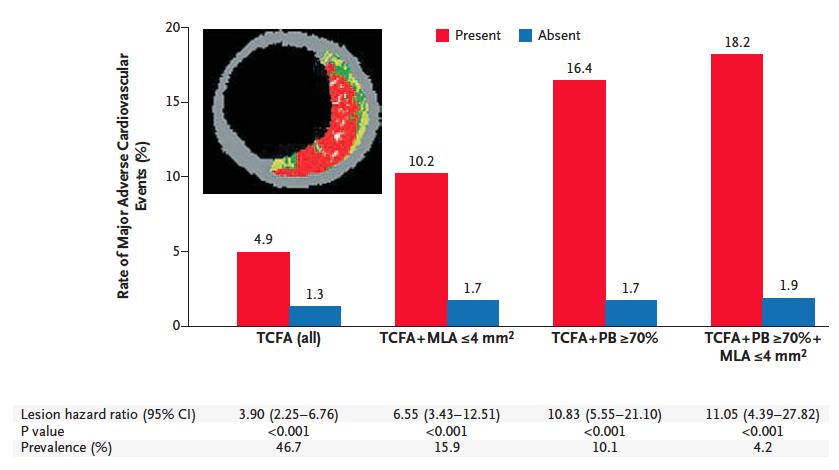

19 697 ασθενείς µε οξύ στεφανιαίο σύνδροµο υπεβλήθησαν σε CAA και IVUS-VH. Ελέγχθηκαν εκτός απ το ένοχο αγγείο και τα εγγύς 6-8cm των υπολοίπων αγγείων. Καταγράφηκαν τα µείζονα καρδιακά συµβάµατα (καρδιακός θάνατος, έµφραγµα, νοσηλείες λόγω ασταθούς στηθάγχης) στα 3 έτη. Συσχετίστηκαν µε την ένοχη ή µη αρχική βλάβη, καθώς και µε τα IVUS-VH χαρακτηριστικά της. Stone et al. N Engl J Med. 2011

20 PROSPECT Study Stone et al. N Engl J Med. 2011

21 Intravascular Ultrasound in PCIs IVUS Prior Stent Deployment Prognostic Value Post-PCI Complex PCI

22 Post-PCI Complications Geogrphic Miss Stent Crush Underexpansion Malapposition Dissection

23

24 Underexpansion

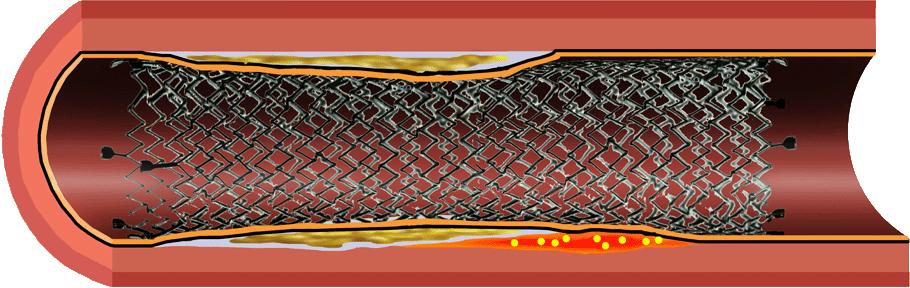

25 Malapposition

26 Stent Distal hazyness Dissection

27 IVUS Predictors of BMS Early Thrombosis & Restenosis

28 Impact of Lesion Length and Final Minimum Stent Area (MSA) on Restenosis

29 IVUS insights for BMS/DES restenosis: Therapeutic implications Mostly Subexpansion ++ Balloon Mostly Intimal growth ++ DES

30 IVUS-Guided BMS Implantation Randomized Studies

31

32 IVUS Predictors of Early DES Thrombosis & Restenosis

33

34 Song et al. Catheter Cardiovasc Interv, 2014

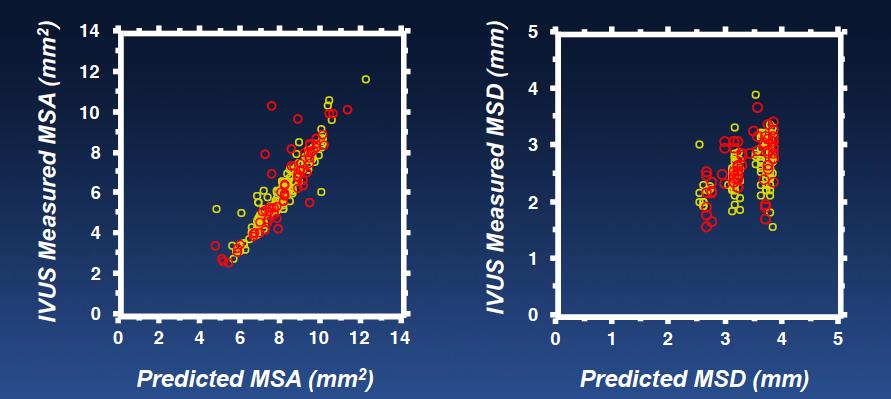

35 Manufacturer s Compliance Charts Cannot Be Used to Guarantee Adequate Stent Expansion Comparison of IVUS-measured minimum stent diameter (MSD) and minimum stent area (MSA) with the predicted measurements from Cypher in yellow, n=133) and Taxus in red, n=67). DES achieve an average of only 75% of the predicted MSD (66% of MSA) IVUS Measured MSA (mm2) IVUS Mesured MSD (mm) Predicted MSA (mm2) Predicted MSD (mm) de Rebamar Costa et al, Am J Cardiol 2005 de Rebamar Costa et al, Am Heart J 2007 He et al. Am J Cardiol 2010

36 No significant advantages of IVUS guidance More stents implanted, longer stenting, and bigger stenting. Significant increase in periprocedural enzyme elevation, reflecting more aggressive procedures performed with IVUS guidance. Park et al. Intern. Journal Cardiol. 2012

37

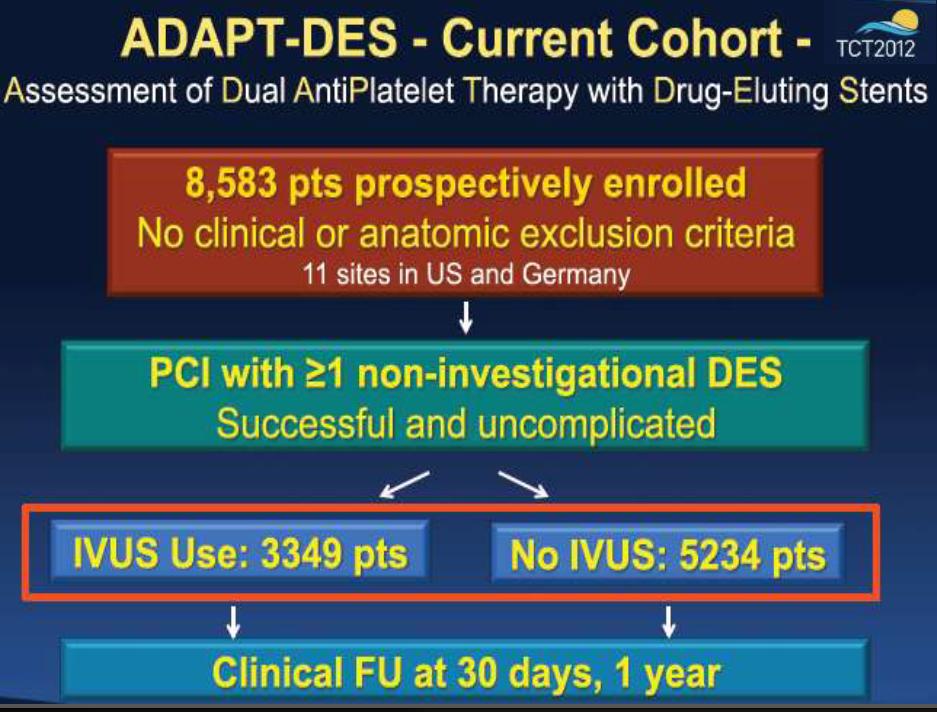

38 Witzenbichler et al. CirculaEon, 2014

39 Witzenbichler et al. CirculaEon, 2014

40 Ahn et al, Am J Cardiol 2014

41 Major Adverse Cardiovascular Events Odds Ratio and 95% CI Odds Ratio Lower limit Upper limit Z-value P value Ahn JM et al. (2013) Ahn SG et al. (2013) Chen SL et al. (2012) Chieffo A et al. (2013) Claessen BE et al. (2011) Hur SH et al. (2012) Jakabcin J et al. (2010) Kim JS et al. (2011) Kim JS et al. (2013) Kim SH et al. (2010) Park KW et al. (2012) Park SJ et al. (2009) Roy P et al. (2008) Witzenbichler B et al. (2013) Yoon YW et al. (2013) Youn YJ et al. (2011) Random Effect Model < Favors IVUS Favors CAG Ahn et al, Am J Cardiol 2014

42 Death Odds Ratio and 95% CI Odds Ratio Lower limit Upper limit Z-value P value Ahn JM et al. (2013) Ahn SG et al. (2013) Chen SL et al. (2012) Chieffo A et al. (2013) Claessen BE et al. (2011) Hur SH et al. (2012) Jakabcin J et al. (2010) Kim SH et al. (2010) Kim JS et al. (2011) Kim JS et al. (2013) Park SJ et al. (2009) Park KW et al. (2012) Roy P et al. (2008) Witzenbichler B et al. (2013) Yoon YW et al. (2013) Youn YJ et al. (2011) Random Effect Model < Favors IVUS Favors CAG Ahn et al, Am J Cardiol 2014

43 Myocardial Infarction Odds Ratio Lower limit Upper limit Z-value P value Odds Ratio and 95% CI Ahn JM et al. (2013) Ahn SG et al. (2013) Chen SL et al. (2012) Chieffo A et al. (2013) Claessen BE et al. (2011) Hur SH et al. (2012) Jakabcin J et al. (2010) Kim SH et al. (2010) Kim JS et al. (2011) Kim JS et al. (2013) Park SJ et al. (2009) Park KW et al. (2012) Roy P et al. (2008) Witzenbichler B et al. (2013) Yoon YW et al. (2013) Youn YJ et al. (2011) Random Effect Model < Favors IVUS Favors CAG Ahn et al, Am J Cardiol 2014

44 Target Vessel Revascularization Odds Ratio Lower limit Upper limit Z-value P value Odds Ratio and 95% CI Ahn JM et al. (2013) Chen SL et al. (2012) Chieffo A et al. (2013) Claessen BE et al. (2011) Hur SH et al. (2012) Kim JS et al. (2013) Park SJ et al. (2009) Park KW et al. (2012) Roy P et al. (2008) Witzenbichler B et al. (2013) Yoon YW et al. (2013) Youn YJ et al. (2011) Random Effect Model Favors IVUS Favors CAG Ahn et al, Am J Cardiol 2014

45 Definite or Probable Stent Thrombosis Odds Ratio Lower limit Upper limit Z-value P value Odds Ratio and 95% CI Ahn JM et al. (2013) Ahn SG et al. (2013) Chen SL et al. (2012) Chieffo A et al. (2013) Claessen BE et al. (2011) Hur SH et al. (2012) Jakabcin J et al. (2010) Kim SH et al. (2010) Kim JS et al. (2011) Kim JS et al. (2013) Park SJ et al. (2009) Park KW et al. (2012) Roy P et al. (2008) Witzenbichler B et al. (2013) Yoon YW et al. (2013) Youn YJ et al. (2011) Random Effect Model < Favors IVUS Favors CAG Ahn et al, Am J Cardiol 2014

46 Intravascular Ultrasound in PCIs IVUS Prior Stent Deployment Prognostic Value Post-PCI Complex PCI

47 Left Main Disease

48 FFR is more appropriate in assessing intermediate lesions Why IVUS in ambiguous LM? Limitations for FFR: -LAD and/or LCx significant disease (frequent 30-40%) -Collaterals to an occluded (sub-occluded) RCA -Inter-individual variation in hyperemic response -Gray zone IVUS provides anatomic information not possible with FFR: -Characterization of disease (LAD / LCx ostial involvement, Ca,...) -PCI final result

49

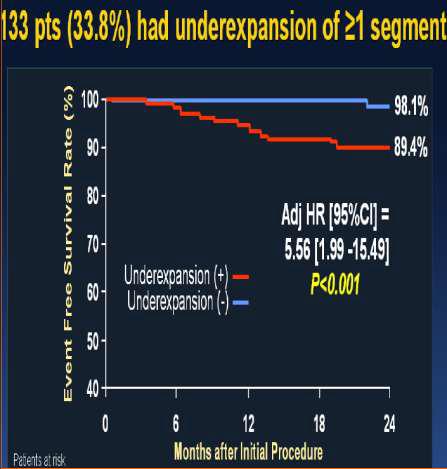

50 Park et al. JACC Cardiovasc Interv. 2014

51 Perform both pull-backs -From LAD to LM -From LCx to LM Ostial LAD MLA= 7 mm2 LAD LCx Ostial LCx MLA = 3.2 mm2

52 Kang et al. Circ Cardiovasc Interv. 2011

53 When IVUS and when FFR in basal LM assessment Preference for FFR and secondarily IVUS in: Isolated ostial or midshaft lesions in pts more appropriate candidates to CABG Preference for IVUS in: Distal-bifurcation lesions Presence of significant lesions in LAD and/or LCx Likely candidates to PCI Patients are not numbers MLA or FFR should be added to a multifactorial clinical decision process

54 Jose M de la Torre Hernandez et al. J Am Coll Cardiol Intv. 2014

55 Jose M de la Torre Hernandez et al. J Am Coll Cardiol Intv. 2014

56 Future Perspectives

57 Intravascular Photoacoustic Imaging Jansen et al. Ultrasound in Med. & Biol. 2014

58 Intravascular Photoacoustic Imaging Jansen et al. Ultrasound in Med. & Biol. 2014

59 X Κάθε PCI! IVUS

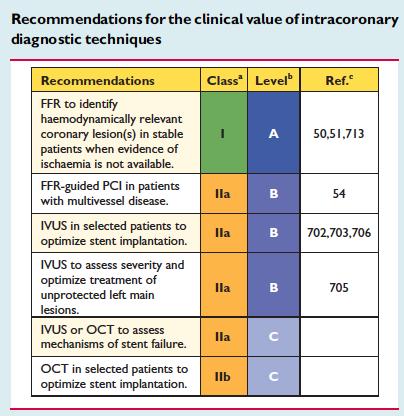

60

61 ΣΥΜΠΕΡΑΣΜΑΤΑ Πολύτιµο εργαλείο, απαραίτητο σε κάθε εργαστήριο Συµπληρώνει την ανατοµική και λειτουργική εκτίµηση του αυλού του αγγείου. Η εφαρµογή του στην προσέγγιση ενδιάµεσων βλαβών έχει απαξιωθεί στην FFR εποχή. Η χρήση του για την βελτιστοποίηση του αποτελέσµατος της PCI είναι ανεκτίµητη. Η Εφαρµογή του στην καθοδήγηση δύσκολων PCIς (LM, CTO) µπορεί να αποδειχθεί ευεργετική Οι νέες εφαρµογές ανοίγουν νέους ορίζοντες, προς το παρόν σε ερευνητικό επίπεδο
